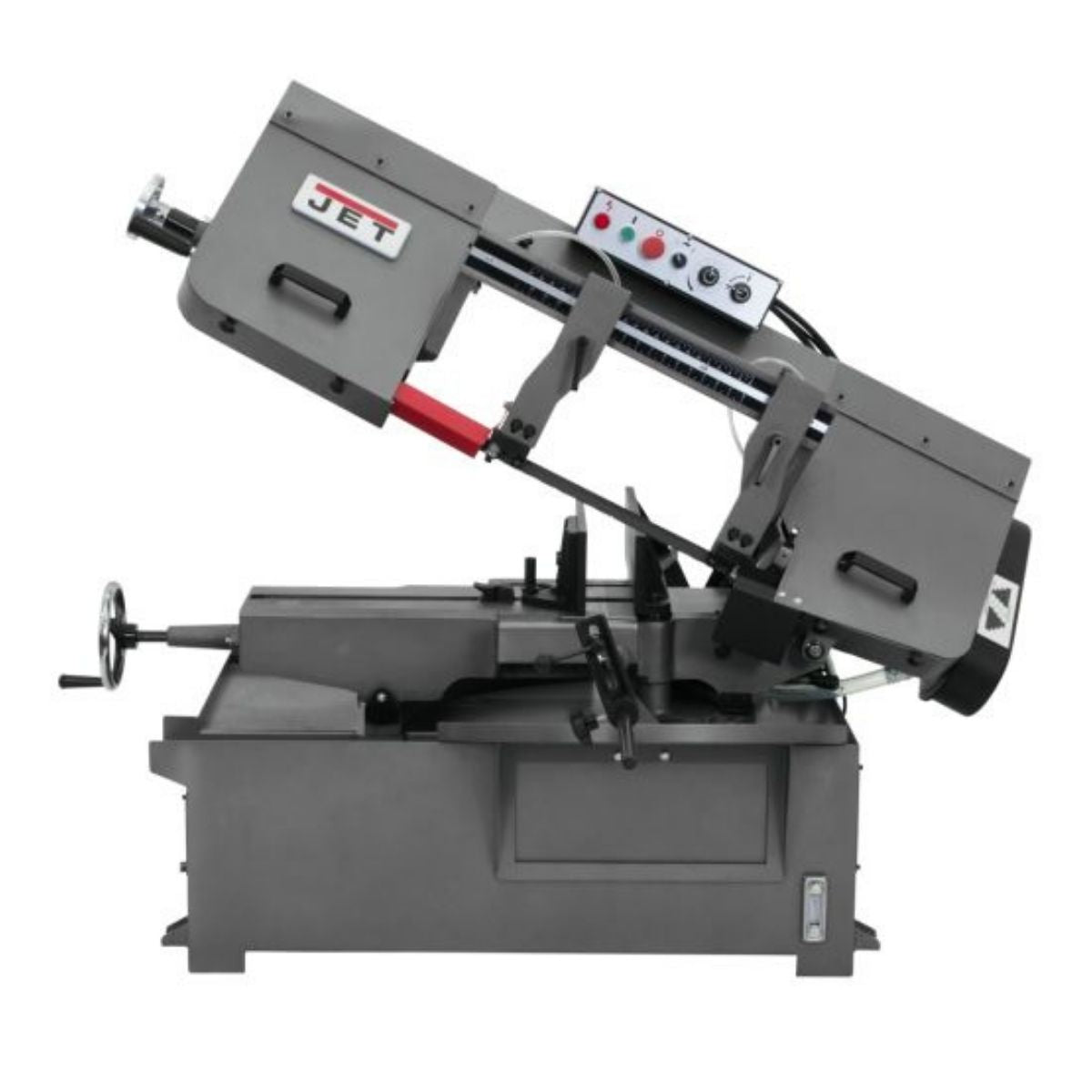

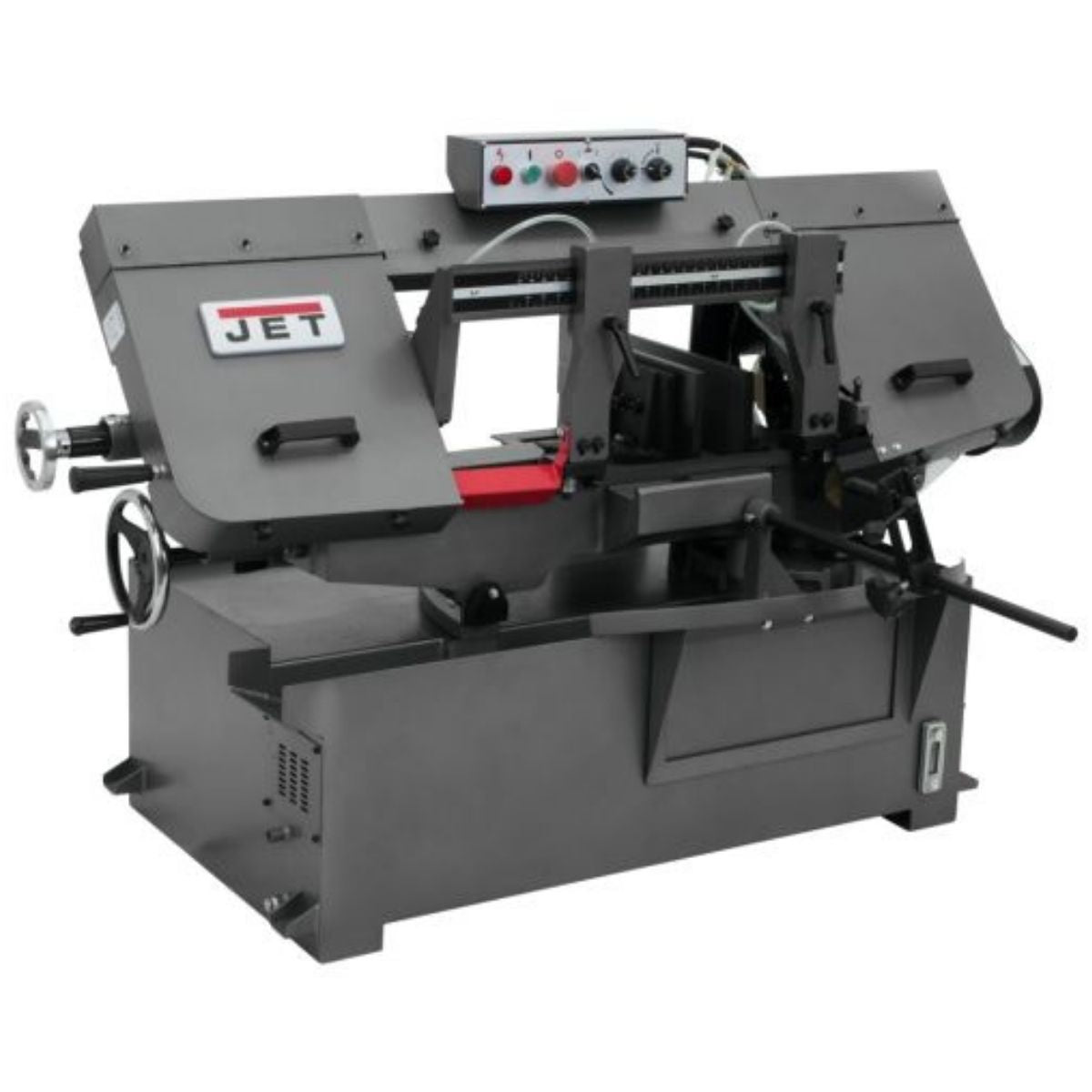

JET MBS-1014W 10" × 14" Horizontal Metal Bandsaw
Are you losing time repositioning stock every time you need a miter cut on metal in your shop?
What if your saw head swiveled to the angle while your workpiece stayed exactly where you clamped it?
Meet the JET MBS-1014W 10" × 14" Horizontal Metal Bandsaw, a mitering horizontal bandsaw built for shops that cut structural metal, bar stock, and tube on a regular basis.
With the MBS-1014W, the saw head swivels up to 45° while the base stays fixed, so your material stays secure in the vise from the first cut to the last.
When your saw holds position, feeds at a controlled rate, and keeps the blade clean and running true, you spend less time managing the machine and more time finishing the job.
JET MBS-1014W for Accurate Crosscuts and Miter Cuts in Metal

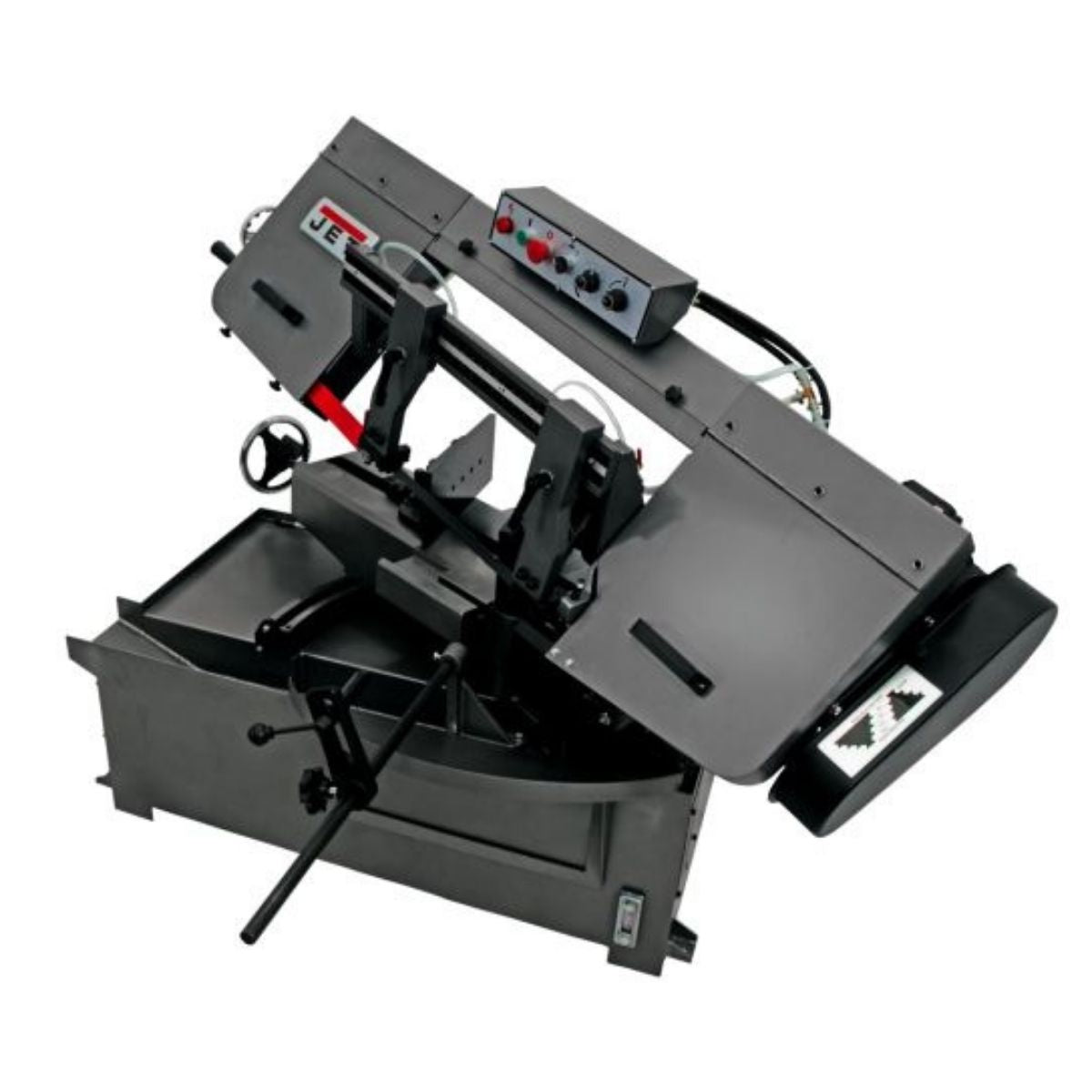

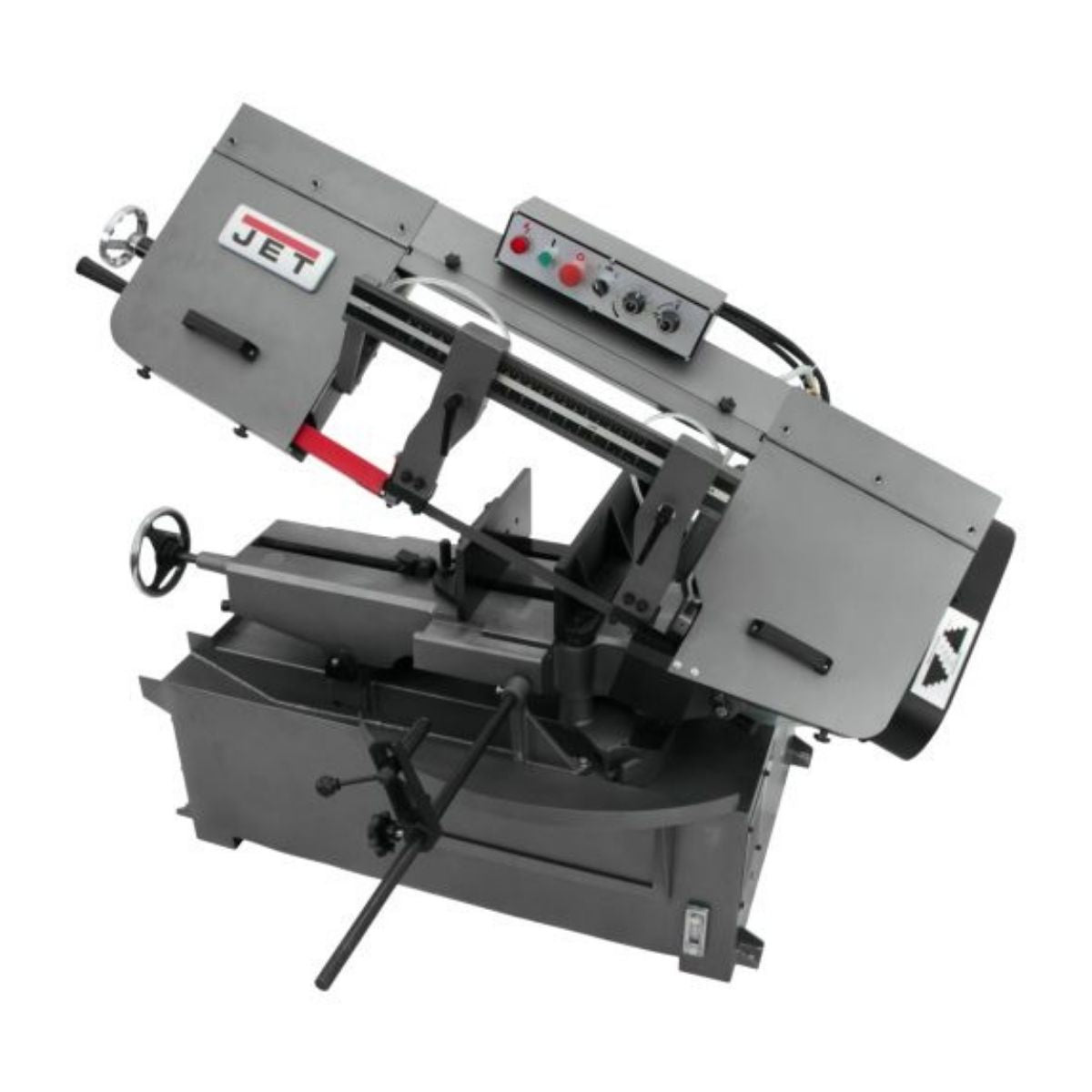

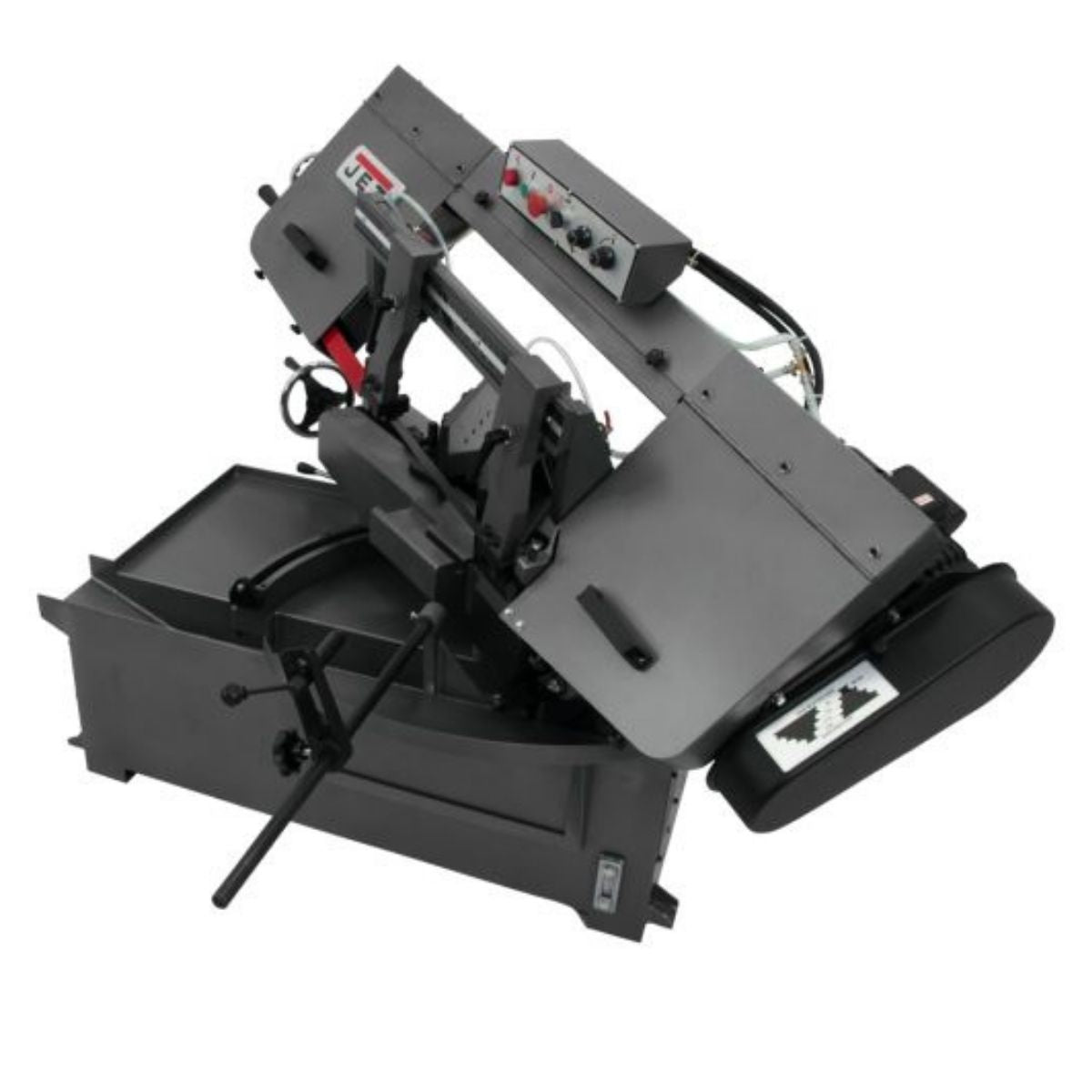

Swiveling Saw Head Keeps Stock Stationary
The MBS-1014W head rotates to any angle between 0° and 45° while the base remains in place. Your workpiece stays clamped in the vise without repositioning between cuts. This design removes a common source of setup error when cutting miters in bar stock, tube, or structural sections.
Hydraulic Downfeed Controls Cutting Pressure
A fully adjustable hydraulic downfeed system manages the rate at which the saw arm descends into the cut. A separate on/off control valve lets you stop and restart the feed without disturbing your speed setting. Consistent downfeed pressure keeps the blade loaded correctly, which extends blade life and produces cleaner cuts across different material cross sections.
Carbide Blade Guides with Roller Bearings Stabilize the Blade
Carbide blade guides with roller bearing support hold the blade in alignment through the full depth of each cut. Coolant is delivered directly through the guide assembly to the cutting zone, keeping heat under control and helping the blade maintain its edge during extended use. A self-propelled wire brush runs continuously to clear chips from the blade before they reach the guides.

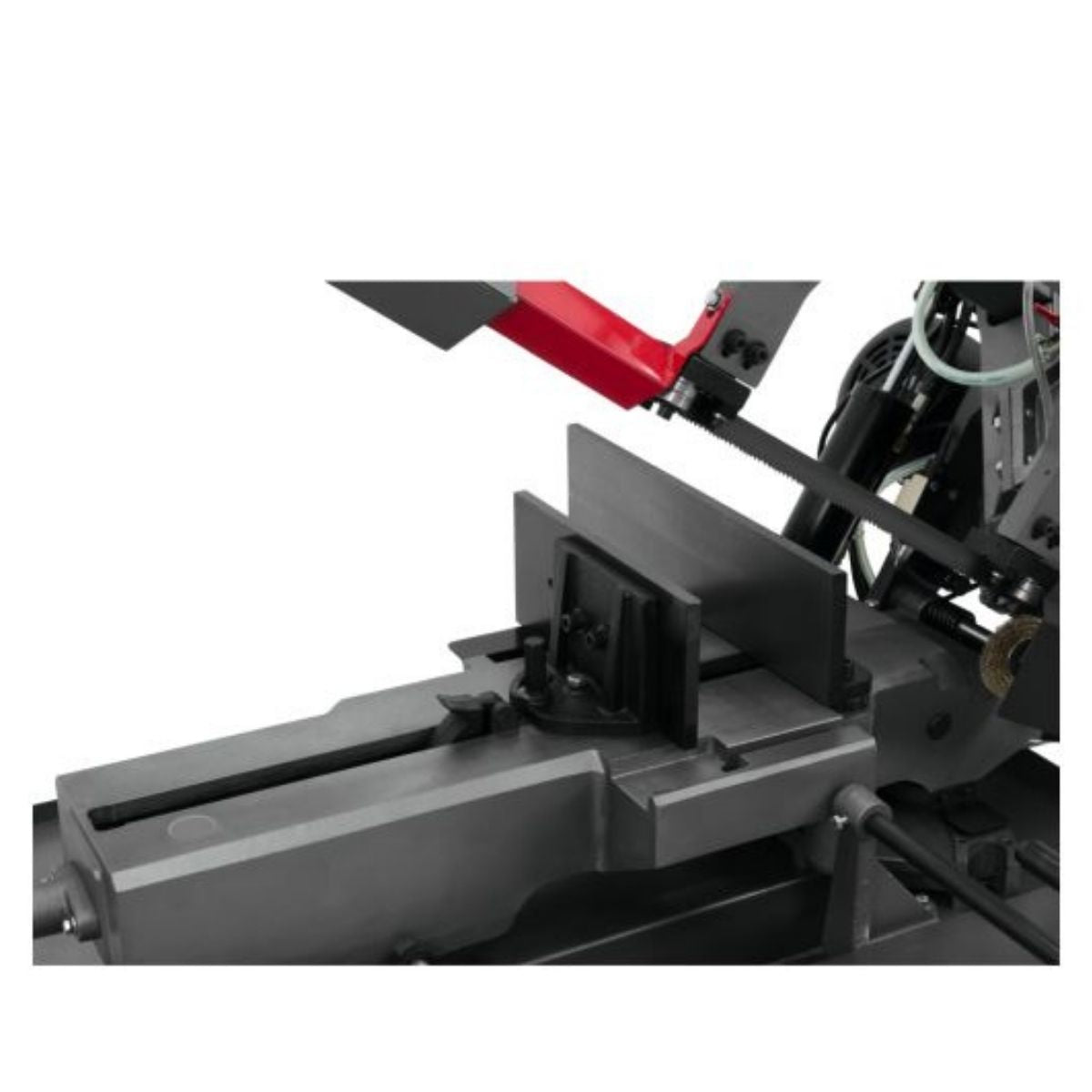

Quick-Positioning Vise Speeds Setup Between Cuts
The vise uses a rack and handwheel system that lets you slide the movable jaw quickly to rough position before tightening down for the cut. An adjustable material stop gives you a repeatable reference point when you are cutting multiple pieces to the same length. A large angle scale on the saw head lets you read and set your miter angle without guesswork.
What's Included
What's Included? JET MBS-1014W 10" × 14" Horizontal Metal Bandsaw
-
Bandsaw blade (1" × 0.035" × 130", 4/6VT) — Installed and ready for initial setup, sized for the full cutting capacity of the MBS-1014W.
-
Work stop assembly — Mounts to the saw bed and provides a fixed reference point for repeatable length cuts.
-
Operating instructions and parts manual — Covers installation, electrical connections, adjustments, maintenance, and a complete parts breakdown for the MBS-1014W.
Specs
JET MBS-1014W 10" × 14" Horizontal Metal Bandsaw Specifications
- Capacity — Round at 90°: 10"
- Capacity — Round at 45°: 9"
- Capacity — Rectangle at 90°: 10" × 14"
- Capacity — Rectangle at 45°: 9" × 8-1/2"
- Blade Provided: 1" × 0.035" × 130", 4/6VT
- Blade Wheel Diameter: 14"
- Blade Speeds: 82, 132, 210, 330 SFPM
- Throat Depth: 10-1/2"
- Head Swivels: 0°–45°
- Drive: Belt Drive
- Bed Height: 25"
- Lowered Height: 43"
- Raised Height: 73"
- Floor Space Required: 26" × 69"
- Overall Dimensions (L × W × H): 26" × 69" × 44"
- Net Weight: 948 lb
- Shipping Weight: 1,102 lb
- Warranty: 2 Years
-
MBS-1014W-1 — Stock No. JT9-414479: 2 HP, 230V, 1Ph
-
MBS-1014W-3 — Stock No. JT9-414477: 3 HP, 230/460V, 3Ph (prewired 230V)
-
MBS-1014W-3 460V — Stock No. JT9-414477-4: 3 HP, 460V, 3Ph
