JET JWS-35X5-1 5HP Industrial Shaper
Are you losing time fighting inconsistent fence setups, underpowered motors, and limited speed options that leave your shaping work rough and unpredictable?
What if you had a shaper built around fast, repeatable setups, one that lets you dial in the exact speed, torque, and spindle position your cutter demands, every single time?

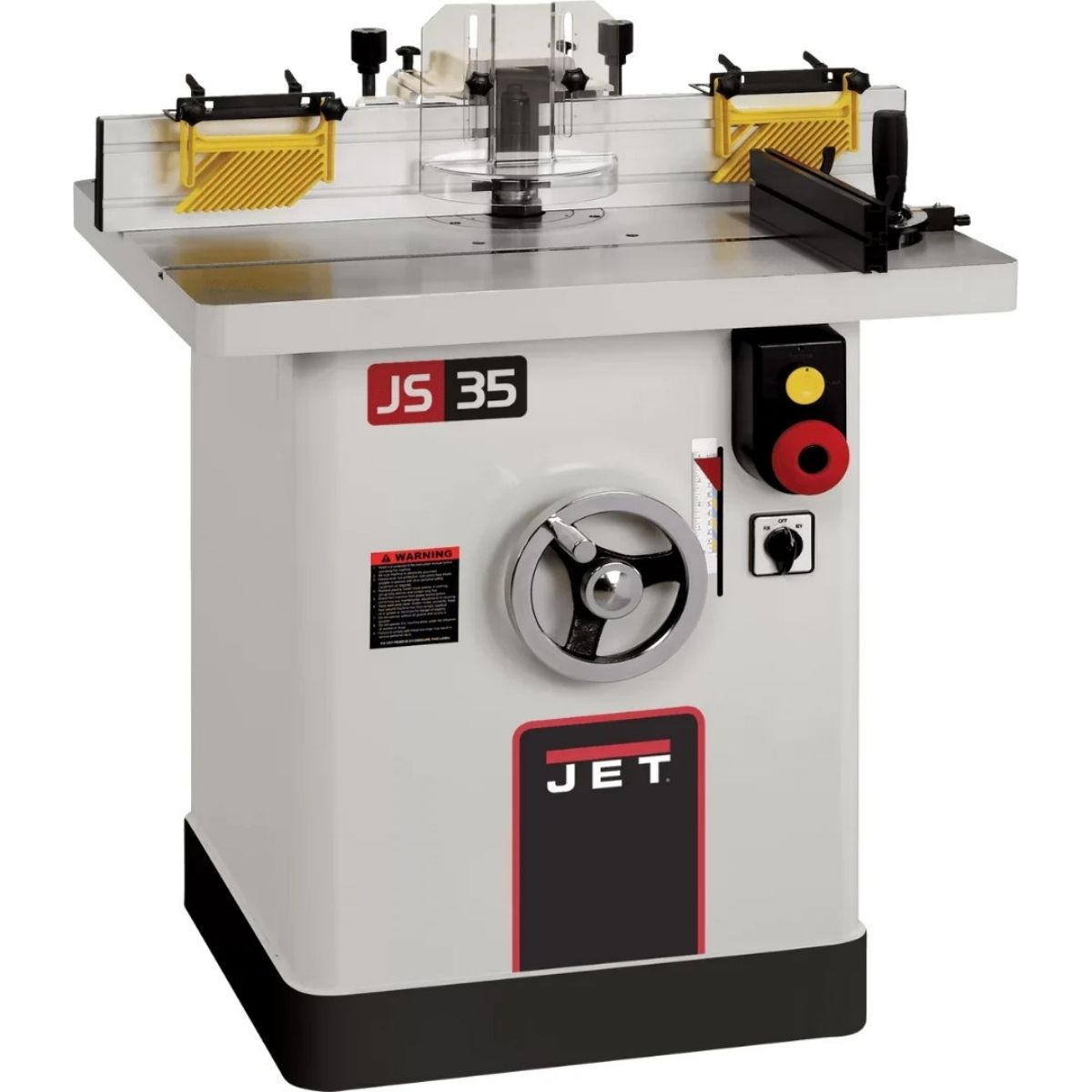

Meet the JET JWS-35X5-1, a heavy-duty 5HP industrial shaper engineered for serious production and professional shop work.
With a four-speed step pulley drive, reversible spindle, extruded aluminum fence with micro-adjust controls, and a precision-ground cast iron table, the JWS-35X5-1 is built to handle demanding shaping jobs with consistency and control.
When you step up to a machine this capable, you spend less time adjusting and more time producing, knowing every pass will come out clean, square, and exactly where you intended.
JET JWS-35X5-1 for Heavy-Duty Production Shaping Work
Four-Speed Step Pulley Drive Matches Power to the Cut
Selecting the right speed for a given cutter diameter is one of the most overlooked factors in shaping quality. The JWS-35X5-1 offers four RPM settings at 4,000, 6,000, 8,000, and 10,000, accessible via a quick-release lever, so you can match torque and speed to your cutter without guesswork. Whether you are running a large panel-raising bit at low speed or a small profile cutter at high speed, this range keeps your cuts clean and your tooling running safely.
Extruded Aluminum Fence with Micro-Adjust Controls Speeds Accurate Setup

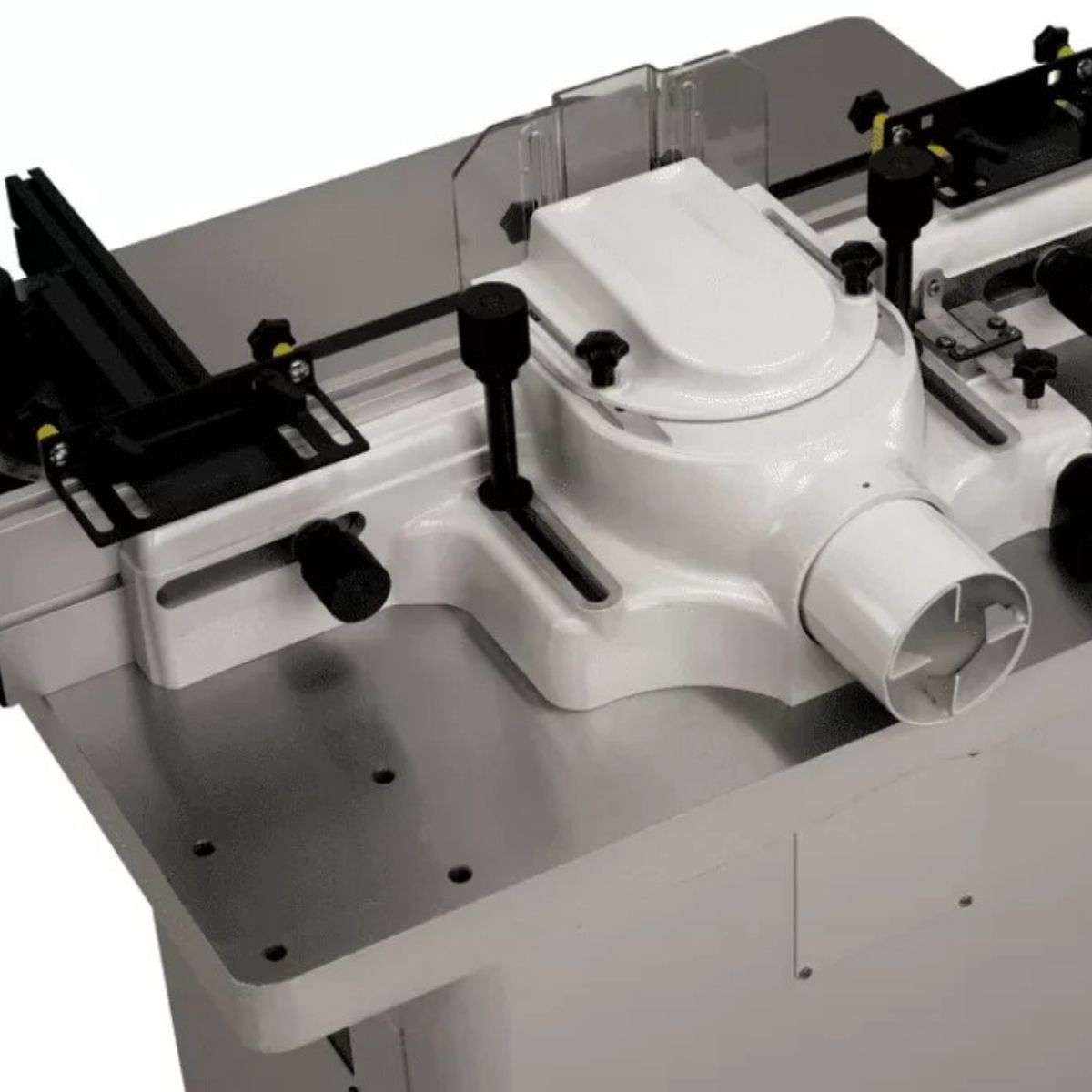

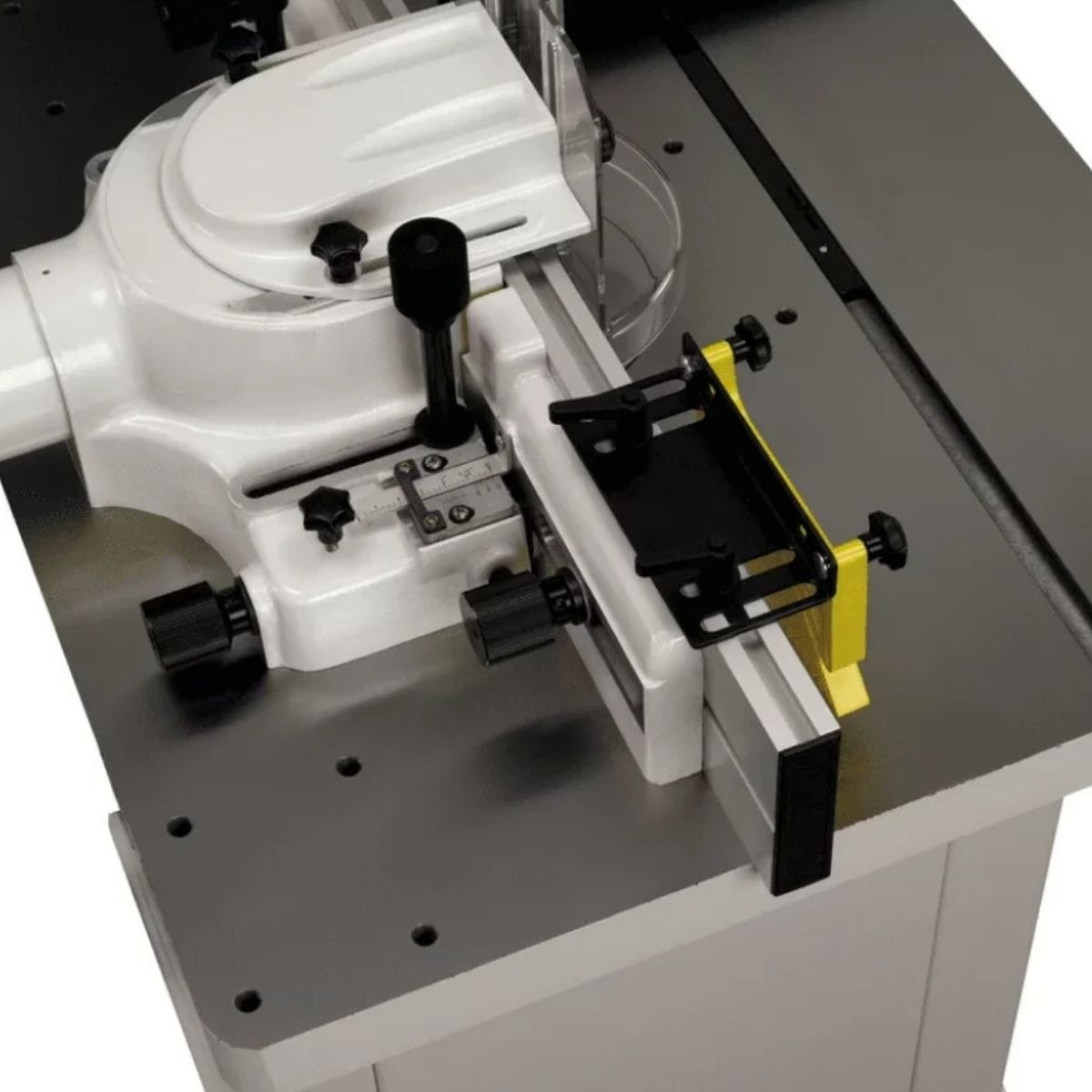

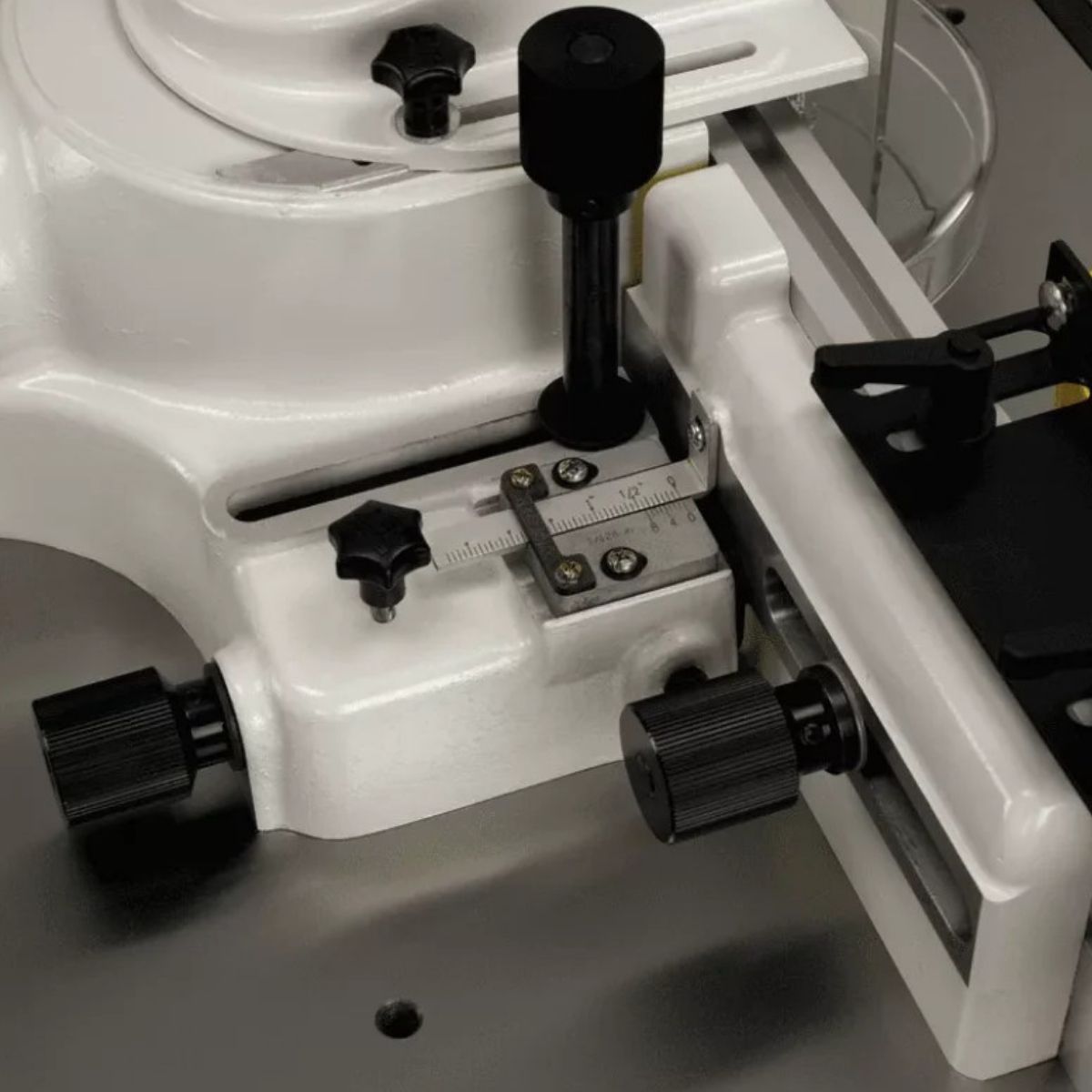

Fence positioning directly determines profile accuracy, and the JWS-35X5-1 makes it fast to get right. The independently adjustable fence halves feature micro-adjust controls for precise positioning, with T-slots and two included feather board hold-downs to keep workpieces tracking true. The integrated 4-inch dust port connects directly to your dust collection system, keeping the fence area clear so you can see your layout lines throughout the cut.
Precision-Ground Cast Iron Table Supports Large Workpieces Reliably
At 32-1/4" x 26-3/4", the table gives you a generous, stable platform for handling wide panels and long stock without tipping or flexing mid-pass. The surface is precision-ground for flatness, and the table comes pre-drilled for a power feeder, a practical feature for shops that run repetitive production profiles. The 6-19/32" table opening accommodates a full range of cutter sizes and configurations.
Reversible Spindle Expands the Range of Profiles You Can Run

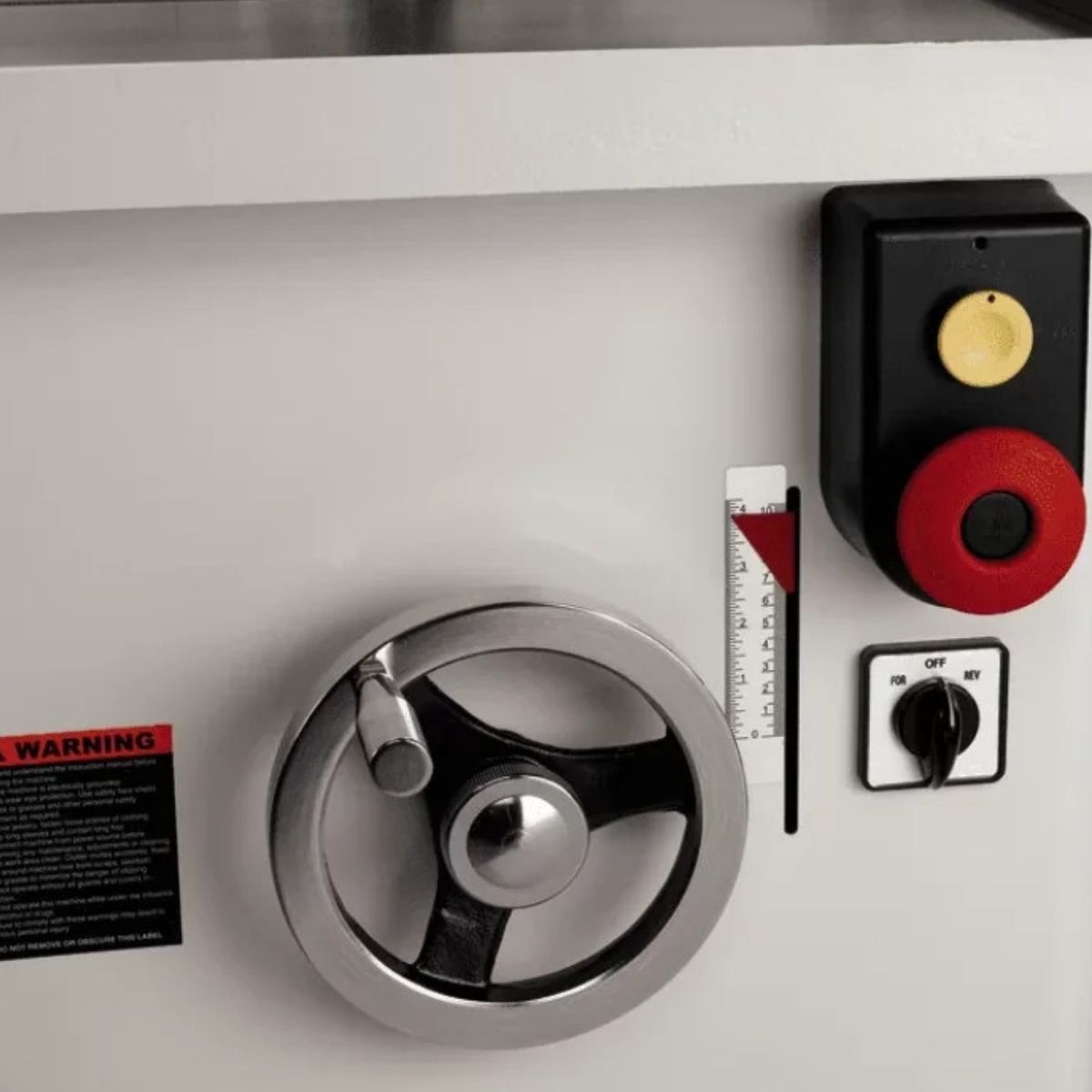

The reversible spindle accepting up to 1-1/4" diameter tooling with 4" of travel opens up profile options that a fixed-direction machine simply cannot handle. Combined with the included starting pins for irregular shaping, this machine handles curved work, template-guided profiles, and non-standard stock without requiring a second setup or separate machine. Power transfer is handled by a Poly-V-belt for smooth, consistent delivery from the 5HP, 230V motor to the spindle.
What's Included
What's Included? JET JWS-35X5-1 Industrial Shaper
-
JET JWS-35X5-1 Shaper (5HP, 1Ph, 230V) – Fully assembled with motor, step pulley drive, reversible spindle, and cast iron table.
-
Extruded Aluminum Fence – Features independent micro-adjust controls, T-slots, and a built-in 4" dust port for hookup to dust collection.
-
Two Feather Board Hold-Downs – Mount to the fence T-slots to keep workpieces securely registered against the fence during the cut.
-
Starting Pins – Used for free-hand and template-guided irregular shaping work where a fence is not practical.
-
Two Table Inserts – Fill the table opening around cutter assemblies of different sizes to support the workpiece close to the tooling.
Specs
JET JWS-35X5-1 Specifications
-
Stock Number: JT9-708326
-
Model Number: JWS-35X5-1
-
Motor Power: 5HP, 1-Phase
-
Motor Voltage: 230V
-
Prewired Voltage: 230V
-
Motor Amps: 17A
-
Spindle Speeds (RPM): 4,000 / 6,000 / 8,000 / 10,000
-
Maximum Spindle Diameter: 1-1/4"
-
Spindle Size Under Nut: 4"
-
Spindle Travel: 4"
-
Table Size (L x W): 32-1/4" x 26-3/4"
-
Table Height from Floor: 33-1/4"
-
Table Opening Diameter: 6-19/32"
-
Table Inserts Included: 2
-
Dust Port Outside Diameter: 4"
-
Dust Collection Minimum CFM Required: 600 CFM
-
Net Weight: 473 lbs
-
Gross Weight: 550 lbs
-
Warranty: 5 Years
