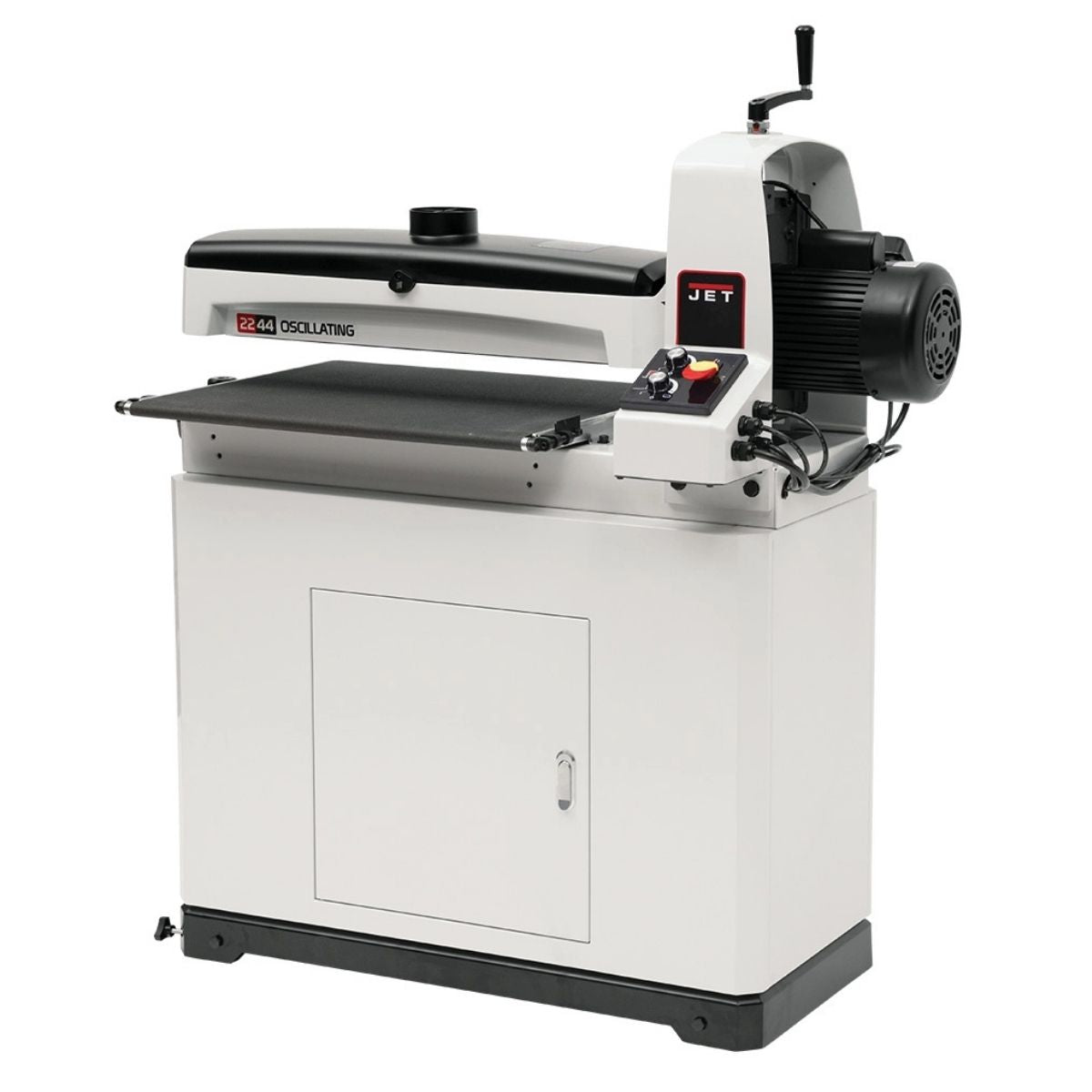

JET 22-44 Oscillating Drum Sander, JWDS-2244OSC Oscillating Drum Sander With Closed Stand
Are you dealing with burn marks, uneven sanding, or inconsistent finishes on wide panels and glued workpieces?
What if you could achieve a smooth, consistent surface while reducing heat buildup and abrasive wear during sanding?
Meet the JET JWDS-2244OSC Oscillating Drum Sander with Closed Stand, designed for controlled, even sanding across wider stock.
With an oscillating drum, sander with closed stand, it maintains consistent sanding under load.
When feed rate stays balanced and scratch patterns are minimized, your work comes off the sander cleaner and closer to final finish.
JET JWDS-2244OSC for Wide Panel Sanding Work
Oscillating Drum Motion Reduces Heat and Loading
The oscillating drum moves side to side during operation, spreading abrasive contact across the workpiece. This reduces heat buildup that can cause burning or loading on the sanding belt. The motion also helps extend abrasive life, keeping sanding performance consistent over longer runs.

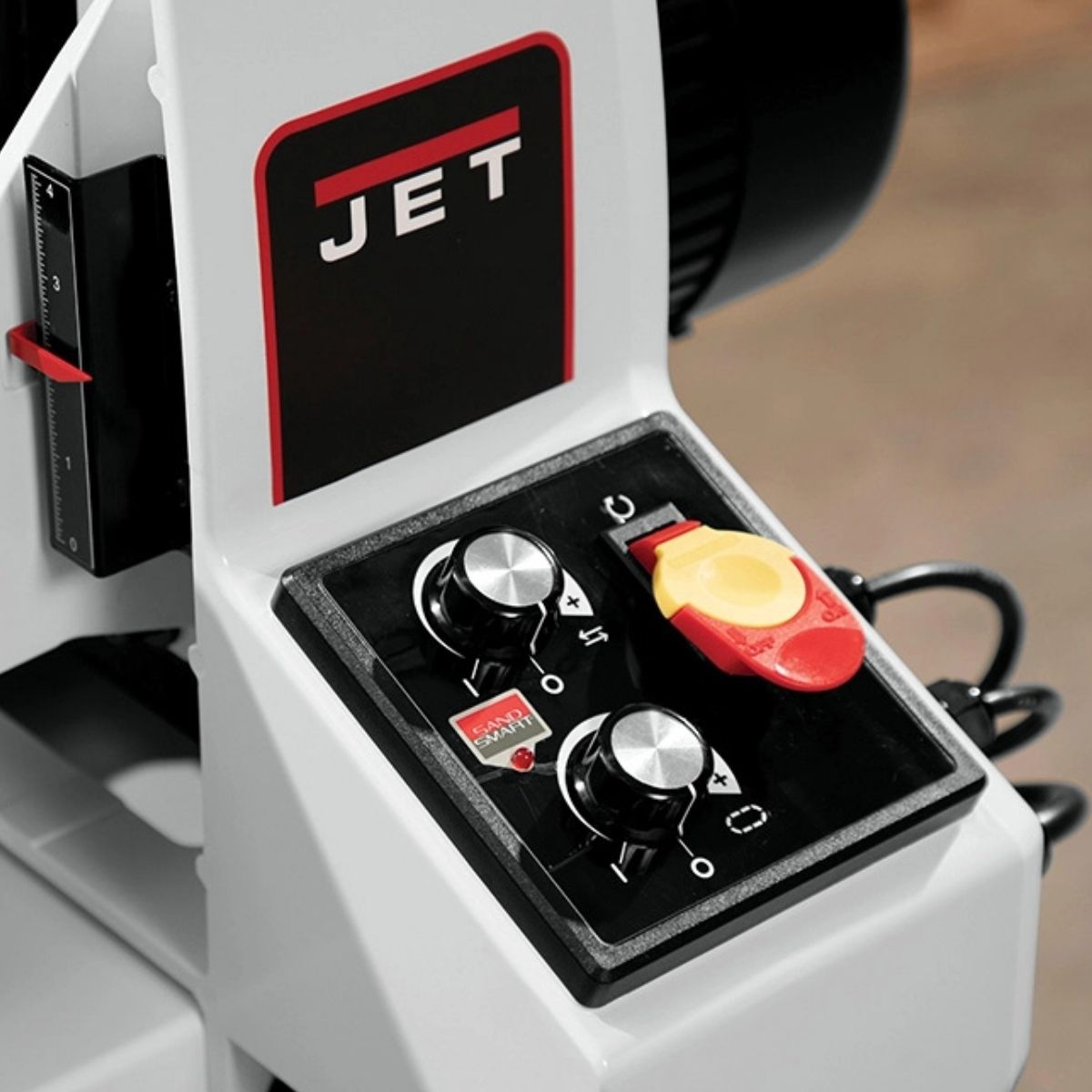

Sandsmart™ Conveyor System Maintains Feed Control
The Sandsmart™ system continuously monitors motor load and automatically adjusts feed rate. This prevents overloading and keeps the sanding process steady. It allows the operator to focus on workflow instead of constantly adjusting feed speed.

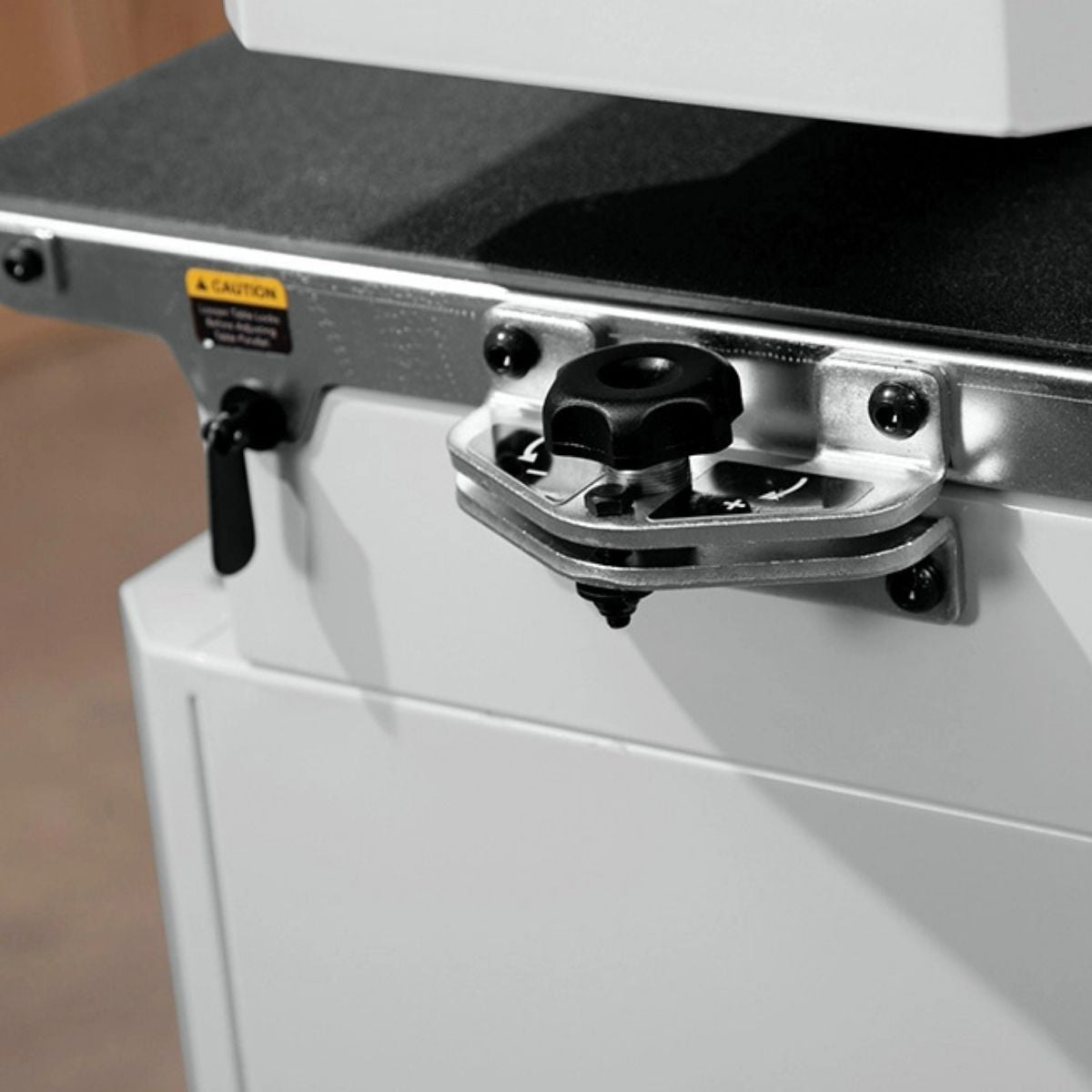

Parallelism Dial Simplifies Table Adjustment
The tool-less parallelism system allows quick and accurate alignment of the worktable. A simple turn of the dial adjusts the table position without complex setups. This helps maintain even sanding thickness across the full width of the workpiece.
Precision Drum Design Improves Surface Consistency
The extruded aluminum drum is dynamically balanced and designed to dissipate heat efficiently. Its stable construction supports uniform sanding pressure across the surface. This results in more consistent finishes, especially on wider panels.




What’s Included
What’s Included? JET JWDS-2244OSC Oscillating Drum Sander
- JWDS-2244OSC Drum Sander – Main sanding unit designed for wide panel surface finishing.

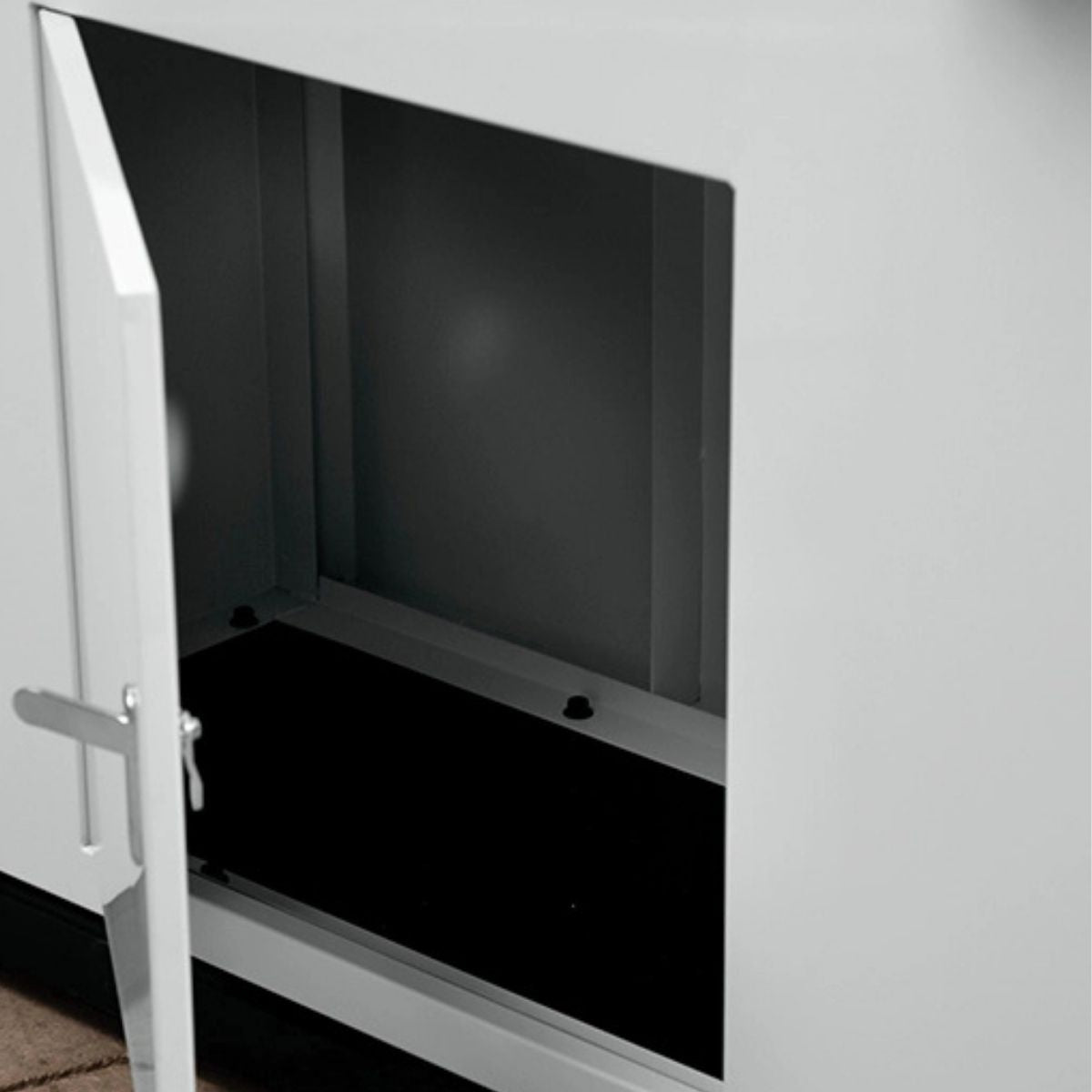

- Closed Stand with Storage – Provides a stable base and enclosed space for tool storage.
- Integrated Conveyor System – Feeds workpieces through the drum for consistent sanding passes.
- Dust Hood with 4" Port – Supports dust extraction to keep the work surface clear.
Specs
JET JWDS-2244OSC Specifications
- Stock Number: JT9-723544OSCK
- Model Number: JWDS-2244OSC
- Drum Diameter: 5"
- Dust Port Diameter: 4"
- Maximum Board Thickness: 4"
- Minimum Board Thickness: 1/32"
- Minimum Board Length: 2-3/8"
- Motor Power: 1-3/4 HP
- Motor Amps: 15
- Recommended Circuit Size: 20 Amps
- Oscillation Stroke: 3/4"
- Variable Feed Rate: Up to 10 FPM
- Net Weight: 279 lbs
- Gross Weight: 311 lbs
- Warranty: 5 Year
