JET JTM-949EVS for Accurate, Repeatable Vertical Milling

Meehanite Cast Column and Base Holds the Machine Rigid Under Load

The column and base on the JTM-949EVS are cast using the certified Meehanite process, which produces a dense, stable casting that resists flex during heavy cuts. This matters most when you are taking deep passes or pushing larger end mills through hard material. A rigid base keeps the spindle in alignment and reduces chatter so the cut comes out clean from start to finish.

Class 7 Spindle Bearings Maintain Accuracy in Heavy Cutting

Class 7 spindle bearings are rated for the higher speeds and side loads that come with milling work. They support the spindle with less runout, which translates directly to surface quality and dimensional accuracy on the part. The spindle head is also internally cooled, which keeps bearing and belt temperatures in check during extended runs and helps both last longer between service intervals.

Turcite-B Way Coating Reduces Vibration on X and Y Travel

The X and Y-axis ways are coated with Turcite-B, a low-friction material that dampens vibration as the table moves. You get a smoother feel during hand cranking and less surface roughness on the finished part. The 9" × 49" table offers 36" of longitudinal travel and 12-5/8" of cross travel, with hardened and precision-ground surfaces rated to 54 HRC for long-term wear resistance.

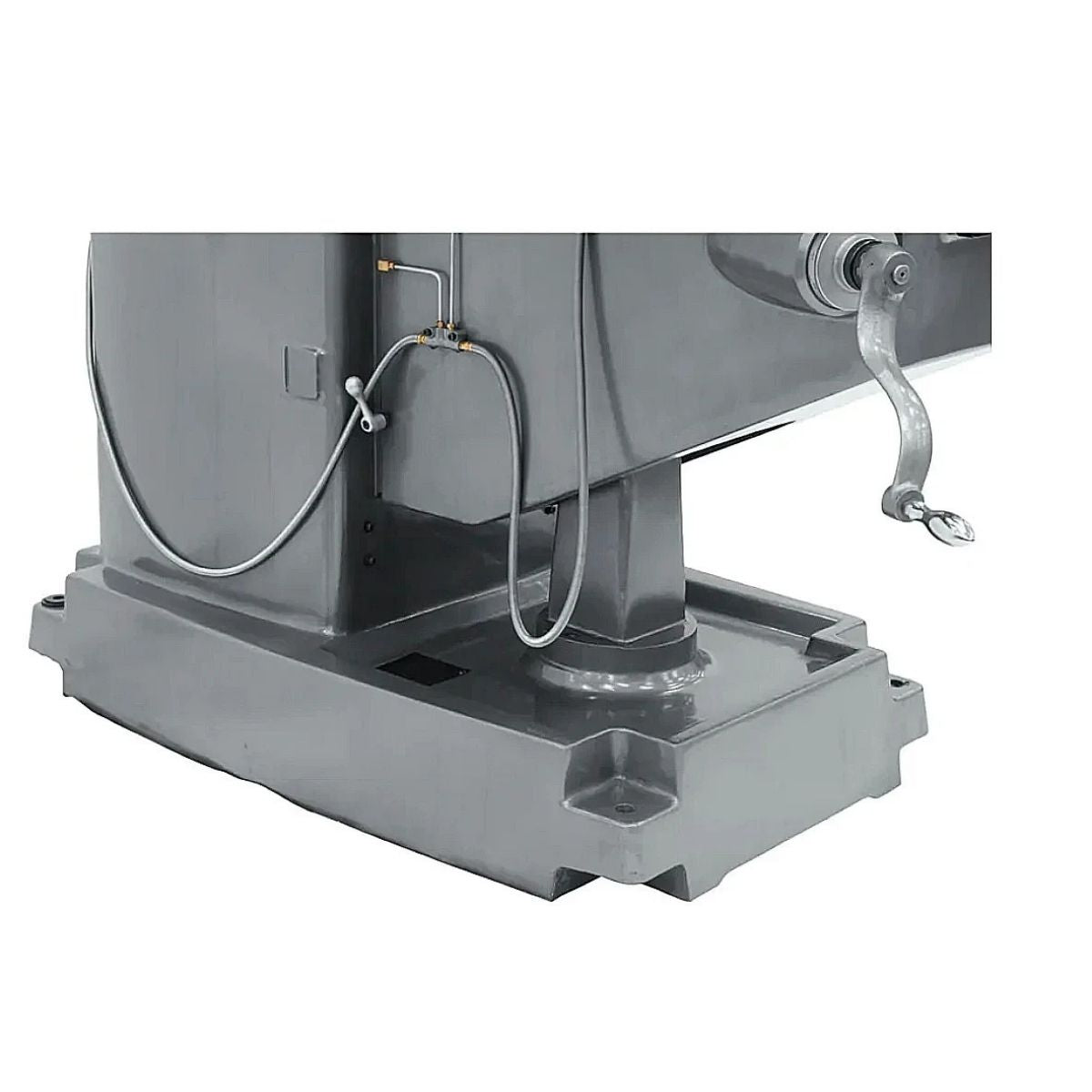

Automatic Oiler Keeps Way Lubrication on Schedule

The automatic oiler delivers 3 to 6 cc of lubrication every 30 minutes without any action required from the operator. Way lubrication is easy to neglect during a busy session, and skipping it leads to wear that shows up gradually in fit and surface quality. This system keeps the schedule on its own so the ways stay protected through long jobs and short ones alike.

What's Included

What's Included? JET JTM-949EVS

• JET JTM-949EVS Vertical Knee Mill — the base machine with electronic variable speed drive, Meehanite-cast column, and 9" × 49" hardened table, ready for shop use at 230V, 3-phase.

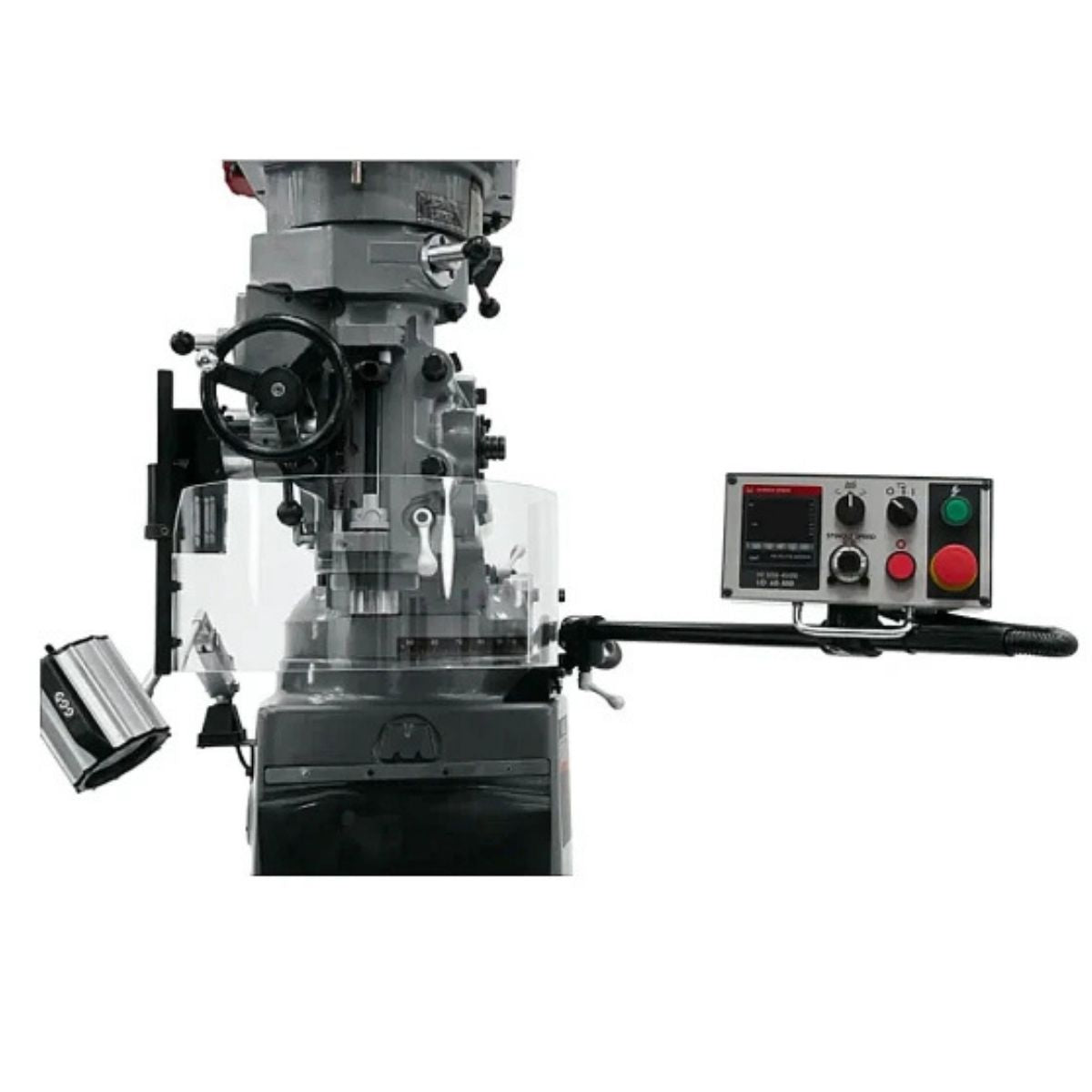

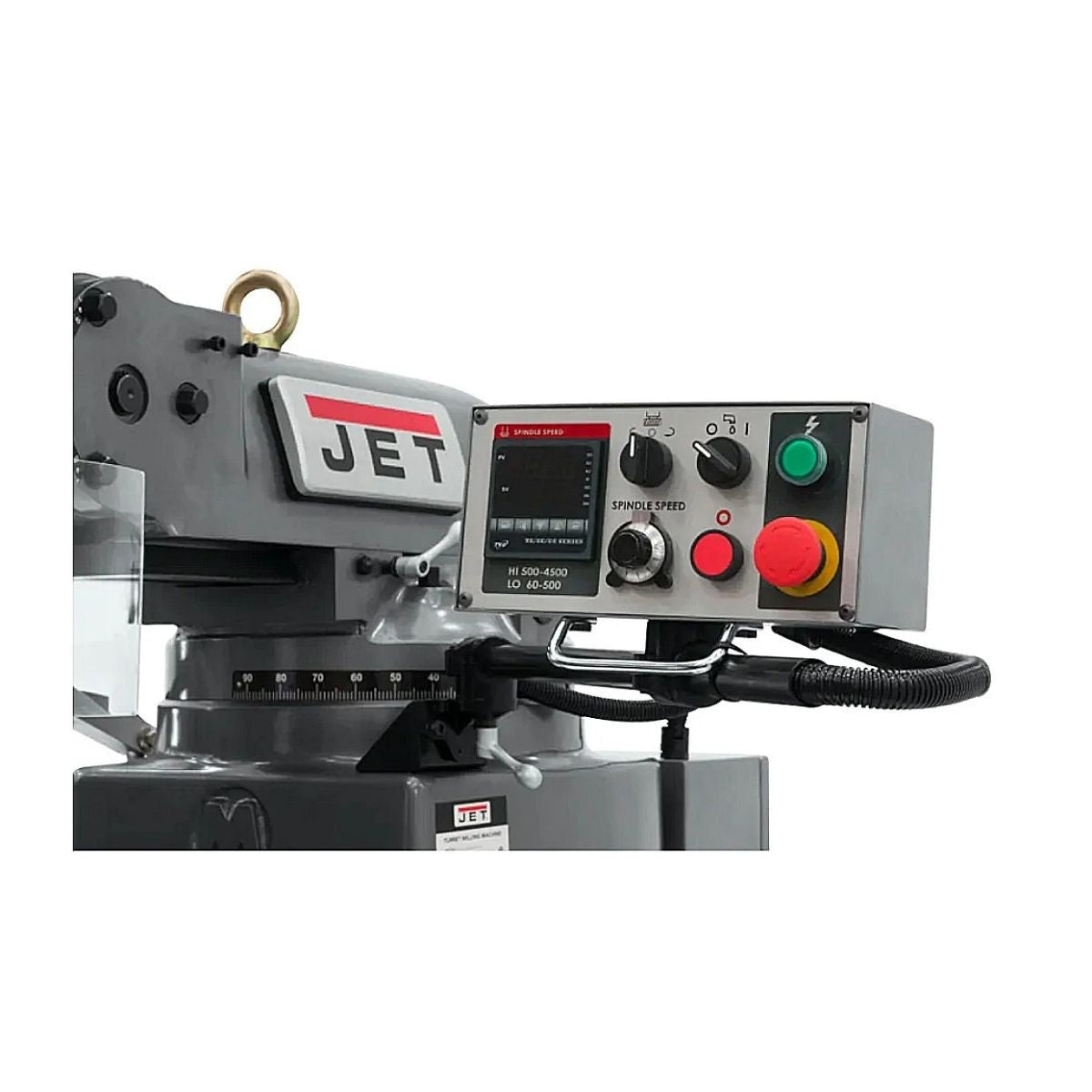

• Swing-Away Control Box — positions the e-stop and all operating controls within reach at the table so you can respond quickly without stepping away from the work.
• Swing-Away Safety Shield — provides operator protection at the spindle and moves clear when you need full access to the work area.

Specs

JET JTM-949EVS 9" × 49" Electronic Variable Speed Vertical Milling Machine Specifications

Available Configurations

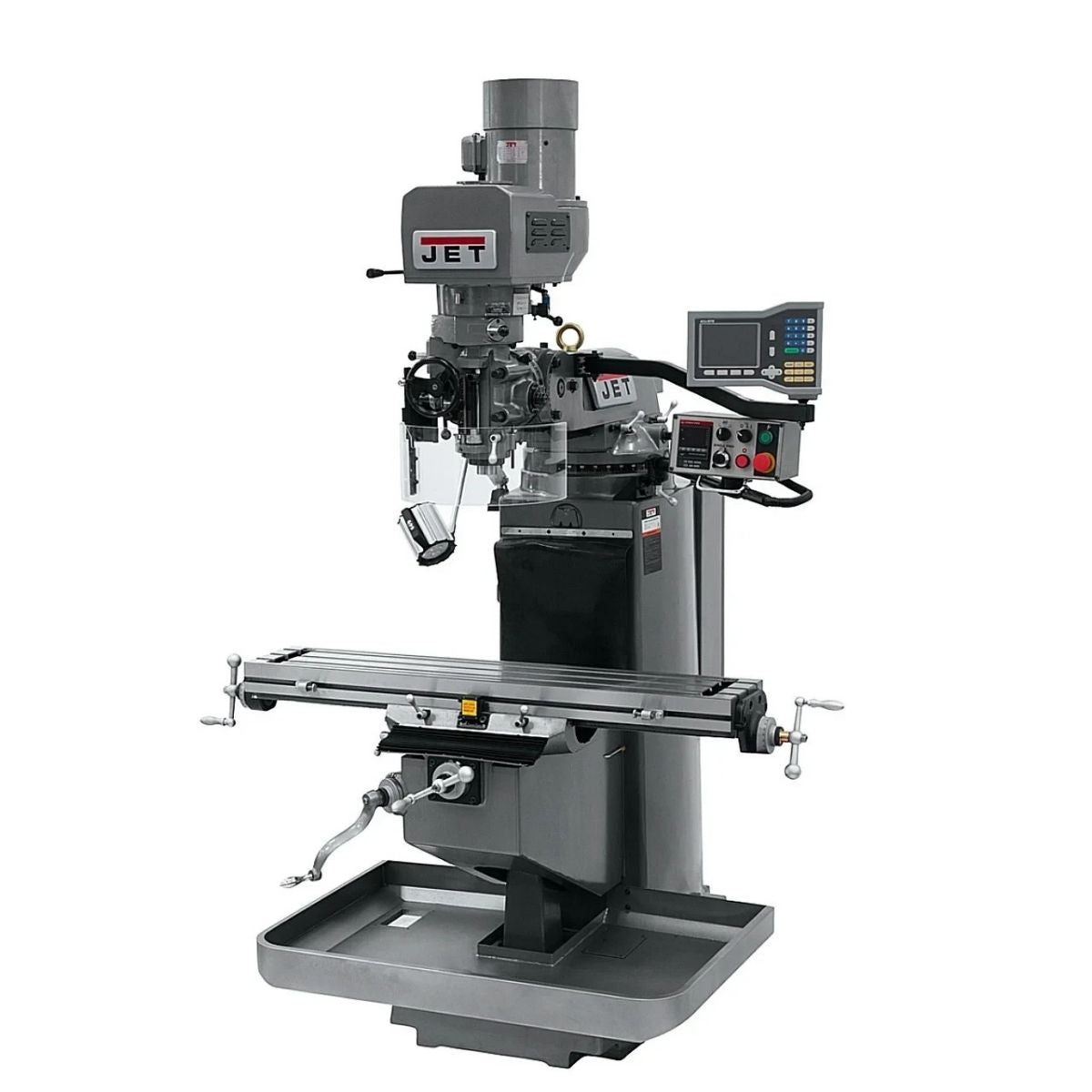

• JT9-691500 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM

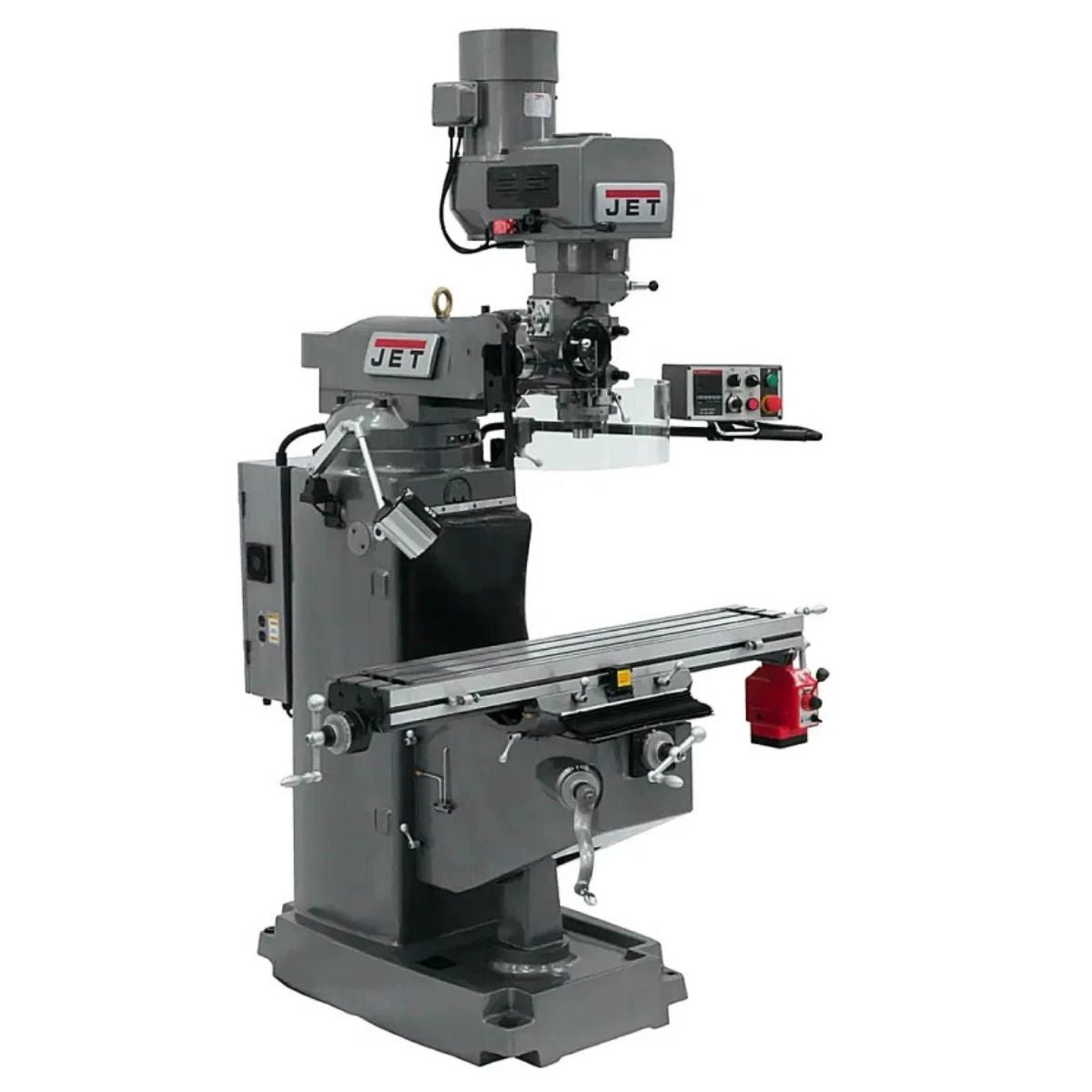

• JT9-690501 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X-Axis Powerfeed

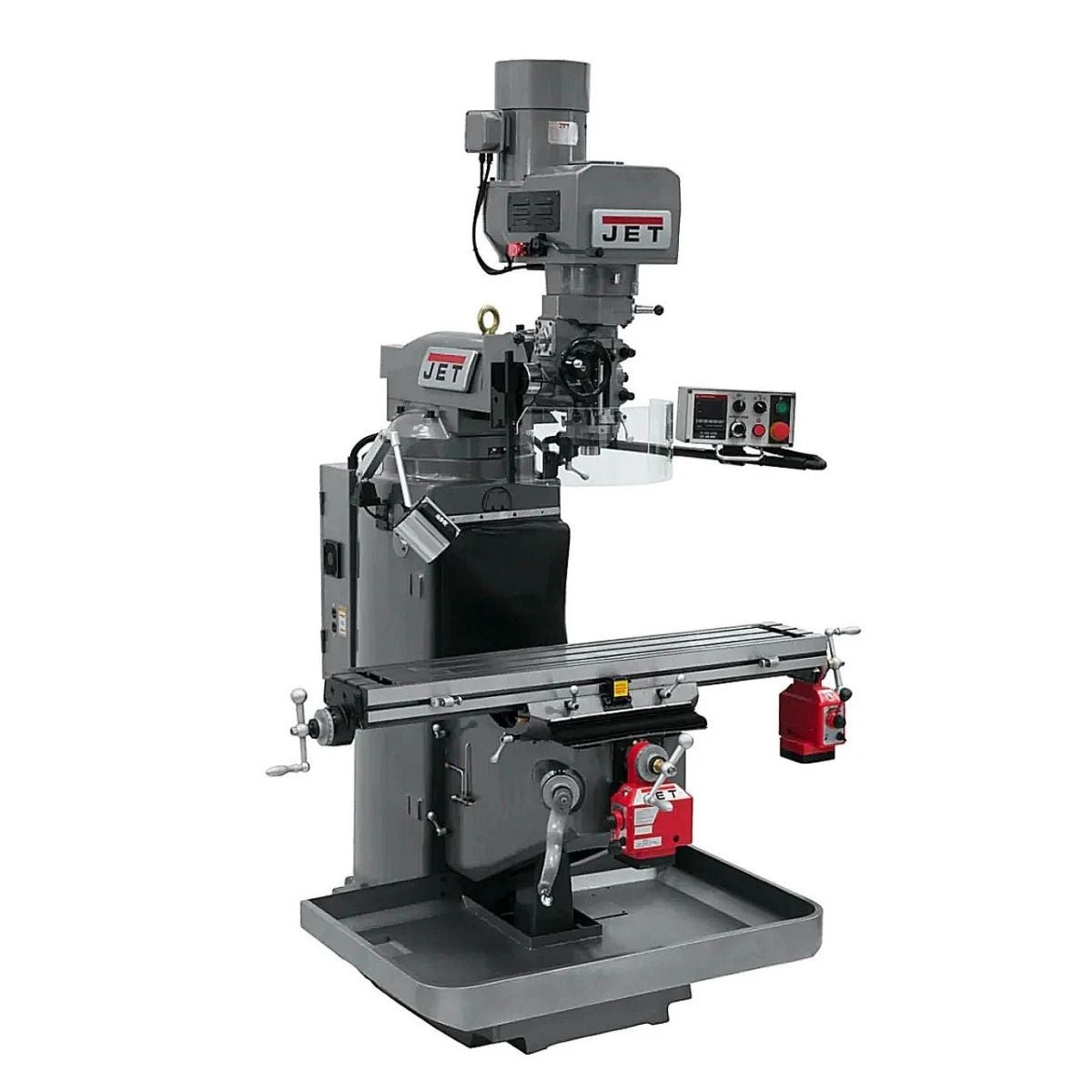

• JT9-690503 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X and Y-Axis Powerfeeds

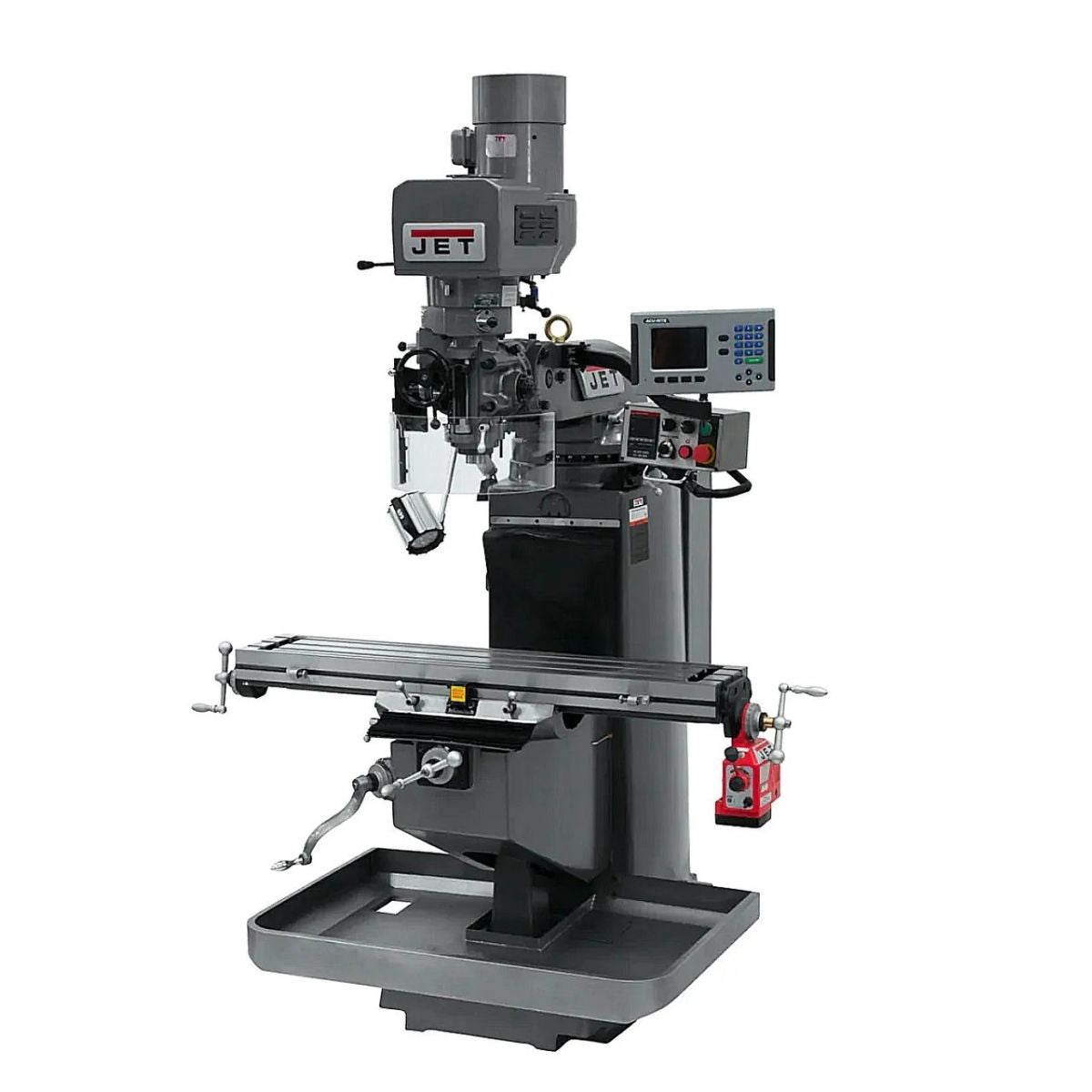

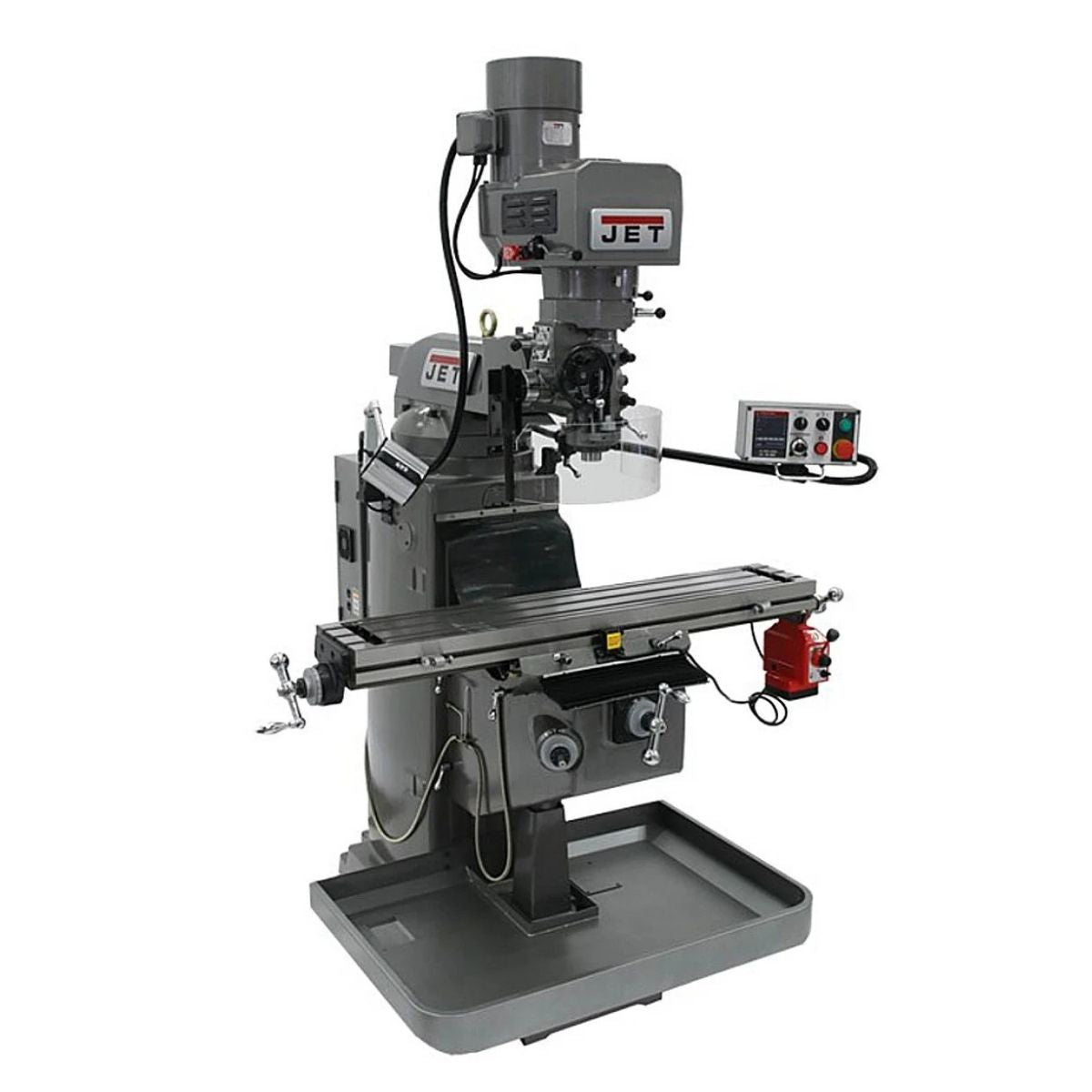

• JT9-690504 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X, Y and Z-Axis Powerfeeds
• JT9-690525 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X-Axis Powerfeed | 3-Axis Acu-Rite 203 DRO (Knee)

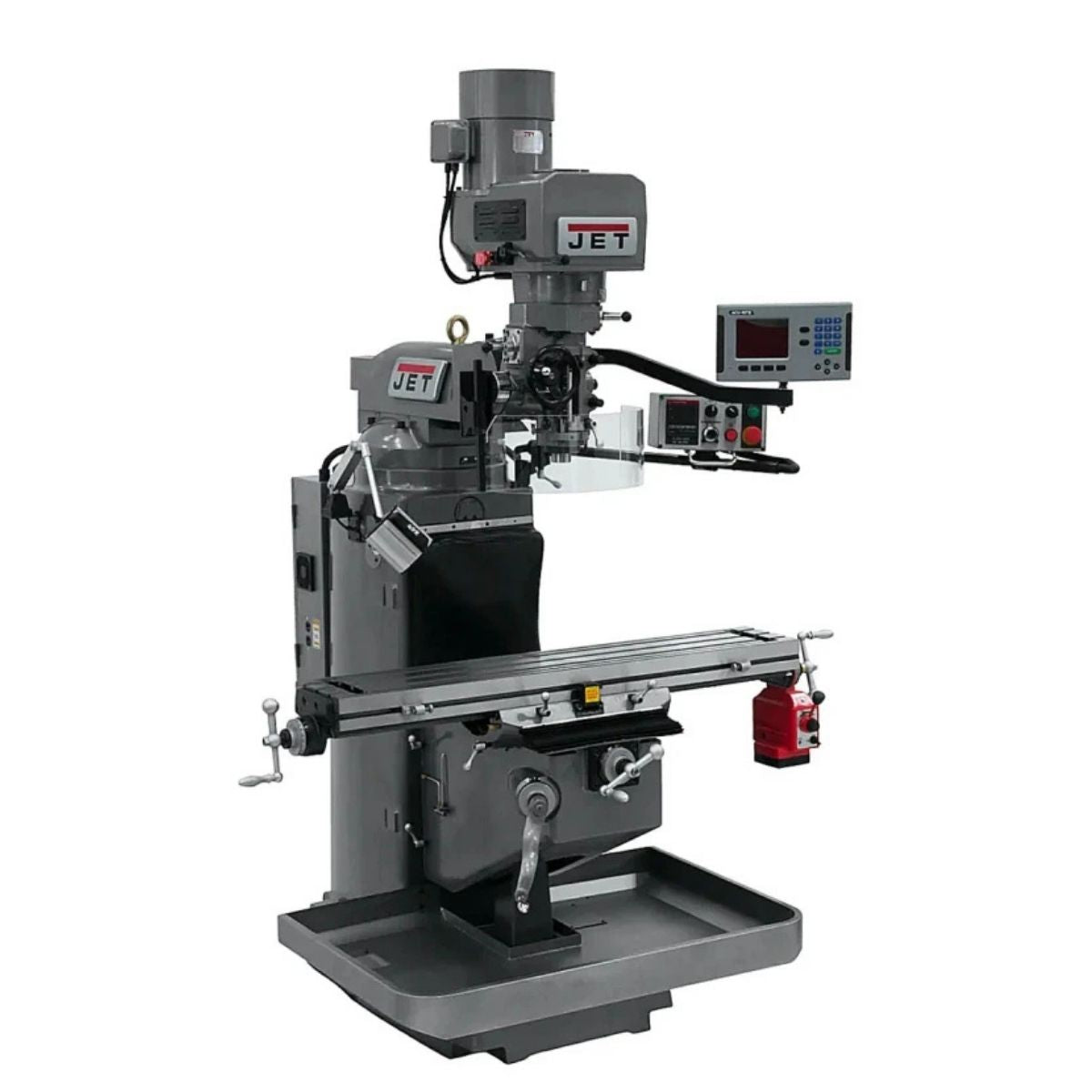

• JT9-690530 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X-Axis Powerfeed | 3-Axis Acu-Rite 203 DRO (Quill)

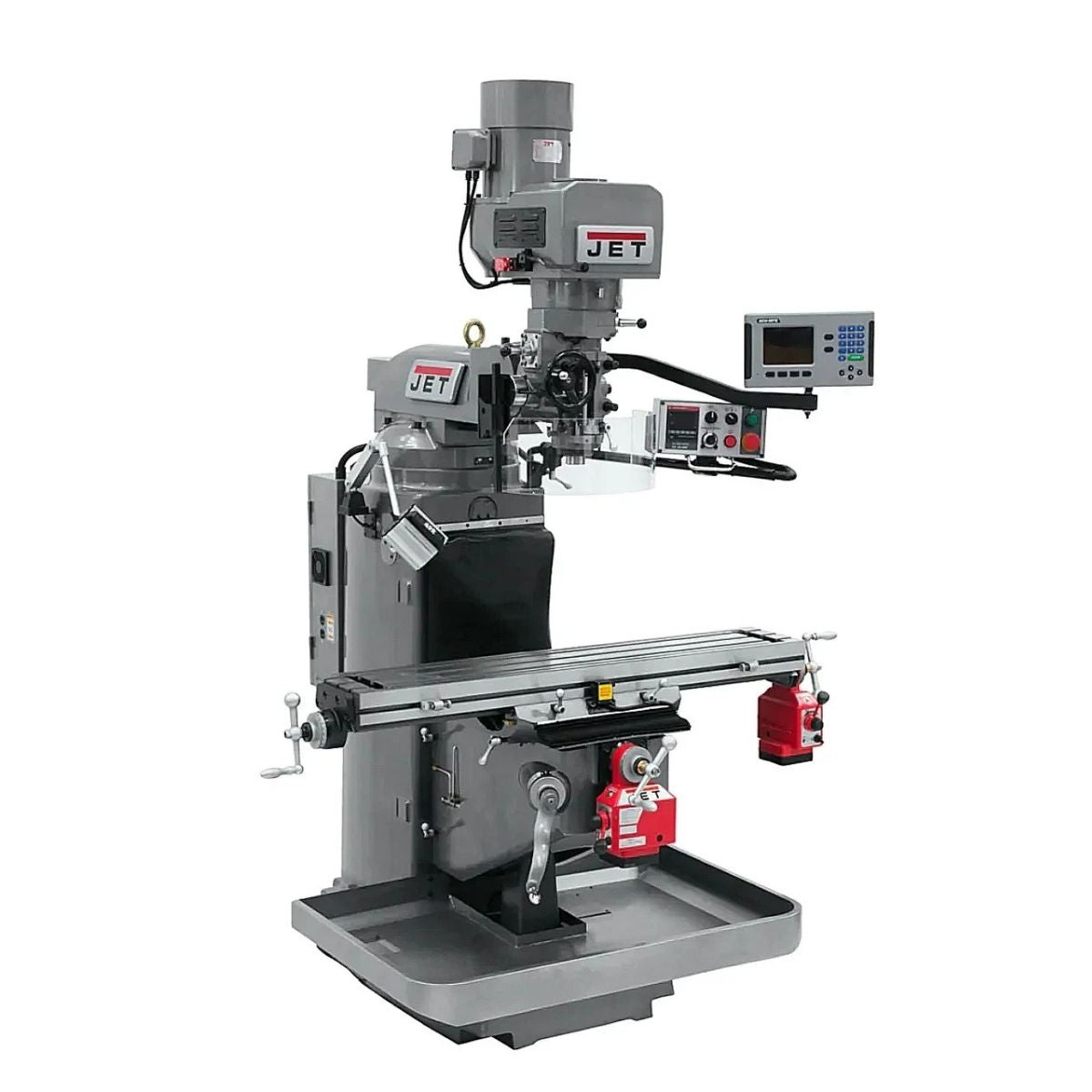

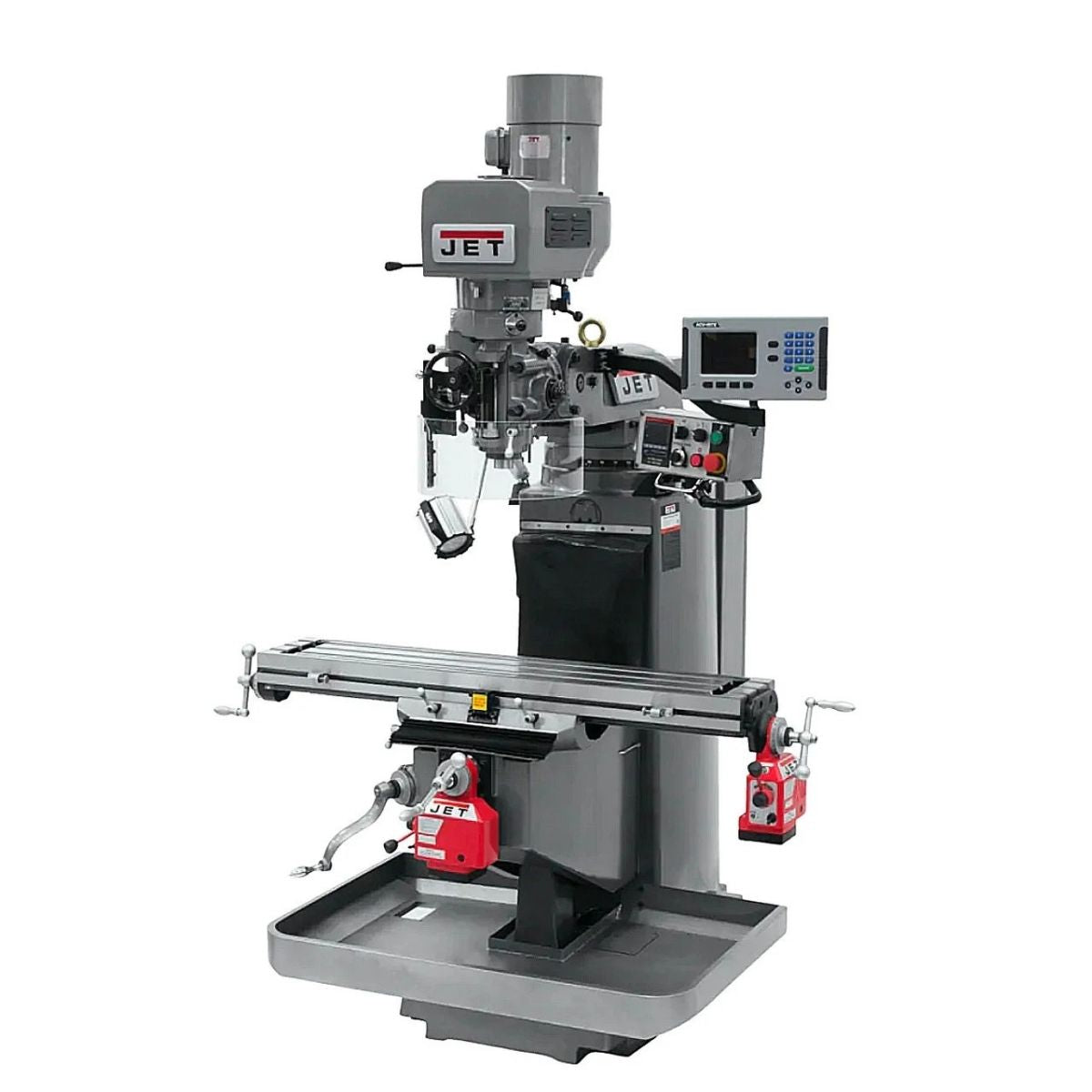

• JT9-690532 — JTM-949EVS | 230V, 3-Phase | Electronic Variable Speed | 60–4,500 RPM | X and Y-Axis Powerfeeds | 3-Axis Acu-Rite 203 DRO (Quill)

Power & Spindle

• Motor: 3HP, 230V, 3-Phase
• Inverter Type: Delta, B
• Spindle Speeds: 60–4,500 RPM (electronic variable speed)
• Spindle Taper: R-8
• Spindle Travel: 5"
• Quill Diameter: 3-3/8"
• Quill Down Feed Rates: .0015 / .003 / .006 IPR
• Collet Capacity: 1/8"–7/8"

Table & Travel

• Table Size: 9" × 49"
• Table Longitudinal Travel: 36" (30-3/4" with powerfeed)
• Table Cross Travel: 12-5/8"
• T-Slot Centers: 2-1/2"
• Work Table Weight Capacity: 720 lbs.
• Saddle Width: 11-1/2"
• Travel of Knee: 15-3/4"
• Travel of Ram: 15-1/4"
• Max Distance Spindle to Table: 20-3/4"
• Distance Spindle to Column (Max.): 18-1/8"
• Column Width: 18"

Machine

• Overall Dimensions (L × W × H): 66" × 63" × 86" (base unit) | 67" × 64" × 86" (powerfeed configurations)
• Net Weight: 2,275 lbs. (base unit) | 2,420 lbs. (powerfeed configurations)
• Warranty: 2 Years
• Certification: CSA/CUS
• Manual: PDF download available
