JET JTM-4VS 9" x 49" Variable Speed Vertical Milling Machine
Are you looking for a vertical mill that holds tight tolerances through long runs without losing its setup?
What if your shop had a full-size knee mill that tracked true, ran smooth, and gave you the control to work with confidence?
Meet the JET JTM-4VS 9" x 49" Variable Speed Vertical Milling Machine, a Meehanite cast iron knee mill built for accurate, repeatable shop work.
With hardened and ground ways, a wide variable speed range, and optional powerfeed and DRO configurations, the JTM-4VS fits a range of shop setups and work styles.
When the mill holds steady through a cut, you can focus on the work instead of fighting the machine.
JET JTM-4VS for Accurate Vertical Milling Work

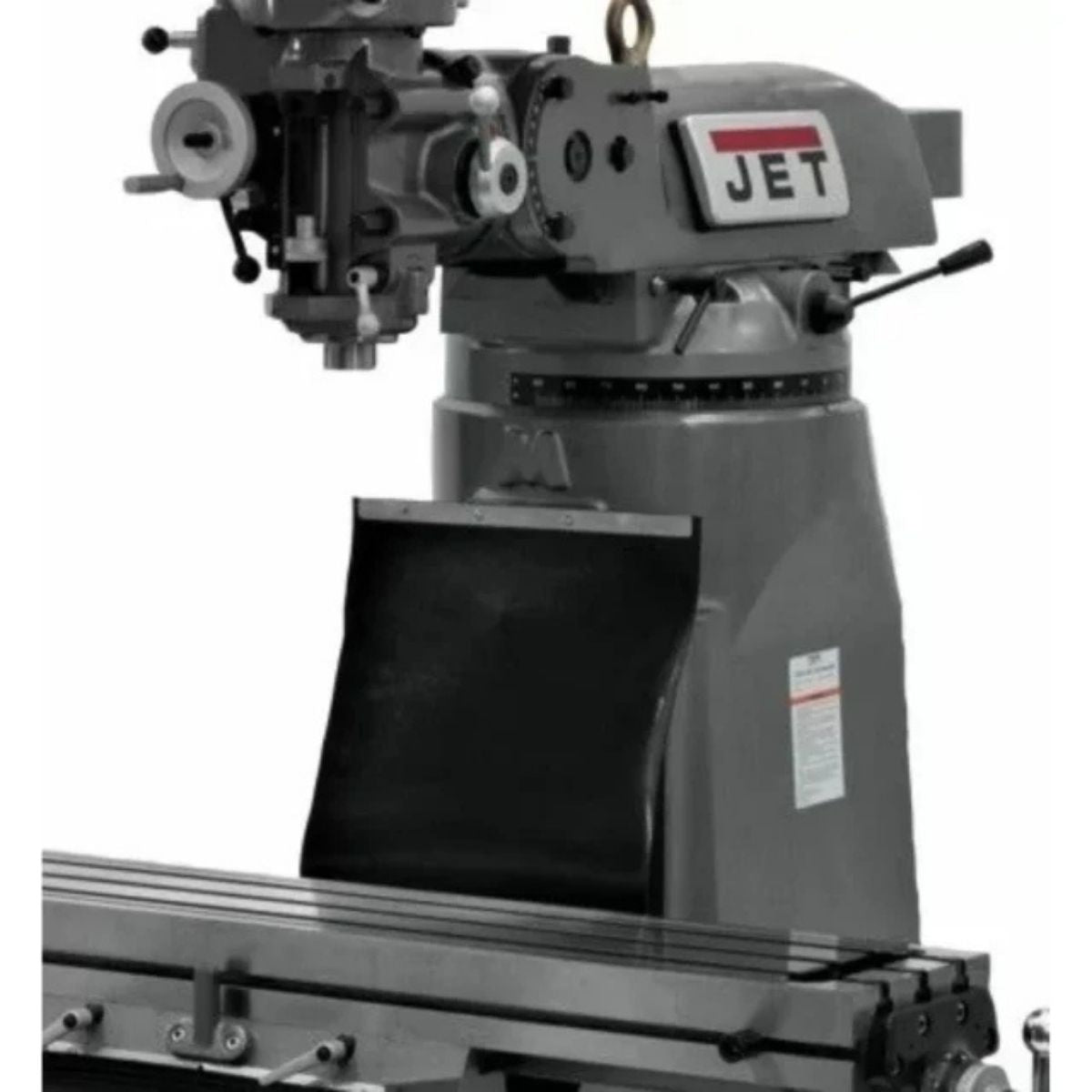

Meehanite Cast Iron Frame Reduces Vibration
The JTM-4VS is built from Certified Meehanite casting, a process that produces a denser, more consistent iron than standard casting methods. A rigid frame absorbs vibration during cuts and keeps the machine stable through longer runs.

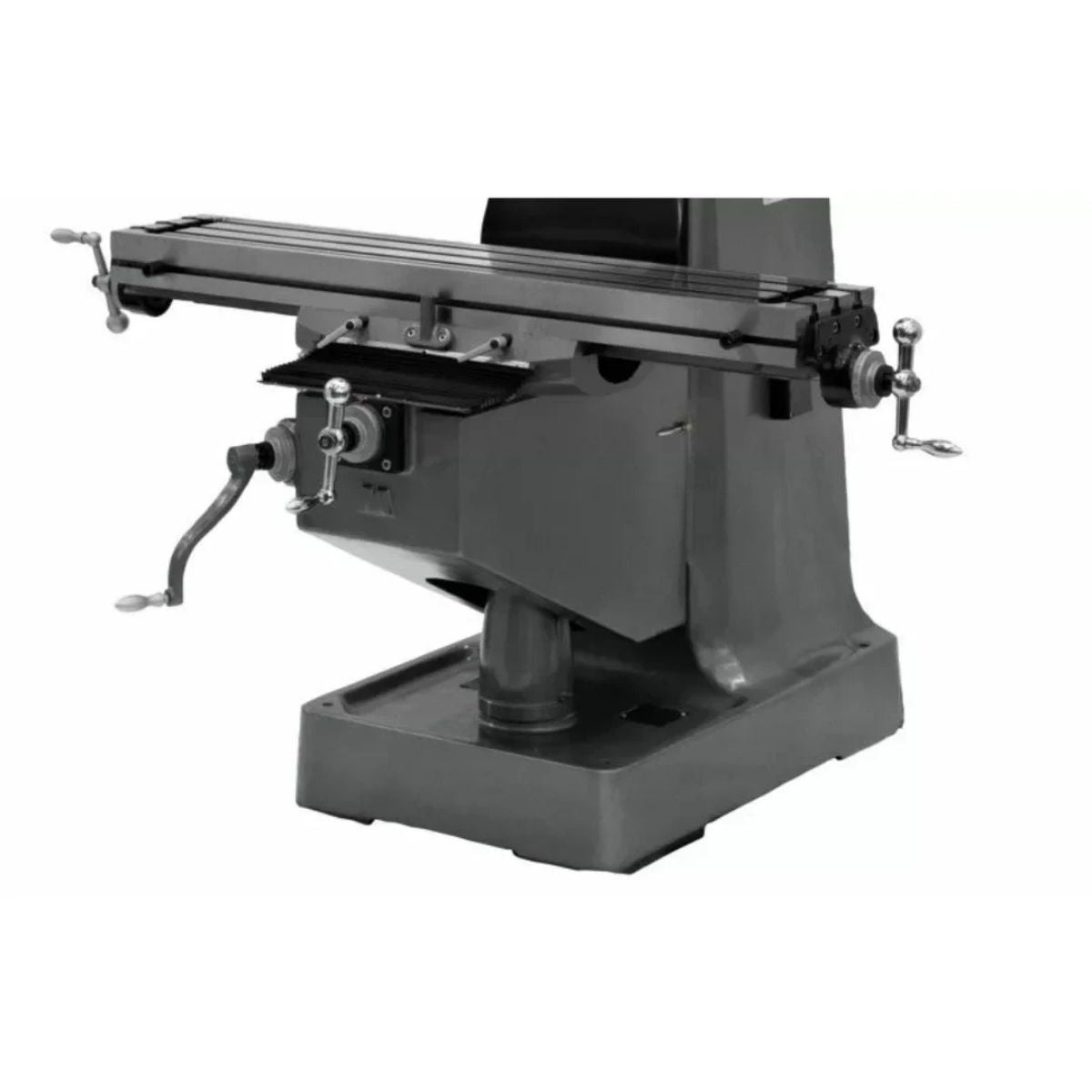

Hardened and Ground Ways Support Accurate Table Movement
Precision hardened and ground ways control table movement across all three axes with consistent resistance and minimal play. Adjustable gibs throughout the machine let you dial in the fit as the machine wears over time.

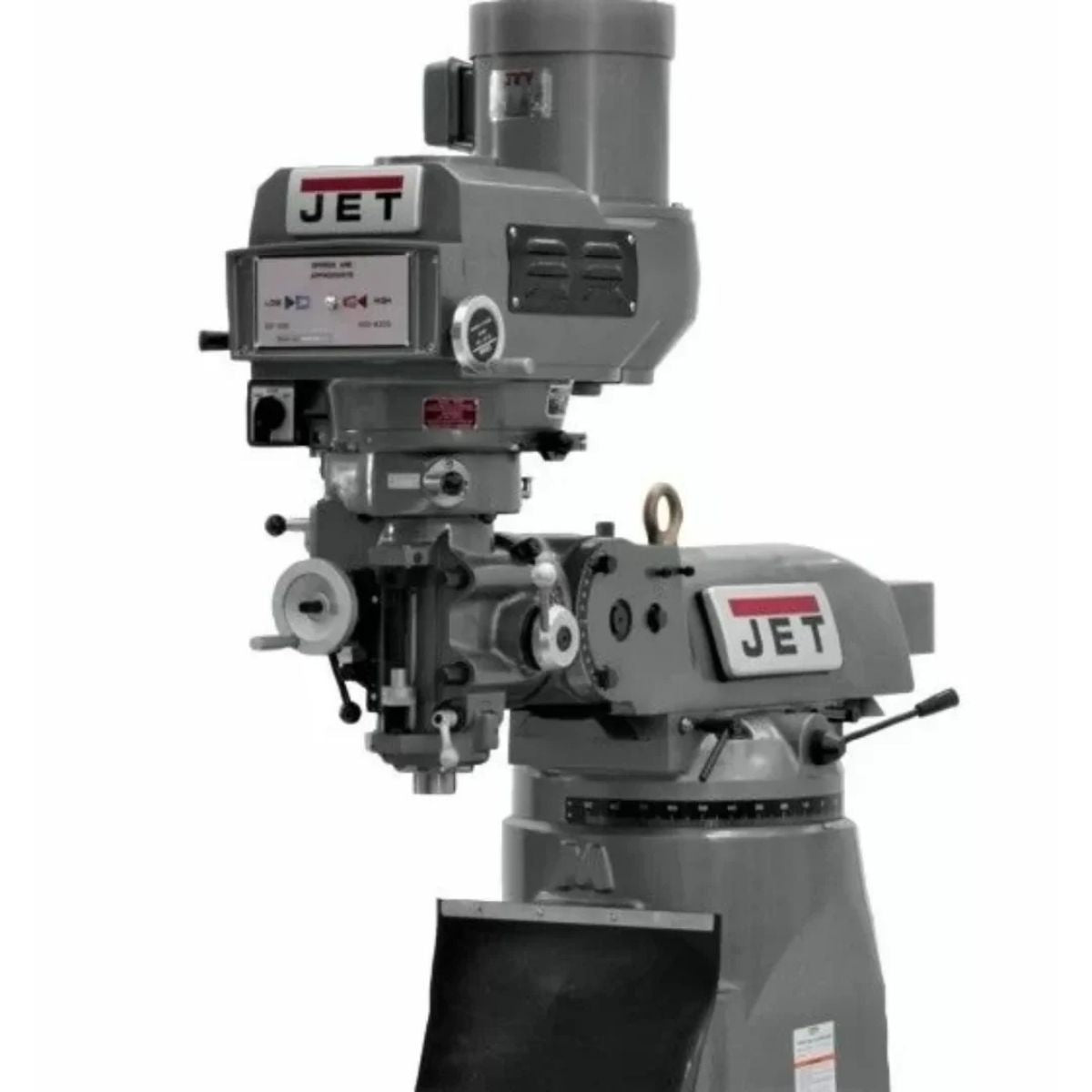

Variable Speed Spindle Covers a Wide Range of Work
The spindle runs from 60 to 4,200 RPM without belt changes, letting you move between materials and operations without stopping the job. Three-stage power downfeed with automatic stop gives you control over quill movement during drilling and boring work.
Optional Powerfeed and DRO Configurations Extend Shop Capability
The JTM-4VS is available with X-axis, X and Y-axis, or X, Y and Z-axis powerfeeds for shops that run longer table passes or need hands-free feed control. A 3-axis ACU-RITE 203 DRO is also available on select configurations for shops that want precise position readout at the quill and table.
What's Included
What's Included? JET JTM-4VS 9" x 49" Variable Speed Vertical Milling Machine
-
JET JTM-4VS Vertical Milling Machine — Provides the core knee mill platform for accurate vertical milling, drilling, and boring work.
-
Tolerance Test Sheet — Documents the machine's accuracy as verified at the factory before shipment.
Specs
JET JTM-4VS 9" x 49" Variable Speed Vertical Milling Machine Specifications
- Model: JTM-4VS
- Style: Variable Speed R8
- Table Size: 9" x 49"
- Table Longitudinal Travel: 34"
- Table Longitudinal Travel With Powerfeed: 28-3/4"
- Table Cross Travel: 12"
- Travel of Knee: 14-1/2"
- Travel of Ram: 13-3/8"
- T-Slot Centers: 2-1/2"
- Work Table Weight Capacity: 660 lbs.
- Spindle Taper: R-8
- Spindle Travel: 5"
- Range of Spindle Speeds: 60–4,200 RPM
- Quill Diameter: 3-3/8"
- Quill Down Feed Rates: .0015 / .003 / .006 IPR
- Collet Capacity: 1/8" – 7/8"
- Distance Spindle to Column (Max.): 19"
- Max Distance Spindle to Table: 17-1/2"
- Motor: 3 HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H): 66" x 63" x 85"
- Warranty: 2 Year
Specs by Configuration

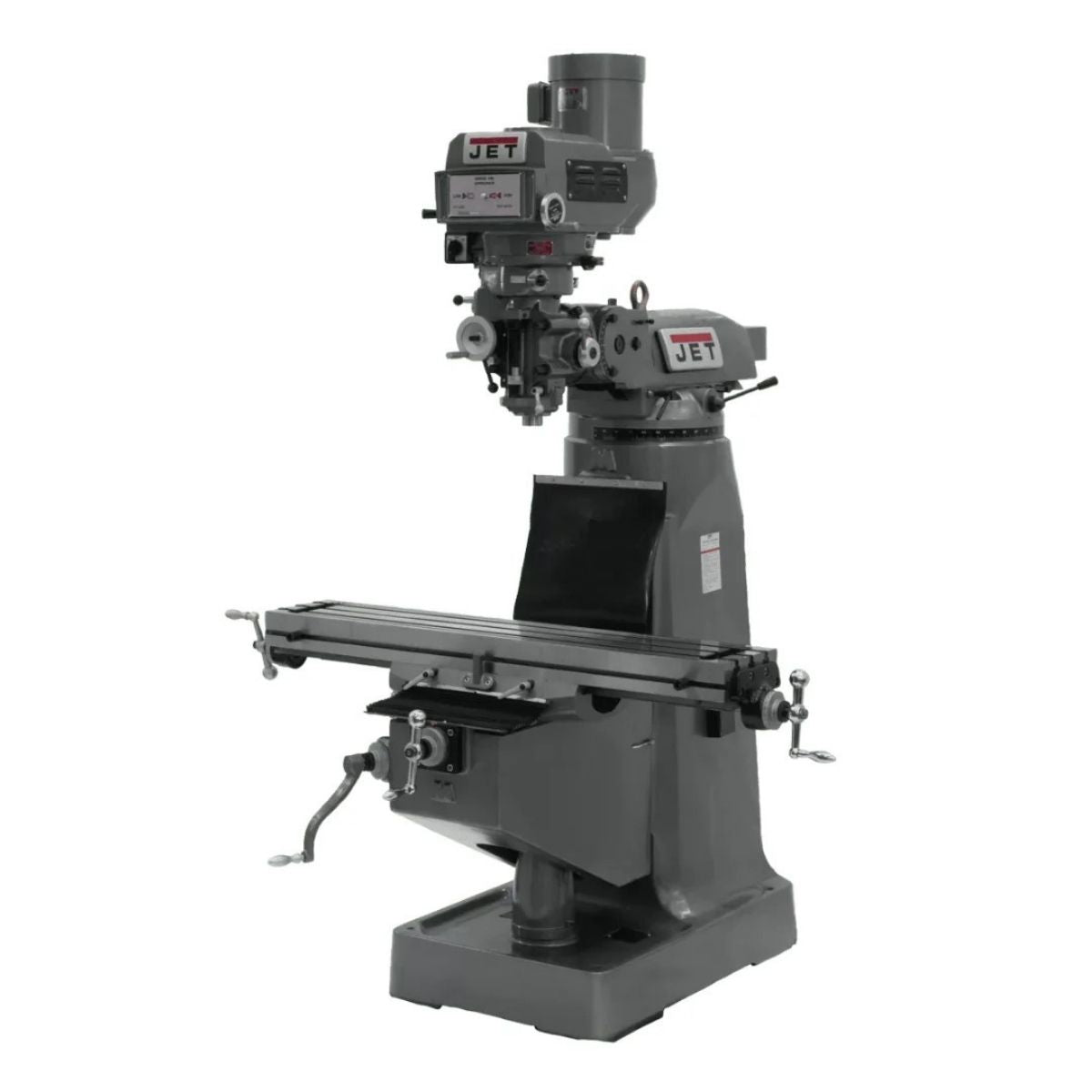

230/460V 3Ph — JT9-690182
- Powerfeed: None
- DRO: None
- Net Weight: 2,175 lbs.
With X-Axis Powerfeed — JT9-690183
- Powerfeed: X-Axis
- DRO: None
- Net Weight: 2,420 lbs.

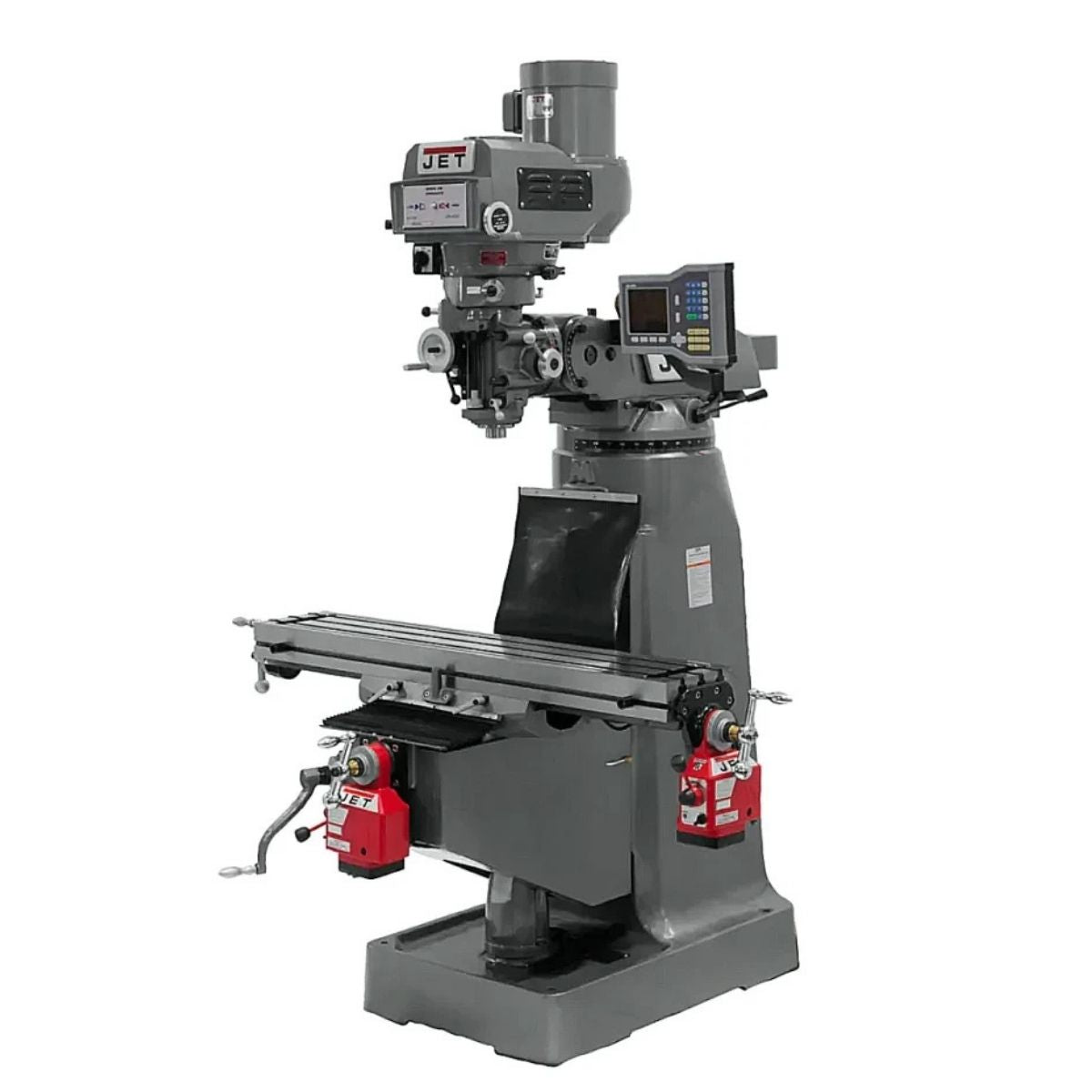

With X and Y-Axis Powerfeeds — JT9-690008
- Powerfeed: X and Y-Axis
- DRO: None
- Net Weight: 2,420 lbs.
With X, Y and Z-Axis Powerfeeds — JT9-690013
- Powerfeed: X, Y and Z-Axis
- DRO: None
- Net Weight: 2,420 lbs.
With 3-Axis ACU-RITE 203 DRO (Quill) — JT9-690184
- Powerfeed: None
- DRO: 3-Axis ACU-RITE 203 (Quill)
- Net Weight: 2,420 lbs.

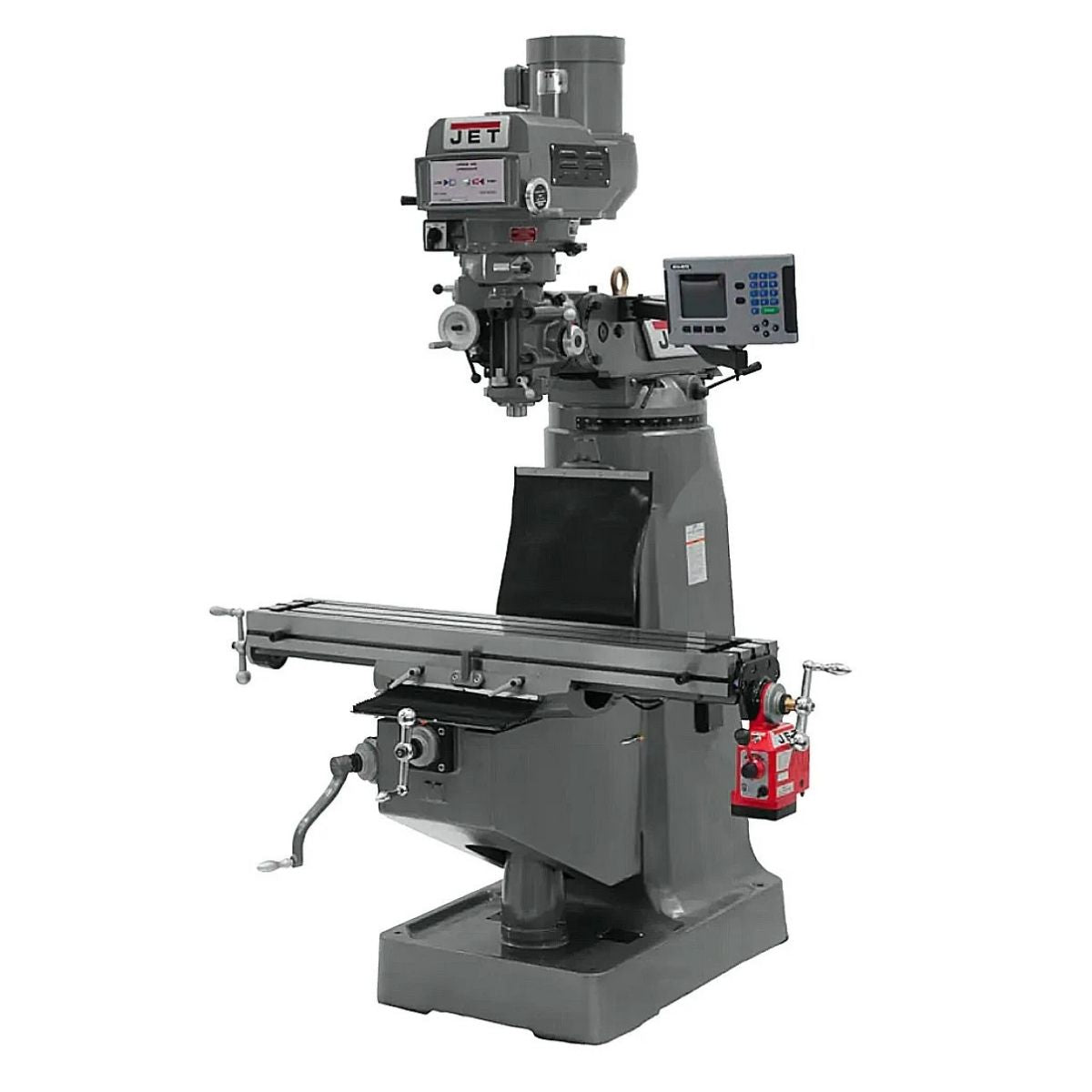

With 3-Axis ACU-RITE 203 DRO (Quill) and X-Axis Powerfeed — JT9-690221
- Powerfeed: X-Axis
- DRO: 3-Axis ACU-RITE 203 (Quill)
- Net Weight: 2,240 lbs.

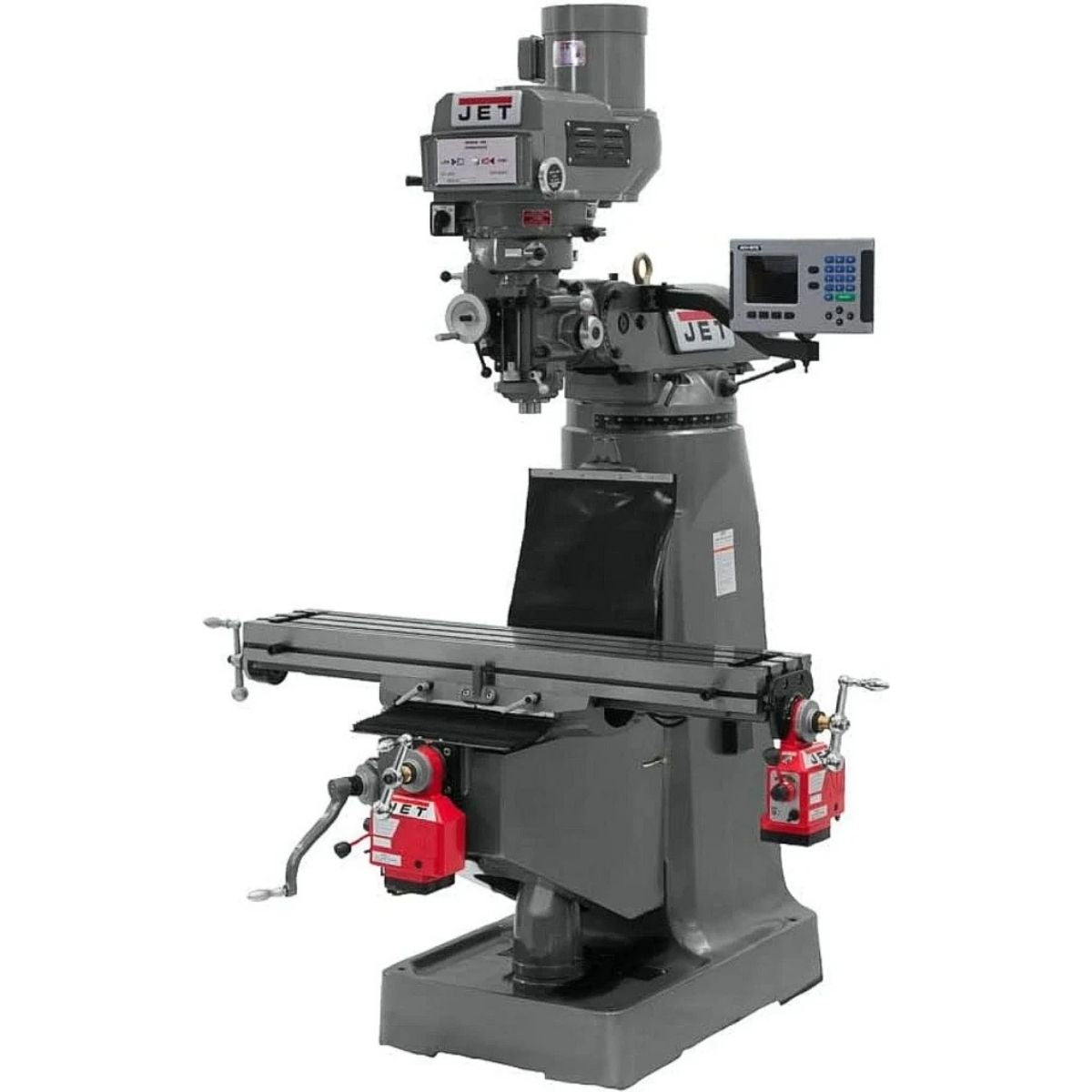

With 3-Axis ACU-RITE 203 DRO (Quill) and X and Y-Axis Powerfeeds — JT9-690140
- Powerfeed: X and Y-Axis
- DRO: 3-Axis ACU-RITE 203 (Quill)
- Net Weight: 2,420 lbs.
