JET JTM-1254VS 12" × 54" Variable Speed Vertical Milling Machine

JET JTM-1254VS 12" × 54" Variable Speed Vertical Milling Machine

JET JTM-1254VS for Accurate, Heavy-Duty Vertical Milling

Certified Meehanite Castings Deliver a Stable Milling Platform

The JTM-1254VS is built on Certified Meehanite castings throughout. Meehanite is a controlled-process gray iron known for vibration damping and dimensional stability. That foundation keeps the machine rigid under load, which means your cuts stay on line and your surface finish stays clean even when you are taking aggressive passes.

Variable Speed Spindle Covers the Full Range of Milling Work

The spindle runs from 80 to 3,800 RPM without stopping to change gears. You dial in the right speed for each tool and material directly at the machine. Whether you are running a large face mill through steel or spinning a small end mill in aluminum, the right speed is always available without interrupting your workflow.

Automatic Lubrication Reduces Maintenance Demands

The JTM-1254VS runs an automatic lubrication cycle every 180 minutes, delivering 3 to 6cc to the ways and moving surfaces. This keeps the table and knee moving smoothly without relying on the operator to remember manual oiling. Consistent lubrication extends the life of the ways and helps the machine hold its accuracy over time.

Three-Stage Power Downfeed Controls Depth of Cut

The three-stage power downfeed gives you three selectable feed rates — .0015, .003, and .008 inches per revolution — with an automatic stop to end the cut at the depth you set. The quick-nut spindle feed lets you position the quill fast between operations. The heavy-duty spindle brake stops spindle rotation quickly when you need to change tools or inspect your work.

What's Included

What's Included? JET JTM-1254VS 12" × 54" Variable Speed Vertical Milling Machine

• JTM-1254VS Vertical Knee Mill — The base machine with Certified Meehanite castings, variable speed head, and precision hardened and ground ways and table.
• Manual — Available as a PDF download for machine setup, operation, and maintenance reference.

Specs

JET JTM-1254VS 12" × 54" Variable Speed Vertical Milling Machine Specifications

Available Configurations

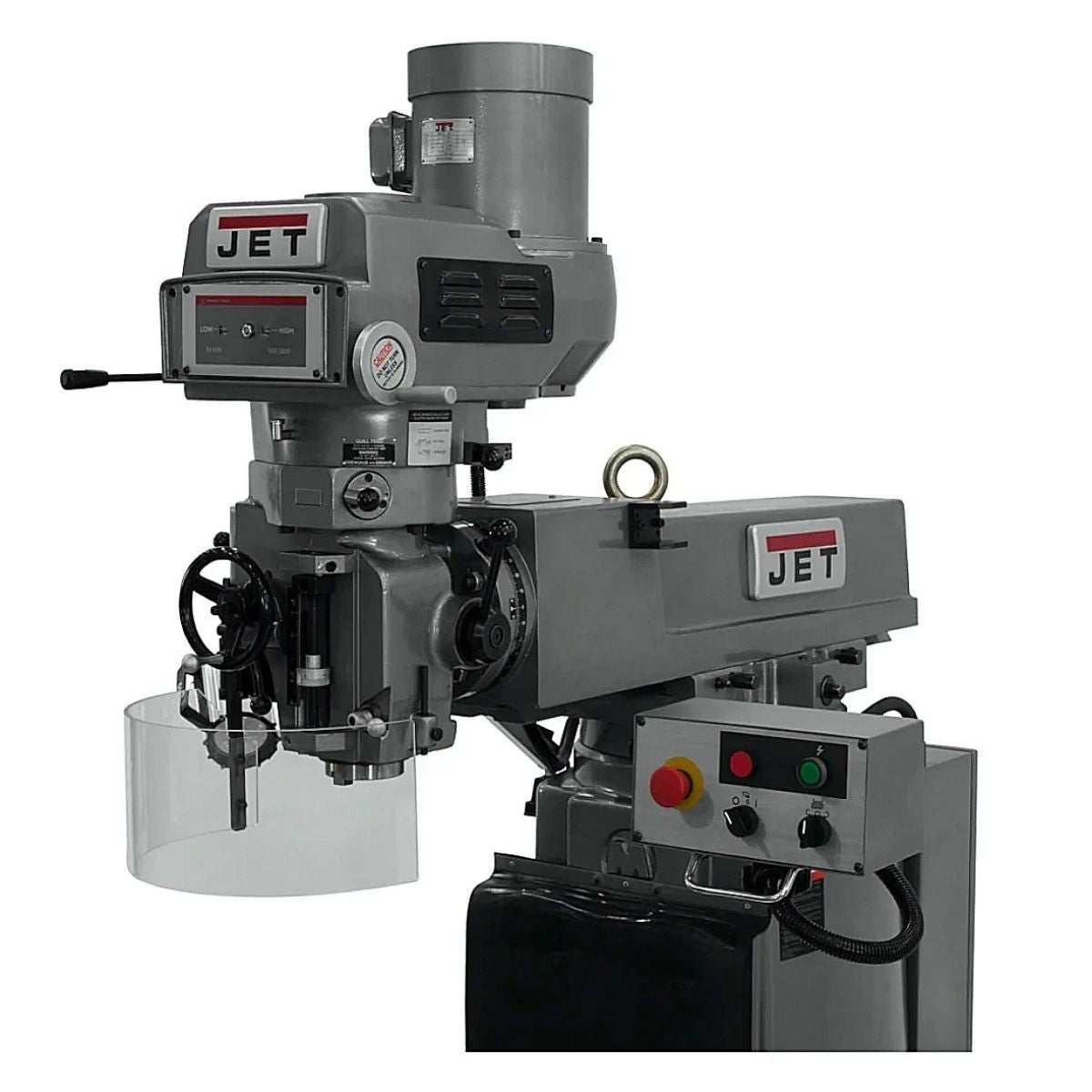

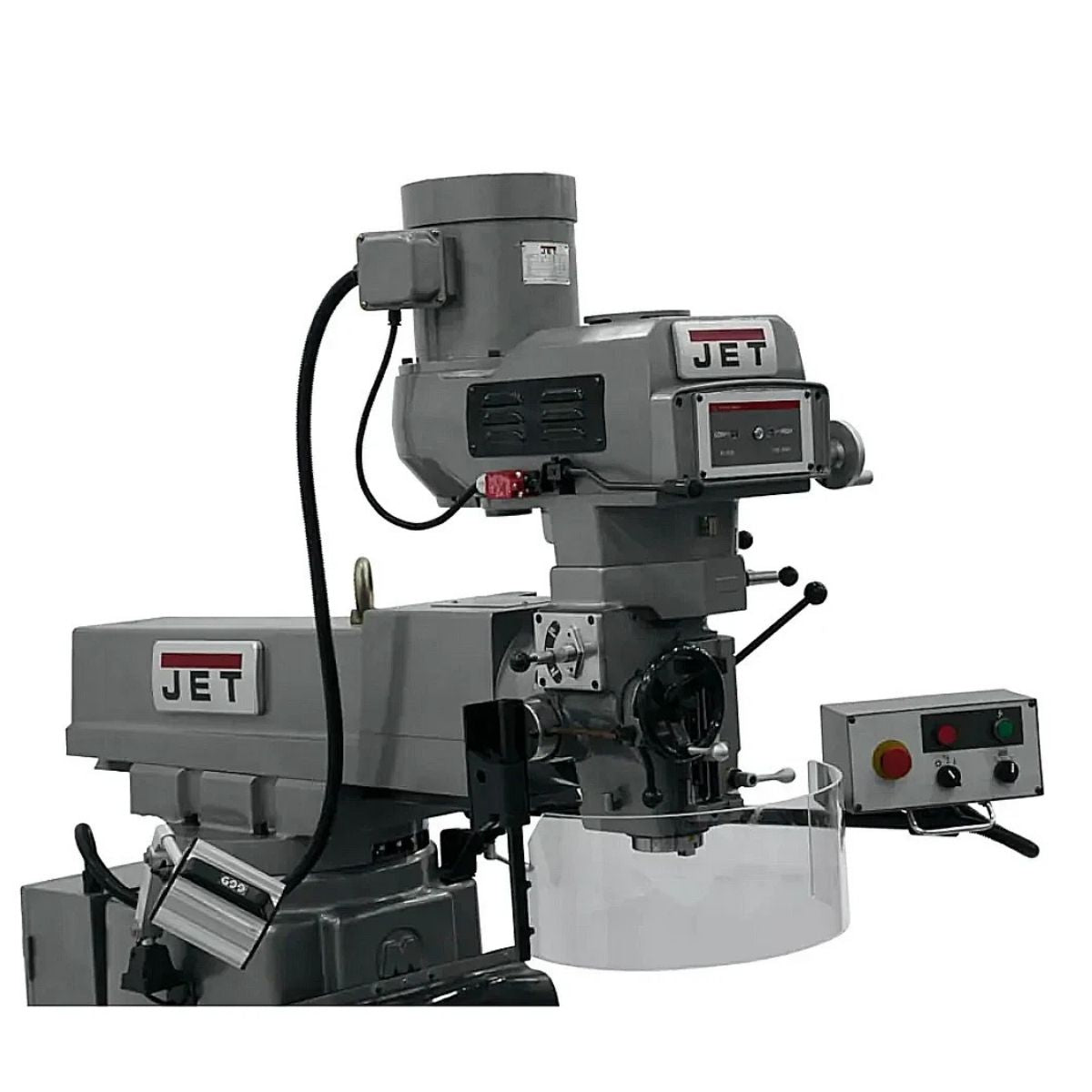

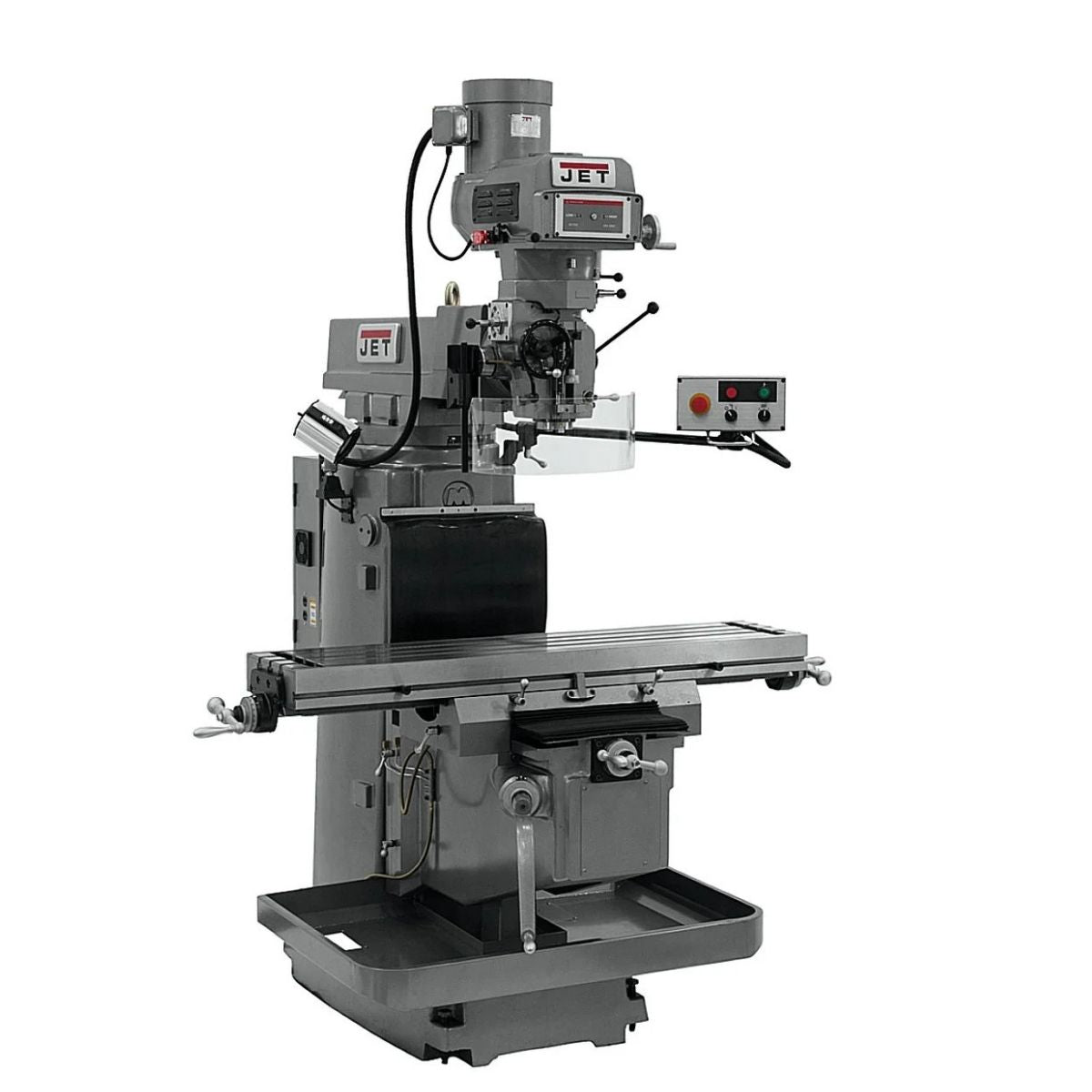

• JT9-690025 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | Base Machine

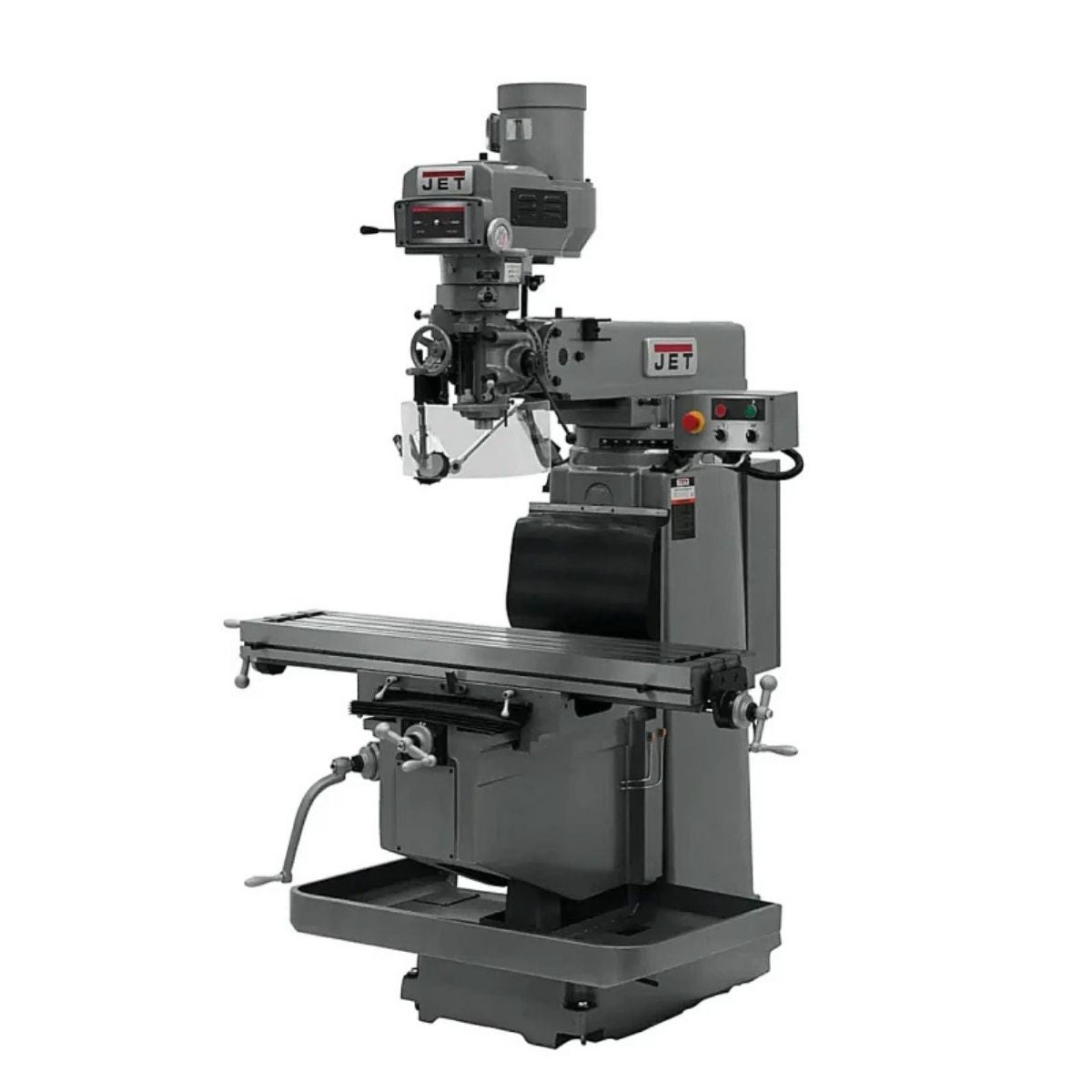

• JT9-698025 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | X-Axis Powerfeed
• JT9-698027 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | X and Y-Axis Powerfeeds
• JT9-698029 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | X, Y and Z-Axis Powerfeeds

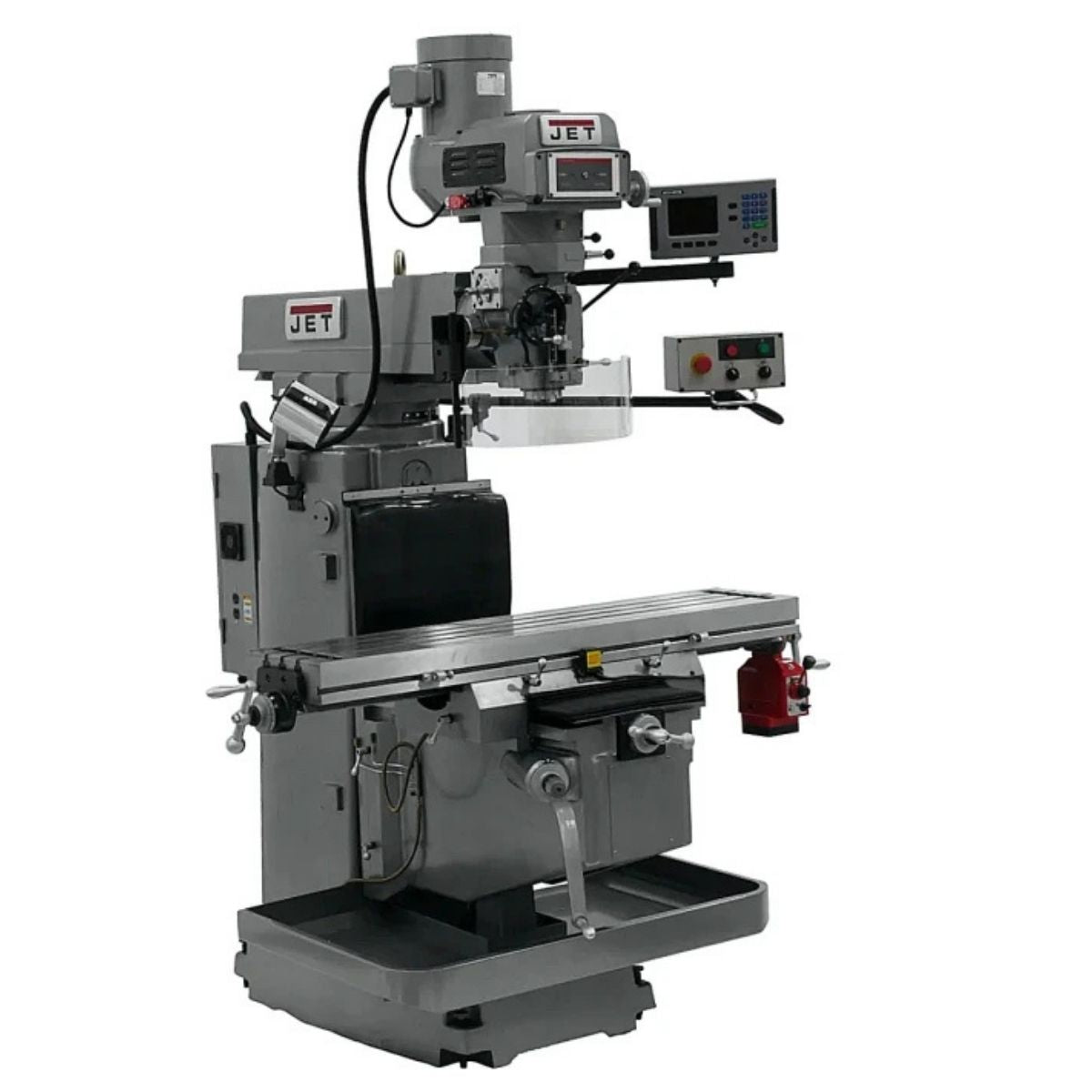

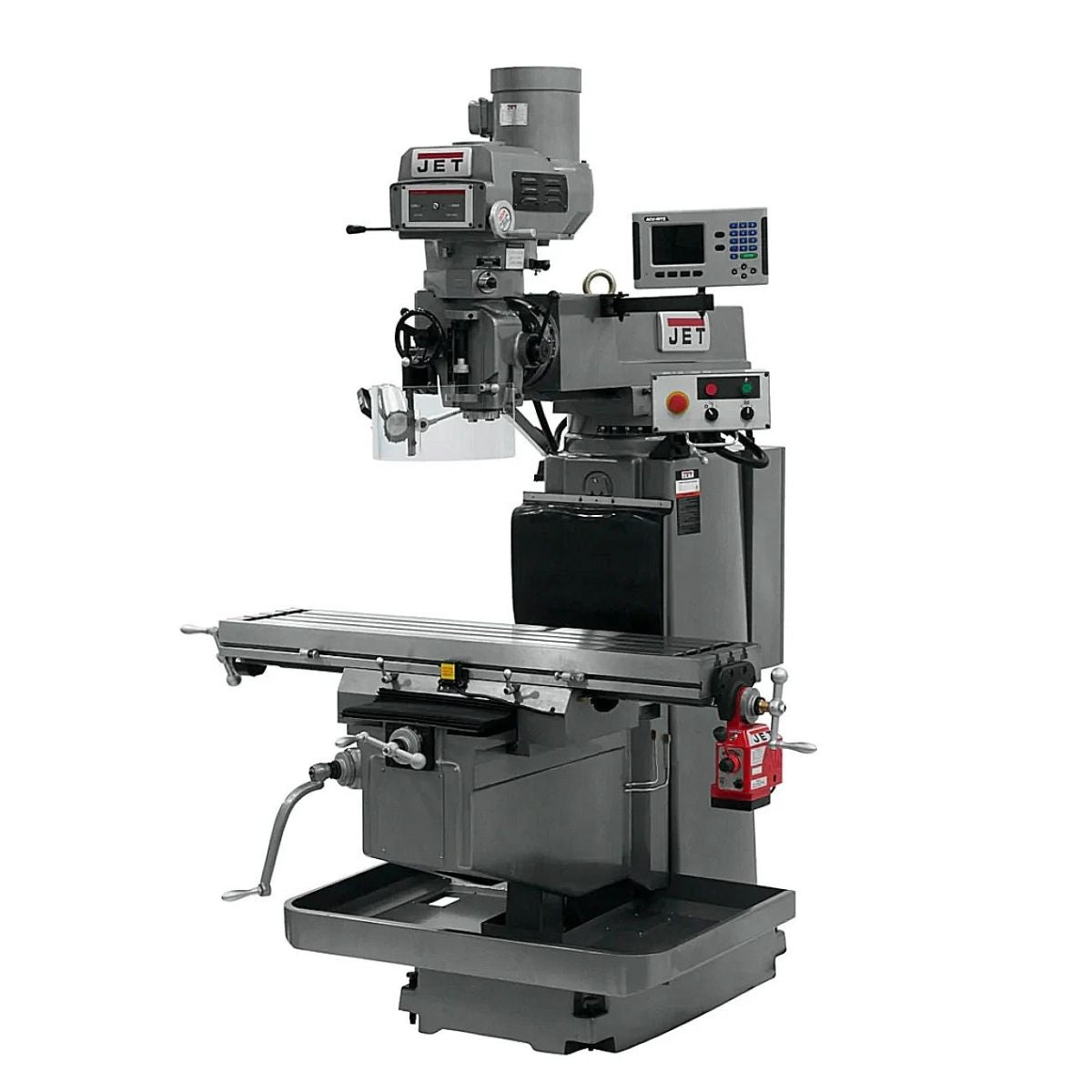

• JT9-698055 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | ACU-RITE 203 3-Axis DRO (Knee) | X-Axis Powerfeed

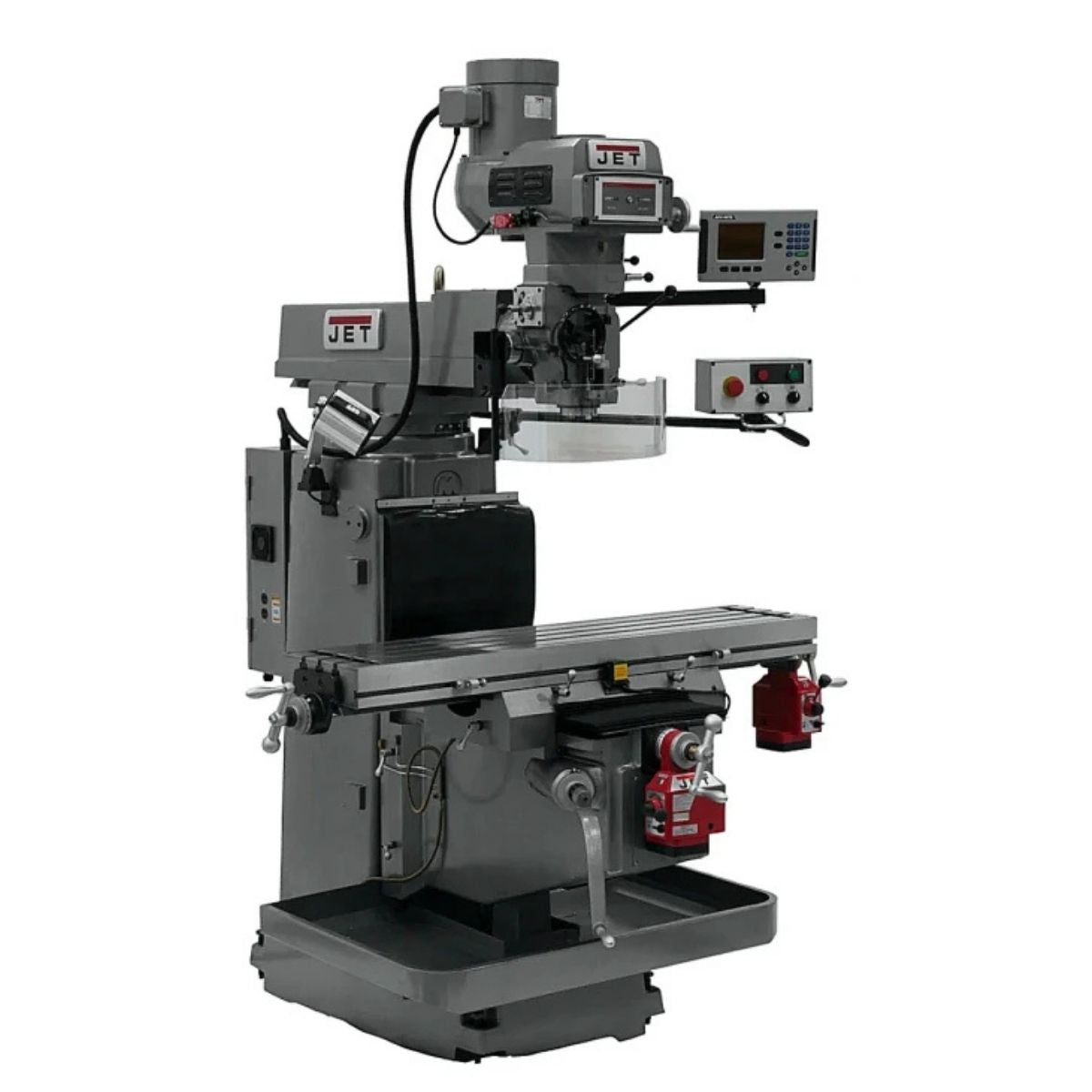

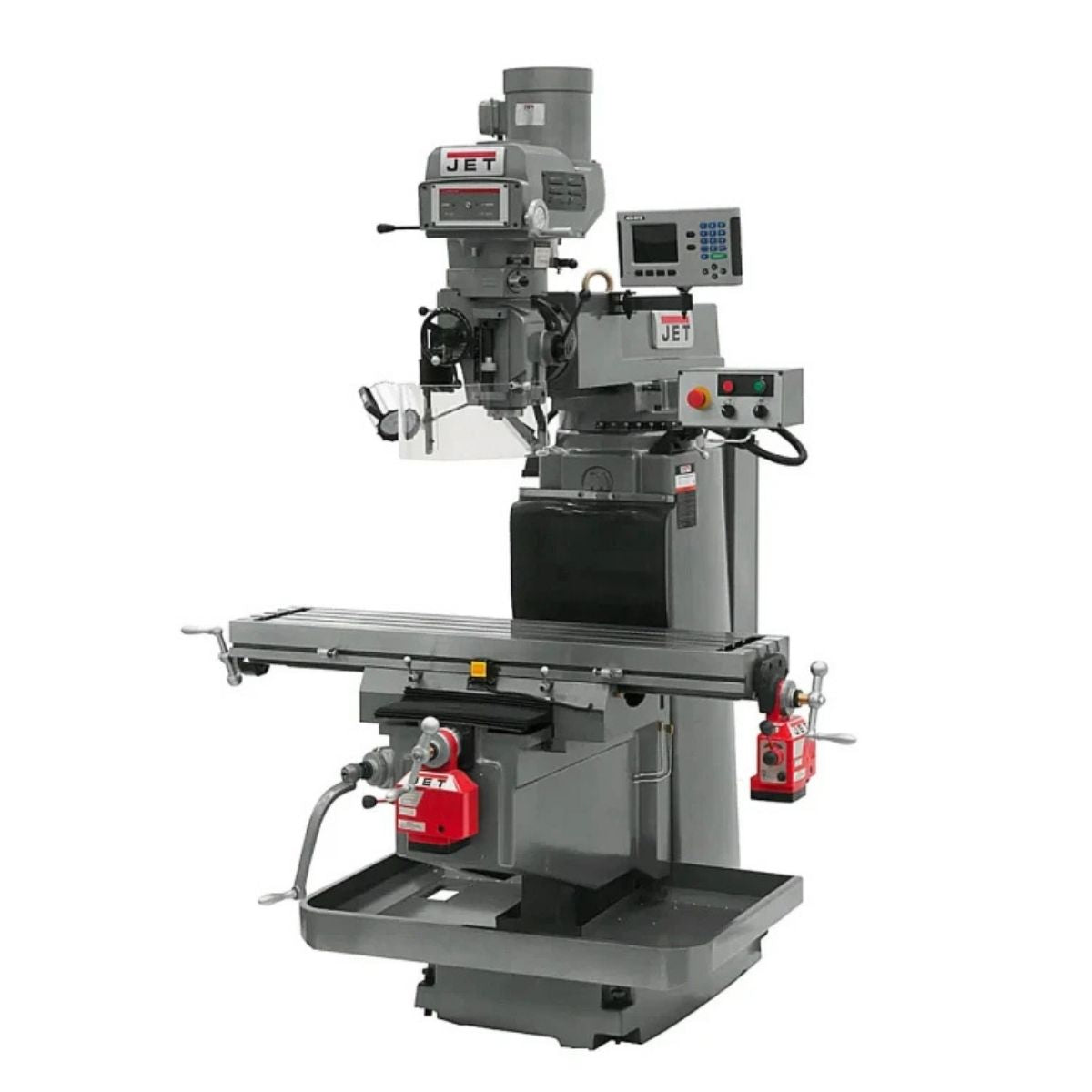

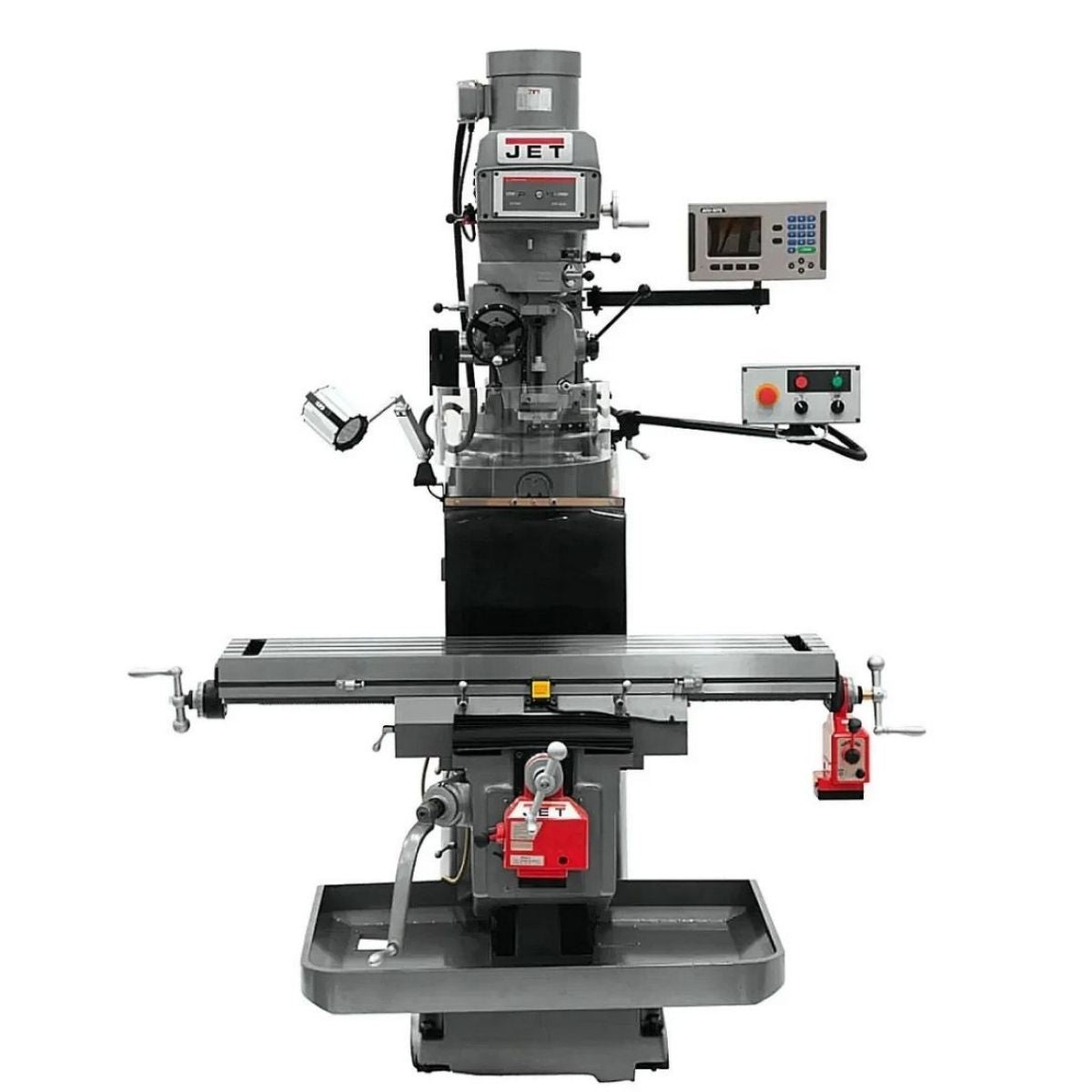

• JT9-698057 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | ACU-RITE 203 3-Axis DRO (Knee) | X and Y-Axis Powerfeeds

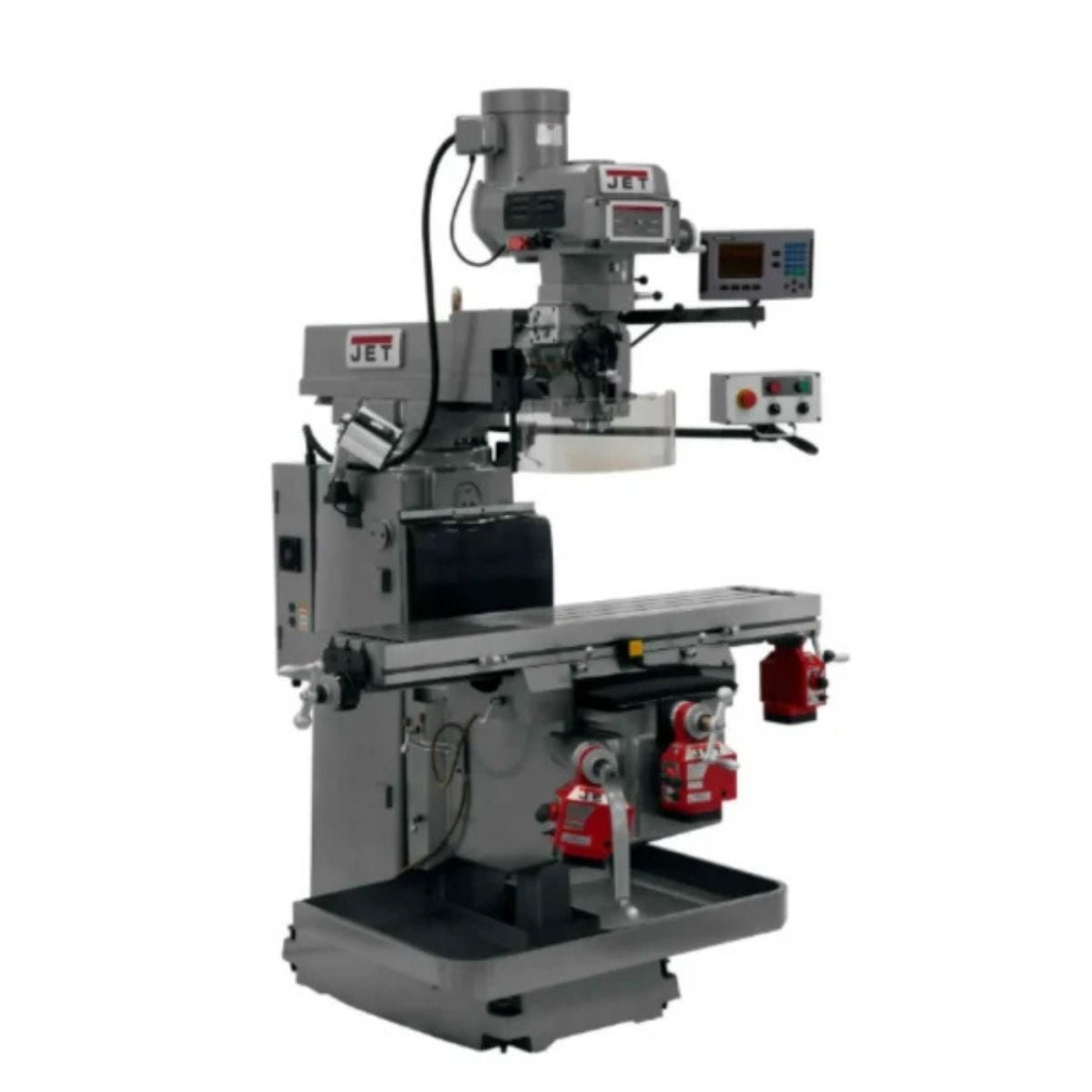

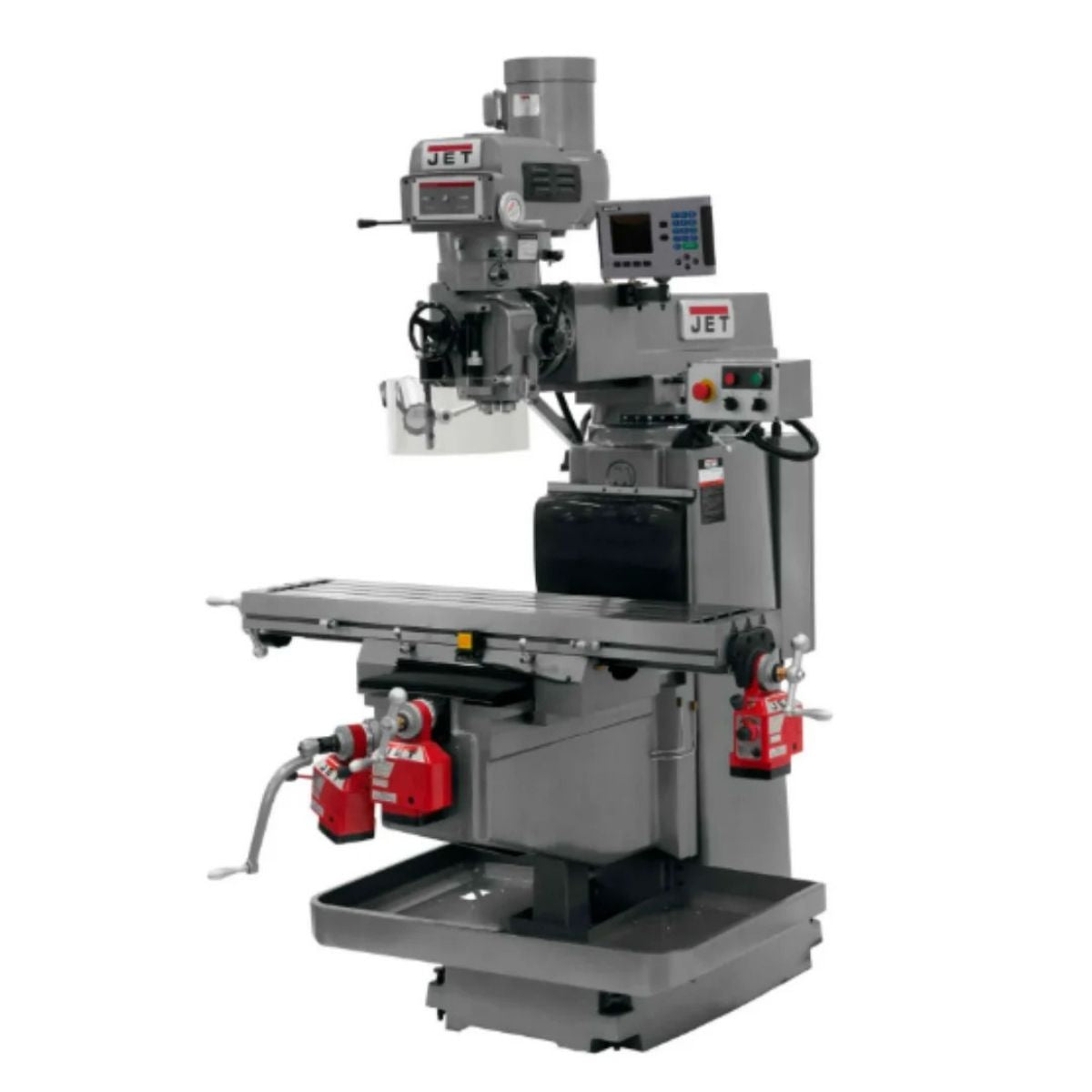

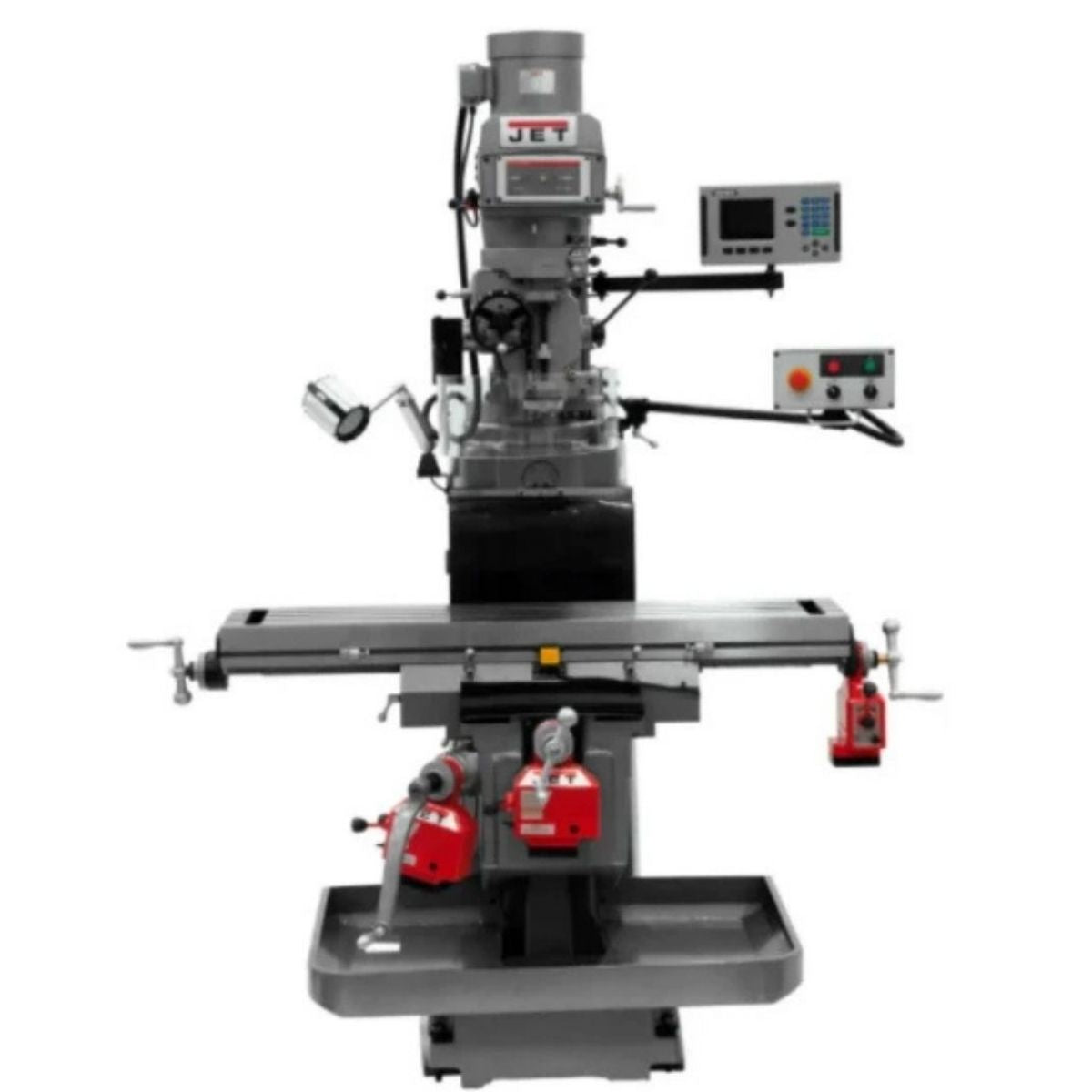

• JT9-698059 — JTM-1254VS | 230/460V, 3-Phase | Variable Speed NT40 | ACU-RITE 203 3-Axis DRO (Knee) | X, Y and Z-Axis Powerfeeds

Power & Spindle

• Motor: 5HP, 230/460V, 3-Phase
• Spindle Taper: NST #40
• Collet Capacity: 1/8" – 1"
• Range of Spindle Speeds: 80–3,800 RPM
• Spindle Travel: 5"
• Quill Diameter: 4-1/8"
• Quill Down Feed Rates: .0015 / .003 / .008 IPR

Table & Travel

• Table Size (L × W): 12" × 54"
• Table Longitudinal Travel: 33-7/8" (28-1/4" with Powerfeed)
• Table Cross Travel: 15-1/3"
• T-Slot Centers: 2-1/2"
• T-Slots: 3 precision ground slots
• Work Table Weight Capacity: 925 lbs.
• Travel of Knee: 19-1/4"
• Travel of Ram: 25"
• Saddle Width: 25-5/8"
• Max Distance Spindle to Table: 23"
• Distance Spindle to Column (Max.): 27-3/4"
• Column Width: 14-1/4"

Machine

• Overall Dimensions (L × W × H): 92-1/8" × 79-7/8" × 104-1/4"
• Net Weight: 3,260 lbs.
• Gross Weight: 3,969 lbs. (base machine) — varies by configuration
• Warranty: JET Red Assurance 2-Year Warranty. Service and repair available through JET Authorized Service Centers nationwide. Call 1-800-274-6848 for the nearest location.
• Prop 65: Cancer and Reproductive Harm
• Manual: PDF download available
