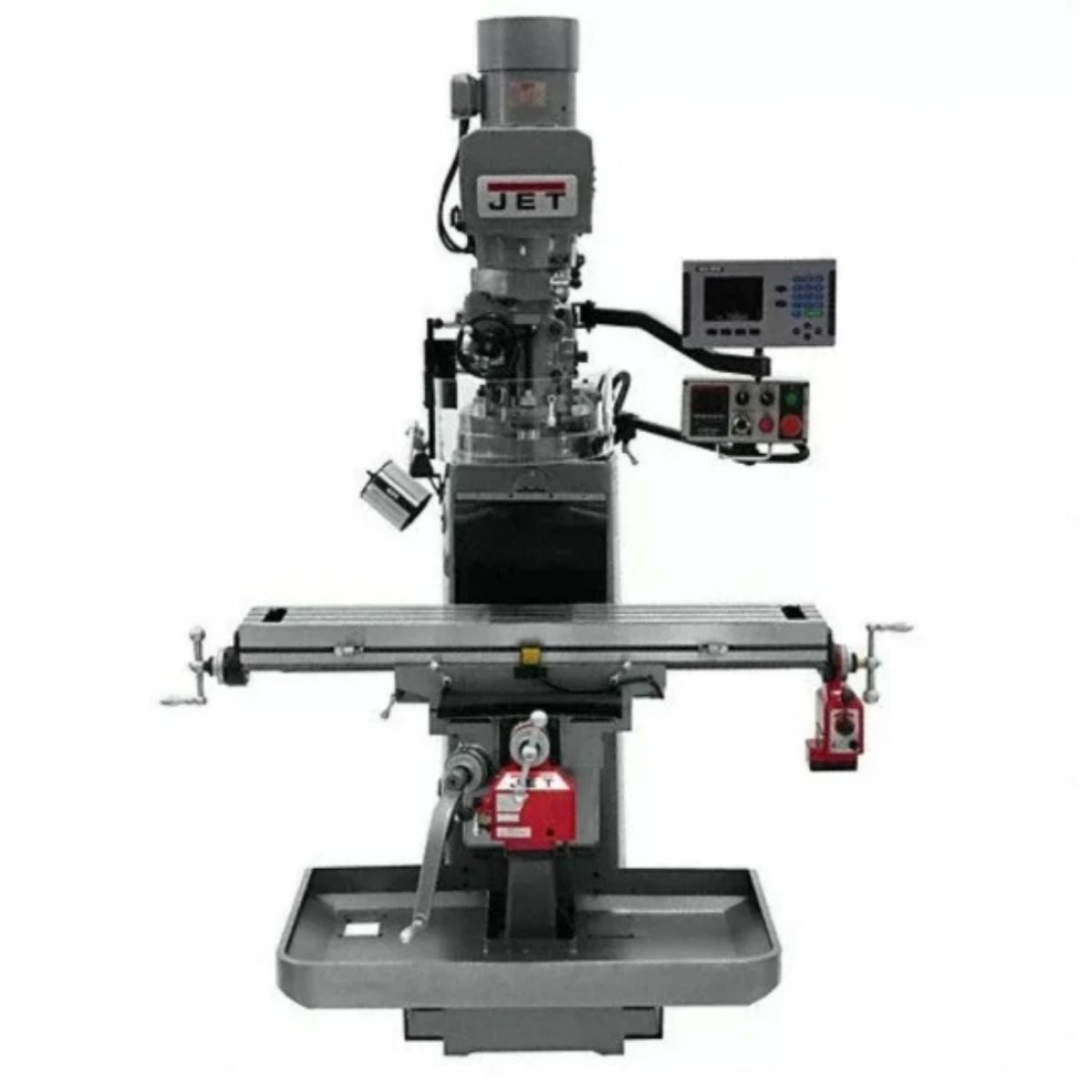

JET JTM-1050EVS2 10" × 50" Electronic Variable Speed Vertical Milling Machine

JET JTM-1050EVS2 10" × 50" Electronic Variable Speed Vertical Milling Machine

JET JTM-1050EVS2 for Accurate, Repeatable Milling on Metal

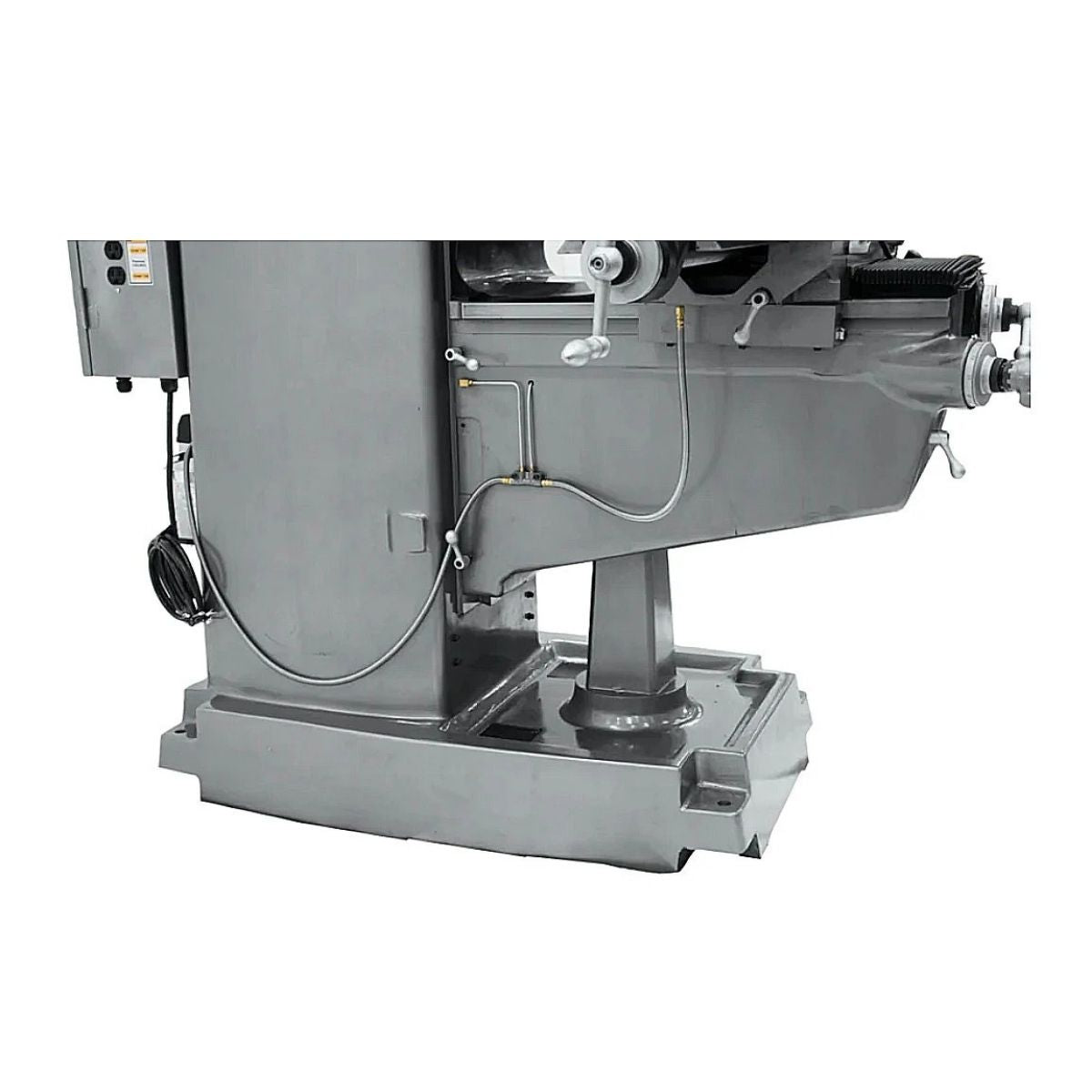

Meehanite-Cast Column and Base Resist Flex Under Load

The column and base are cast using the certified Meehanite process, which produces a dense, consistent iron structure. That rigidity keeps the spindle in alignment when you are taking heavy cuts in steel or cast iron. The base also incorporates a leveling design that lets you set the machine flat without raising it off the floor.

Class 7 Spindle Bearings Maintain Accuracy in Heavy Cuts

Class 7 spindle bearings are rated for high-load, high-speed operation. They support the spindle against radial and axial forces so your cuts stay true under pressure. The spindle head is internally cooled, which pulls heat away from the bearings and motor during extended runs and extends their service life.

Electronic Variable Speed Drive Covers 60 to 4,500 RPM

The Delta inverter-driven variable speed system lets you set spindle speed with a dial rather than swapping belts. The 60 to 4,500 RPM range handles everything from slow-speed facing on large-diameter cutters to high-speed finishing on aluminum. Speed changes happen without stopping or reaching inside the head.

Turcite-B Way Coating and Dual Axis Locks Keep Table Position

The X and Y-axis ways are coated with Turcite-B, a low-friction bearing material that reduces vibration and keeps table movement smooth and consistent. Dual locks on every moveable surface let you fix position on any axis before a cut. The table and ways are hardened to 54 HRC and precision ground, so contact surfaces stay accurate under daily use.

What's Included

What's Included? JET JTM-1050EVS2 10" × 50" Electronic Variable Speed Vertical Milling Machine

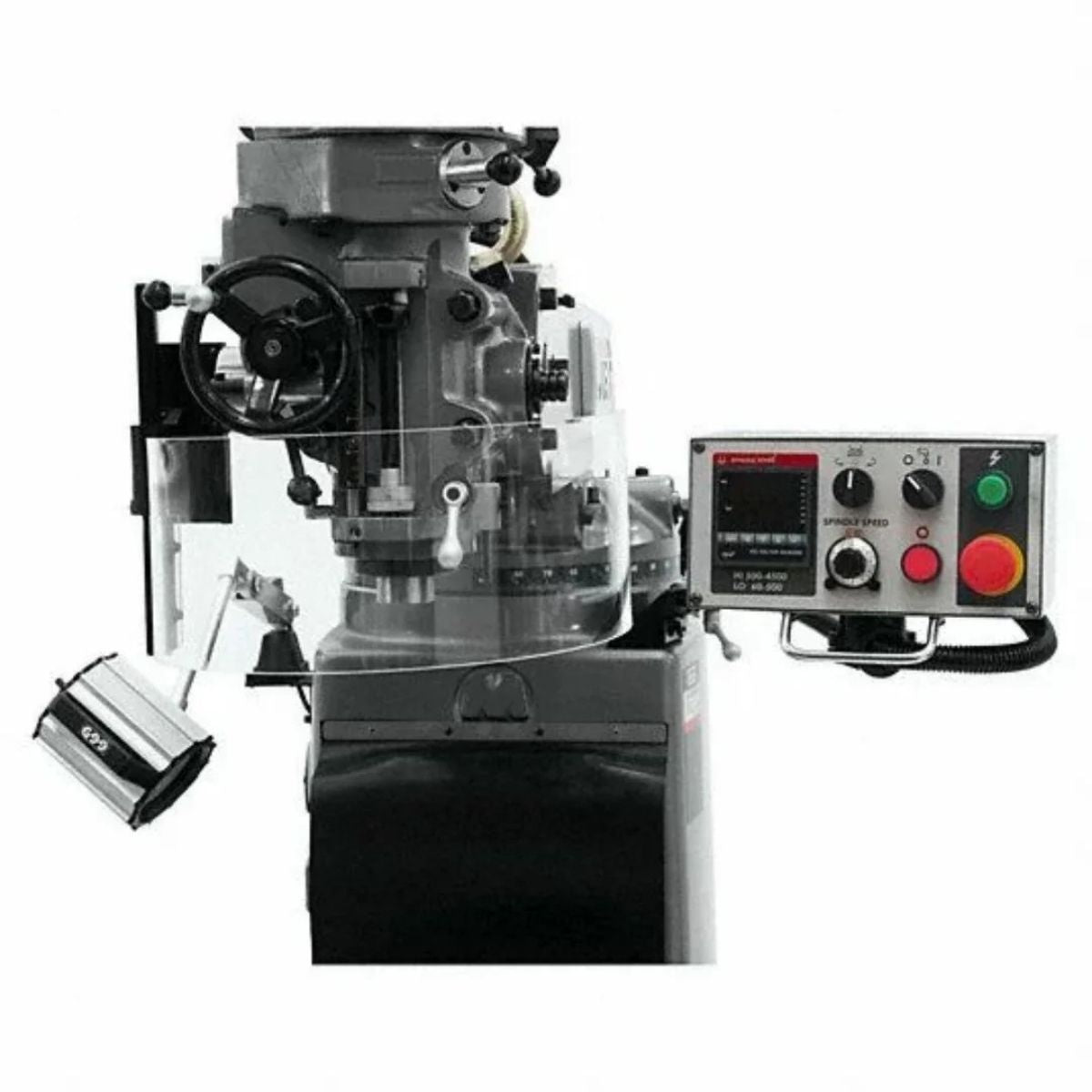

• Swing-Away Control Box — Mounts at the operator position and houses the e-stop along with all primary controls so adjustments stay within reach during a cut.

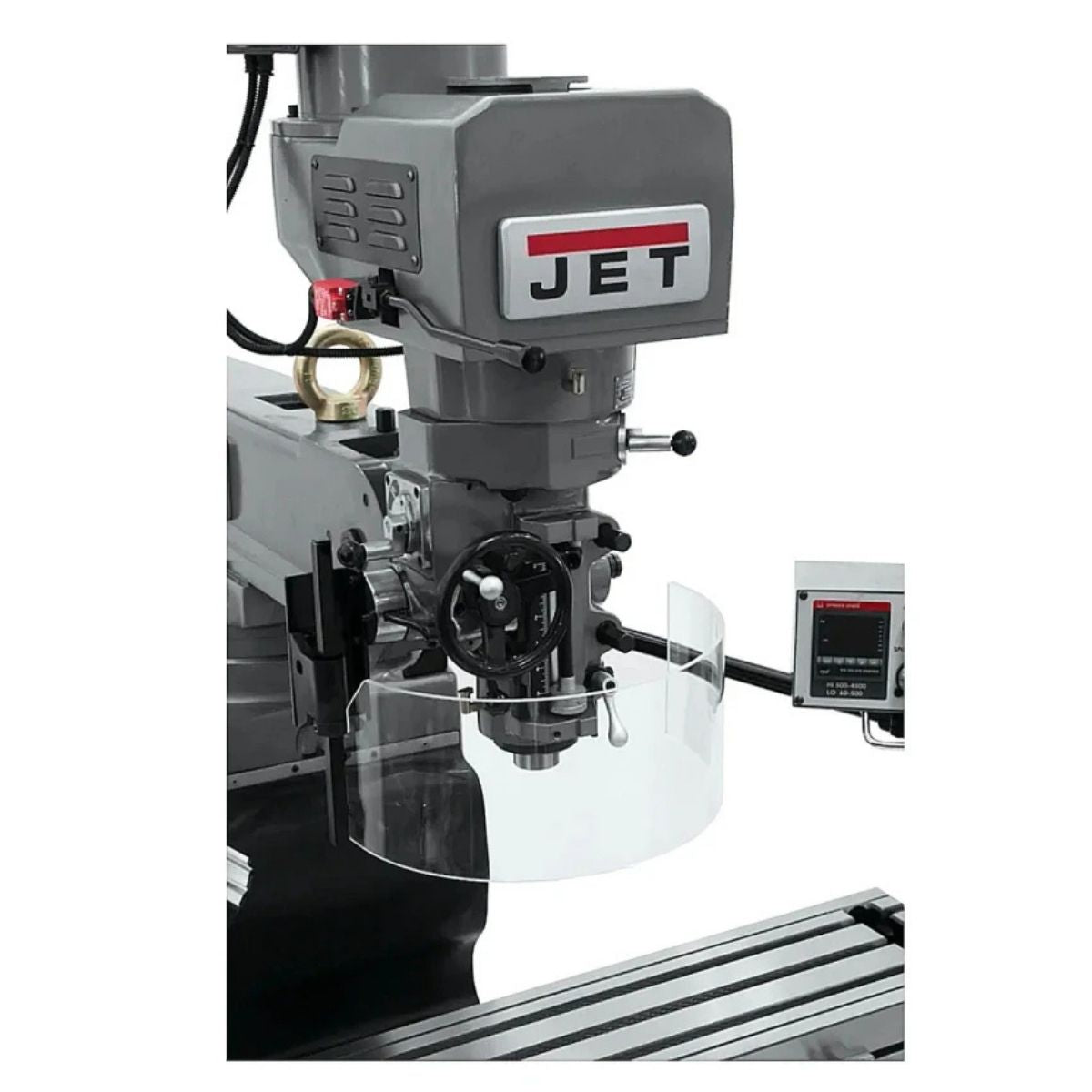

• Swing-Away Safety Shield — Positions in front of the spindle to protect the operator from chips and coolant during milling operations.

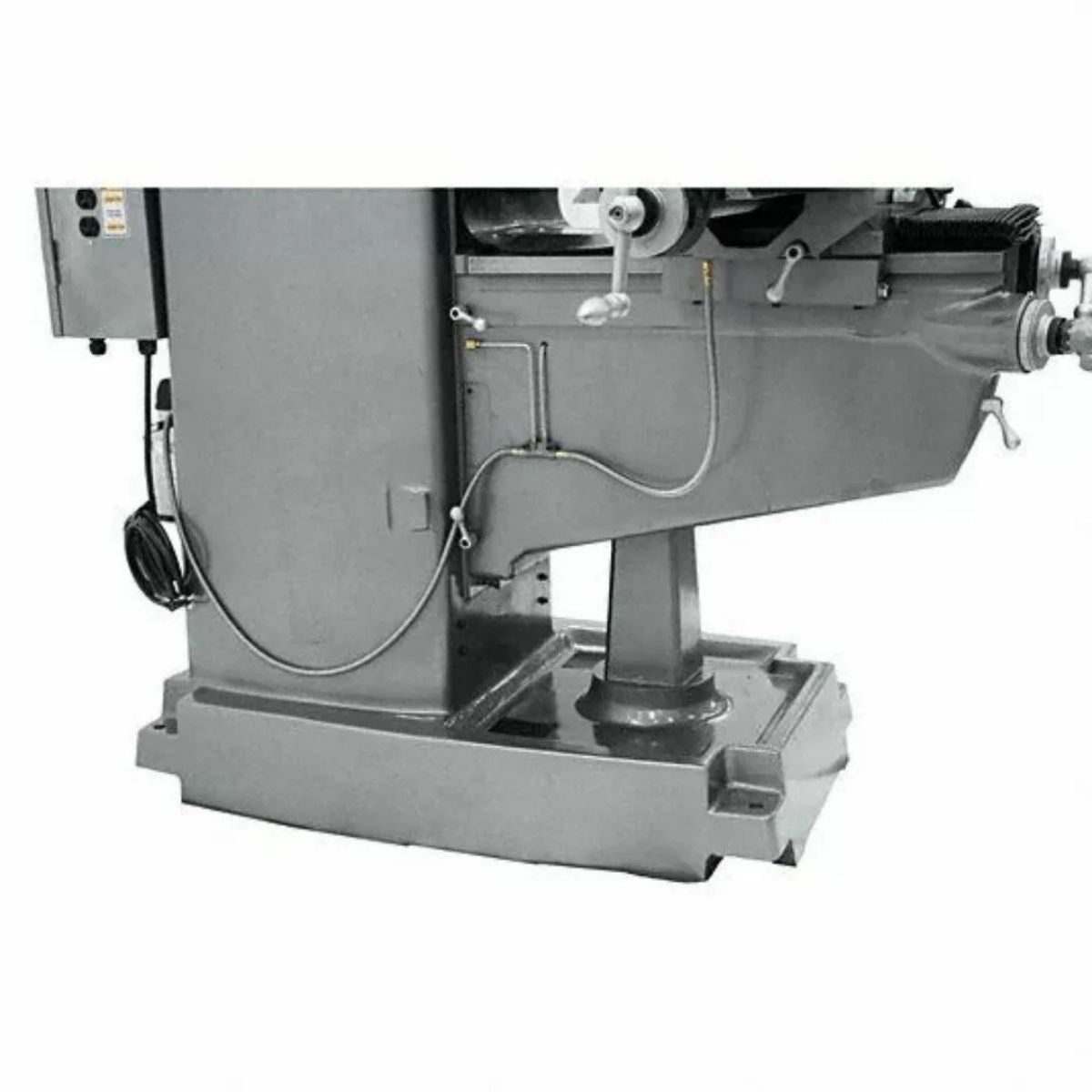

• Automatic Oiler — Delivers 3 to 6 cc of lubrication to the ways at timed intervals to maintain consistent way lubrication without manual attention.

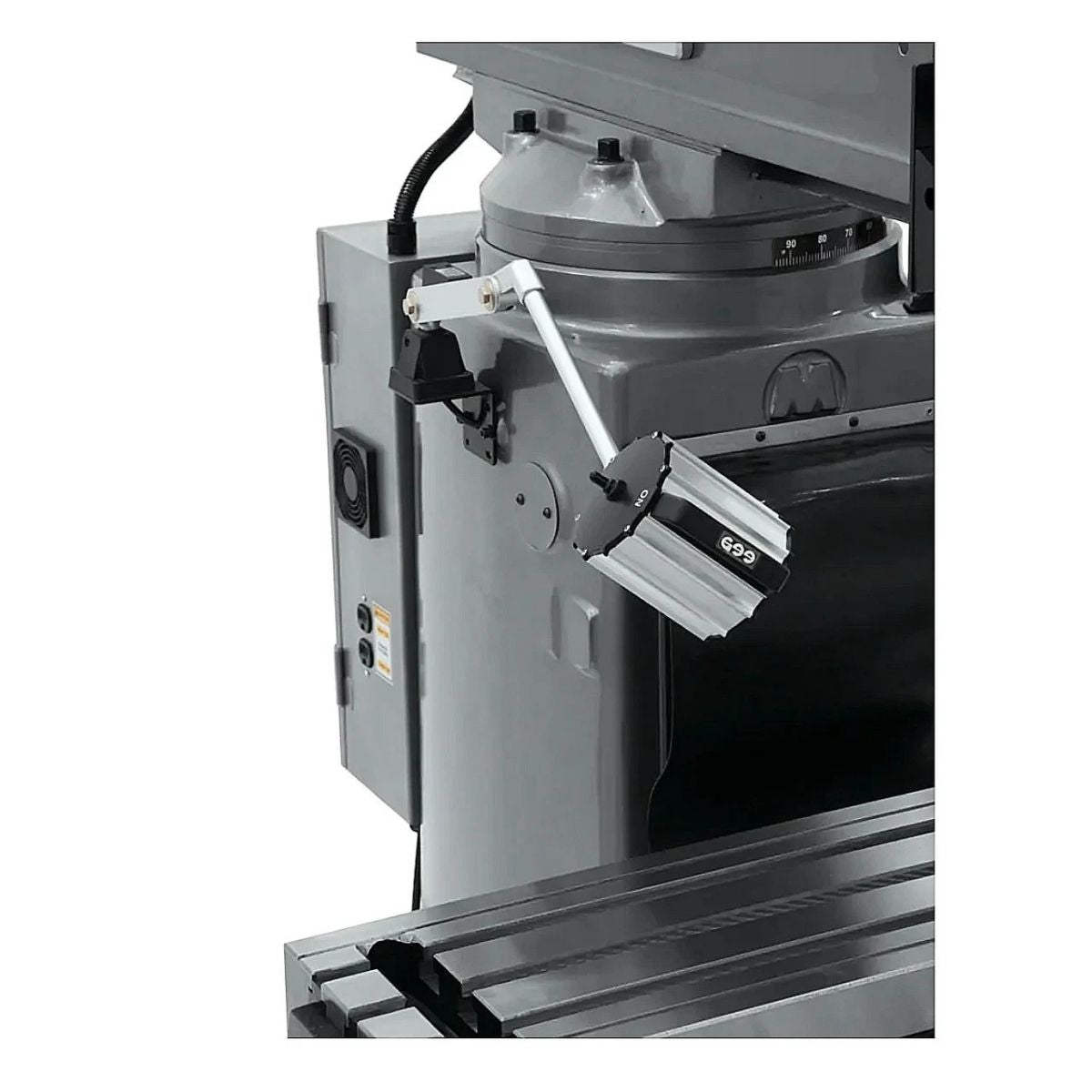

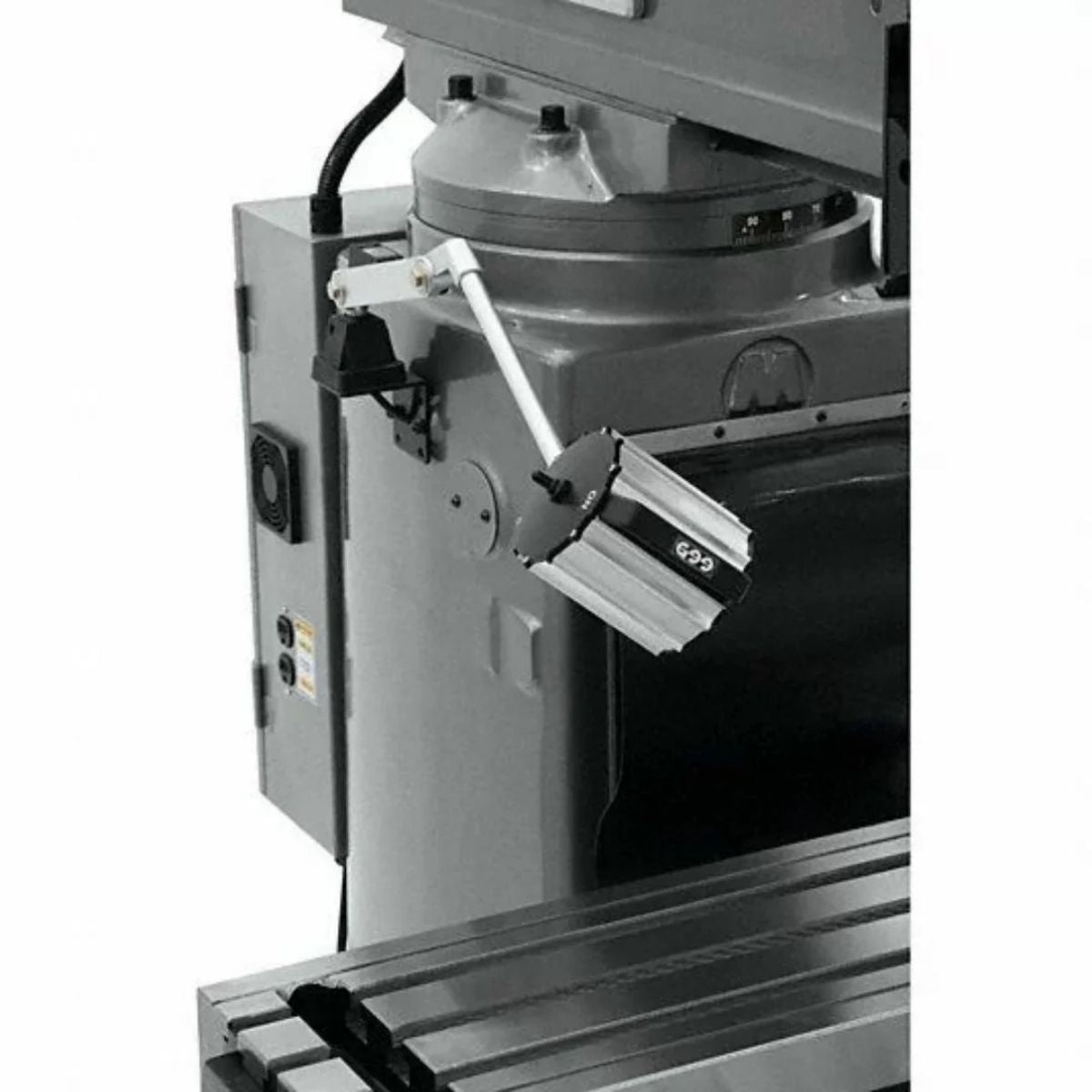

• Rear Electrical Box with Dual 115V Outlets — Relocated to the back of the machine and includes two 115V accessory outlets for powering lights, DRO units, or other shop accessories.

Specs

JET JTM-1050EVS2 10" × 50" Electronic Variable Speed Vertical Milling Machine Specifications

Available Configurations

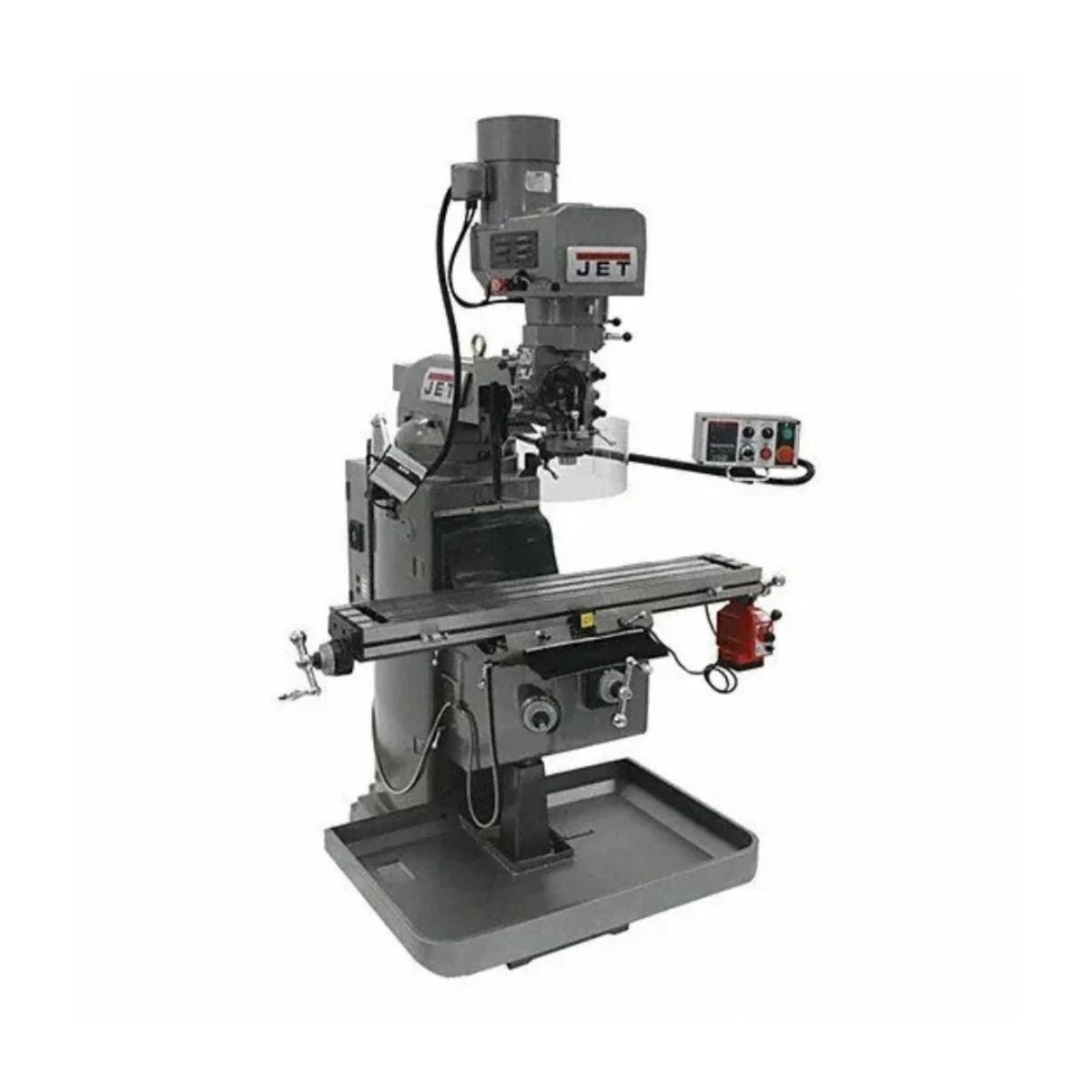

• JT9-691600 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | Base Model

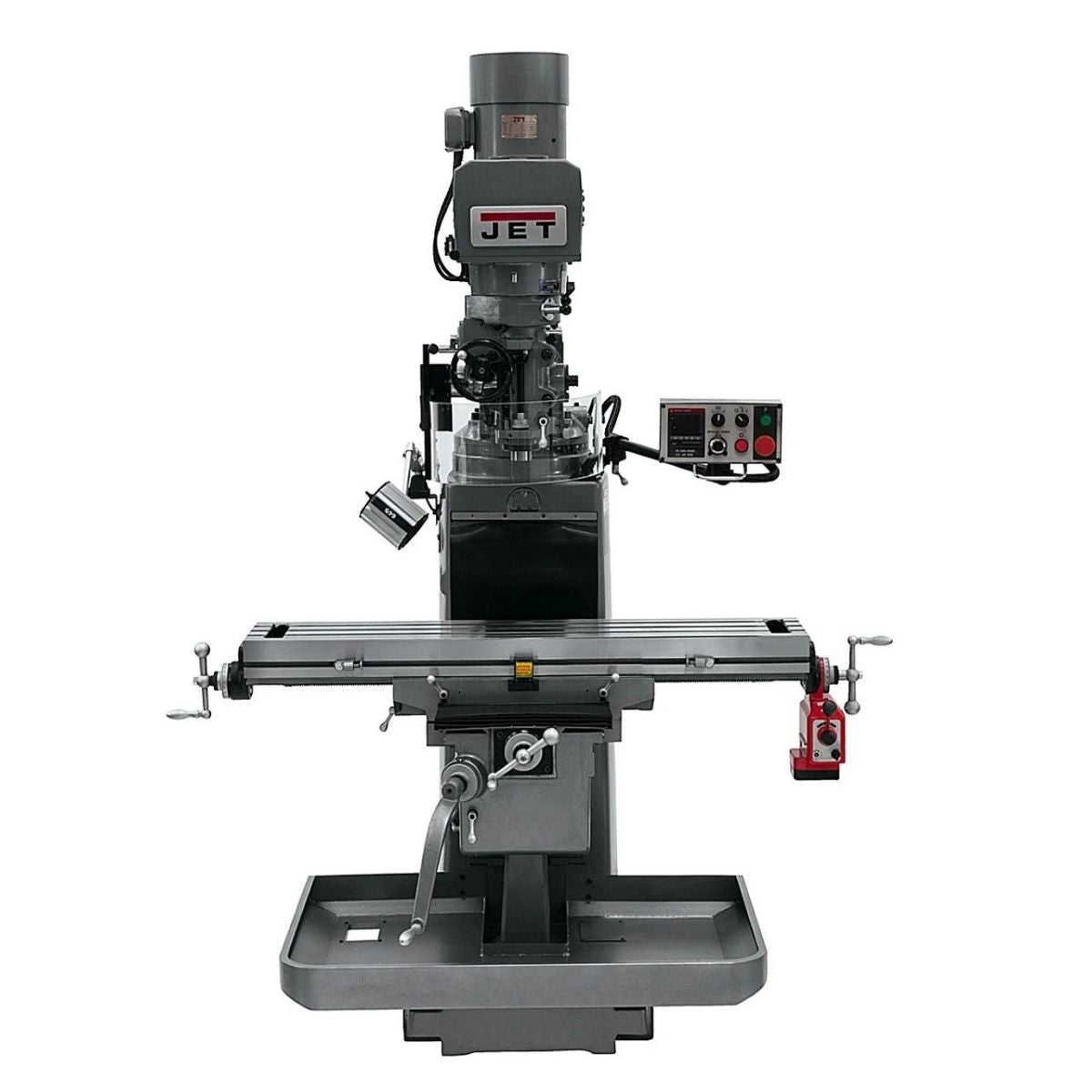

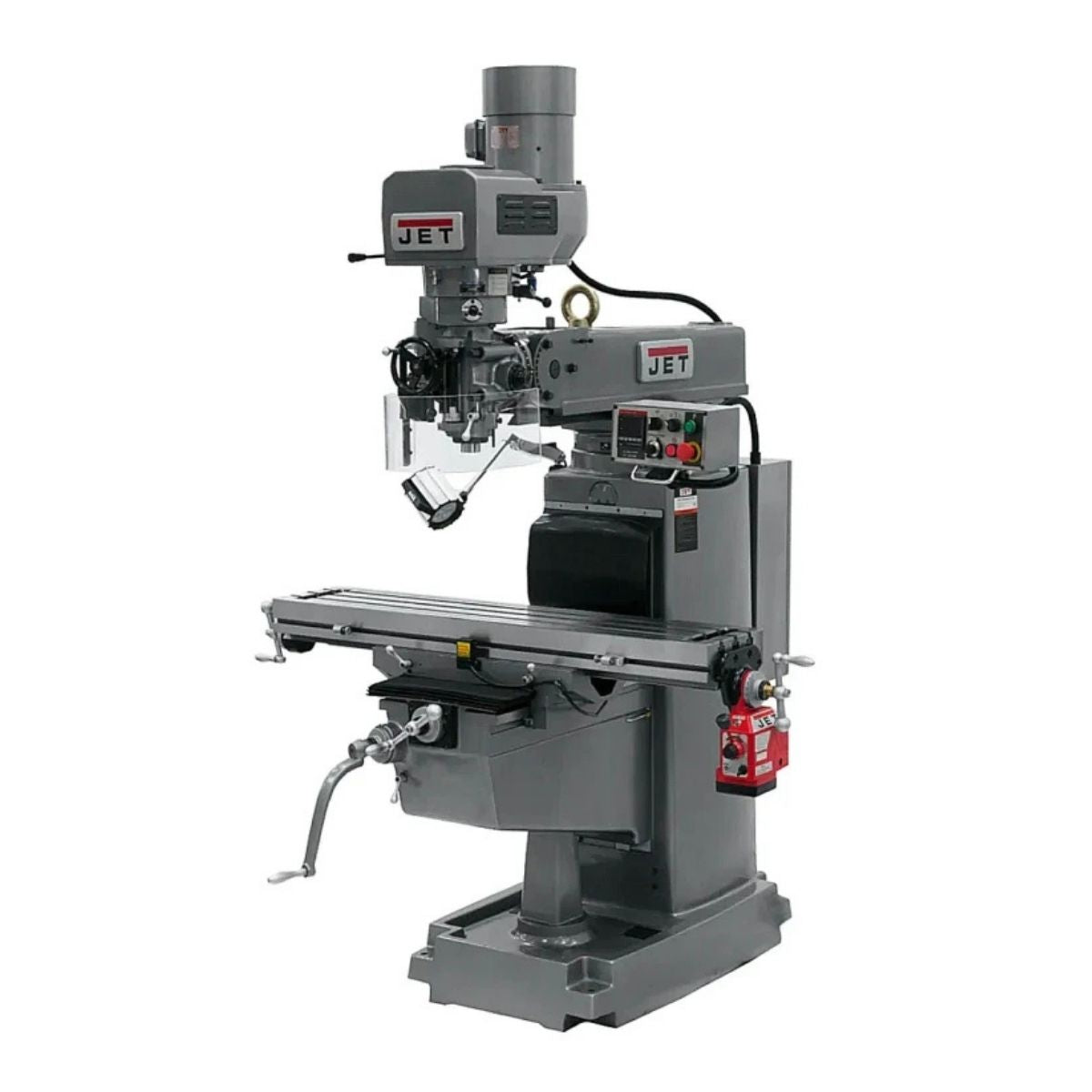

• JT9-690601 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X-Axis Powerfeed

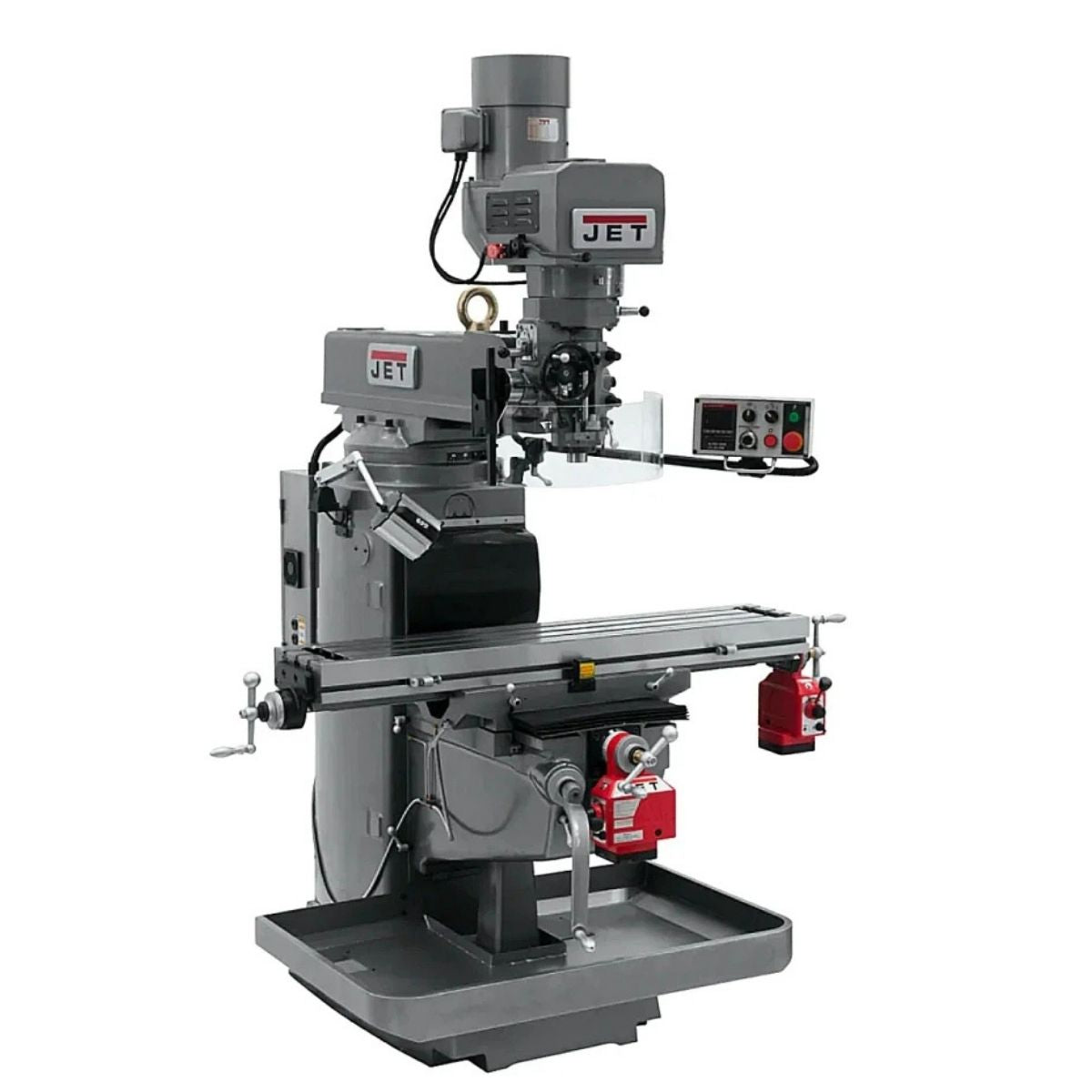

• JT9-690603 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X and Y-Axis Powerfeeds

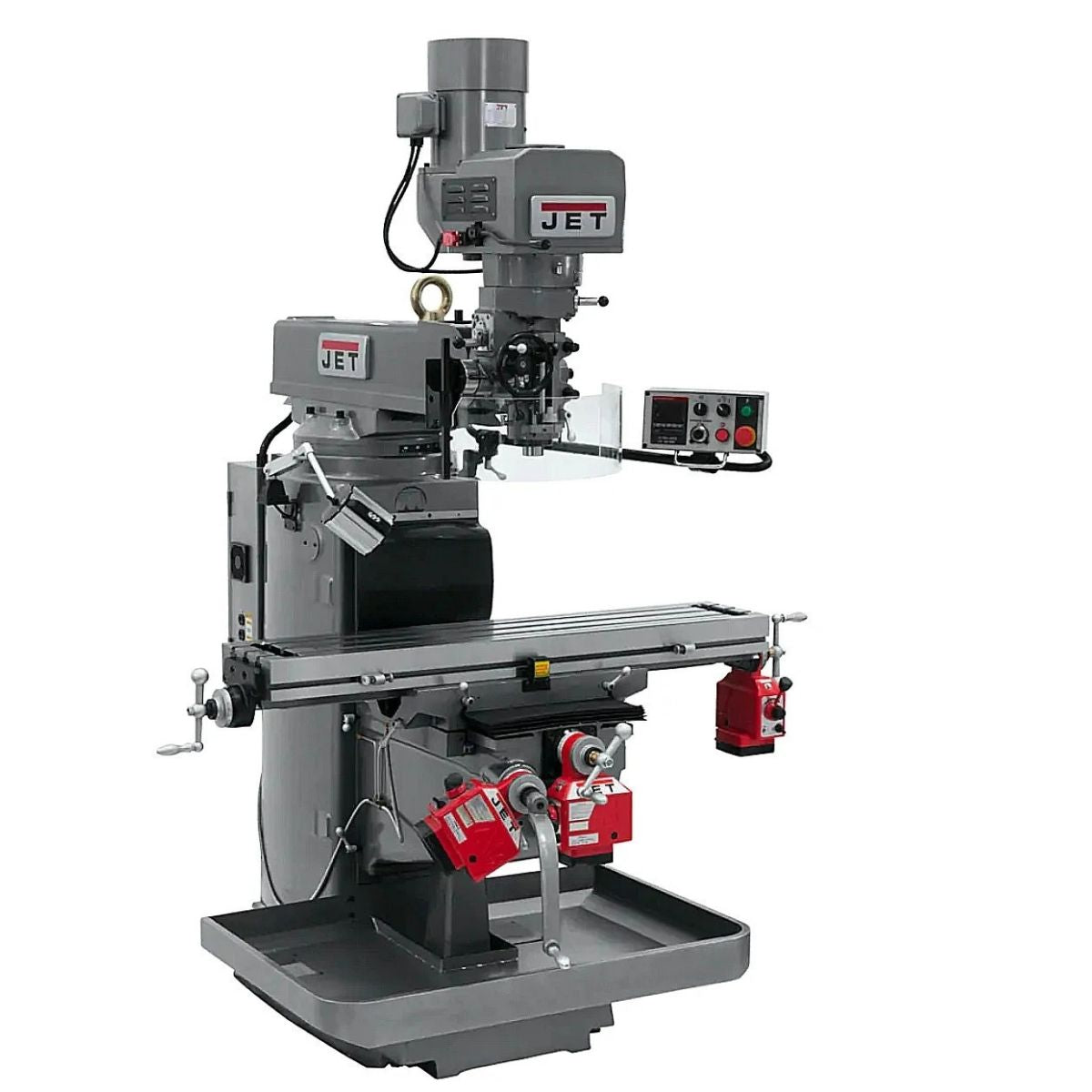

• JT9-690604 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X, Y and Z-Axis Powerfeeds

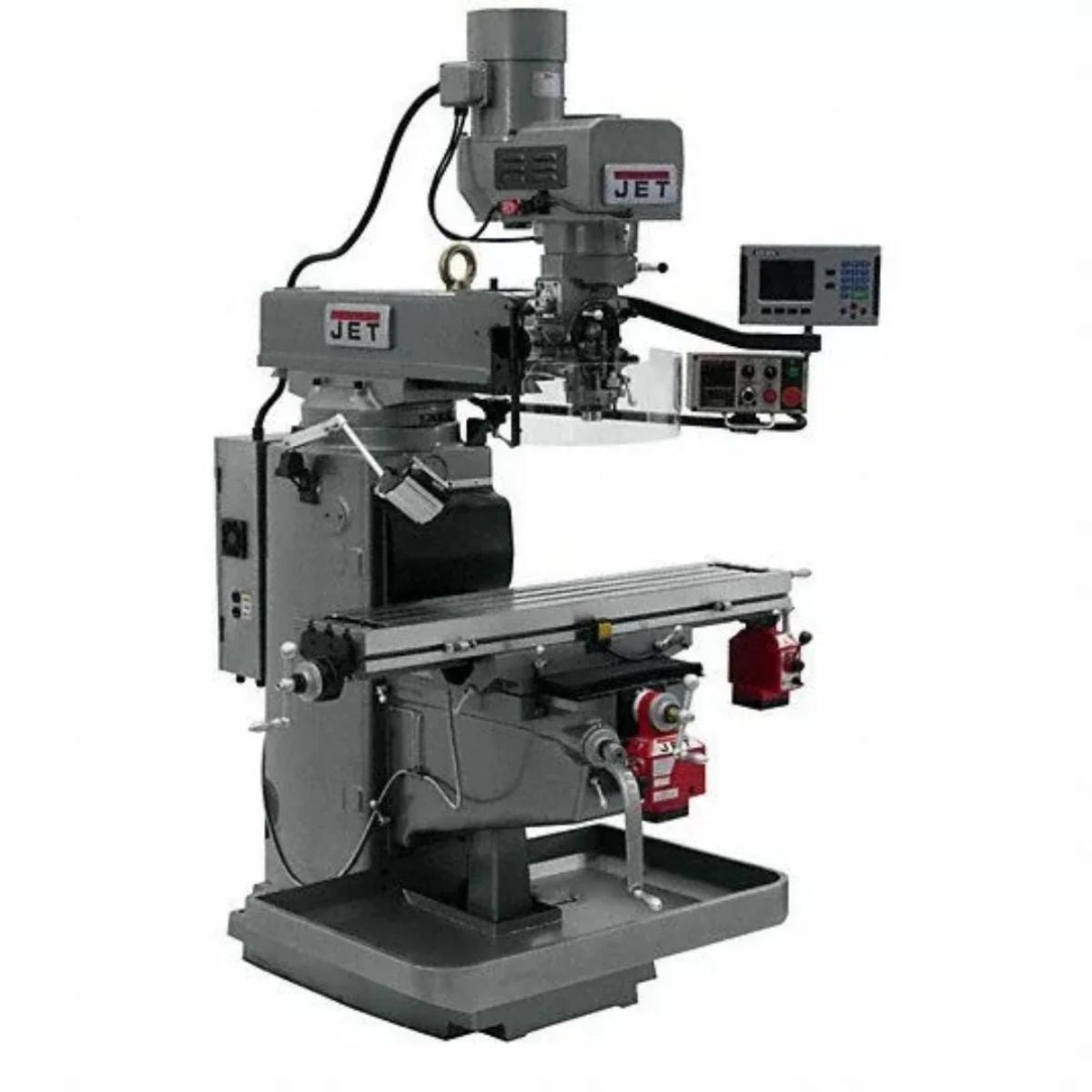

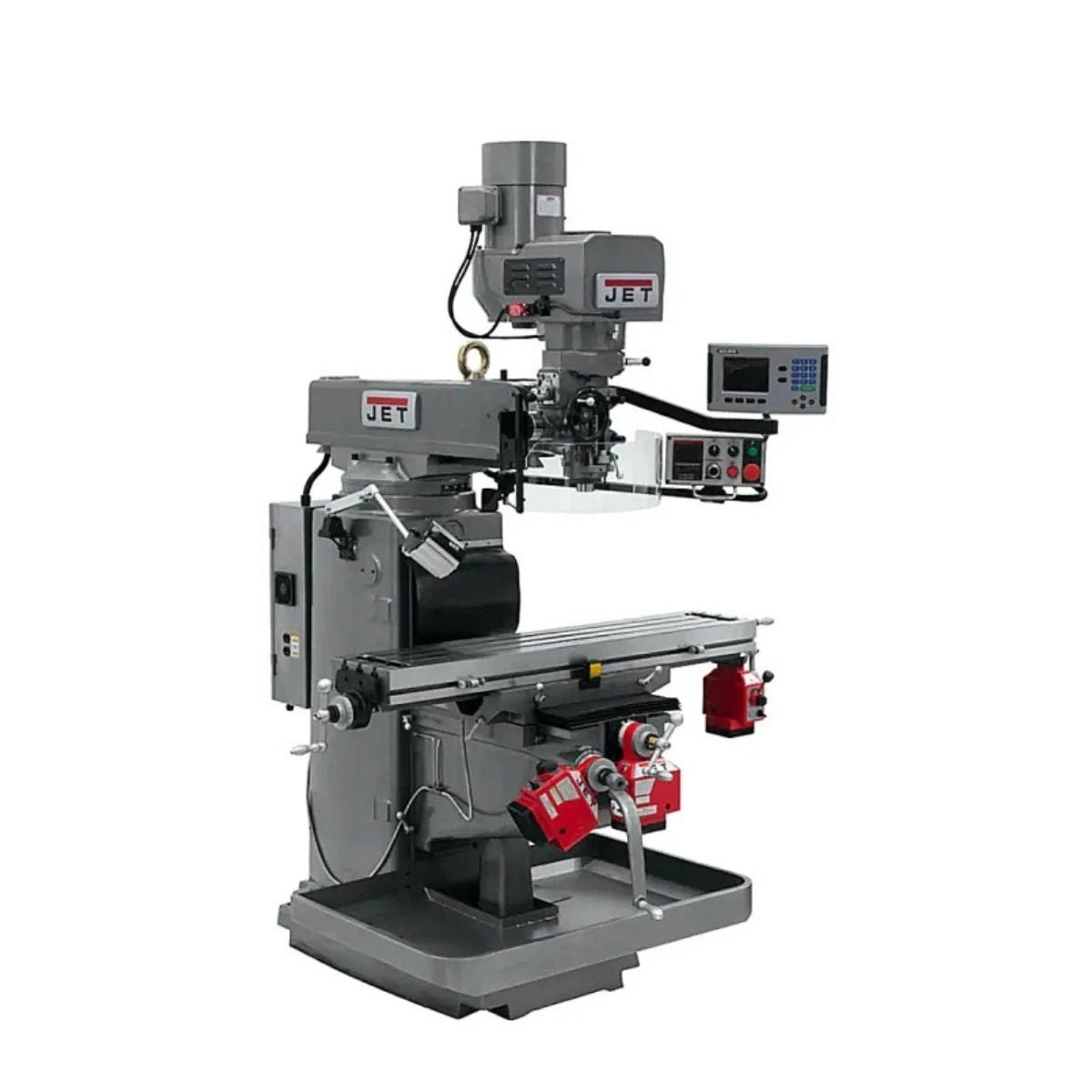

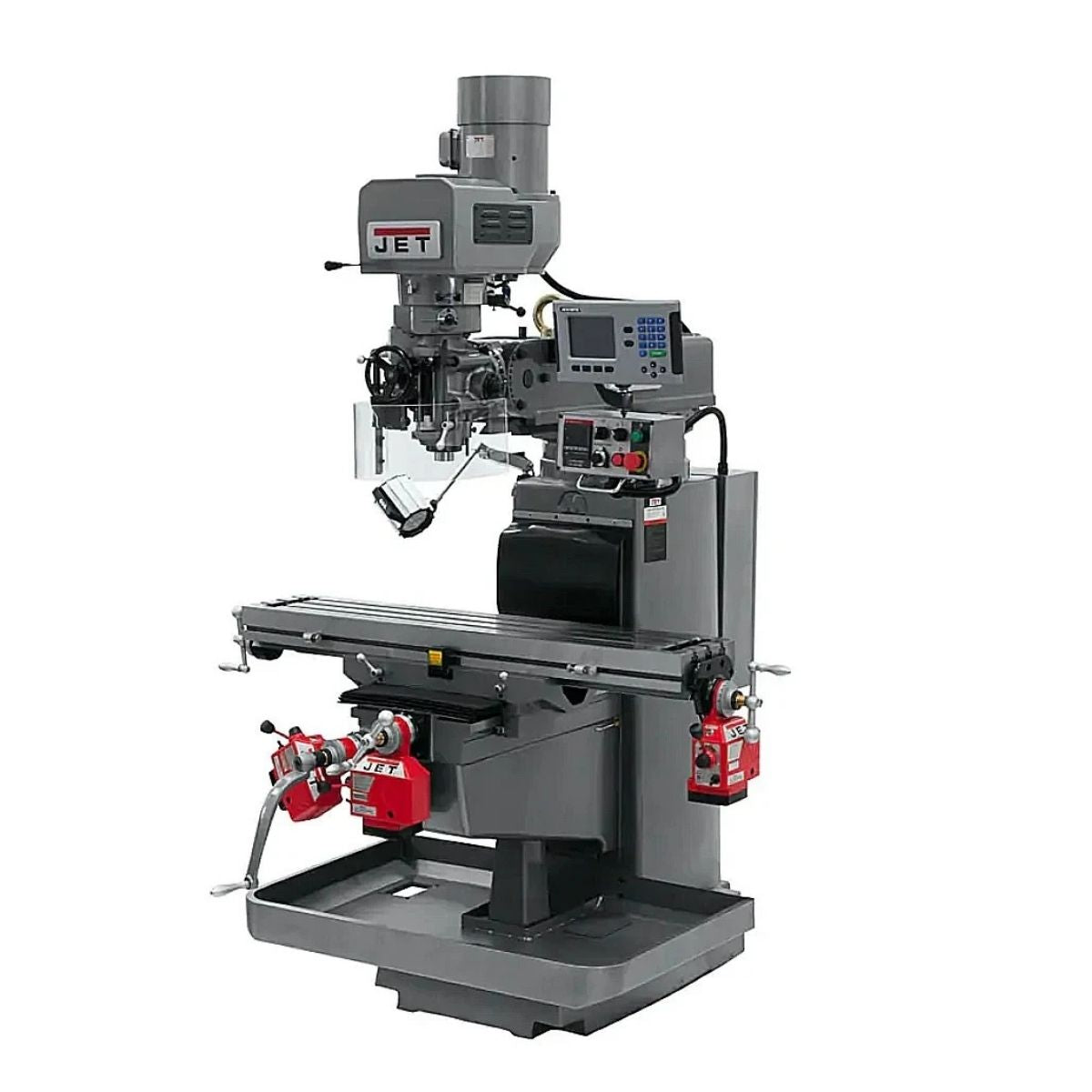

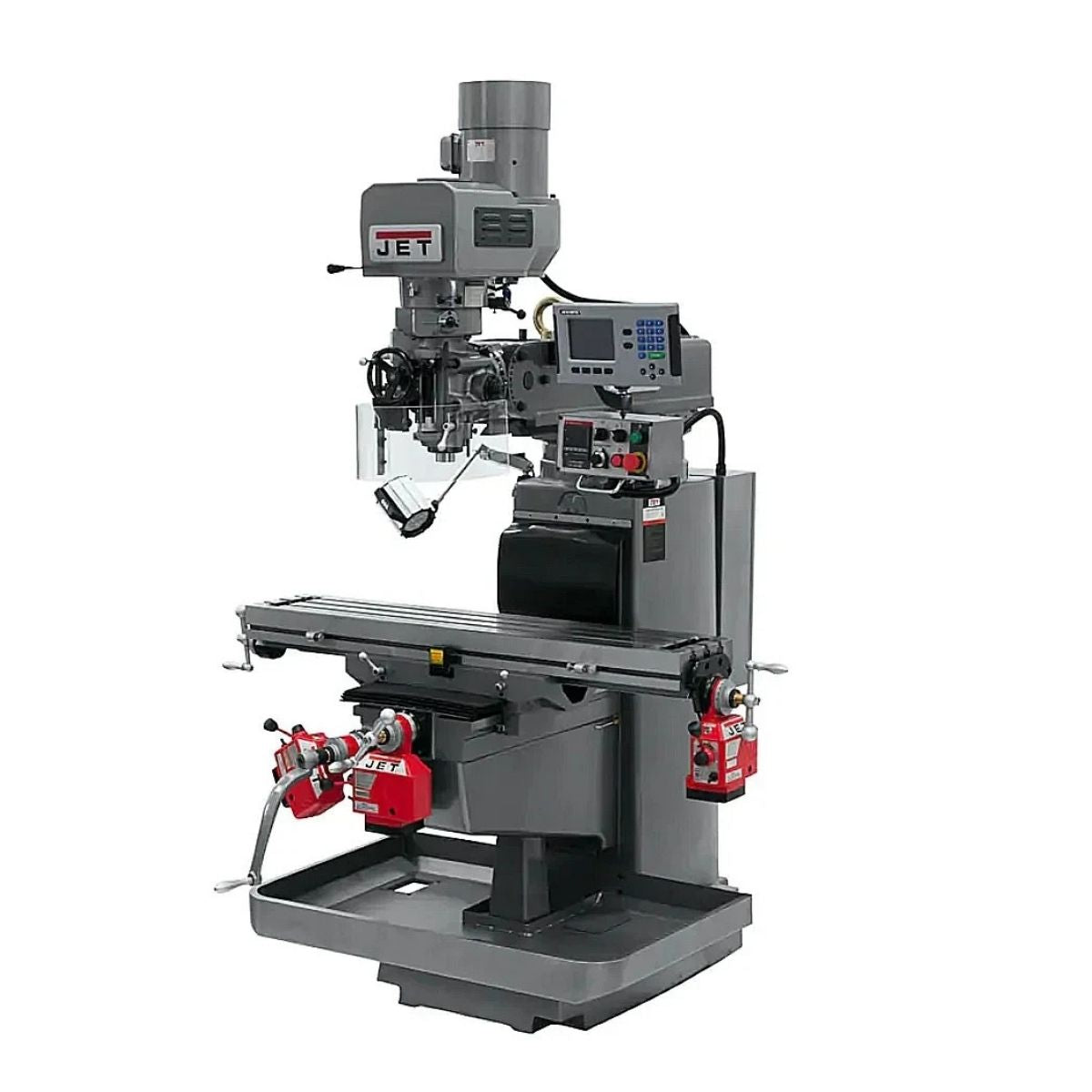

• JT9-690624 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X-Axis Powerfeed | 3-Axis Acu-Rite 203 DRO (Knee)

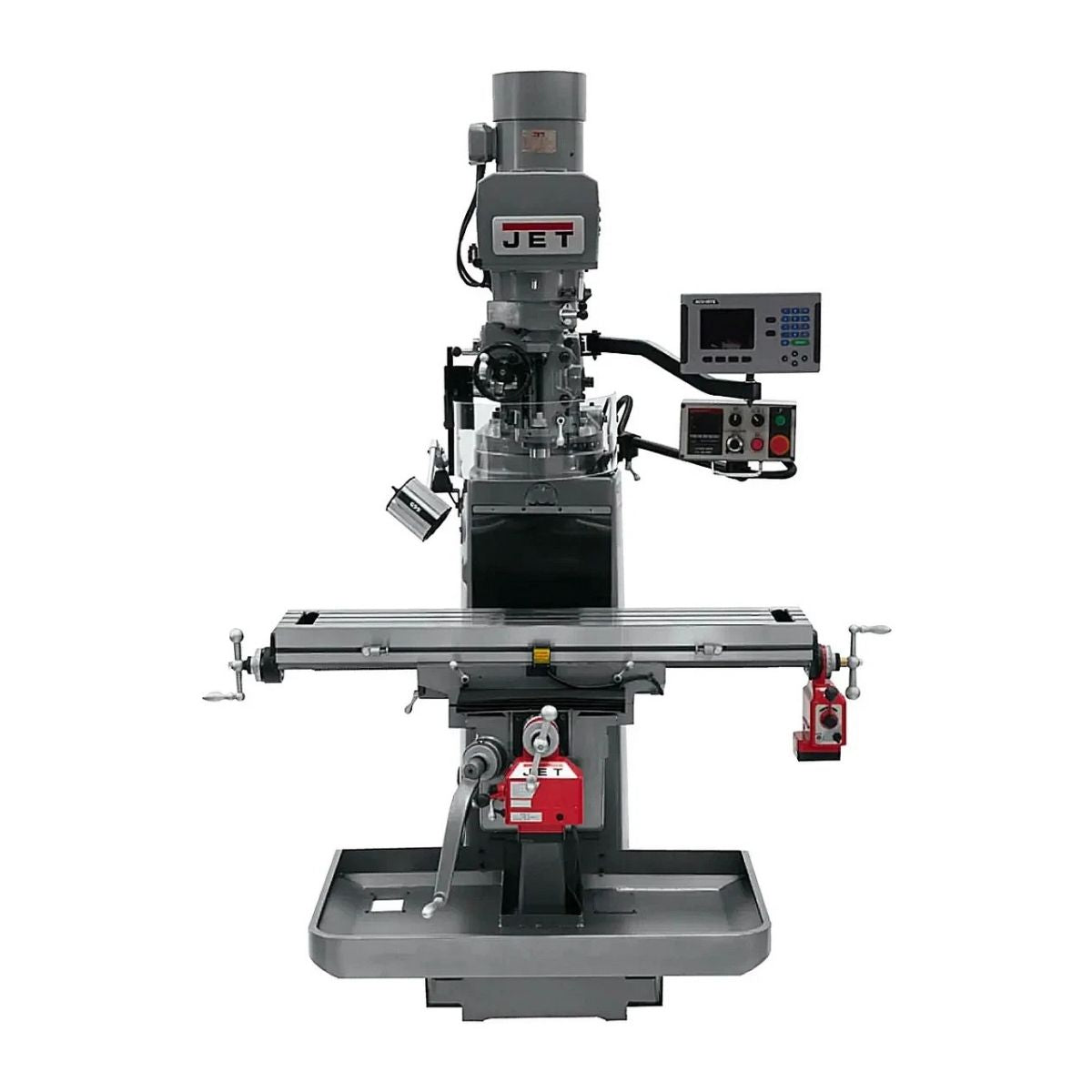

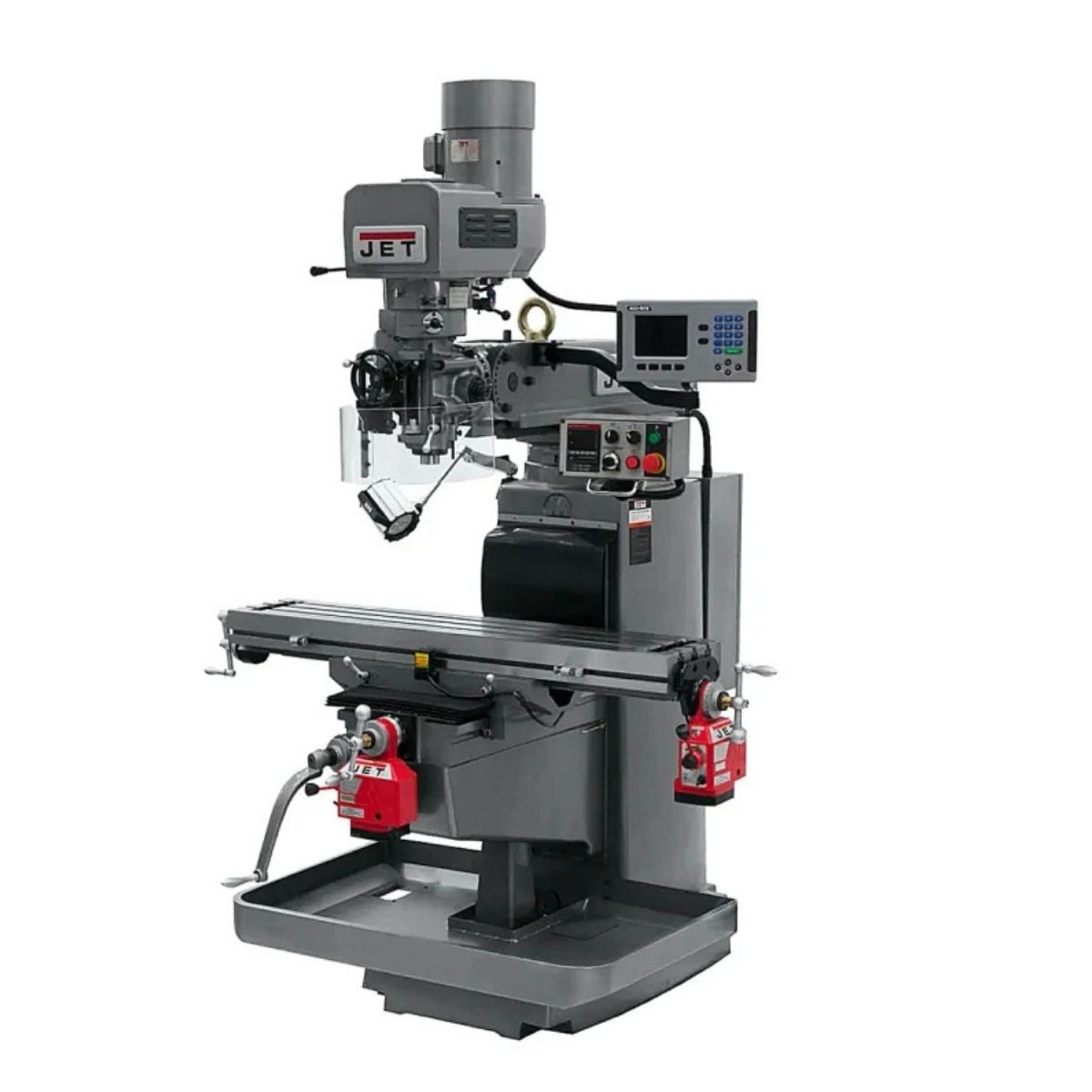

• JT9-690626 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X and Y-Axis Powerfeeds | 3-Axis Acu-Rite 203 DRO (Knee)
• JT9-690628 — JTM-1050EVS2/230 | 230V, 3-Phase | Electronic Variable Speed | X, Y and Z-Axis Powerfeeds | 3-Axis Acu-Rite 203 DRO (Knee)

Power & Spindle

• Motor: 3 HP, 230V, 3-Phase
• Inverter Type: Delta, B
• Range of Spindle Speeds: 60–4,500 RPM (Electronic Variable Speed)
• Spindle Taper: R-8
• Collet Capacity: 1/8"–7/8"
• Spindle Travel: 5"
• Quill Diameter: 3-3/8"
• Quill Down Feed Rates: .0015 / .003 / .006 IPR

Table & Travel

• Table Size: 10" × 50"
• Table Longitudinal Travel: 35-1/3" (29-7/8" with powerfeed)
• Table Cross Travel: 14-3/4"
• T-Slot Centers: 2-1/2"
• Work Table Weight Capacity: 840 lbs.
• Travel of Knee: 16-1/8"
• Travel of Ram: 15-7/8"
• Saddle Width: 11-1/2"
• Max Distance Spindle to Table: 20-3/4"
• Distance Spindle to Column (Max.): 26-3/4"

Machine

• Column Width: 20"
• Overall Dimensions (L × W × H): 66" × 63" × 87"
• Net Weight: 2,860 lbs. (base model) — varies by configuration
• Warranty: 2 Years
• Manual: PDF download available
