JET JPM-13CS 13" Closed Stand Planer/Molder 1.5HP
Are you looking for one machine that handles both planing and molding work in a single shop footprint?
What if you could switch between surfacing lumber and running molding profiles without swapping tools or moving machines?

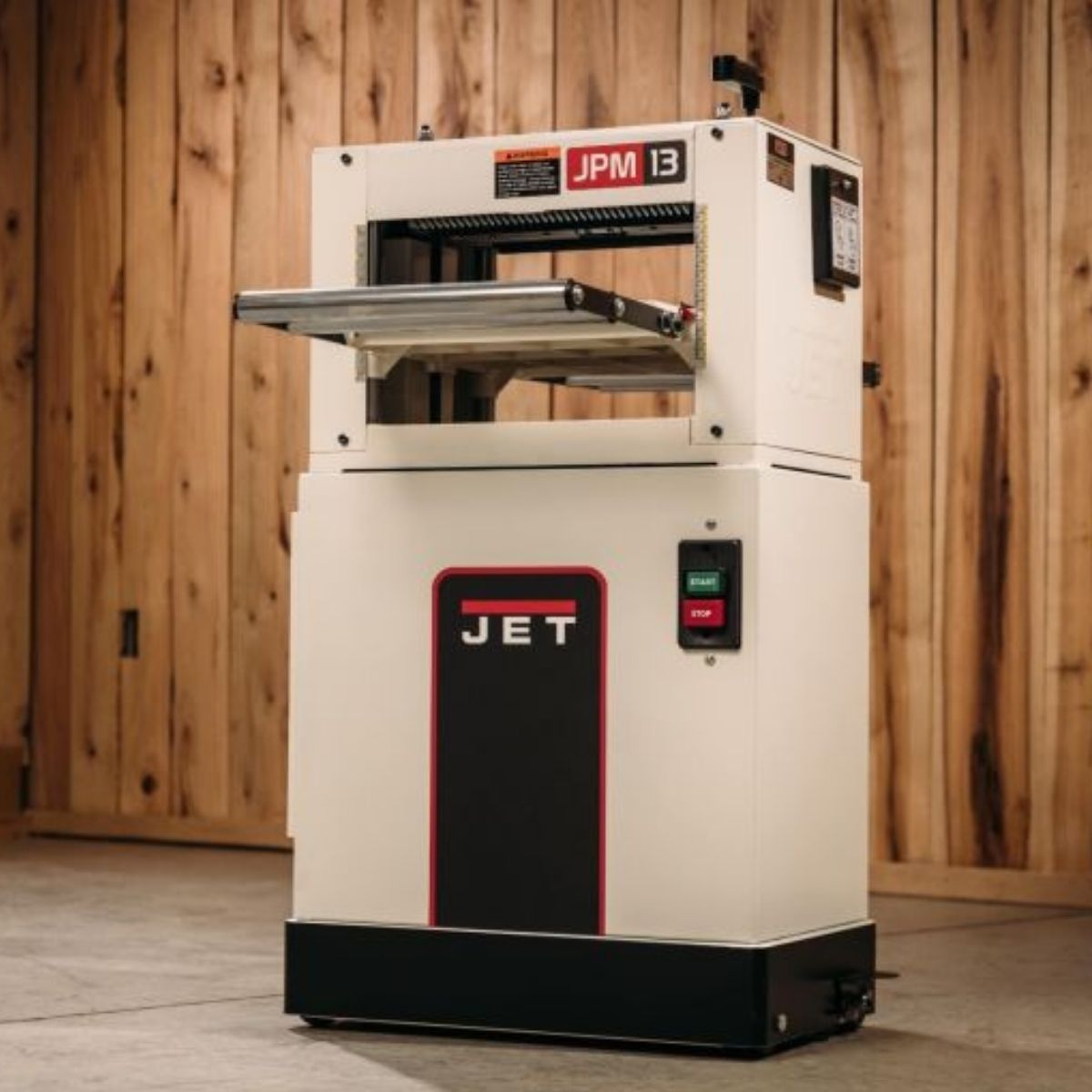

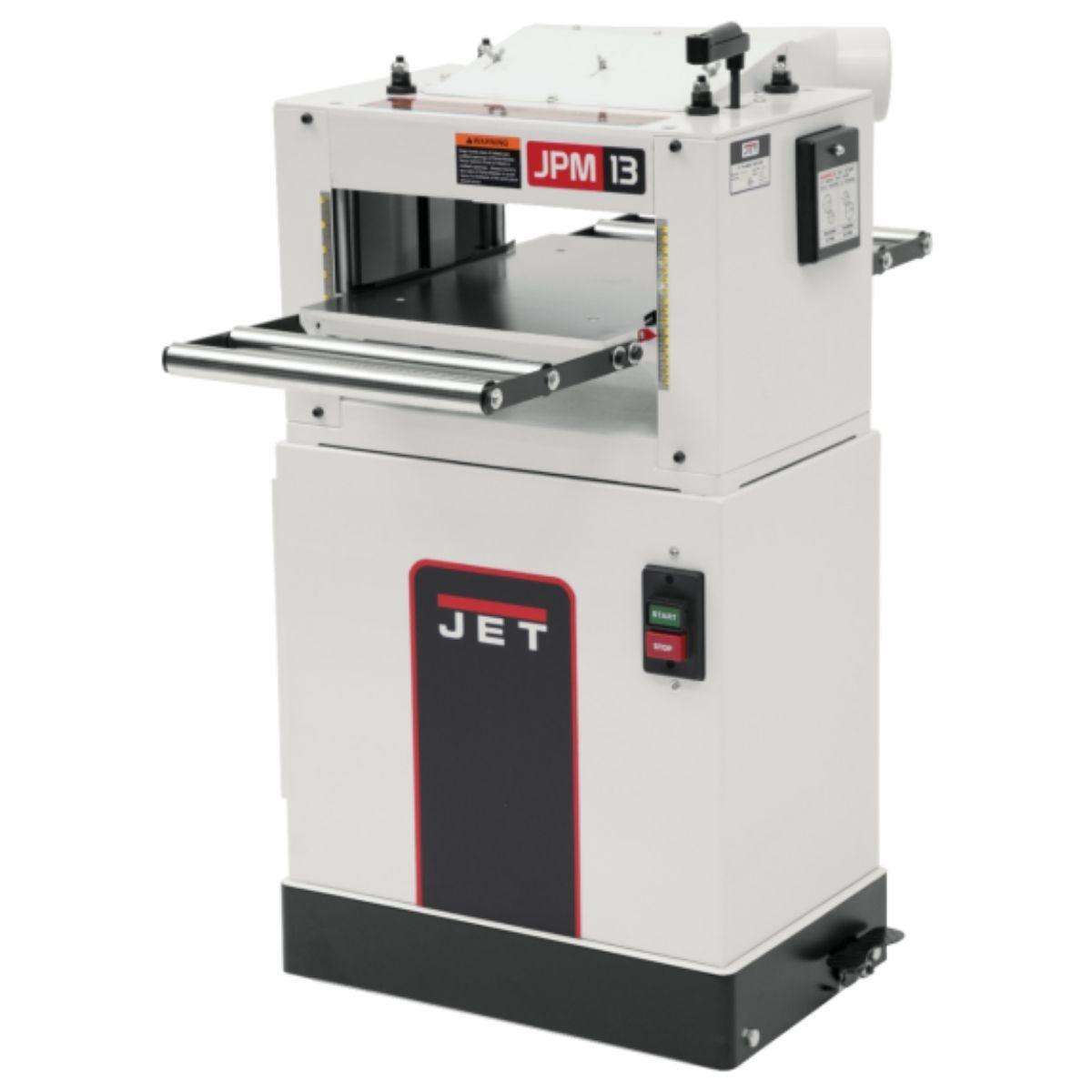

Meet the JET JPM-13CS 13" Closed Stand Planer/Molder 1.5HP, a cast iron dual-function machine built for serious shop work.
With a three-knife cutter head, rubber-coated feed rollers, and a two-speed gearbox, the JPM-13CS handles both applications with steady, consistent results.
When one machine covers two tasks reliably, you can keep the workflow moving without interruption.
JET JPM-13CS for Planing and Molding Work
Three-Knife Cutter Head Delivers a Clean Finish

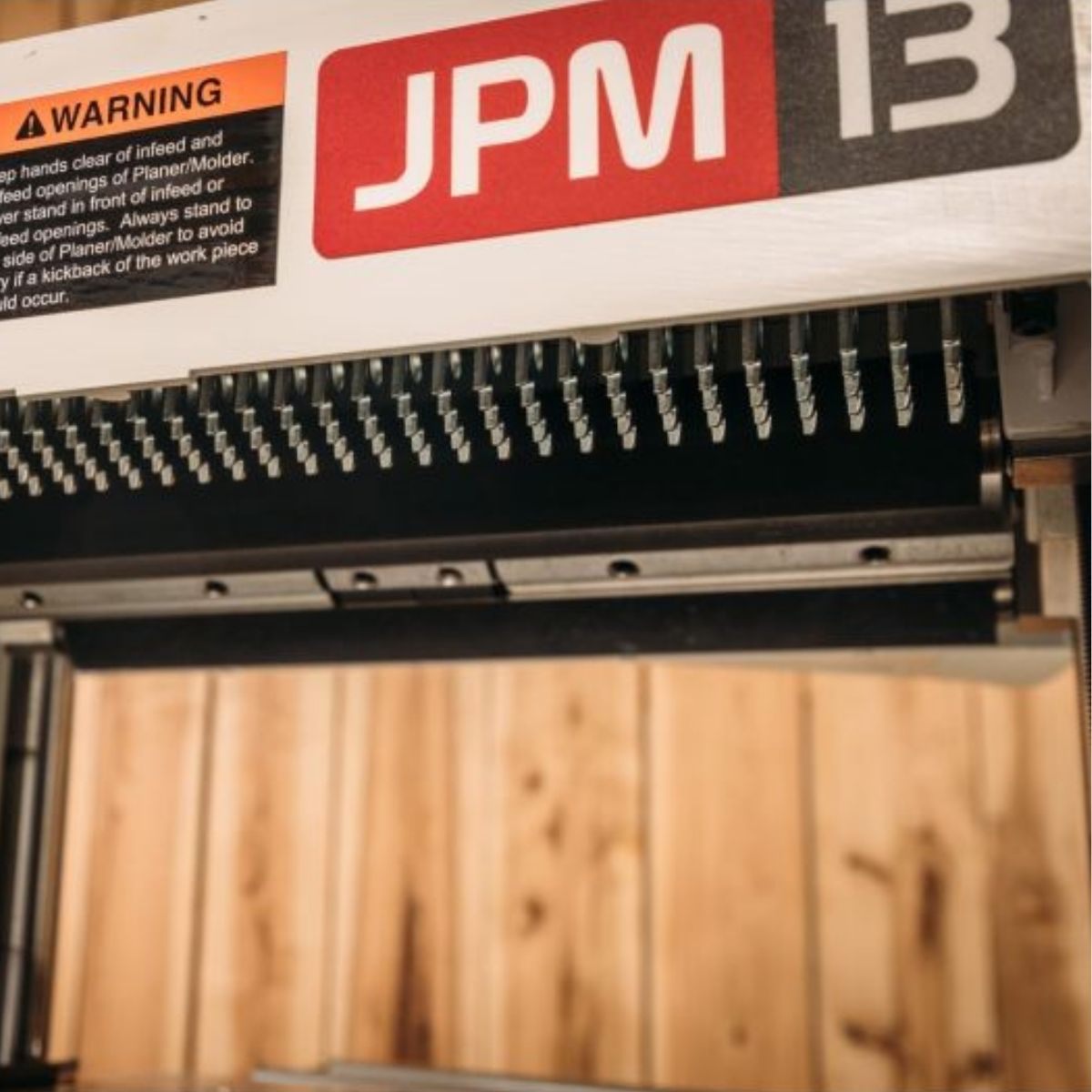

The three-knife cutter head runs at 4500 RPM for smooth, consistent material removal across the full 13 inch width. The same cutter head accepts over 40 standard molding profiles, so switching between surfacing and molding work does not require a full head swap.
Two-Speed Gearbox Matches Feed Rate to the Task
The two-speed gearbox gives you separate feed rates optimized for planing and molding. Selecting the right feed rate for each task keeps cuts clean and reduces the chance of tear-out or chatter marks on the finished surface.

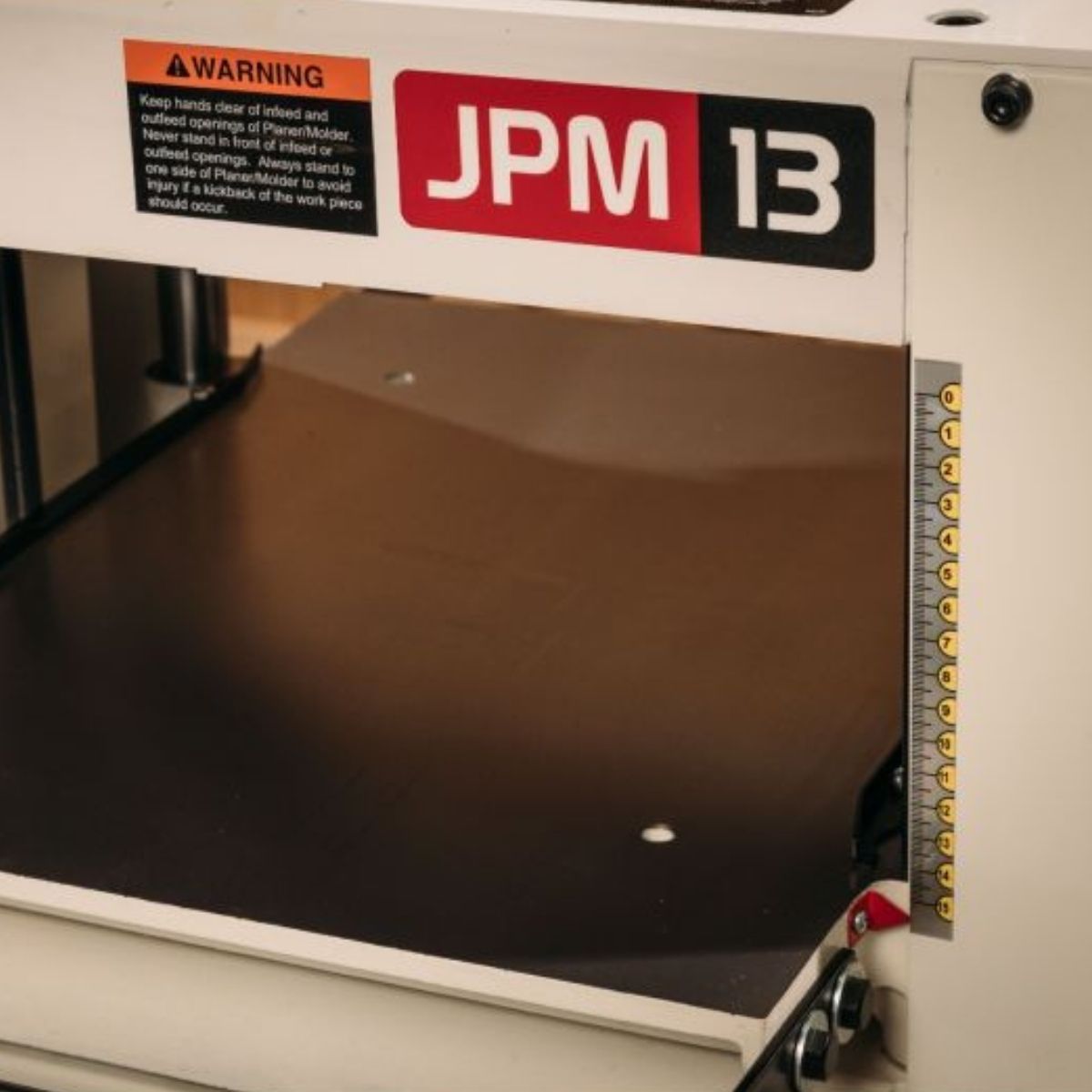

Cast Iron Table and Base Reduce Vibration

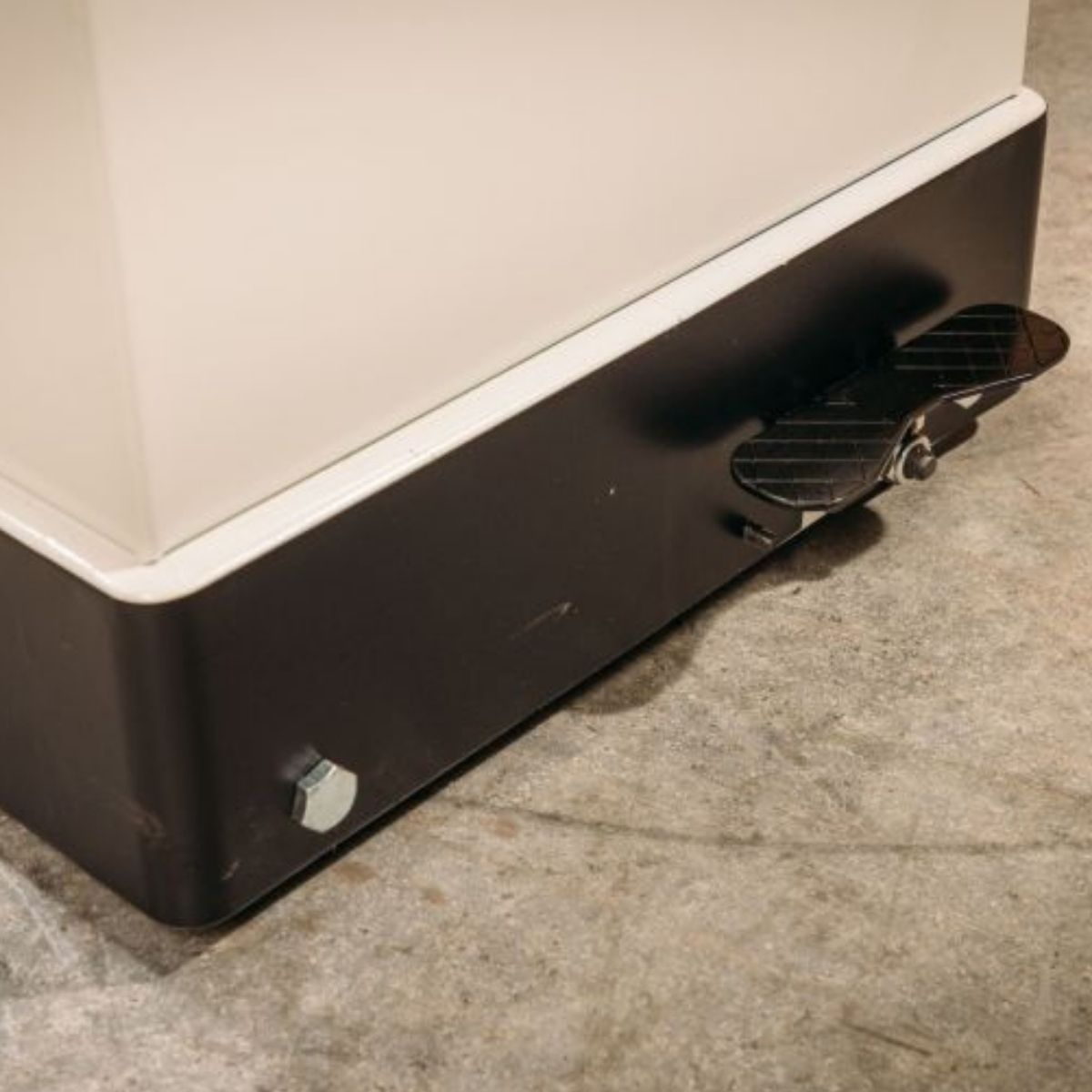

The table and base are both cast iron for rigidity and long-term stability under daily use. A heavier base absorbs vibration during cutting and keeps the machine steady through both light finish passes and deeper stock removal.
Rubber-Coated Rollers Support the Workpiece

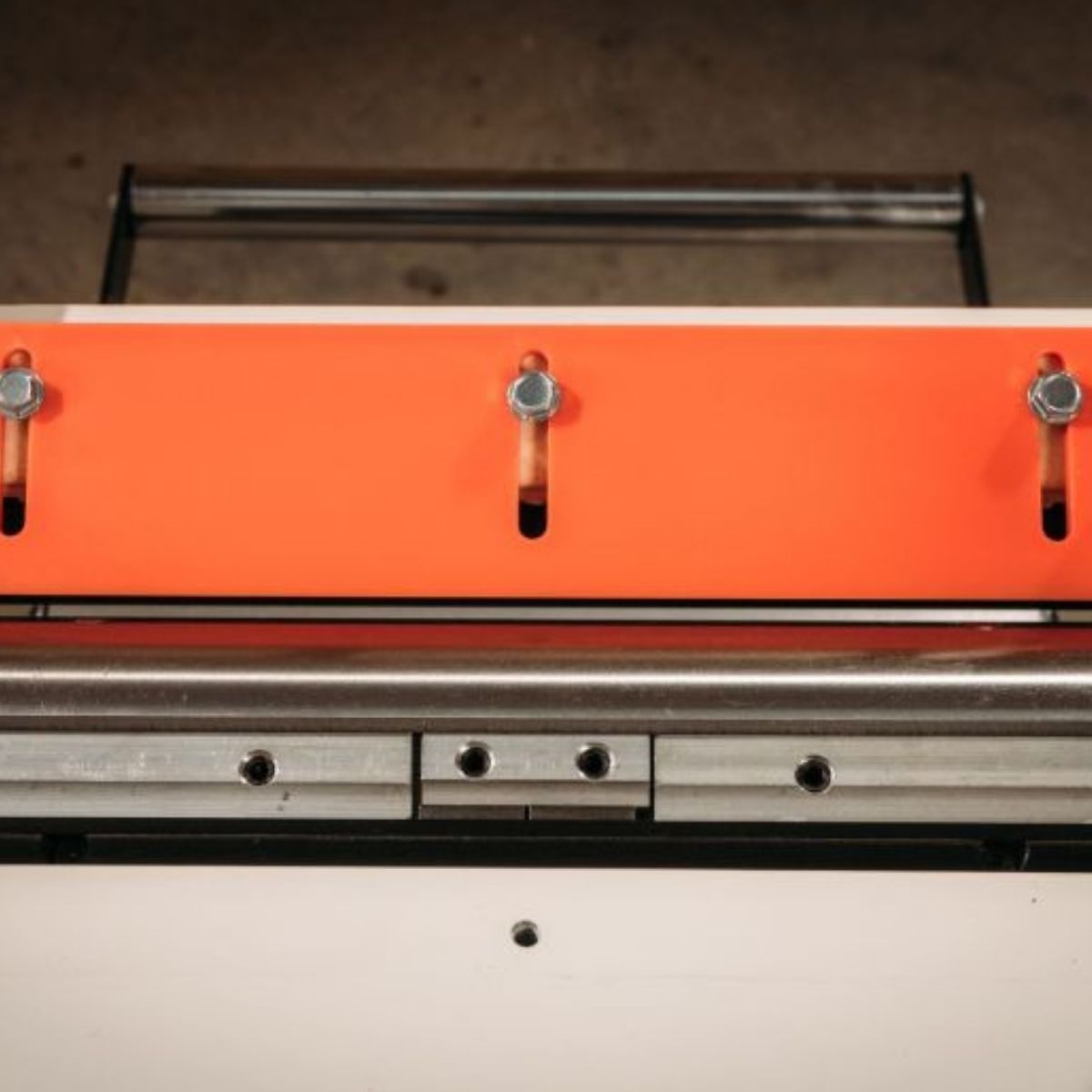

Infeed and outfeed rollers are rubber-coated to grip the workpiece without marring the wood surface. Both rollers are adjustable so you can dial in the feed pressure to match different stock thicknesses and species.
What's Included
What's Included? JET JPM-13CS 13" Closed Stand Planer/Molder 1.5HP
-
JET JPM-13CS 13" Closed Stand Planer/Molder 1.5HP — Provides a 13 inch dual-function planer and molder on a closed stand for steady shop use.
Specs
JET JPM-13CS 13" Closed Stand Planer/Molder 1.5HP Specifications
- Model: JPM-13CS
- Stock Number: JT9-708524
- Motor: 1.5HP
- Amperage: 15A / 7.5A
- Voltage: 115/230V (prewired 115V)
- Cutterhead Speed: 4500 RPM
- Number of Knives: 3
- Maximum Planing Thickness: 6-1/8"
- Molding Feed Rate: 10 FPM

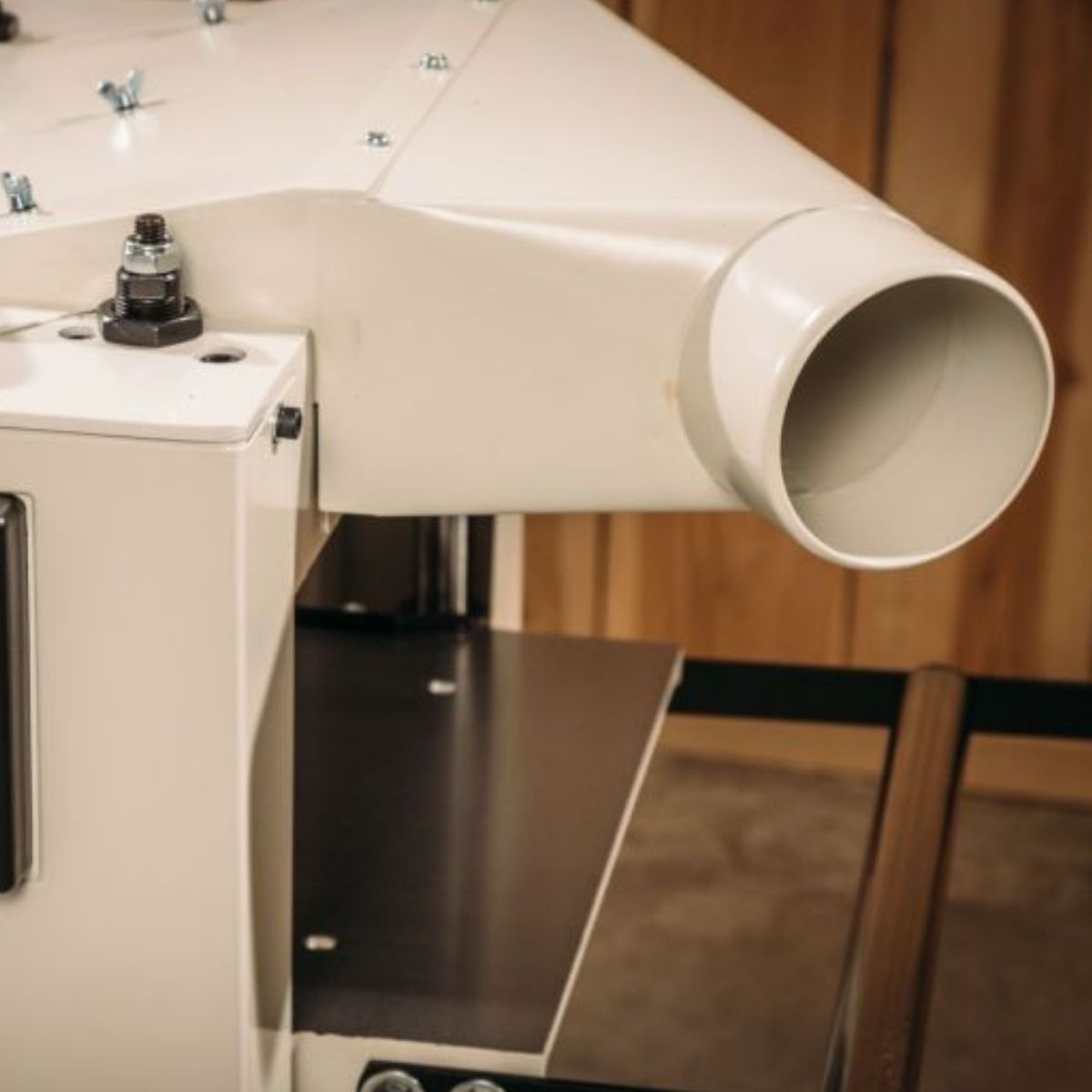

- Dust Port Outside Diameter: 4"
- Net Weight: 258 lb
- Warranty: 5 Year
