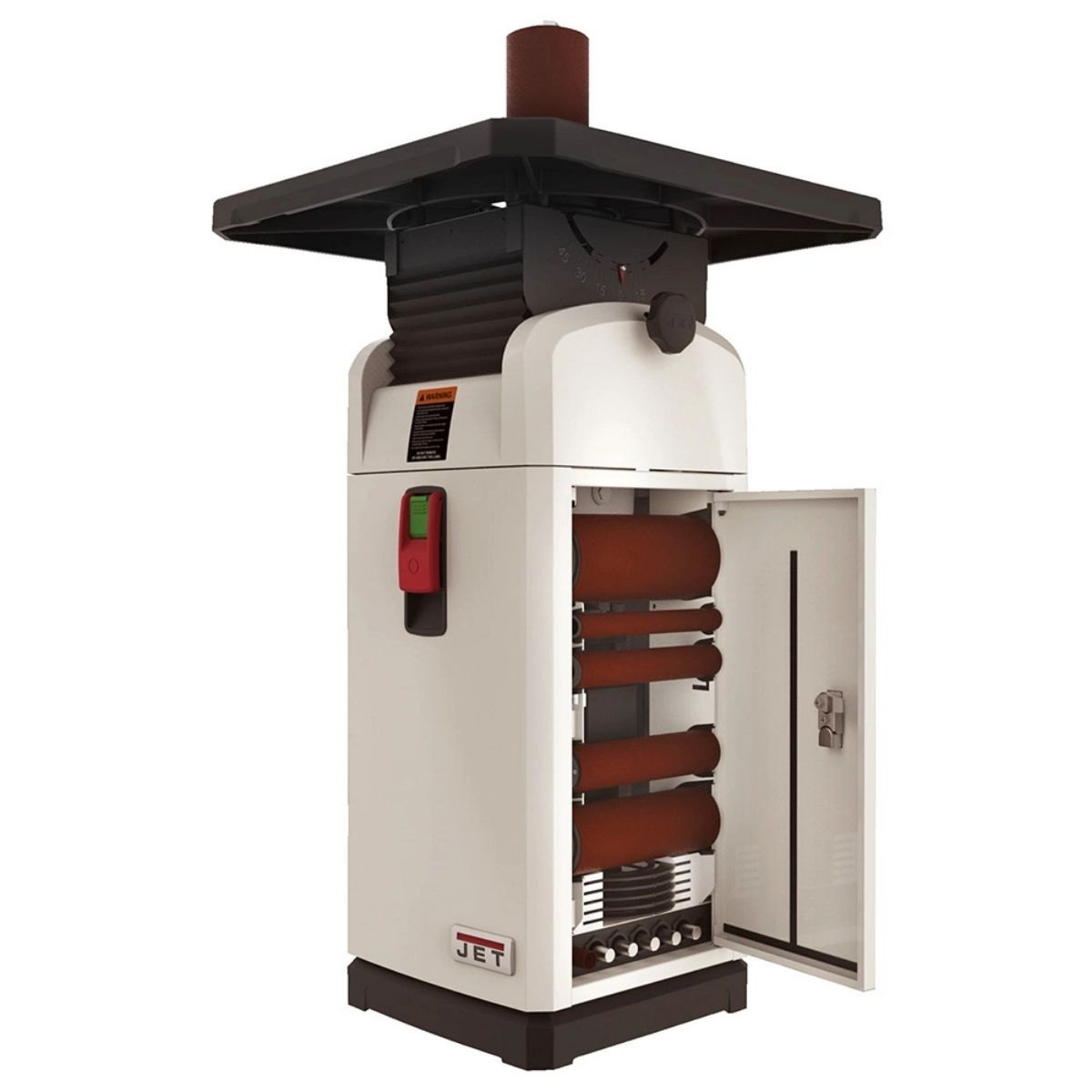

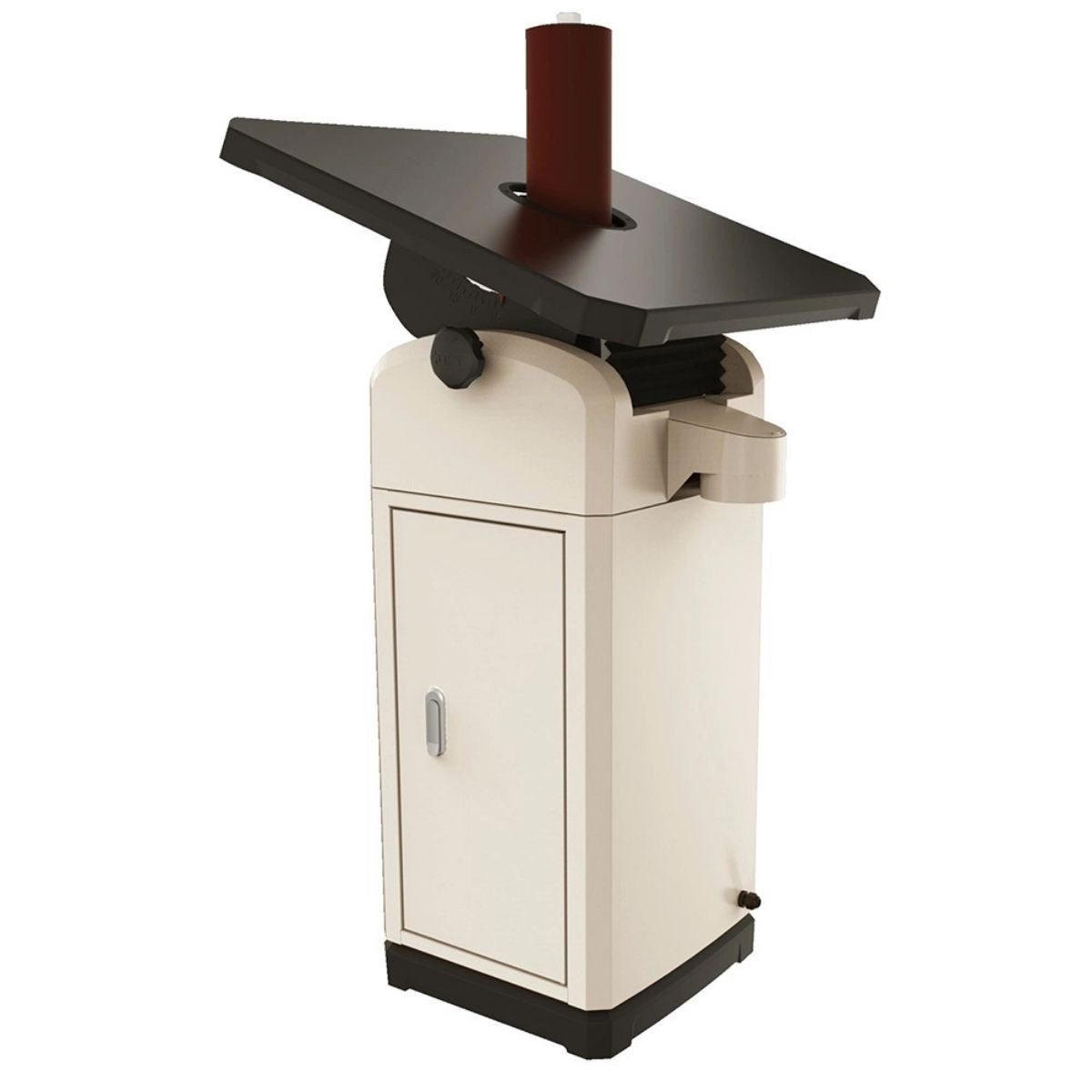

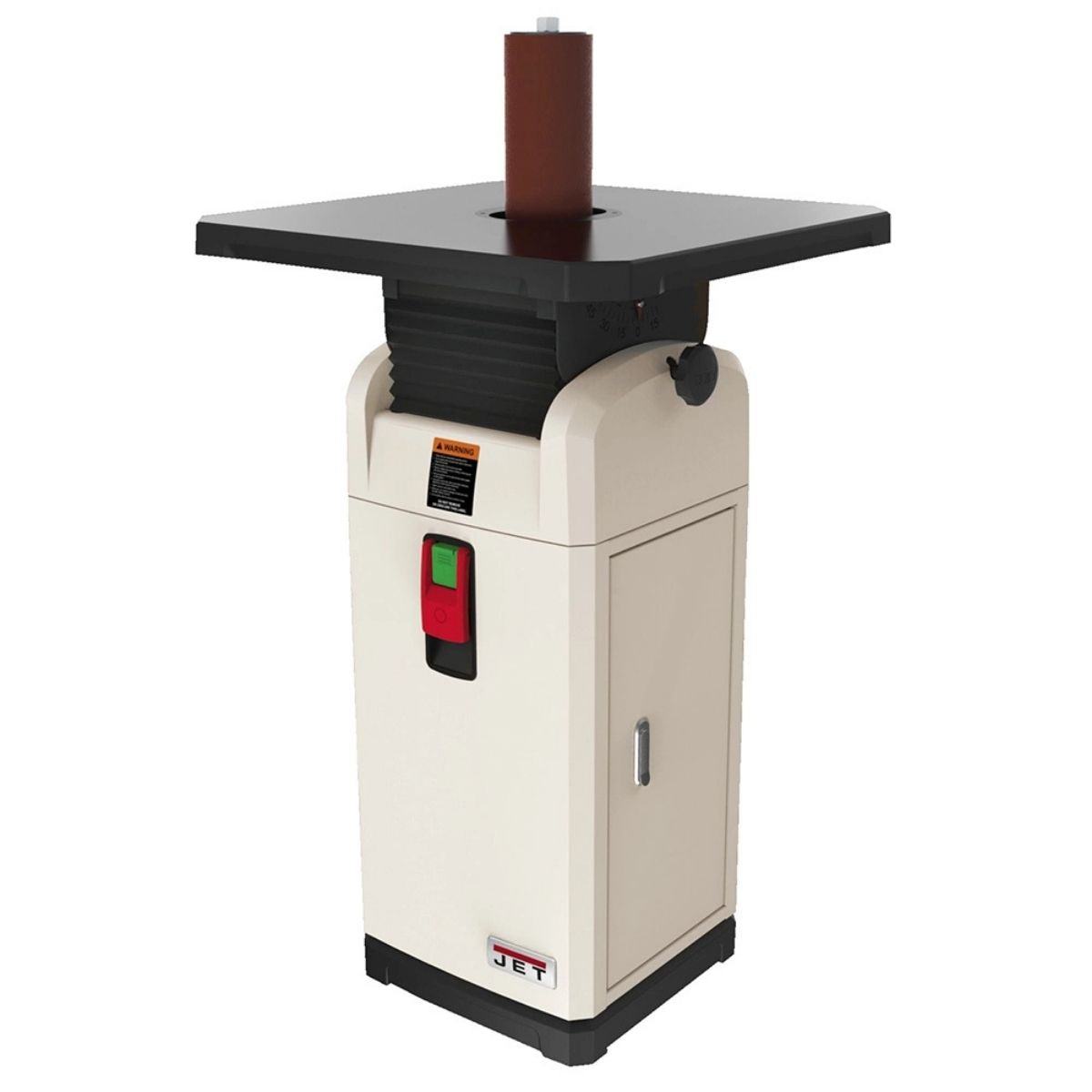

JET JOSS-S Floor Oscillating Spindle Sander
Are you struggling to sand large workpieces and complex curves without losing control or consistency?
What if your spindle sander could handle bigger parts with smooth, even finishes and reliable dust control?
Meet the JET JOSS-S Floor Oscillating Spindle Sander, built for precise contour sanding in a full-size floor model.
With a 1 HP motor, oscillating spindle action, and a large tilting table, it delivers consistent performance across demanding sanding tasks.
When your sanding setup is stable and capable, your parts come off cleaner and your workflow stays efficient.
JET JOSS-S Oscillating Spindle Sander
Large Tilting Work Table
The 24-1/2 inch table provides solid support for larger workpieces. It tilts 45 degrees forward and 15 degrees back for angled sanding operations.
Oscillating Spindle Action
A 1-1/2 inch oscillating stroke reduces heat buildup and improves sanding results. This helps extend sleeve life and prevent burn marks.
Wide Range of Spindle Sizes
Multiple spindle assemblies allow you to match the tool to various curves and radii. This improves control when working on detailed or irregular parts.
Heavy-Duty Worm Gear Drive
The spindle runs on a worm gear system inside an oil bath. This design provides consistent oscillation and long-term durability.
Integrated Dust Collection System
Internal baffles improve airflow beneath the table. This helps capture dust efficiently and keeps the work area cleaner.
Accessible Motor and Storage
The independently mounted motor allows easier service access. A sealed storage area keeps inserts protected from dust.
What’s Included
What’s Included? JET JOSS-S
-
JET JOSS-S Spindle Sander – Floor model oscillating spindle sander for contour sanding.
-
Spindle Assemblies – Includes multiple sizes from 1/4" up to 4" for various applications.
-
Table Inserts – Six inserts for improved dust control and support.
-
Integrated Storage – Keeps spindles and inserts organized and protected.
Specs
JET JOSS-S Specifications
- Stock Number: JT9-723950
- Model Number: JOSS-S
- Motor Power: 1 HP
- Voltage: 115/230V
- Spindle Speed: 1720 RPM
- Oscillations Per Minute: 75
- Table Size: 24-1/2" x 24-1/2"
- Table Height: 39-3/16"
- Table Tilt: 45° front / 15° back
- Dust Port: 4"
- Minimum Dust Collection: 300 CFM
- Net Weight: 216 lbs
- Gross Weight: 256 lbs
- Warranty: 5 Year
