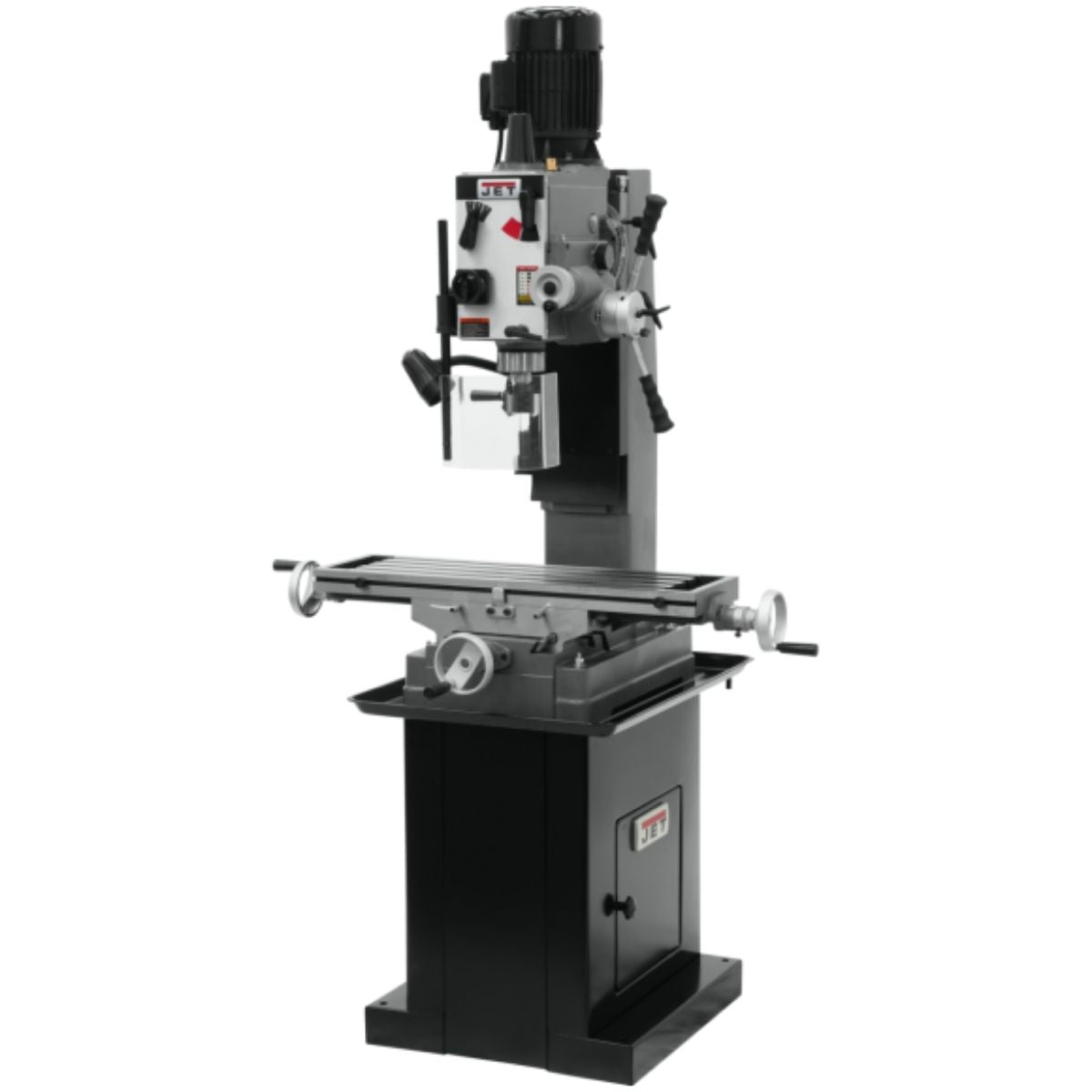

JET JMD-45GH Square Column Benchtop Milling Machine
Are you working around the limits of a drill press that can't hold position when a cut pushes it sideways?
What if your benchtop machine could move between drilling and milling operations without losing accuracy or requiring you to reset the head?
Meet the JET JMD-45GH Square Column Benchtop Milling Machine, a geared head mill drill designed for shops that need dependable performance from a machine that fits a benchtop footprint.
With the JMD-45GH, the square column with dovetail ways keeps the head locked in position, and the six-speed geared head puts full power to the cutting tool across a speed range that covers most drilling and milling work.
When your benchtop machine holds its setup and shifts between operations without drama, you move through your work list with fewer interruptions and better results.
JET JMD-45GH for Drilling and Milling on the Benchtop
Square Column with Dovetail Ways Keeps the Head from Shifting
A round column mill drill allows the head to rotate when you raise or lower it, which means you lose your X-Y position every time you adjust. The square column on the JMD-45GH uses dovetail ways to hold the head in place through the full range of vertical travel. Your layout stays where you set it, and you don't have to re-indicate after adjustments.

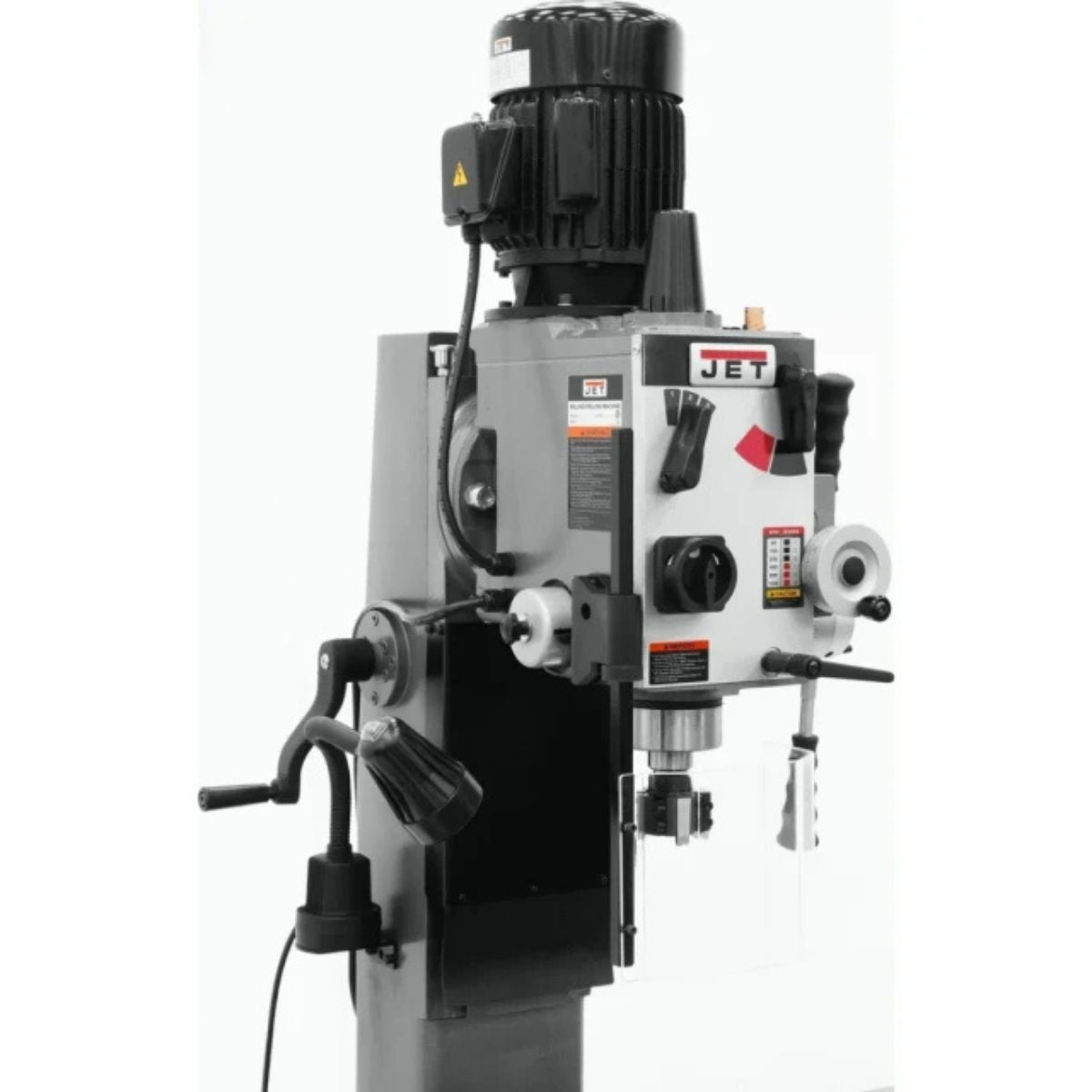

Six-Speed Geared Head Transfers Full Motor Power to the Cutter
The geared head connects the motor directly to the spindle through a gear train, so you get the full 1-1/2 HP at the cutter regardless of which speed you select. Quick-select gear shift levers let you move between the six speeds without tools. The 65 to 1550 RPM range gives you the low end for large diameter work and the high end for smaller tooling in softer material.
R8 Spindle Opens the Machine to Standard Mill Tooling
The R8 taper is the most common spindle standard in benchtop milling, and the JMD-45GH is built around it. Collets, end mill holders, and shell mill arbors in R8 fit without modification. The 3-inch quill diameter and 5 inches of spindle travel give you the reach to handle deeper drilling operations without repositioning the table.
Calibrated Fine Down Feed and Internal Depth Gauge Support Consistent Drilling Depth
The built-in calibrated fine down feed gives you controlled quill movement for drilling work where depth consistency matters. The internal depth gauge reads without stopping to consult a separate indicator. Both systems work together so your hole depths stay repeatable across a run of parts.
What's Included
What's Included? JET JMD-45GH Square Column Benchtop Milling Machine
-
JET JMD-45GH Geared Head Square Column Mill/Drill — the main machine unit ready for benchtop installation and use with standard R8 tooling.
Specs
JET JMD-45GH Square Column Benchtop Milling Machine Specifications

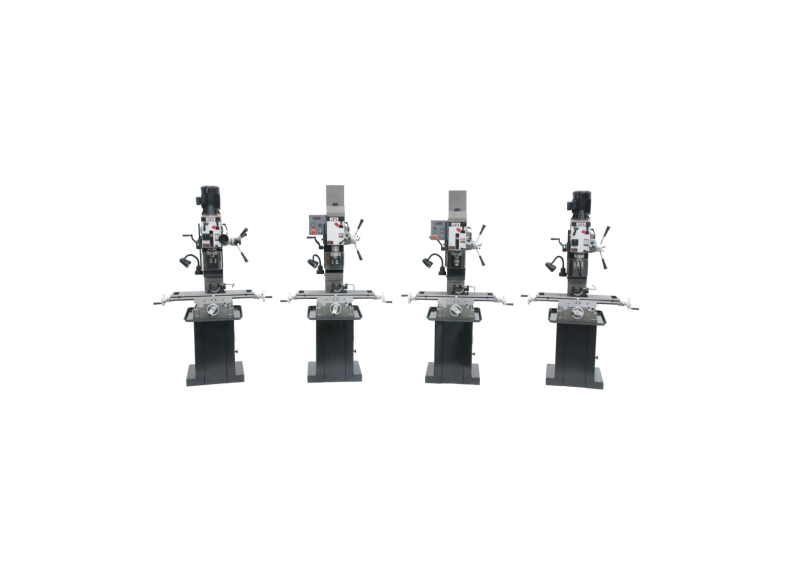

Available Configurations
-

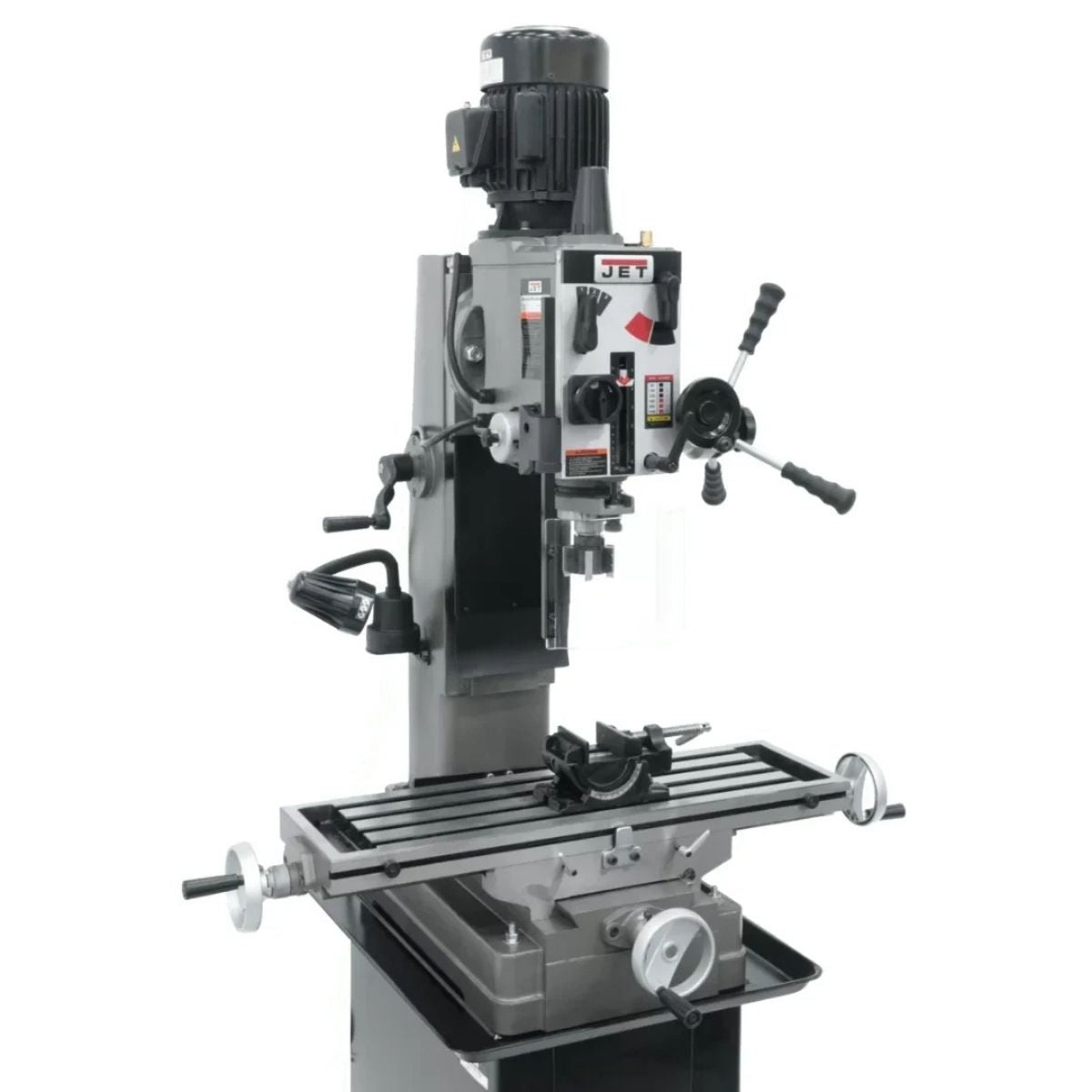

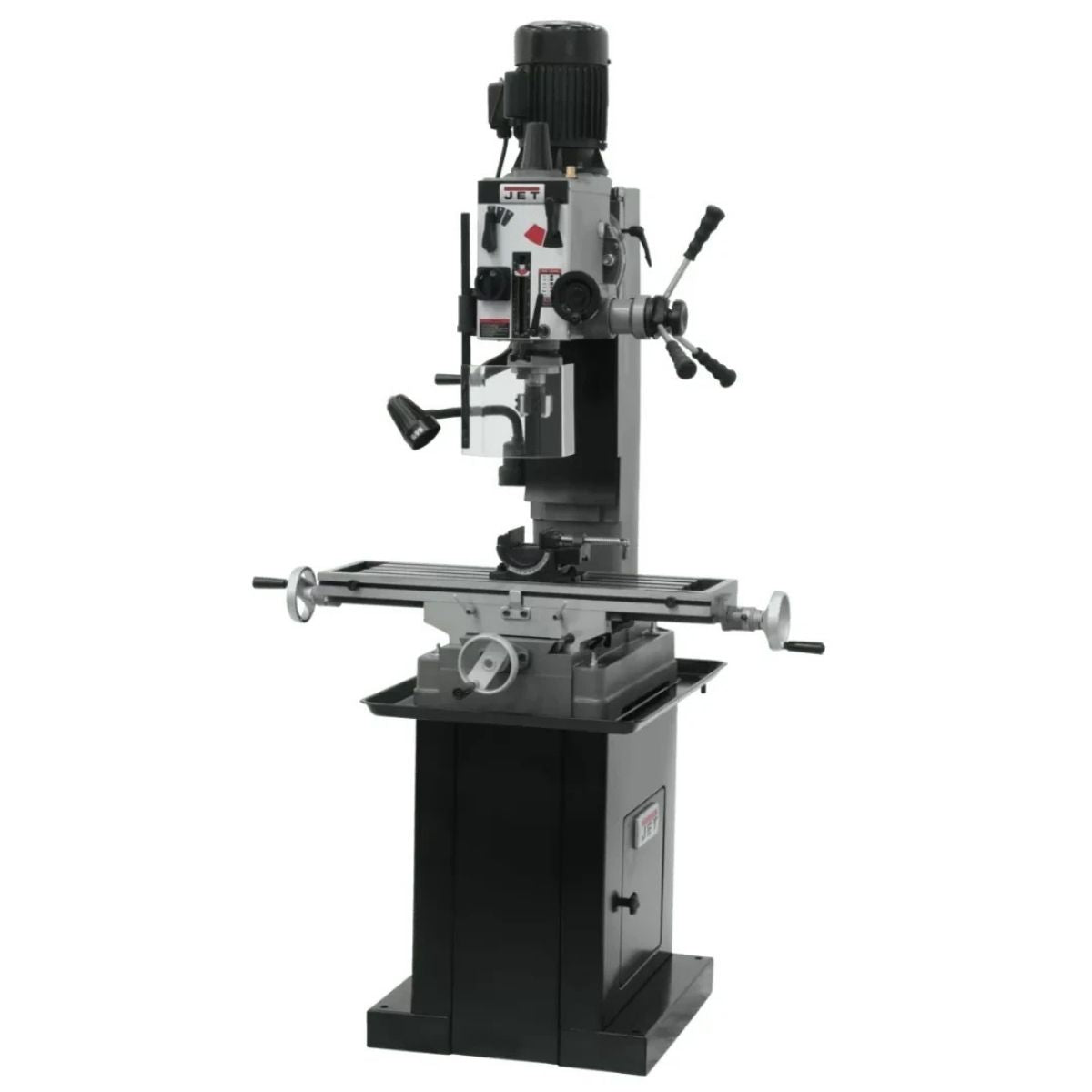

JT9-351045 — JMD-45GH | 115/230V, 1-Phase | R8 Spindle | Calibrated Fine Downfeed | Net Weight: 727 lbs.
-

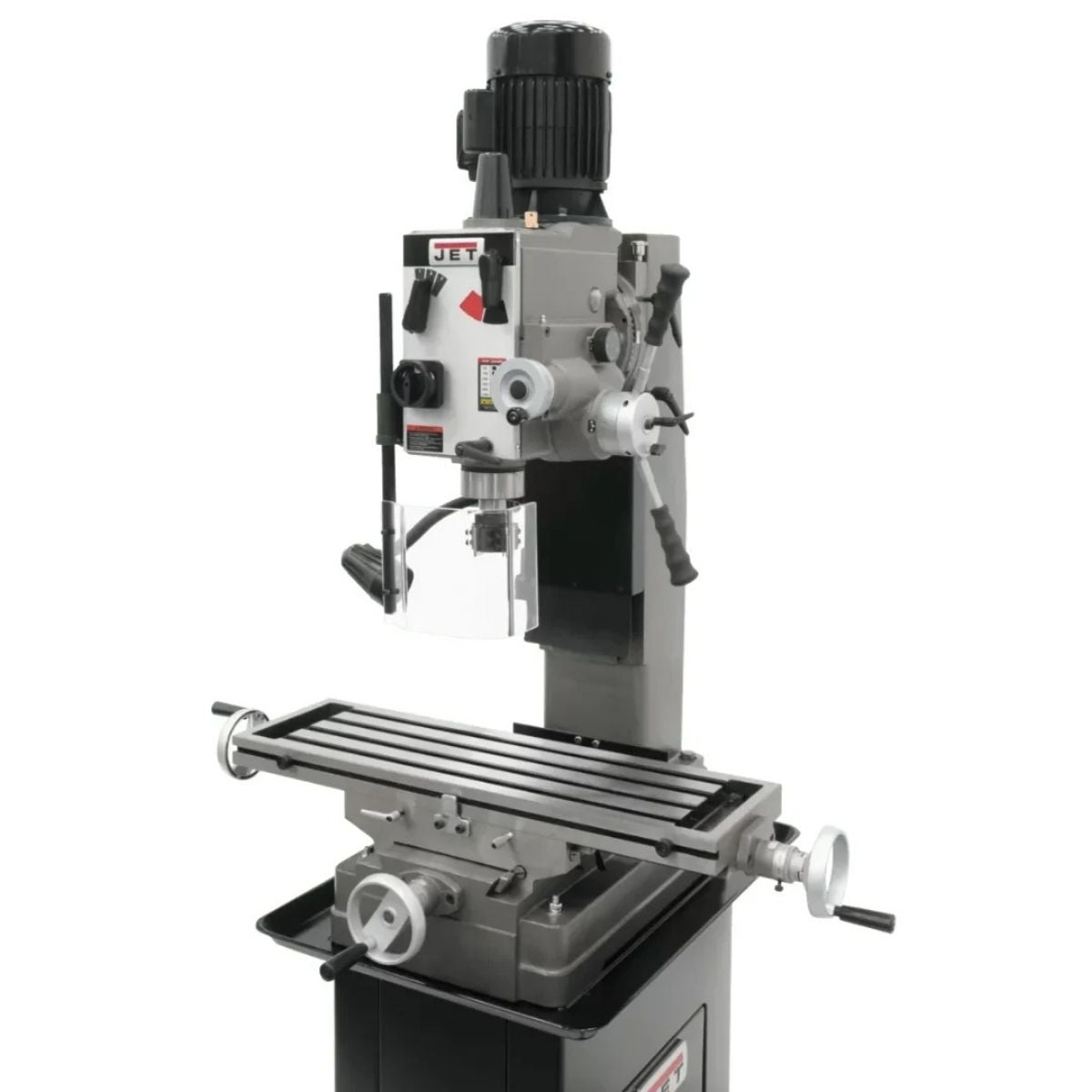

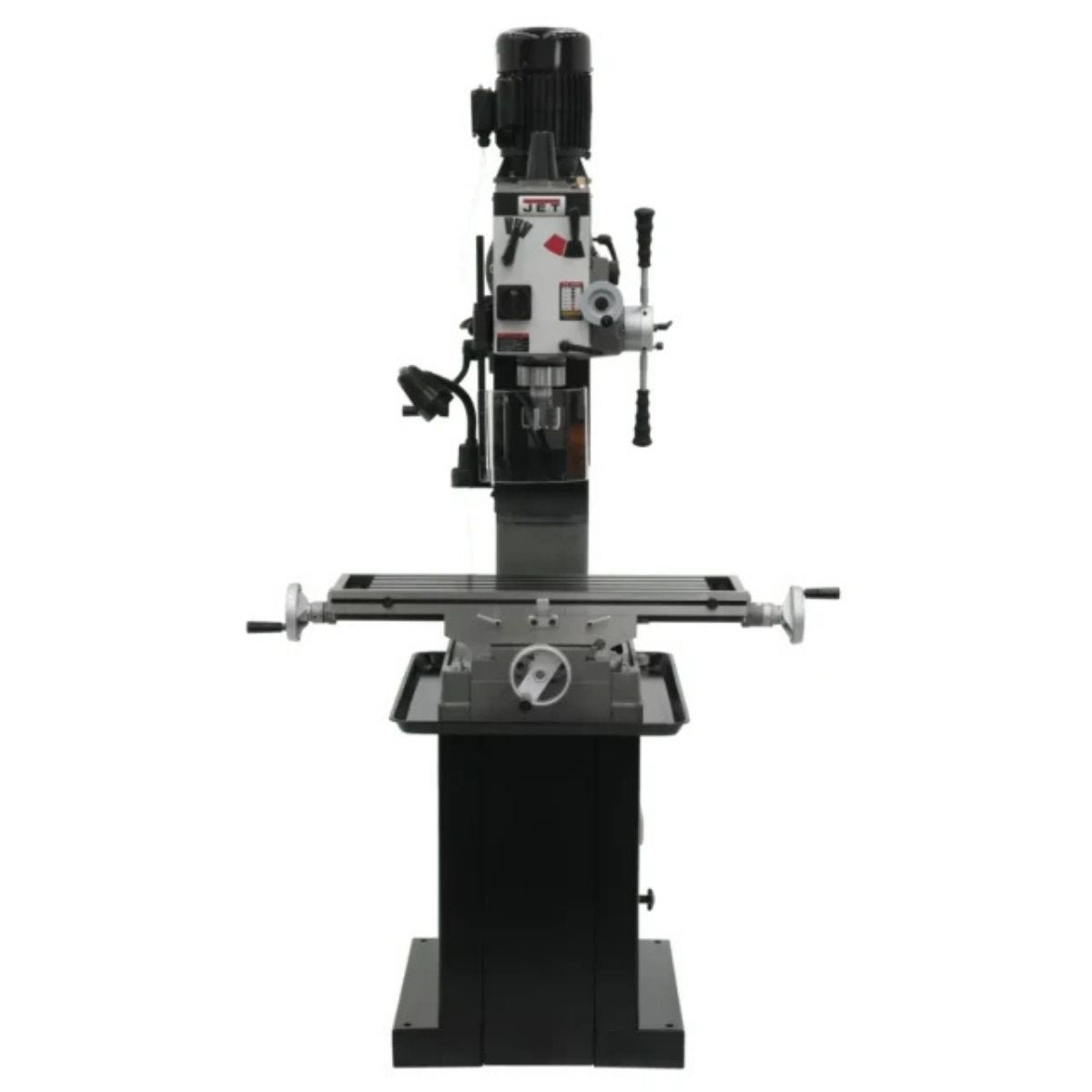

JT9-351046 — JMD-45GHPF | 115/230V, 1-Phase | R8 Spindle | Power Downfeed Standard | Net Weight: 754 lbs.
-

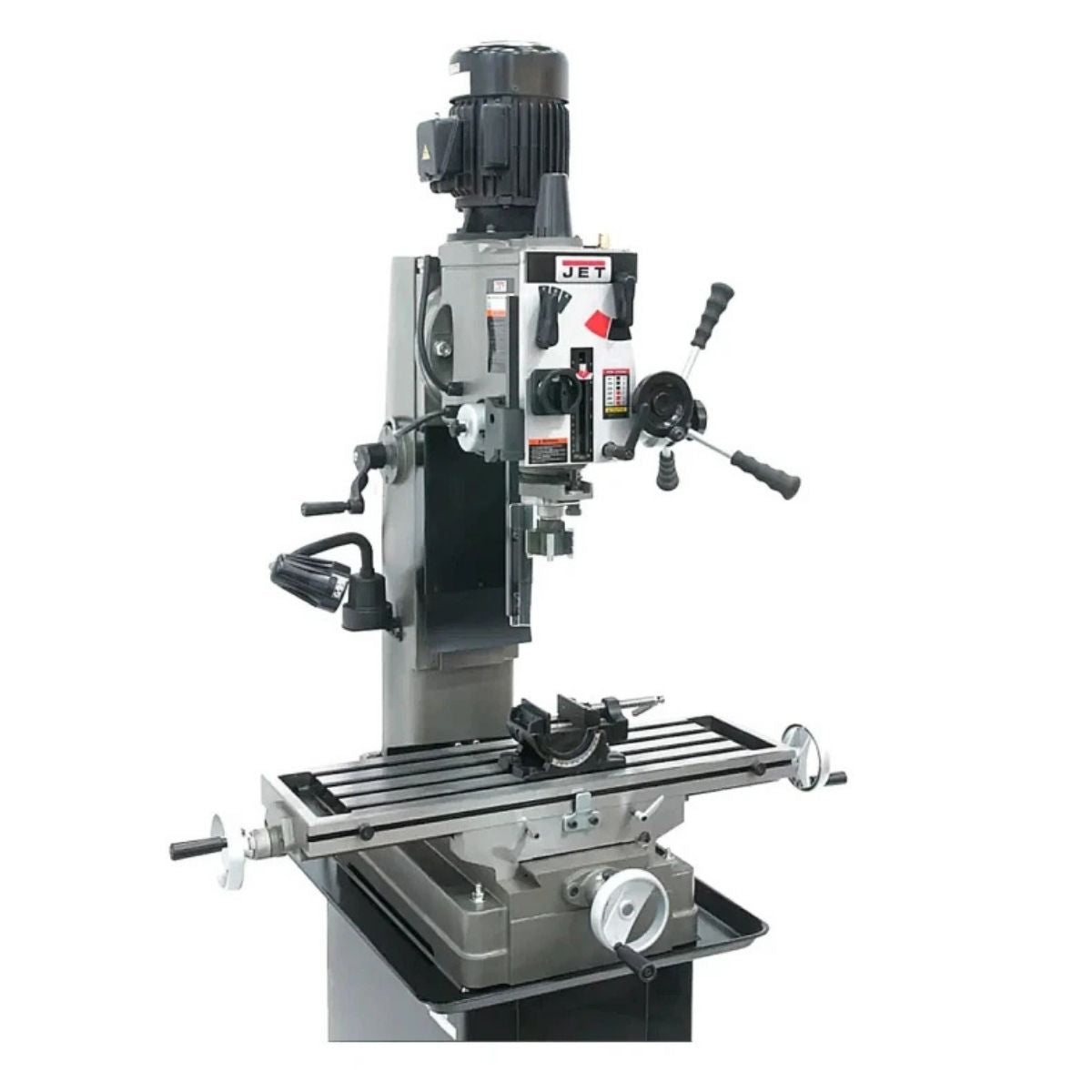

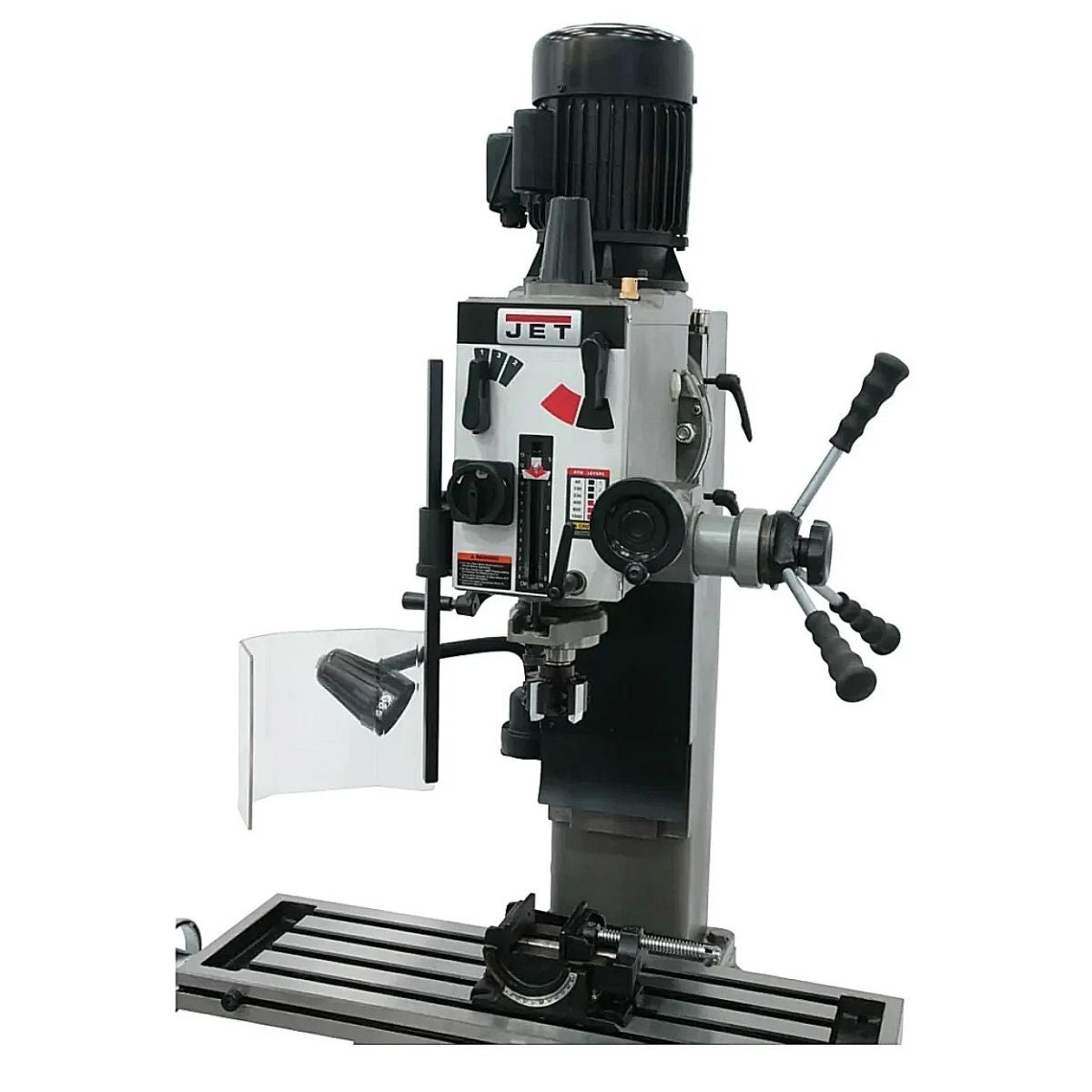

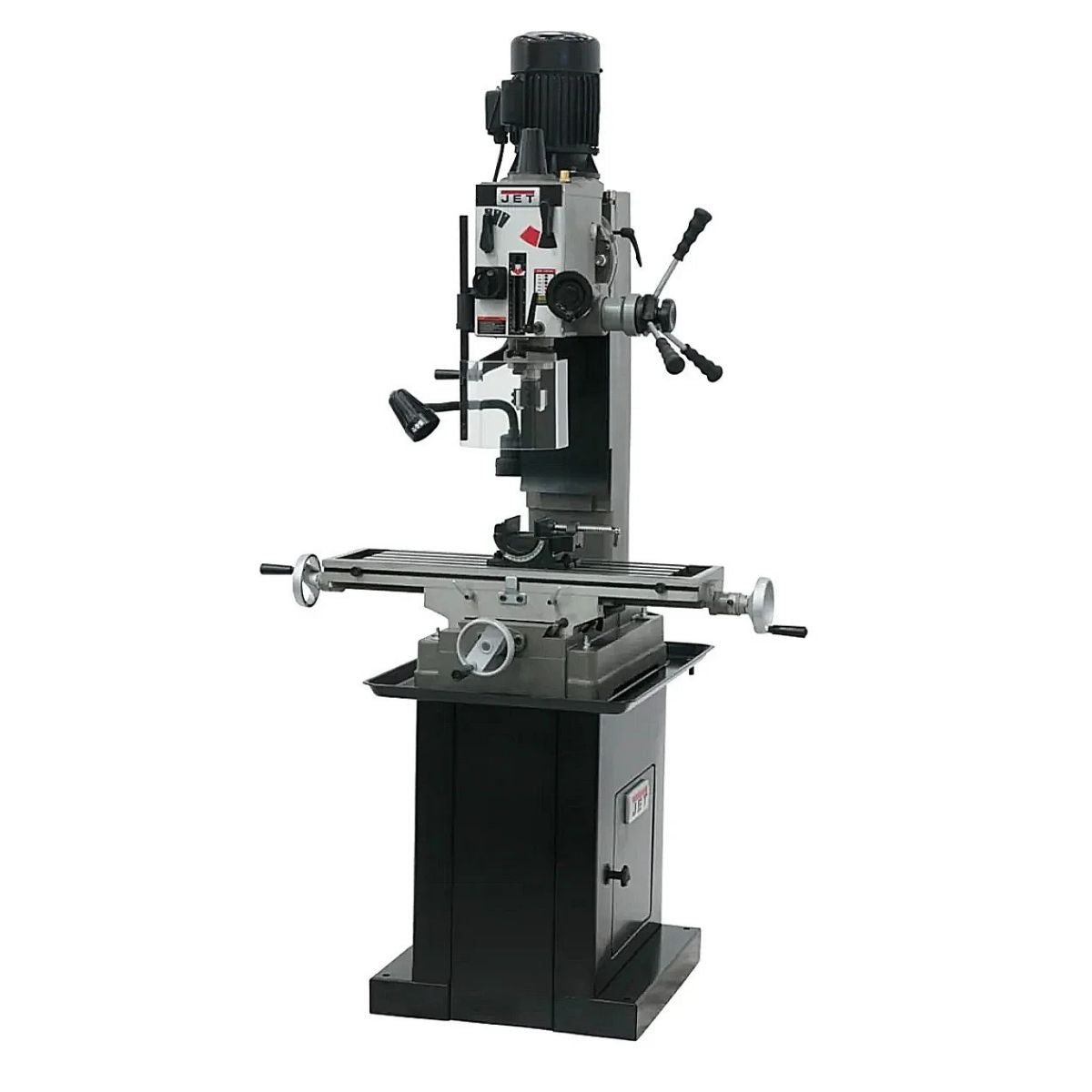

JT9-351150 — JMD-45GH | 115/230V, 1-Phase | R8 Spindle | Newall DP700 2-Axis DRO | Net Weight: 728 lbs.
-
JT9-351151 — JMD-45GH | 115/230V, 1-Phase | R8 Spindle | Newall DP700 2-Axis DRO | X-Axis Powerfeed | Net Weight: 728 lbs.
Power & Spindle
-
Motor: 1-1/2 HP, 115/230V, 1-Phase
-
Spindle Taper: R8
-
Number of Spindle Speeds: 6
-
Range of Spindle Speeds: 65–1,550 RPM
-
Spindle Travel: 5"
-
Quill Diameter: 3"
-
Face Mill Capacity: 4"
Table & Travel
-
Table Size (L x W): 9-1/2" × 32-1/4"
-
Table Longitudinal Travel: 20-1/2"
-
Swing: 19-11/16"
-
Max Distance Spindle to Table: 18-1/8"
Machine
-
Base Dimensions: 26-11/16" × 15-15/16"
-
Overall Dimensions (L × W × H): 29" × 36" × 50"
-
Net Weight: 727 lbs. (JT9-351045) | 754 lbs. (JT9-351046) | 728 lbs. (JT9-351150, JT9-351151)
-
Gross Weight: 794 lbs. (JT9-351045, JT9-351150, JT9-351151) | 820 lbs. (JT9-351046)
-
Warranty: 2-Year Warranty
-
Certification: CSA/CUS Certified
-
Prop 65: Cancer and Reproductive Harm
-
Manual: PDF download available
