JET JMD-40GH Geared Head Benchtop Milling Machine
Are you struggling to get consistent, accurate results from a mill drill that lacks real power delivery and repeatable speed control?
What if you could set your spindle speed with confidence, dial in your depth, and work through metal with steady, predictable cuts every time?

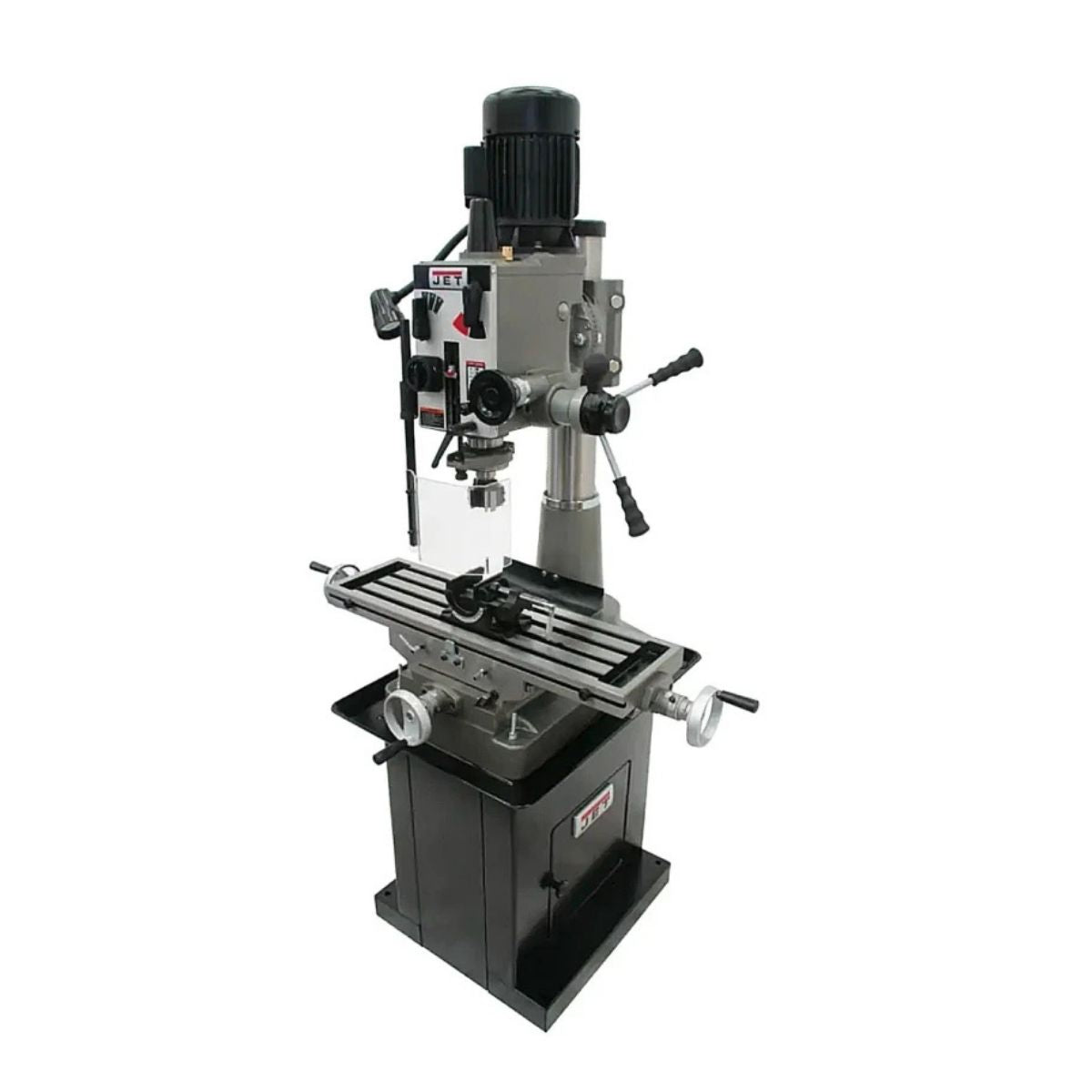

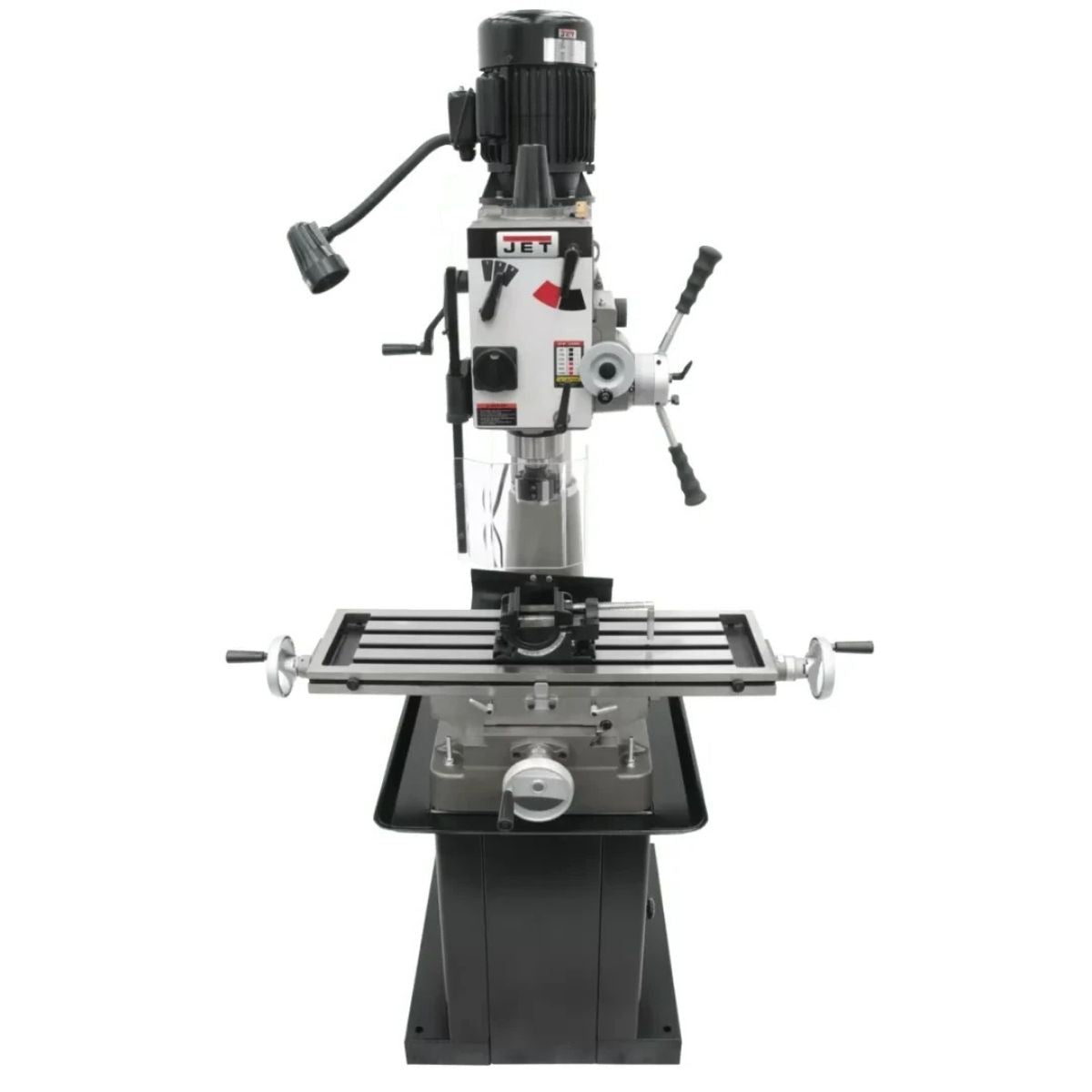

Meet the JET JMD-40GH Geared Head Benchtop Milling Machine, a round column mill drill built for shops that need reliable drilling and milling performance without moving to a full-size knee mill.
With the JMD-40GH, you get a 6-speed geared head that delivers full power to your cutting tools across a wide RPM range, an R-8 spindle that accepts standard mill tooling, and a calibrated fine downfeed with an internal depth gauge for controlled, repeatable work.
When you need a benchtop machine that holds up to daily shop use and gives you the same result from the first cut to the last, the JMD-40GH is built to meet that standard.
JET JMD-40GH for Precise Benchtop Drilling and Milling

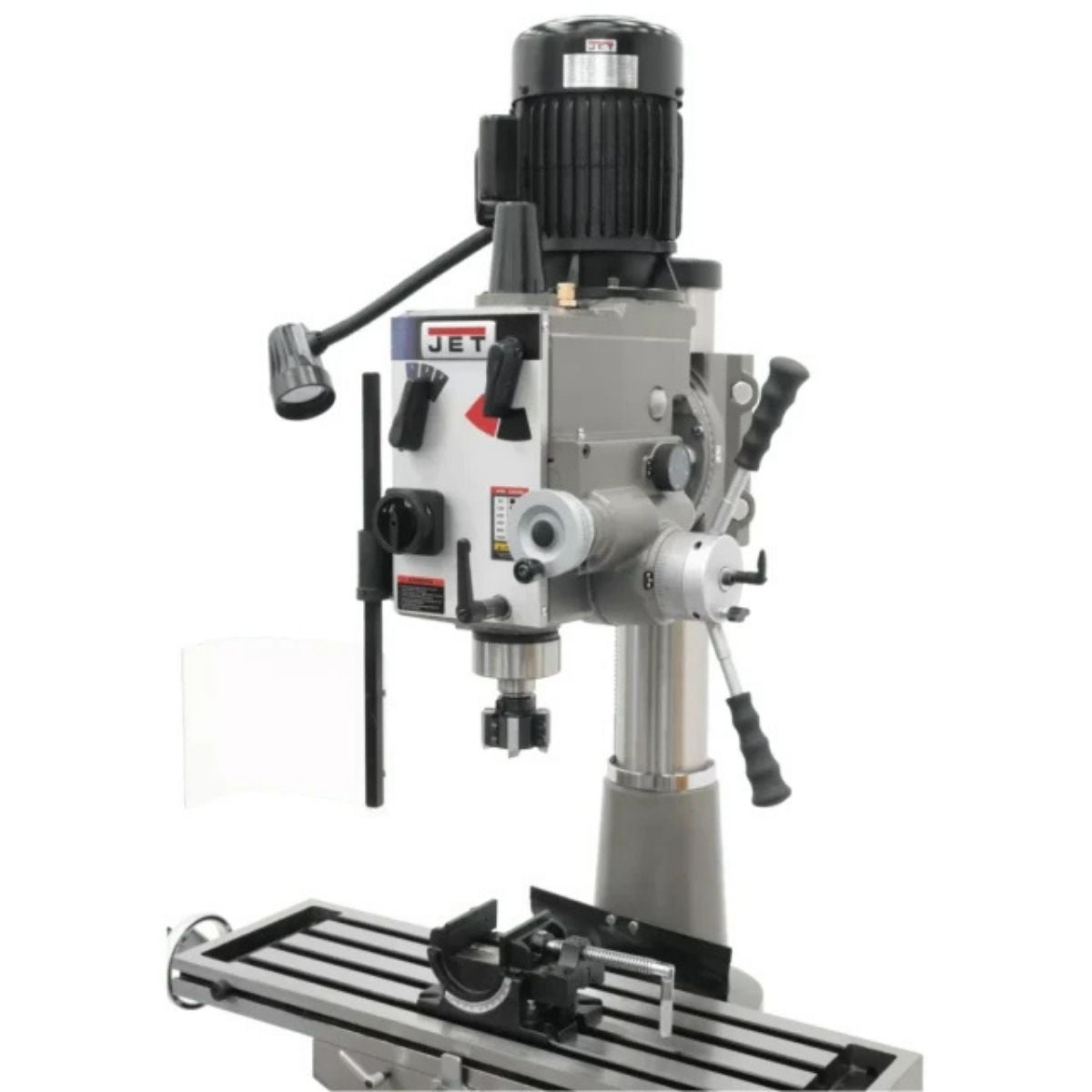

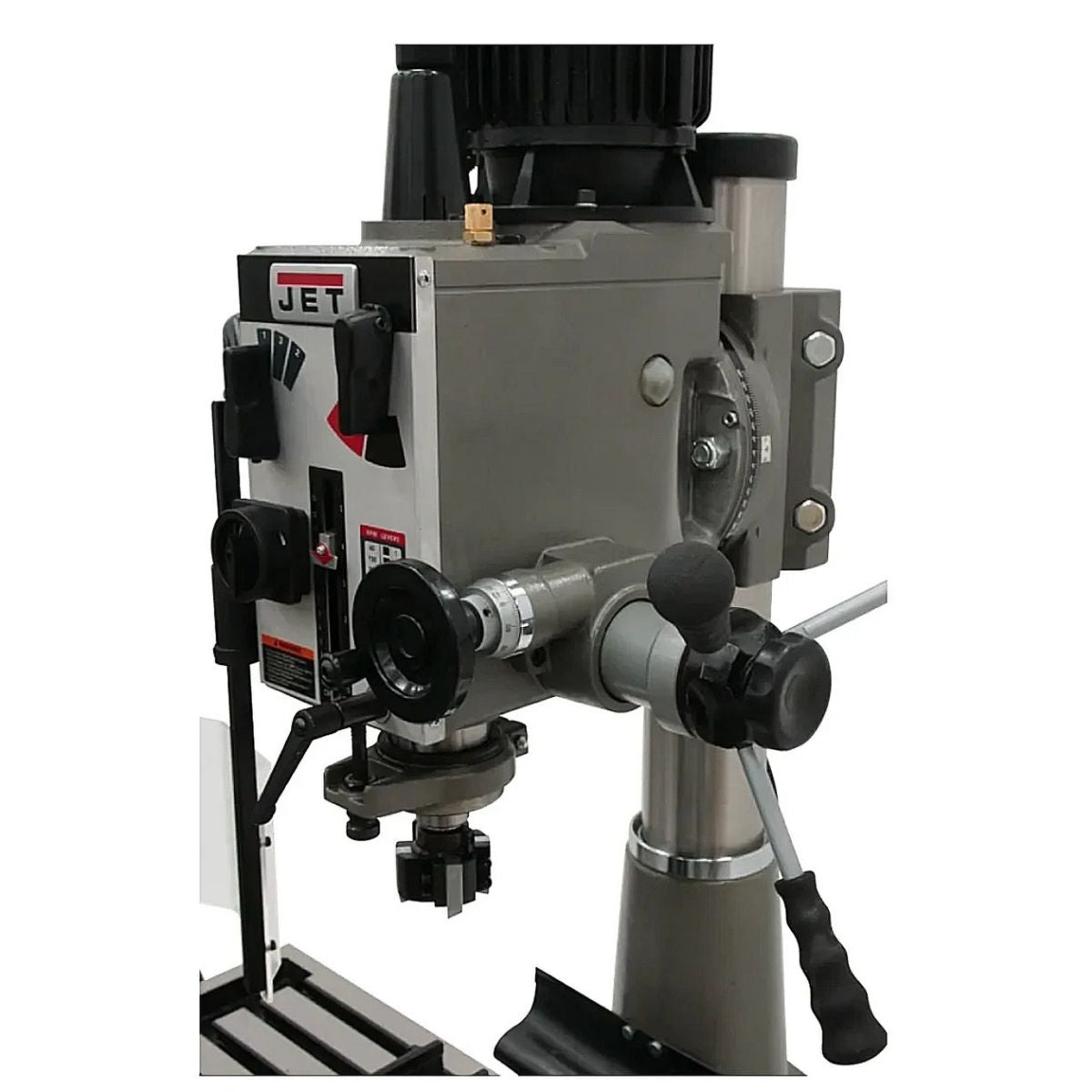

6-Speed Geared Head Delivers Full Cutting Power
The geared head on the JMD-40GH transfers power directly to the spindle without the slippage you can get from a belt-drive system. Six speed settings cover a range from 65 to 1,550 RPM, and quick-select gear shift levers let you move between speeds without tools or guesswork. You get the right speed for face milling, drilling, or light contouring work without fighting the machine to get there.
R-8 Spindle Accepts Standard Mill Tooling
The R-8 spindle taper is one of the most widely used standards in hobby and light industrial milling. It gives you access to a full range of collets, end mill holders, drill chucks, and face mill arbors without needing special adapters. With 5 inches of spindle travel and a 3-inch quill diameter, you have the reach and rigidity to handle most benchtop milling and drilling tasks cleanly.
Calibrated Fine Downfeed Controls Depth Consistently
The built-in calibrated fine downfeed gives you precise control over how much material you remove with each pass. The internal depth gauge is easy to read at the machine, so you can confirm your depth setting without stopping to measure. This combination keeps your work accurate and reduces the chance of taking too much material on a finishing cut.

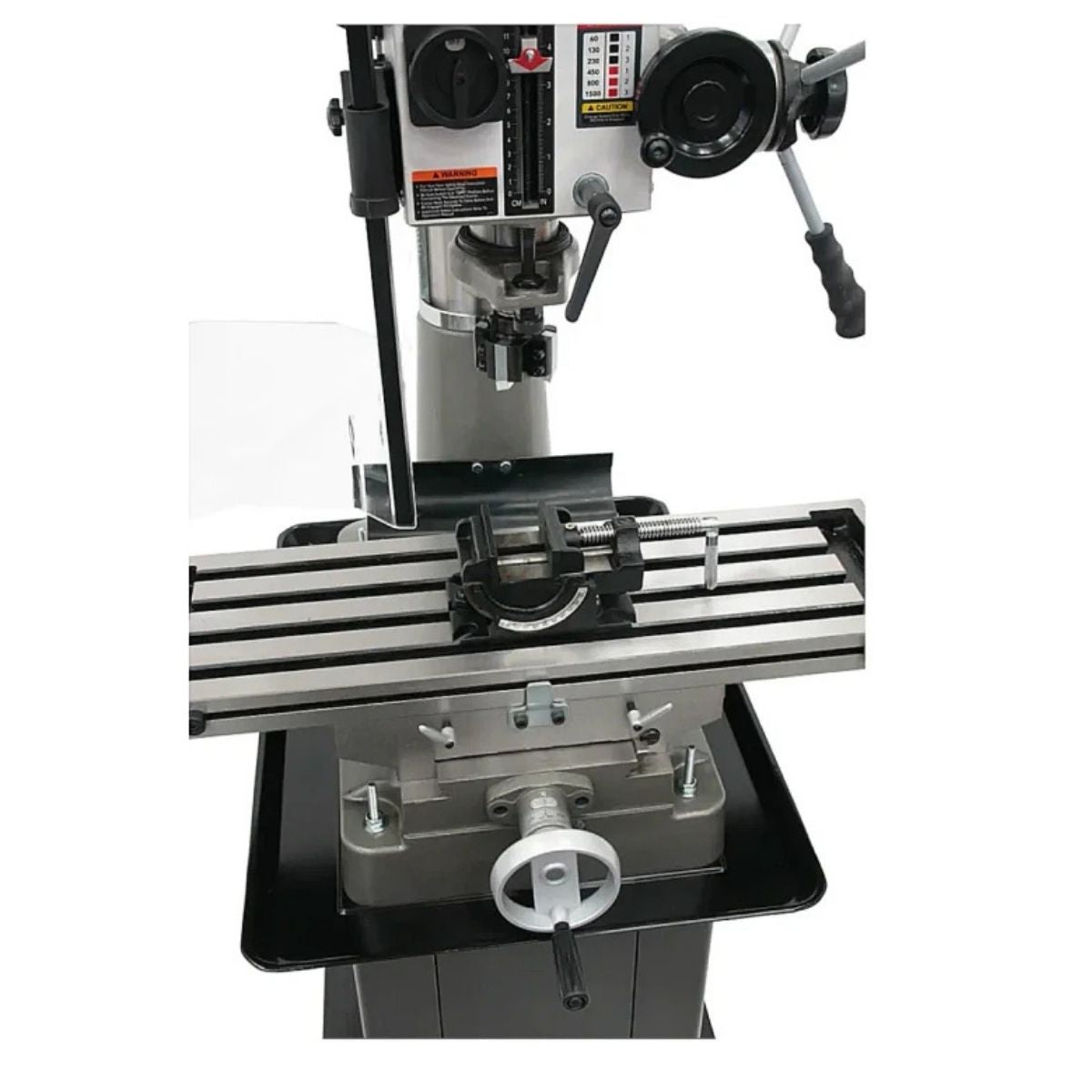

Milling Table Provides Solid Workholding Range
The milling table gives you 20-1/2 inches of longitudinal travel and accepts standard T-slot fixturing. A 21-inch swing and up to 15-3/4 inches of spindle-to-table clearance give you room to work with a variety of part sizes. The heavy-duty column and base keep the machine stable during cuts, so your setups stay where you put them.
What's Included
What's Included? JET JMD-40GH Geared Head Benchtop Milling Machine
-

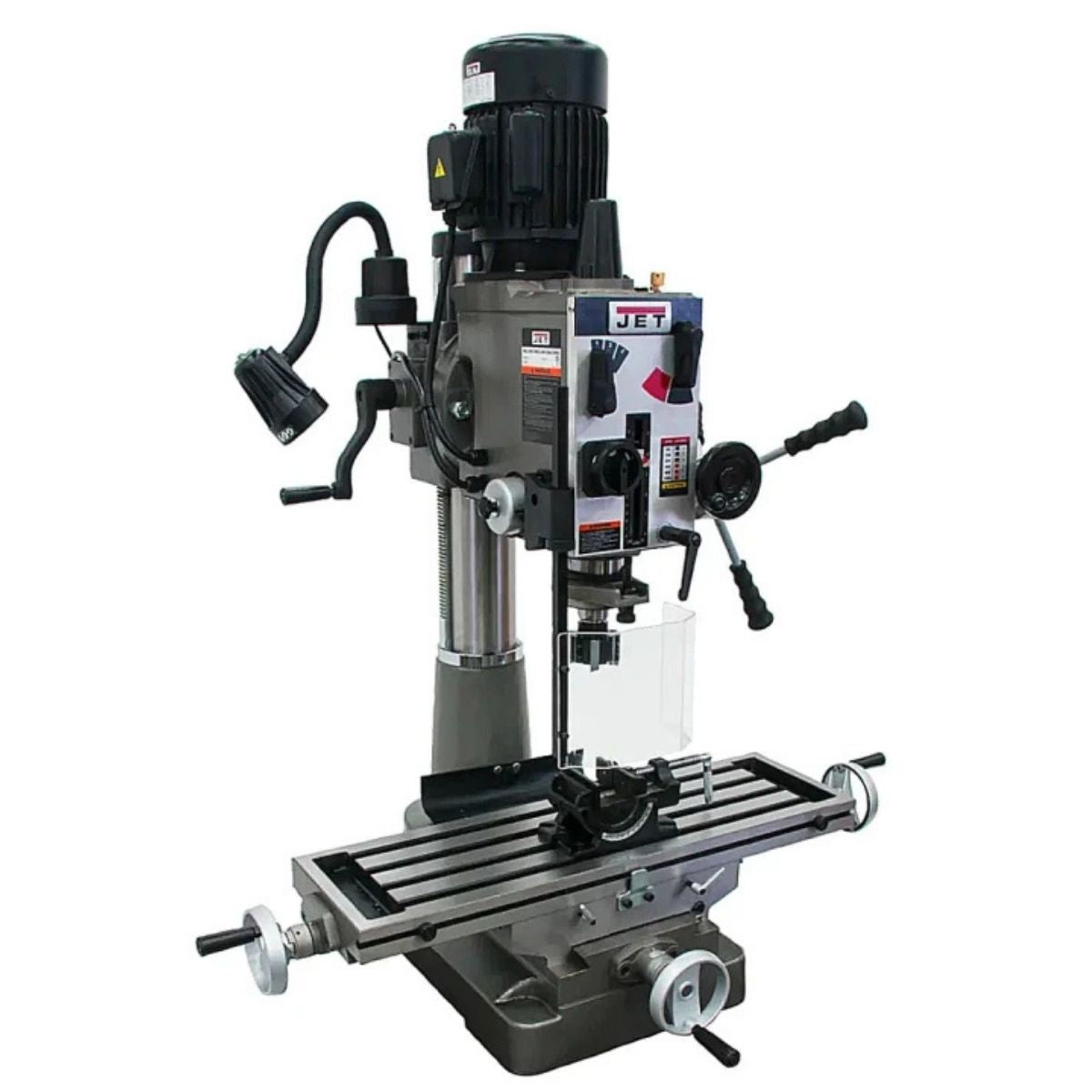

JET JMD-40GH Geared Head Benchtop Milling Machine — The base machine with geared head, R-8 spindle, calibrated fine downfeed, internal depth gauge, and milling table ready for shop use.
-
Manual — PDF download available from JET for setup, operation, and maintenance reference.
Specs
JET JMD-40GH Geared Head Benchtop Milling Machine Specifications
Available Configurations
-
JT9-351040 — JMD-40GH | 115/230V, 1-Phase | R-8 Spindle | Calibrated Fine Downfeed | Net Weight: 628 lbs.
-
JT9-351041 — JMD-40GHPF | 115/230V, 1-Phase | R-8 Spindle | Power Downfeed Standard | Table: 8-1/4" × 28-3/4" | Net Weight: 655 lbs.
-
JT9-351140 — JMD-40GH | 115/230V, 1-Phase | R-8 Spindle | Newall DP700 DRO | Net Weight: 628 lbs.
-
JT9-351141 — JMD-40GHPF | 115/230V, 1-Phase | R-8 Spindle | Power Downfeed | Newall DP700 2-Axis DRO | X-Axis Powerfeed | Table: 8-1/4" × 28-3/4" | Net Weight: 628 lbs.
Power & Spindle
-
Motor: 1-1/2 HP, 115/230V, 1-Phase
-
Spindle Taper: R-8
-
Number of Spindle Speeds: 6
-
Range of Spindle Speeds: 65, 130, 220, 480, 925, 1,550 RPM
-
Spindle Travel: 5"
-
Spindle Travel Auto (Power Downfeed): 4-1/2" (JT9-351041 and JT9-351141)
-
Quill Diameter: 3"
-
Face Mill Capacity: 4"
Table & Travel
-
Table Longitudinal Travel: 20-1/2"
-
Table Size: 8-1/4" × 28-3/4" (JT9-351041 and JT9-351141)
-
Swing: 21" (JT9-351040, JT9-351041, JT9-351141) | 20-1/2" (JT9-351140)
-
Max Distance Spindle to Table: 15-3/4"
Machine
-
Column Diameter: 4-1/2"
-
Base Dimensions: 24-1/4" × 15-15/16" (JT9-351041 and JT9-351141)
-
Overall Dimensions (L × W × H): 28" × 39-1/4" × 42-1/2"
-
Net Weight: 628 lbs. (JT9-351040, JT9-351140, JT9-351141) | 655 lbs. (JT9-351041)
-
Gross Weight: 694 lbs. (JT9-351040, JT9-351140, JT9-351141) | 721 lbs. (JT9-351041)
-
Warranty: 2-Year Warranty
-
Prop 65: Cancer and Reproductive Harm
-
Manual: PDF download available
