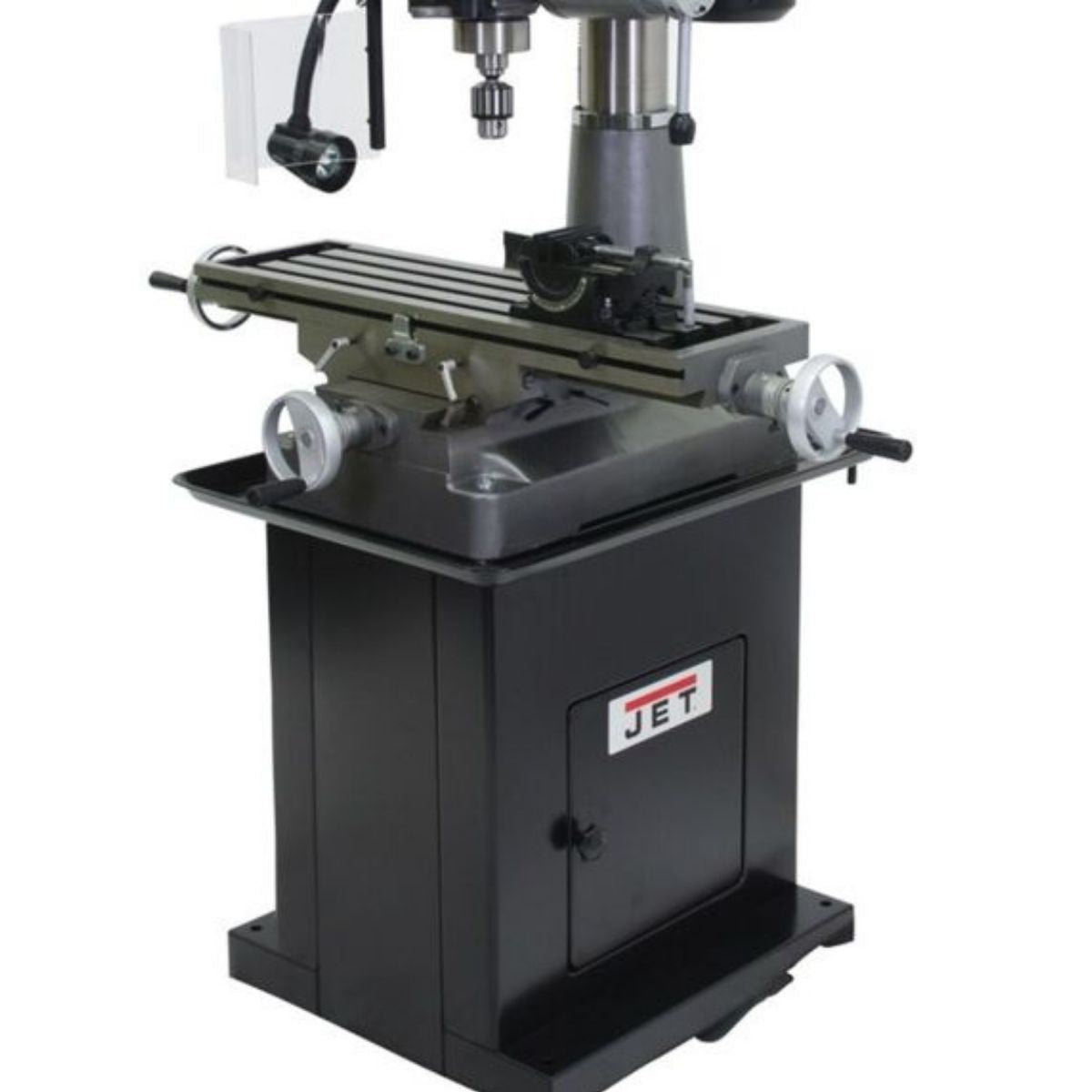

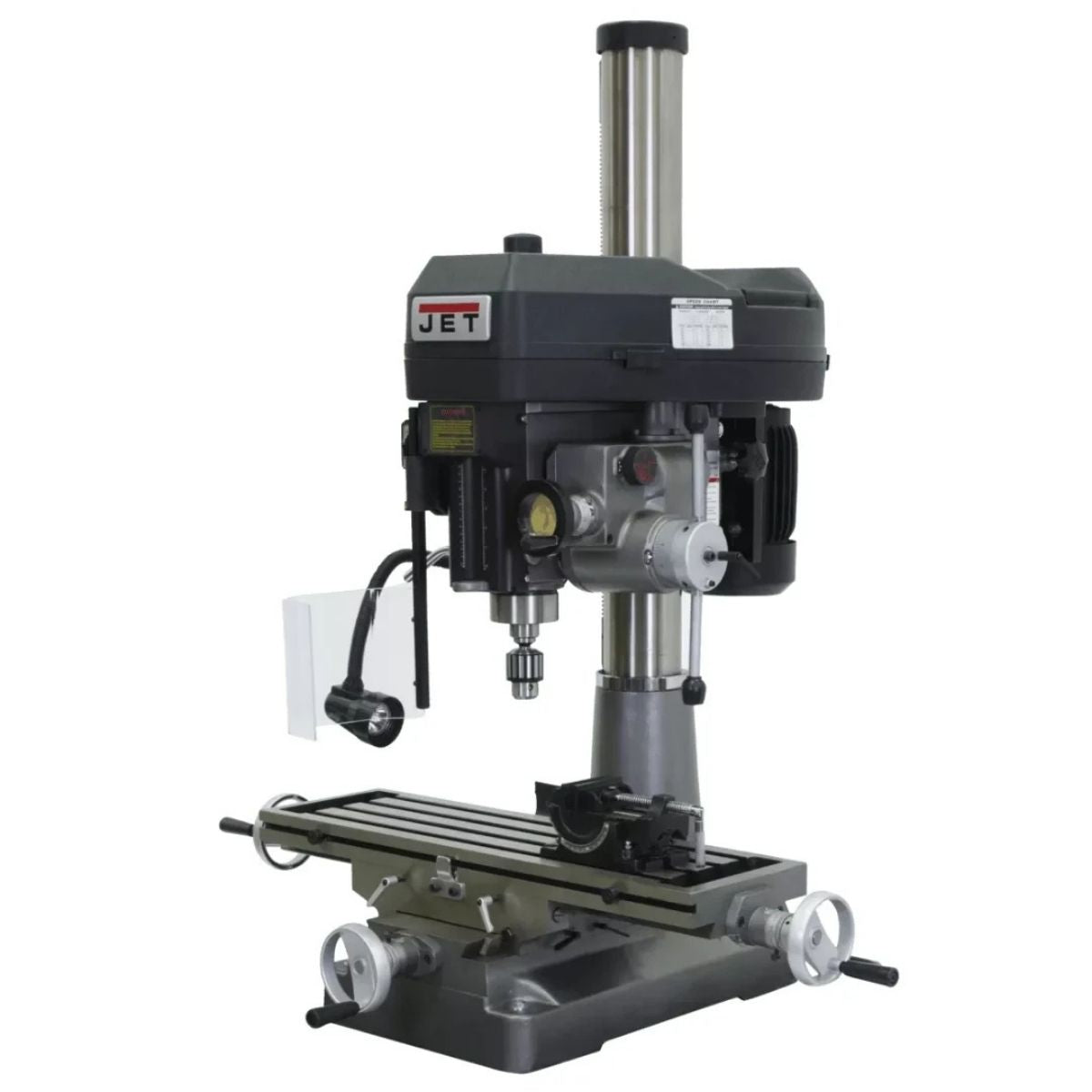

JET JMD-18PFN Benchtop Milling Machine with Power Downfeed
Are you spending more time fighting your equipment than finishing your parts?
What if your benchtop mill gave you consistent depth control and a stable platform for every operation, without taking up the floor space of a full-size machine?
Meet the JET JMD-18PFN Benchtop Milling Machine with Power Downfeed, a belt-drive mill drill built for light machining work in shops where space and budget both matter.
With the JET JMD-18PFN, you get a one-piece cast iron column, a 2 HP motor with 12 selectable spindle speeds, and a heavy-duty power downfeed that takes the guesswork out of repeatable depth cuts.
When you have a machine that holds position and feeds at a controlled rate, you can focus on the work instead of the setup.
JET JMD-18PFN for Light Milling, Drilling, and Benchtop Metalwork
One-Piece Cast Iron Column Holds the Head in Place
The column is cast in one piece, which reduces flex under load. When you are taking a milling pass or drilling into steel, a rigid column keeps the head from shifting and lets you hold tighter tolerances. The 4-1/2" diameter gives the machine a stable base for everyday shop use.

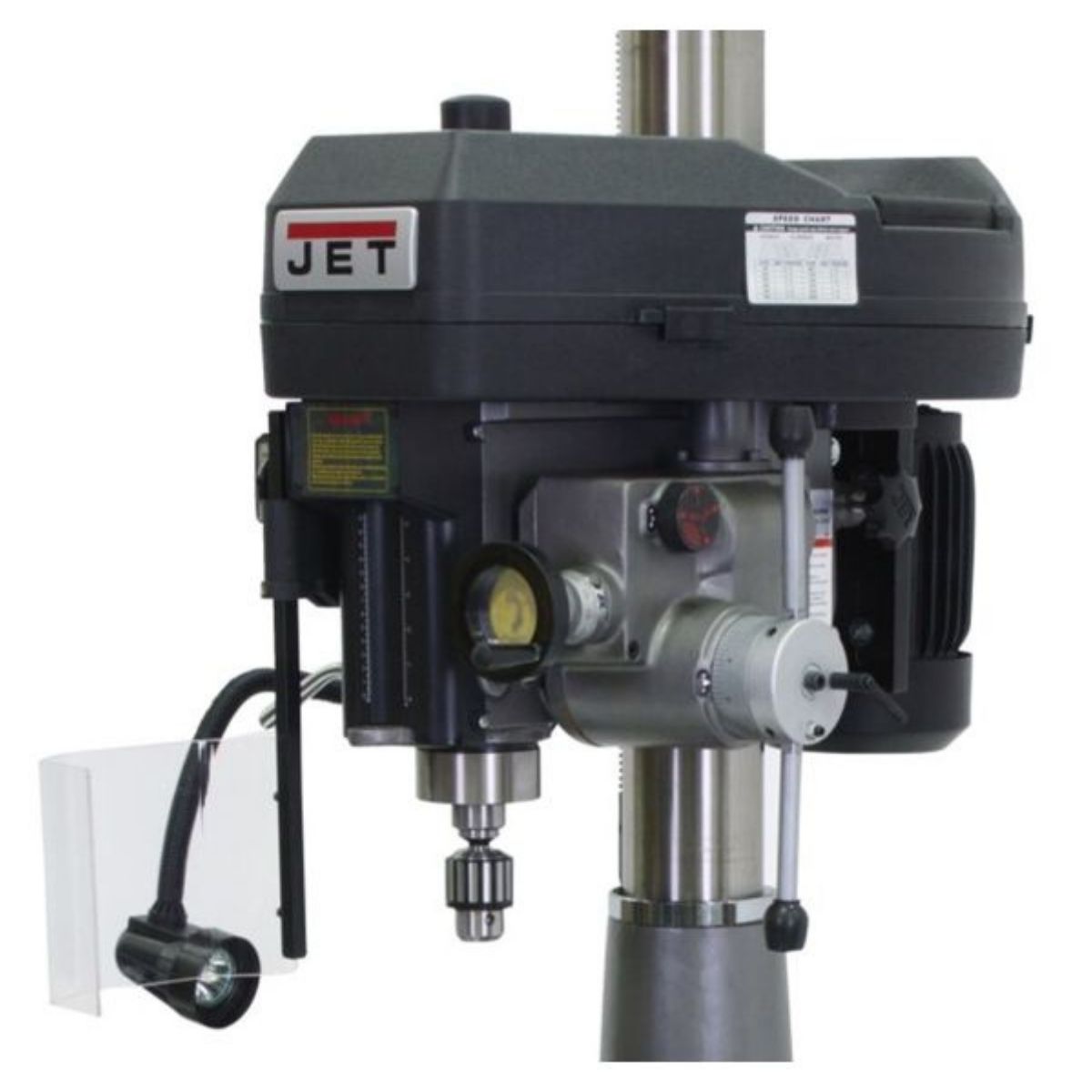

Power Downfeed Delivers Consistent Depth on Every Pass
The heavy-duty power downfeed moves the quill at a controlled rate so you are not hand-feeding through the cut. Three selectable feed rates give you the flexibility to match feed to material and operation. The positive quick-stop knob lets you set a repeatable depth limit without rechecking between holes.
12-Speed Belt Drive Matches the Spindle to the Material
The belt-drive head gives you 12 spindle speeds from 150 to 3,000 RPM. That range covers a wide variety of tooling and materials, from large-diameter face milling at low speed to small-diameter drilling at higher speed. The R-8 spindle taper is a standard that keeps your existing tooling compatible.
9-1/2" x 31-3/4" Table Handles Common Workpiece Sizes
The table gives you 20-1/2" of longitudinal travel and holds up to 400 lbs. Four T-slots at 5/8" keep fixtures and vises in place without extra prep. The 360-degree head swivel lets you angle the spindle when the work calls for it.
What's Included
What's Included? JET JMD-18PFN Benchtop Milling Machine with Power Downfeed
-
1/2" Drill Chuck and Chuck Arbor — Mounts directly to the R-8 spindle for standard drilling operations.
-
Adjustable Carbide Facemill — Handles face milling operations up to 3" wide right out of the box.
Specs
JET JMD-18PFN Benchtop Milling Machine with Power Downfeed Specifications
Available Configurations
-
JT9-350020 — JMD-18PFN | 115/230V, 1-Phase, Prewired 115V | R-8 Spindle | Power Downfeed | Base Dimensions: 15-3/4" × 23-3/4" | Table: 9-1/2" × 31-3/4" | Net Weight: 649 lbs.
-
JT9-350140 — JMD-18PFN | 115/230V, 1-Phase, Prewired 115V | R-8 Spindle | X-Axis Table Powerfeed | Table: 9-1/2" × 31-3/4" | Net Weight: 649 lbs.
-
JT9-350402 — JMD-18PFN | 230V Only, 1-Phase | R-8 Spindle | Power Downfeed | ACU-RITE 203 DRO | Base Dimensions: 15-3/4" × 23-3/4" | Table: 9-1/2" × 31-3/4" | Net Weight: 739 lbs.
-
JT9-350120 — JMD-18PFN | 115/230V, 1-Phase, Prewired 115V | R-8 Spindle | X-Axis Table Powerfeed | ACU-RITE 203 DRO | Table: 9-1/2" × 32-1/4" | Net Weight: 660 lbs.
Power & Spindle
-
Motor: 2 HP, 115/230V, 1-Phase (230V only on JT9-350402)
-
Spindle Taper: R-8
-
Number of Spindle Speeds: 12
-
Range of Spindle Speeds: 150–3,000 RPM
-
Spindle Travel: 5"
-
Spindle Travel Auto (Power Downfeed): 4-1/4" (JT9-350020 and JT9-350402)
-
Quill Diameter: 3"
-
Quill Down Feed Rates: 0.0047, 0.007, 0.001 IPR
-
Face Mill Capacity: 3"
Table & Travel
-
Table Longitudinal Travel: 20-1/2"
-
Table Size: 9-1/2" × 31-3/4" (JT9-350020, JT9-350140, JT9-350402) | 9-1/2" × 32-1/4" (JT9-350120)
-
T-Slots: 4 slots, 5/8" size
-
T-Slot Centers: 1-13/16"
-
Swing: 15-7/8"
-
Max Distance Spindle to Table: 28"
-
Work Table Weight Capacity: 400 lbs.
Machine
-
Column Diameter: 4-1/2"
-
Base Dimensions: 15-3/4" × 23-3/4" (where listed)
-
Overall Dimensions (L × W × H): 47" × 40" × 51"
-
Net Weight: 649 lbs. (JT9-350020) | 649 lbs. (JT9-350140) | 739 lbs. (JT9-350402) | 660 lbs. (JT9-350120)
-
Gross Weight: 740 lbs. (JT9-350020) | 740 lbs. (JT9-350140) | 805 lbs. (JT9-350402) | 847 lbs. (JT9-350120)
-
Warranty: 2-Year Warranty
-
Manual: PDF download available
