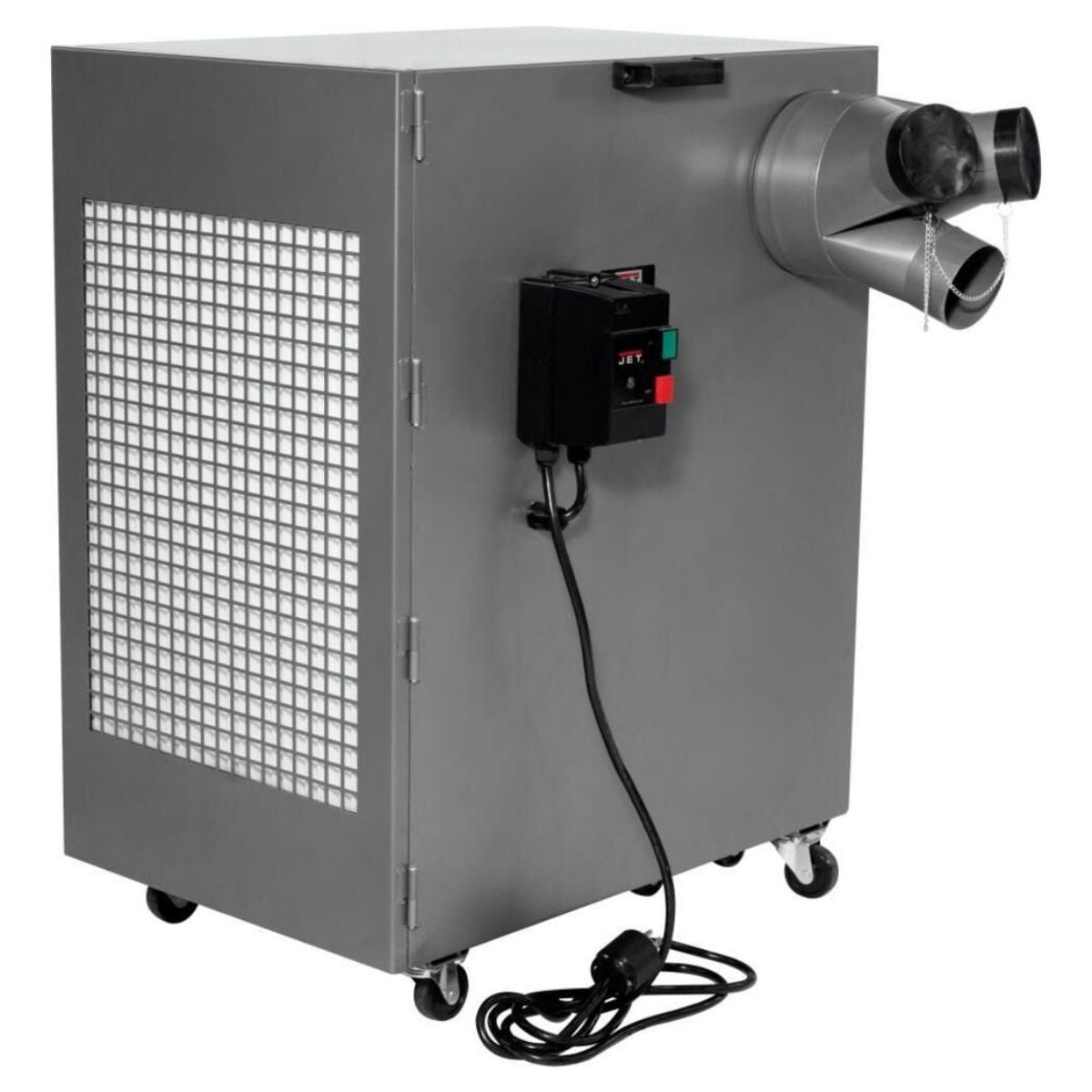

JET JDC-510 Industrial Metal Dust Collector (1500 CFM)
Are you running belt grinders, disc finishers, or other abrasive metalworking machines without a dedicated dust collection solution?
What if you had a collector built specifically for metal dust and abrasive debris, with a housing and fan blade that will not spark on contact with grinding particles?
Meet the JET JDC-510 Industrial Metal Dust Collector, a 3HP, 220V single-phase collector designed for abrasive shop environments where standard wood dust collectors are not rated to run safely.
With the JDC-510, you get an all-steel build, a CSA/US certified electrical system, an anti-spark and fireproof filter, and three dust ports that let you connect multiple machines at once.
When your shop runs grinding, finishing, and deburring operations, the JDC-510 gives you a reliable and dedicated collection station that handles the debris those machines produce.
JET JDC-510 for Abrasive Metal Dust Collection
Non-Sparking Aluminum Housing and Fan Blade Reduce Ignition Risk
Metal grinding and finishing operations produce fine abrasive particles that can ignite on contact with a standard fan blade. The JDC-510 uses a non-sparking aluminum housing and fan blade to address that risk directly. This makes it a safer choice for shops running belt grinders, disc finishers, and similar abrasive metalworking equipment.

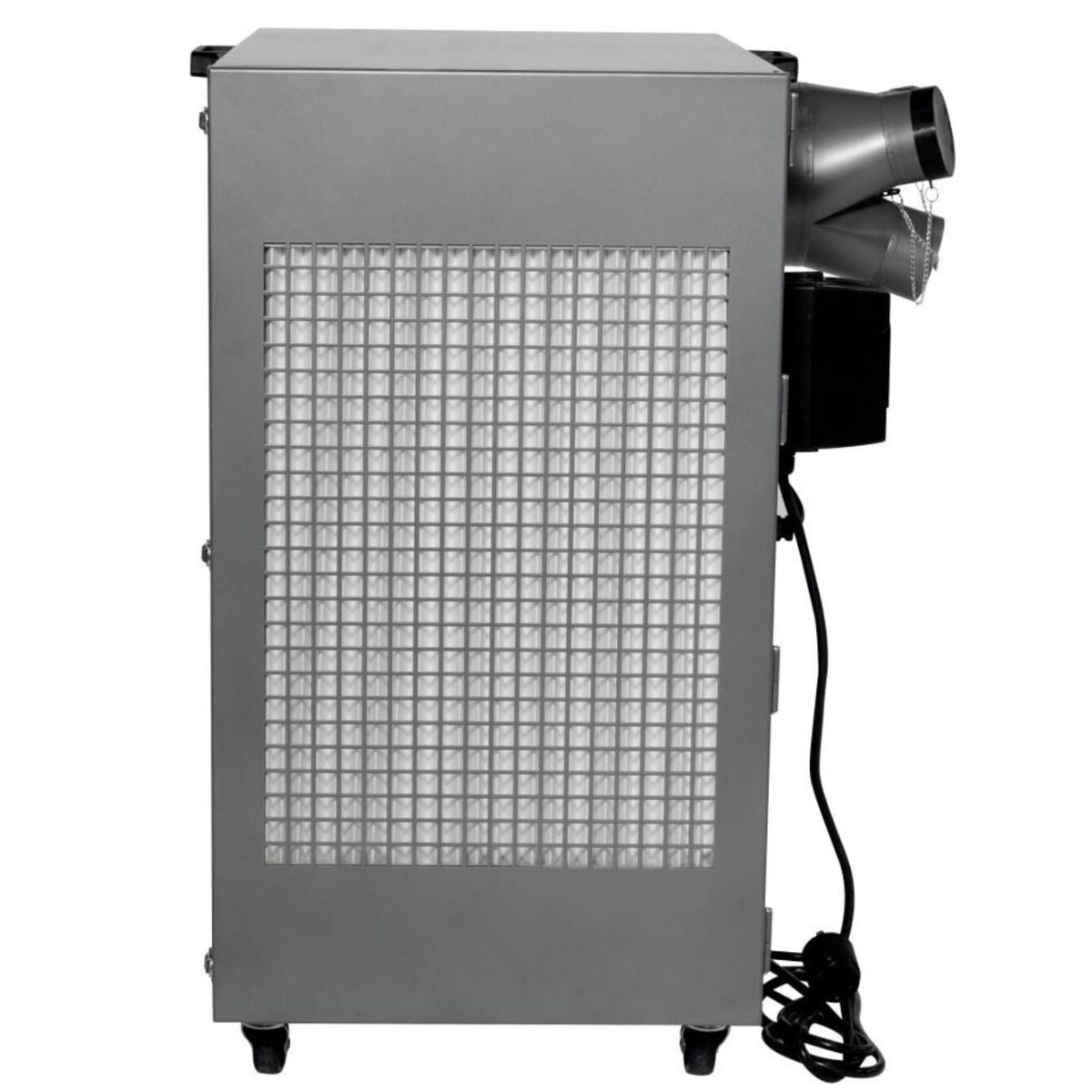

Anti-Spark Fireproof Filter Handles Abrasive Debris
The JDC-510 is fitted with an anti-spark, fireproof exhaust filter rated at 85.4% efficiency from 3 to 10 microns. That rating means fine metal dust and grinding particles are captured before they recirculate through your shop air. The filter is designed to be changed out without tools, so maintenance does not become a reason to skip cleaning.

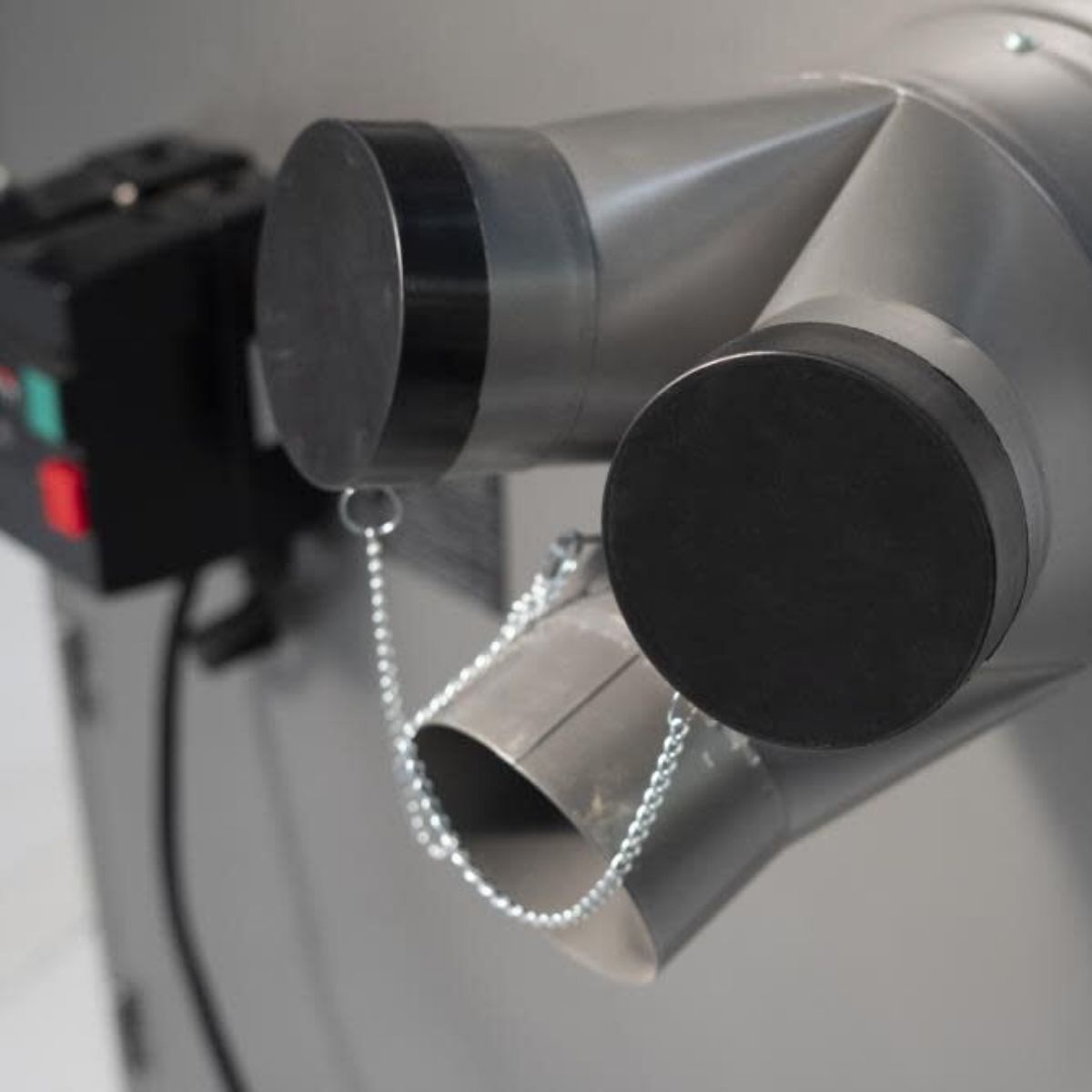

Three Dust Ports Connect Multiple Machines

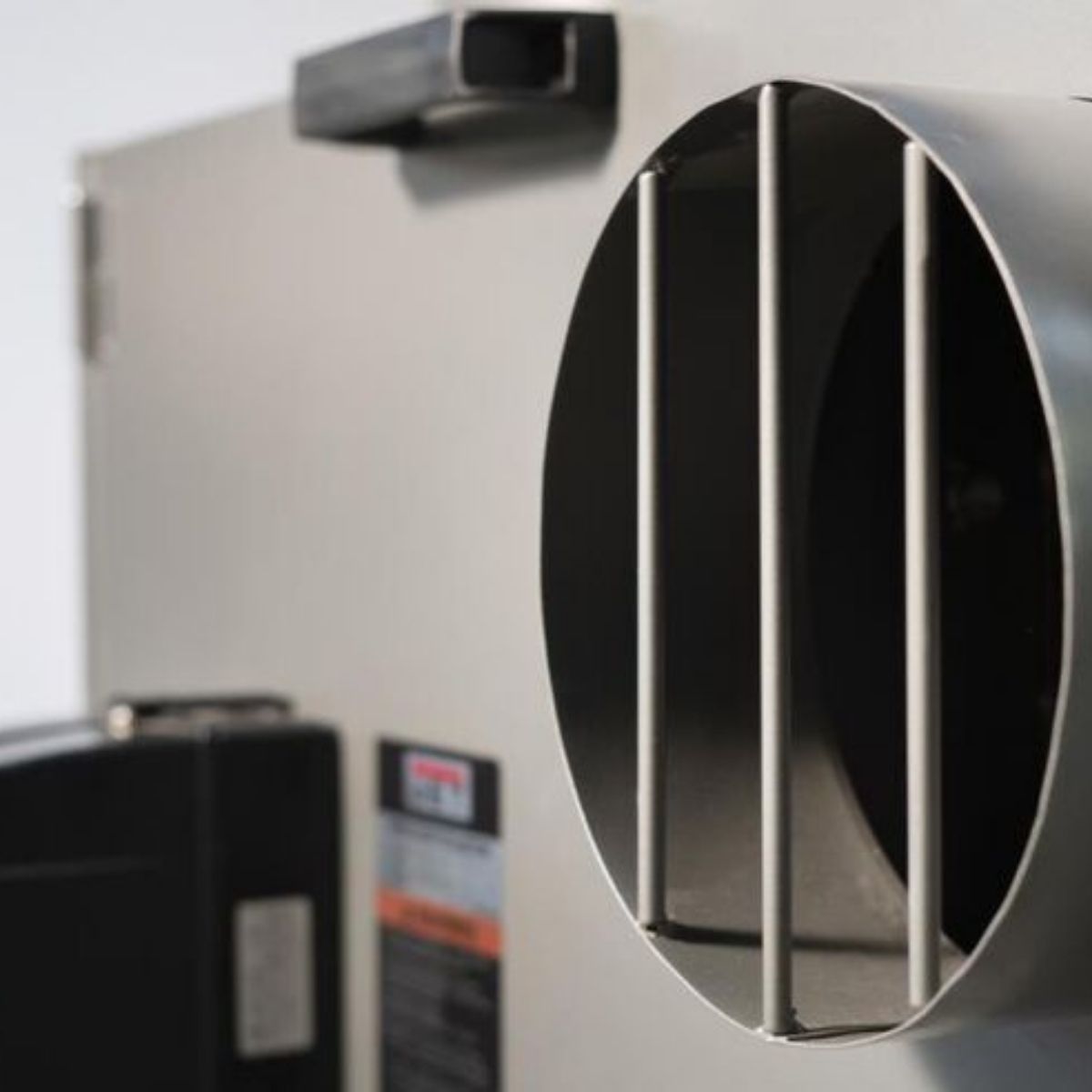

The JDC-510 includes three 3-inch dust ports with an 8-inch inlet option, so you can connect more than one machine to a single collector. This is useful in a dedicated grinding or finishing station where several pieces of equipment run in the same area. A single collector handles the dust load from that whole station without the need for multiple units.

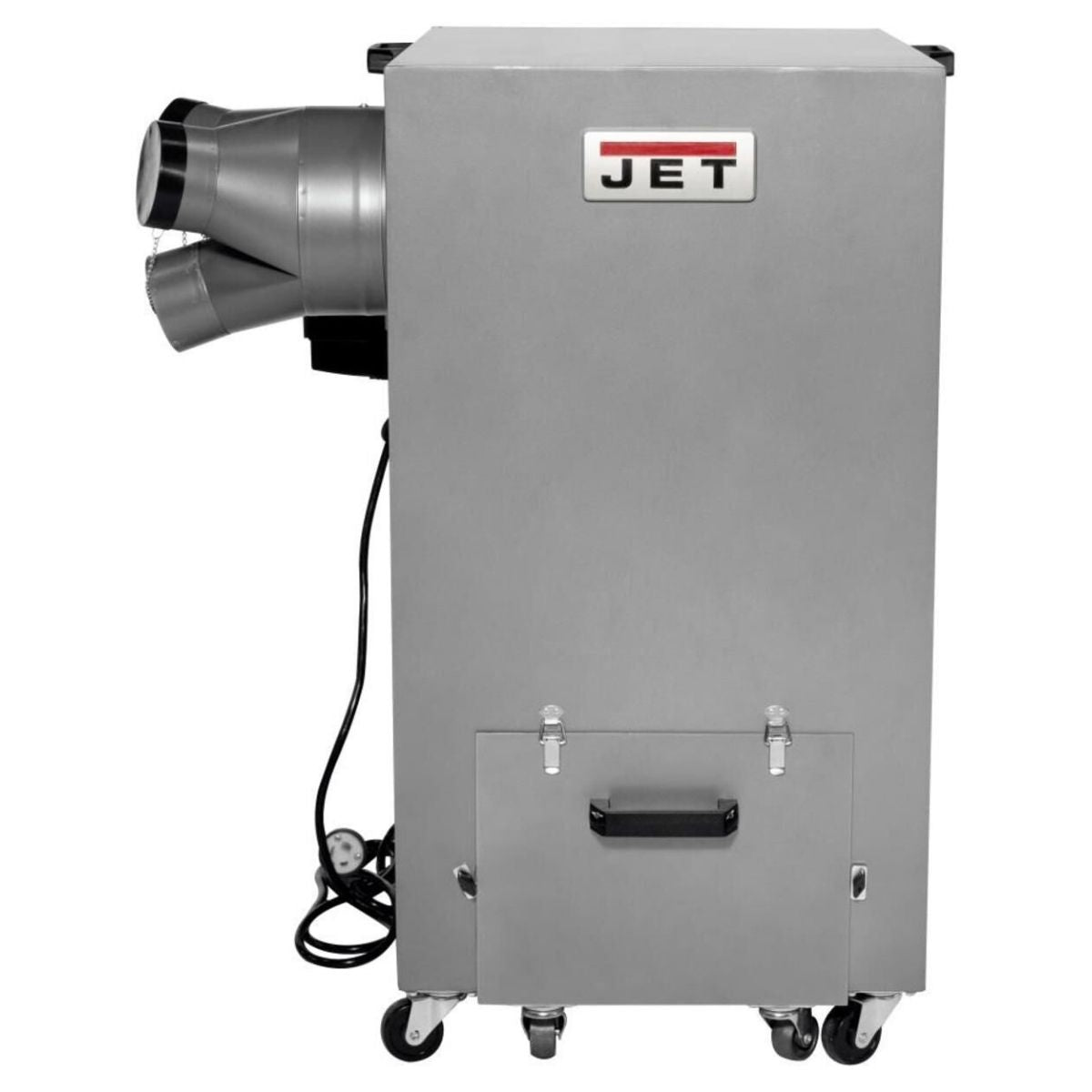

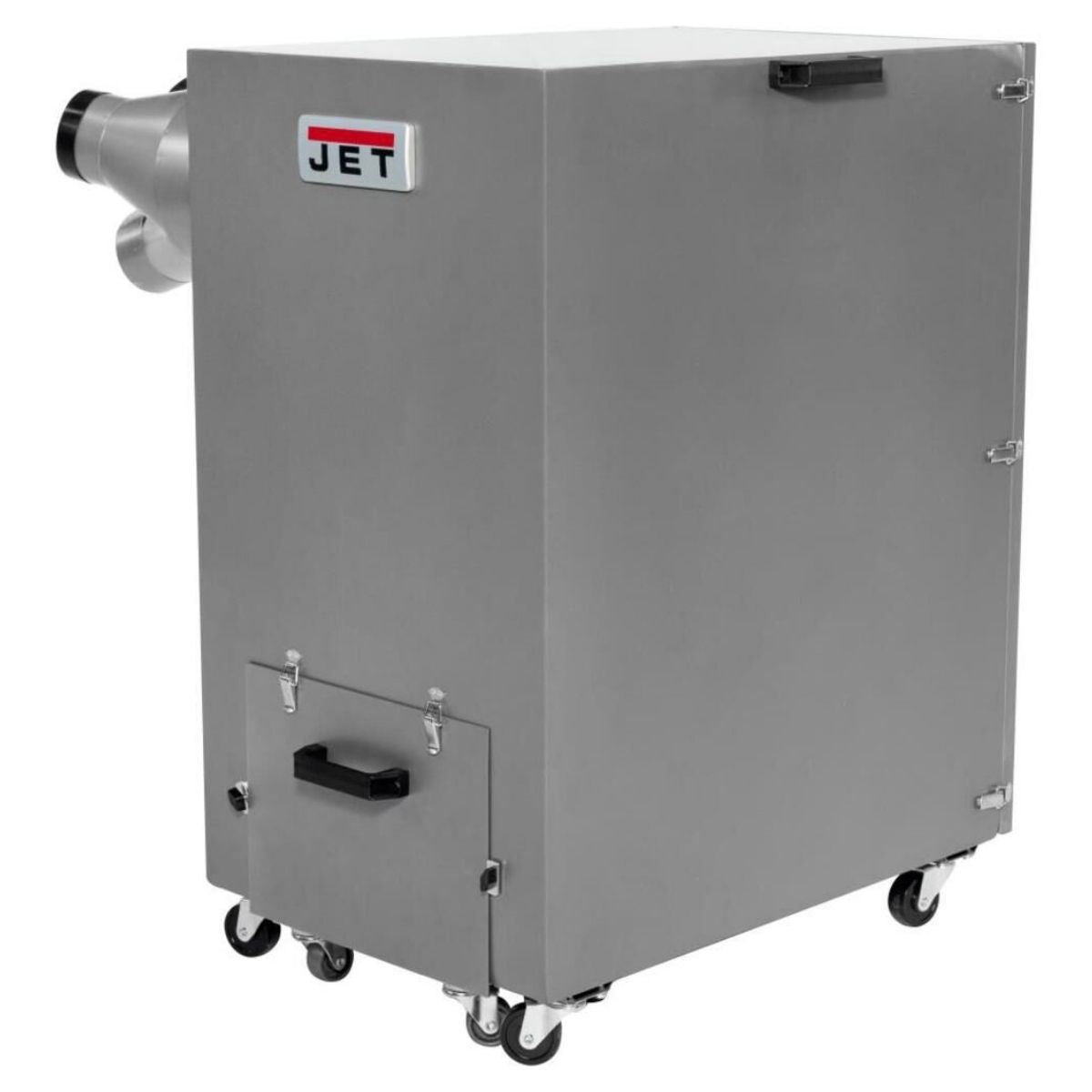

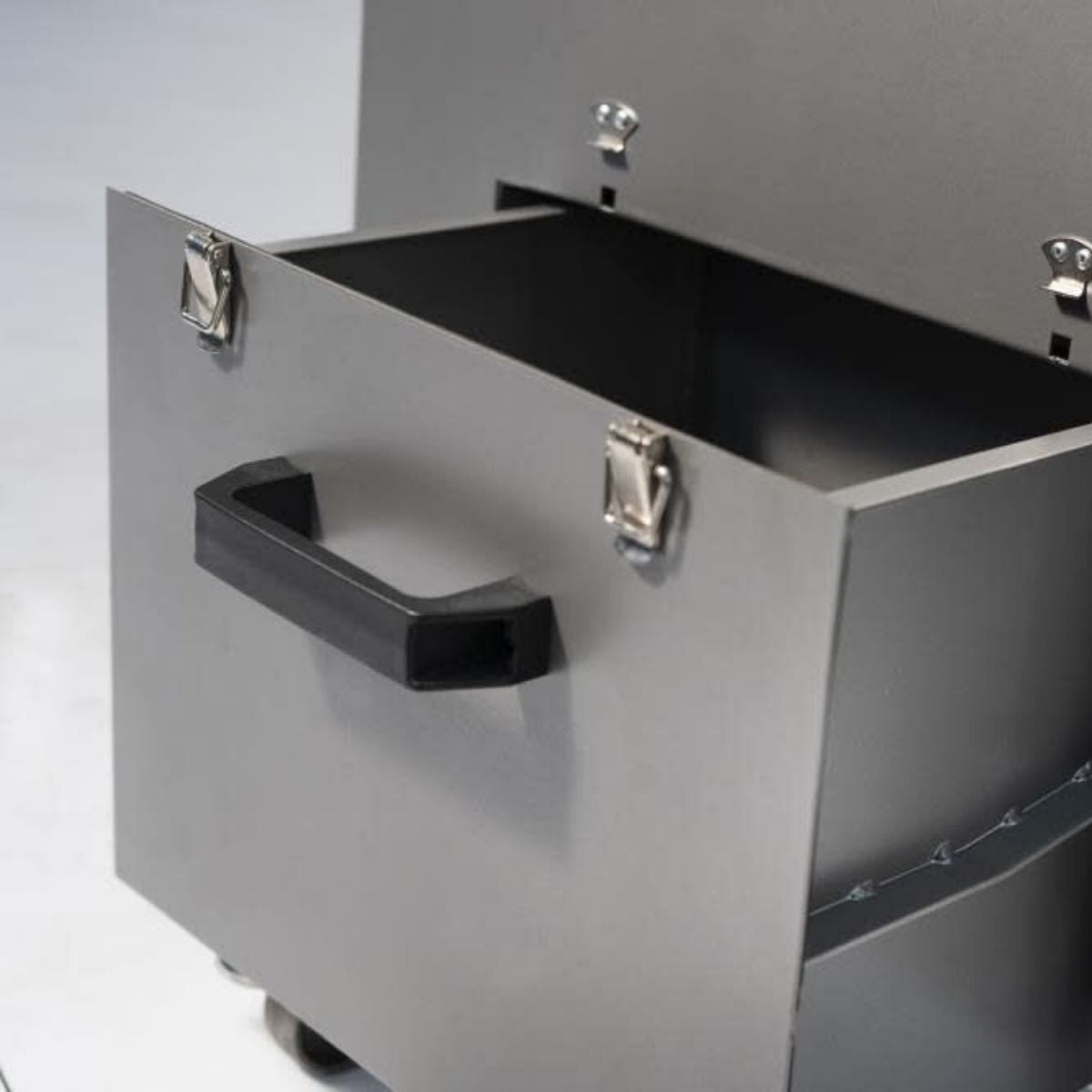

Metal Chip Drawer and Caster Mobility Support Shop Workflow
Collected chips and dust drop into a steel drawer at the base of the unit. Cleaning is straightforward: pull the drawer, empty it, and return it to position. Four casters and two handles let you move the collector between workstations or reposition it as your shop layout changes.
What's Included
What's Included? JET JDC-510 Industrial Metal Dust Collector (1500 CFM)
-
JET JDC-510 Dust Collector Unit — The main collector assembly with 3HP motor, all-steel construction, non-sparking aluminum housing and fan blade, three dust ports, metal chip drawer, and four casters.
Specs
JET JDC-510 Industrial Metal Dust Collector (1500 CFM) Specifications
- Stock Number: JT9-414900
- Model Number: JDC-510
- Motor: 3HP, 220V, Single Phase
- Motor Amps: 15A
- Air Flow: 957 CFM @ 8" Inlet / 412 CFM @ 3" Inlet
- Number of Ports: 3
- Dust Port Size: 3 in.
- Inlet Size (with Adaptor): 8 in.
- Filter Size (W x L x D): 19-3/8 x 25 x 1-25/32 in.
- Filter Type: Anti-Spark / Fireproof
- Filter Efficiency: 85.4% @ 3–10 micron
- Sound Rating: 75 dB
- Overall Dimensions (L x W x H): 30-5/8 x 20-7/8 x 29 in.
- Net Weight: 290 lbs.
- Gross Weight: 320 lbs.
- Construction: All Steel
- Housing and Fan Blade: Non-Sparking Aluminum
- Mobility: 4 Casters, 2 Handles
- Certification: CSA/US
- Warranty: 2 Years
