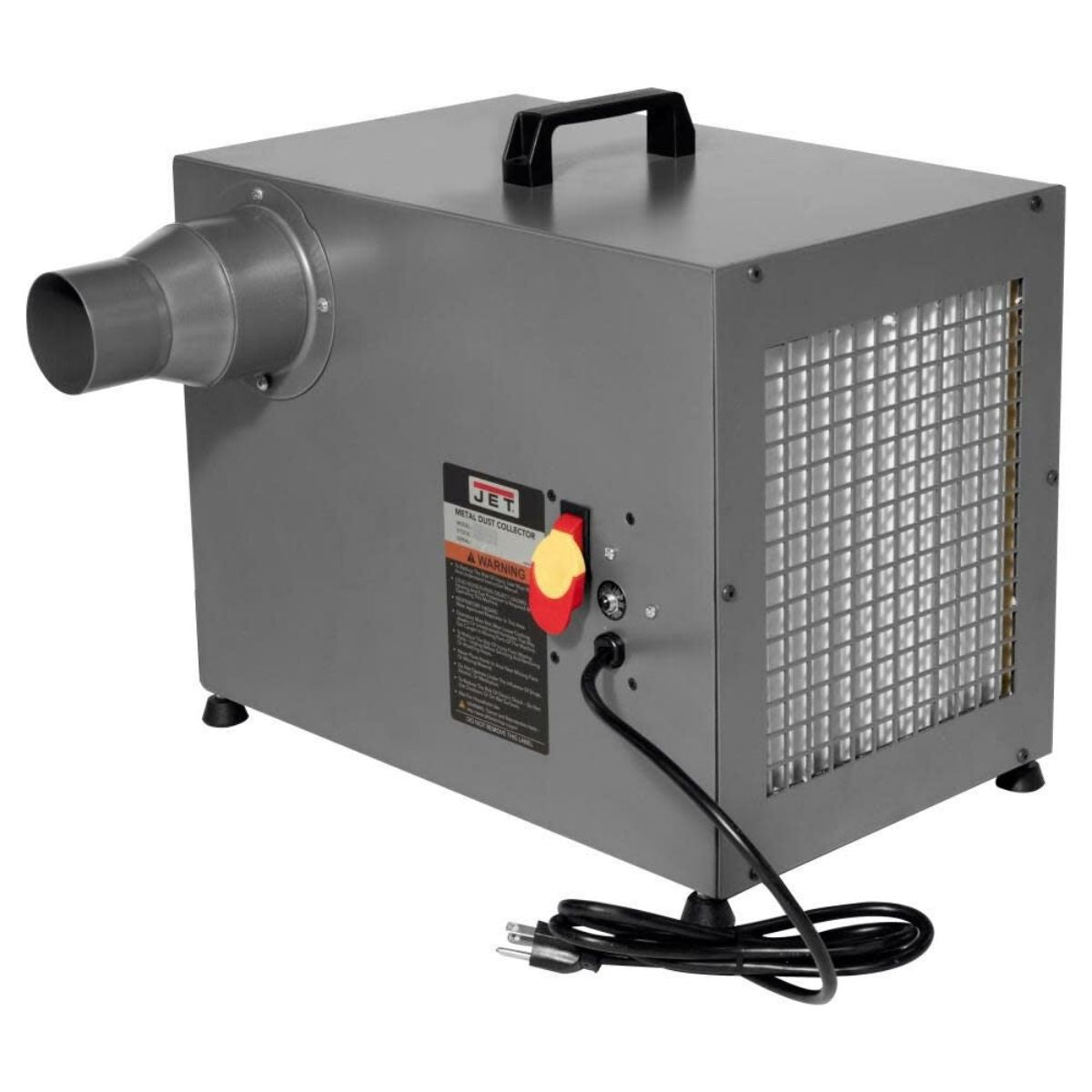

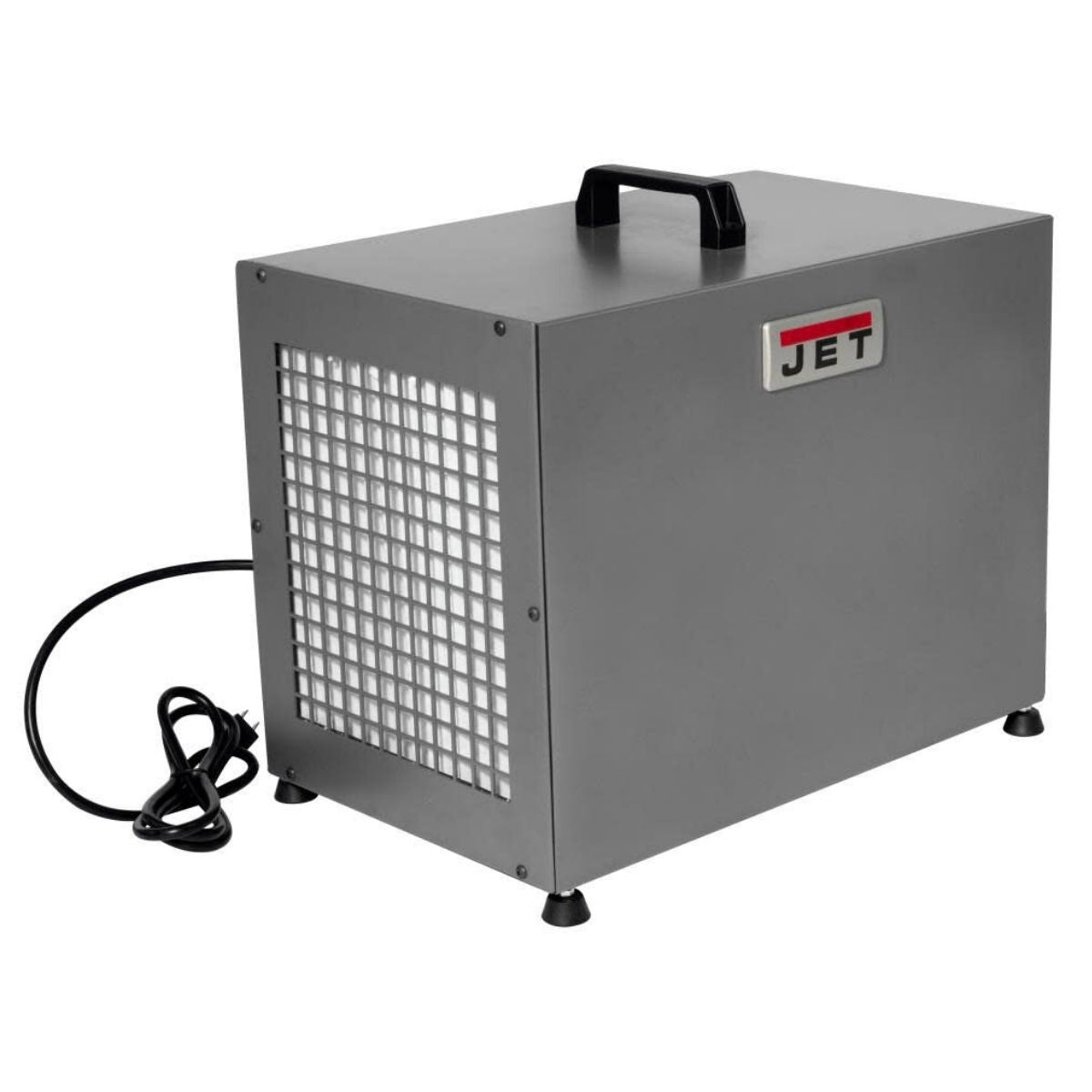

JET JDC-500B Bench Top Metal Dust Collector
Are your belt and disc finishing machines filling your shop with abrasive dust and fine particles that are difficult to manage?
What if a compact collector could pull that dust directly at the source, keep your workspace clean, and fit right on your bench?
Meet the JET JDC-500B Bench Top Metal Dust Collector, built to capture abrasive dust and chips from finishing and grinding machines in home shops and small production environments.
With the JDC-500B, you get a non-sparking aluminum housing and fan blade, a MERV 13 rated inner filter, and a sealed metal drawer that holds captured material until you are ready to empty it.
When your machines run cleaner, your shop stays safer and your finishing work stays consistent.
JET JDC-500B for Abrasive Dust Collection at Belt and Disc Machines
Non-Sparking Aluminum Housing and Fan Blade Handles Abrasive Environments
Finishing and grinding machines produce fine metallic and abrasive dust that can ignite with standard steel components. The JDC-500B uses an aluminum housing and non-sparking aluminum fan blade specifically to address this hazard. This construction makes the collector a safer fit for metalworking and abrasive finishing stations where spark risk is a real concern.
MERV 13 Anti-Spark Filter Captures Fine Particles
The inner filter is rated MERV 13 and constructed from anti-spark, fireproof material. At this filtration level, the collector catches fine dust that would otherwise stay airborne and settle across your work surfaces. The filter is designed to be changed out without difficulty, so maintaining collection efficiency does not require extended downtime.

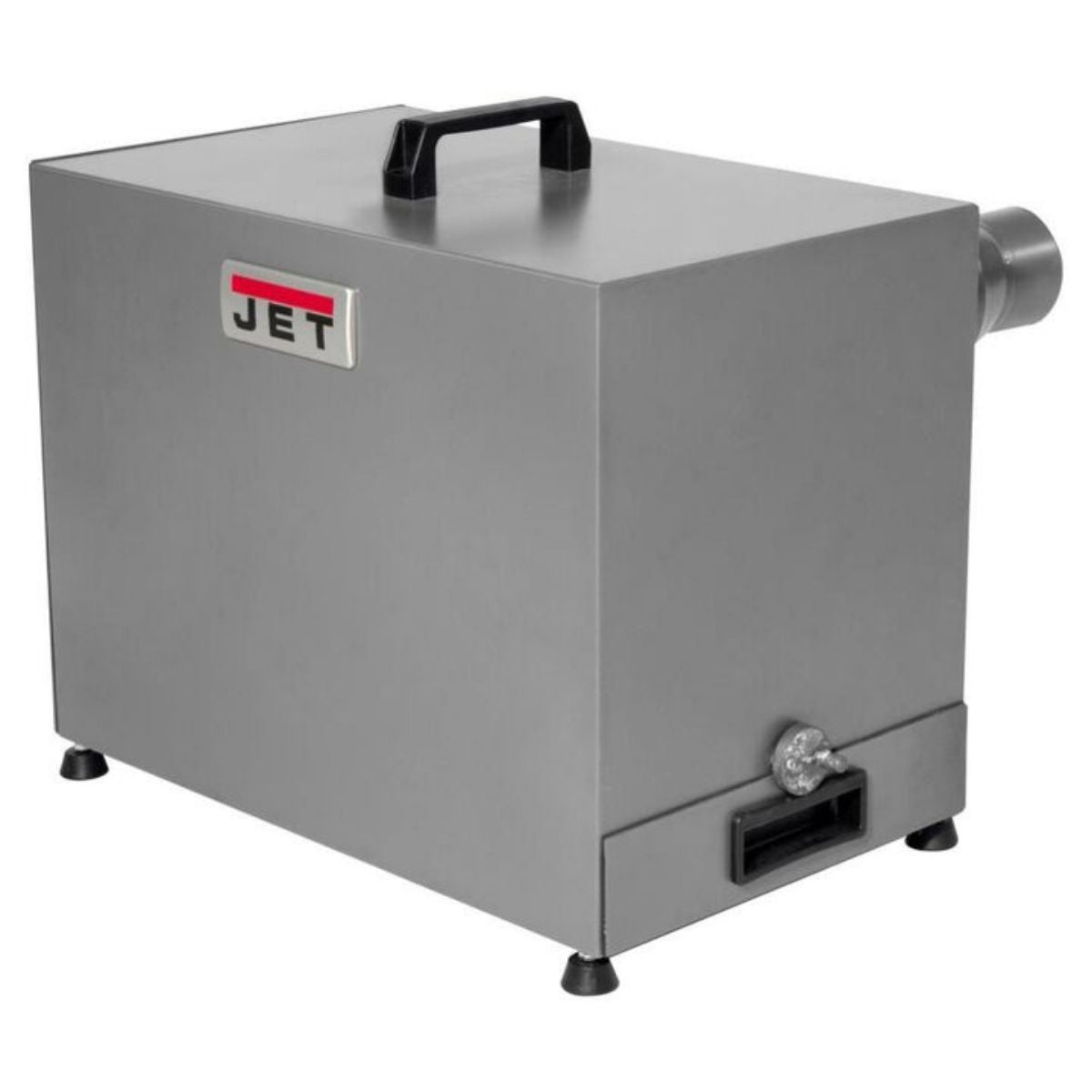

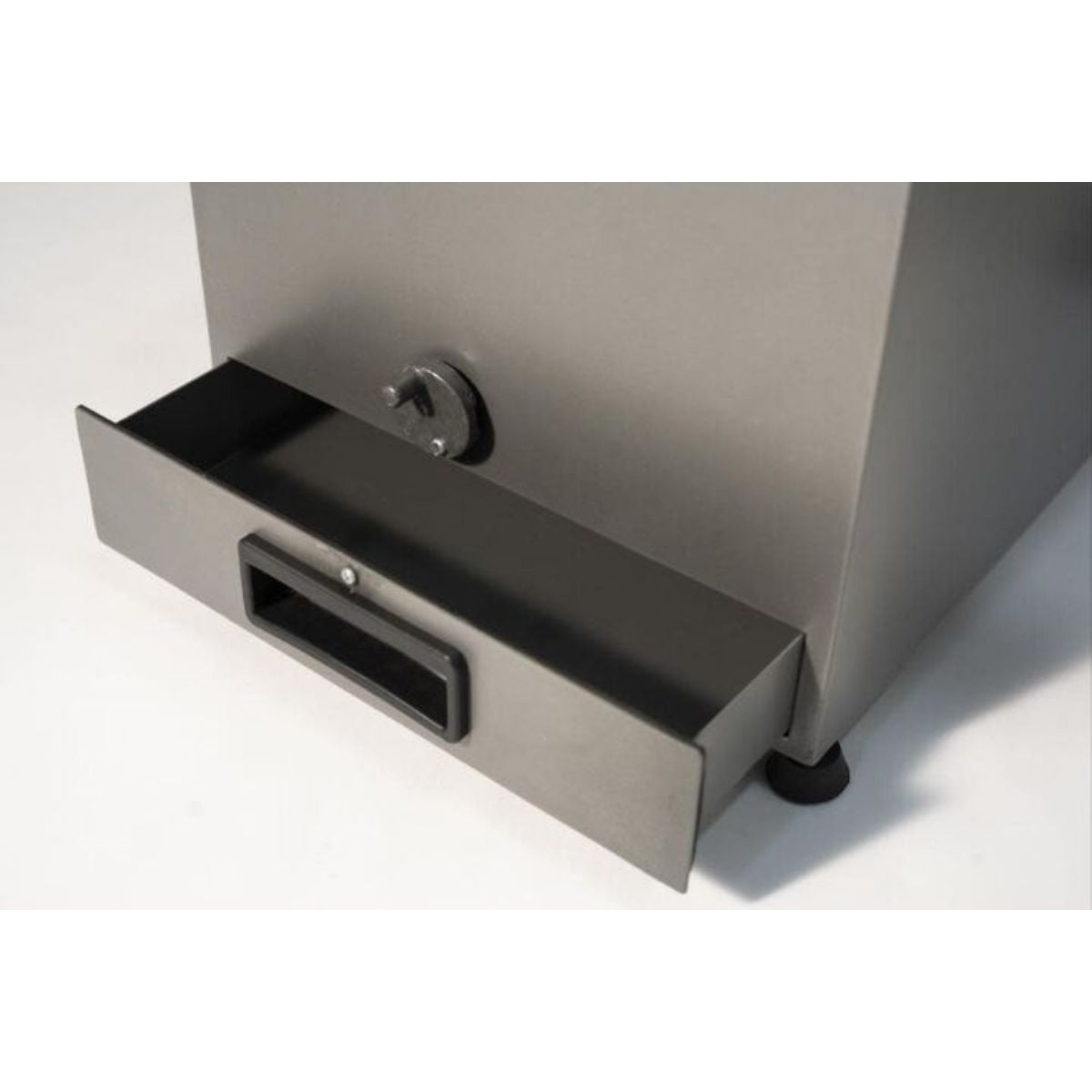

Metal Chip and Dust Drawer Simplifies Cleanout
Captured chips and dust fall into a solid metal drawer at the base of the unit. When the drawer is full, you pull it out, empty it, and slide it back in. There are no bags to replace and no internal surfaces that are hard to reach. This keeps routine maintenance fast and straightforward.
Compact Bench Top Footprint Fits Small Shop Layouts
The JDC-500B measures 30-5/8 by 20-7/8 by 29 inches and weighs 47 pounds, sized to sit on a bench or floor near your finishing station. The unit runs on standard 115V single-phase power, which means no special wiring is required for most home shops. Optional casters and two built-in handles make it easy to reposition when your workflow calls for it.
What's Included
What's Included? JET JDC-500B Bench Top Metal Dust Collector
-
JET JDC-500B Dust Collector Unit — The fully assembled bench top collector with aluminum housing, fan blade, and motor ready for connection to your finishing or grinding machine.
-
MERV 13 Anti-Spark / Fireproof Inner Filter — Installed filter rated for fine abrasive dust capture in metalworking and finishing environments.
-
Metal Chip and Dust Drawer — Removable steel drawer for straightforward cleanout without bags or disposable liners.
Specs
JET JDC-500B Bench Top Metal Dust Collector Specifications
-
Stock Number: JT9-414850
-
Model Number: JDC-500B
-
Motor: 1/3HP, 115V, Single Phase
-
Motor Amps: 3.5A
-
Maximum CFM: 490
-
Air Flow (CFM) High: 176
-
Maximum Hose Velocity: 5,610 SFPM
-
Dust Port Size: 3 in.
-
Number of Ports: 1
-
Filter Type: Anti-Spark / Fireproof
-
Inner Filter Efficiency: MERV 13
-
Filter Size (W x L x D): 11-25/32 x 10-15/32 x 1-3/16 in.
-
Overall Dimensions (L x W x H): 30-5/8 x 20-7/8 x 29 in.
-
Net Weight: 47 lbs.
-
Gross Weight: 53 lbs.
-
Sound Rating: 75 dB at 3 ft.
-
Construction: All steel with non-sparking aluminum housing and fan blade
-
Certification: CSA/US
-
Warranty: 2 Years
-
Manual: JDC-500B Dust Collector User Manual available for download
