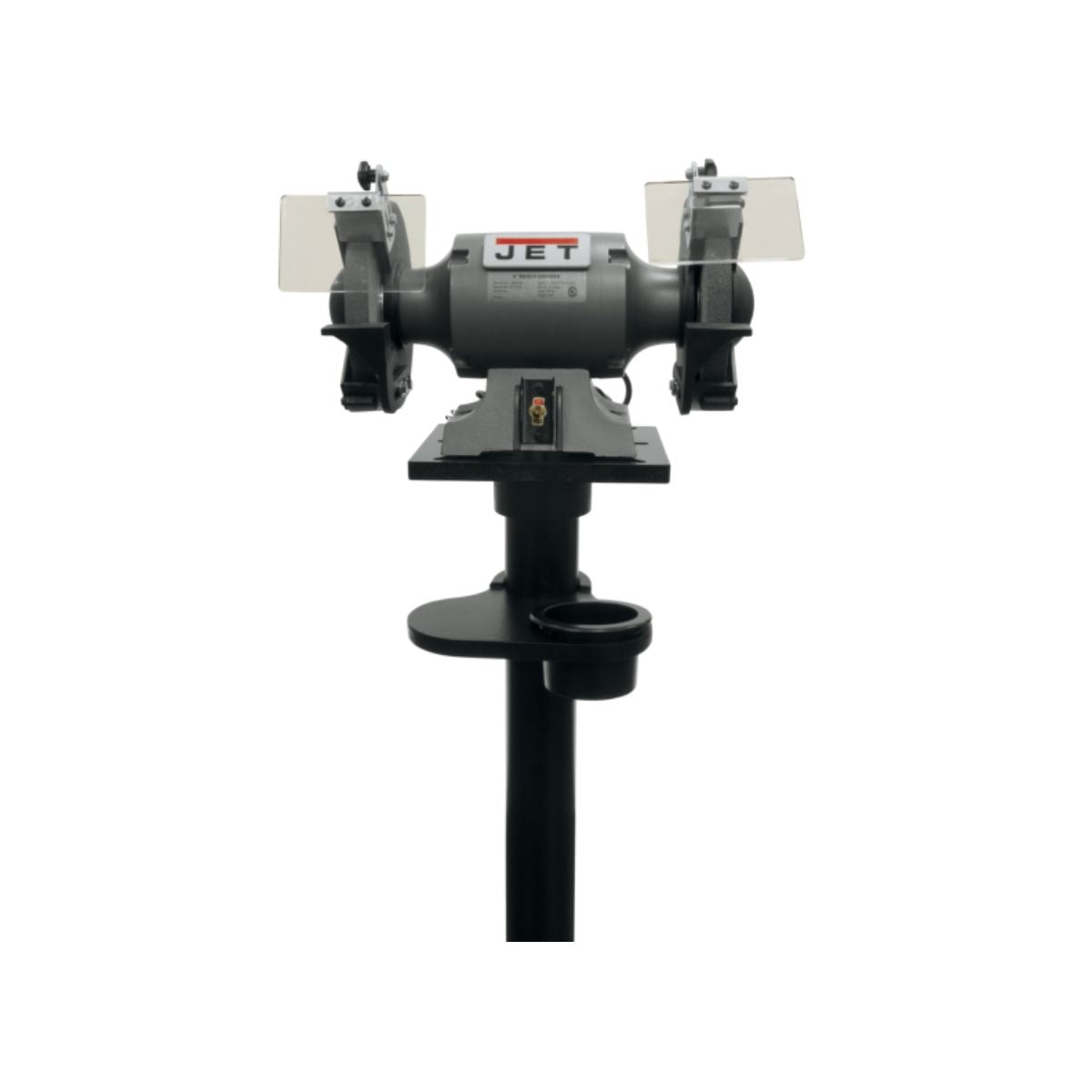

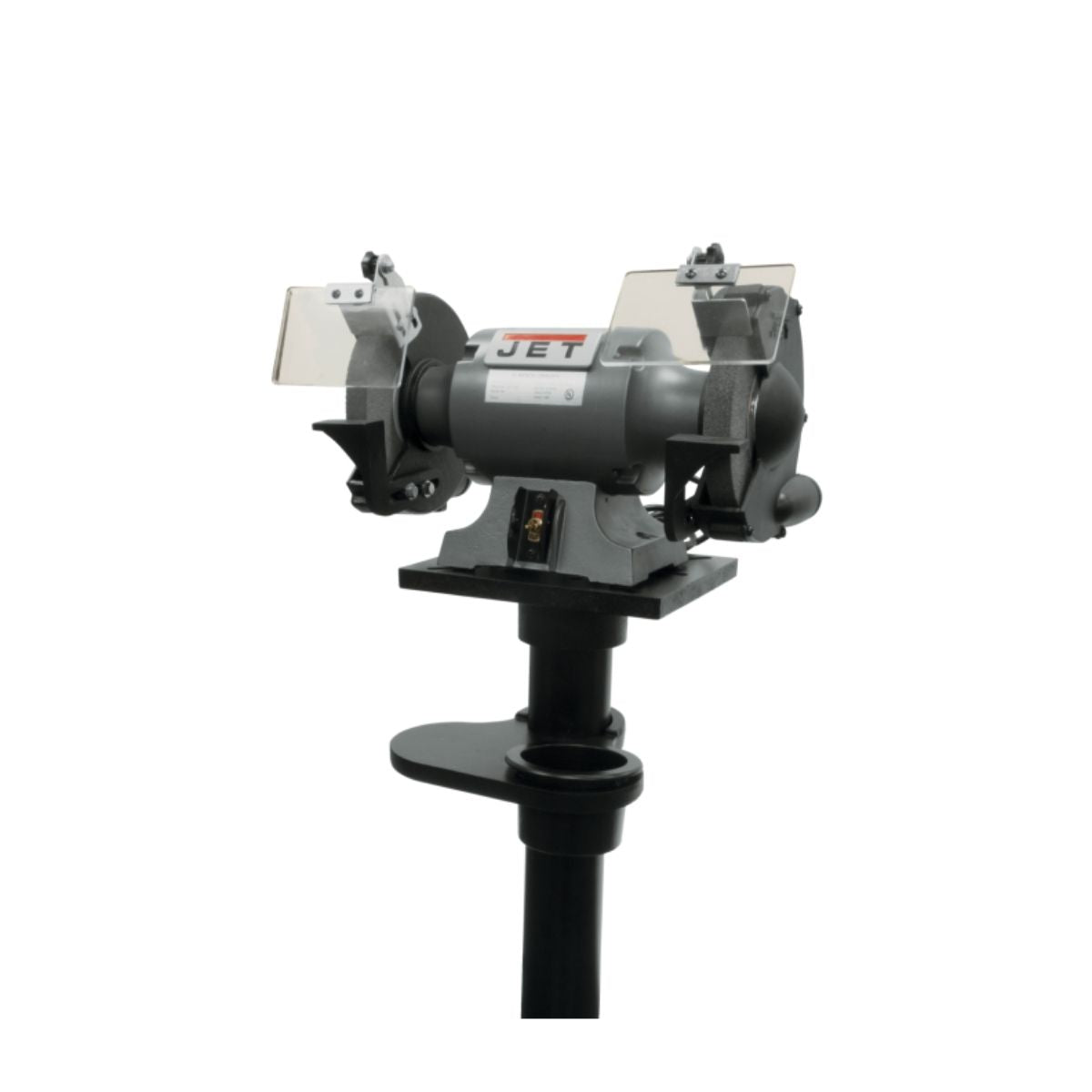

JET JBG-10A 10" Shop Bench Grinder with Stand
Are you spending more time hunting for the right edge angle than you are actually grinding?
What if your bench grinder gave you a stable, predictable platform that let you focus on the work instead of fighting the machine?
Meet the JET JBG-10A 10" Shop Bench Grinder with Stand, a full-size bench grinder and dedicated floor stand packaged together for shops that need a ready-to-use grinding station.
With the JBG-10A, you get a 1-1/2 HP, 10-amp motor paired with two 10-inch wheels that cover rough stock removal and closer finishing work without swapping machines.
When your grinder is dialed in and anchored to its own stand, you can move through sharpening and metal cleanup with the kind of steady focus that good shop work demands.
JET JBG-10A for Tool Sharpening and Metal Stock Removal
1-1/2 HP Motor Handles Heavy Grinding Loads
The JBG-10A runs on a 10-amp, 115V motor rated at 1-1/2 HP input power and 745 watts output. That capacity keeps wheel speed steady under moderate pressure, which matters when you are removing material from hardened tool steel or heavier stock. The motor runs at 1,750 RPM, a lower speed than smaller bench grinders in the JBG series, which gives you more control on the wheel face.
Dual 10-Inch Wheels Cover Two Stages of Work
The grinder ships with two 10-inch by 1-inch wheels on a 1-inch bore. One wheel is 24 grit for fast stock removal and reshaping. The other is 46 grit for refining edges and finishing surfaces. Having both grits on the same machine means you move from rough to finish work without stopping to change equipment. Each wheel accepts standard replacement wheels sized to the same 10 x 1 x 1-inch spec.
Adjustable Tool Rests Support Consistent Grinding Angles
Left and right tool rests mount to the wheel housings and adjust to hold clearance within 1/16 inch of the wheel face. That close tolerance keeps the work supported close to the grinding surface, which helps you hold a consistent bevel angle from pass to pass. As wheels wear down, the rests slide in to maintain the same clearance without any special tools beyond a 12mm wrench.

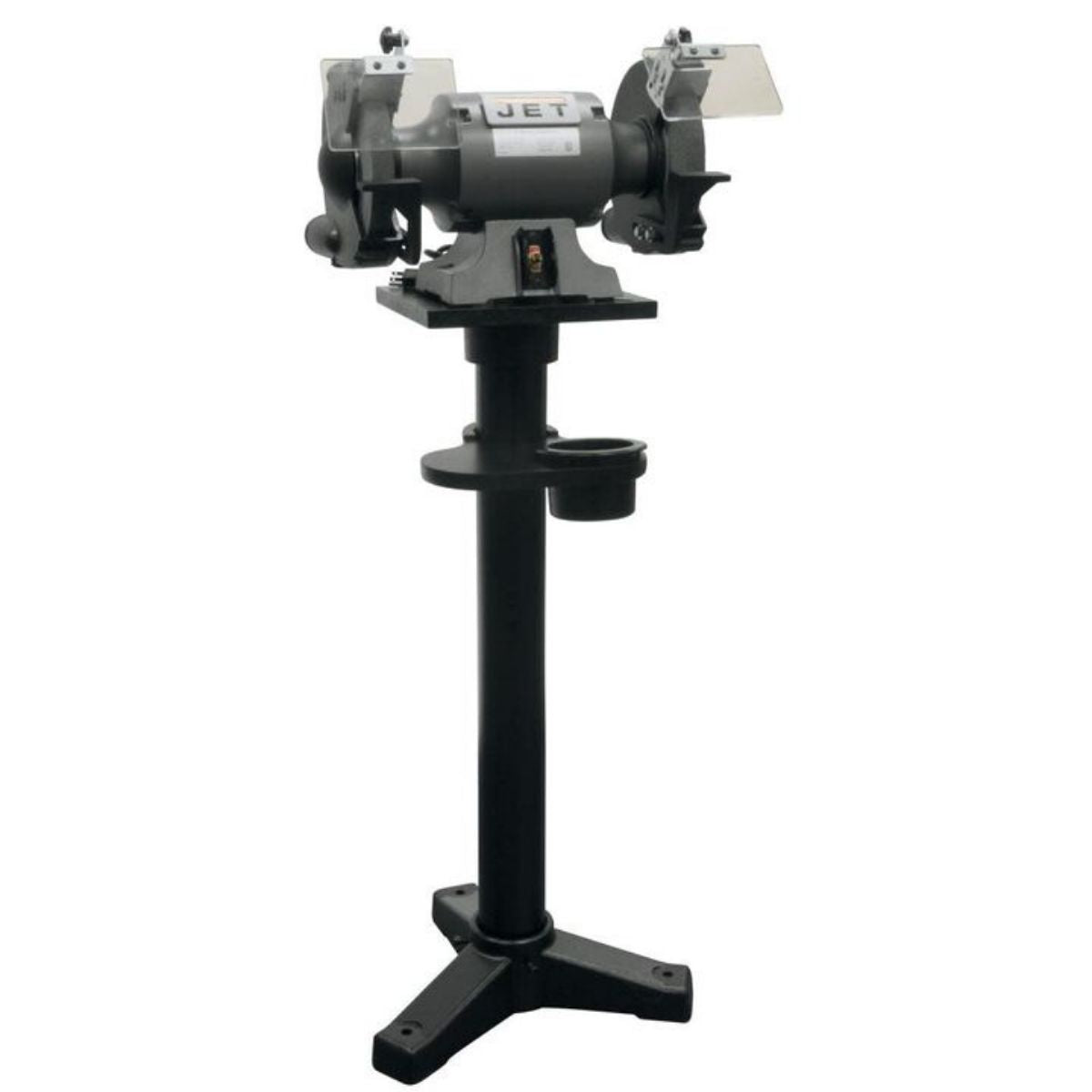

JPS-2A Stand Positions the Grinder for Floor Use
The included JPS-2A stand raises the JBG-10A off the bench and gives you a dedicated floor footprint for the grinder. Mounting the grinder to a stand rather than a workbench keeps your bench surface clear and puts the wheels at a working height suited for standing use. The stand bolts to the grinder base using the machine's existing mounting holes.
What's Included
What's Included? JET JBG-10A 10" Shop Bench Grinder with Stand
-
JBG-10A Bench Grinder — 10-inch, 1-1/2 HP bench grinder with motor housing, base, and all guards installed.
-
JPS-2A Stand — Dedicated floor stand designed to mount and support the JBG-10A grinder.
-
10 x 1 x 1" Grinding Wheel, 24 Grit — Coarse wheel for fast material removal and reshaping.
-
10 x 1 x 1" Grinding Wheel, 46 Grit — Medium wheel for edge refinement and surface finishing.
-
Left and Right Tool Rests — Adjustable cast rests that support the workpiece close to the wheel face.
-
Left and Right Spark Guards — Metal guards that mount above each wheel to deflect sparks during grinding.
-
Left and Right Eye Shields — Clear shields that mount to the spark guard brackets to protect the operator's line of sight.
-
Eye Shield Mounting Brackets and Hardware — All hardware needed to assemble and install the spark guards and eye shields.
Specs
JET JBG-10A 10" Shop Bench Grinder with Stand Specifications
- Model: JBG-10A
- Stock Number: JT9-577103K
- Motor: 10.0 Amp, 115V, 1PH
- Motor Output: 745W
- Input Power Required: 1-1/2 HP, 115V, 1PH
- Motor RPM: 1,750
- Wheel Size (D x W x Bore): 10" x 1" x 1"
- Wheels Included/Grit: 24 grit and 46 grit
- Overall Dimensions (L x H x D): 24-1/2" x 12-1/4" x 13"
- Gross Weight: 119 lbs
- Warranty: 2 Year
