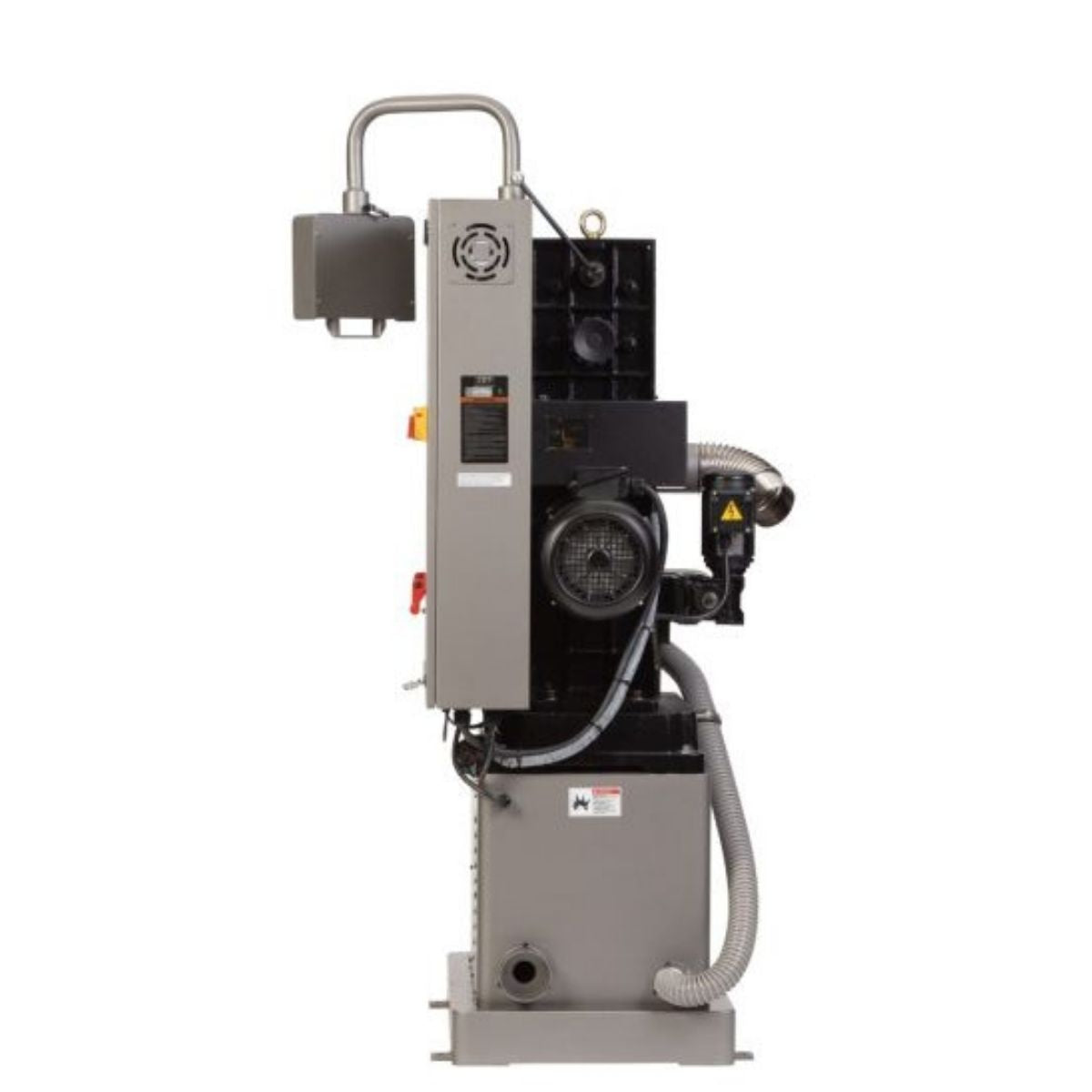

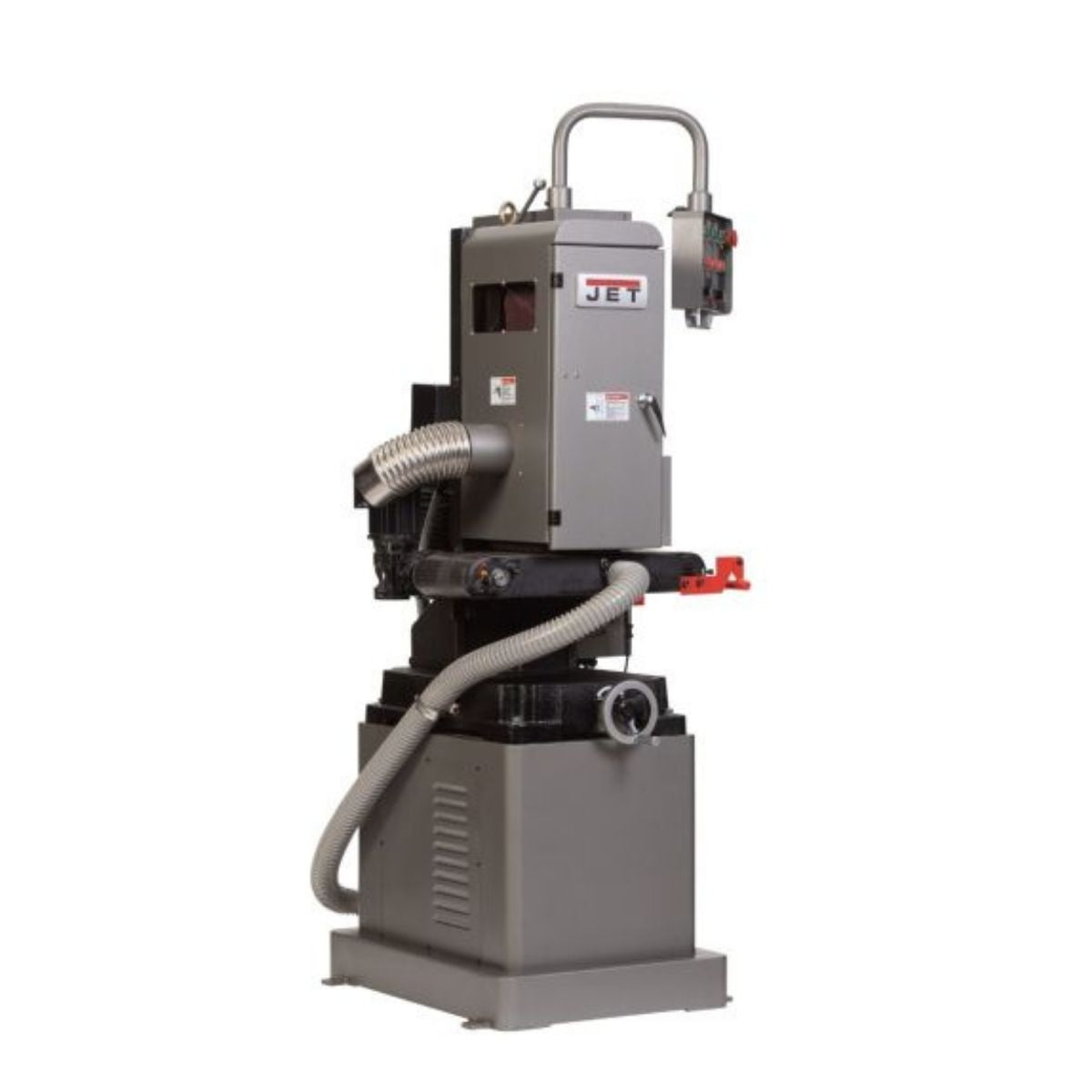

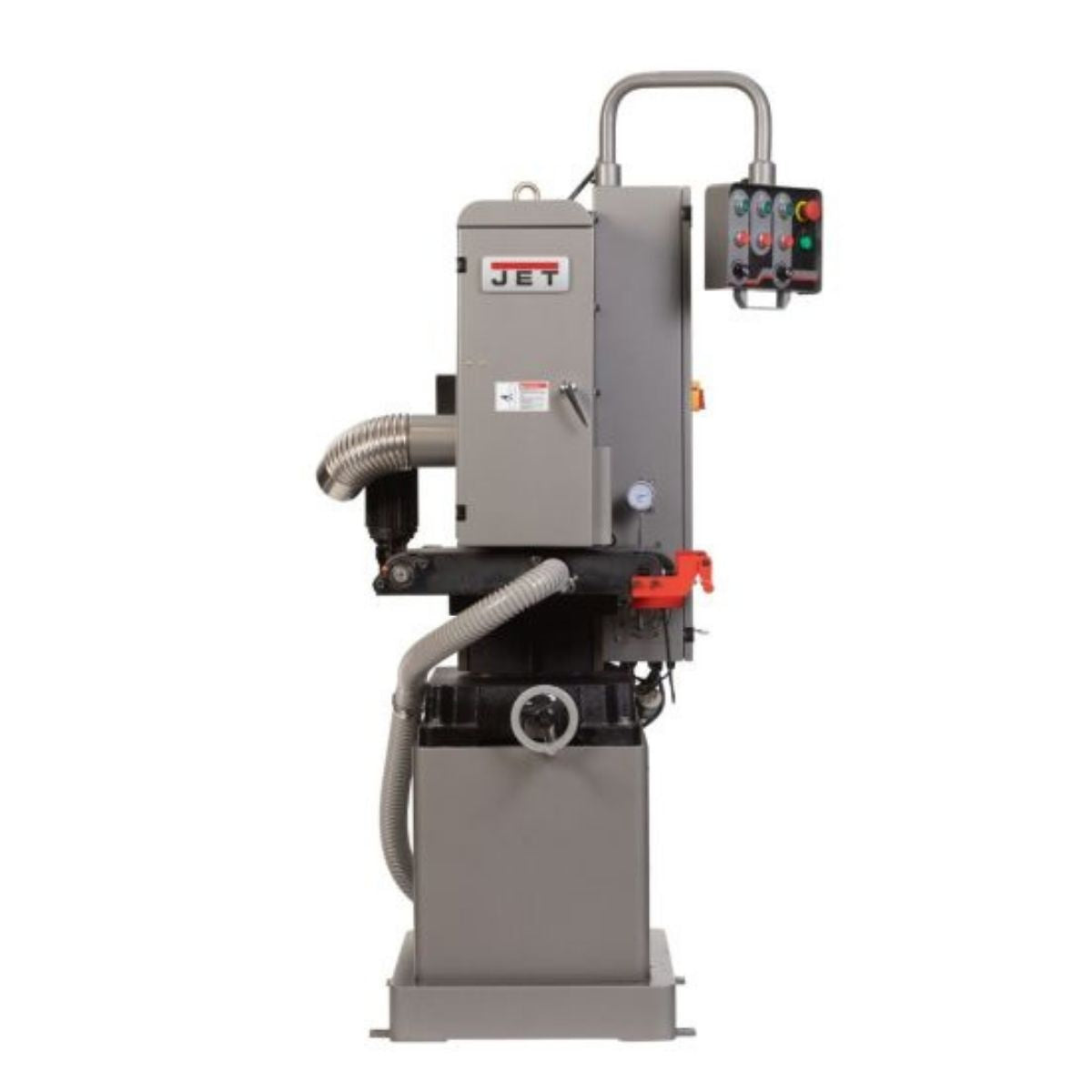

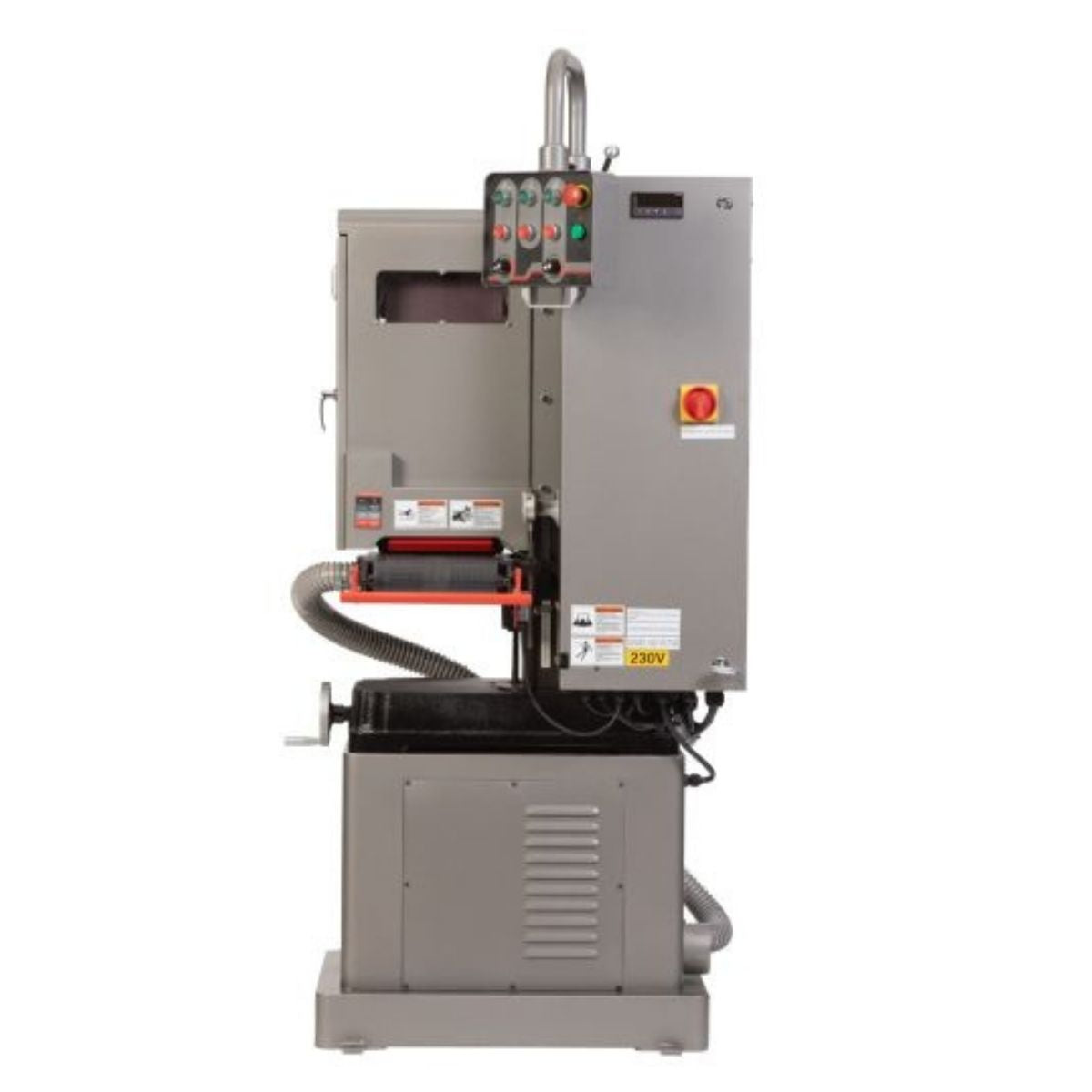

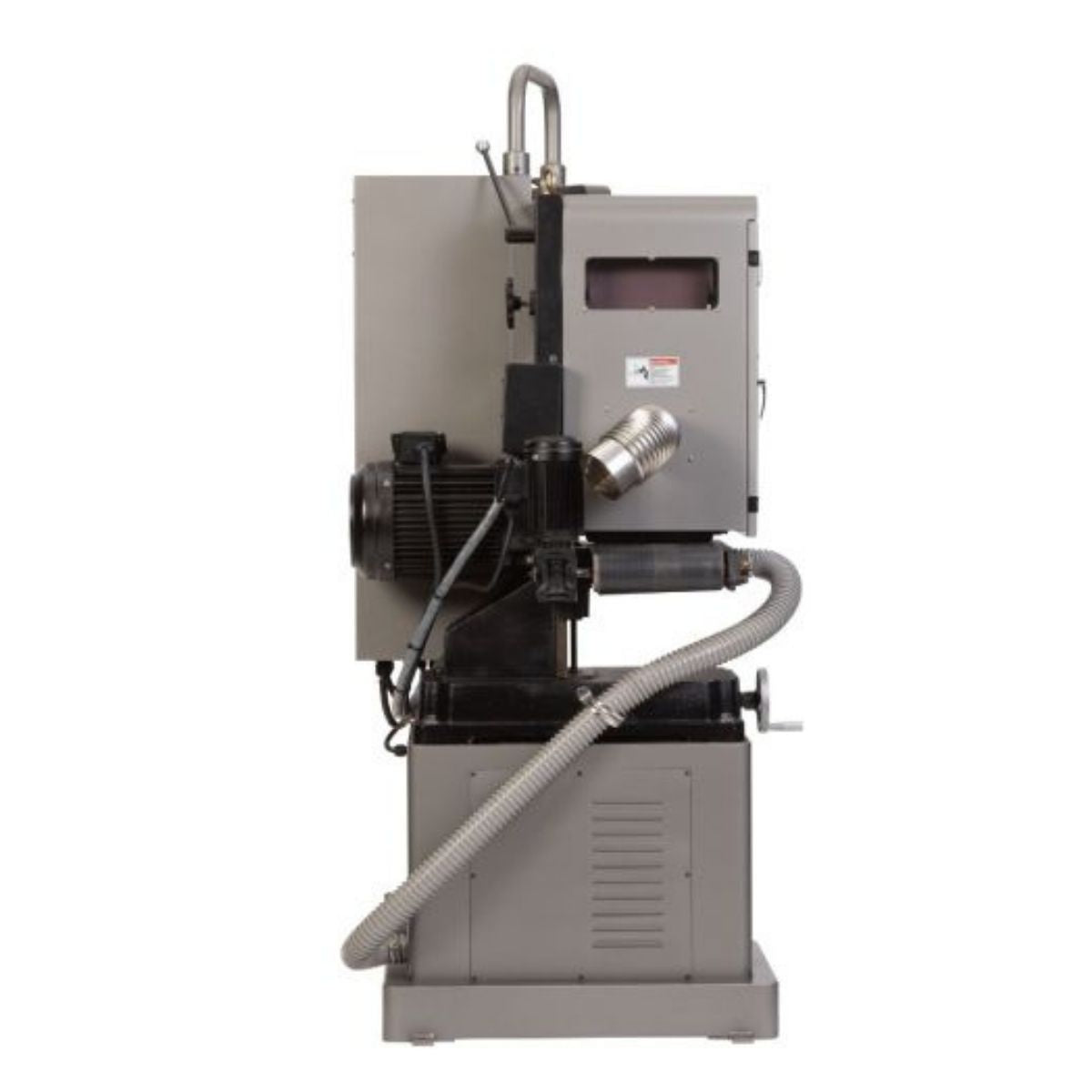

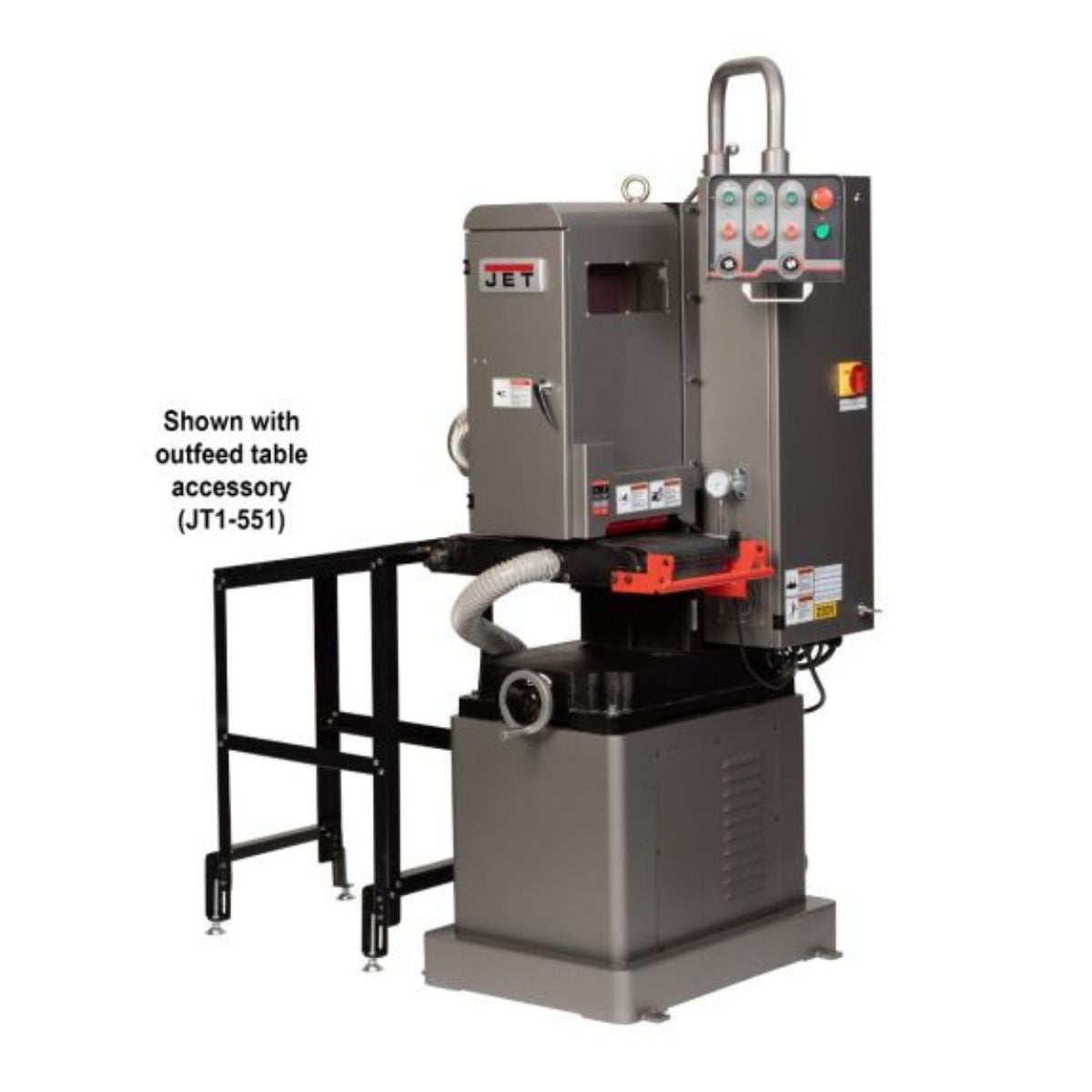

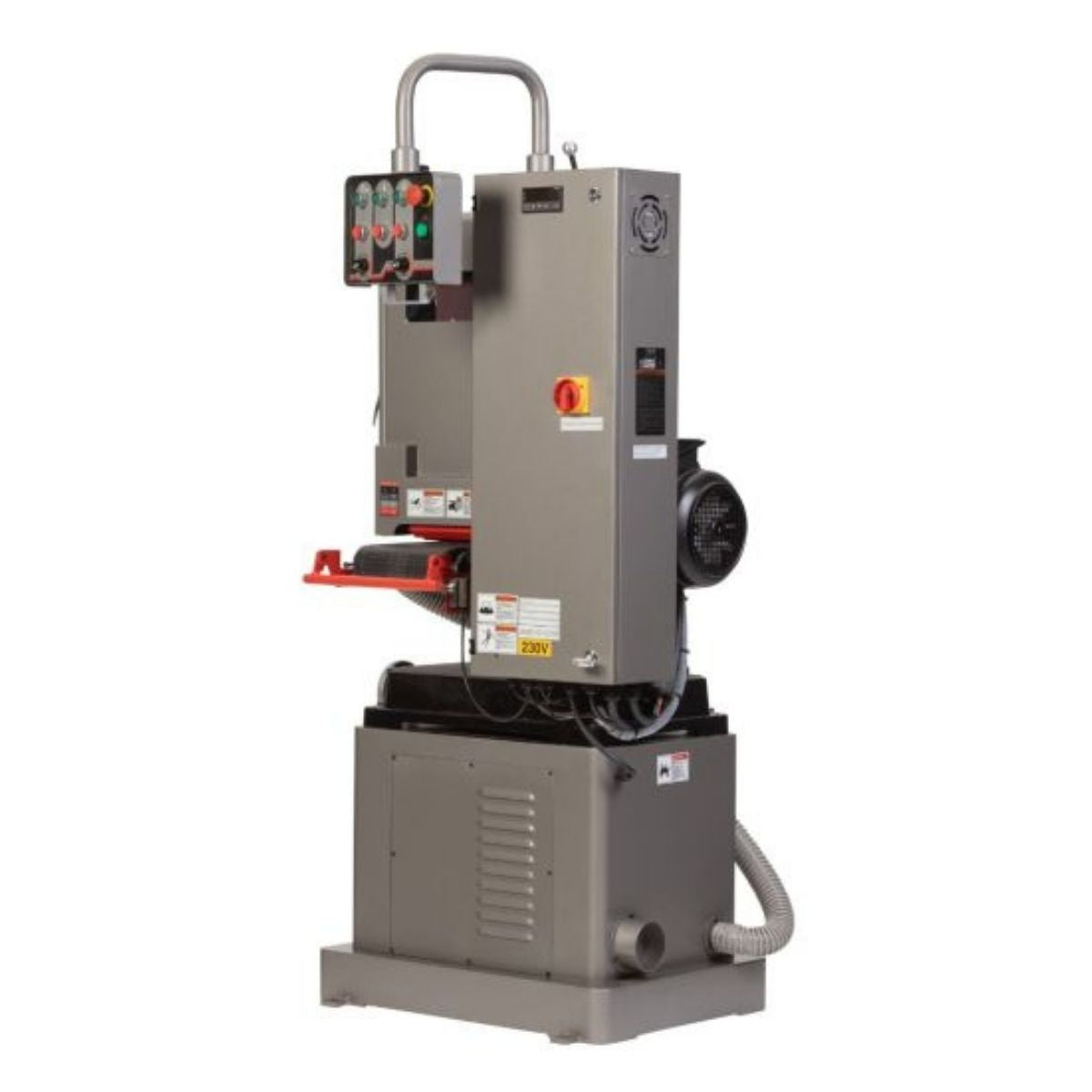

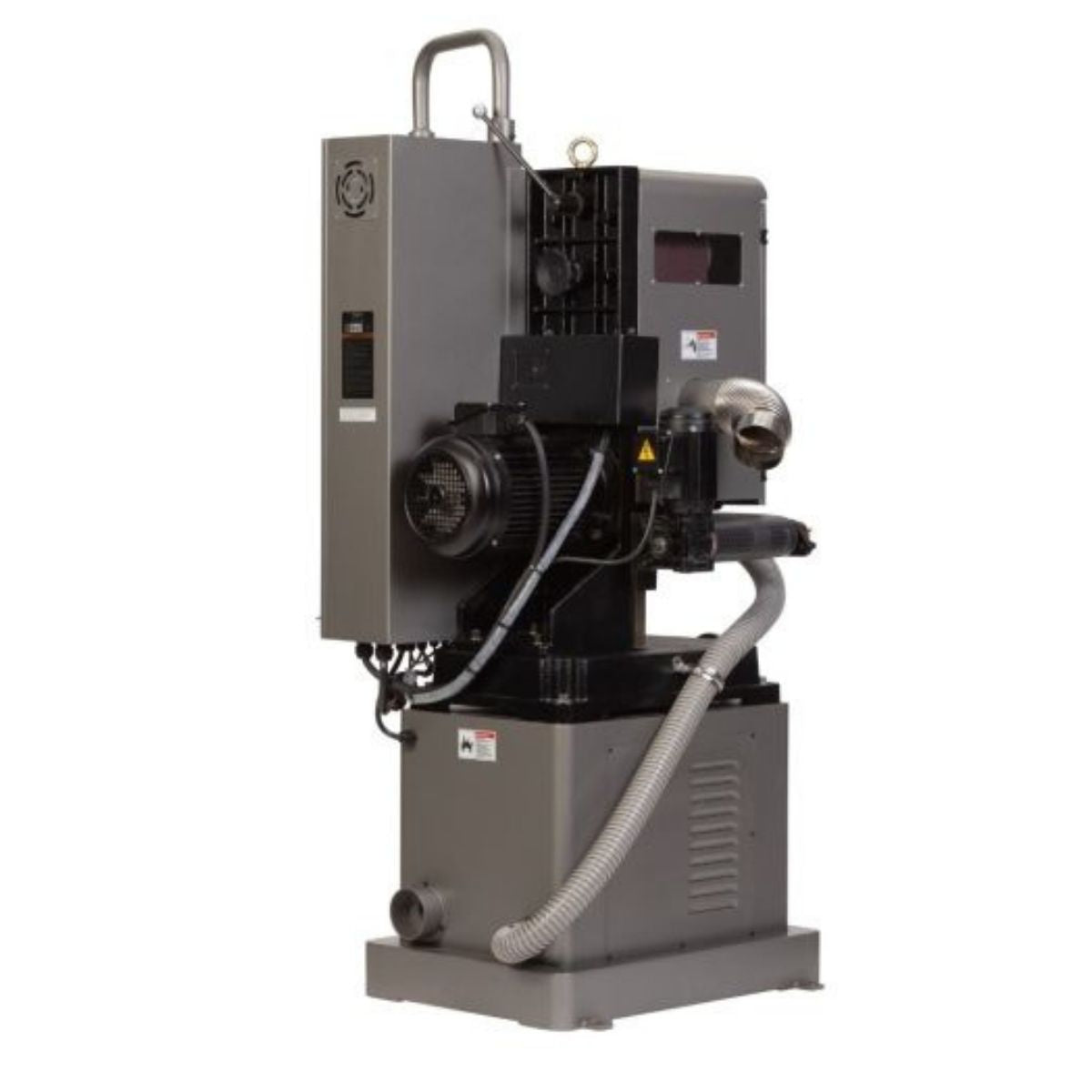

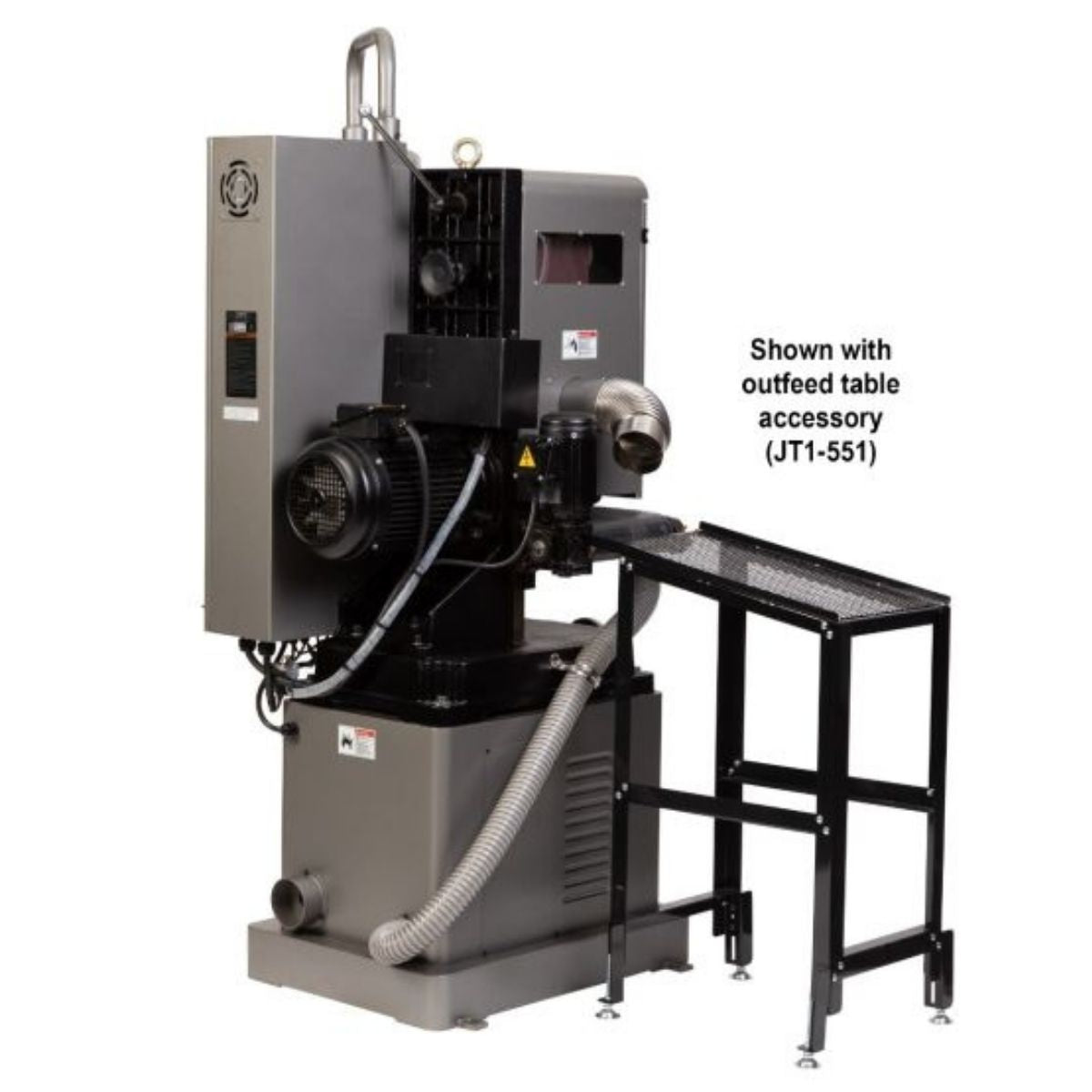

JET J-948WBSV 9" x 48" Variable Speed Wide Belt Sander
Are you spending too much time cleaning up burrs, dross, and slag from laser and plasma cuts?
What if your shop had a wide belt sander that tracked true, held small pieces steady, and let you dial in conveyor speed to match the work?
Meet the JET J-948WBSV 9" x 48" Variable Speed Wide Belt Sander, a 3-phase machine built for metal finishing, deburring, and surface prep.
With auto-tracking, vacuum conveyor hold-down, and variable speed control on both the belt and conveyor, the J-948WBSV handles a wide range of material types and piece sizes.
When the belt stays aligned and the parts stay put, you move through finishing work faster and with consistent results from piece to piece.
JET J-948WBSV for Metal Deburring and Surface Finishing

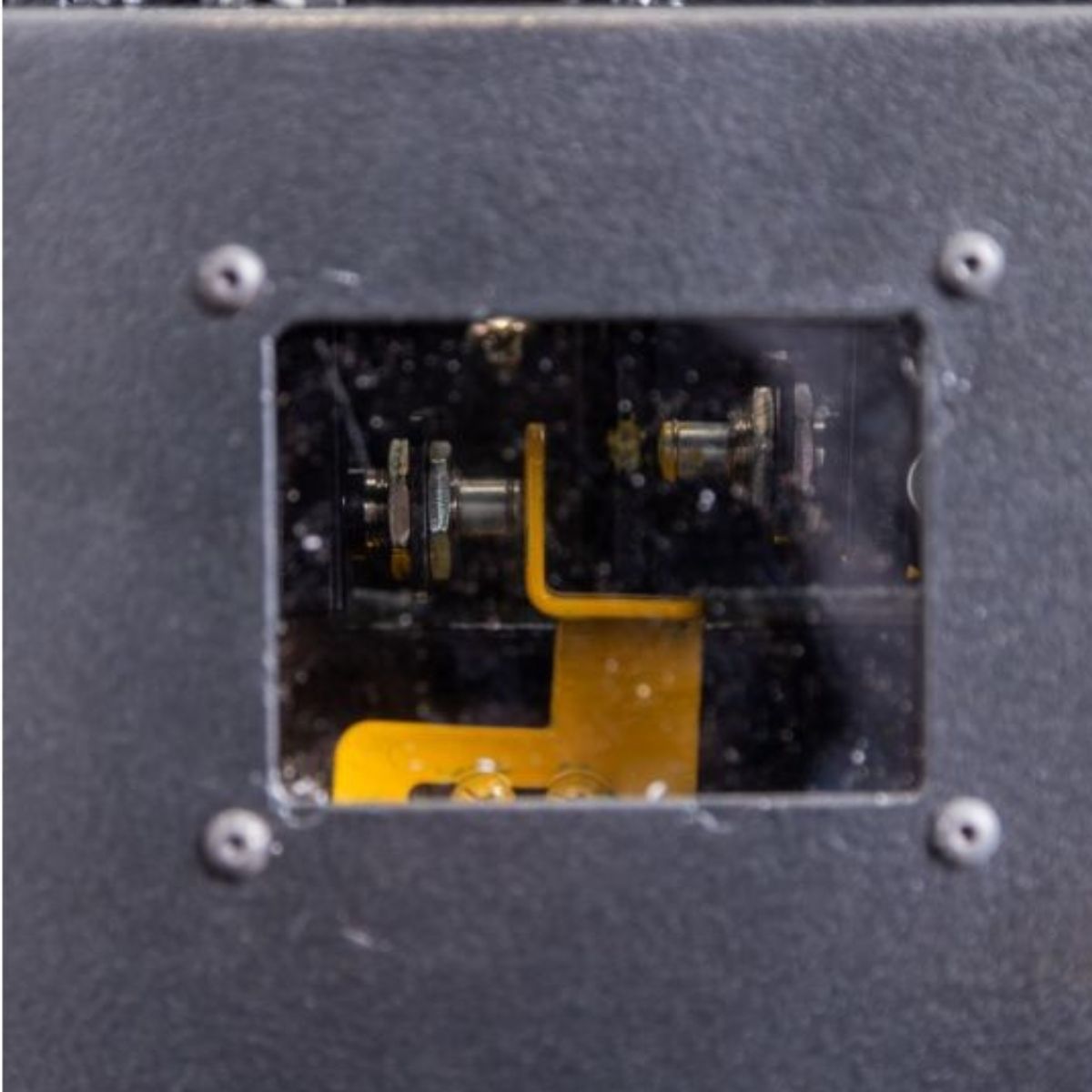

Auto-Tracking System Keeps the Belt Aligned
The auto-tracking system monitors and corrects belt alignment automatically during operation. This removes the need for constant manual adjustment and helps extend belt life while keeping finishing results consistent across a full run of parts.

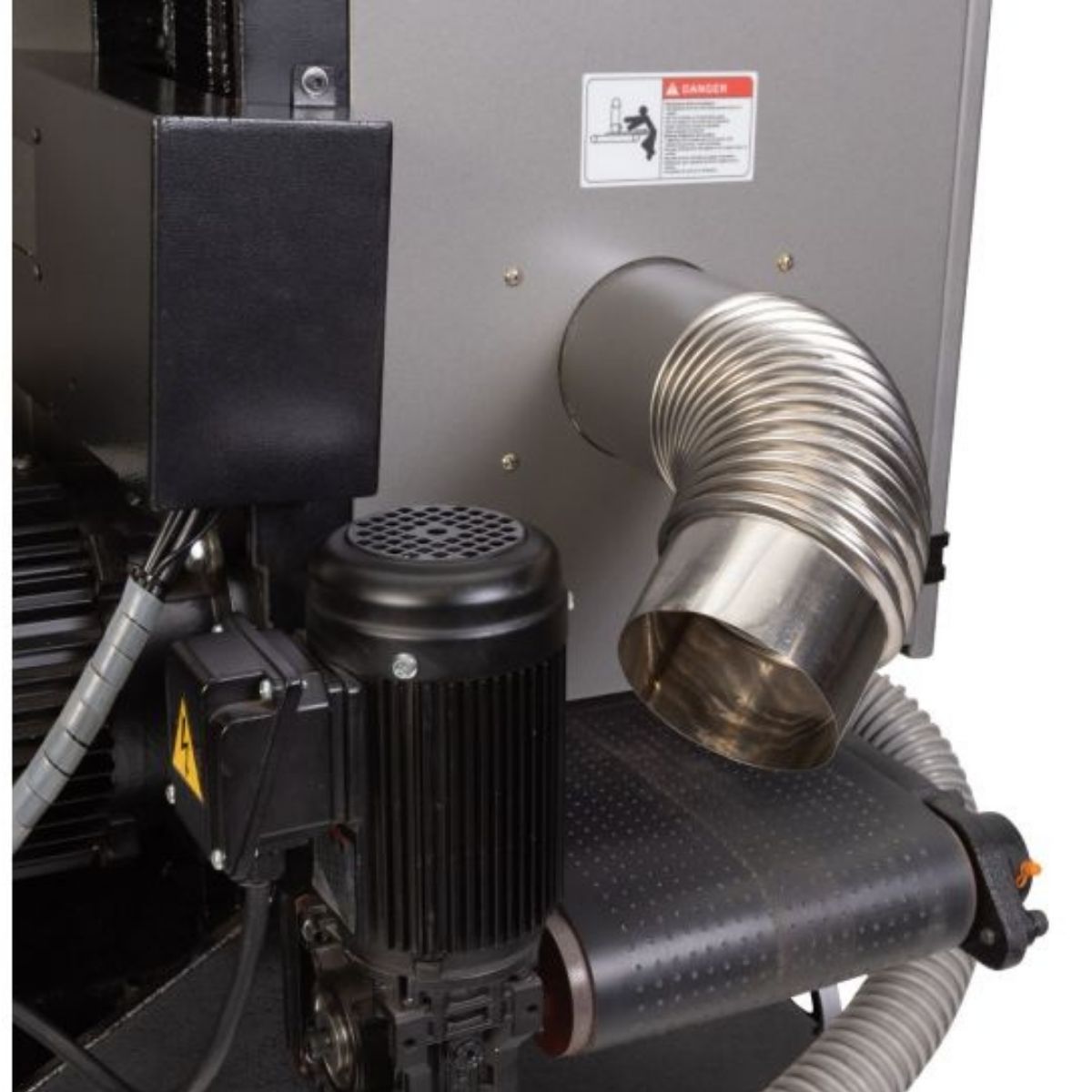

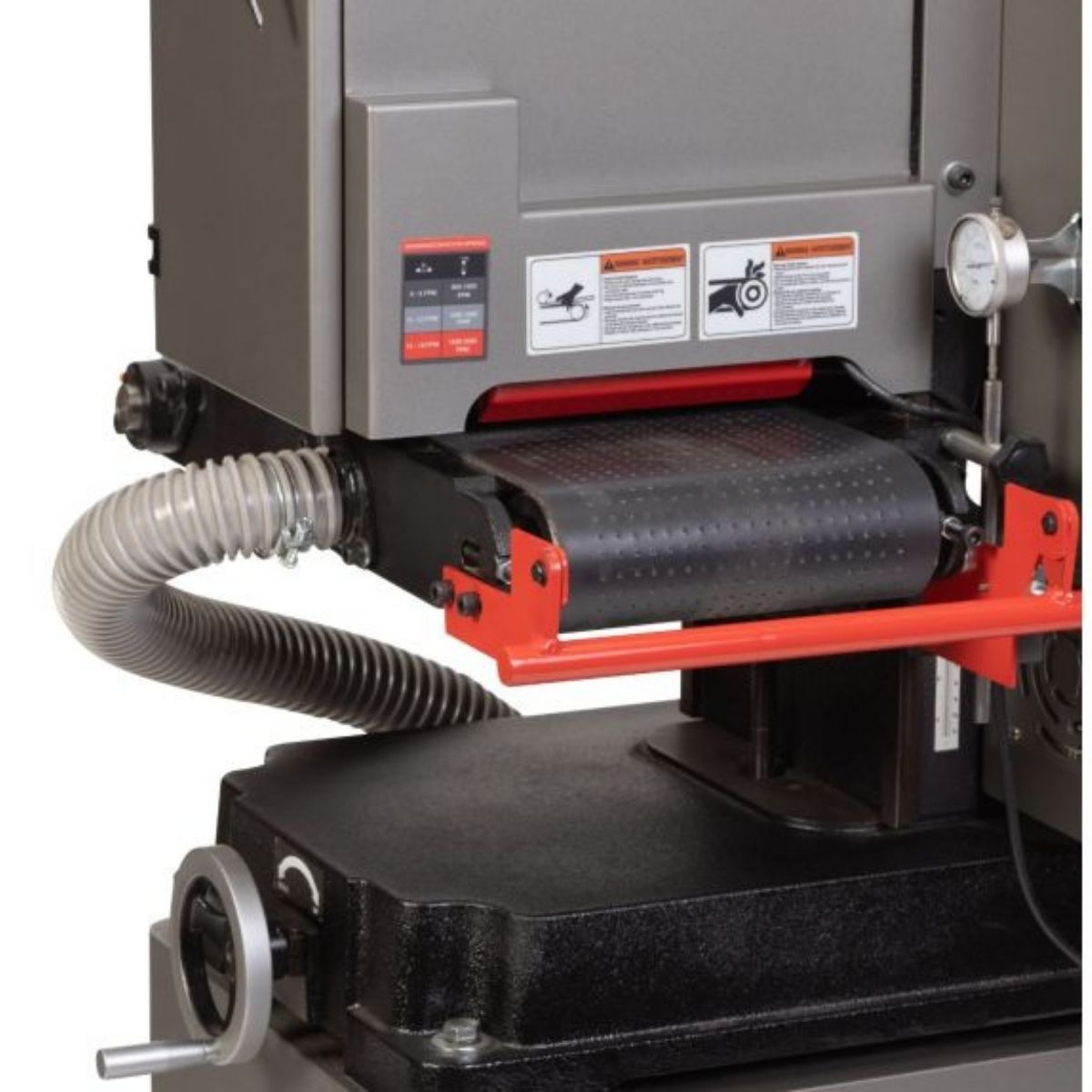

Vacuum Conveyor Holds Small Pieces Steady

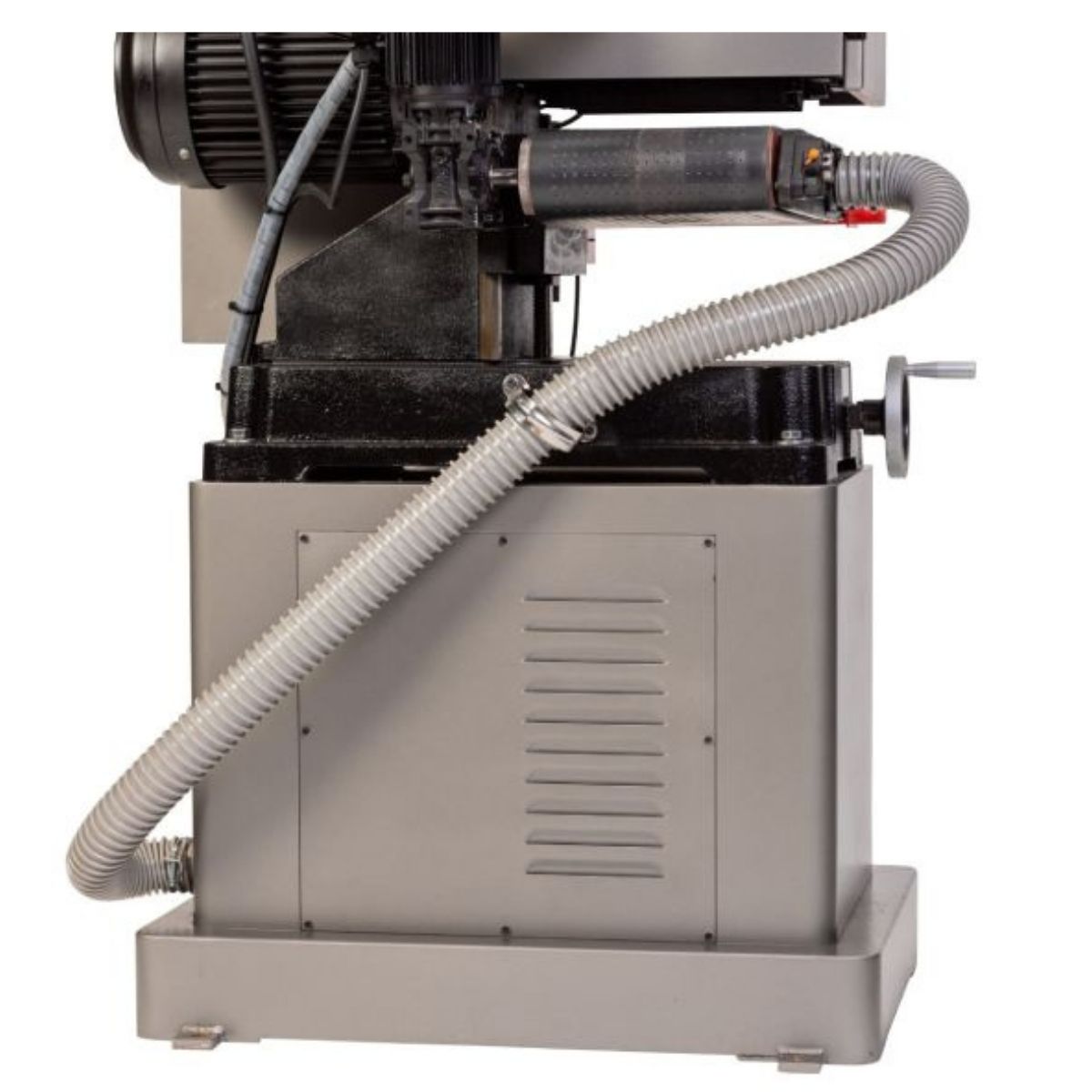

Vacuum suction built into the conveyor belt holds smaller workpieces in place as they pass through the machine. This prevents shifting during finishing, reduces belt damage from loose parts, and produces a more uniform surface on each piece.
Variable Speed Controls Match Speed to the Material
Both the sanding belt and the conveyor run at variable speeds, allowing you to match the feed rate and abrasive action to the material and piece size. This flexibility supports finishing on steel, aluminum, plastic, and other materials without changing the machine setup.

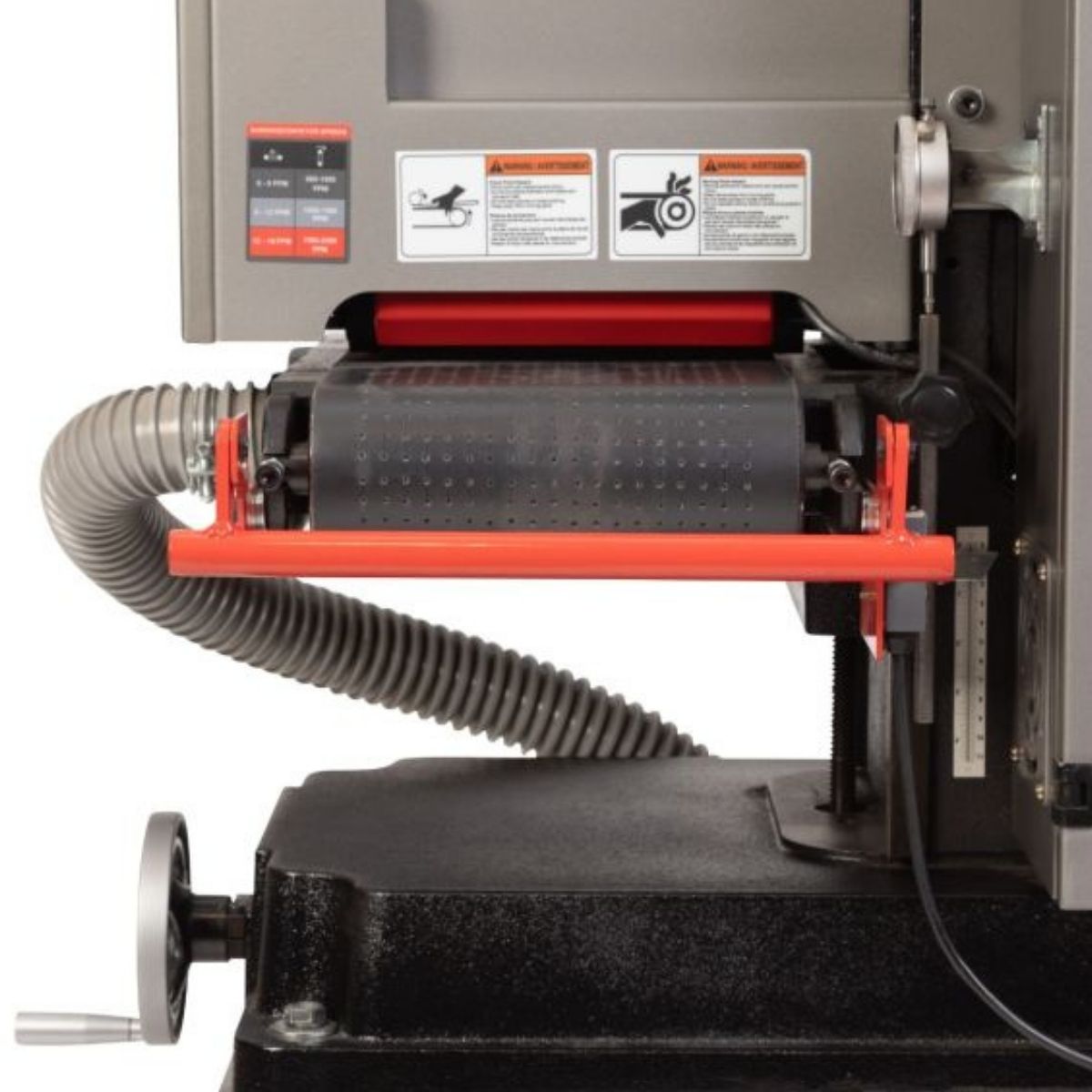

Safety Controls Keep the Operator Protected

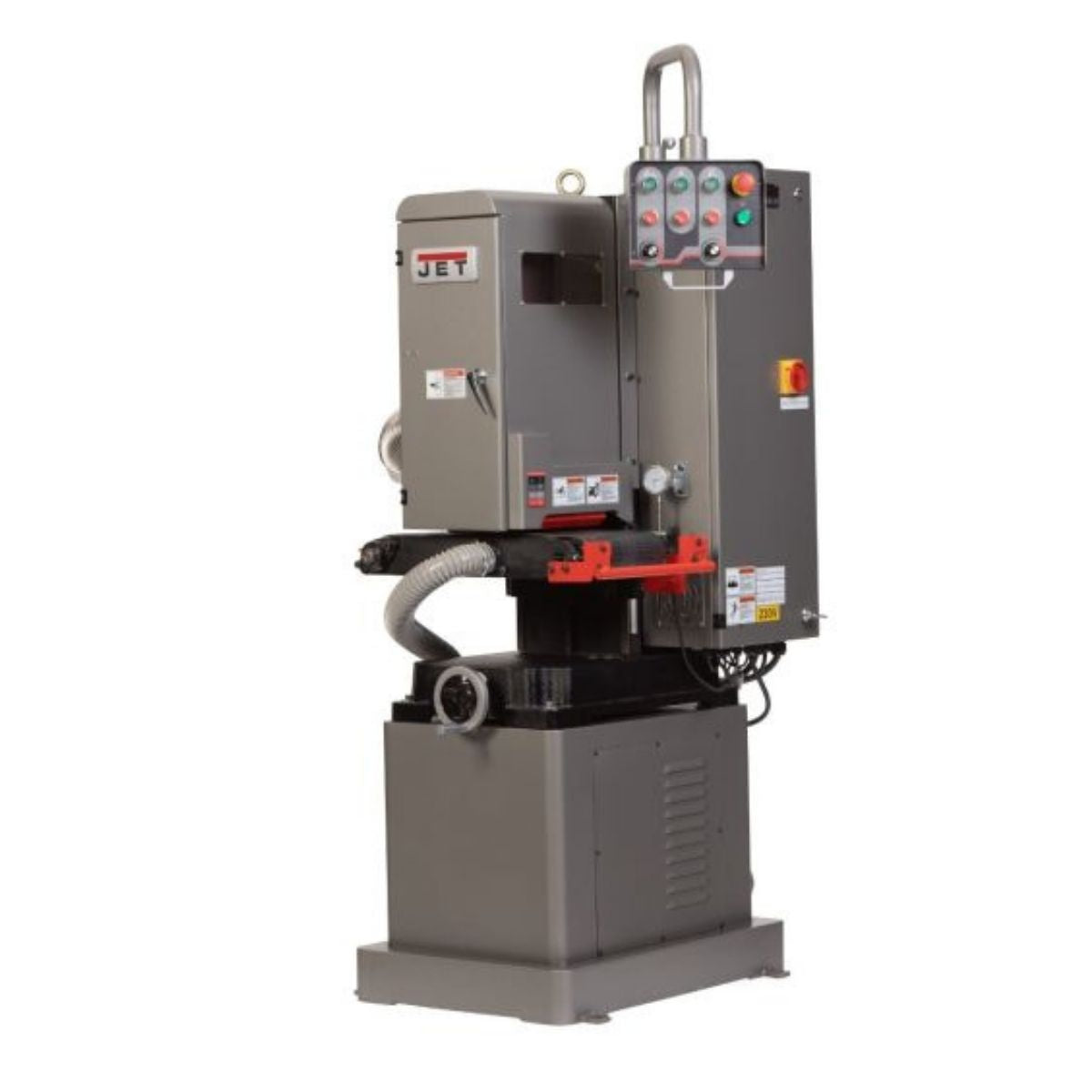

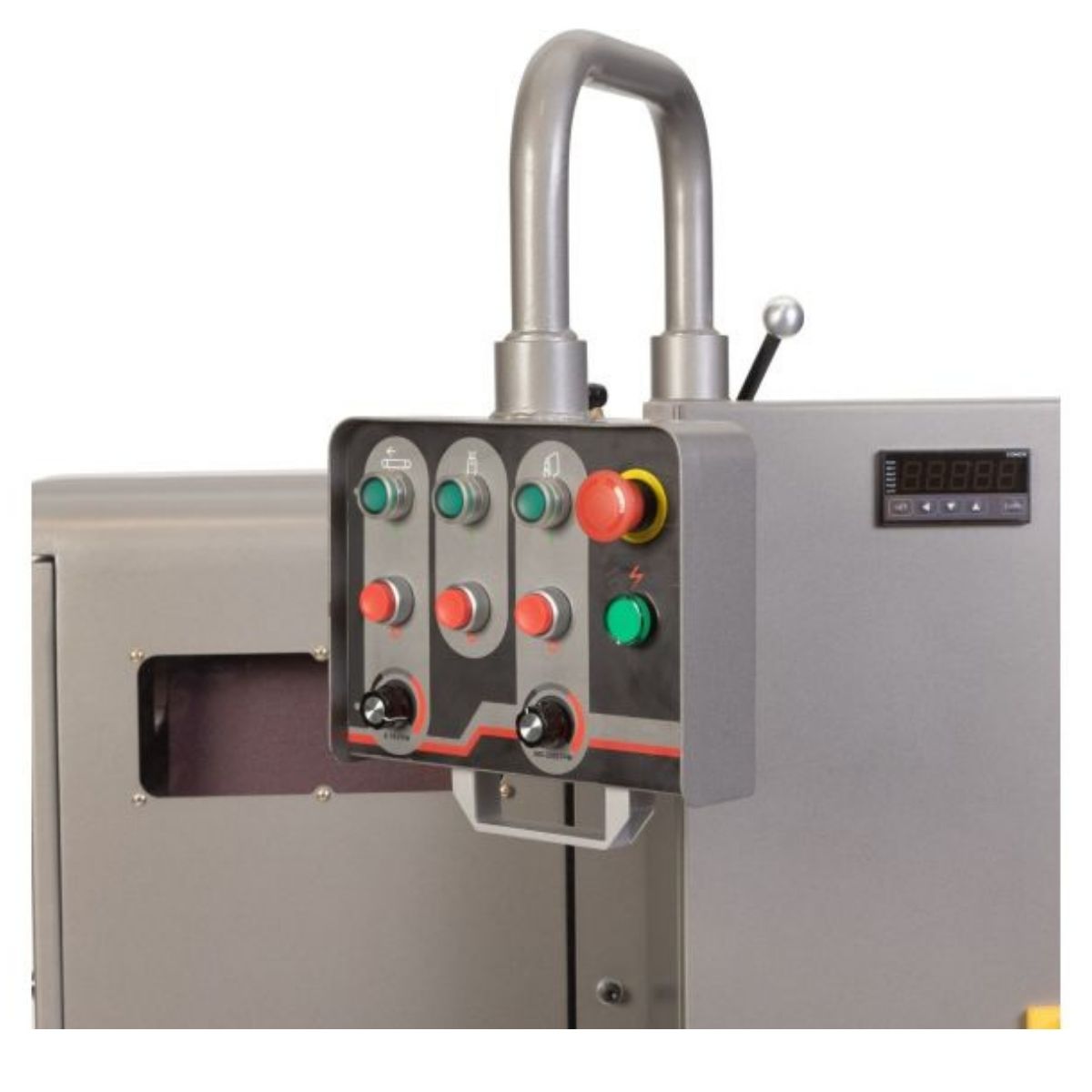

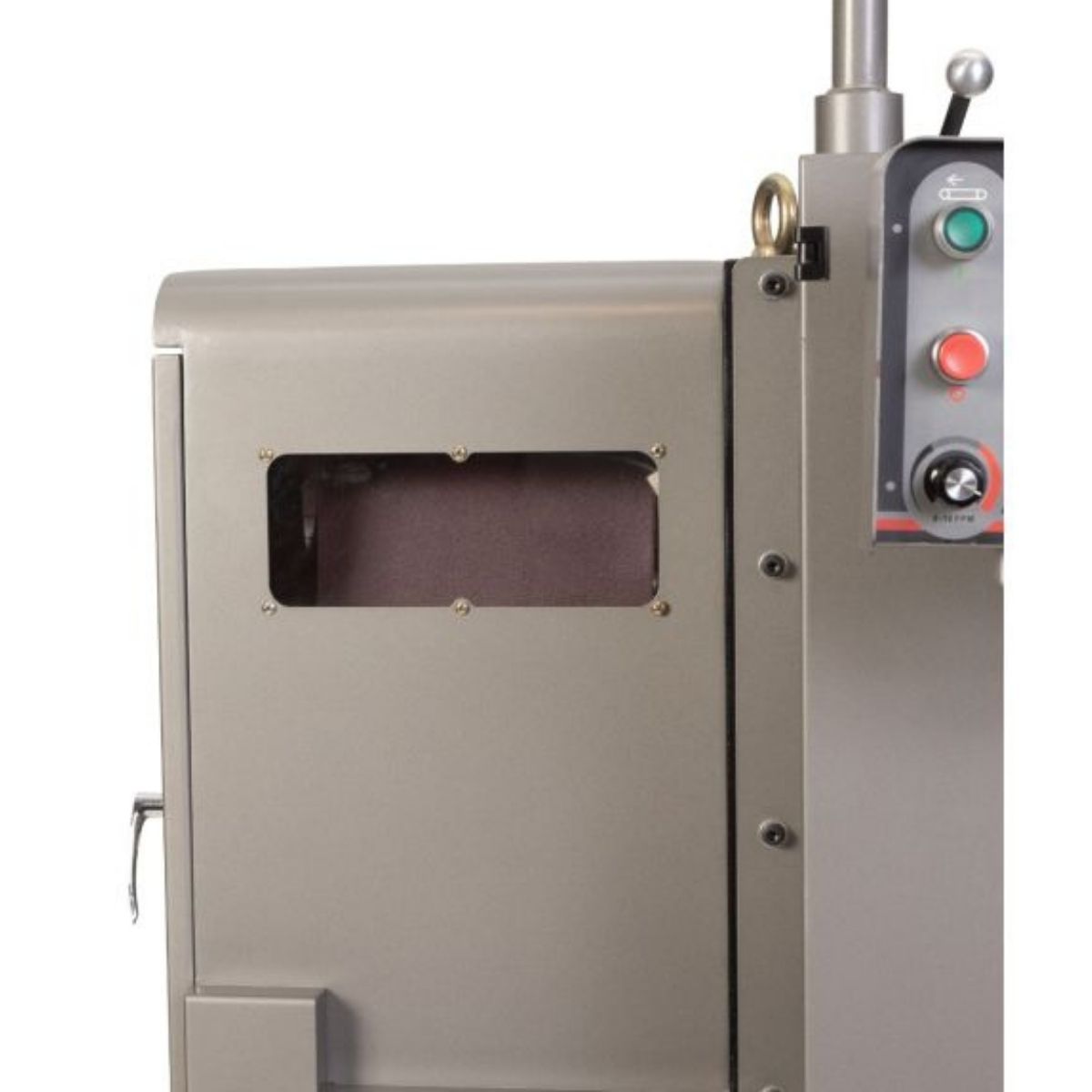

An E-Stop button, a quick-stop bar at the conveyor entry, and a material height safety lever all work together to protect the operator during use. The swing-away control panel keeps all controls accessible without reaching over the work area.
What's Included
What's Included? JET J-948WBSV 9" x 48" Variable Speed Wide Belt Sander
-
JET J-948WBSV 9" x 48" Variable Speed Wide Belt Sander — Provides a variable speed wide belt sanding platform for deburring, surface prep, and metal finishing work.
-
80 Grit Sanding Belt — Allows you to begin deburring and surface finishing work right out of the box.
Specs
JET J-948WBSV 9" x 48" Variable Speed Wide Belt Sander Specifications
- Stock Number: JT1-550
- Model Number: J-948WBSV
- Motor: 5HP
- Voltage: 230V, 3 Phase
- Full Load Amps: 15A
- Belt Size: 9" x 48"
- Belt Speed: 660–2,500 FPM (inverter driven)
- Belt Grit (included): 80
- Conveyor Motor: 1/4 HP
- Conveyor Speed: 6–16 FPM variable
- Maximum Material Width: 9"
- Minimum Material Length: 5.9" (non-vacuum)

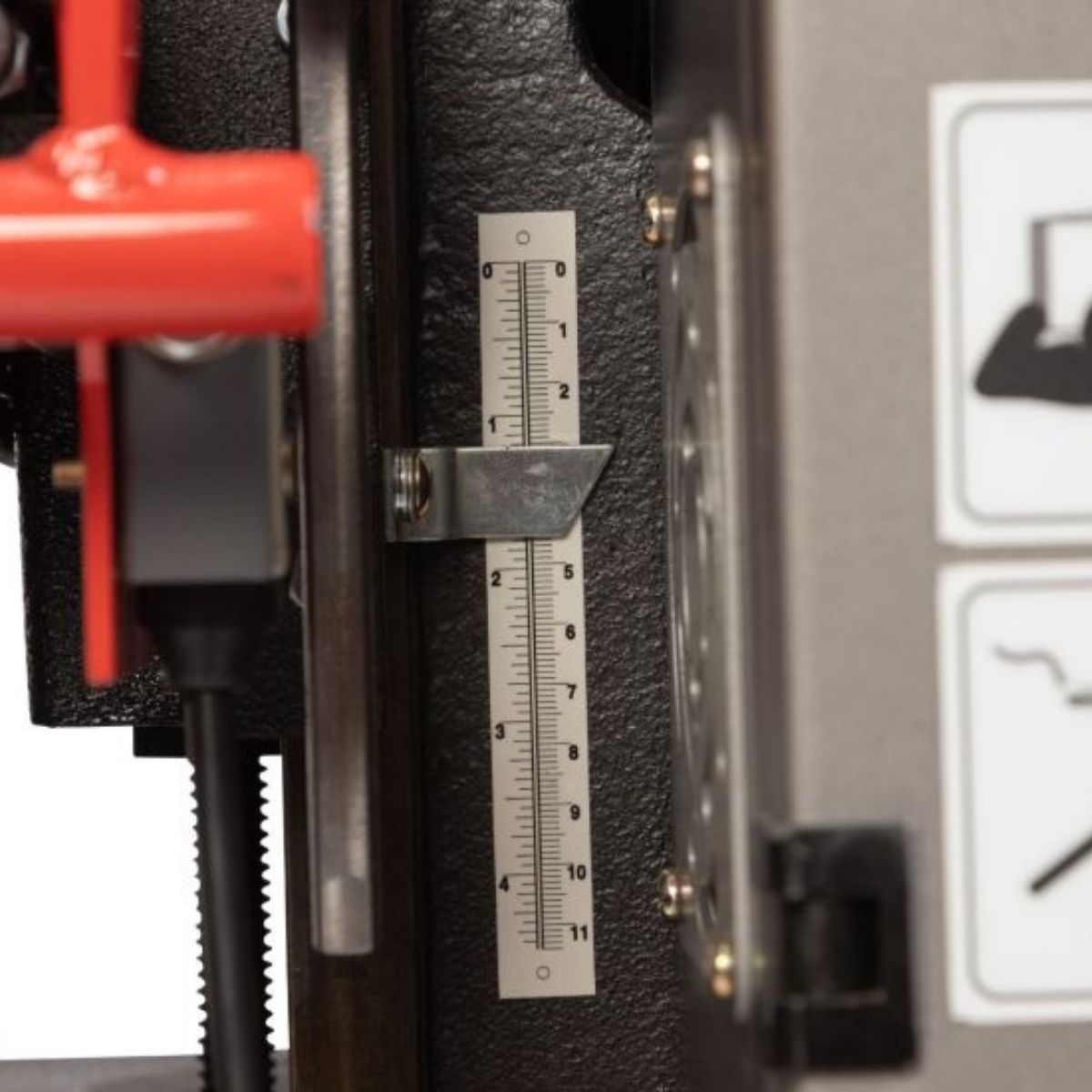

- Maximum Workpiece Height: 4"
- Minimum Workpiece Height: 1/16"
- Table Height: 41.2"–45.7"
- Dust Port Size: 4"
- Machine Dimensions (L x W x H): 37.5" x 28.9" x 76.7"
- Net Weight: 704 lb
- Warranty: 2 Year
