JET J-9180-3 7" Zip Miter Metal Bandsaw
Are you losing time repositioning stock every time you need a miter cut on metal?
What if your saw could swing to any angle from 0° to 60° while your material stayed locked in place?

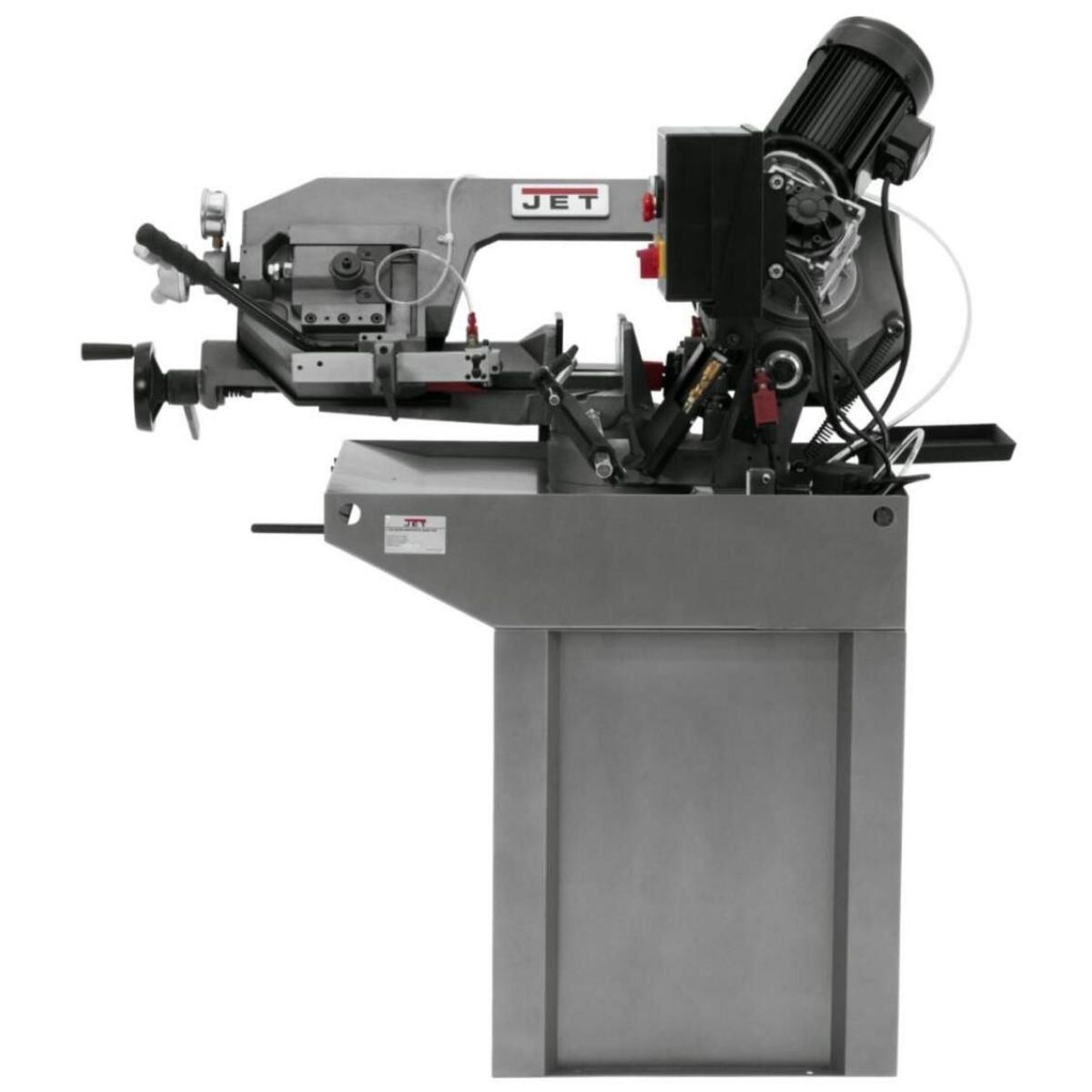

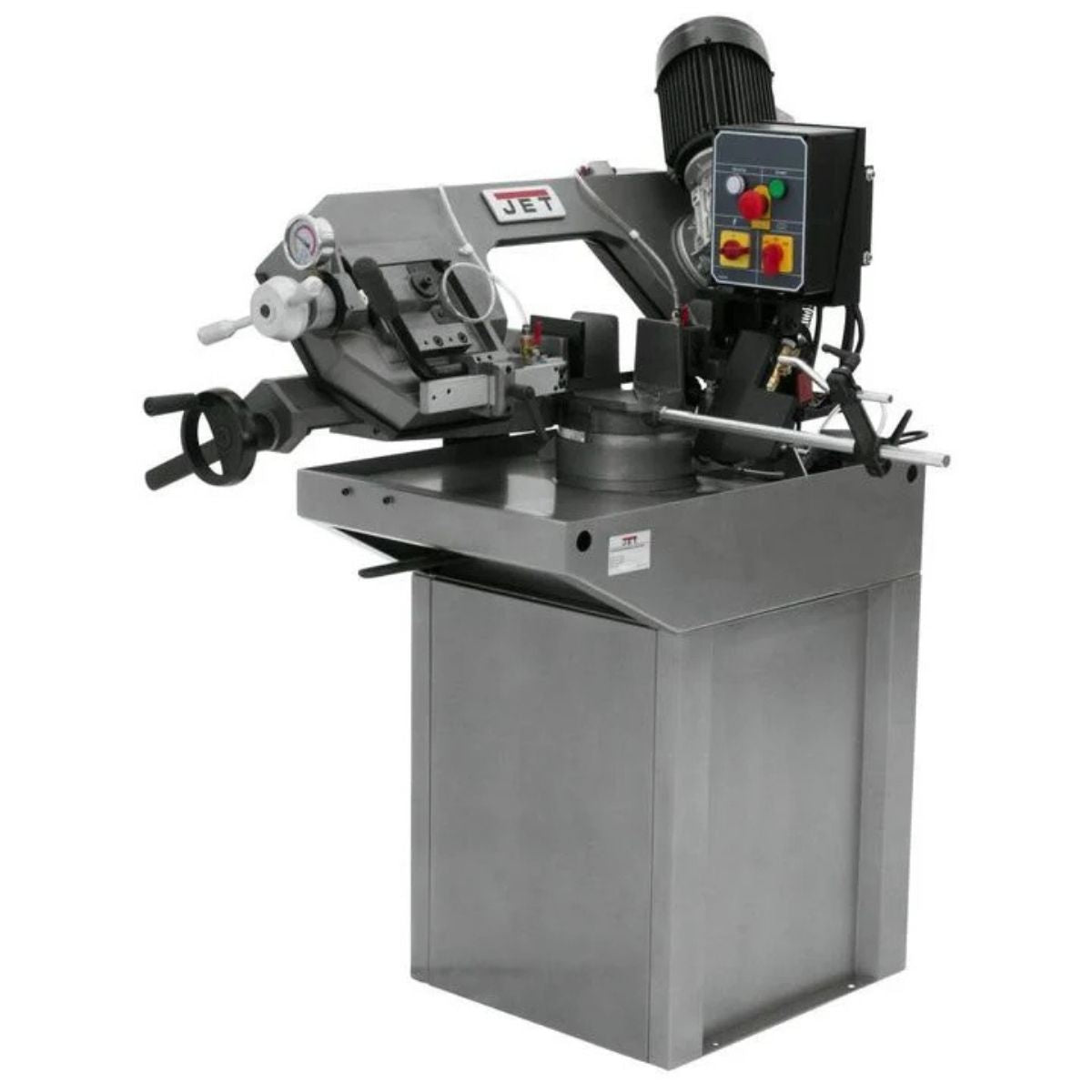

Meet the JET J-9180-3 7" Zip Miter Metal Bandsaw, a horizontal bandsaw built around a swiveling head that cuts any angle without moving the workpiece.
With the J-9180-3, you get a fully adjustable hydraulic downfeed, cam follower blade guides, a quick-positioning vise, and a cast iron saw head built to handle daily production work.
When your saw holds position and cuts clean on every angle, you move through metal cutting jobs with less setup and more confidence.
JET J-9180-3 for Accurate Miter and Crosscut Work in Metal
Swiveling Head Cuts Angles Without Moving Stock
The saw head on the J-9180-3 swivels from 0° to 60° while the base and vise remain stationary. Your material stays clamped and in position through every cut. This removes a full repositioning step from every miter job and keeps your cut line where you set it.

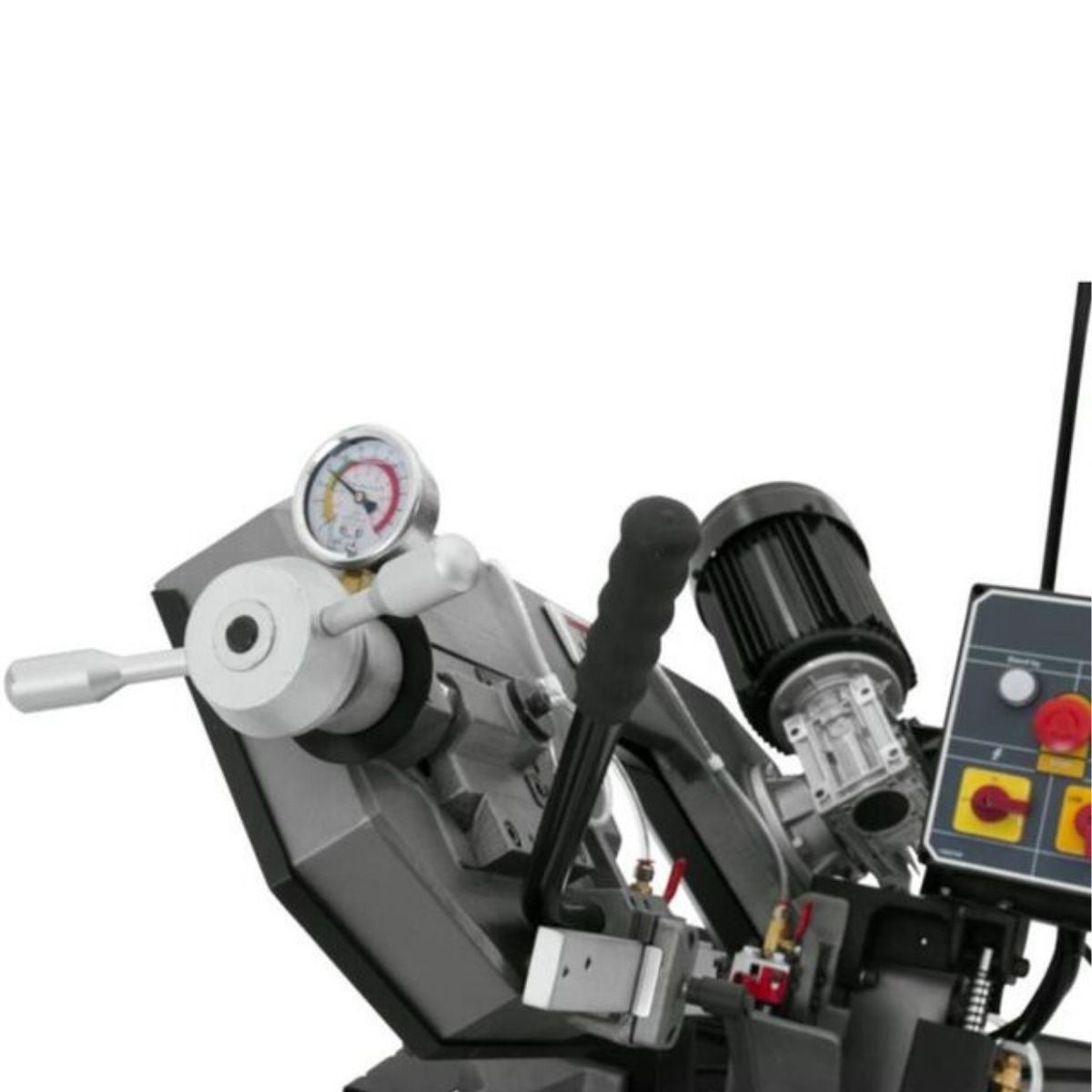

Hydraulic Downfeed System Controls Cut Rate
The fully adjustable hydraulic downfeed lets you set the feed rate to match the material you are cutting. A controlled descent keeps blade pressure steady through the cut. This reduces blade wear and produces cleaner, more consistent results across sections of varying size.

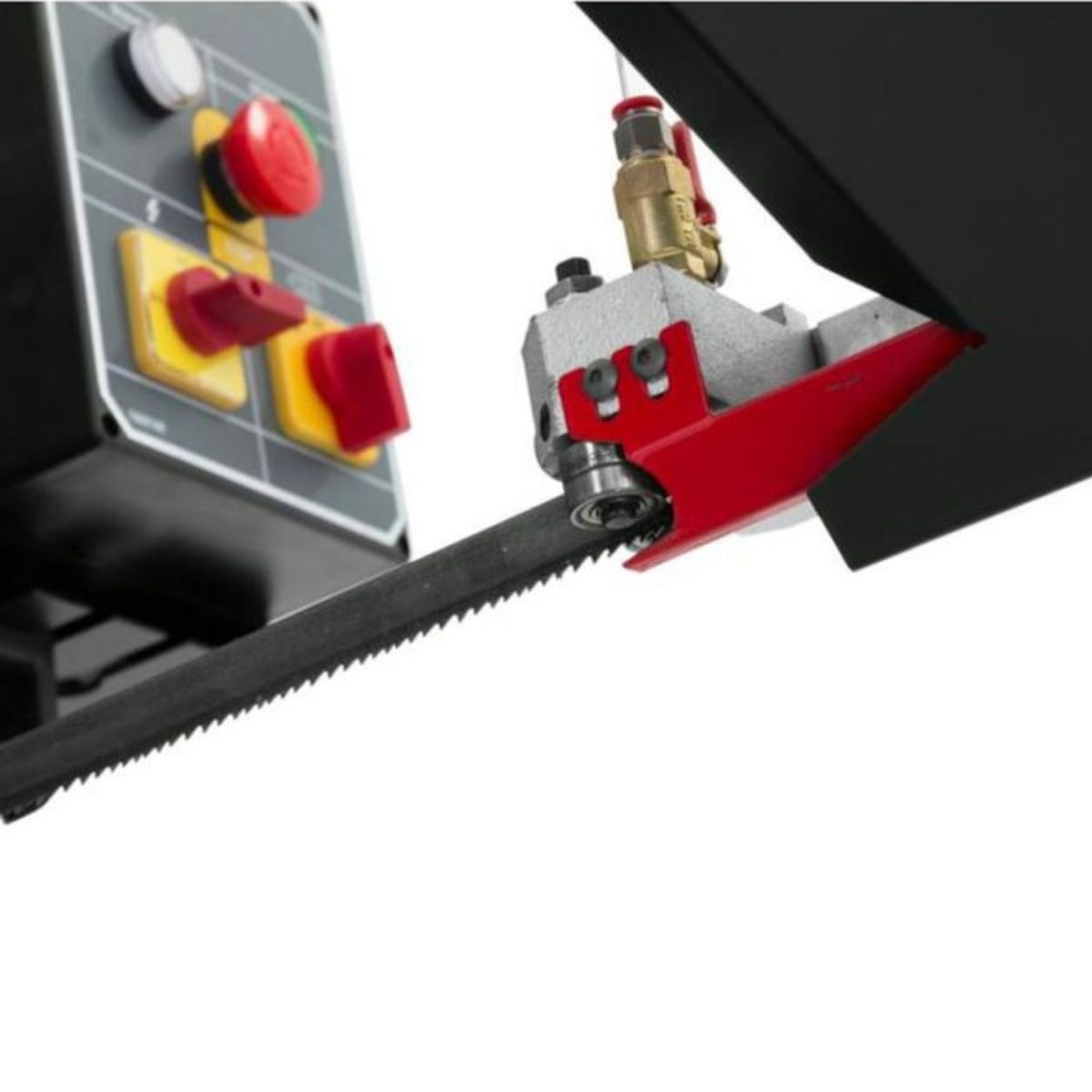

Cam Follower Blade Guides Maintain Tracking Stability
The blade guides use cam follower bearings mounted on eccentric shafts. This design keeps the blade aligned and stable under load. Consistent blade tracking means your cuts run true and your blade runs longer between changes.
Quick-Positioning Vise Reduces Setup Time
The quick-positioning vise clamps stock fast so you spend less time on each setup. The adjustable material stop lets you repeat the same cut length without measuring twice. Both features work together to keep your workflow moving when you are cutting multiple pieces to the same spec.
What's Included
What's Included? JET J-9180-3 7" Zip Miter Metal Bandsaw
-
JET J-9180-3 Horizontal Bandsaw — The main unit with swiveling head, cast iron saw head, hydraulic downfeed system, and integrated control panel ready for shop use.
-
Quick-Positioning Vise — Clamps workpieces securely to reduce setup time and hold stock in place through every cut.
-
Adjustable Material Stop — Allows repeatable cut lengths without re-measuring between pieces.
Specs
JET J-9180-3 7" Zip Miter Metal Bandsaw Specifications
-
Model Number: J-9180-3
-
Stock Number: JT9-414464
-
Motor: 1 HP, 230V, 3-Phase
-
Prewired Voltage: 230V
-
Drive: Geared Head
-
Blade Wheel Diameter: 10-1/2"
-
Head Movement: 60°
-
Cutting Capacity at 90°: 7" Round / 7-7/8" x 6" Rectangle
-
Cutting Capacity at 45°: 4-1/2" Round / 4-1/2" x 4-1/2" Rectangle
-
Cutting Capacity at 60°: 2-3/4" Round / 2-3/4" x 2-3/4" Rectangle
-
Overall Dimensions (L x W x H): 47" x 29" x 56-1/2"
-
Net Weight: 385 lbs
-
Gross Weight: 429 lbs
-
Warranty: 2 Year
-
Manual: PDF manual available for download on this page
