JET J-7040M 10" × 16" Horizontal Mitering Metal Bandsaw
Are your crosscuts and miter cuts taking too long because you have to reposition your stock every time you change the angle?
What if your saw could swing to any angle while the workpiece stayed exactly where you set it?

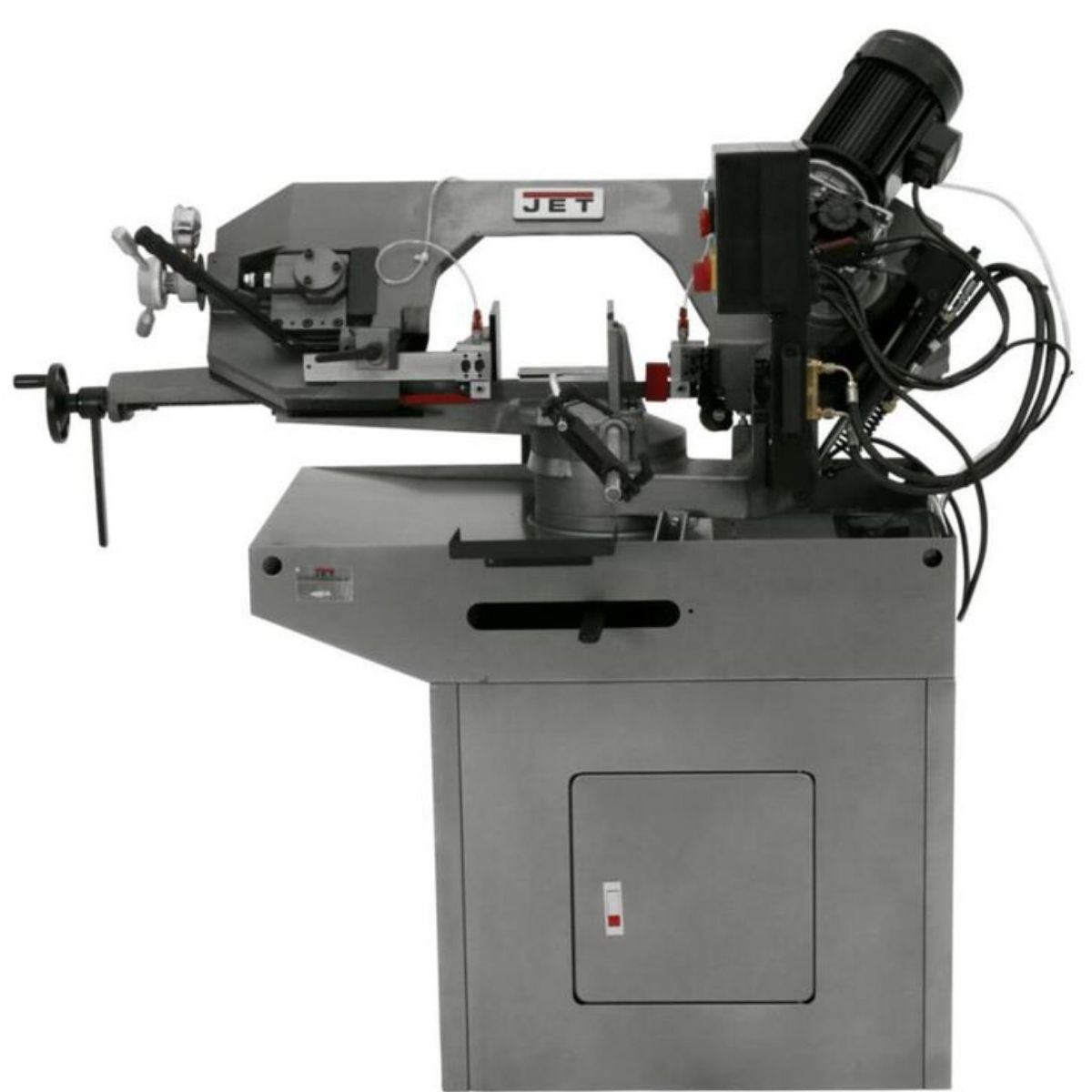

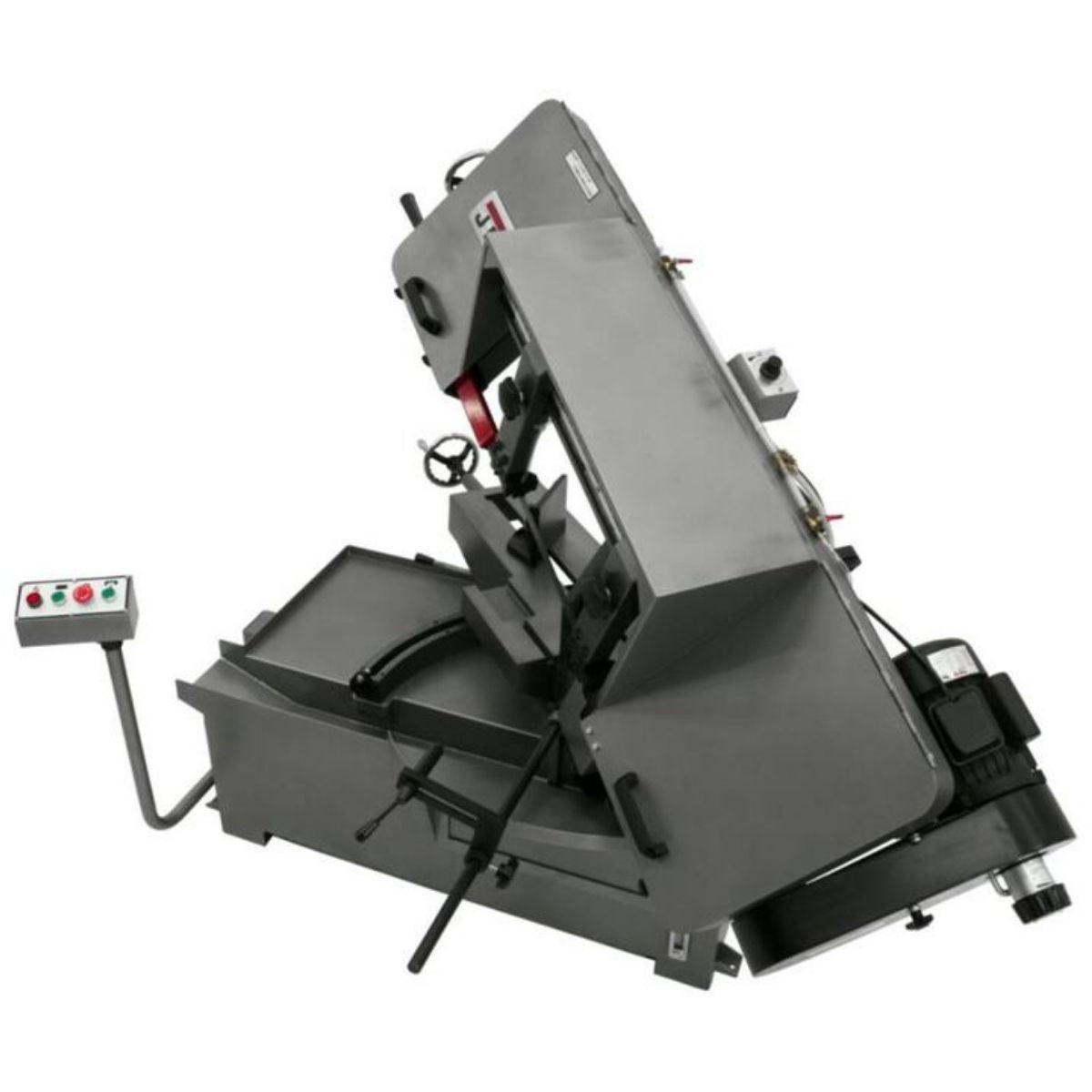

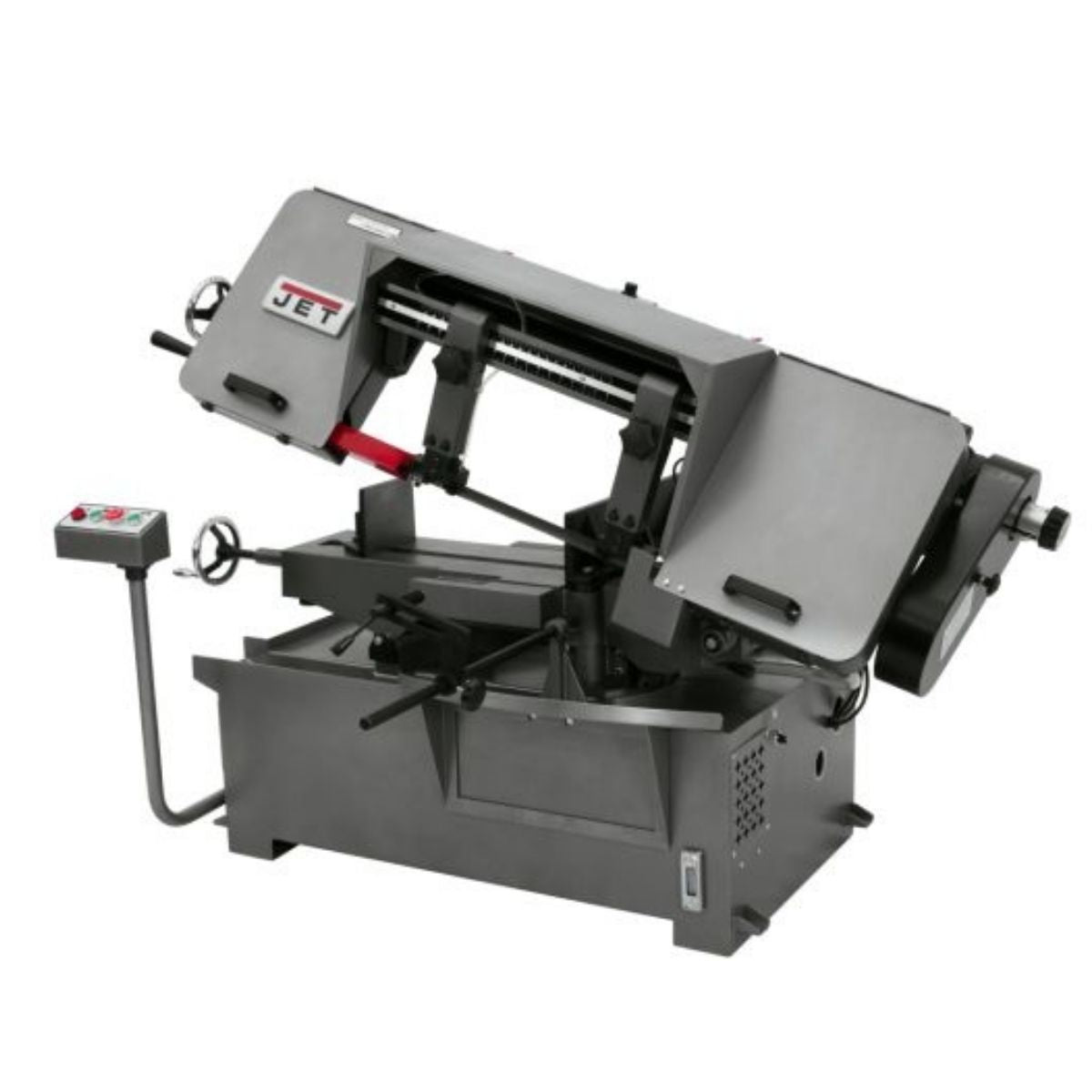

Meet the JET J-7040M 10" × 16" Horizontal Mitering Metal Bandsaw, a heavy-duty cutting machine built for shops that need accurate, repeatable cuts in solid stock and structural material.
With the J-7040M, the mitering head swivels from 0° to 45° independently while the base and vise hold the material in place, so your setup stays consistent from cut to cut.
When accuracy matters and downtime does not, this saw gives you a reliable cutting system built to hold up to daily production demands.
JET J-7040M for Accurate Mitering and Heavy Stock Cutting
Swiveling Mitering Head Keeps the Workpiece Stationary

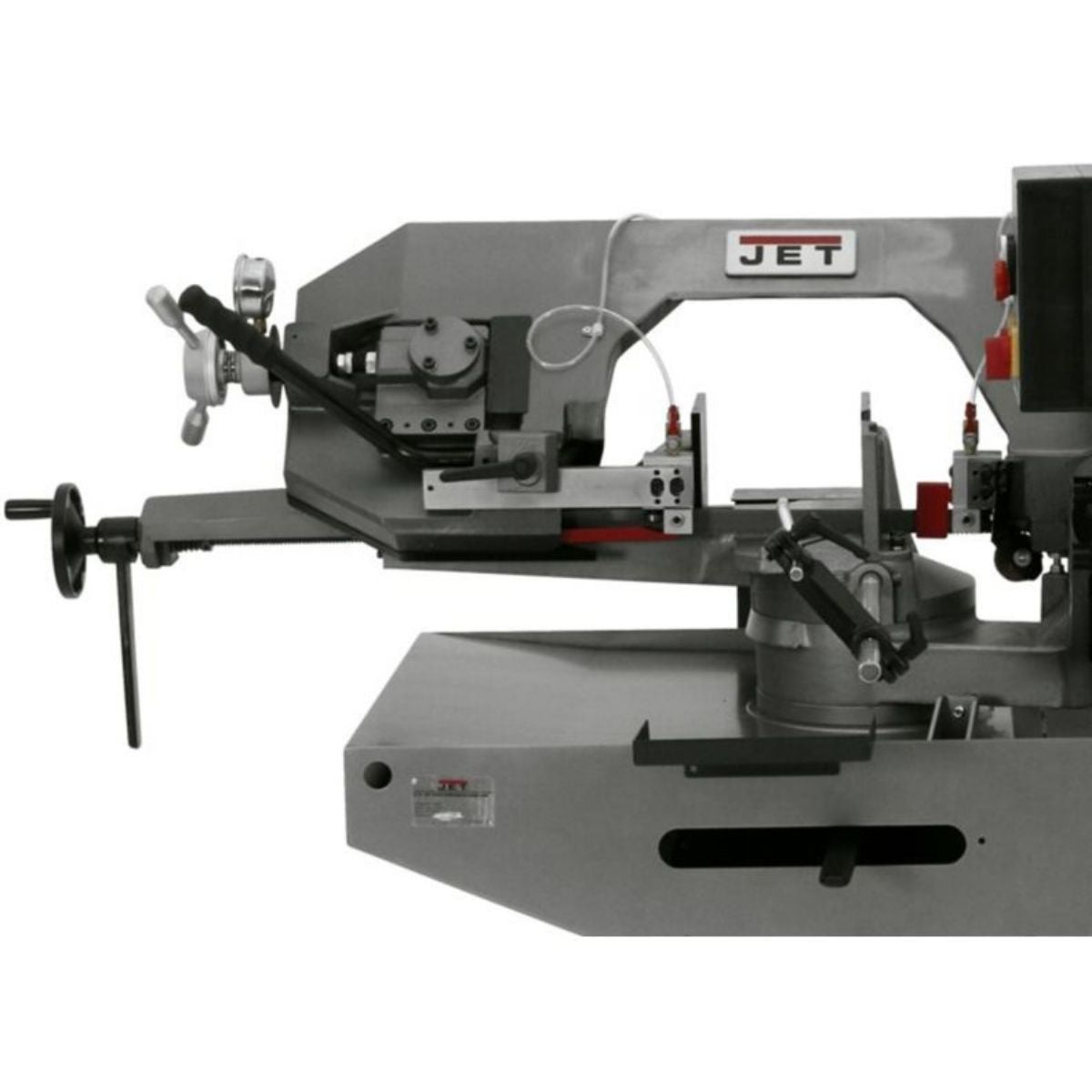

The head on the J-7040M swivels independently from 0° to 45° while the base remains fixed. Your material stays clamped and in position throughout the entire angle change. This removes the need to reposition and re-clamp stock between cuts, which keeps your workflow moving and your cut angles consistent.
Cast Iron Blade Wheels Maintain Cutting Momentum
The 14-inch cast iron blade wheels carry the blade steadily through cuts in dense material. Cast iron resists flex and absorbs vibration better than lighter wheel materials. The result is a smoother cut surface and less blade deflection when working through thick cross-sections.
Six-Point Blade Guide System Controls Blade Tracking
Cam follower bearings mounted on eccentric shafts are positioned on both sides of the blade. Two load bearings on a pivot shaft work alongside carbide pads and side bearings to distribute cutting load evenly across the blade. This setup keeps the blade stable and on track through the full depth of each cut.
Hydraulic Downfeed System Controls Cut Pressure
The downfeed is managed by a dual counterbalance spring system working in combination with a hydraulic cylinder. Together they control the rate at which the head feeds into the material. This prevents the blade from forcing through the cut too fast, which reduces blade wear and keeps cut quality consistent across different material sizes.
What's Included
What's Included? JET J-7040M 10" × 16" Horizontal Mitering Metal Bandsaw
-
JET J-7040M Horizontal Mitering Metal Bandsaw — The main cutting unit with swiveling mitering head, cast iron blade wheels, six-point blade guide system, hydraulic downfeed, and variable speed drive.
-
Adjustable Material Stop — Positions against the workpiece to maintain consistent cut lengths across repeated cuts.
-
Swing-Away Control Panel — Houses the primary saw controls and moves clear of the work area when not needed.
Specs
JET J-7040M 10" × 16" Horizontal Mitering Metal Bandsaw Specifications
-
Stock Number: JT9-414475 (230/460V 3Ph) | JT9-414484 (460V 3Ph)
-
Model Number: J-7040M (230/460V 3Ph) | J-7040M-4 (460V 3Ph)
-
Motor: 2 HP, 230/460V, 3-Phase
-
Drive: Variable Speed
-
Blade Wheel Diameter: 14 in.
-
Cutting Capacity — Rectangle at 90°: 10 x 14 in. and 2 x 16 in.
-
Cutting Capacity — Rectangle at 45°: 8-1/2 x 9 in.
-
Cutting Capacity — Round at 90°: 10 in.
-
Cutting Capacity — Round at 45°: 8-1/2 in.
-
Vise Swivel: 45°
-
Overall Dimensions (L x W x H): 76 x 30 x 48 in.
-
Net Weight: 1,125 lb.
-
Gross Weight: 1,200 lb.
-
Warranty: 2 Years
-
Manual: J-7020M J-7040M Bandsaw User Manual Ed. 11 available in English and Spanish
