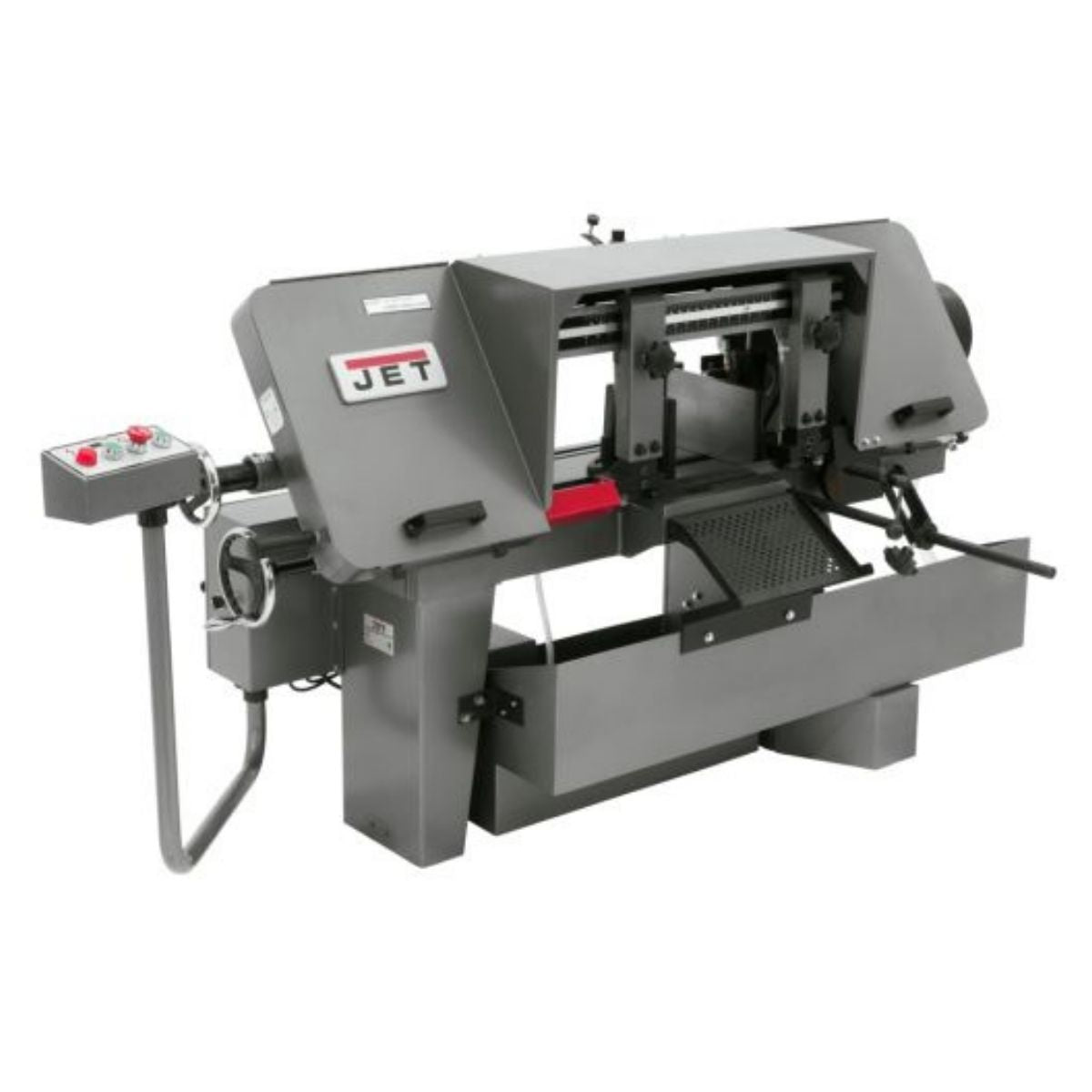

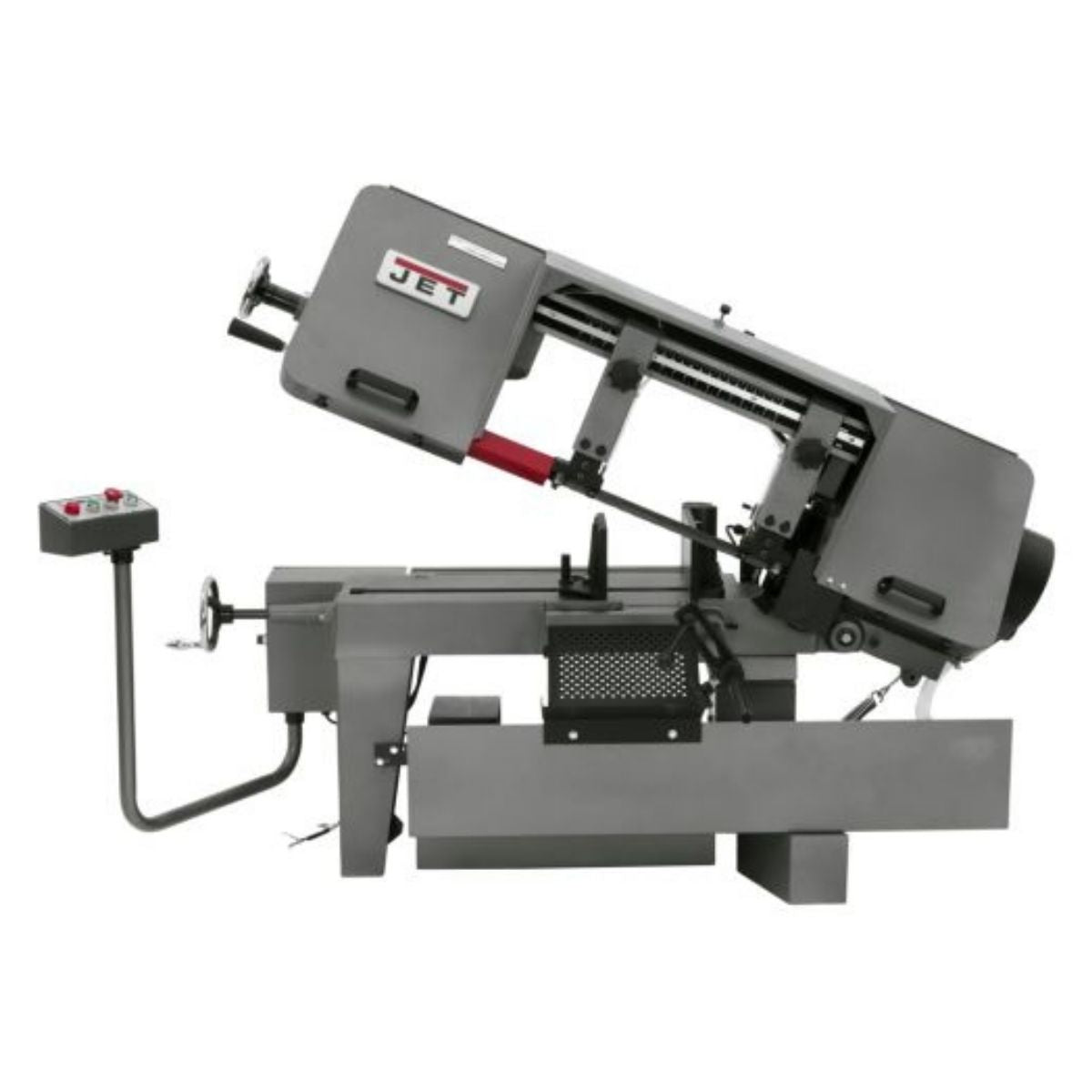

JET J-7040 10" × 16" Horizontal Metal Bandsaw
Are your cuts coming out rough or inconsistent because your saw can't hold material steady through the full stroke?
What if your horizontal bandsaw gave you clean, repeatable cuts on round and rectangular stock at 90 degrees and 45 degrees without fighting the setup every time?
Meet the JET J-7040 10" × 16" Horizontal Metal Bandsaw, a heavy-duty production saw built for shops that cut metal stock day in and day out.
With the J-7040, you get a six-point blade guide system, a variable speed drive, a hardened gear transmission running in an oil bath, and a patented 3-jaw vise designed to lock material fast and hold it firm.
When your saw is this well-built, you spend less time adjusting and more time cutting to spec.
JET J-7040 for Consistent, High-Volume Metal Cutting
Six-Point Blade Guide System Keeps the Blade on Track

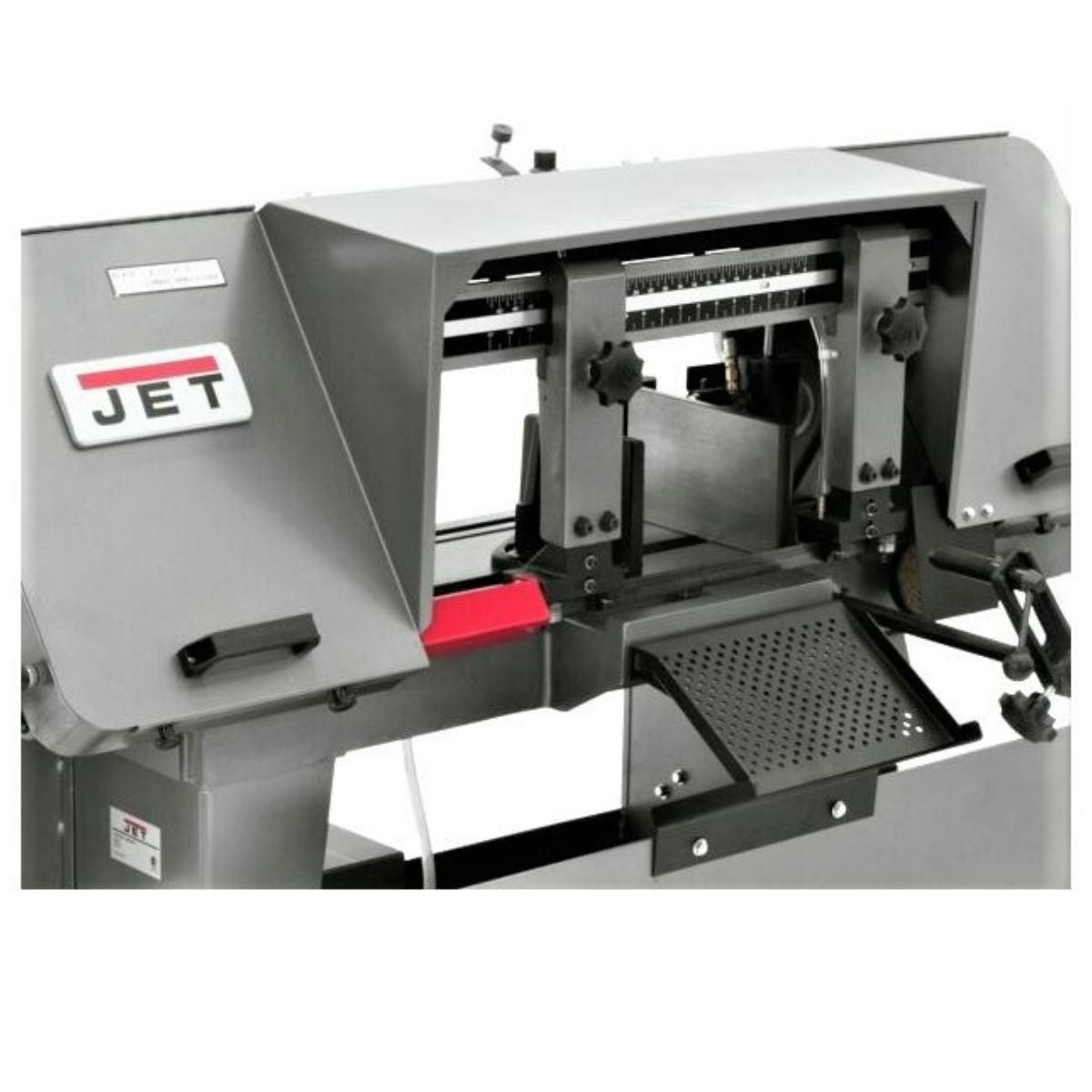

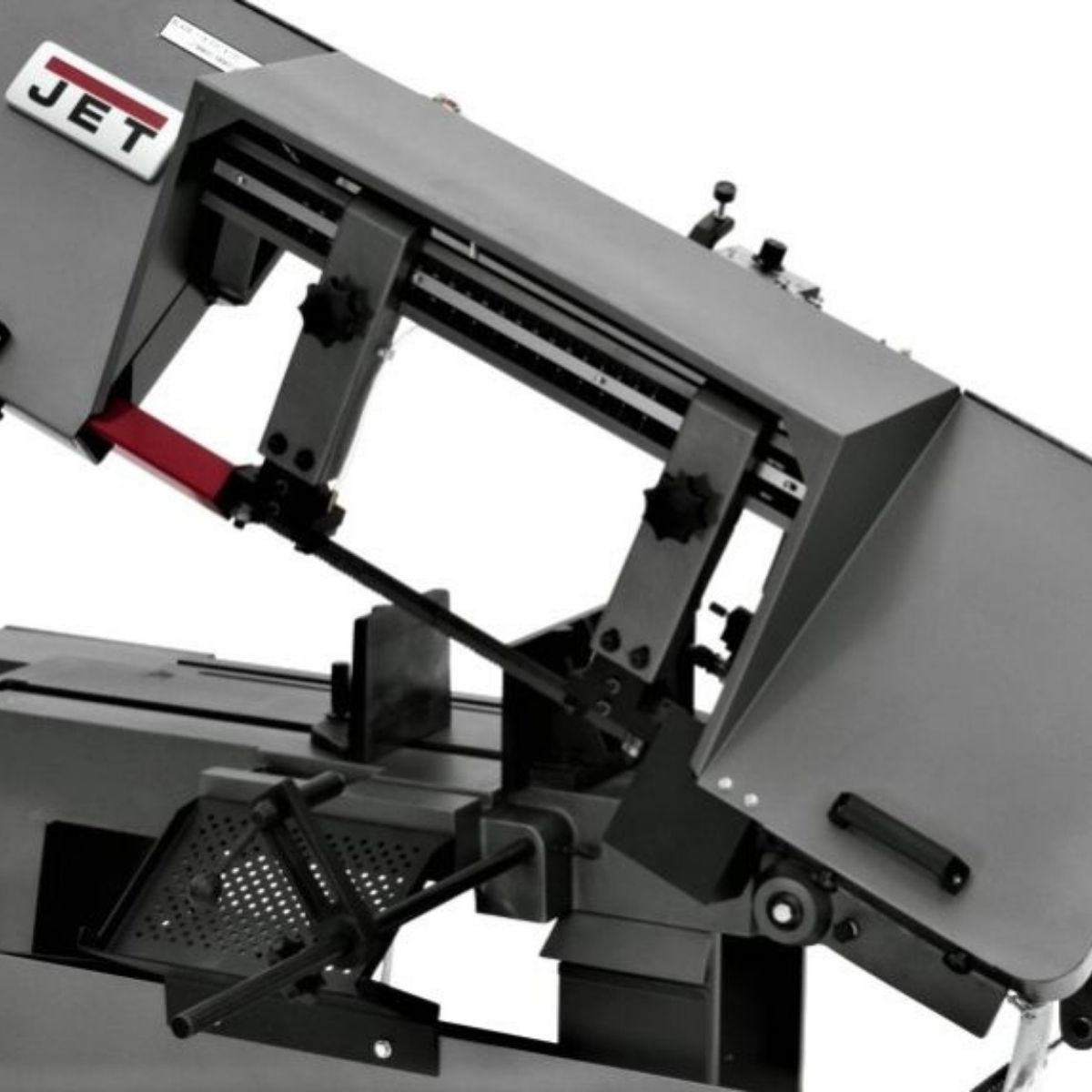

The J-7040 uses an adjustable blade guide with six contact points. Cam follower bearings mounted on eccentric shafts sit on both sides of the blade, holding it in line through the full cut. That kind of blade control reduces deflection and keeps cuts square, even in dense stock.
Variable Speed Drive Matches Blade Speed to the Material
The variable speed drive adjusts blade speed from 100 to 350 SFPM. That range lets you dial in the right speed for the material you are cutting, whether that is mild steel, aluminum, or harder alloy stock. Running the blade at the right speed extends blade life and produces a cleaner cut surface.
Oil-Bath Gear Transmission Built for Long Shop Hours
The heavy-duty transmission uses hardened and ground gears running in an oil bath. This design reduces heat buildup and wear under sustained production use. It is the kind of drivetrain you can count on to stay consistent across a full shift without adjustment.
Patented 3-Jaw Vise Speeds Up Material Clamping
The patented 3-jaw vise uses a rapid-action moveable jaw so you can secure material quickly between cuts. The vise swivels to 45 degrees for angled cuts, and the adjustable material stop lets you repeat the same cut length without remeasuring. Setup time drops, and your throughput goes up.
What's Included
What's Included? JET J-7040 10" × 16" Horizontal Metal Bandsaw
-
JET J-7040 Horizontal Metal Bandsaw — The main saw unit, configured in your choice of 230V 3-phase or 460V 3-phase.
-
Swing-Away Control Panel — Positions the major saw controls where you need them and moves clear when you need access to the work area.
-
Adjustable Material Stop — Allows you to set a repeatable cut length so you can work through a batch of stock without remeasuring each piece.
Specs
JET J-7040 10" × 16" Horizontal Metal Bandsaw Specifications
-
Model: J-7040 (230V 3Ph) / J-7040-4 (460V 3Ph)
-
Motor: 2 HP
-
Voltage: 230V 3-Phase or 460V 3-Phase
-
Blade Speeds: 100–350 SFPM
-
Drive: Variable Speed
-
Blade Wheel Diameter: 14 in.
-
Capacity — Round at 90°: 10 in.
-
Capacity — Round at 45°: 10 in.
-
Capacity — Rectangle at 90°: 10 × 10 in. and 7 × 16 in.
-
Capacity — Rectangle at 45°: 6-1/2 × 11 in.
-
Vise Swivel: 45°
-
Overall Dimensions (L × W × H): 75-1/2 × 33 × 41 in.
-
Net Weight: 973 lb.
-
Warranty: 2 Years
-
Manual: Available — refer to the JET J-7040 operator's manual for installation, blade tensioning, and maintenance procedures.
