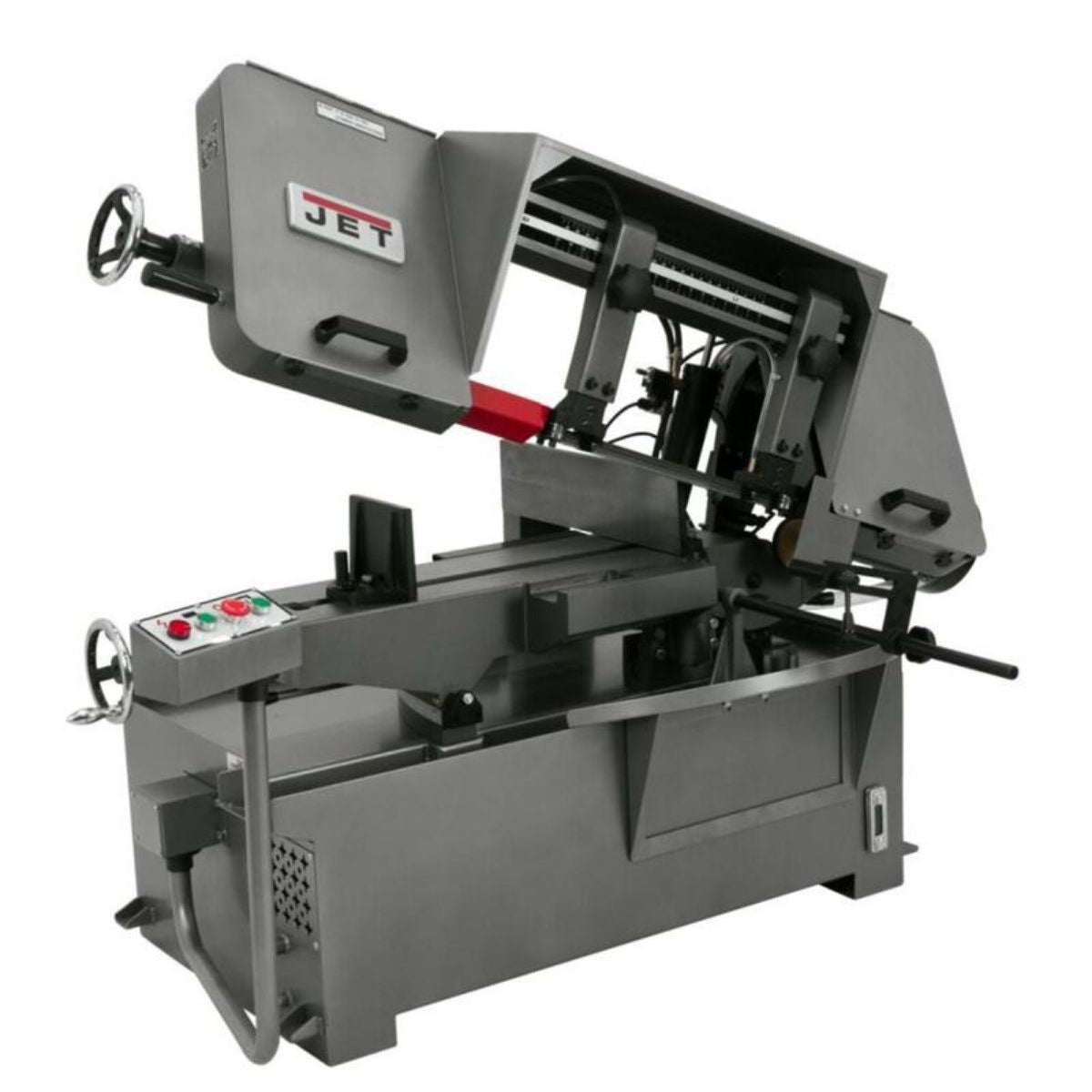

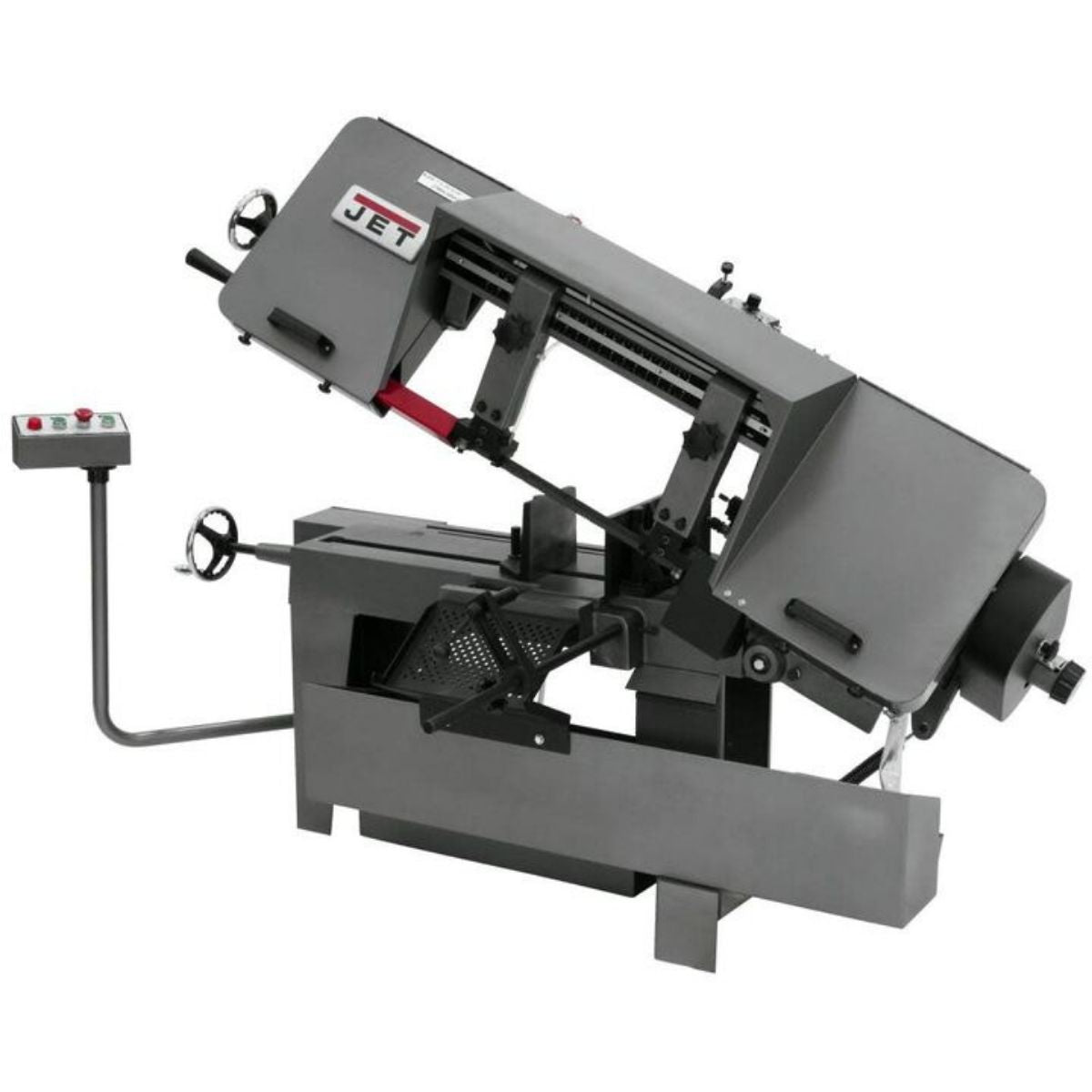

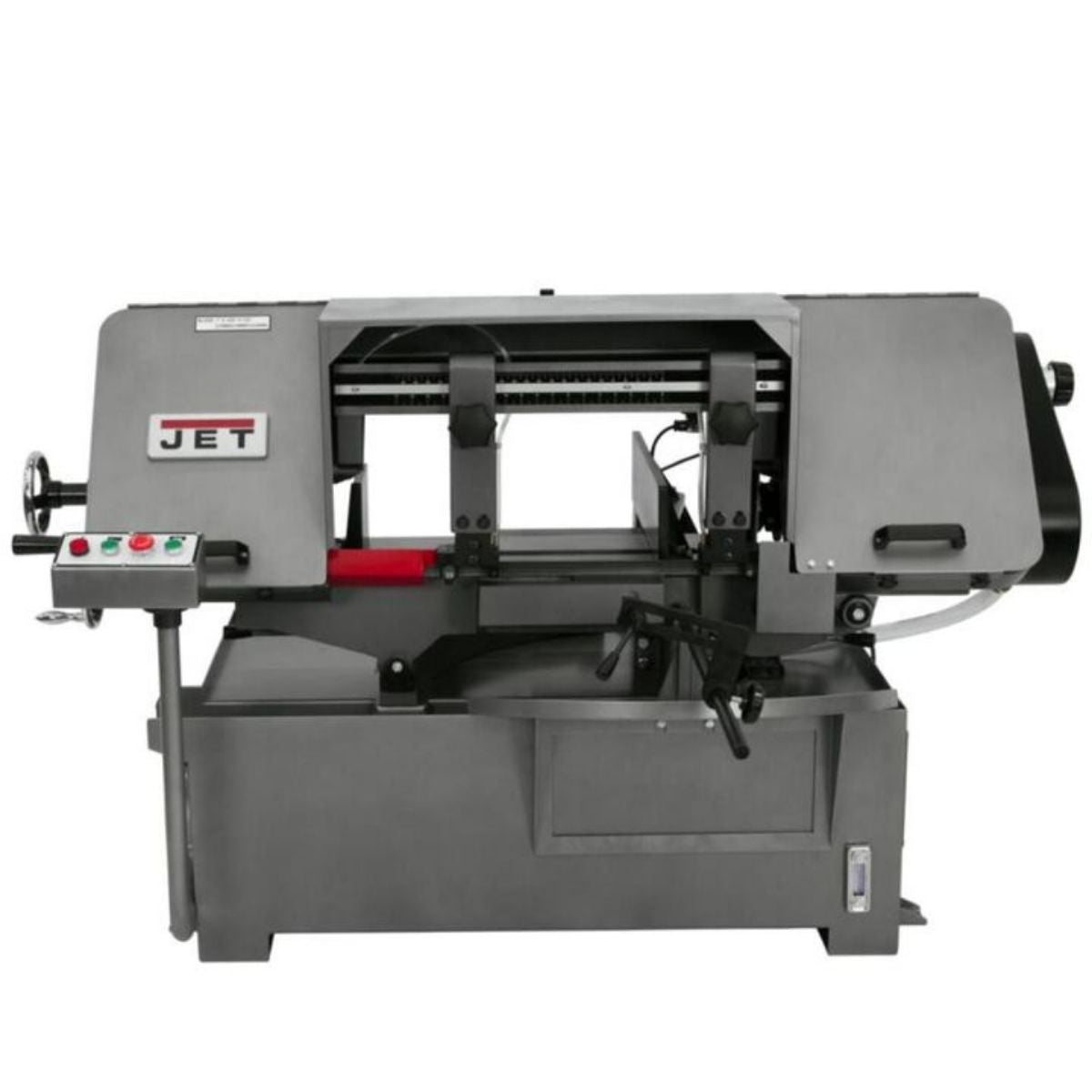

JET J-7020M 10" x 16" Horizontal Mitering Metal Bandsaw
Are your crosscuts and miter cuts taking too long to set up, and is repositioning heavy stock between cuts slowing your production?
What if your saw could swing to any angle while your workpiece stays exactly where you placed it?
Meet the JET J-7020M 10" x 16" Horizontal Mitering Metal Bandsaw, a heavy-duty cutting machine built for shops that need accurate crosscuts and miter cuts on solid metal stock.
With the J-7020M, the swiveling head moves to your angle while the base stays fixed, so your material stays clamped and steady through every cut.
When your saw holds position and your stock stays put, you spend more time cutting and less time resetting.
JET J-7020M for Accurate Crosscuts and Miter Cuts on Metal Stock

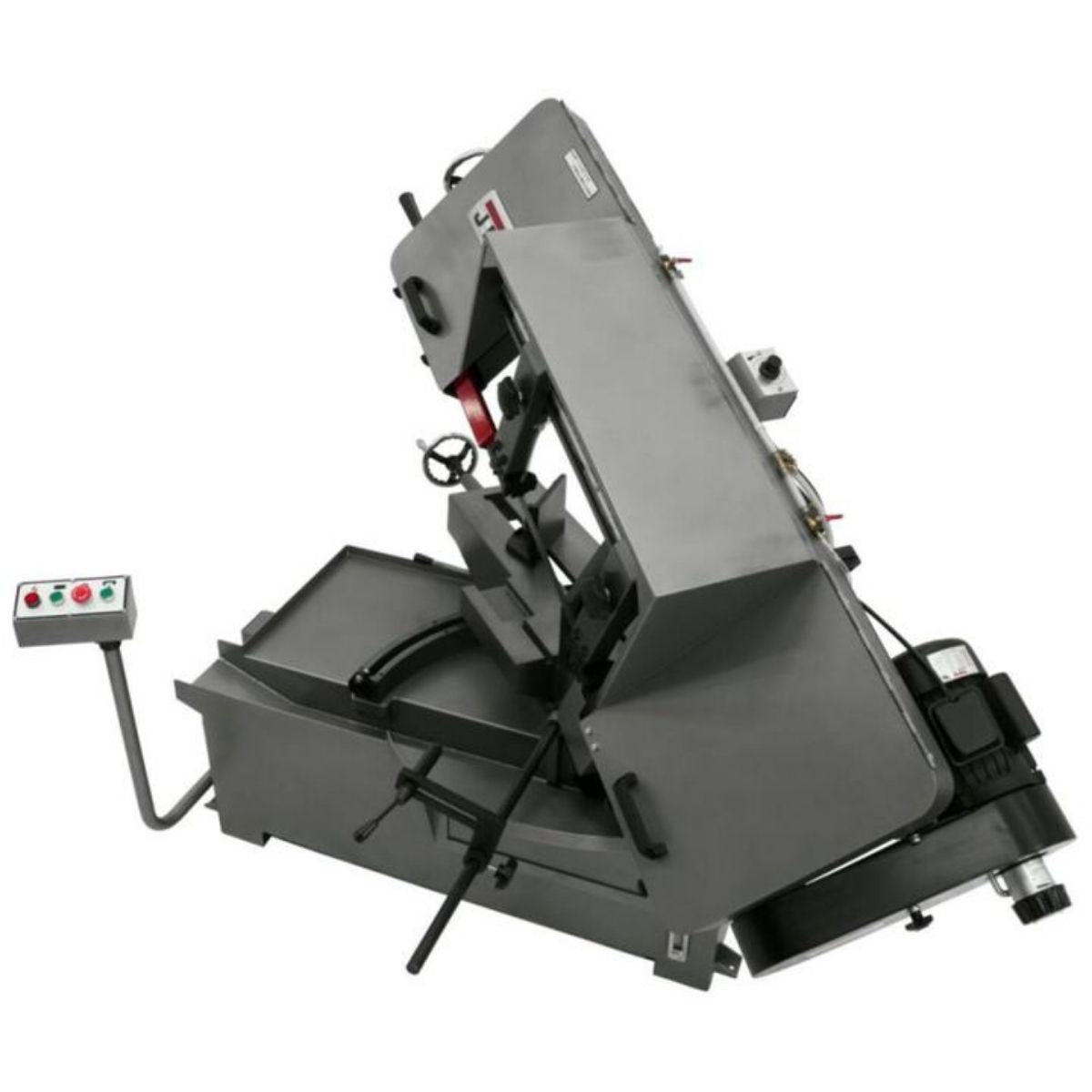

Swiveling Head Keeps Stock Stationary During Miter Cuts
The J-7020M head swivels from 0° to 45° while the base and vise remain fixed. Heavy or long stock stays clamped in one position for the entire cut. You do not need to re-clamp or reposition the workpiece when changing angles, which reduces setup time and improves cut accuracy across the job.
Six-Point Blade Guide System Controls Blade Throughout the Cut
The blade guide uses cam follower bearings mounted on eccentric shafts on both sides of the blade. Carbide pads and side bearings work together to distribute the load evenly across the blade. This keeps the blade stable under load and produces consistent, clean cuts through solid metal sections.
Variable Speed Drive Matches Blade Speed to Material
The variable speed drive lets you dial in the right blade speed for the material you are cutting. Harder stock and larger sections run better at lower speeds, while lighter cuts can move faster. Matching speed to material extends blade life and keeps cut quality consistent from piece to piece.
Hydraulic Downfeed System Controls Descent Rate
A dual counterbalance spring system works with a hydraulic cylinder to control how fast the head drops through the cut. This prevents the blade from diving into the material and keeps feed pressure steady from the start of the cut to the finish. The result is a more uniform cut surface and less stress on the blade.
What's Included
What's Included? JET J-7020M 10" x 16" Horizontal Mitering Metal Bandsaw
-
JET J-7020M Horizontal Mitering Metal Bandsaw — the main cutting unit with swiveling head, fixed base, and fully assembled drive system.
-
Adjustable Material Stop — sets a repeatable stop position so you can cut multiple pieces to the same length without measuring each one.
-
Swing-Away Control Panel — positions the major saw controls within reach and moves out of the way when you need full access to the work area.
Specs
JET J-7020M 10" x 16" Horizontal Mitering Metal Bandsaw Specifications
-
Model Number: J-7020M
-
Stock Numbers: JT9-414474 (115V), JT9-414474-2 (230V)
-
Motor: 1-1/2 HP, 115/230V, 1Ph
-
Drive: Variable Speed
-
Blade Wheel Diameter: 14 in.
-
Cutting Capacity — Rectangle at 90°: 10 x 14 in. and 2 x 16 in.
-
Cutting Capacity — Rectangle at 45°: 8-1/2 x 9 in.
-
Cutting Capacity — Round at 90°: 10 in.
-
Cutting Capacity — Round at 45°: 10 in.
-
Vise Swivel Range: 0° – 45°
-
Overall Dimensions (L x W x H): 76 x 30 x 48 in.
-
Net Weight: 1,134 lbs.
-
Warranty: 2 Year
-
Manual: J-7020M J-7040M Bandsaw User Manual Ed 11 available in English
