JET J-7020 10" × 16" Horizontal Metal Bandsaw
Are your cuts taking longer than they should because your saw struggles to hold material square and secure?
What if every cut started with the stock locked in position, the blade guided at six contact points, and the controls exactly where your hand reaches?
Meet the JET J-7020 10" × 16" Horizontal Metal Bandsaw, a floor-standing horizontal bandsaw built for production cutting in metal fabrication and general machine shop work.
With the J-7020, you get cast iron blade wheels, a heavy-duty oil-bath transmission, a variable speed drive, and a six-point blade guide system engineered to keep the blade stable and the cut accurate across a full range of material sizes and angles.
When your saw holds position, tracks straight, and clamps fast, you spend your time cutting instead of adjusting.
JET J-7020 for Accurate, Repeatable Metal Cutting

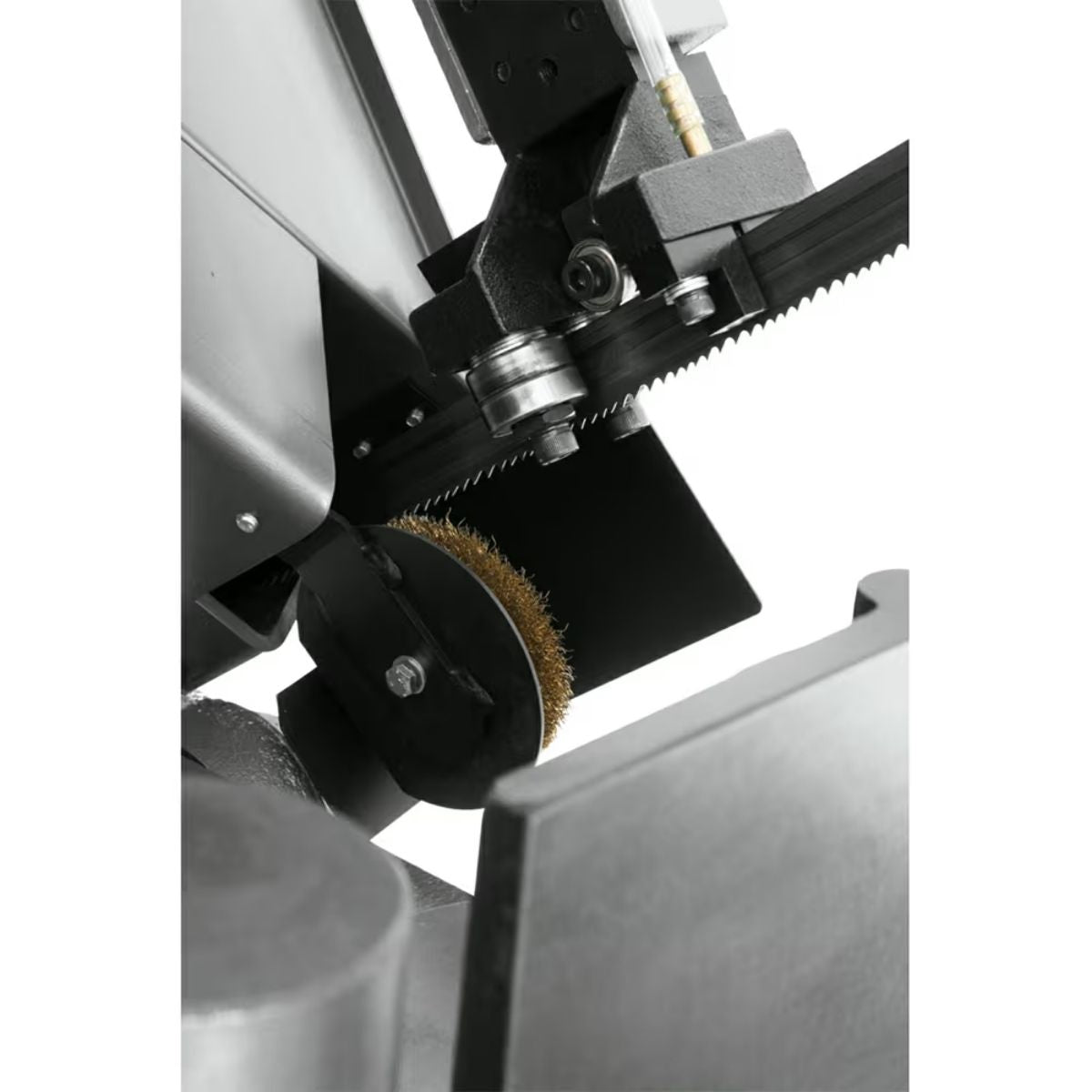

Six-Point Blade Guide System Stabilizes the Blade Through the Cut
The J-7020 uses adjustable blade guide assemblies with six cam follower bearings mounted on eccentric shafts on both sides of the blade. This contact arrangement keeps the blade from deflecting as it moves through stock. The result is a cut that tracks straight without drift, even in denser material cross-sections.
Cast Iron Blade Wheels Sustain Blade Momentum
Cast iron wheels carry more rotational mass than fabricated steel alternatives. That mass keeps blade speed steady as the saw enters a cut, reducing the chance of stalling or chatter. The 14-inch wheel diameter gives the blade a smooth tracking radius suited to the saw's cutting range.
Oil-Bath Transmission Delivers Consistent Drive Power
The heavy-duty transmission uses hardened and ground gears running in a sealed oil bath. This design reduces wear and keeps the drive train operating quietly under load. Variable blade speed from 100 to 350 SFPM lets you match the cut rate to the material rather than forcing the material to match a fixed speed.
Patented 3-Jaw Vise Speeds Workpiece Setup
The rapid-action moveable jaw on the 3-jaw vise reduces the time needed to clamp each piece. The vise swivels to 45 degrees so you can set up angle cuts without repositioning the stock by hand. An adjustable material stop gives you a repeatable reference point for production runs where every piece needs to land at the same length.
What's Included
What's Included? JET J-7020 10" × 16" Horizontal Metal Bandsaw
-
JET J-7020 Horizontal Metal Bandsaw — The main saw unit with cast iron wheels, oil-bath transmission, six-point blade guides, 3-jaw vise, and swing-away control panel, ready for floor installation.
-
Operator's Manual — Setup, operating, and maintenance instructions for the J-7020.
Specs
JET J-7020 10" × 16" Horizontal Metal Bandsaw Specifications
-
Stock Number: JT9-414472
-
Model Number: J-7020
-
Motor: 1-1/2 HP, 115/230V, 1Ph
-
Drive: Variable Speed
-
Blade Speeds: 100–350 SFPM
-
Blade Wheel Diameter: 14 in.
-
Cutting Capacity — Rectangle at 90°: 10 x 10 in. and 7 x 16 in.
-
Cutting Capacity — Rectangle at 45°: 6-1/2 x 11 in.
-
Cutting Capacity — Round at 90°: 10 in.
-
Cutting Capacity — Round at 45°: 10 in.
-
Vise Swivel: 45°
-
Overall Dimensions (L x W x H): 75-1/2 x 33 x 41 in.
-
Net Weight: 973 lb.
-
Gross Weight: 1,000 lb.
-
Warranty: 2 Year
-
Manual: Included — JET J-7020 Operator's Manual
