JET J-4202A 6" × 48" Belt & 12" Disc Sander
Are you spending too much time switching between machines to finish edges, flatten surfaces, and clean up compound angles?
What if one machine handled belt and disc finishing in a single setup, with the flexibility to work flat, angled, or contoured stock without stopping to reconfigure?
Meet the JET J-4202A 6" × 48" Belt & 12" Disc Sander, a three-phase industrial combination finishing machine built for machinists and fabricators who need reliable results across a wide range of finishing tasks.
With the J-4202A, you get a belt that adjusts to any angle and a fully machined 12" disc working together on the same footprint, so you stay at one station from rough stock removal through final finishing.
When you need a machine that handles the full range of belt and disc finishing work without compromise, the J-4202A gives you the control and build quality to do it right.
JET J-4202A for Precision Belt and Disc Finishing Work
Belt Head Adjustability Covers Every Finishing Angle
The belt head moves both vertically and horizontally and locks at any angle. This lets you match the belt position to the work rather than the other way around. Whether you are finishing a flat surface, cleaning up a bevel, or working a curved edge, the belt stays where you set it.

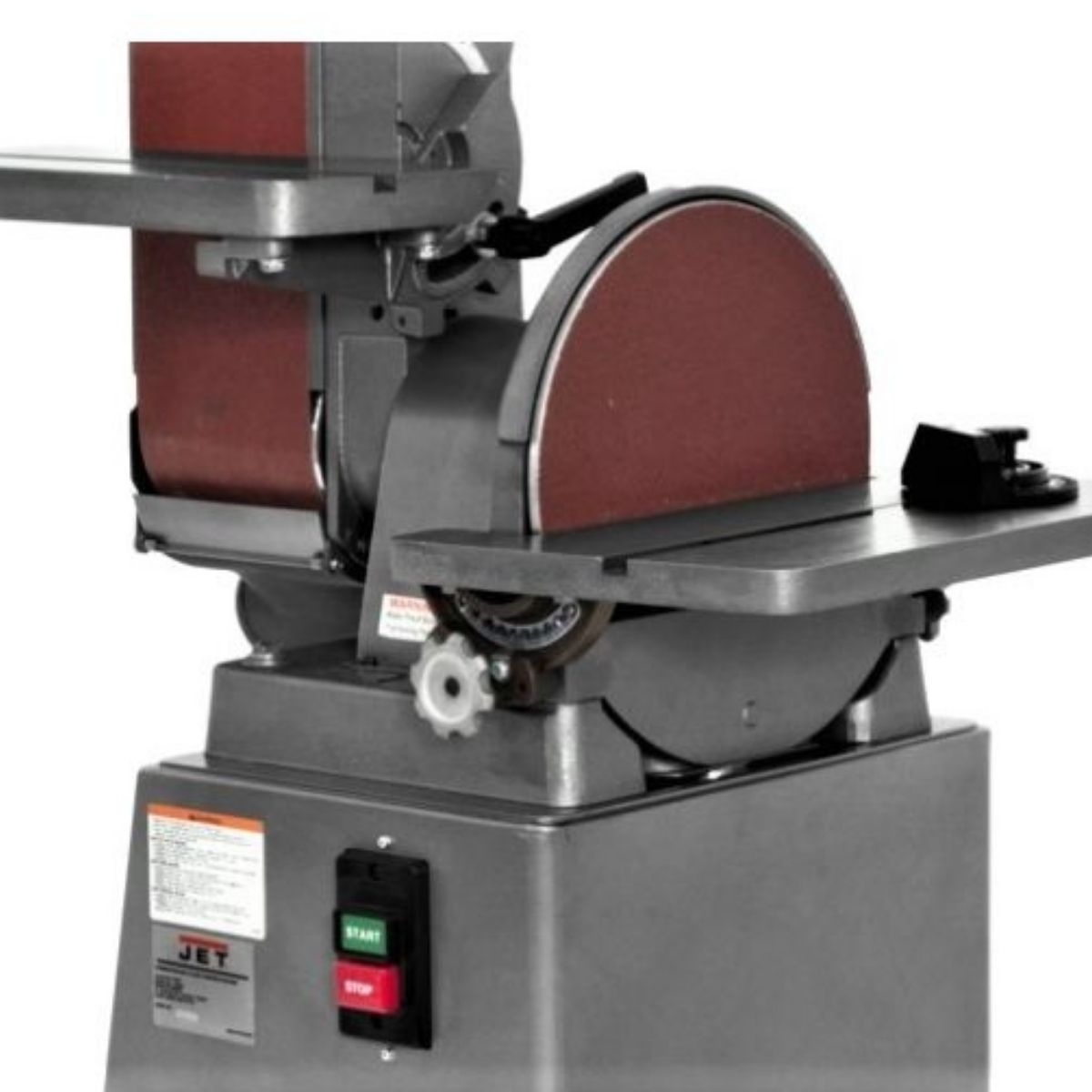

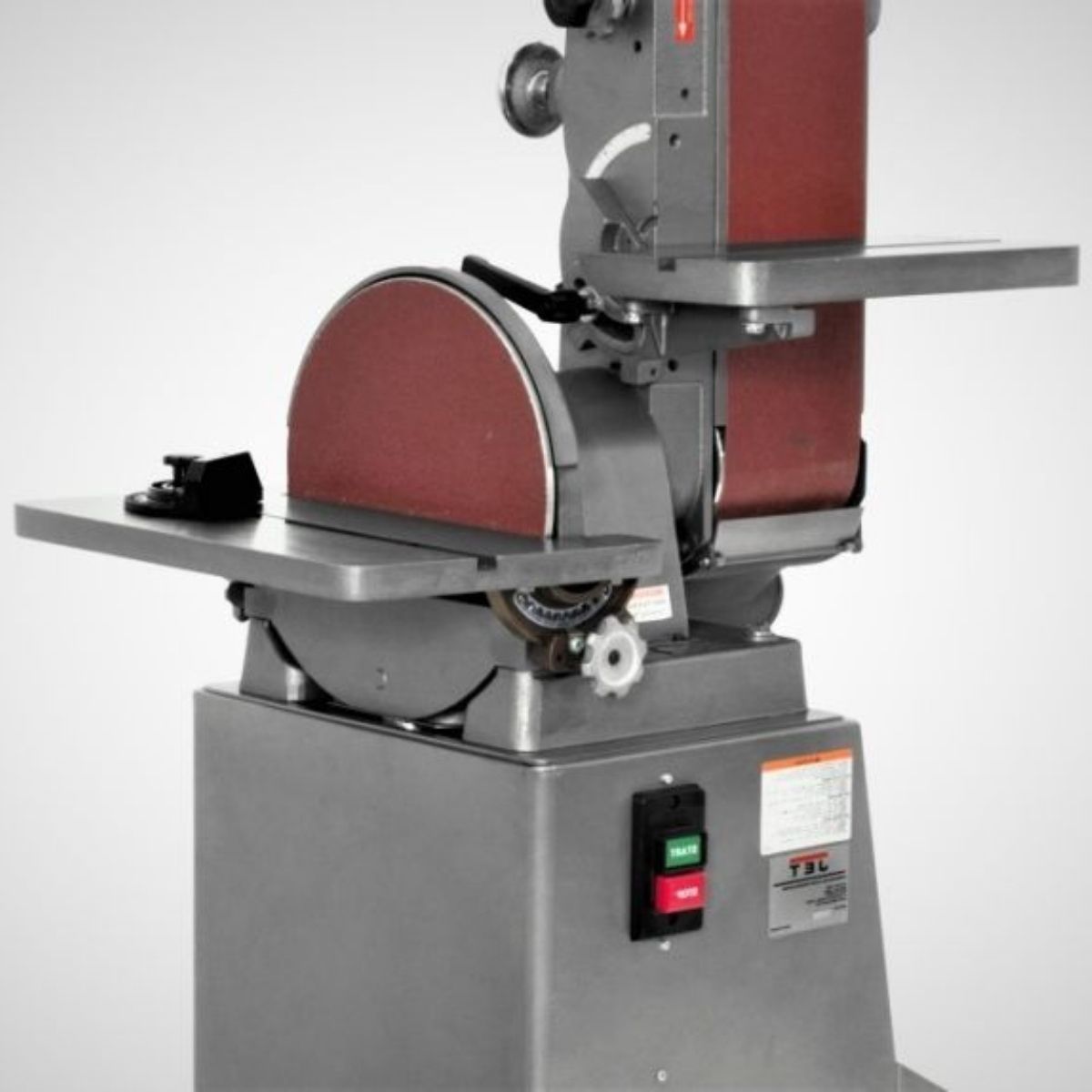

Fully Machined Disc Delivers Flat, Consistent Disc Work
The 12" disc is fully machined and balanced, which keeps the surface true across its full face. A disc that runs flat stays in full contact with your workpiece, so you get even material removal and a consistent finish from the center out to the edge.
Cast Iron Slotted Table Supports Accurate Miter Work
The large cast iron slotted table tilts 45 degrees out and 20 degrees in, and accepts the included die cast aluminum miter gauge for plain and compound miter work. Cast iron holds its position under load, so your setups stay repeatable even during extended finishing runs.
Enclosed Drums and Dust Chute Keep the Work Area Clean
Completely enclosed drums and a guarded sanding belt contain the working surfaces for safer operation. The adjustable dust collector and dust chute direct abrasive dust away from the work zone so you can see what you are doing and keep the shop cleaner between operations.
What's Included
What's Included? JET J-4202A 6" × 48" Belt & 12" Disc Sander
-
60 Grit Belt — A standard abrasive belt pre-installed on the machine and ready for initial stock removal or finishing work.
-
60 Grit Disc — A standard abrasive disc pre-installed on the 12" machined disc surface for immediate use.
-
Die Cast Aluminum Miter Gauge — Fits the cast iron table slot and supports plain and compound miter setups at the disc.
Specs
JET J-4202A 6" × 48" Belt & 12" Disc Sander Specifications
- Model: J-4202A
- Stock Number: JT9-414553
- Belt Size: 6" × 48"
- Disc Diameter: 12"
- Belt Table Size: 7-3/8" × 14-3/4"
- Belt Table Tilt: 45° out, 20° in
- Motor: 1-1/2 HP, 230V, 3-Phase
- Overall Dimensions (L × W × H): 26" × 19" × 58"
- Gross Weight: 320 lb
- Net Weight: 250 lb
- Warranty: 2 Year
