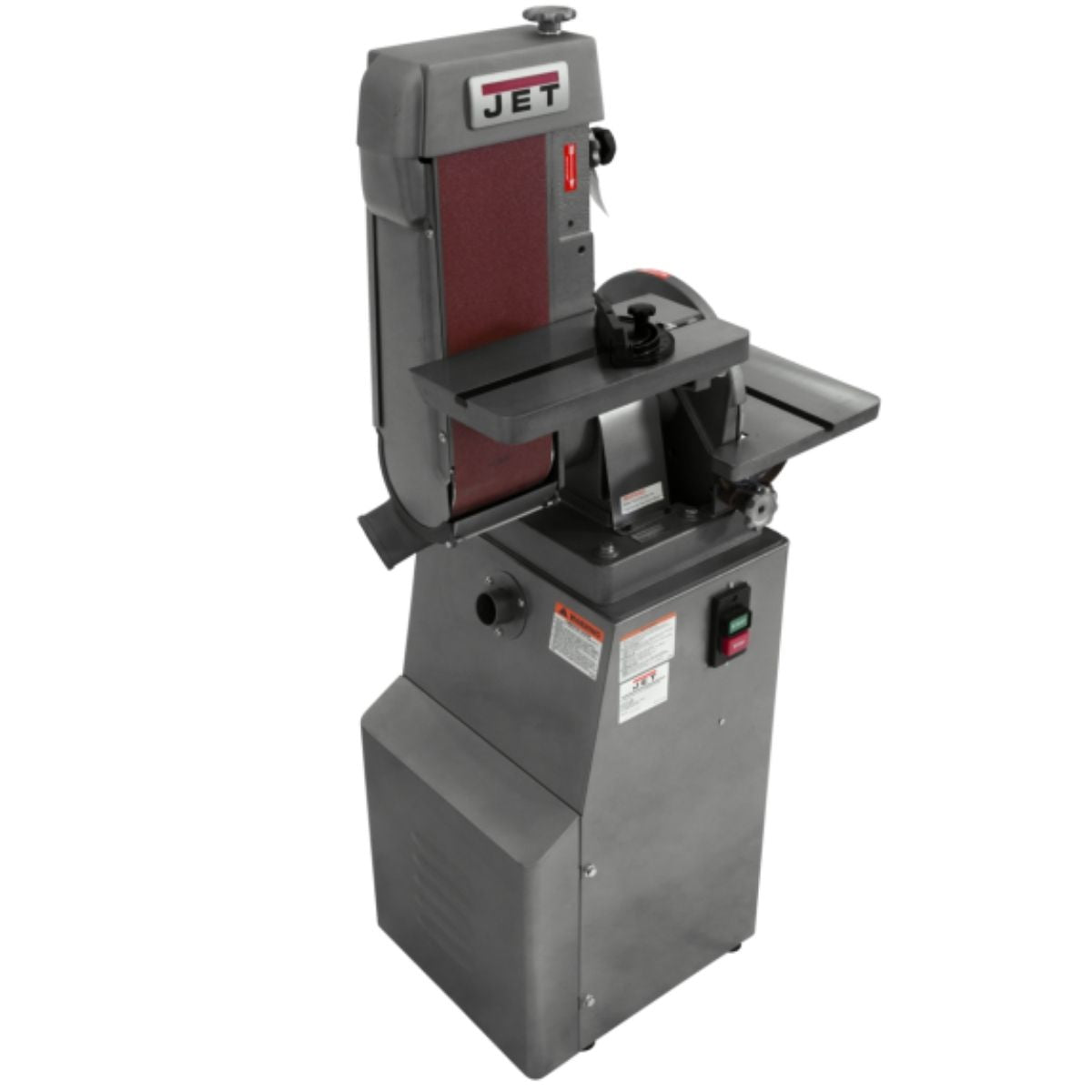

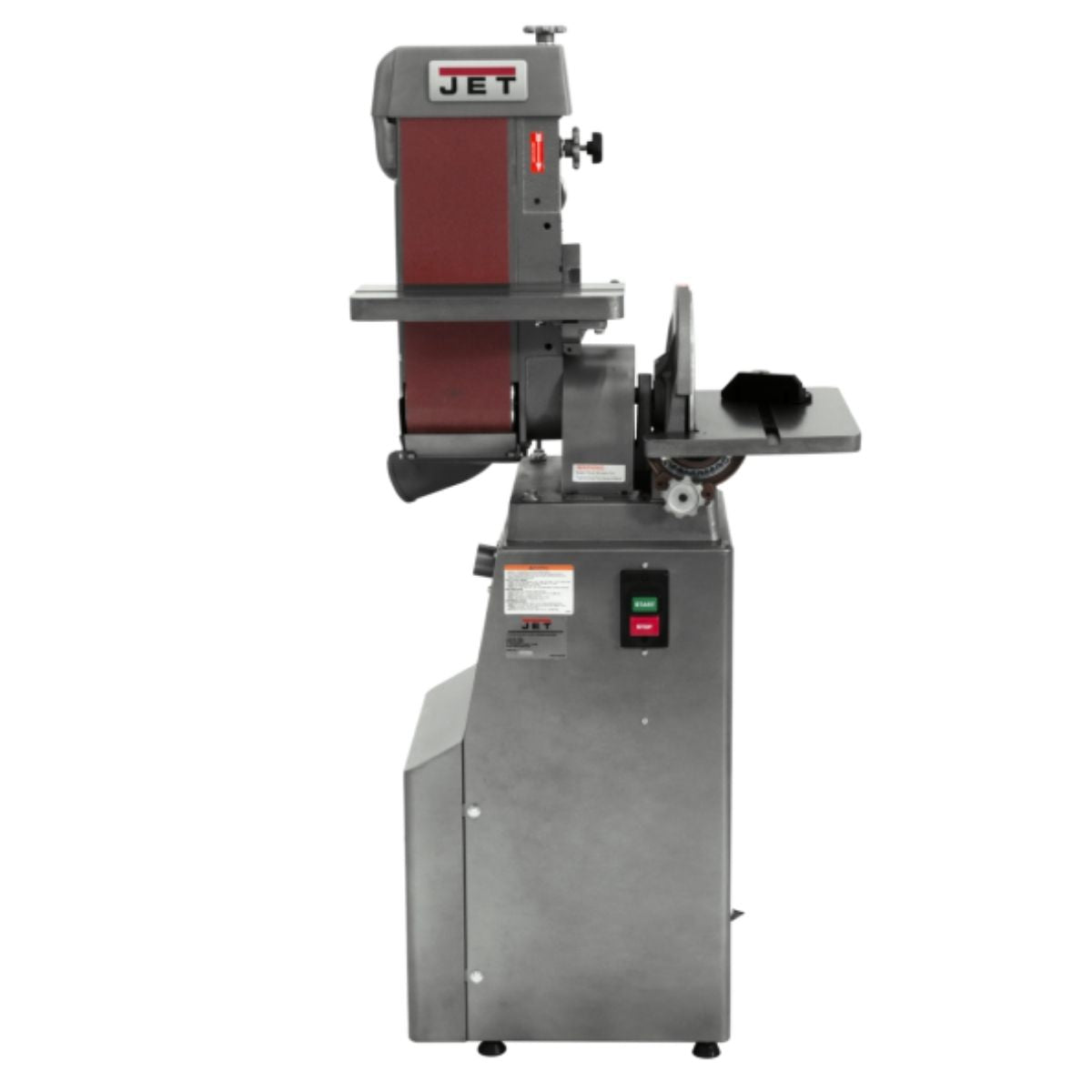

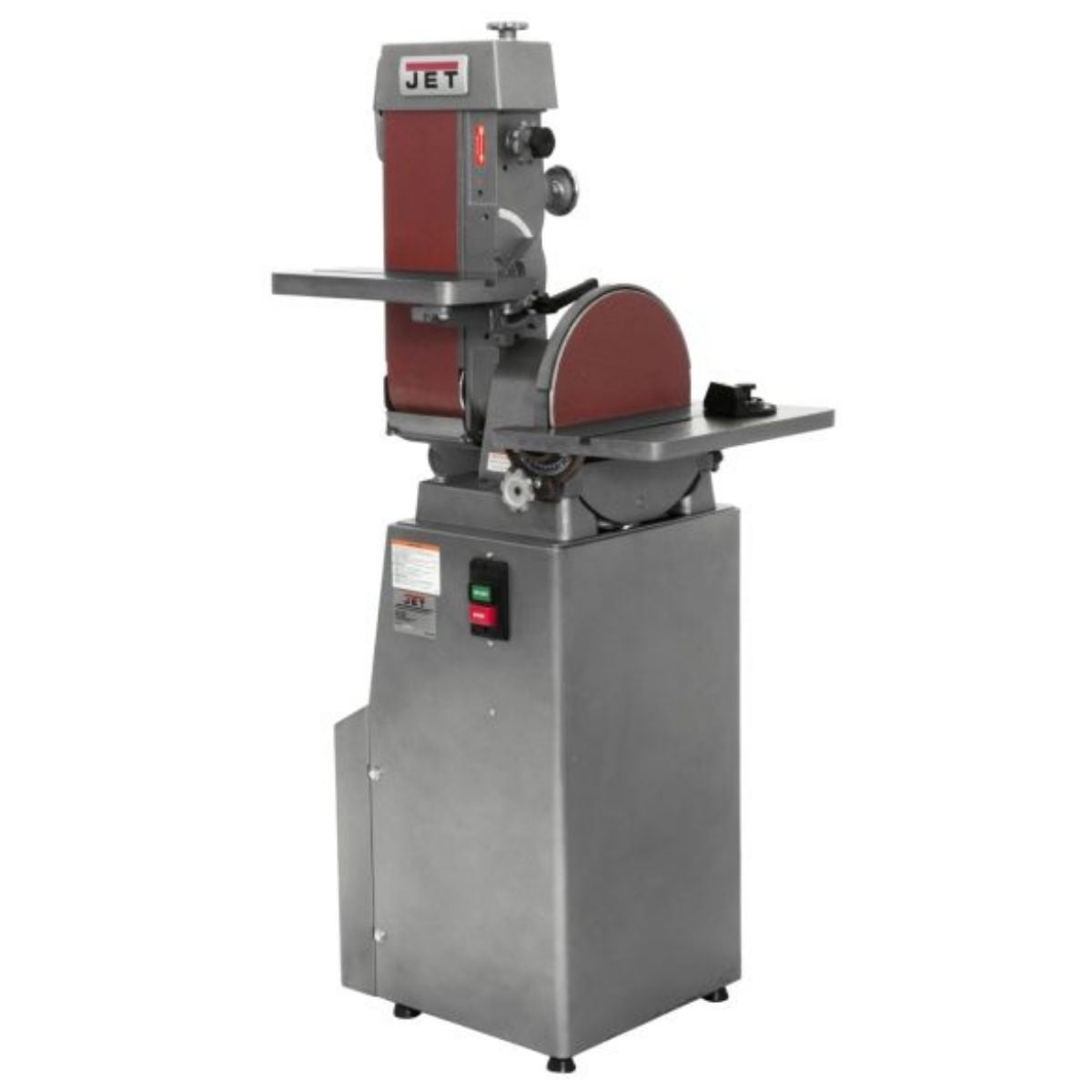

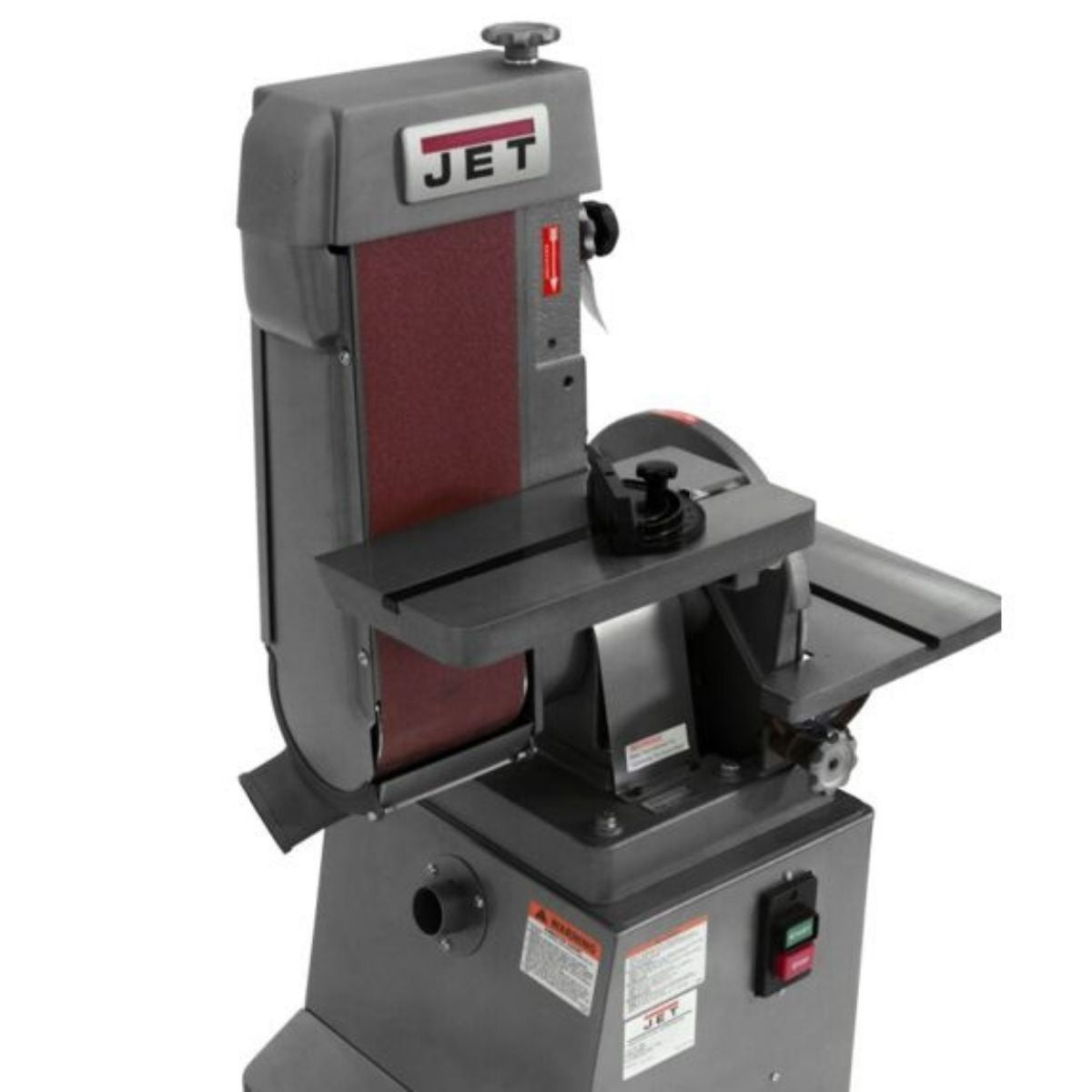

JET J-4200A 6" × 48" Belt & 12" Disc Sander
Are your finishing and grinding operations slowing you down because your equipment can not keep up with the range of work you bring to it?
What if one machine handled flat stock, contoured edges, and compound miter work without asking you to stop and reconfigure between jobs?
Meet the JET J-4200A 6" × 48" Belt & 12" Disc Sander, a heavy-duty combination finishing machine built for machinists and fabricators who need consistent results across a full range of surface work.
With the J-4200A, you get an industrial-grade belt and disc setup that handles the transitions from flat stock to contour finishing without changing equipment or losing your pace.
When your finishing machine can work at any angle and hold its position under load, you can move through your work with confidence and keep your output quality where you expect it.
JET J-4200A for Belt, Disc, and Contour Finishing Work
Belt Head Positioning Supports the Full Range of Work
The belt head adjusts both vertically and horizontally and operates at any angle. This lets you shift from flat stock finishing to curved or contoured edge work without switching to a second machine. The removable upper belt guard opens access for contour finishing so the belt can conform to irregular shapes cleanly.
Cast Iron Table Holds Position Under Load
The large cast iron slotted table provides a stable platform for disc work. It tilts 45 degrees outward and 20 degrees inward to cover flat, angled, and beveled workpieces. The mass of the table holds its setting under repeated use so your angle stays consistent from the first piece to the last.
Die Cast Aluminum Miter Gauge Speeds Angle Work
The standard die cast aluminum miter gauge lets you set plain and compound miters directly at the disc table. You can dial in your angle once and repeat it accurately across multiple pieces. This keeps your workflow moving without stopping to measure and reposition between cuts.
Fully Machined Disc Delivers Even Stock Removal
The 12-inch disc is fully machined and balanced to run true. An unbalanced disc introduces vibration that shows up as inconsistent surface finish. A balanced disc at 1,960 RPM removes stock evenly and leaves a surface that is ready for the next step without extra passes.
What's Included
What's Included? JET J-4200A 6" × 48" Belt & 12" Disc Sander
-
6" × 48" Sanding Belt — 60 grit belt installed and ready to run at first startup.
-
12" Sanding Disc — 60 grit disc mounted on the fully machined, balanced disc plate.
-
Die Cast Aluminum Miter Gauge — Sets plain and compound miters at the disc table for repeatable angle work.
-
Adjustable Dust Collector and Dust Chute — Directs debris away from the work area to keep the table clear during operation.
Specs
JET J-4200A 6" × 48" Belt & 12" Disc Sander Specifications
-
Model Number: J-4200A (115V) / J-4200A-2 (230V)
-
Belt Size: 6" × 48"
-
Belt Speed: 2,850 SFPM
-
Disc Diameter: 12"
-
Disc Speed: 1,960 RPM
-
Belt Table Size: 7-3/8" × 14-3/4"
-
Belt Table Tilt: 45° Out, 20° In
-
Disc Table Size: 16-1/2" × 9"
-
Disc Table Tilt: 45°
-
Motor: 1-1/2 HP
-
Voltage: 115V, 1Ph (J-4200A) / 230V, 1Ph (J-4200A-2)
-
Overall Dimensions (L × W × H): 29" × 19" × 58" (115V) / 26" × 19" × 58" (230V)
-
Net Weight: 300 lb (115V) / 250 lb (230V)
-
Warranty: 2 Year
