JET IBGB-436VS Variable Speed 8" Bench Grinder with 4" × 36" Belt Sander
Are you running a bench grinder and a belt sander as two separate machines, switching between them mid-task and losing time on every setup?
What if one machine handled both jobs without giving up anything in power, speed control, or build quality?

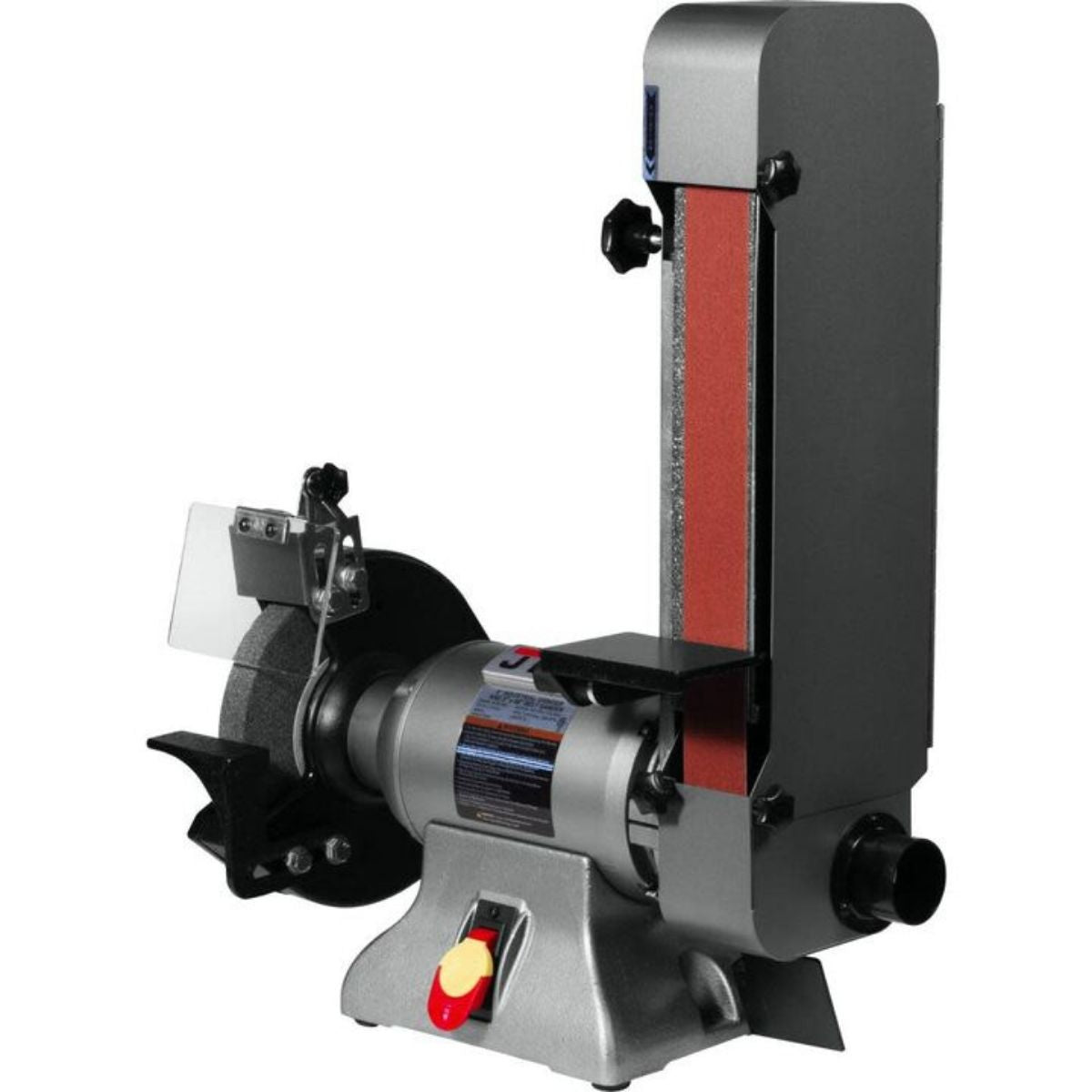

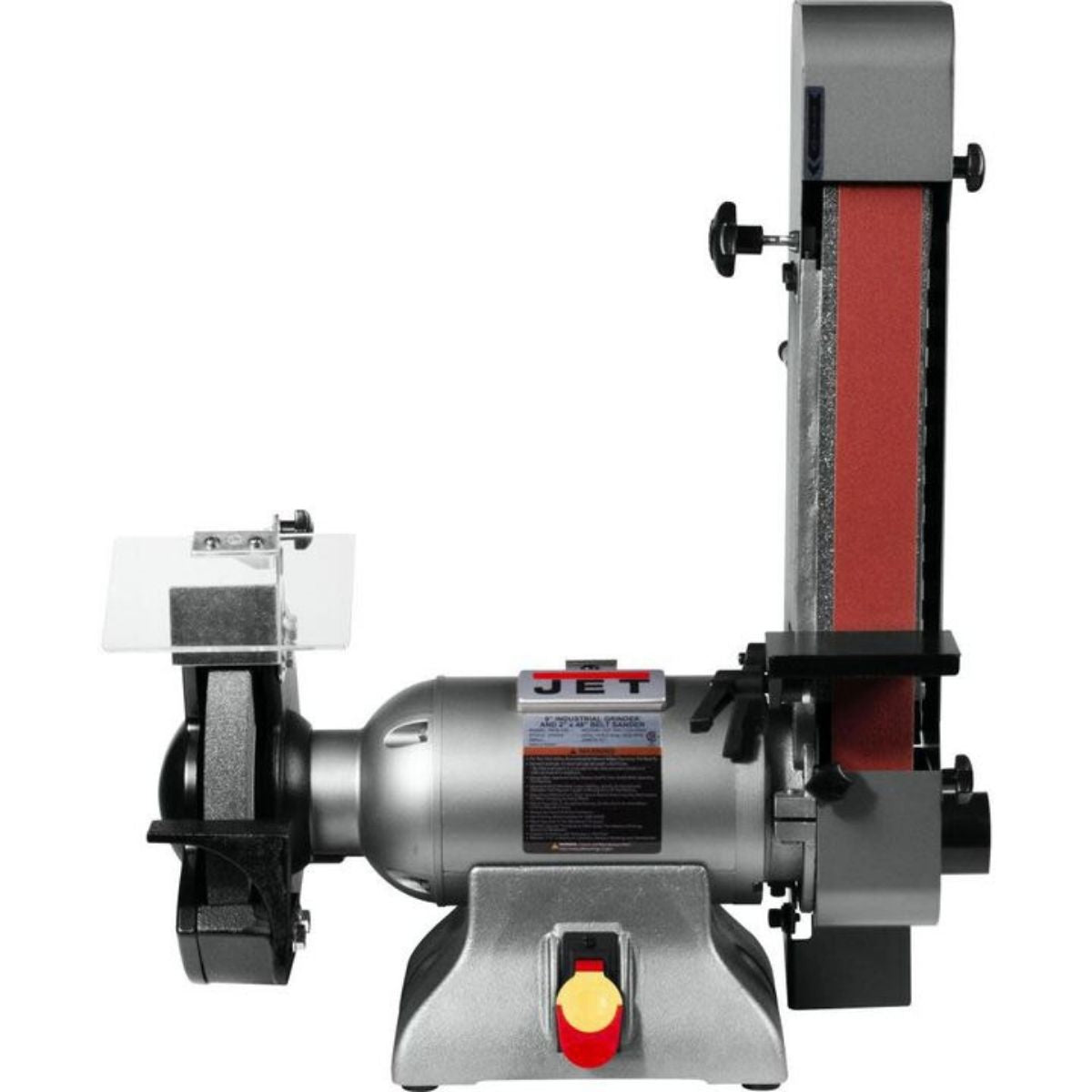

Meet the JET IBGB-436VS, a variable speed combination unit that pairs an 8-inch bench grinder with a 4-inch by 36-inch belt sander in a single industrial-grade platform.
With the IBGB-436VS, you get a 1HP enclosed motor, a digital speed readout, and an electric motor brake engineered for consistent daily use in a working shop.
When your grinder and sander are one machine, your bench stays clear and your workflow stays moving.
JET IBGB-436VS for Grinding and Belt Sanding in One Station
Variable Speed Control Matches RPM to the Work
The IBGB-436VS runs at variable speeds across a wide range, letting you dial in the right surface feet per minute for each material and task. A digital readout displays both RPM and SFPM so you always know exactly where the machine is running. That kind of feedback matters when you are working between softer metals and harder stock in the same session.
Electric Motor Brake Stops the Wheel Fast
The motor brake brings the grinding wheels from 3,600 RPM to a full stop in under 20 seconds. That is a real safety advantage in a busy shop where you move between machines and tasks without long pauses. You do not have to wait for the wheel to coast down before you step away or make a tool change.
Enclosed 1HP Motor Handles Continuous Shop Use
The totally enclosed, pre-lubricated motor keeps contaminants out and is built to hold up under heavy, repeated use. Rubber sealed bearings on the idle wheel are designed for long service without maintenance. The construction is rated for demanding conditions, not occasional weekend use.
Safety Guarding and Dust Ports Keep the Work Area Clear

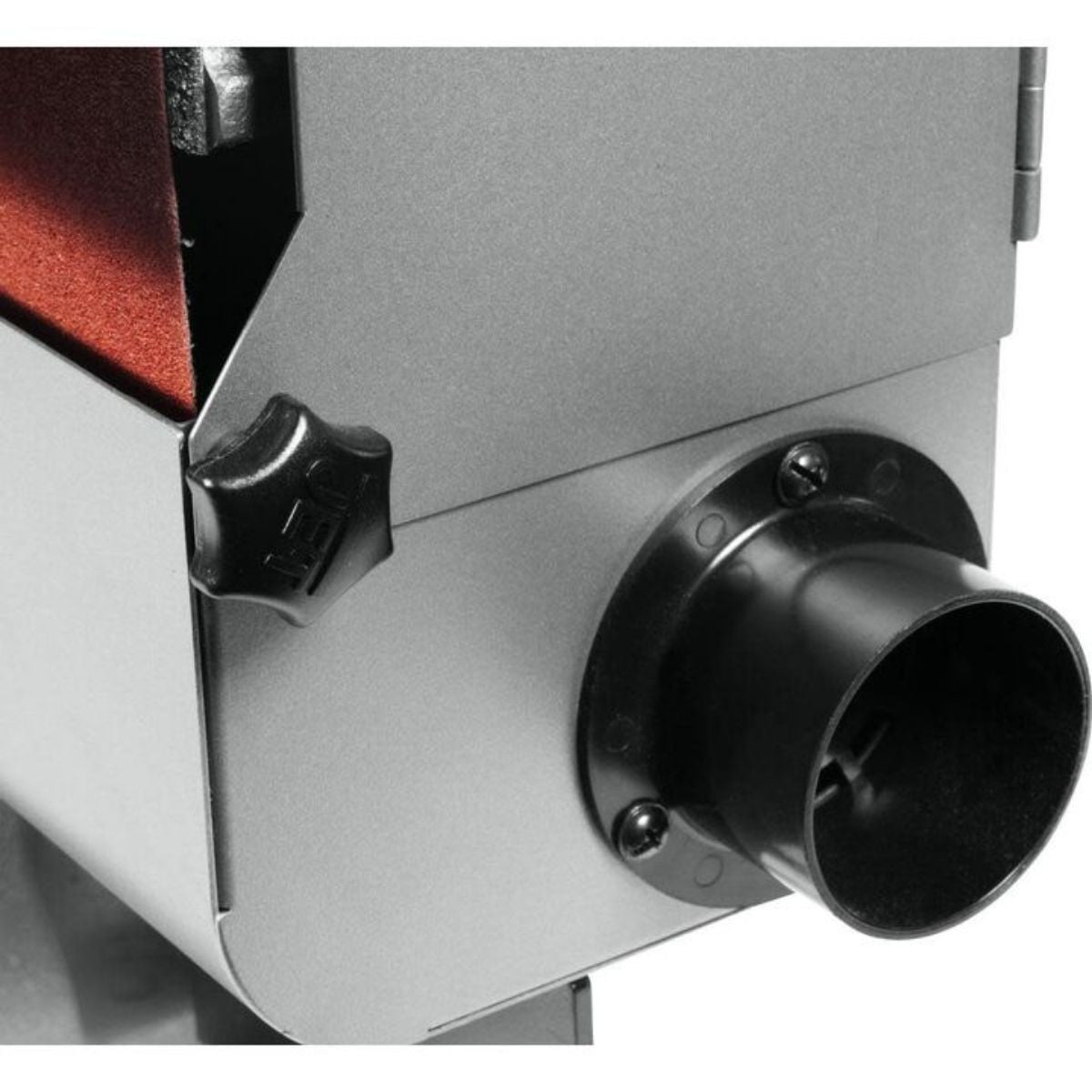

Innovative guarding surrounds the sanding belt to protect the operator during use. Large eye safety shields are included on the grinder side. Two 2-inch round dust ports give you a direct connection to shop dust collection so airborne debris stays off the bench and out of the air.
What's Included
What's Included? JET IBGB-436VS Variable Speed 8" Bench Grinder with 4" × 36" Belt Sander
-
JET IBGB-436VS Combination Grinder and Belt Sander — The main machine combining an 8-inch variable speed bench grinder with a 4-inch by 36-inch belt sander in one industrial unit.
-
Large Eye Safety Shields — Protect the operator from debris during grinding operations.
-
Sanding Belt Safety Guarding — Surrounds the belt sander section to keep the operator safe during use.
Specs
JET IBGB-436VS Variable Speed 8" Bench Grinder with 4" × 36" Belt Sander Specifications
- Stock Number: JT9-577436
- Model Number: IBGB-436VS
- Belt Size (W x L): 4" x 36"
- Motor: 1HP, 115/230V, Single Phase
- Shaft Diameter: 5/8"
- Overall Dimensions — Sanding Bracket Parallel (L x W x H): 23-7/32" x 19-1/2" x 13-15/16"
- Overall Dimensions — Sanding Bracket Vertical (L x W x H): 23-7/32" x 12-7/32" x 20-3/4"
- Net Weight: 80.0 lbs
- Gross Weight: 86.5 lbs
- Warranty: 2 Year
- Certification: CSA/CUS Certified
Warning: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov/product
