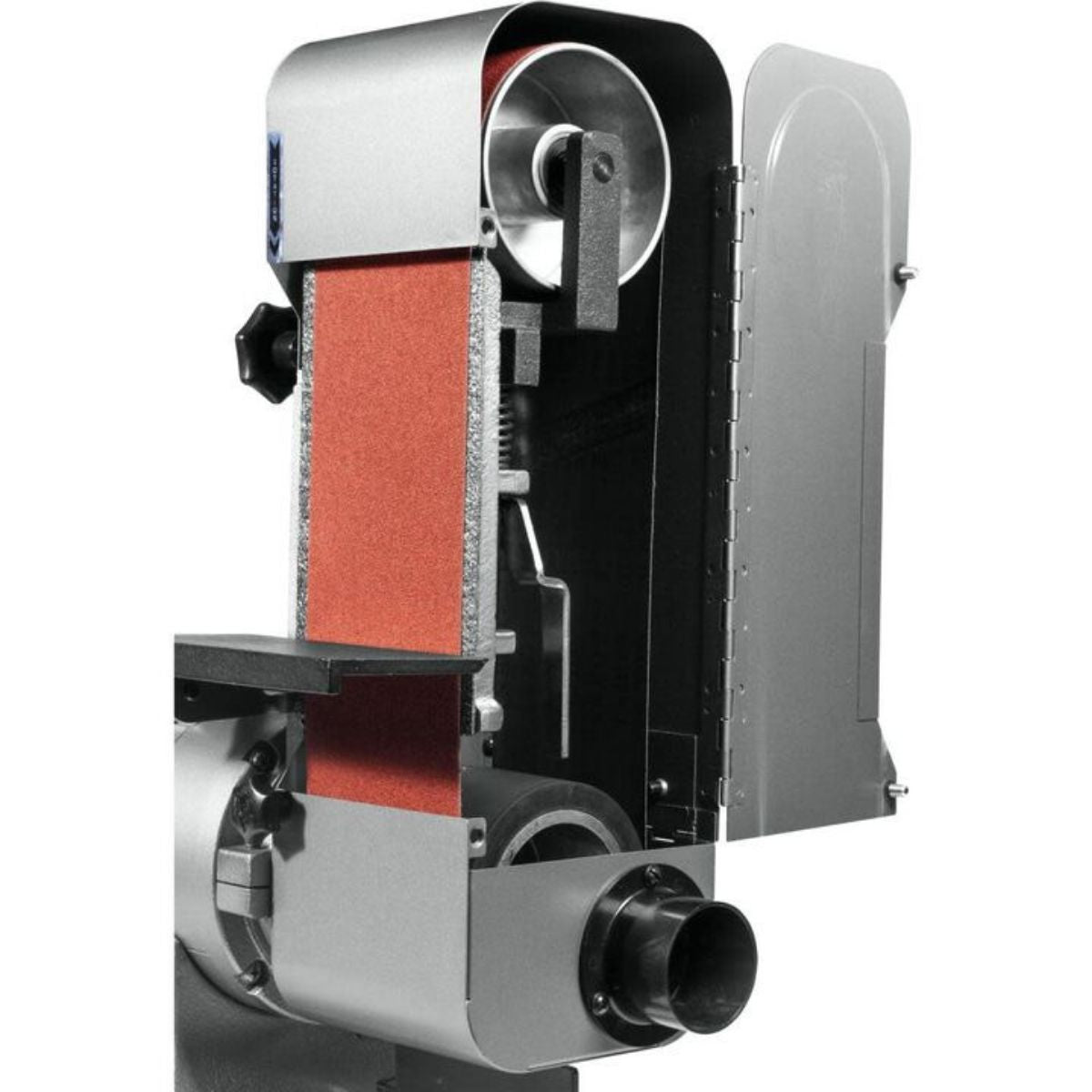

JET IBGB-436 8" Bench Grinder with 4" × 36" Belt Sander
Are you tired of switching between separate machines every time a job calls for both grinding and sanding?
What if one machine handled edge work, shaping, and surface finishing without taking up extra floor space?

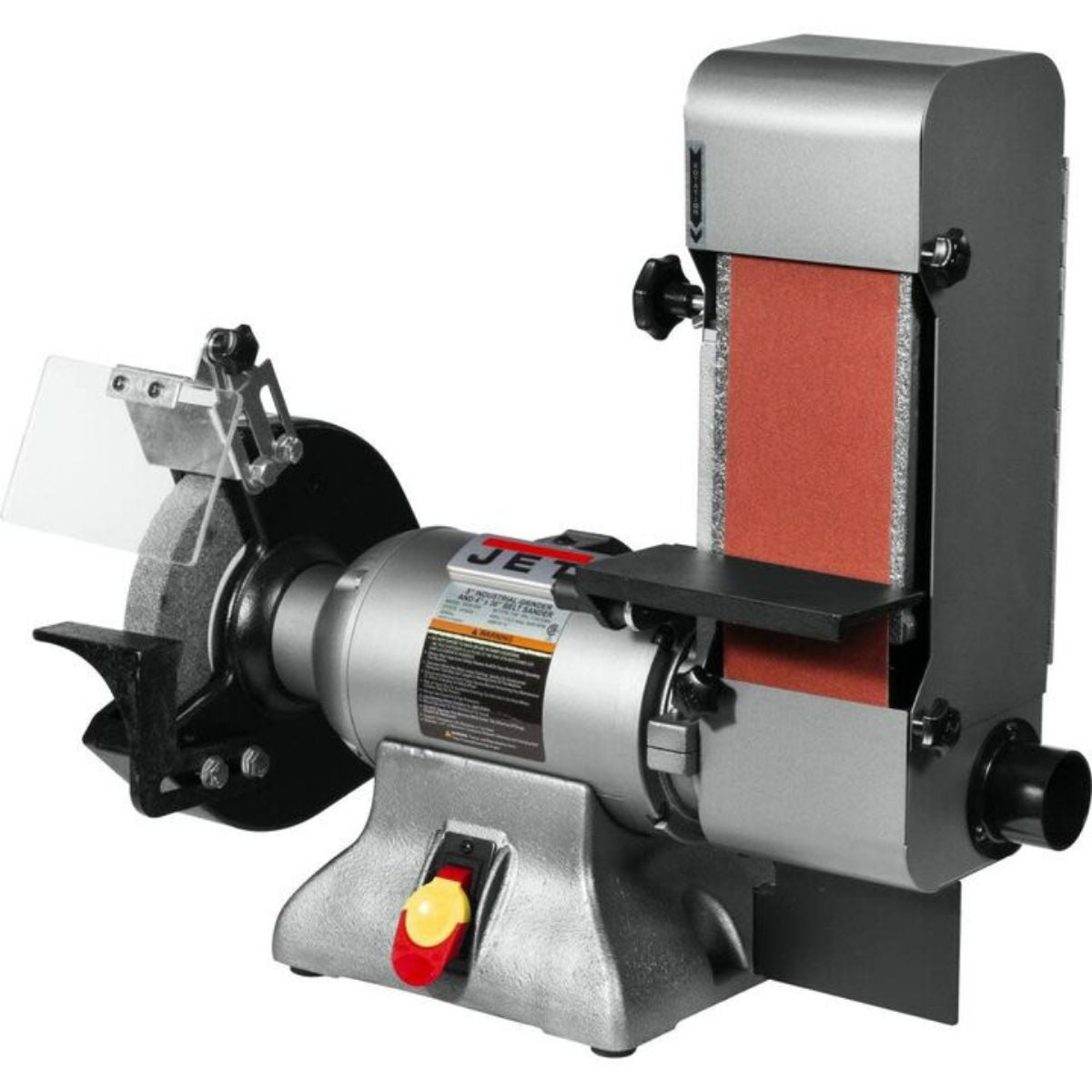

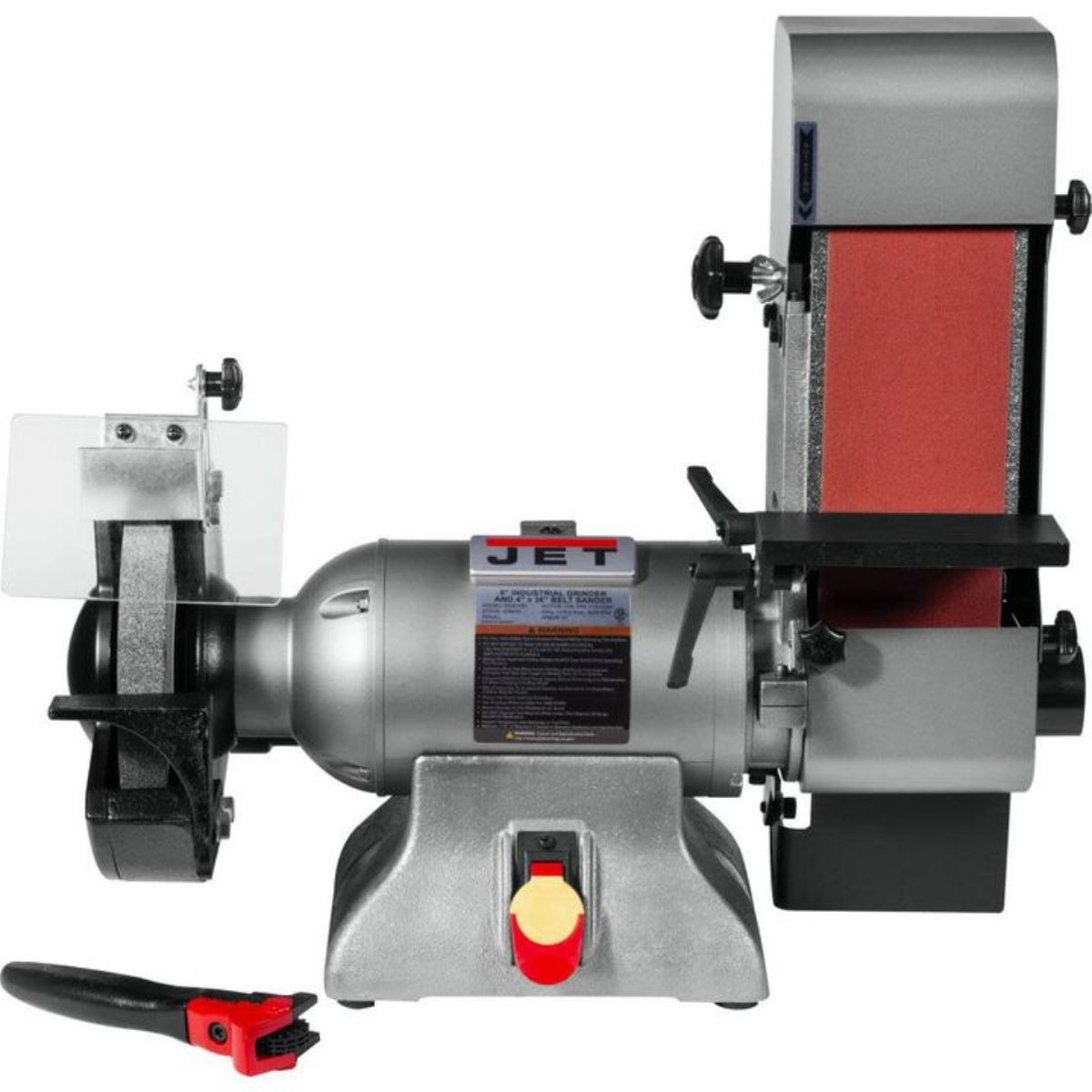

Meet the JET IBGB-436 8" Bench Grinder with 4" × 36" Belt Sander, a combination machine built around industrial-grade construction and a fully enclosed 1HP motor.
With the IBGB-436, you get a machine that runs on 115/230V single phase power with sealed bearings, OSHA-compliant shielding, and a safety switch with a removable key built in from the start.
When your bench grinder and belt sander share the same solid platform, you move through finishing work with less setup and more time on the actual job.
JET IBGB-436 for Grinding and Belt Sanding in One Station
Enclosed 1HP Motor Handles Demanding Work
The IBGB-436 runs a totally enclosed, pre-lubricated motor rated at 1HP on 115/230V single phase power. That enclosed design keeps dust and debris out of the motor so it holds up under daily shop use without extra maintenance. You get consistent power to the wheel and belt without worrying about what the motor is picking up from the air around it.
Sealed Bearings Reduce Maintenance on the Idle Wheel
The rubber-sealed bearings on the idle wheel are built to run without regular lubrication. That means fewer service interruptions and a machine that stays ready when you need it. The bearing setup is especially useful on the sanding side where dust exposure is constant and bearing wear can become a problem on lesser machines.
Adjustable Sanding Bracket Positions the Belt for the Work

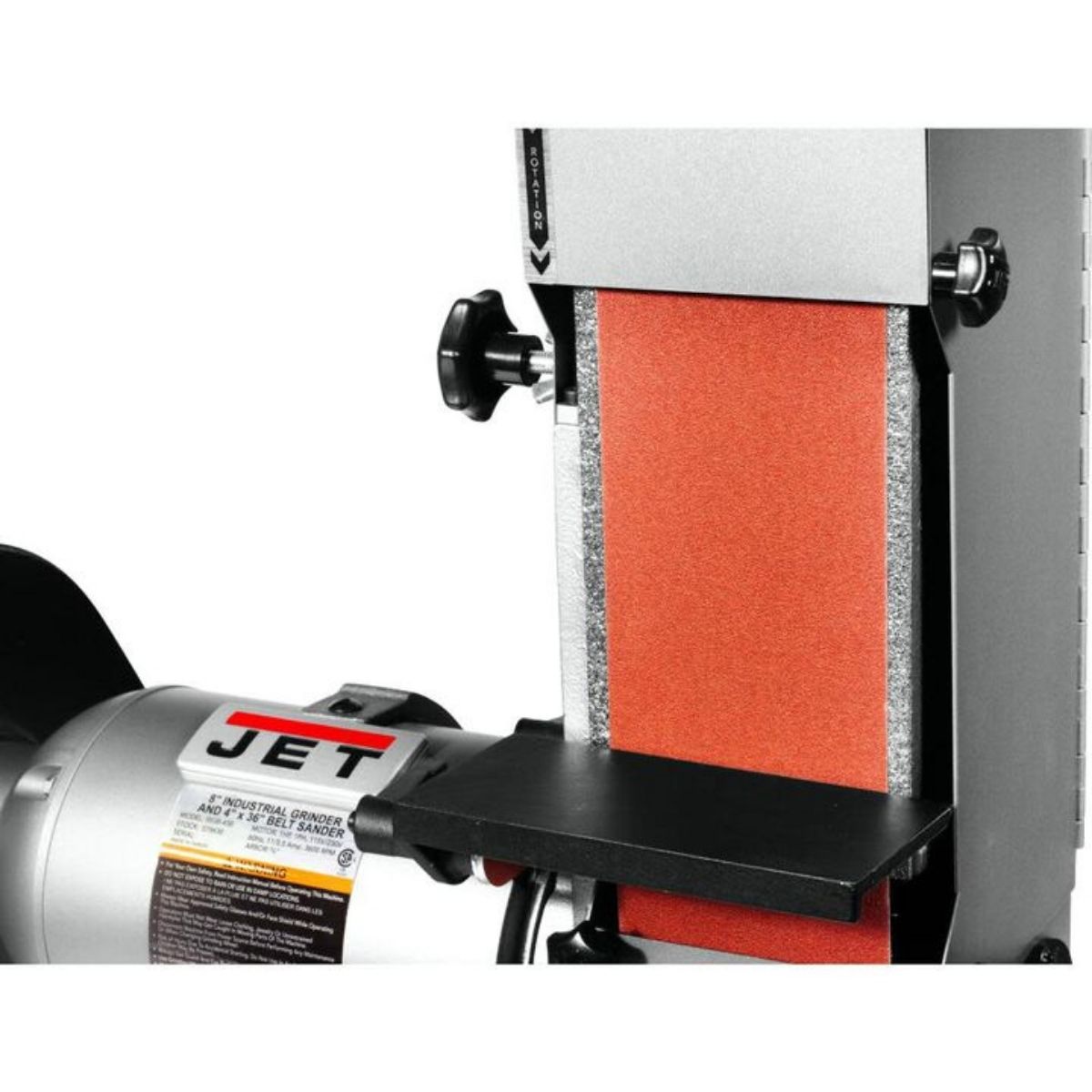

The sanding bracket adjusts between a parallel and vertical position, giving you two distinct working orientations without a tool change. Parallel is well suited to flat stock and edge work. Vertical opens up shaping and contour work. Overall footprint shifts from 23-7/32 x 19-1/2 x 13-15/16 inches to 23-7/32 x 12-7/32 x 20-3/4 inches depending on the position you set.
OSHA-Compliant Guarding and Safety Switch Keep the Machine In Control

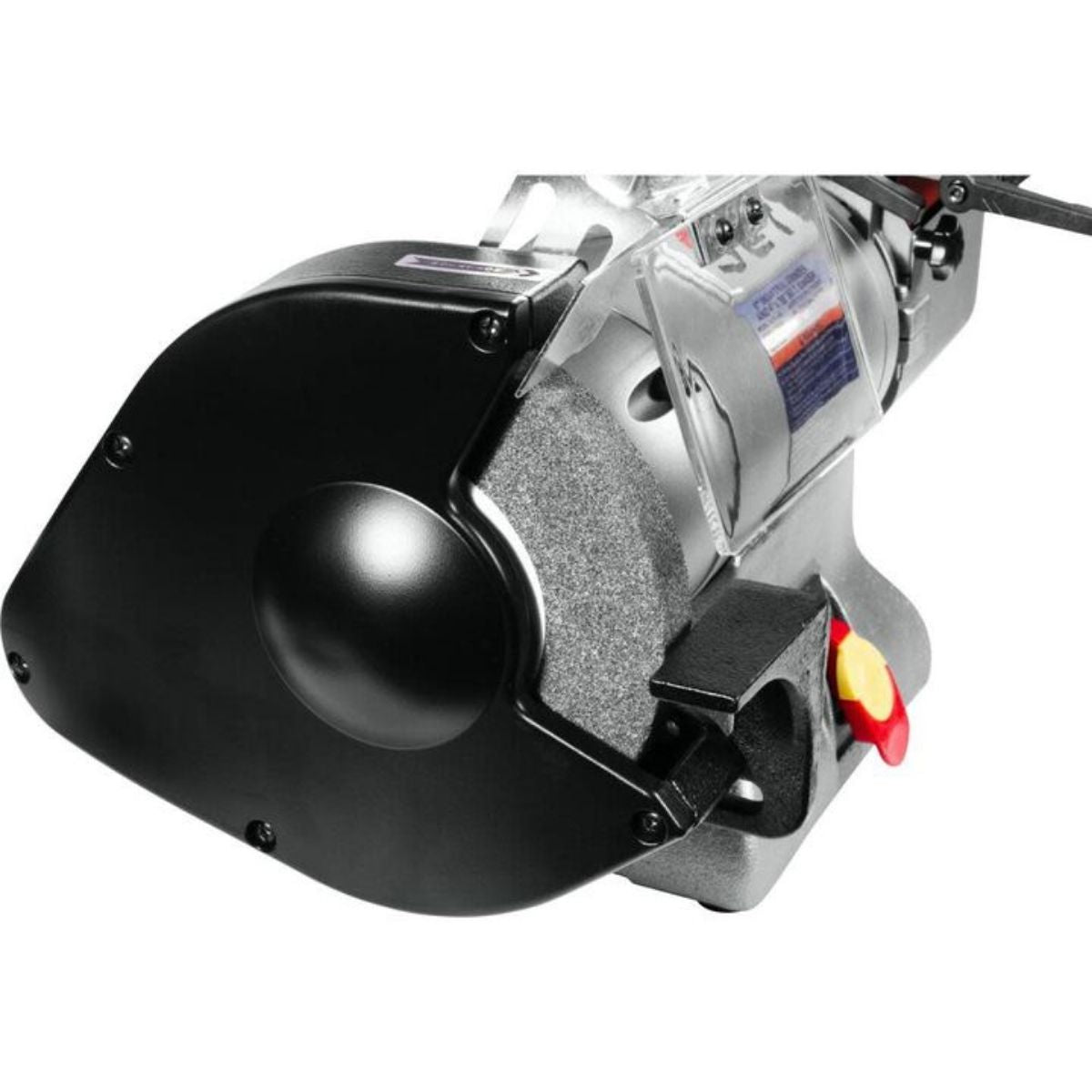

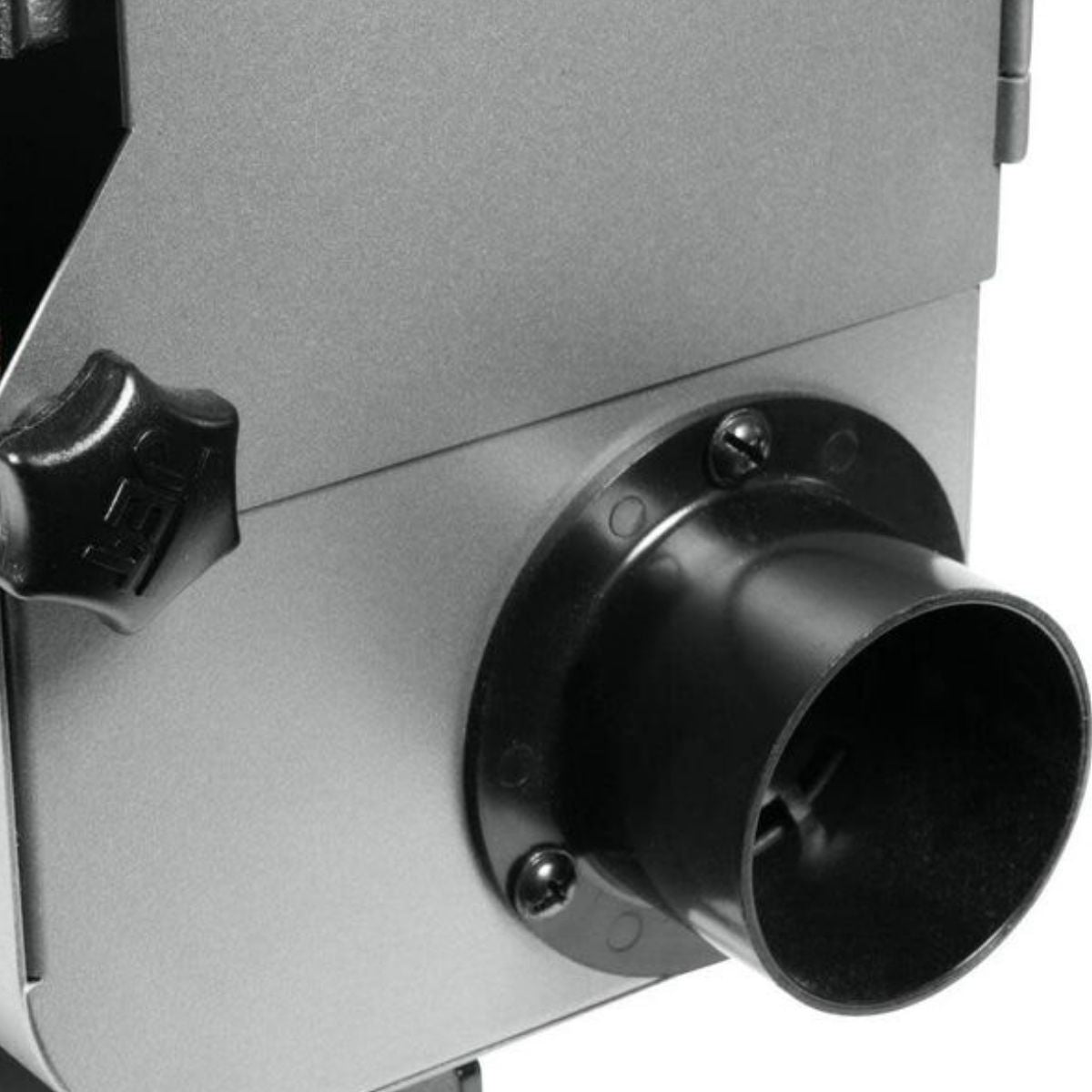

Large adjustable protective shields surround both the grinding wheel and sanding belt, and the innovative guarding around the belt adds a layer of protection that open machines skip. The safety switch includes a removable key so the machine cannot be started without it in place. Two 2-inch round dust ports let you connect dust collection to keep the work area clear.
What's Included
What's Included? JET IBGB-436 8" Bench Grinder with 4" × 36" Belt Sander
-
8-inch grinding wheel — mounts to the enclosed motor shaft for grinding, deburring, and edge work.
-
4" × 36" sanding belt — runs at 3,769 SFPM for material removal and surface finishing.
-
Adjustable eye shields — large OSHA-compliant guards positioned for both the grinder and belt sander stations.
-

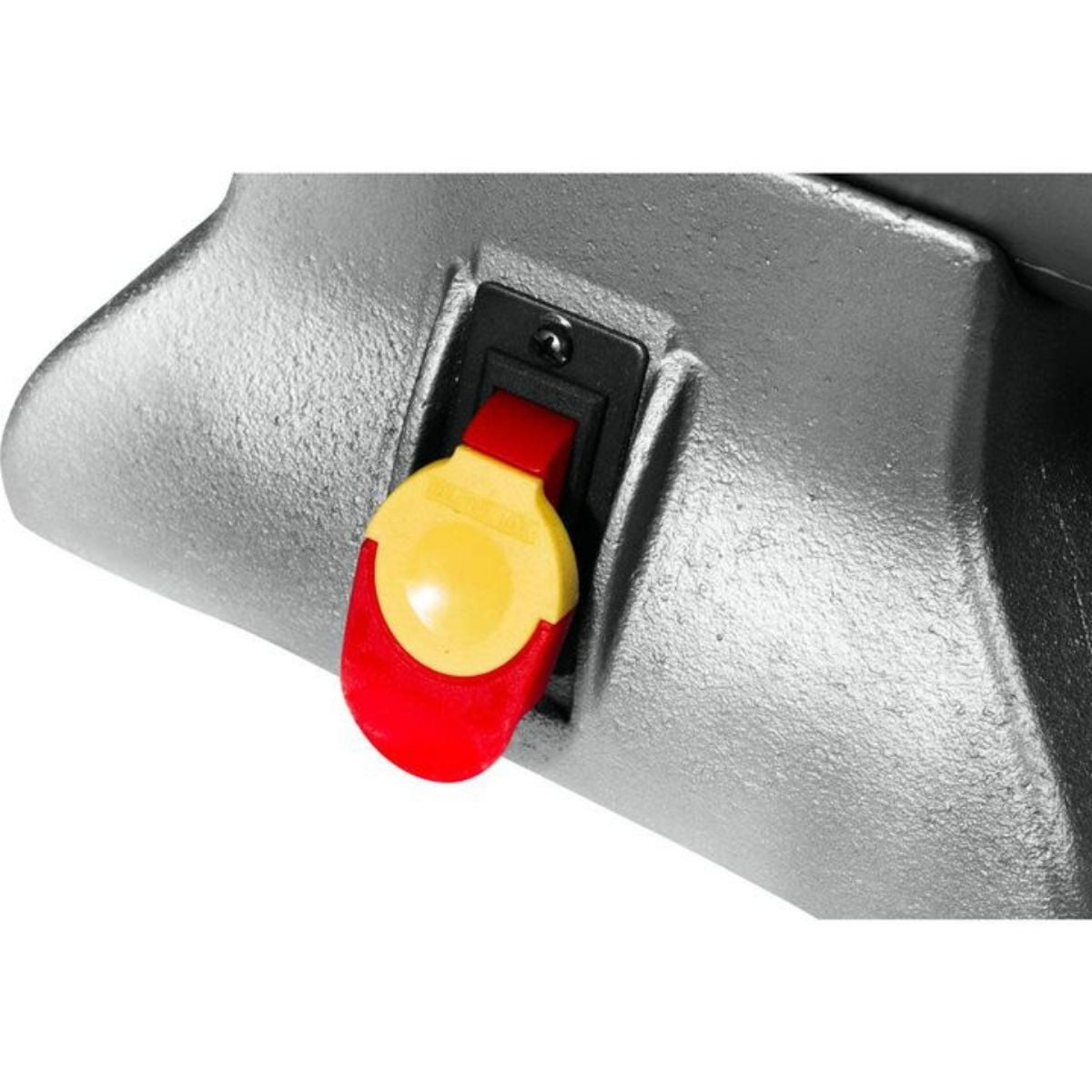

Safety switch with removable key — prevents unintended starts and secures the machine when not in use.
Specs
JET IBGB-436 8" Bench Grinder with 4" × 36" Belt Sander Specifications
- Stock Number: JT9-578436
- Model Number: IBGB-436
- Belt Size (W × L): 4" × 36"
- Belt Speed: 3,769 SFPM

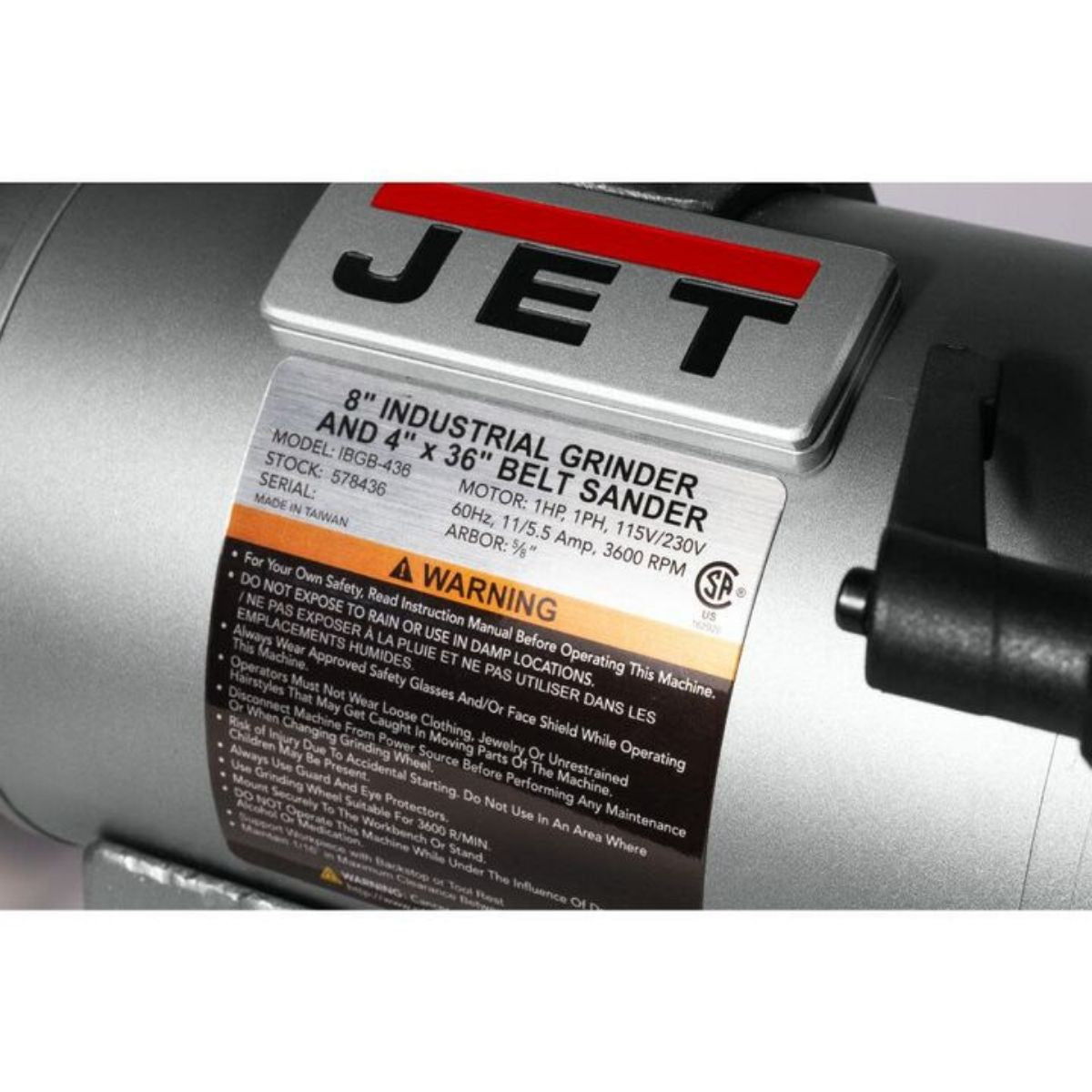

- Motor: 1HP, 115/230V, Single Phase
- Shaft Diameter: 5/8"
- Overall Dimensions — Sanding Bracket Parallel (L × W × H): 23-7/32" × 19-1/2" × 13-15/16"
- Overall Dimensions — Sanding Bracket Vertical (L × W × H): 23-7/32" × 12-7/32" × 20-3/4"
- Gross Weight: 86.5 lbs
- Net Weight: 80.0 lbs
- Warranty: 2 Years
- CSA/CUS Certified
