JET IBGB-248 8" Bench Grinder with 2" × 48" Belt Sander
Are you losing time switching between a grinder and a separate belt sander to finish edges and sharpen tools?
What if one bench machine handled both tasks without giving up floor space or build quality?
Meet the JET IBGB-248, a combination 8-inch bench grinder and 2 x 48 belt sander built for demanding daily shop use.
With the IBGB-248, you get a totally enclosed 1HP motor, sealed ball bearings, and OSHA-compliant guarding designed to hold up through heavy workloads.
When your bench station can grind and sand without compromise, you move through sharpening and finishing work with confidence and less setup.
JET IBGB-248 for Grinding and Belt Sanding at the Bench
Enclosed 1HP Motor Handles Sustained Heavy Use
The totally enclosed motor keeps grinding dust and debris out of the windings, which extends service life under continuous shop conditions. Running on 115/230V single phase, this motor is wired for the voltage that fits your shop without special equipment.
Sealed Ball Bearings Reduce Maintenance Downtime
Pre-lubricated, rubber-sealed bearings on both the grinder and the idle belt wheel are designed to run without regular maintenance. You spend your time working, not servicing the machine between jobs.

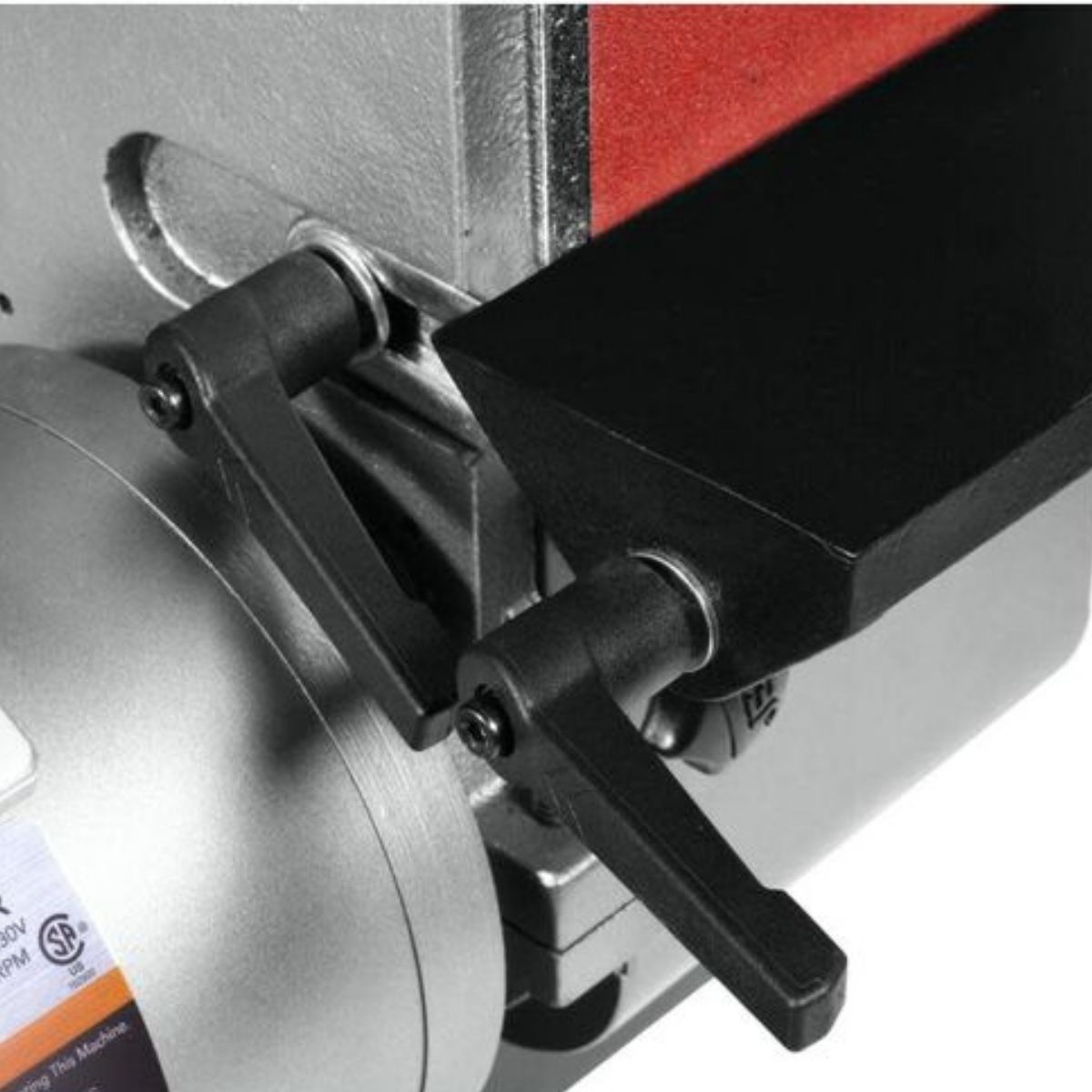

Adjustable Sanding Bracket Positions Belt for the Work

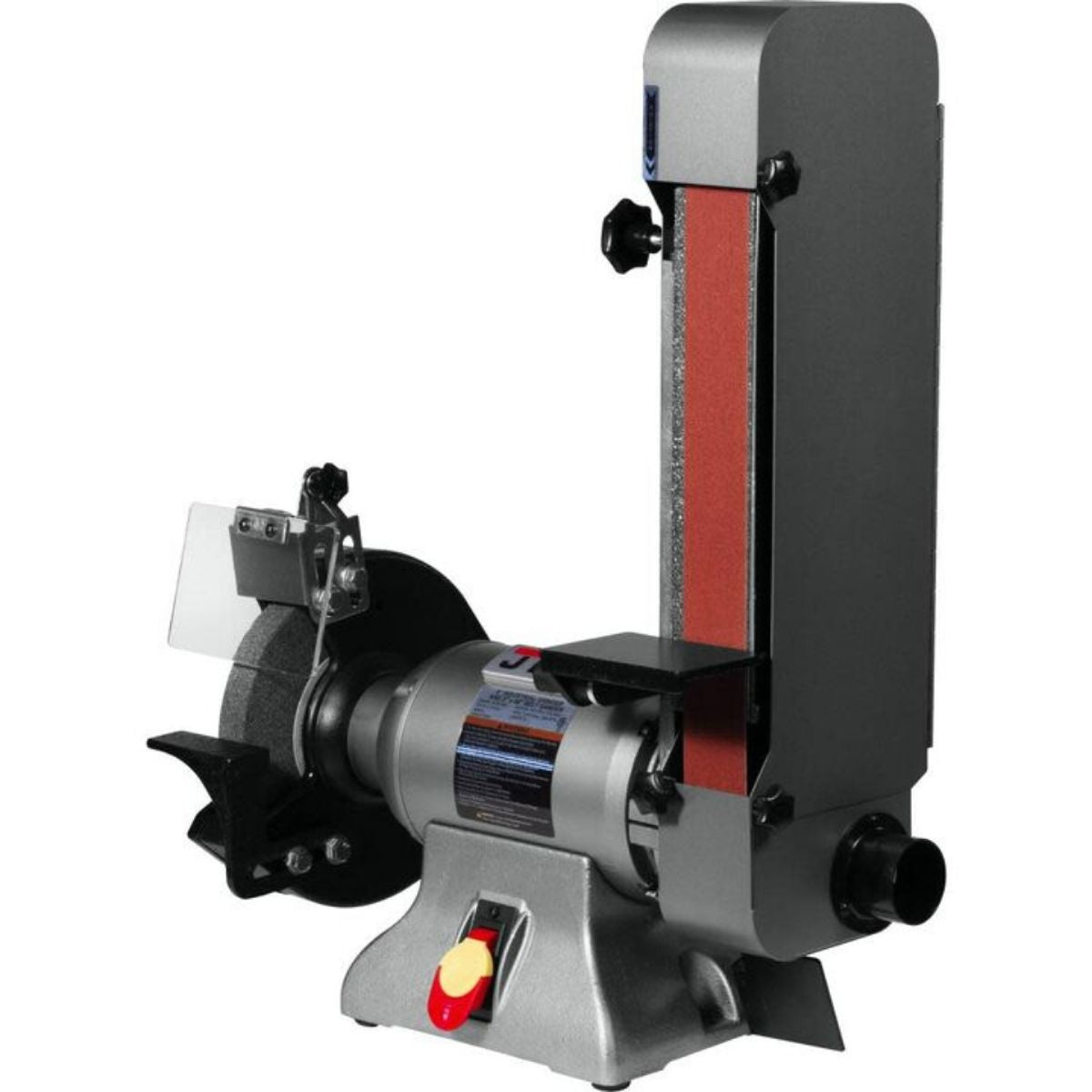

The sanding bracket pivots between a parallel position and a vertical position, so you can orient the belt to match the task at hand. Innovative safety guarding surrounds the sanding belt at both positions, keeping the work area protected without restricting access to the belt surface.

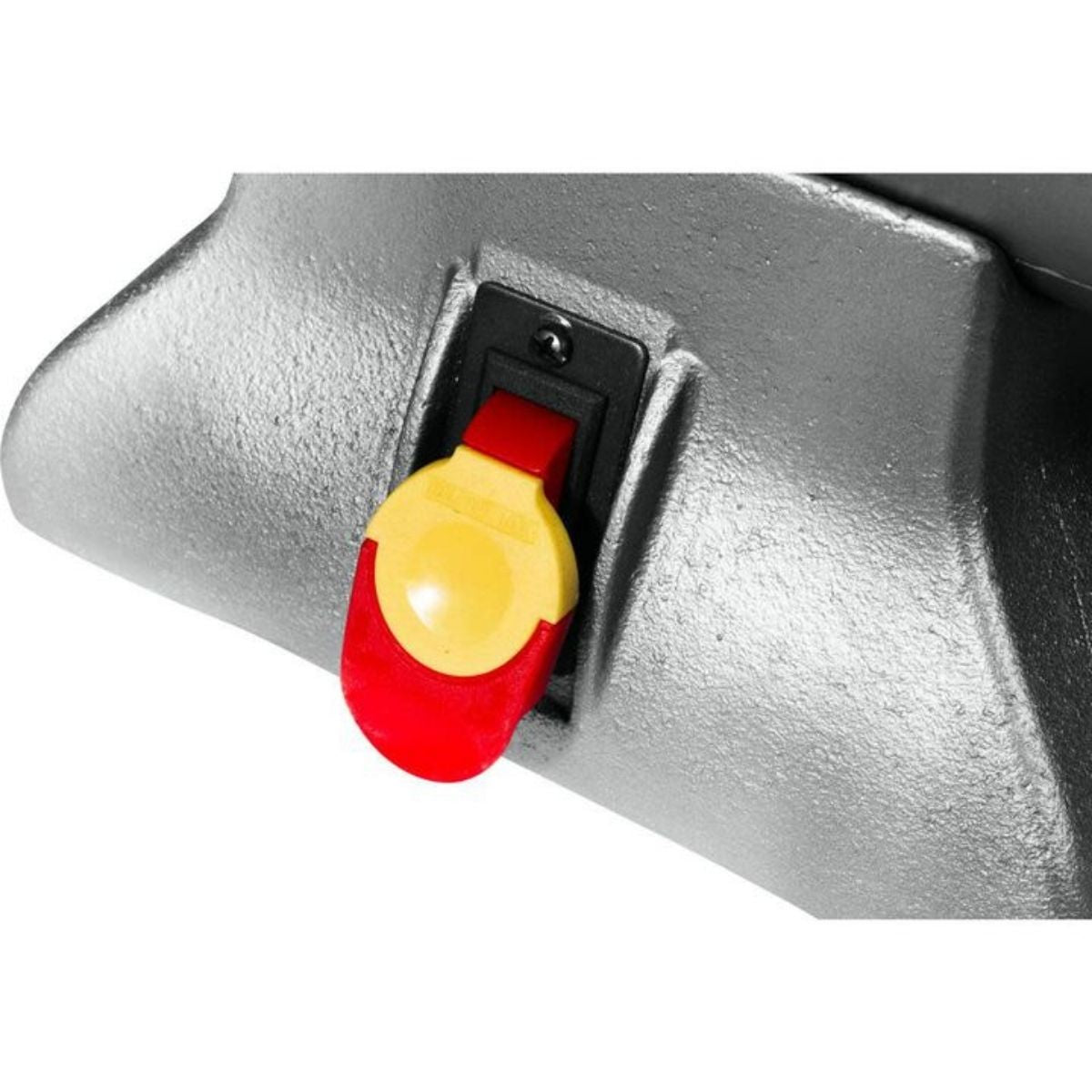

Safety Switch with Removable Key Controls Machine Access
The on/off safety switch includes a removable key that prevents unauthorized or accidental starts. Large adjustable eye shields and OSHA-compliant guarding protect the operator across both grinding and sanding operations.
What's Included
What's Included? JET IBGB-248 8" Bench Grinder with 2" × 48" Belt Sander
-
8-inch bench grinder — provides grinding capability for tool sharpening and edge work at the bench.
-
2" × 48" belt sander — delivers belt sanding for stock removal and surface finishing alongside the grinder.
-
Adjustable eye shields — protect the operator during grinding and sanding operations.
-
Safety switch with removable key — controls machine access and prevents unintended starts.
-
OSHA-compliant adjustable guarding — covers the sanding belt and grinding wheels at required positions.
Specs
JET IBGB-248 8" Bench Grinder with 2" × 48" Belt Sander Specifications
- Stock Number: JT9-578248
- Model Number: IBGB-248
- Belt Size: 2" × 48"
- Belt Speed: 4,712 SFPM
- Motor: 1HP, 115/230V, Single Phase
- Shaft Diameter: 5/8"
- Overall Dimensions (sanding bracket parallel): 21-1/4" L × 24-3/4" W × 13-15/16" H
- Overall Dimensions (sanding bracket vertical): 21-1/4" L × 12-9/32" W × 25-29/32" H
- Net Weight: 80.0 lbs
- Gross Weight: 86.5 lbs
- Warranty: 2 Years
- CSA/CUS Certified
Warning: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov/product
