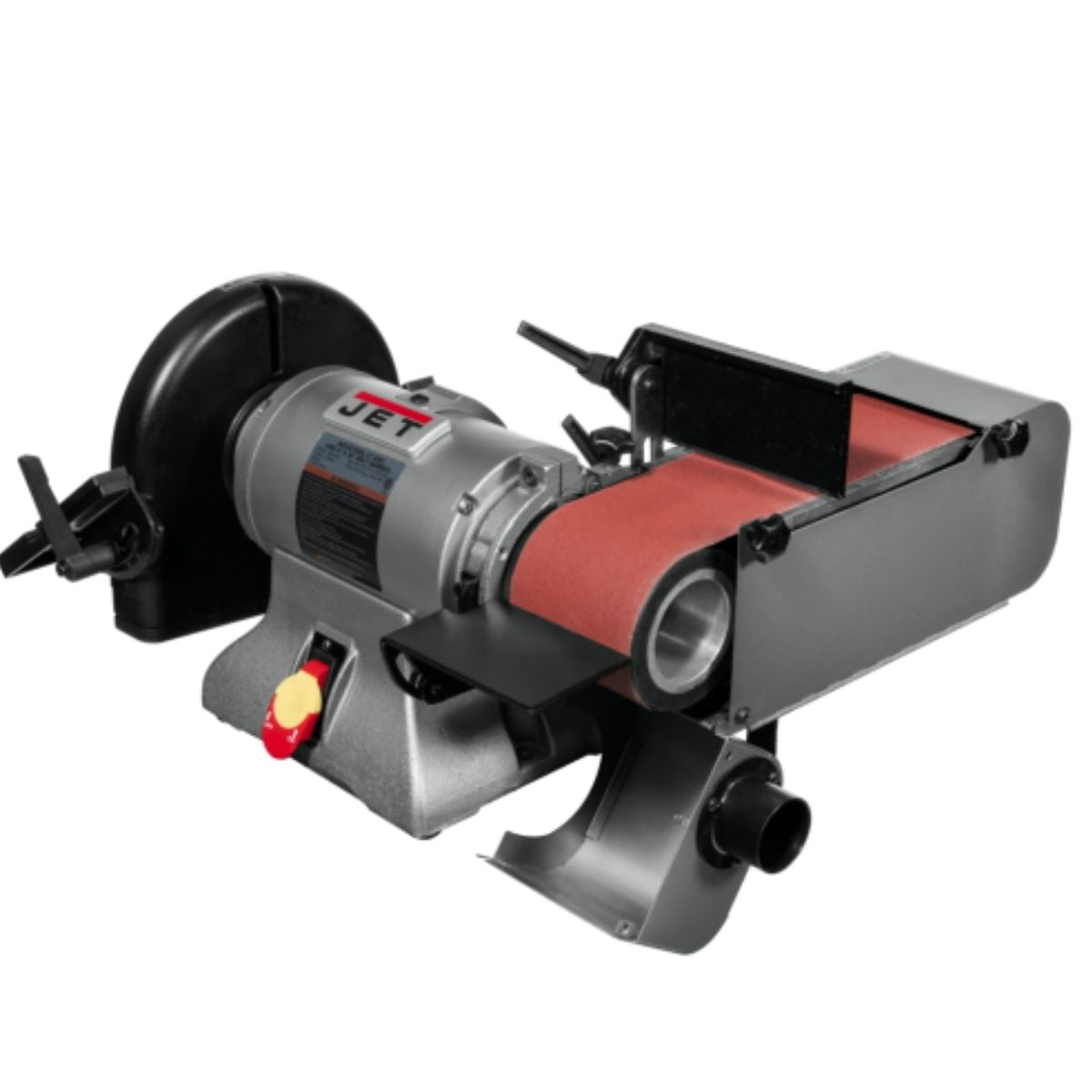

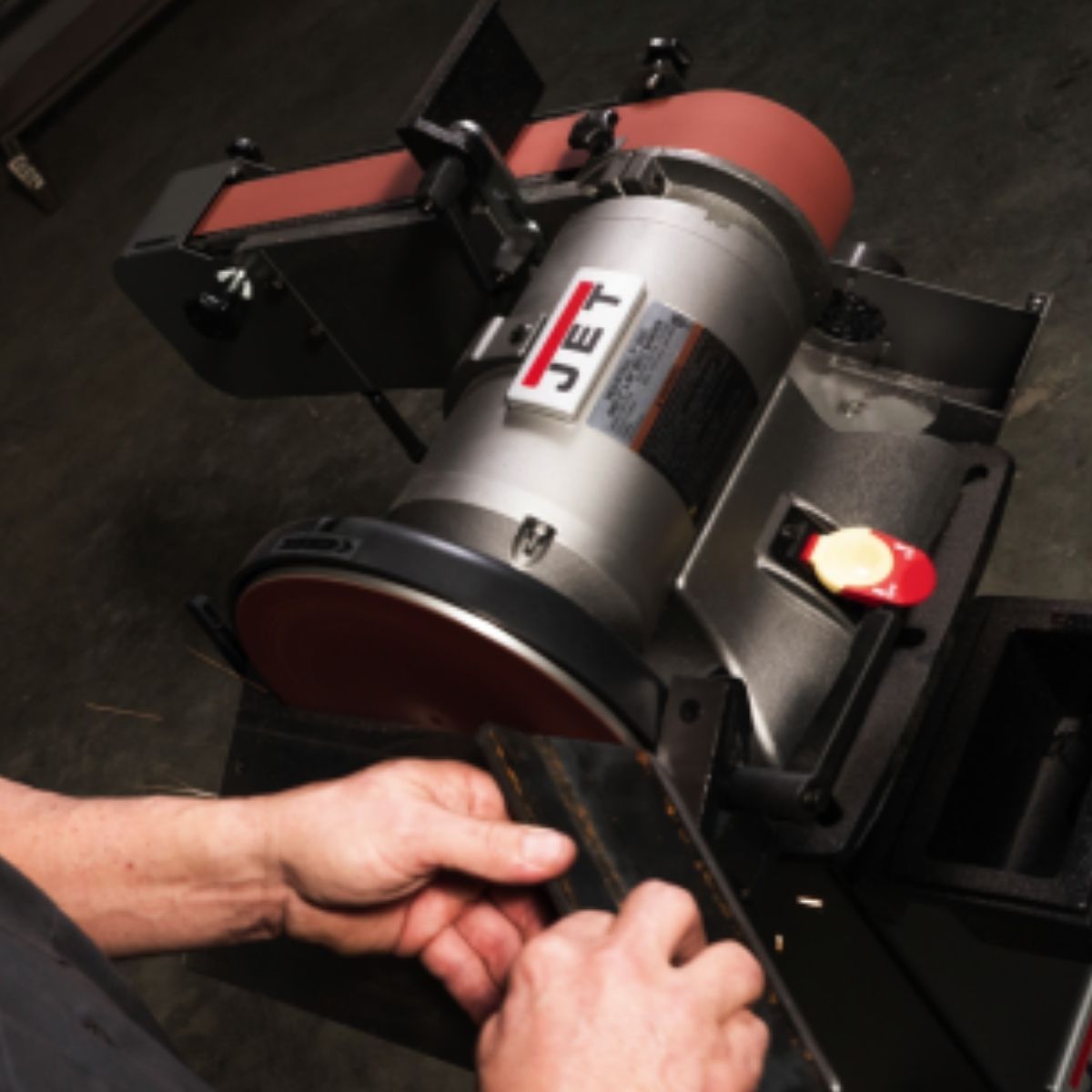

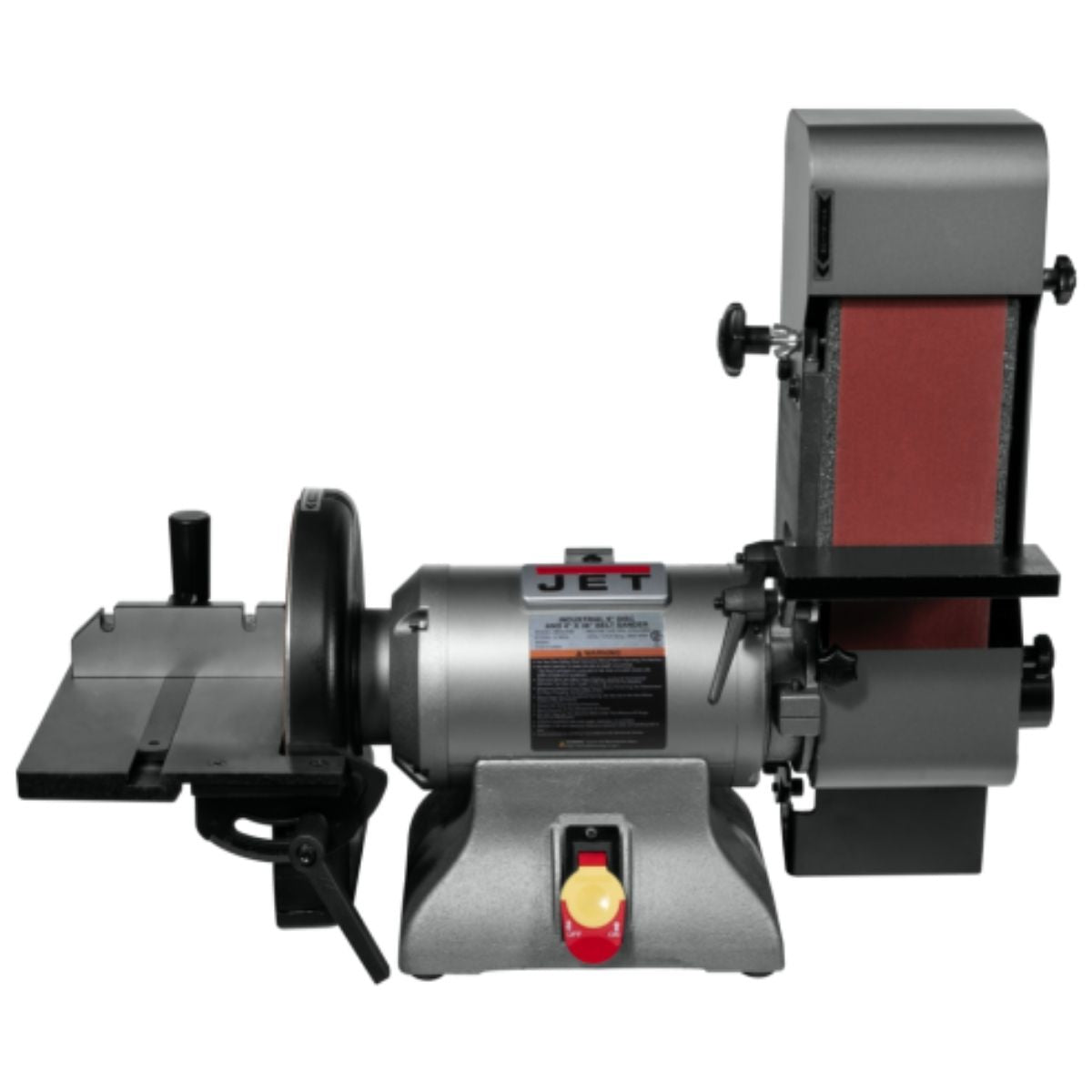

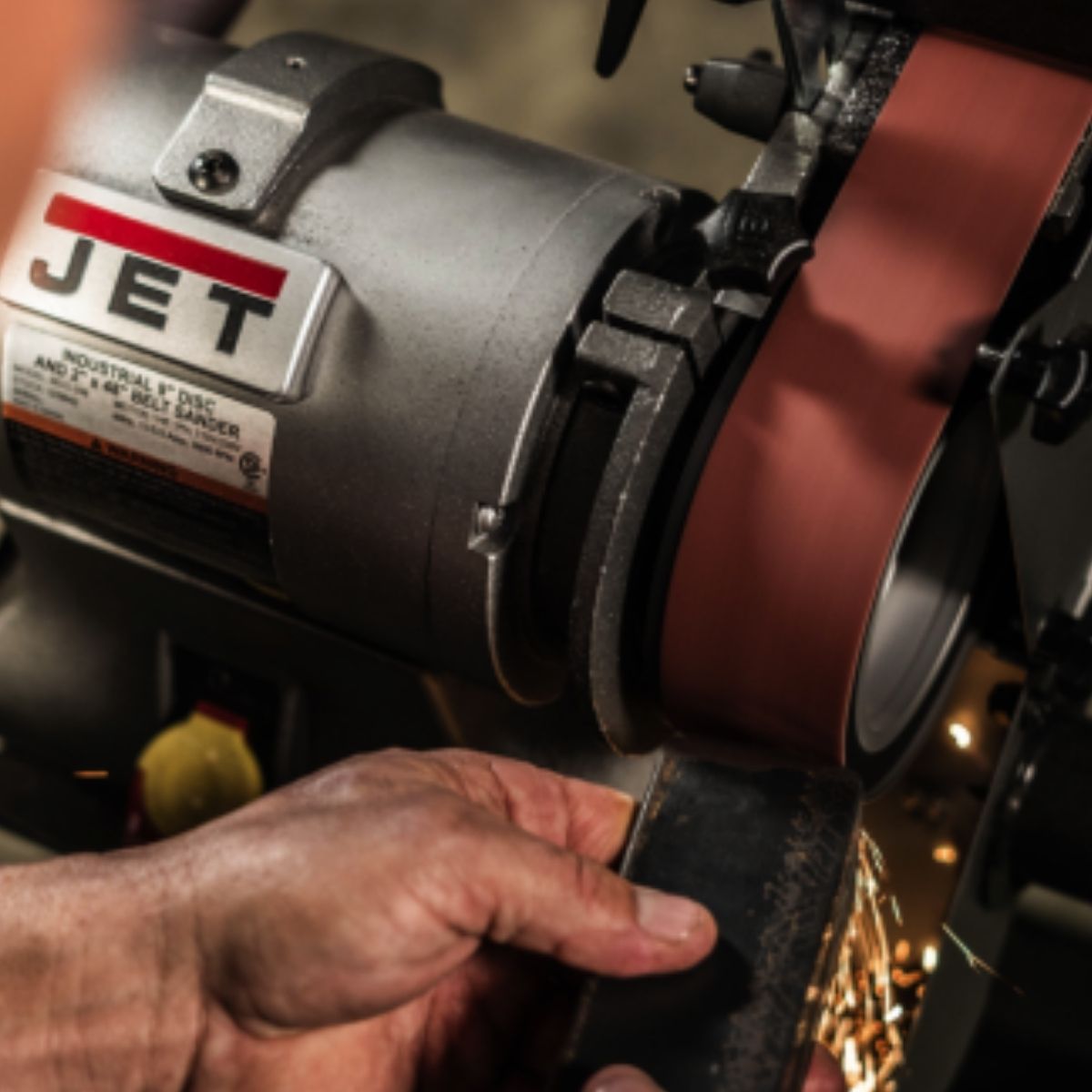

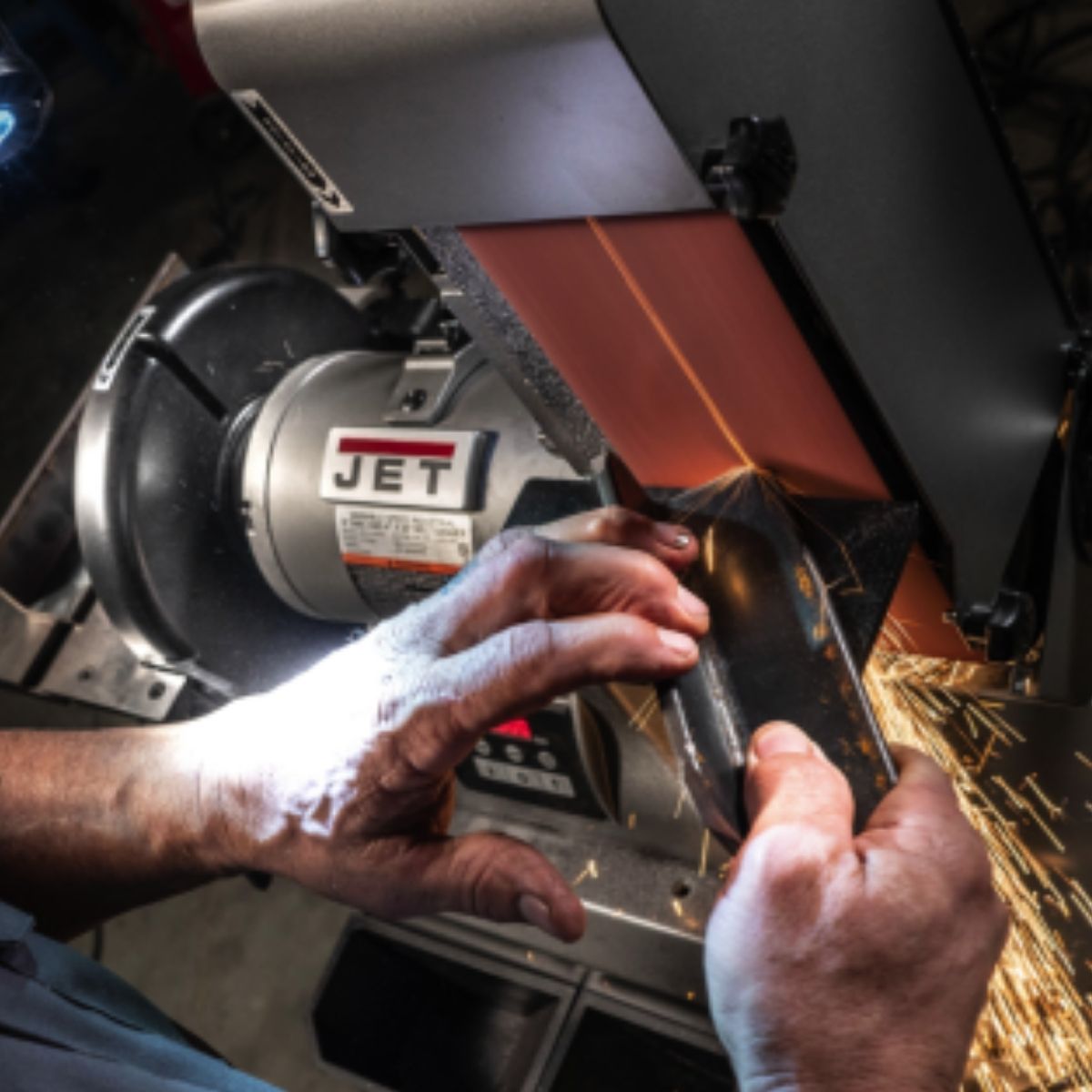

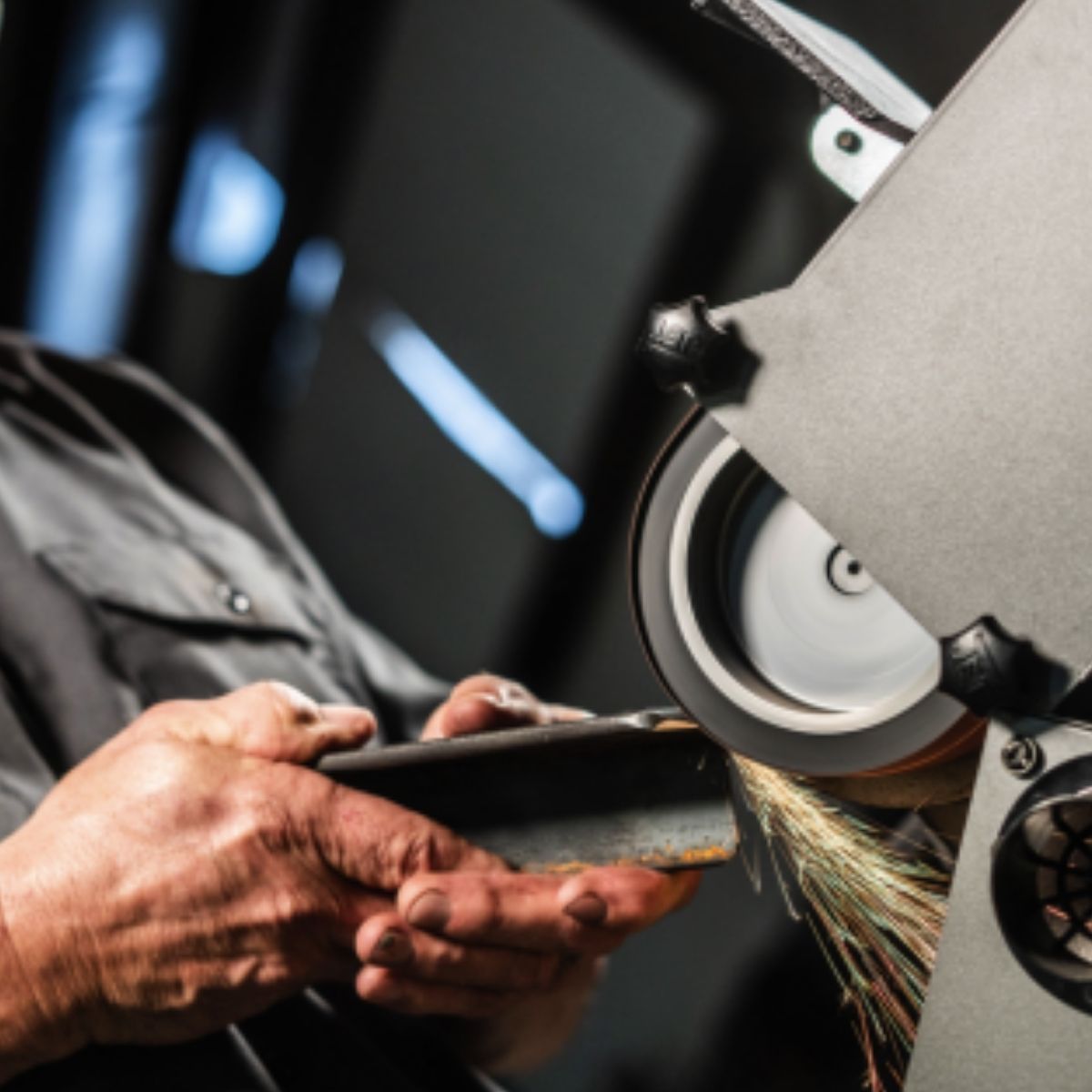

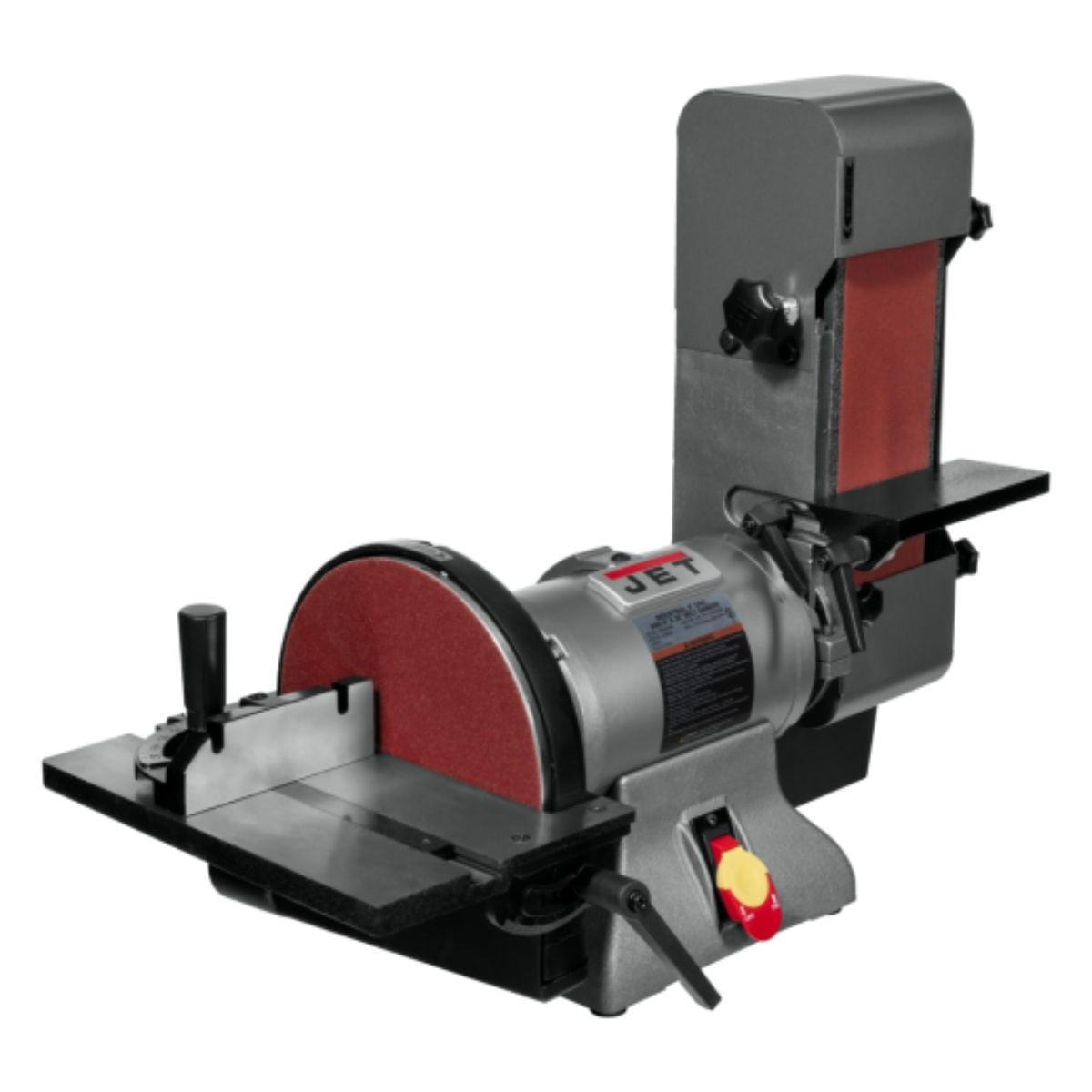

JET IBDG-436VS 4" × 36" Variable Speed Belt & 9" Disc Sander
Are you losing time fighting a grinder that runs at one fixed speed regardless of the material in front of you?
What if you could dial in your surface speed on the fly and trust the machine to stop cleanly when you need it to?
Meet the JET IBDG-436VS, a variable speed combination belt and disc grinder built for consistent, controlled material removal in demanding shop conditions.
With the IBDG-436VS, a digital readout keeps your RPMs and SFPM visible at a glance, and an electric motor brake brings the wheels to a full stop in under 20 seconds.
When the right speed and a rigid grinding surface are dialed in together, you get results that stay consistent from piece to piece.
JET IBDG-436VS for Controlled Belt and Disc Grinding
Variable Speed Control Matches Material Removal to the Job
The IBDG-436VS lets you adjust grinding speed to suit the material you are working. A digital readout displays live RPM and SFPM so you always know exactly where your speed is set. That visibility keeps your work consistent and reduces the guesswork when switching between materials.
Electric Motor Brake Stops the Machine Quickly and Safely
The brake resistor brings belt and disc movement from operating speed to a full stop in under 20 seconds. That quick stop reduces downtime between operations and keeps the shop safer. You spend less time waiting and more time working.
Cast Iron Work Rests and Platen Provide a Rigid Grinding Surface
The solid cast iron platen and cast iron work rests hold your workpiece firmly without flex or chatter. Tool-less work rest adjustment lets you change the angle without breaking your rhythm. The heavy cast iron base adds stability and reduces vibration across the whole machine.
Dual Dust Ports Keep the Work Area Clear
Two dust collection ports pull debris away from the grinding zones so you can see your work clearly and keep your shop cleaner. Contact wheel grinding is accessible without tools, and full guarding covers all non-work contact points so the machine is safe to run in close quarters.
What's Included
What's Included? JET IBDG-436VS 4" × 36" Variable Speed Belt & 9" Disc Sander
-
JET IBDG-436VS Belt and Disc Grinder — The complete machine with 4" × 36" belt, 9" aluminum disc, variable speed motor, digital readout, electric motor brake, cast iron work rests, cast iron platen, heavy cast iron base, and dual dust collection ports.
Specs
JET IBDG-436VS 4" × 36" Variable Speed Belt & 9" Disc Sander Specifications
-
Stock Number: JT9-577634
-
Model Number: IBDG-436VS
-
Belt Size (W × L): 4" × 36"
-
Belt Grit: 80
-
Disc Diameter: 9"
-
Motor: 1 HP
-
Dust Port Size: 2"
-
Shaft Diameter: 7"
-
Overall Dimensions — Sanding Bracket Parallel (L × W × H): 25-3/4" × 21-3/4" × 11-3/4"
-
Net Weight: 77 lbs
-
Gross Weight: 93 lbs
-
Warranty: 2 Years
-
Certifications: CSA/CUS Certified
-
Manual: Available for the IBDG-436VS
