JET IAFS-2400 Industrial Air Filtration Unit
Are you breathing in oil mist, smoke, and fine dust every time you run your machines?
What if your shop air stayed clean enough to work long sessions without worrying about what you were inhaling?
Meet the JET IAFS-2400 Industrial Air Filtration Unit, a ceiling-mounted unit built to pull airborne contaminants out of closed and conditioned metalworking shops.
With a two-filter system rated at MERV 8 and MERV 12, this unit captures fine dust, oil mist, smoke, and water vapor down to 8–10 micron particles at up to 2,097 CFM.
When your air filtration is doing its job, you stay focused on the work in front of you.
JET IAFS-2400 for Cleaner Air in Closed Metalworking Shops
Two-Filter System Captures Fine Particles and Oil Mist

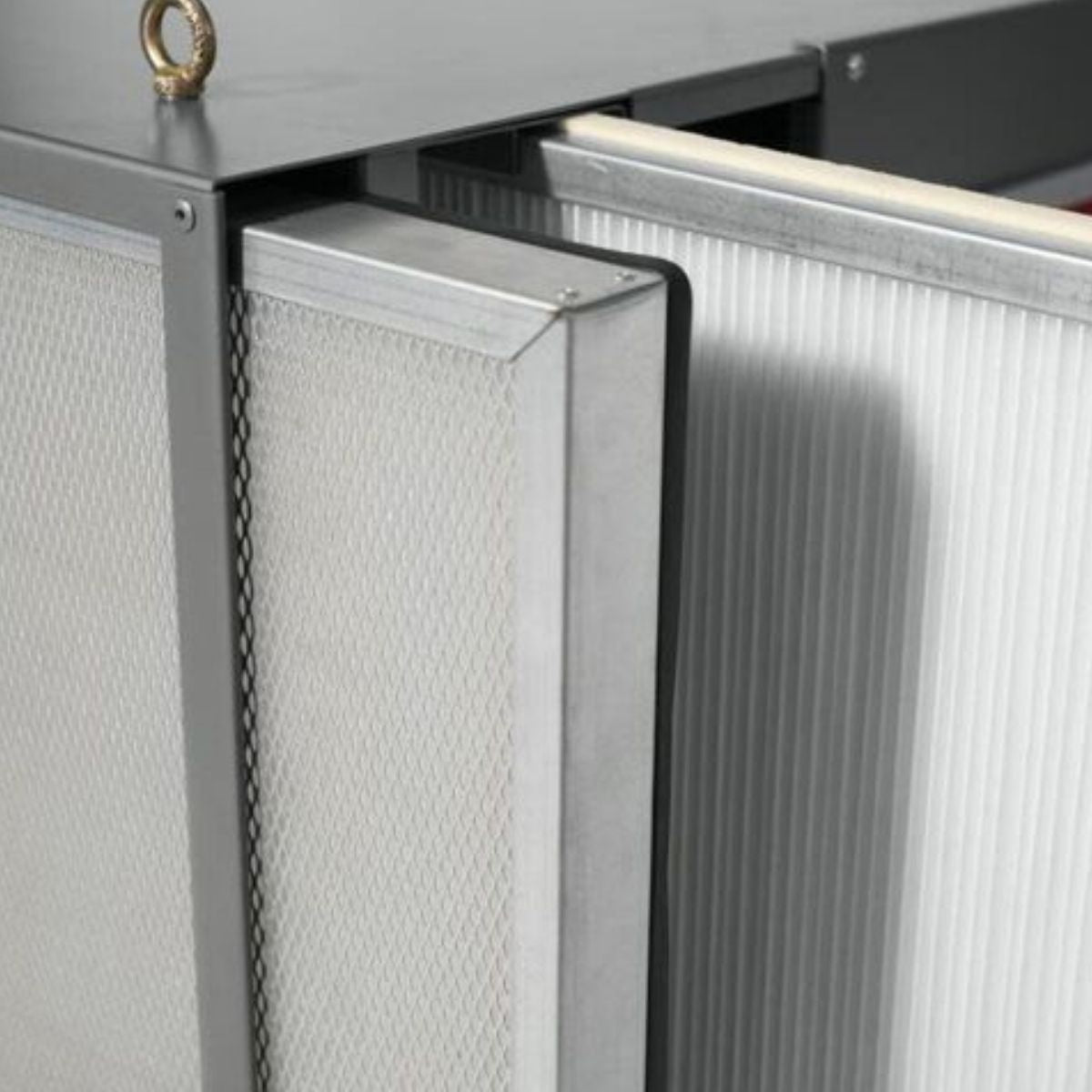

The IAFS-2400 runs a two-stage filtration setup with an outer MERV 8 prefilter and an inner MERV 12 pleated fiber filter. The outer filter handles larger particles and protects the inner filter from loading up too quickly. The inner pleated filter is 99% effective on fumes, oil mist, and water vapor at 8–10 microns, which covers the fine airborne contamination metalworking generates during cutting, grinding, and machining.
Air Diffuser Spreads Filtered Output Across the Shop
Outgoing filtered air passes through a diffuser that breaks it into a broader pattern rather than directing it in a single stream. This helps distribute clean air more evenly across the work area. The adjustable exhaust lets you aim circulation where your shop needs it most, which matters in closed or air-conditioned spaces where airflow is controlled.
Three-Speed Motor Matches Filtration to Shop Conditions

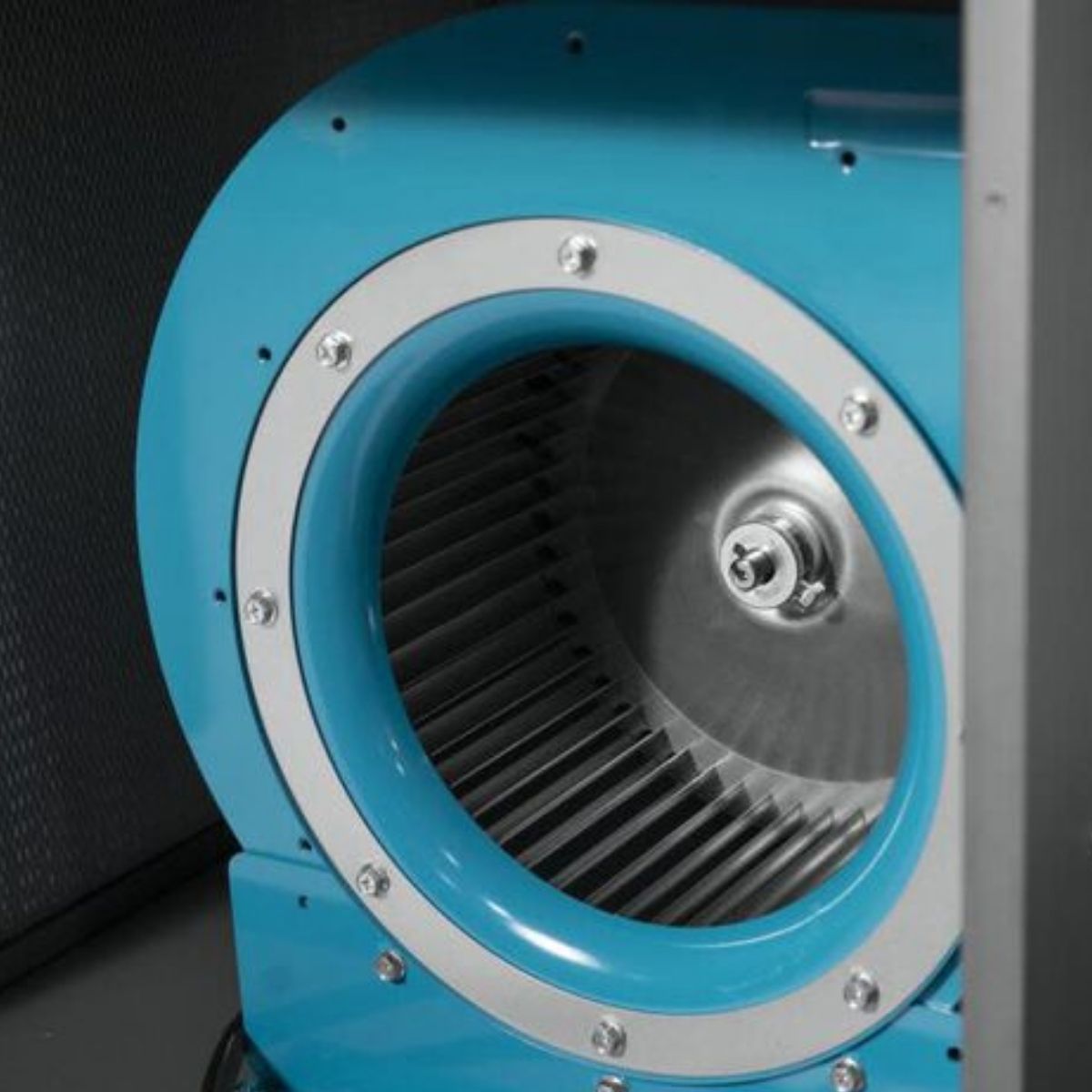

The 3/4 HP, 115V single-phase motor runs at three speeds: 2,097, 1,524, and 1,168 CFM. Lower speeds reduce noise to 66 dB and draw less power during lighter work. When the shop is running hard and contamination is higher, the top speed handles the load. The fully enclosed ball bearing motor includes overload protection for reliable daily service.

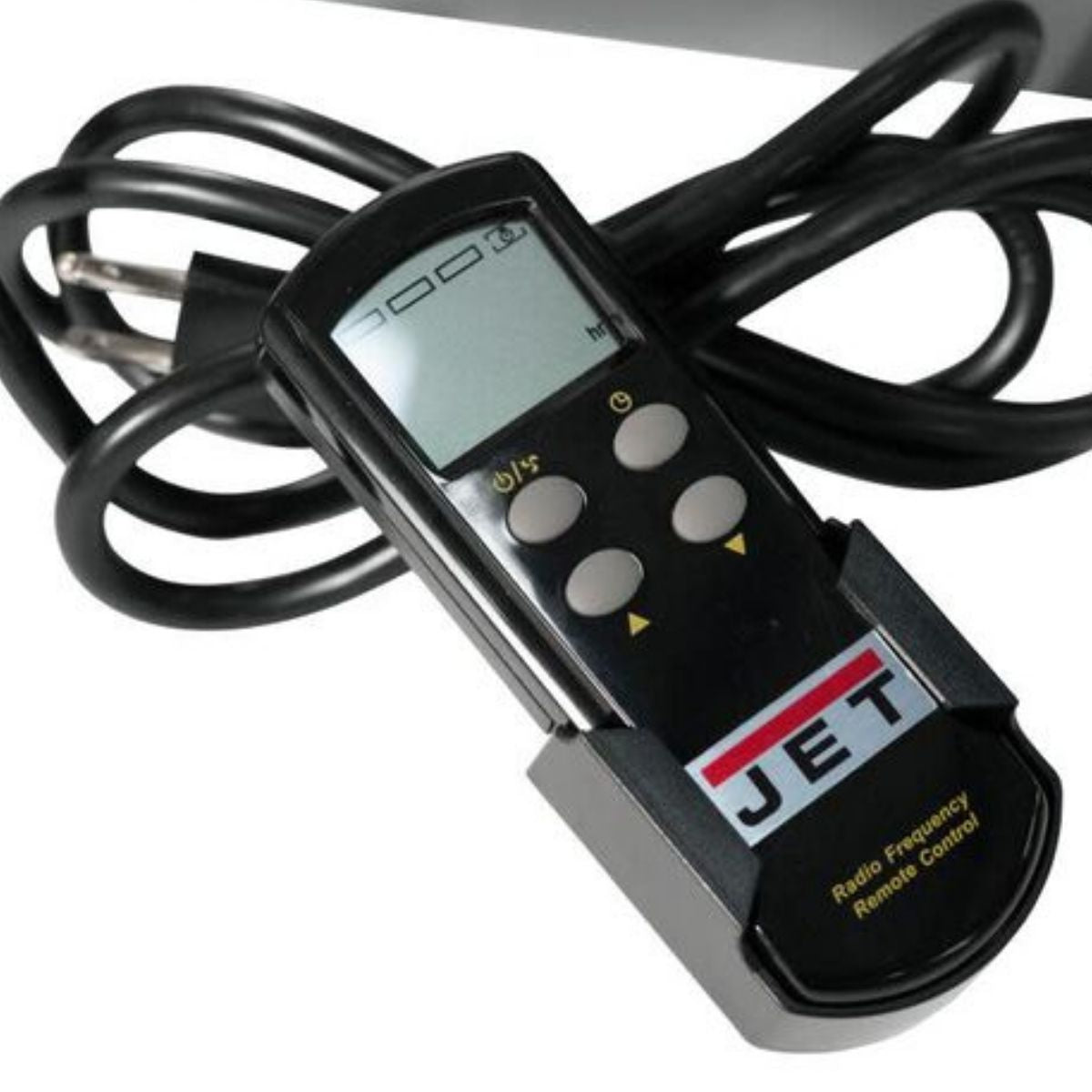

Programmable Timer Controls Runtime Automatically
A built-in timer adjusts in one-hour increments up to nine hours, so the unit can continue filtering after the machines shut down without requiring a manual shutoff. Residual dust and mist stay suspended in the air after work stops, and the timer keeps the filtration running until the air clears. This also reduces wear from unnecessary runtime during off hours.
What's Included
What's Included? JET IAFS-2400 Industrial Air Filtration Unit
-
JET IAFS-2400 Air Filtration Unit — The main ceiling-mounted unit with motor, housing, and both filters installed and ready for hanging.
-

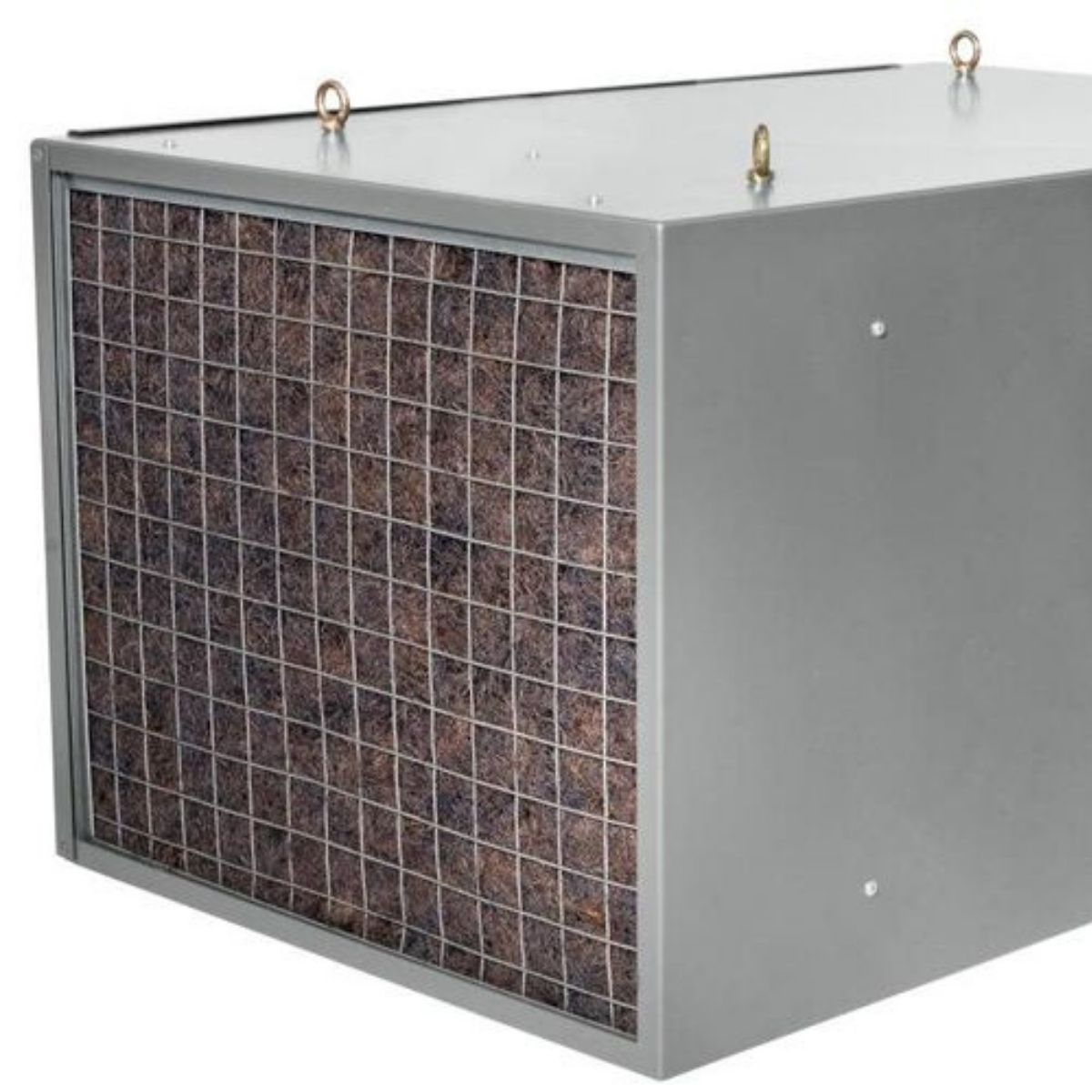

MERV 8 Outer Prefilter — Captures larger airborne particles and extends the service life of the inner filter.
-
MERV 12 Inner Pleated Fiber Filter — Handles fine dust, oil mist, smoke, and water vapor at 8–10 micron particle size.
-
Air Diffuser — Disperses filtered exhaust air into a broader pattern for more even shop circulation.
Specs
JET IAFS-2400 Industrial Air Filtration Unit Specifications
- Stock Number: JT9-415125
- Model: IAFS-2400
- Motor: 3/4 HP, 115V, 1Ph, Single Phase
- Motor Amps: 8.5A
- Speeds (CFM): 2,097 / 1,524 / 1,168
- Outer Filter Efficiency: MERV 8
- Inner Filter Efficiency: MERV 12
- Inner Filter Effectiveness: 99% at 8–10 micron particles (fumes, oil mist, water vapor)
- Timer Settings: 1–9 hours
- Sound Rating: 71 / 69 / 66 dB
- Overall Dimensions (L x W x H): 36-11/16" x 24" x 20-9/32"
- Net Weight: 105 lbs
- Gross Weight: 120 lbs
- Warranty: 2 Years
- Manual: Refer to JET IAFS-2400 product manual for installation and maintenance instructions
