JET HVBS-8-DMW Portable Metal Bandsaw
Are you losing time on angle cuts because your saw locks you into a single position?
What if your bandsaw could miter left and right, switch from horizontal to vertical, and roll to wherever the work is?

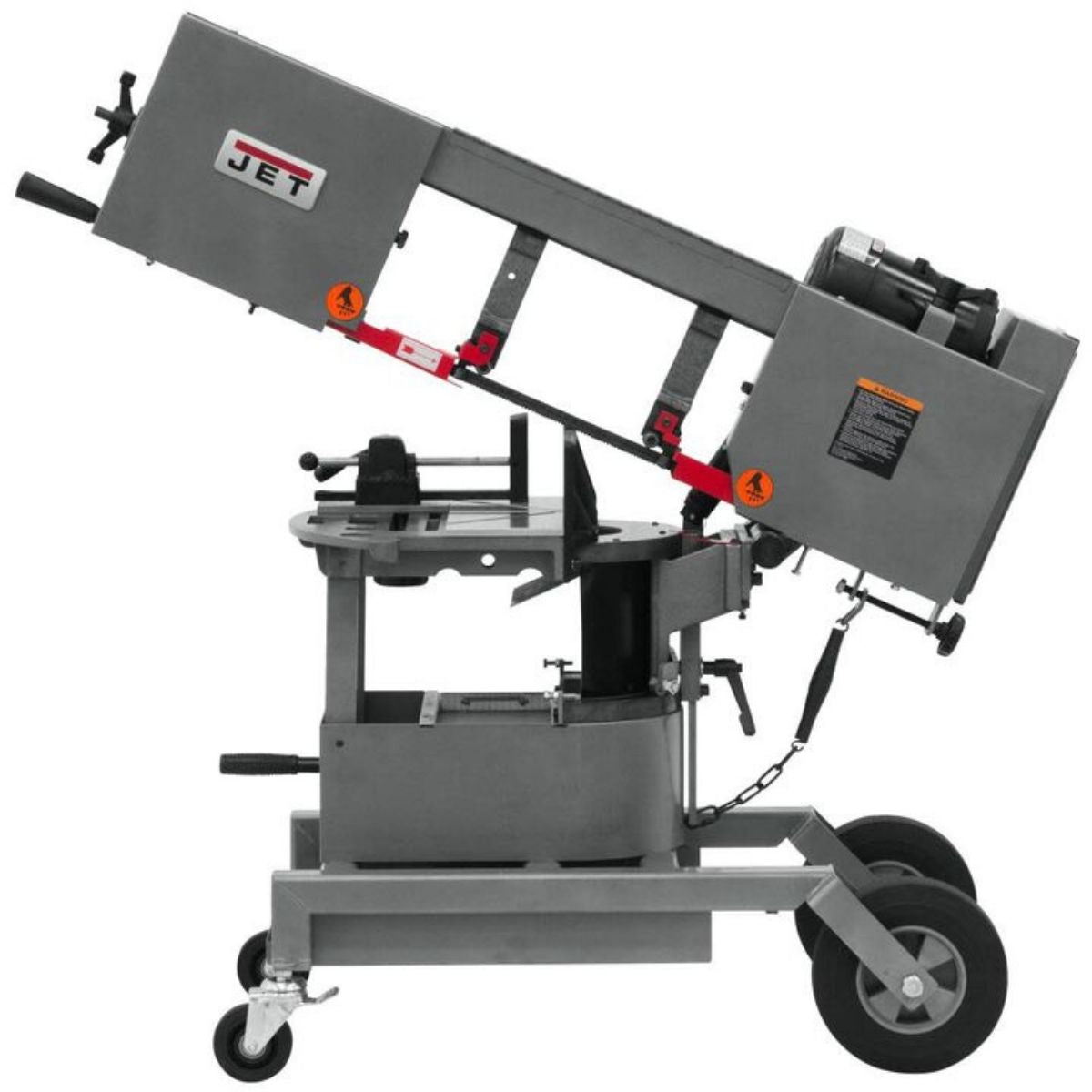

Meet the JET HVBS-8-DMW Portable Metal Bandsaw, a dual-mitering horizontal and vertical band saw built for metal cutting in production and job shop environments.
With the HVBS-8-DMW, you get a hydraulic downfeed system, a built-in blade brush, and a protractor scale all working together to keep cuts accurate and the machine running clean.
When your saw handles angle changes quickly and moves with you across the shop floor, you spend more time cutting and less time repositioning.
JET HVBS-8-DMW for Horizontal and Vertical Metal Cutting
Dual-Mitering Head Expands Cut Versatility
The head on the HVBS-8-DMW miters up to 45 degrees in both directions. This lets you cut compound angles and change between miter positions without rearranging the workpiece or the machine. For shops that cut structural stock, tubing, and bar stock at varied angles, this range of movement reduces setup time on every job.

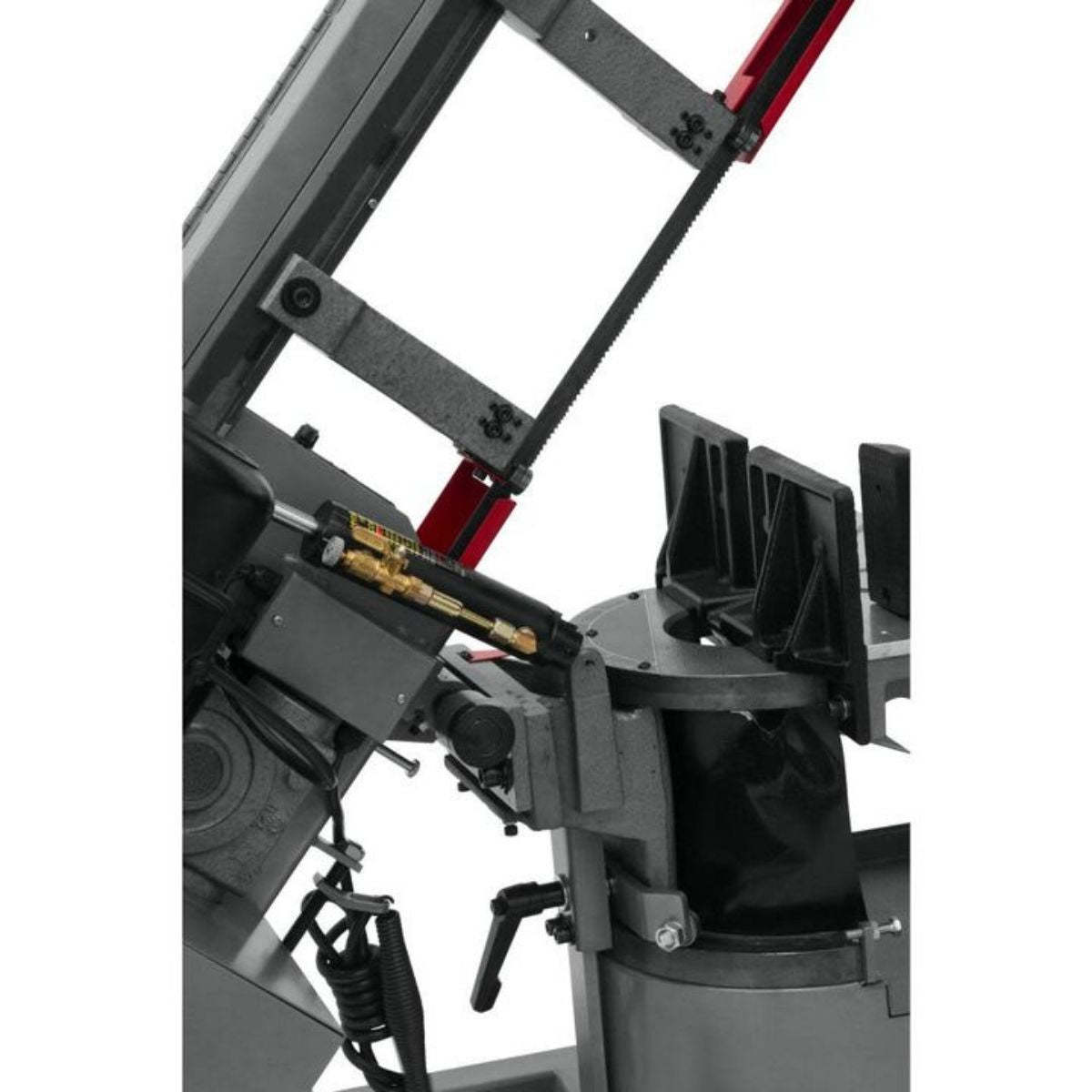

Hydraulic Downfeed Control Regulates Feed Rate
A hydraulic cylinder controls head pressure and descent throughout the cut. Feed rate is adjustable to match the material being cut, whether that is solid round stock, rectangular bar, or lighter-wall tubing. Consistent downfeed pressure reduces blade deflection and keeps cuts square from start to finish.

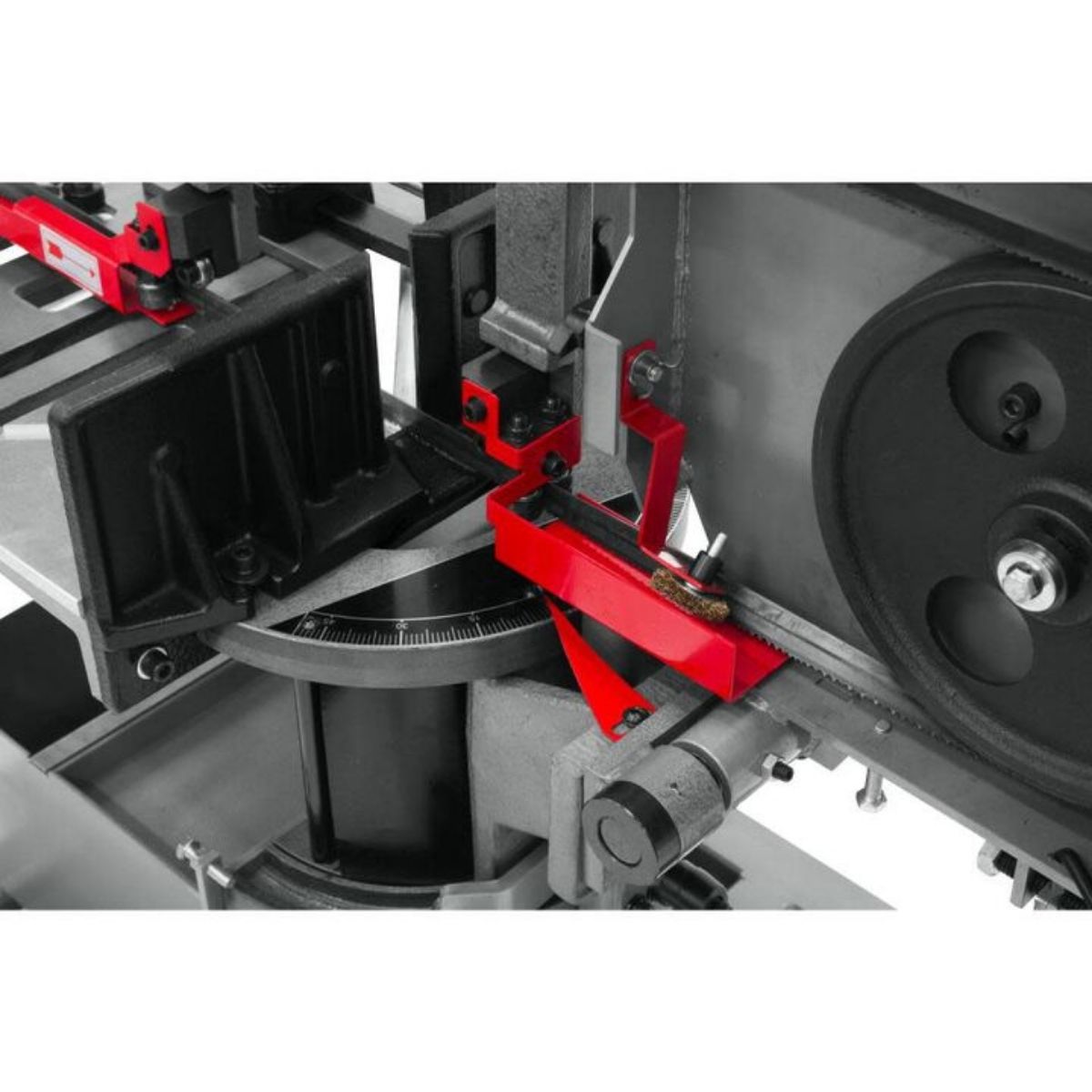

Built-In Blade Brush Protects Guide Life
A self-propelled blade brush runs continuously during operation to clear chips from the blade guides before they can pack in and cause blade drift. Keeping the guides clean extends blade life and maintains tracking accuracy without any manual clearing between cuts.
Horizontal-to-Vertical Conversion Adds Cutting Capacity
The saw converts from horizontal to vertical operation to give you a 16 inch by 10 inch vertical cutting table when the job calls for it. The table sits at 27-5/16 inches and handles cuts up to 8 inches round and 7 by 8 inches rectangular at 90 degrees. Wheels on the base let you move the machine to the work rather than moving heavy stock to the saw.
What's Included
What's Included? JET HVBS-8-DMW Portable Metal Bandsaw
-
JET HVBS-8-DMW Portable Metal Bandsaw — The main unit with dual-mitering head, hydraulic downfeed, and horizontal and vertical cutting capability.
-
Adjustable Vise — Holds workpieces securely during horizontal cuts with up to 8-1/4 inch opening capacity.
-
Removable Chip Tray — Collects metal chips at the cut zone to keep the work area clean and reduce cleanup time.
-
Protractor — Mounted to the saw for fast, accurate angle reference when setting miter cuts.
-
Safety Key — Installed in the power switch to prevent accidental startup when the saw is unattended.
Specs
JET HVBS-8-DMW Portable Metal Bandsaw Specifications
-
Stock Number: JT9-424460
-
Model Number: HVBS-8-DMW
-
Motor: 3/4 HP, 115V, 1-Phase
-
Blade Wheel Diameter: 8-13/16 in.
-
Head Movement: +/- 45 degrees
-
Maximum Vise Opening: 8-1/4 in.
-
Round Capacity at 90 Degrees: 8 in.
-
Round Capacity at 45 Degrees: 6 in.
-
Rectangle Capacity at 90 Degrees: 7 x 8 in.
-
Rectangle Capacity at 45 Degrees: 7 x 5-1/2 in.
-
Vertical Cutting Table: 16 x 10 in.
-
Table Height: 27-5/16 in.
-
Overall Dimensions (L x W x H): 24 x 54.7 x 43.8 in.
-
Net Weight: 363 lb.
-
Gross Weight: 500 lb.
-
Warranty: 2 Years
