JET HVBS-712D 7" x 12" Deluxe Horizontal/Vertical Metal Bandsaw
Are you losing time fighting a bandsaw that can't hold up to the variety of cuts your shop demands?
What if your metal bandsaw could switch between horizontal and vertical work without slowing down your process?

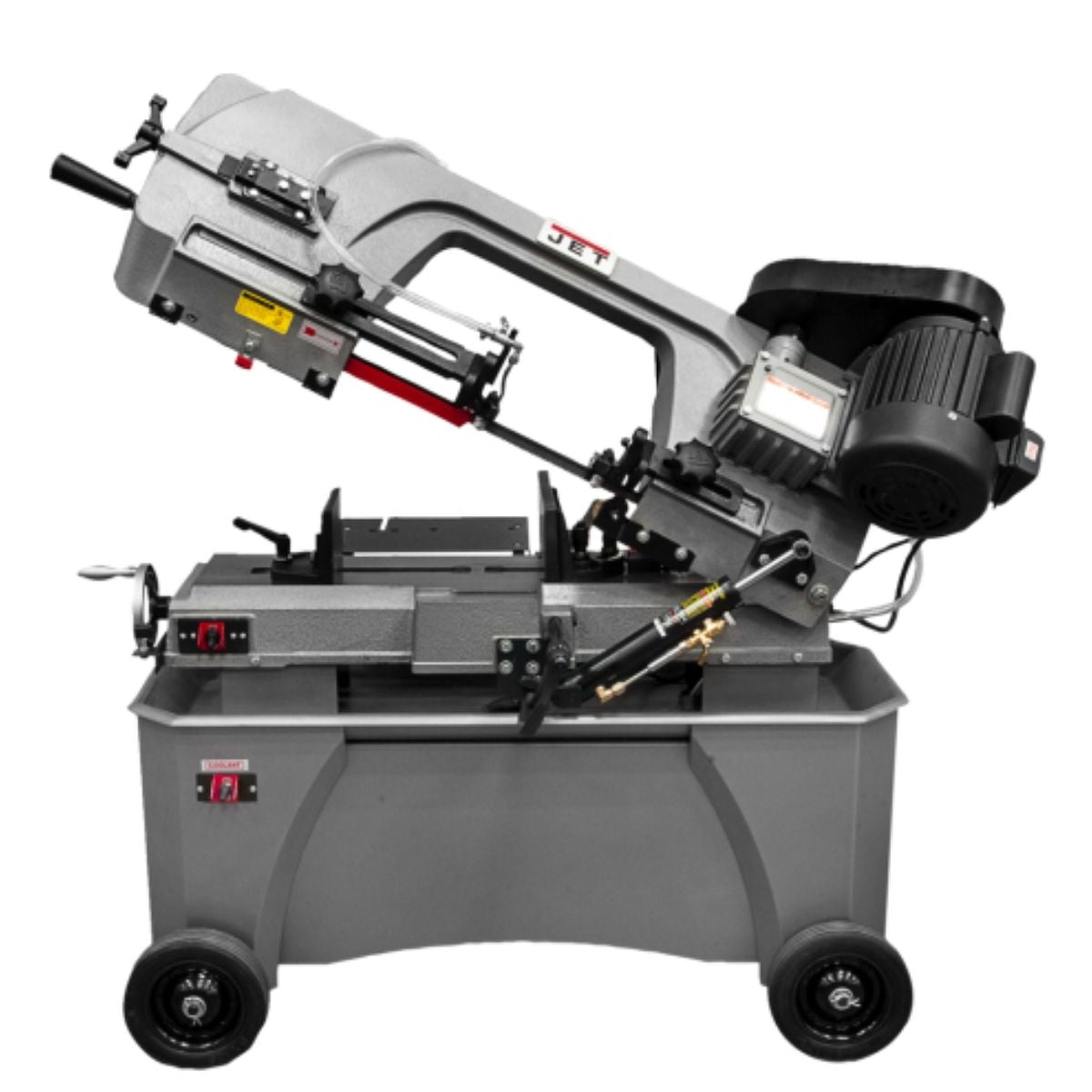

Meet the JET HVBS-712D 7" x 12" Deluxe Horizontal/Vertical Metal Bandsaw, built for shops that need reliable cutting performance in both orientations.
With the HVBS-712D, you get a sealed gear drive system, cast iron blade wheels, and a hydraulic downfeed that keeps cuts controlled and consistent.
When your saw holds position and handles material the way it should, you move through stock faster and spend less time managing the machine.
JET HVBS-712D for Accurate, Controlled Metal Cutting
Sealed Gear Drive Delivers Consistent Blade Power
The HVBS-712D uses a belt-to-sealed, hardened, and ground gear drive system to transfer power to the blade. This design keeps the drivetrain protected from chips and coolant while maintaining steady blade speed through demanding cuts. Four selectable blade speeds — 86, 132, 178, and 260 SFPM — let you match the saw to the material on the table.
Cast Iron Blade Wheels Support Stable Blade Tracking
The flanged cast iron blade wheels are built to hold their shape under load and maintain consistent tracking through continuous use. Cast iron resists flex better than lighter wheel materials, which helps keep blade drift in check during long cuts. This contributes to cleaner, straighter results across a range of stock sizes.

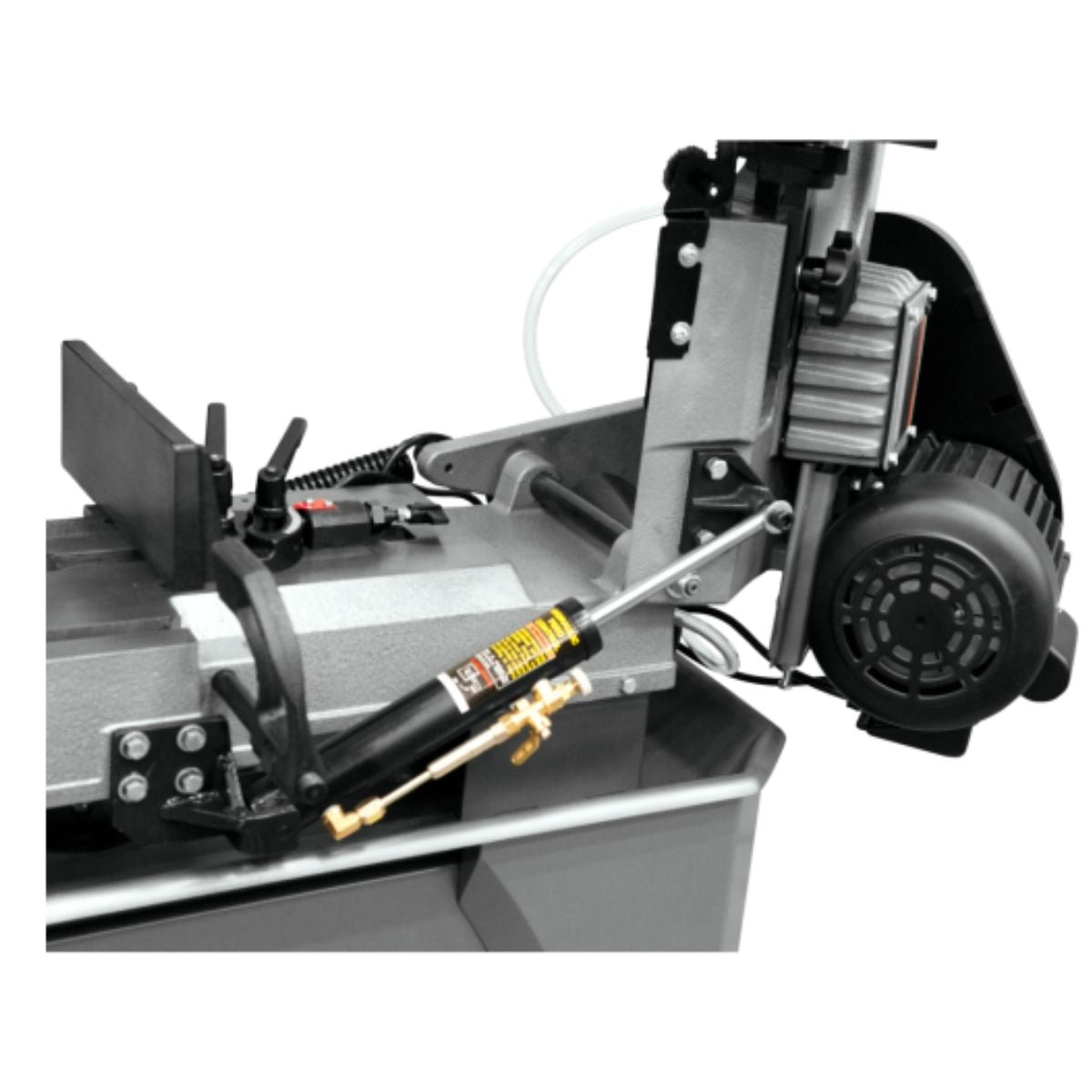

Hydraulic Downfeed Controls Cut Rate and Reduces Operator Fatigue
The cast-mounted adjustable hydraulic downfeed regulates how quickly the head descends into the material. You set the rate and let the saw work at a steady pace rather than managing pressure by hand. This is especially useful during production runs where consistent cut quality matters from the first piece to the last.
Multi-Position Blade Guides and Vertical Throat Capacity Expand What You Can Cut

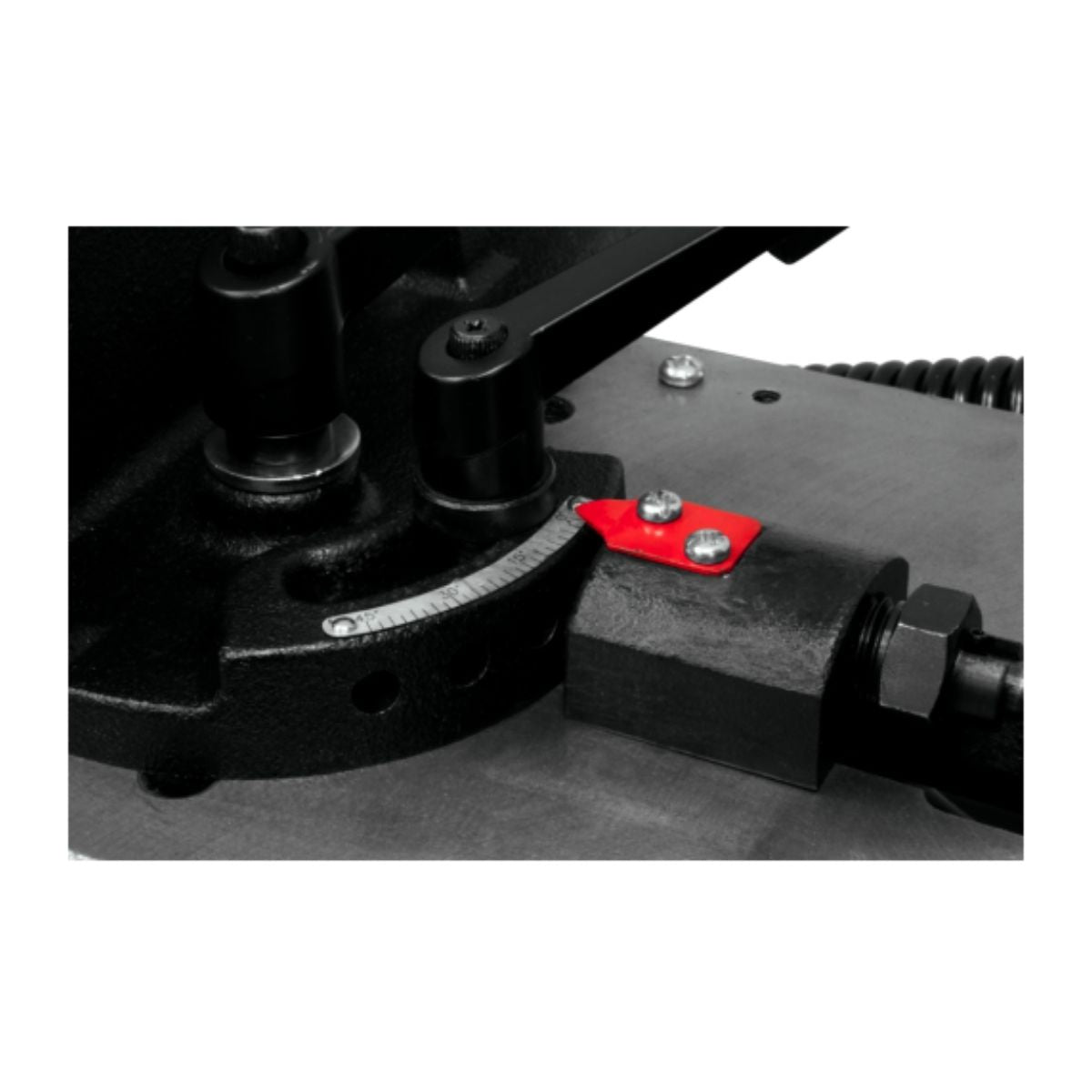

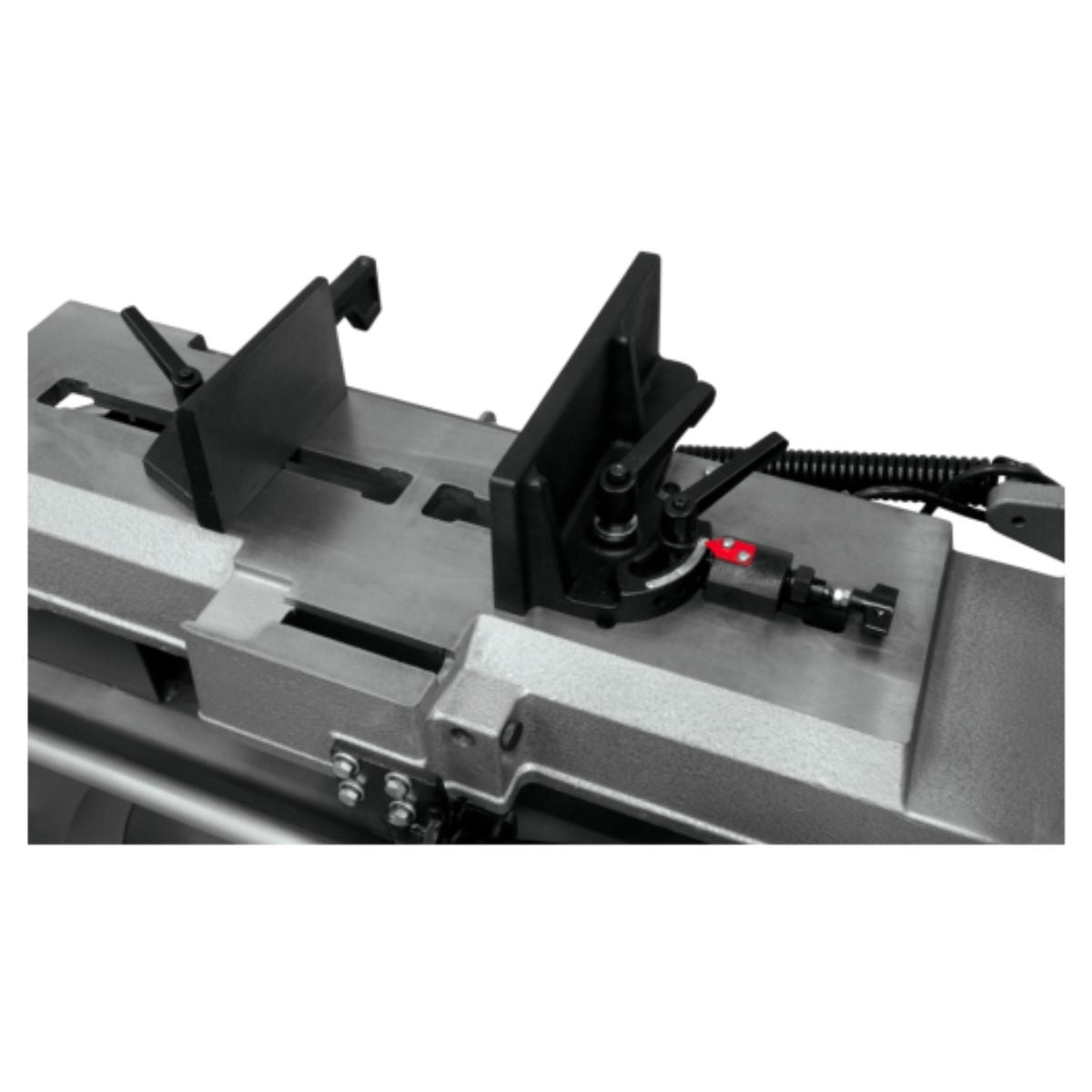

When the saw is set to vertical operation, the multi-position blade guides increase usable throat capacity from 4 inches to 8 inches. This gives you more working room for irregular shapes and freehand cuts. The toolless quick-lock vise with preset mitering stops at 15, 30, and 45 degrees speeds up angle cuts without requiring separate setup tools.
What's Included
What's Included? JET HVBS-712D
-
HVBS-712D Horizontal/Vertical Metal Bandsaw — the main cutting unit configured for both horizontal and vertical operation
-

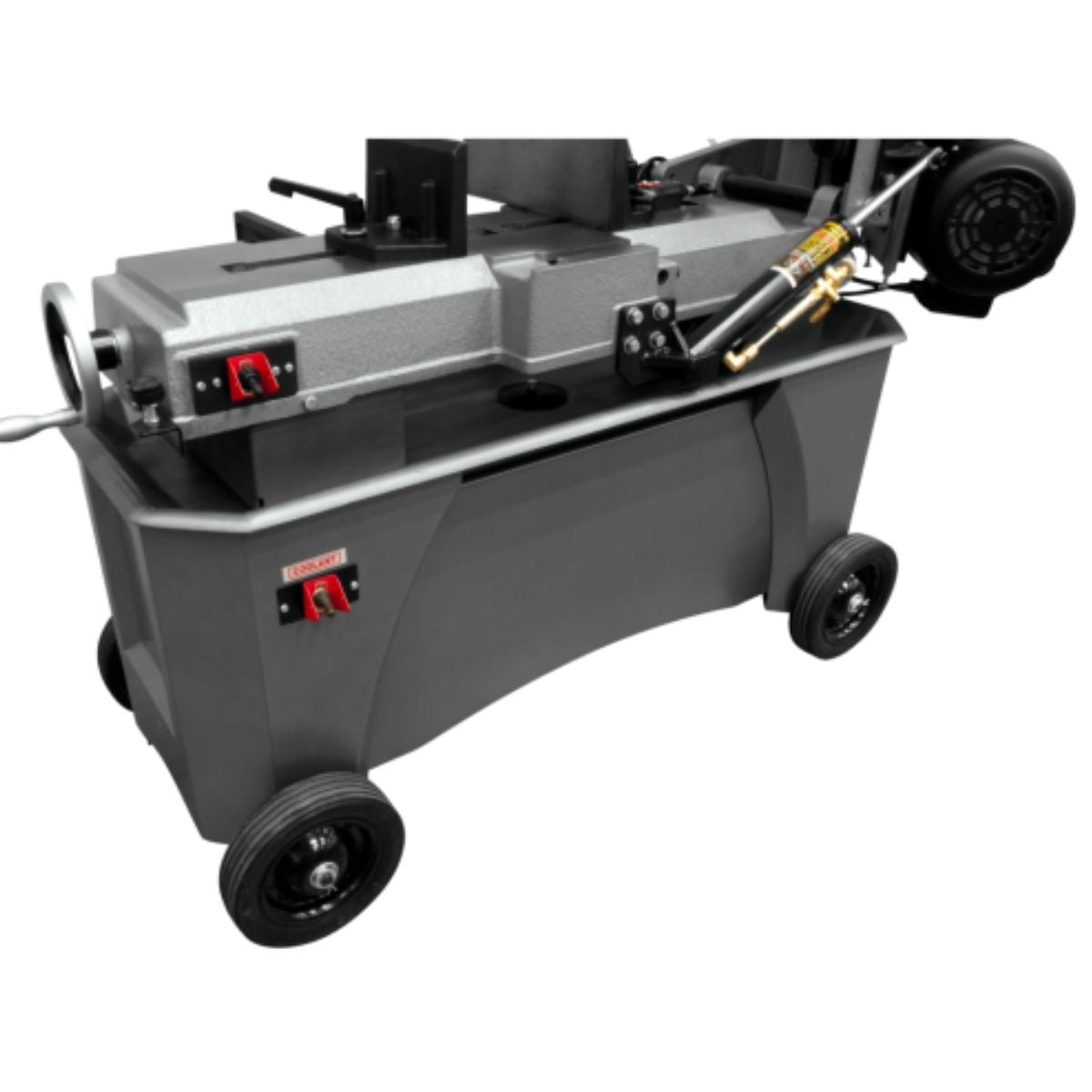

Stand with Built-In Storage Cabinet and Chip Tray — keeps the work area organized and contains coolant and chip buildup at the base of the machine
-
9" x 12" Infeed Table Assembly — extends material support and functions in both horizontal and vertical positions
-
Four 8" Rubber Wheels — allow the saw to be repositioned in the shop without lifting equipment
-
Coolant System (1 Gallon Capacity) — supports blade and material cooling during extended cuts
Specs
JET HVBS-712D Specifications
- Stock Number: JT9-414560
- Model Number: HVBS-712D
- Motor: 3/4 HP, 115/230V, 1-Phase
- Prewired Voltage: 115V
- Drive: Step Pulley
- Blade Speeds (SFPM): 86, 132, 178, 260
- Blade Wheel Diameter: 11-3/4"
- Round Capacity at 90°: 7"
- Round Capacity at 45°: 5"
- Rectangle Capacity at 90°: 4" x 11" / 7" x 10-1/4"
- Rectangle Capacity at 45°: 6" x 4"
- Square Capacity at 90°: 7" x 7"
- Vise Swivel: 45°
- Head Movement: 0°
- Coolant Capacity: 1 Gallon
- Overall Dimensions (L x W x H): 48" x 17" x 44"
- Net Weight: 374 lbs
- Gross Weight: 418 lbs
- Certification: CSA/CUS
- Warranty: 2 Years
- Manual: Refer to the included operator's manual for setup, blade tensioning, and maintenance procedures
