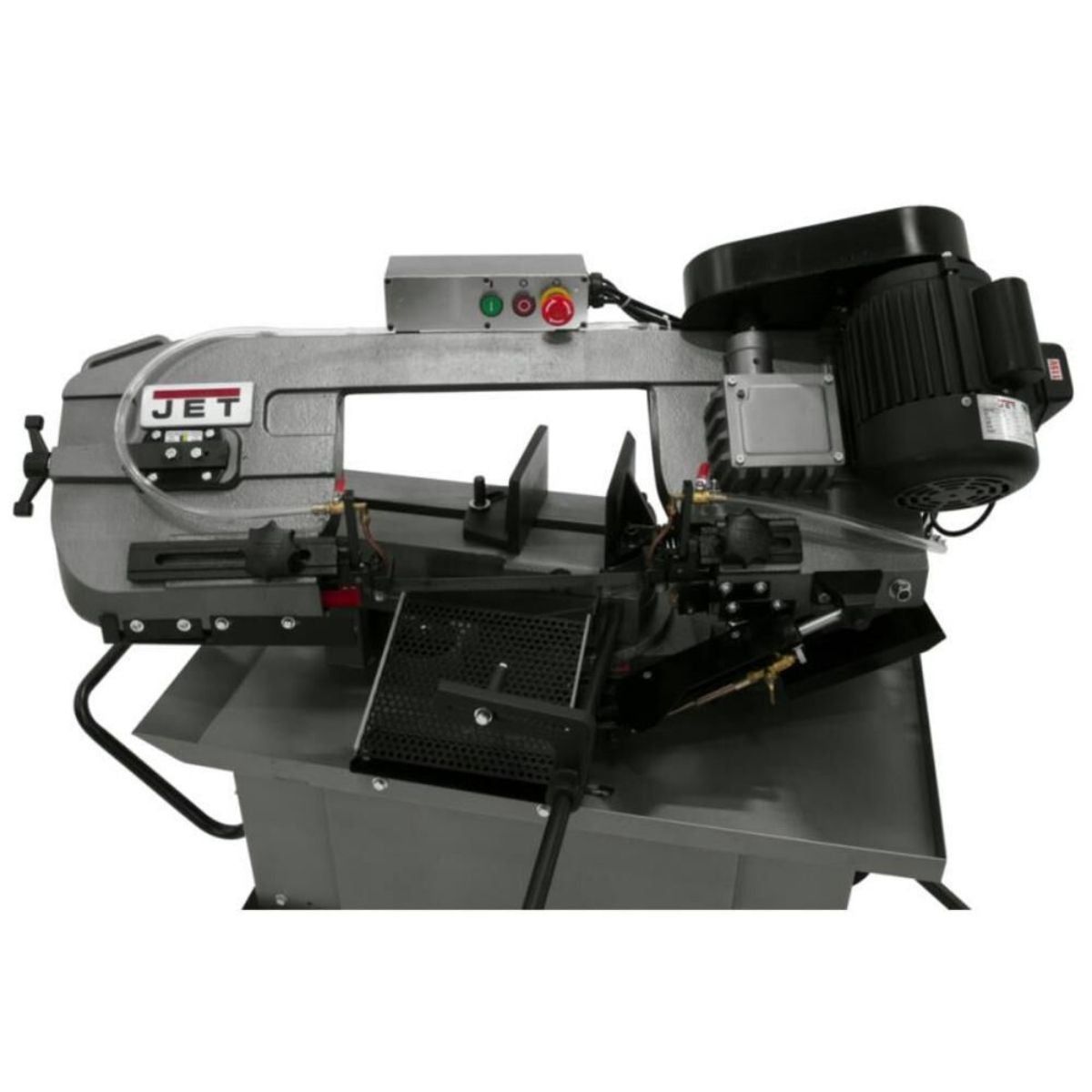

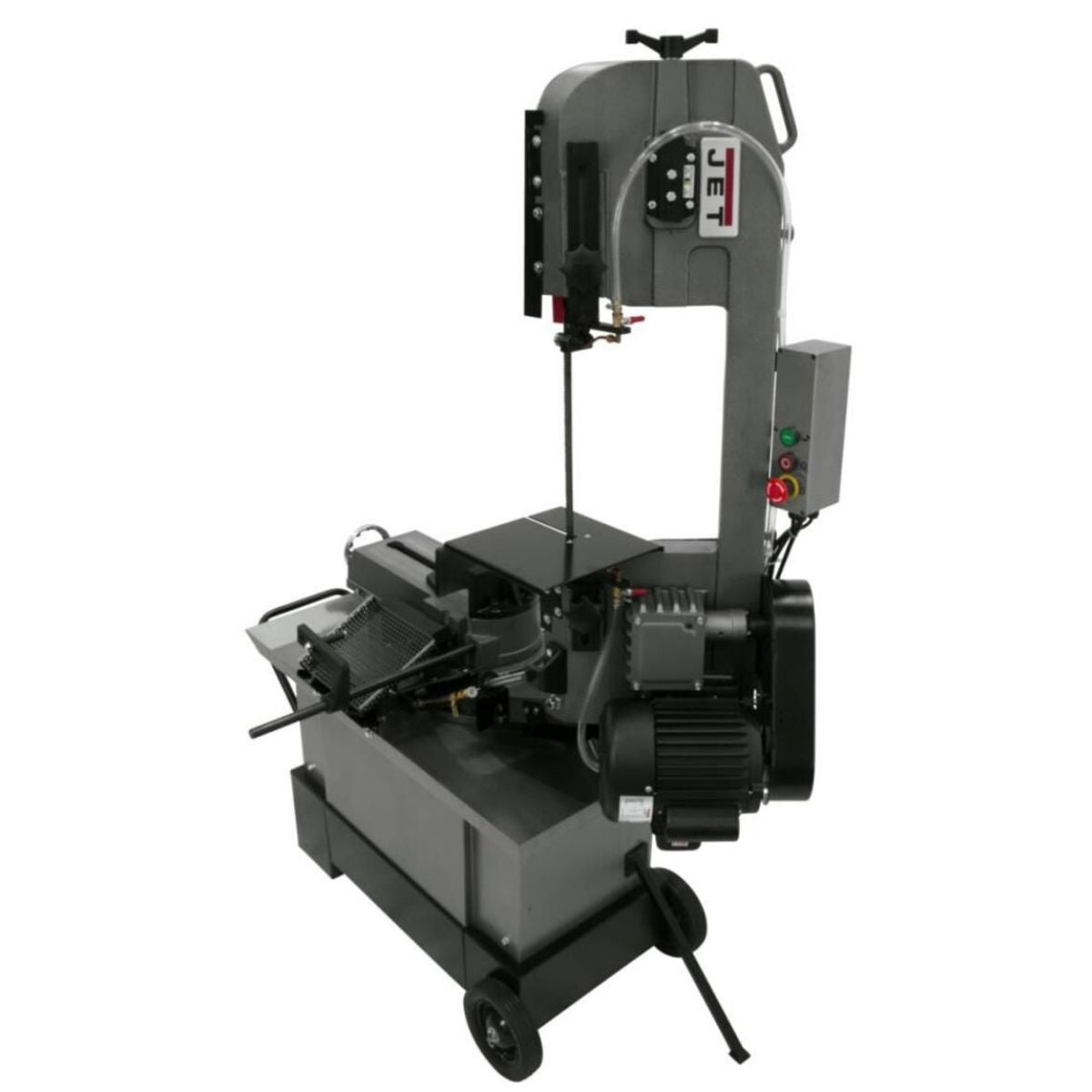

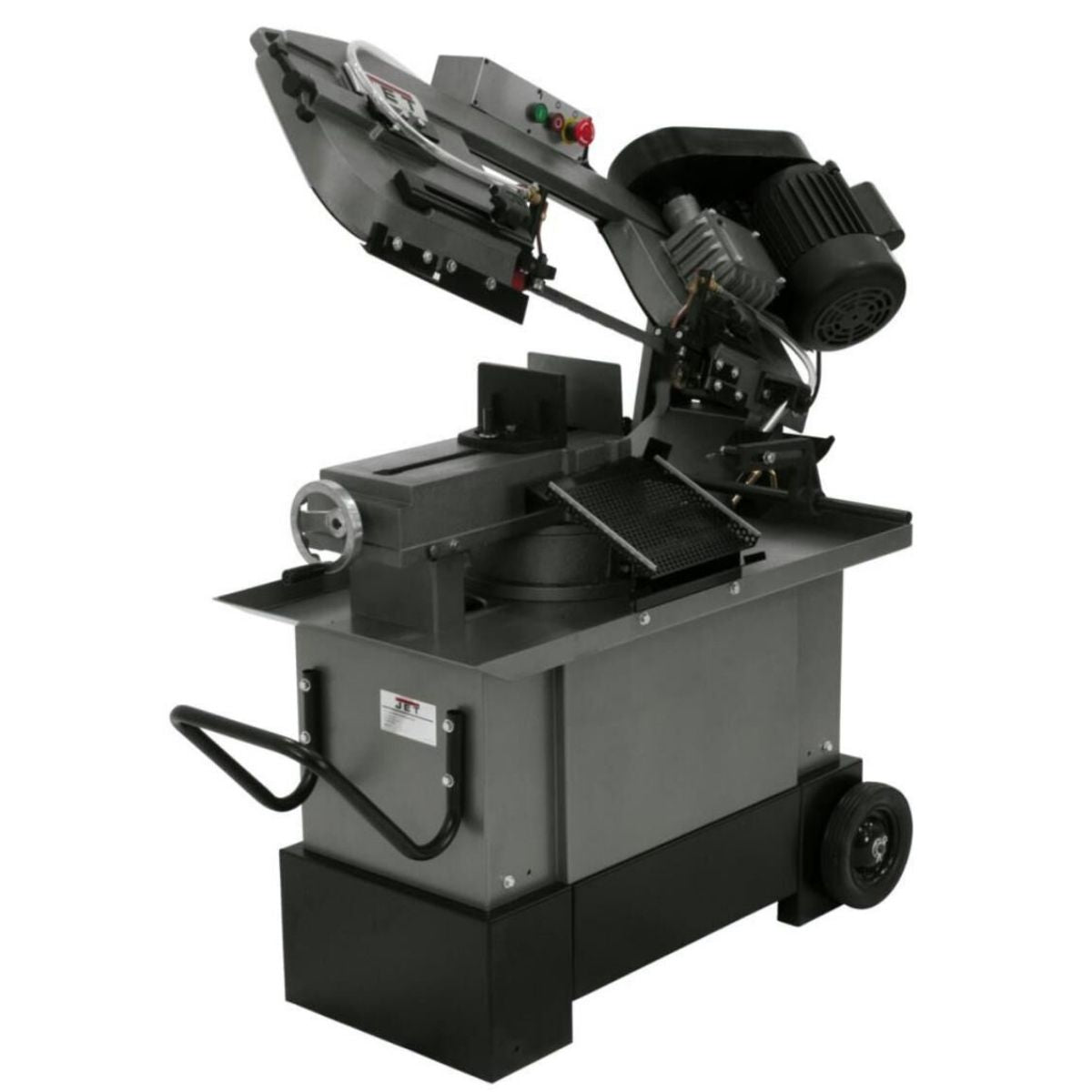

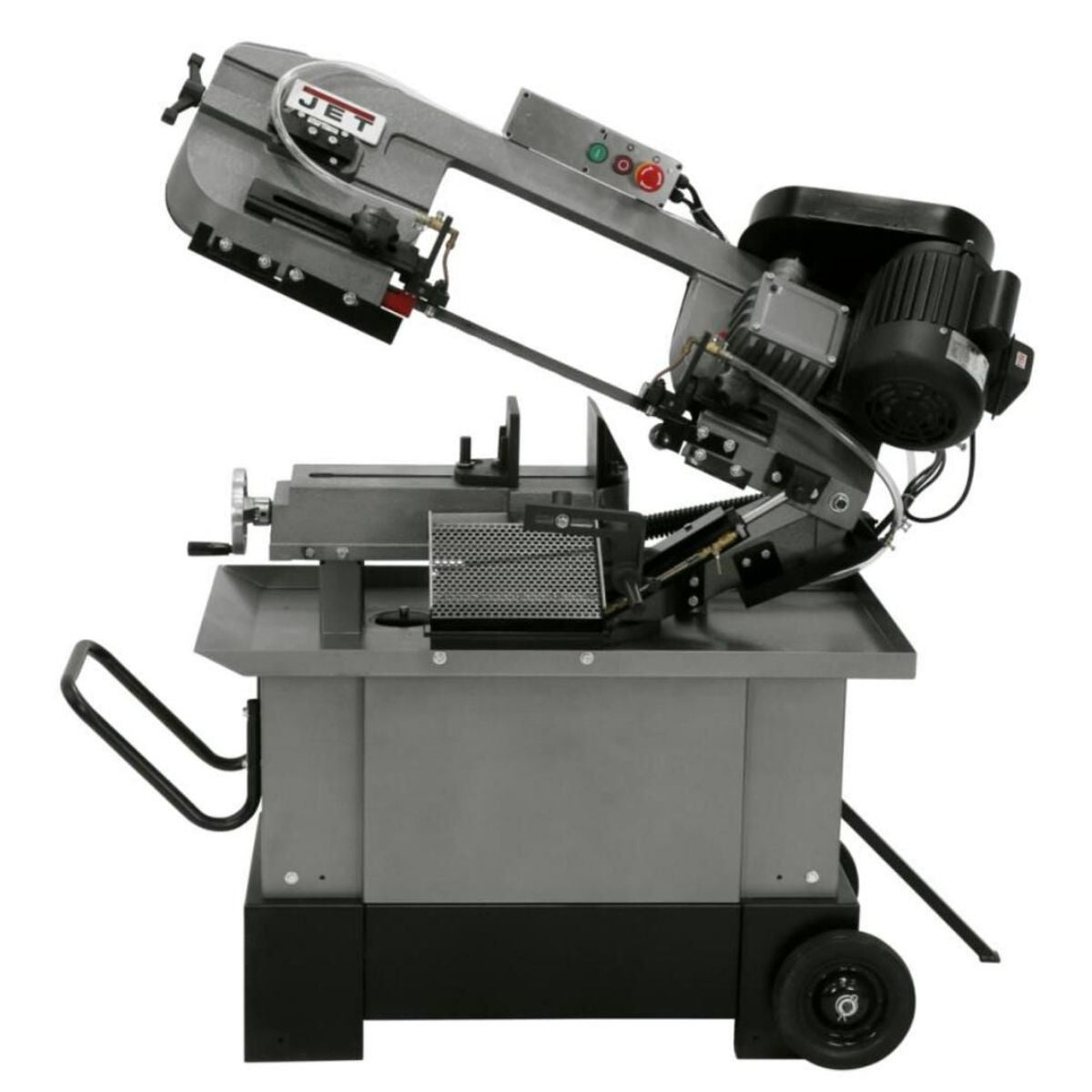

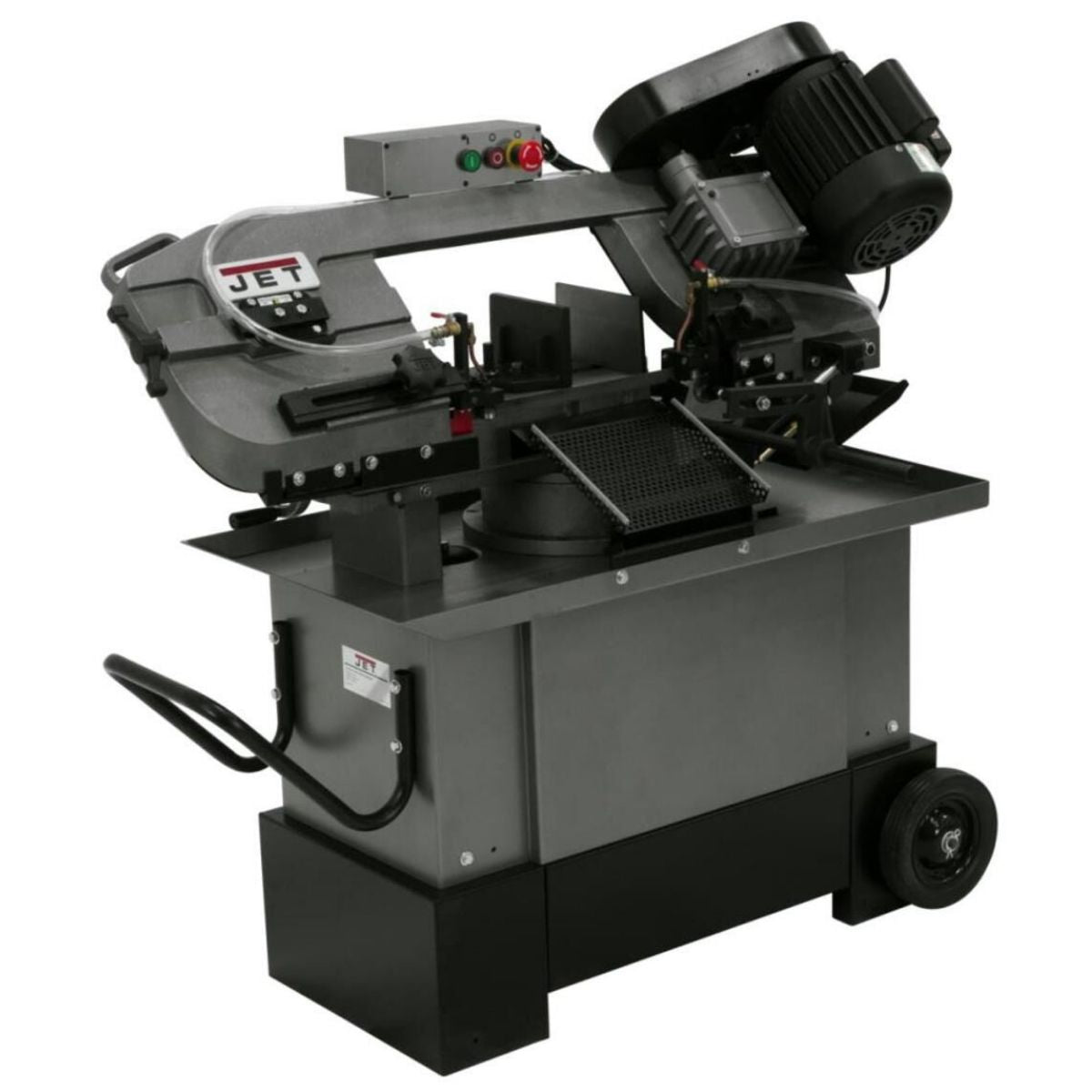

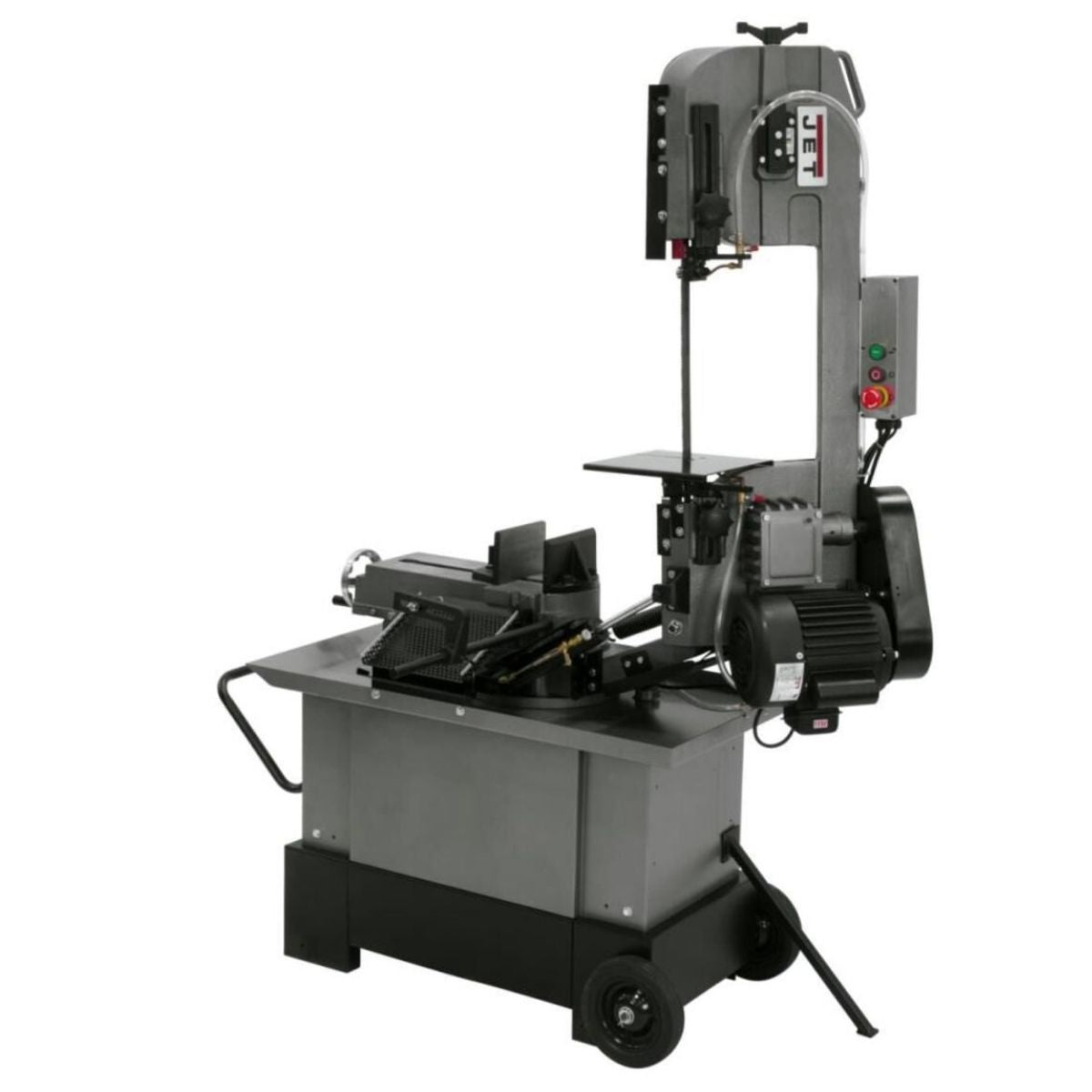

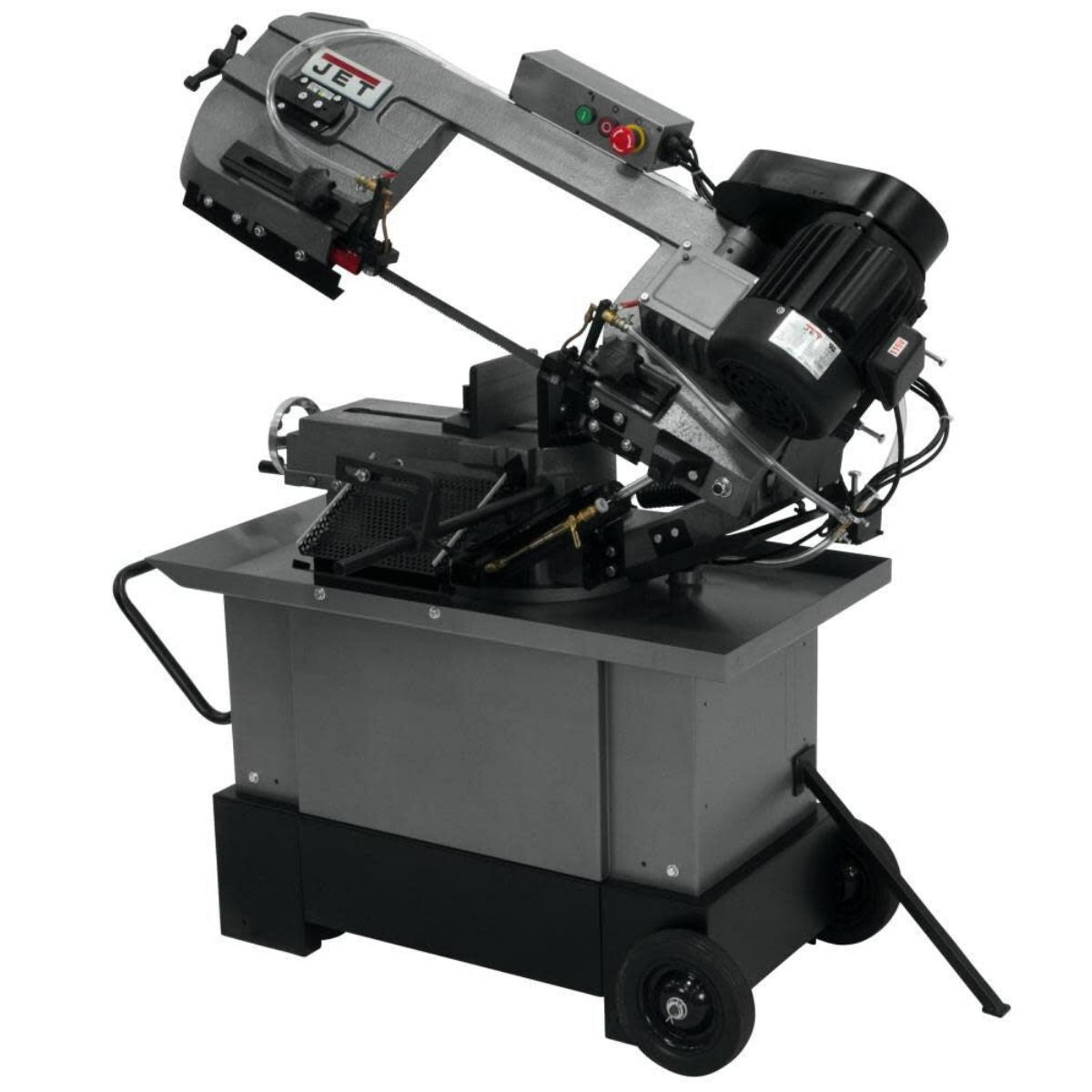

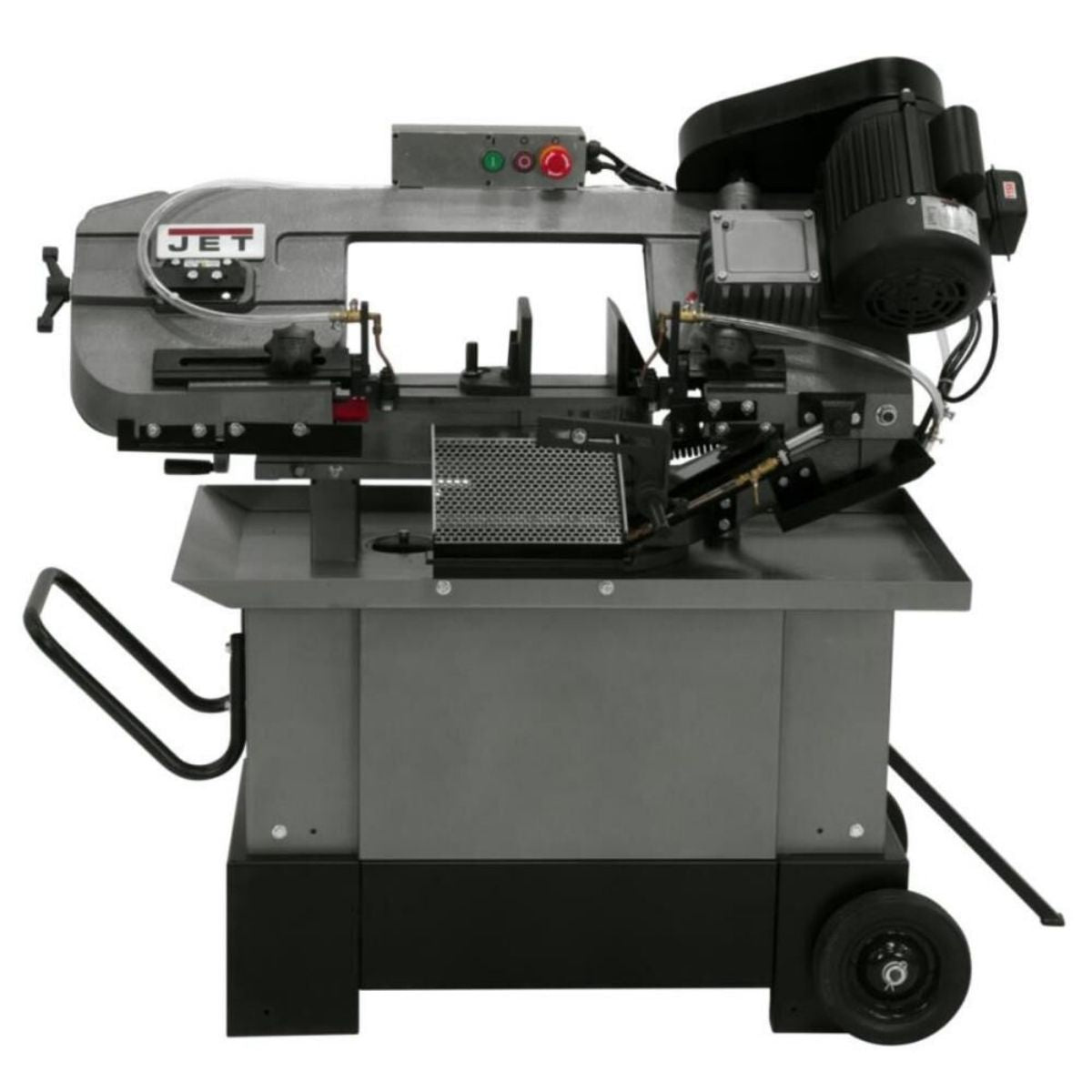

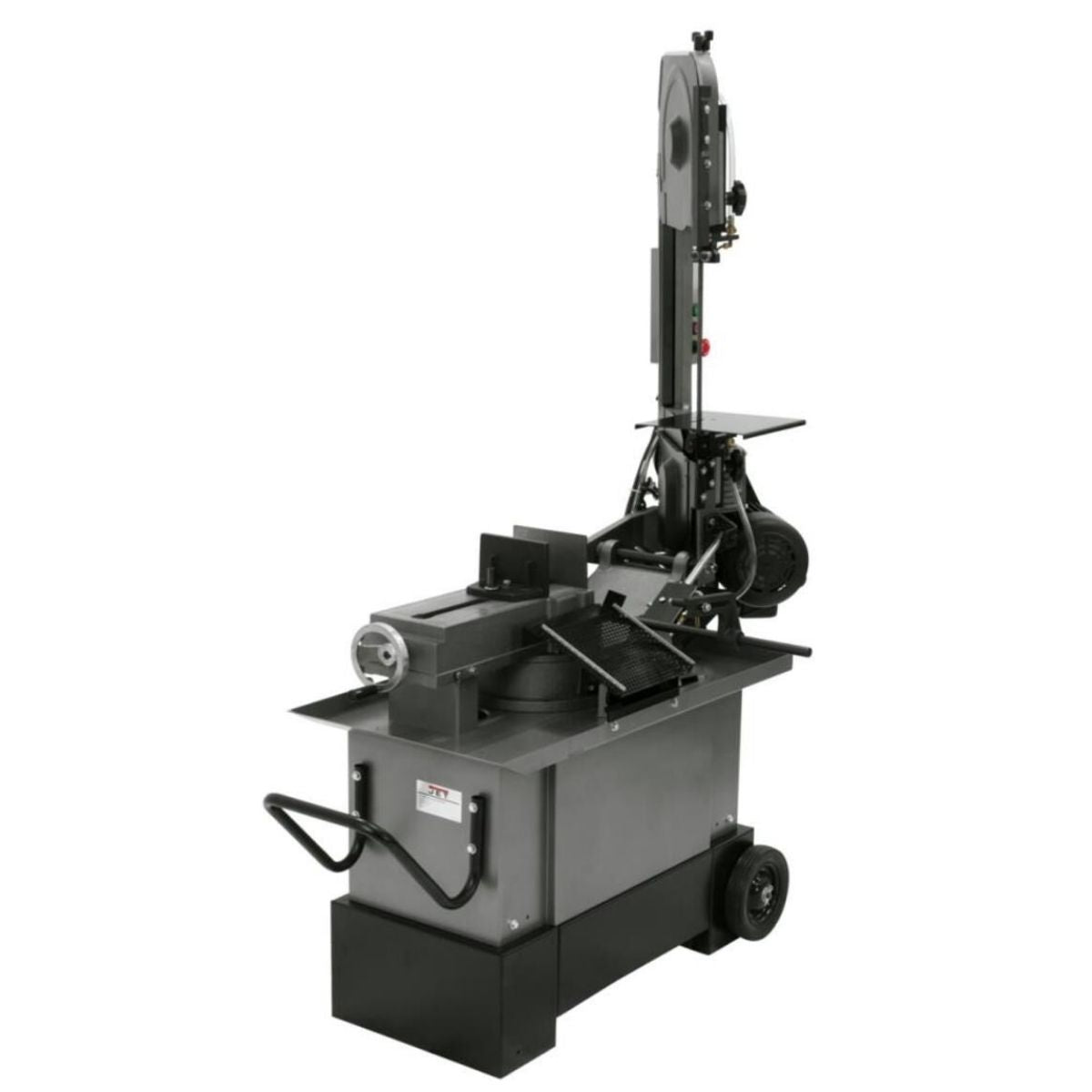

JET HVBS-710S 7" × 10-1/2" Horizontal/Vertical Metal Bandsaw
Are your crosscuts and miters taking longer than they should because you keep repositioning the stock?
What if your saw handled the angle while the workpiece stayed exactly where you set it?
Meet the JET HVBS-710S 7" × 10-1/2" Horizontal/Vertical Metal Bandsaw, a mitering bandsaw built for metal shop work that demands accurate cuts at a range of angles.
With the HVBS-710S, the head swivels from 0° to 45° while the base and vise hold the stock in place, so your setup stays consistent from cut to cut.
When accuracy and repeatable results matter on every piece of stock, this saw gives you a dependable setup to build your workflow around.
JET HVBS-710S for Accurate Crosscuts and Mitered Metal Cuts
Swiveling Mitering Head Holds Cut Angle Without Moving the Stock
The saw head swivels from 0° to 45° while the base and vise stay fixed. This means the stock stays clamped and in position while you dial in the angle. You spend less time repositioning material and more time cutting.
Hydraulic Downfeed System Controls Cut Rate Through the Material
The fully adjustable hydraulic downfeed system regulates how fast the blade moves through the cut. This keeps the blade from forcing through the material and helps you get a cleaner result on each pass. Consistent downfeed pressure also reduces blade wear over time.
Hardened Drive Shaft and Worm Gears Deliver Power to the Blade Wheels
The hardened and ground drive shaft and worm gears transfer torque from the 1 HP motor to the blade wheels without slippage. The heavy-duty cast iron saw bow and bed support this drivetrain and keep the structure rigid under load. This combination holds up to regular shop use and maintains cut quality across a range of stock sizes.
Built-In Blade Brush and Quick-Positioning Vise Speed Up Shop Workflow
The self-propelled blade brush clears chips from the blade continuously, which extends blade life and keeps the cut path clear. The quick-positioning vise with fully adjustable jaws lets you secure different stock sizes without a lot of setup time. Together these features help you move through a cutting queue with fewer interruptions.
What's Included
What's Included? JET HVBS-710S 7" × 10-1/2" Horizontal/Vertical Metal Bandsaw
-
JET HVBS-710S Bandsaw — the main saw unit configured for horizontal and vertical metal cutting in single-phase shop environments.
-
Blade Brush — built-in self-propelled brush that clears chips from the blade during operation to extend blade life.
-
Quick-Positioning Vise — fully adjustable jaw vise that secures stock in place while the mitering head swivels to the cut angle.
Specs
JET HVBS-710S 7" × 10-1/2" Horizontal/Vertical Metal Bandsaw Specifications
-
Stock Number: JT9-413451
-
Model Number: HVBS-710S
-
Motor: 1 HP, 115/230V, 1-Phase
-
Prewired Voltage: 115V
-
Drive: Belt Drive
-
Blade Wheel Diameter: 11-3/4"
-
Rectangle Capacity at 90°: 7" × 10-1/2"
-
Rectangle Capacity at 45°: 4-3/4" × 4"
-
Round Capacity at 90°: 7"
-
Round Capacity at 45°: 4"
-
Vise Swivel Range: 0° – 45°
-
Bed Height: 23"
-
Overall Dimensions (L × W × H): 51" × 22-1/2" × 41"
-
Net Weight: 396 lb
-
Gross Weight: 463 lb
-
Warranty: 2 Years
