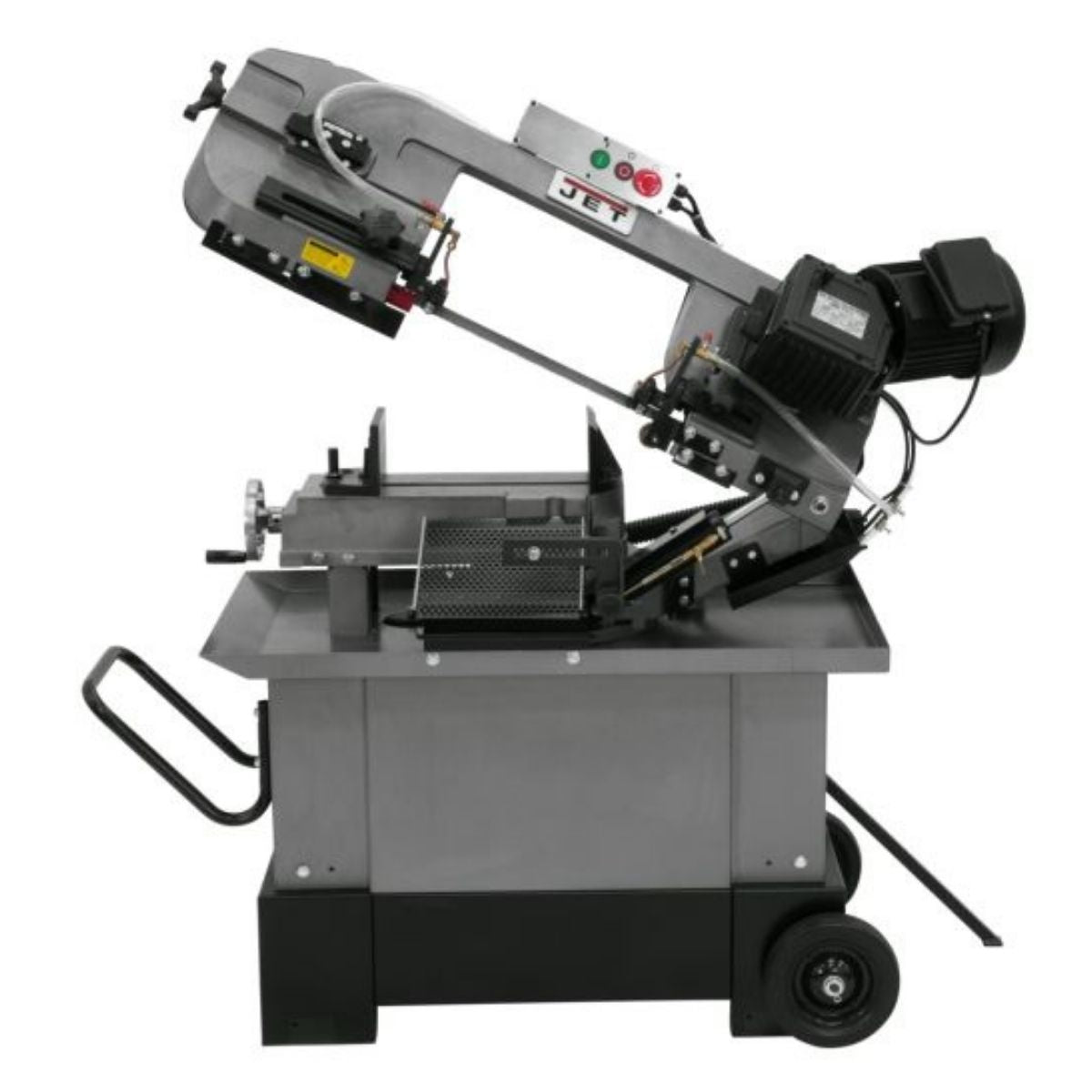

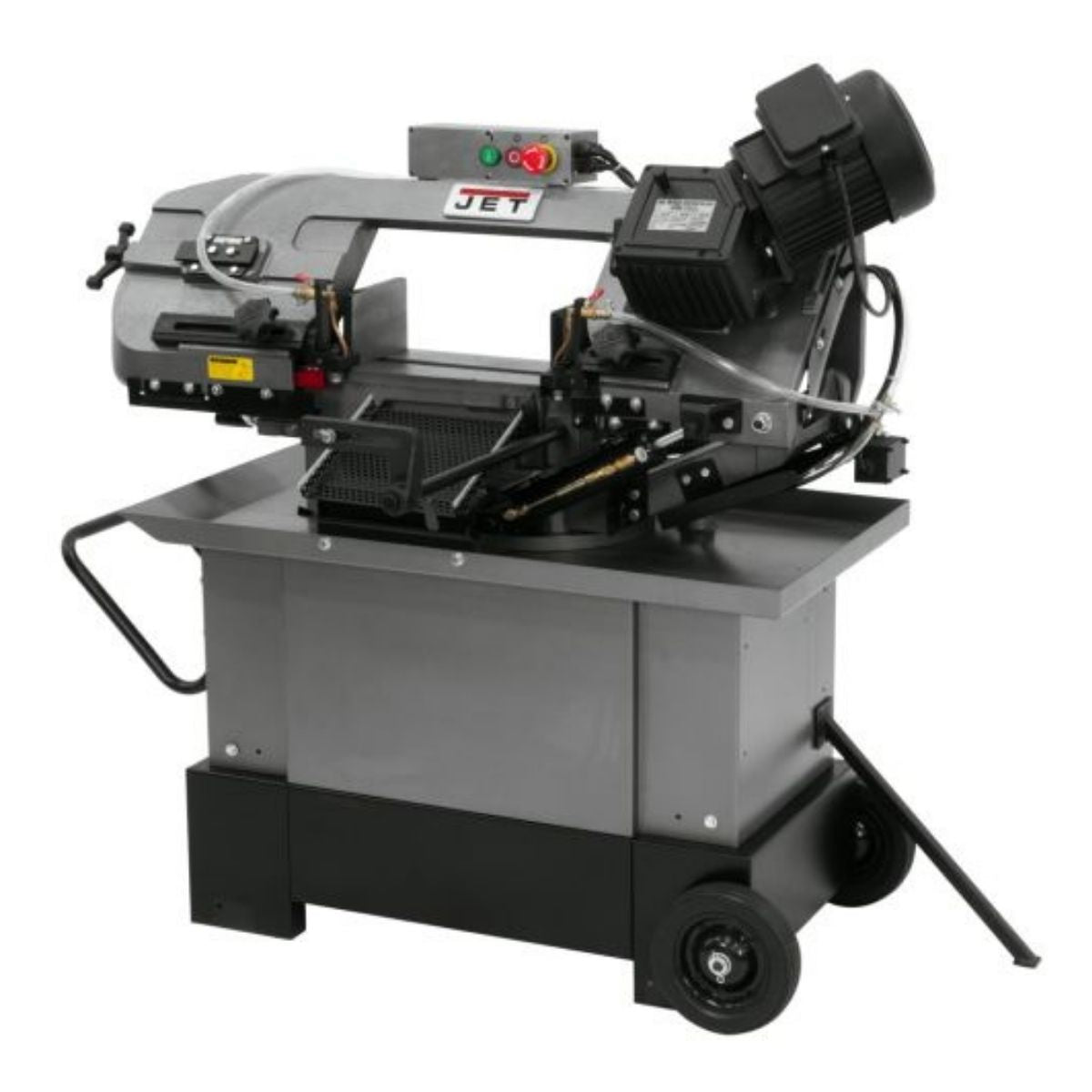

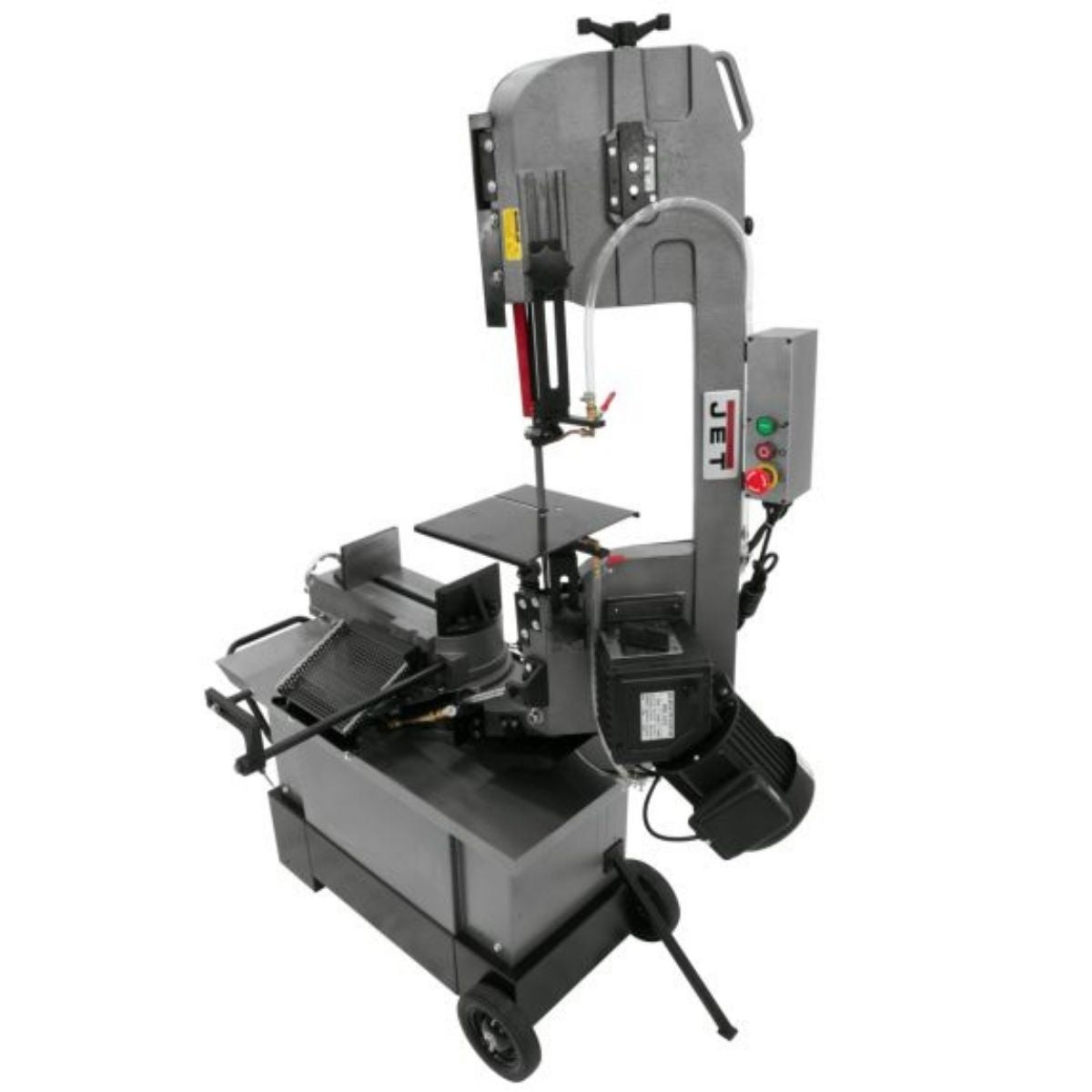

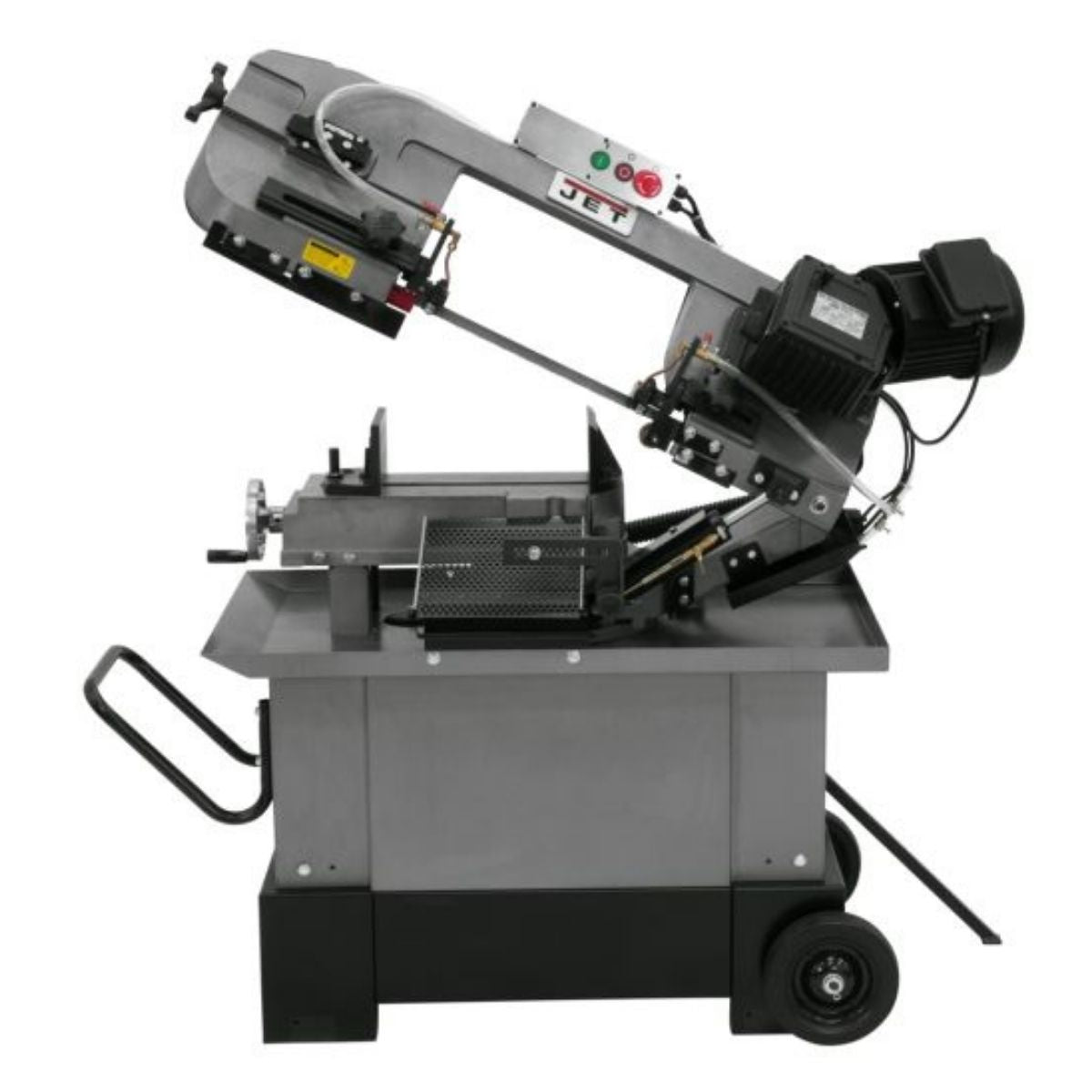

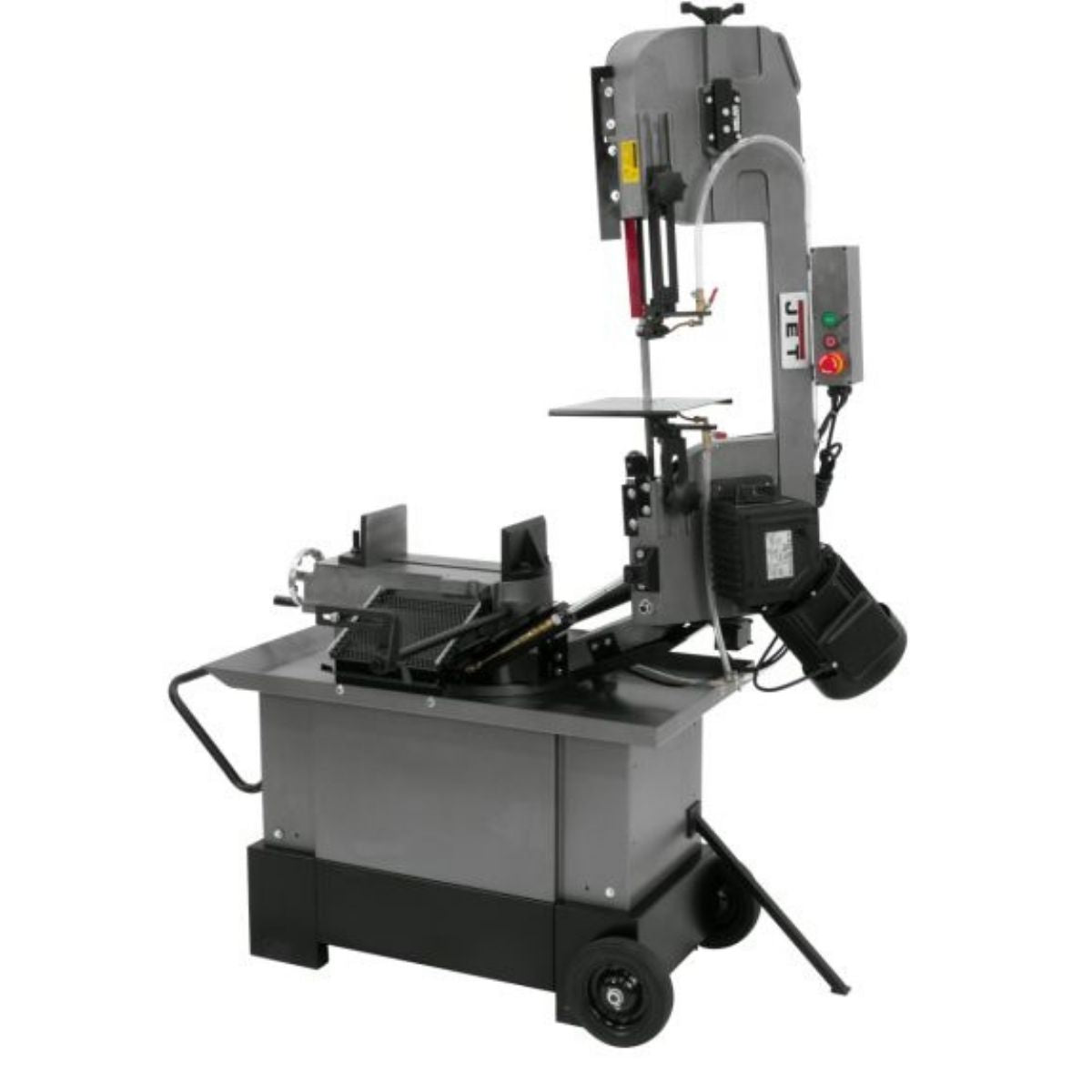

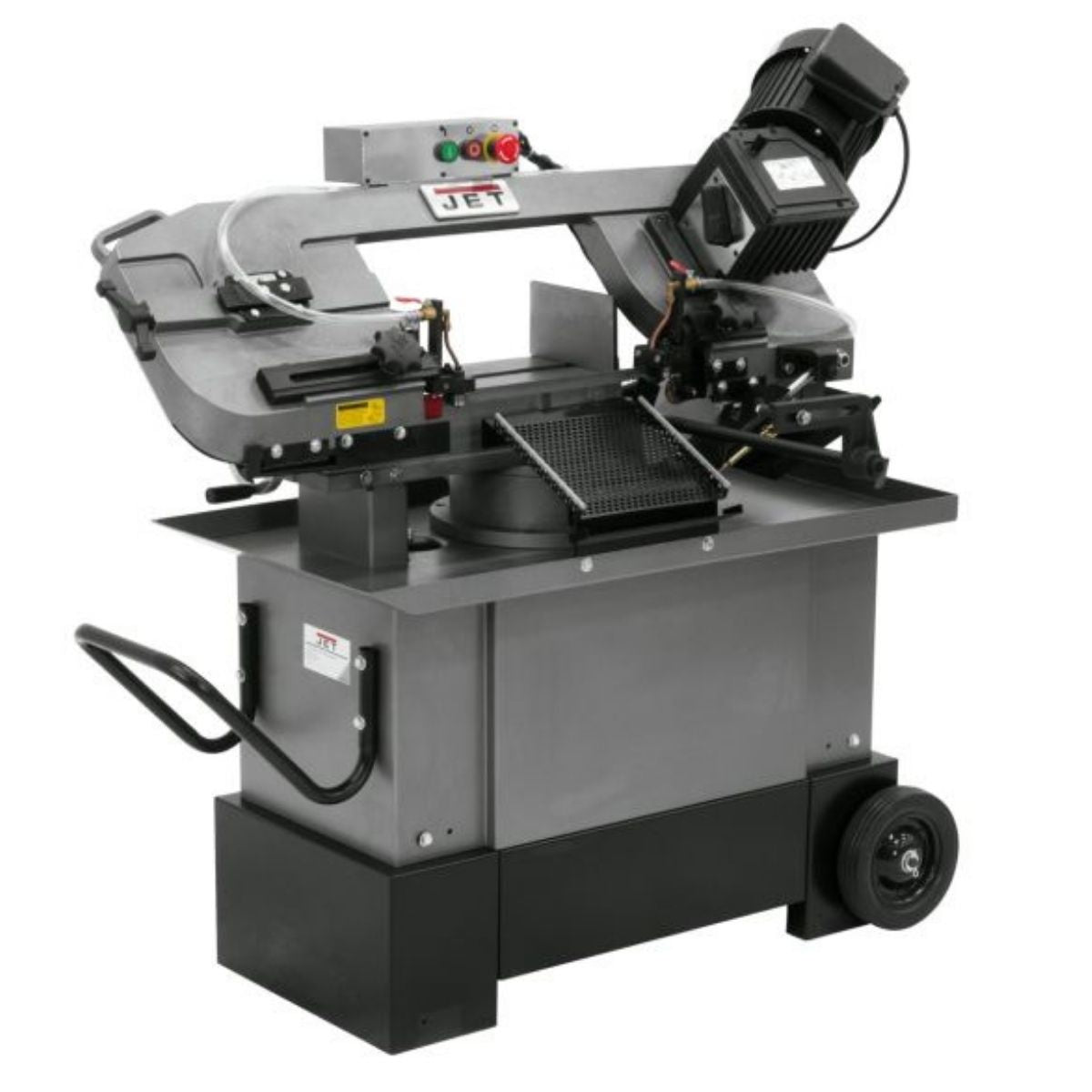

JET HVBS-710G 7" × 10-1/2" Geared Head Horizontal/Vertical Metal Bandsaw
Are your crosscuts and miter cuts taking longer than they should because you keep repositioning the stock?
What if your saw's head did the moving instead, so the material stayed put from the first cut to the last?
Meet the JET HVBS-710G, a geared head horizontal/vertical metal bandsaw built for accurate crosscutting and mitering in metal fabrication and machine shop work.
With a swiveling head that moves independently of the stationary base, the HVBS-710G lets you set your stock once and cut at any angle from 0° to 45° without touching the workpiece.
When your cuts need to be right the first time, a saw that holds position and delivers repeatable results makes every job at the bench more dependable.
JET HVBS-710G for Accurate Mitering and Crosscut Work in Metal
Geared Head Drive Transfers Power Directly to the Blade Wheels
The HVBS-710G uses hardened and ground drive shaft and worm gears to move power from the motor to the blade wheels. This geared system maintains torque through the cut without the slippage that belt-driven setups can introduce. In daily shop use, that means the blade keeps moving steadily through solid stock without bogging down.
Swiveling Head Keeps Stock Stationary Through Every Miter
The saw head pivots from 0° to 45° while the bed and vise stay fixed. You lock your material in place once and swing the head to the angle you need. That setup eliminates the repositioning and re-clamping that adds time and introduces error when cutting multiple pieces to the same miter angle.
Hydraulic Downfeed System Controls Cut Rate Through the Material
The fully adjustable hydraulic downfeed manages how quickly the blade descends into the workpiece. Slower feed rates reduce blade wear on harder materials and help maintain a cleaner cut face. You set the rate for the material and let the system do the work without standing over the saw to manage feed pressure by hand.
Built-In Blade Brush Clears Chips and Extends Blade Life
A self-propelled blade brush runs against the blade continuously during operation to clear metal chips from the tooth gullets before they re-enter the cut. Chips packed into the gullets dull teeth faster and can cause the blade to wander. Keeping the blade clean through the cut helps maintain both blade life and cut quality over time.
What's Included
What's Included? JET HVBS-710G
-
JET HVBS-710G Horizontal/Vertical Metal Bandsaw — the complete saw unit with geared head drive, swiveling head, hydraulic downfeed, and cast iron bow and bed.
-
Quick-Positioning Vise with Fully Adjustable Jaws — secures workpieces firmly so stock does not shift during horizontal or vertical cuts.
-
Built-In Blade Brush — self-propelled brush that clears chips from the blade continuously during operation.
-
Adjustable Material Stop — allows repeated cuts to the same length without re-measuring each piece.
-
Wheels and Handle — large 8" wheels and handle allow the saw to be repositioned around the shop without additional equipment.
Specs
JET HVBS-710G Specifications
- Stock Number: JT9-413452
- Model Number: HVBS-710G
- Drive: Geared Head
- Motor: 1 HP, 115/230V, 1-Phase
- Prewired Voltage: 115V
- Rectangle Capacity at 90°: 7" × 10-1/2"
- Rectangle Capacity at 45°: 4-3/4" × 4"
- Round Capacity at 90°: 7"
- Round Capacity at 45°: 4"
- Vise Swivel Range: 0°–45°
- Blade Wheel Diameter: 11-3/4"
- Bed Height: 23"
- Overall Dimensions (L × W × H): 51" × 22-1/2" × 41"
- Net Weight: 396 lb
- Gross Weight: 462 lb
- Warranty: 2 Years
- Prop 65: Cancer and Reproductive Harm
- Manual: Refer to the JET HVBS-710G manual included with the saw.
