JET HVBS-10-DMW Portable Metal Bandsaw
Are you losing time on every angle cut because your saw locks you into a single miter direction?
What if your bandsaw could swing left and right without repositioning your stock, and convert from horizontal to vertical without tools?

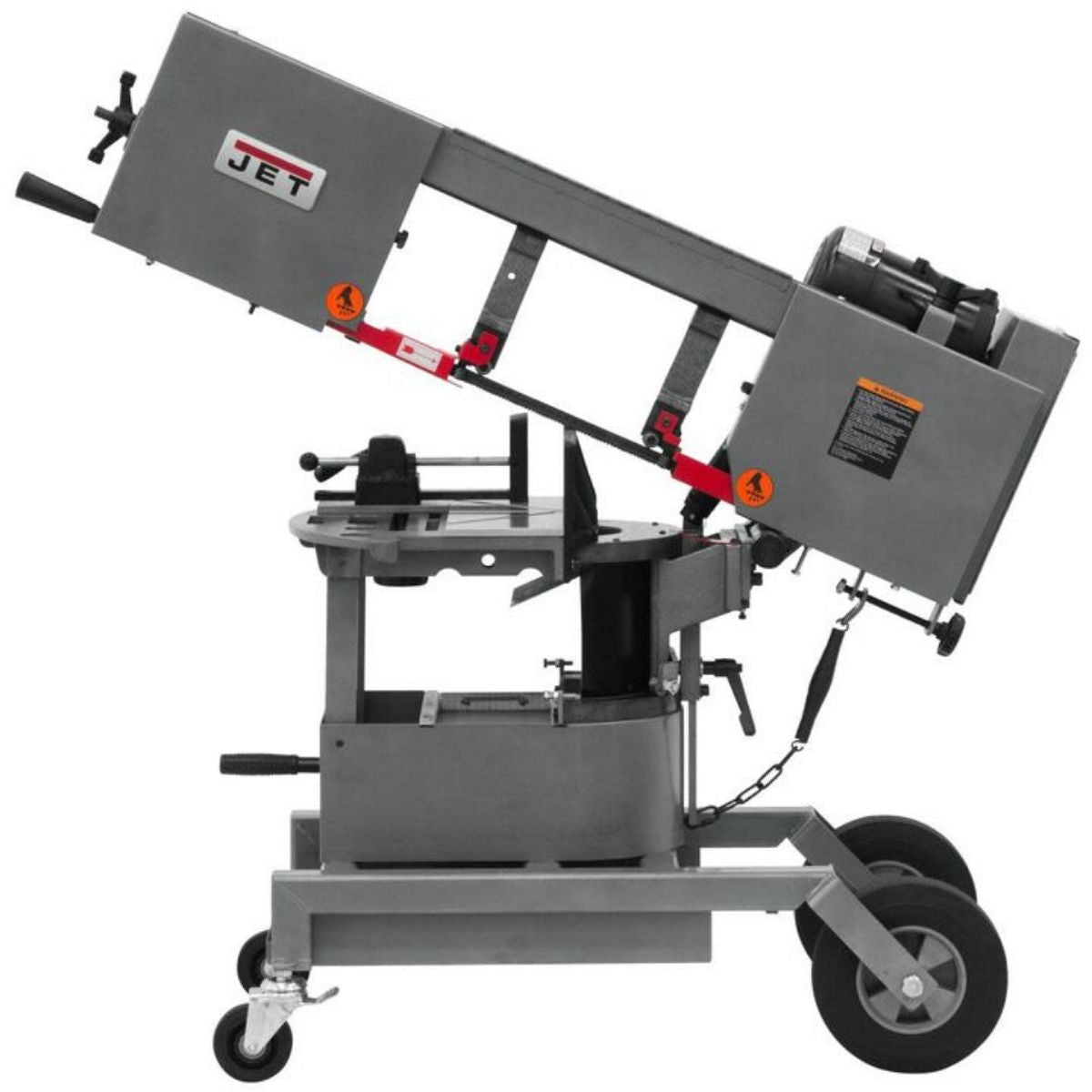

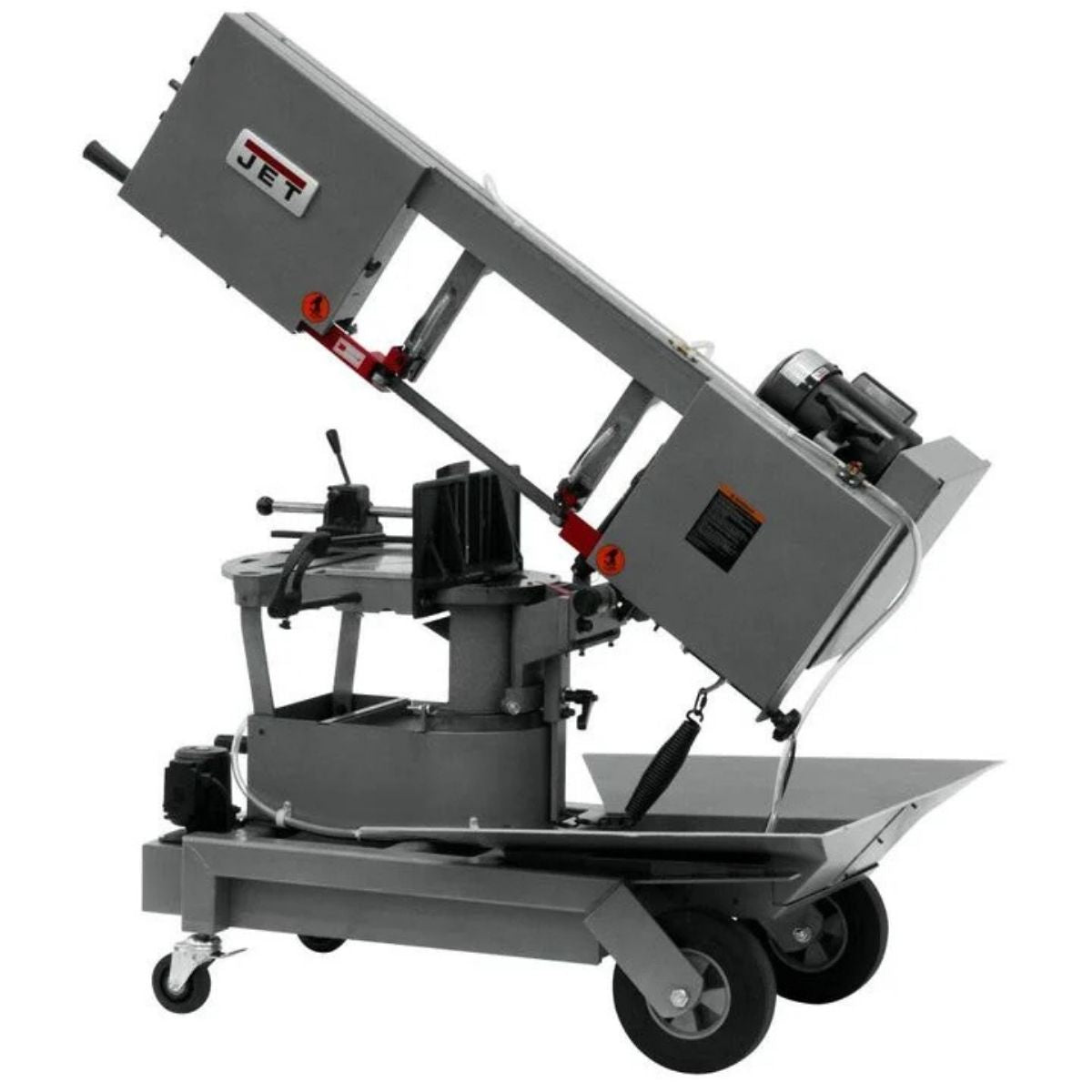

Meet the JET HVBS-10-DMW Portable Metal Bandsaw, a dual-mitering horizontal and vertical machine built for metal cutting work in fabrication and general shop use.
With the HVBS-10-DMW, you get a head that swings up to 45 degrees in both directions, hydraulic downfeed control, and a blade brush system that keeps your guides running clean throughout the cut.
When your saw handles mitering, downfeed, and chip management on its own, you stay focused on the cut instead of managing the machine.
JET HVBS-10-DMW for Dual-Mitering Metal Cutting Work
Dual-Mitering Head Eliminates Stock Repositioning
The head on the HVBS-10-DMW swings 45 degrees left and right from center. A built-in protractor gives you a fast reference for setting your angle. When you need repeating miter cuts in both directions, you change the head position instead of resetting your stock or flipping your workpiece.

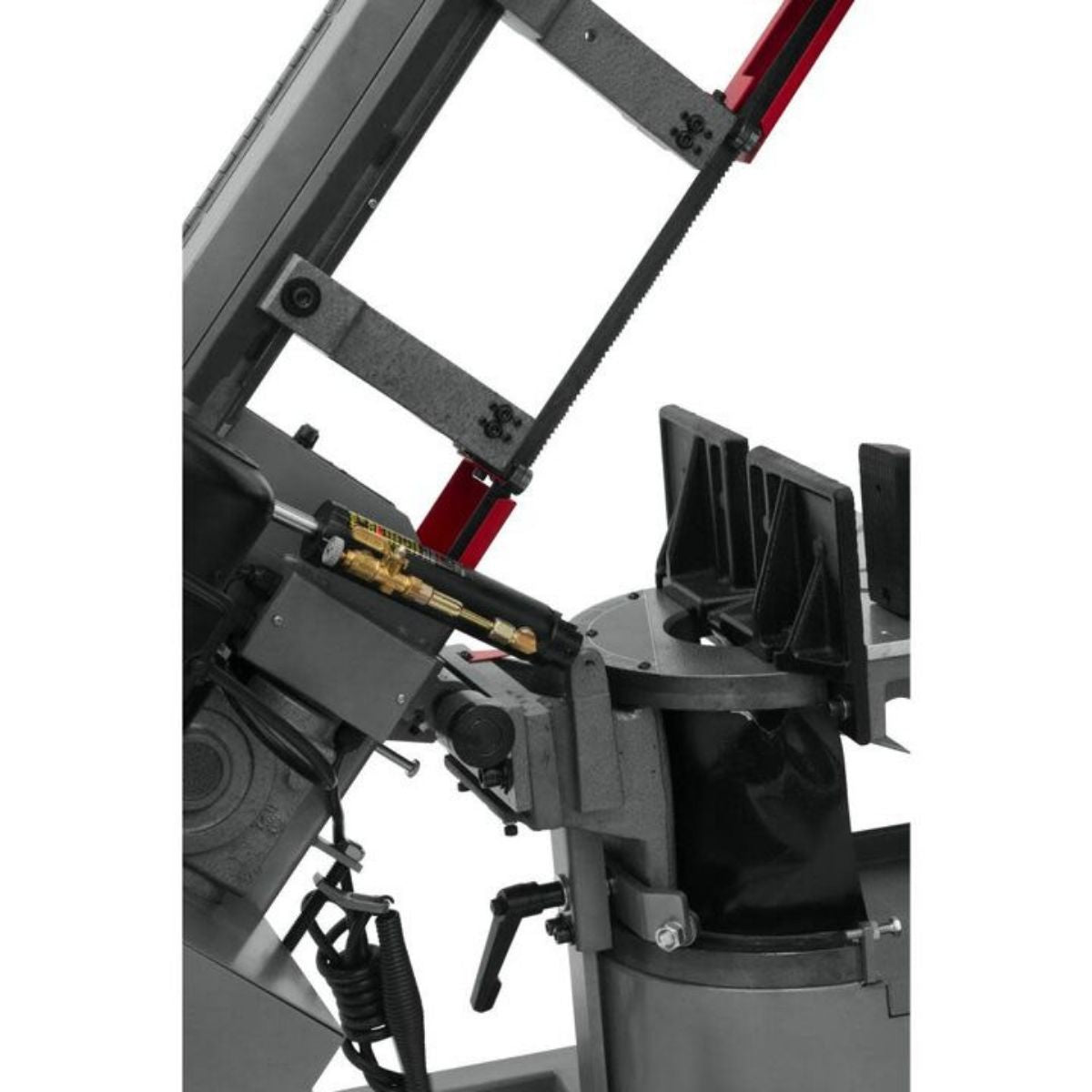

Hydraulic Downfeed Matches Feed Rate to the Material
A hydraulic cylinder controls the head pressure throughout the cut. You adjust the downfeed rate to match the material you are cutting, whether that is solid round stock or structural shapes. The automatic shutoff switch stops the head when the cut is complete so you are not standing over the machine waiting for it to finish.

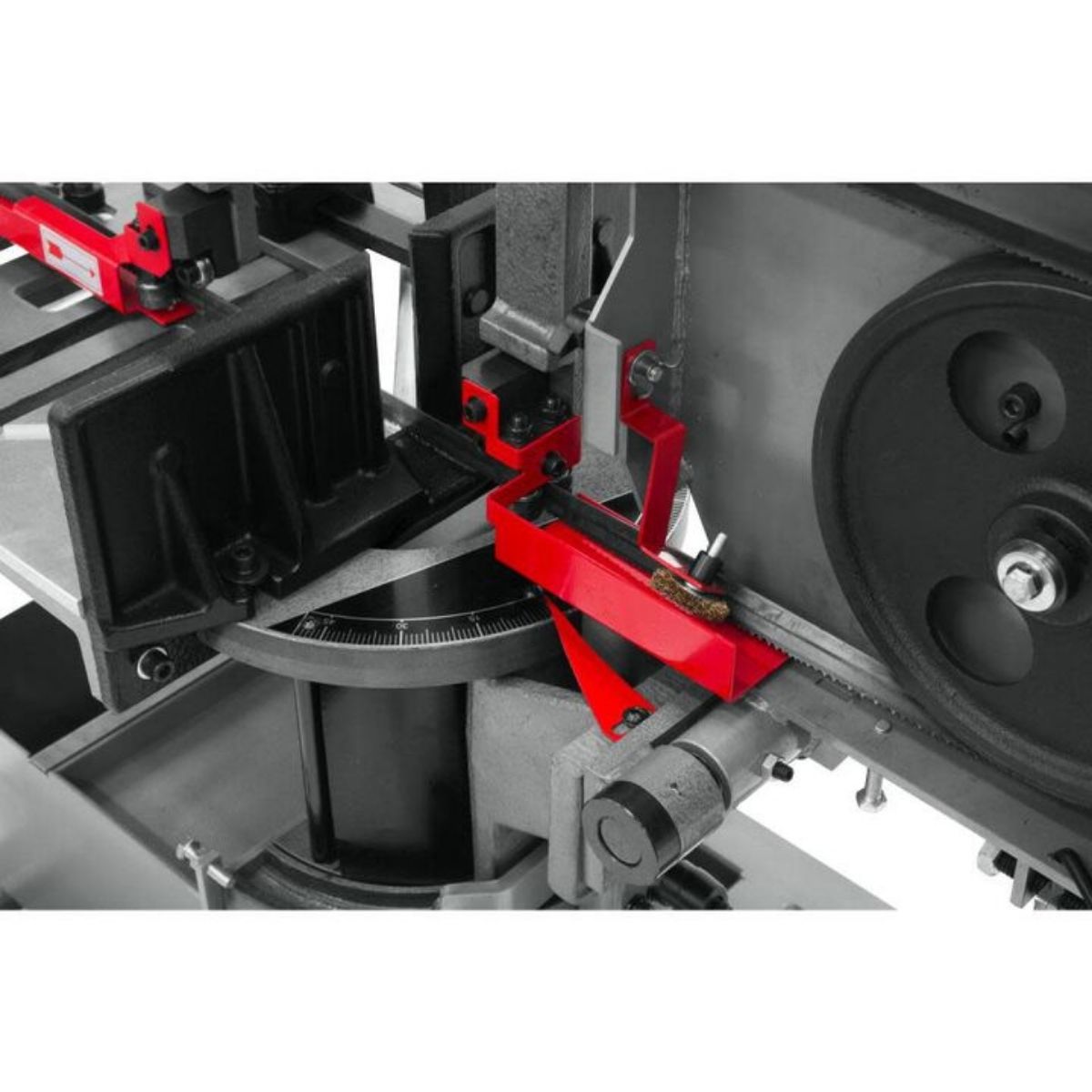

Self-Propelled Blade Brush Protects Blade Guides
The built-in blade brush runs with the saw and clears chips from the blade before they reach the guides. Chip buildup in guides is a common cause of blade drift and guide wear. Keeping the guides clean helps the blade track consistently and extends blade life between changes.

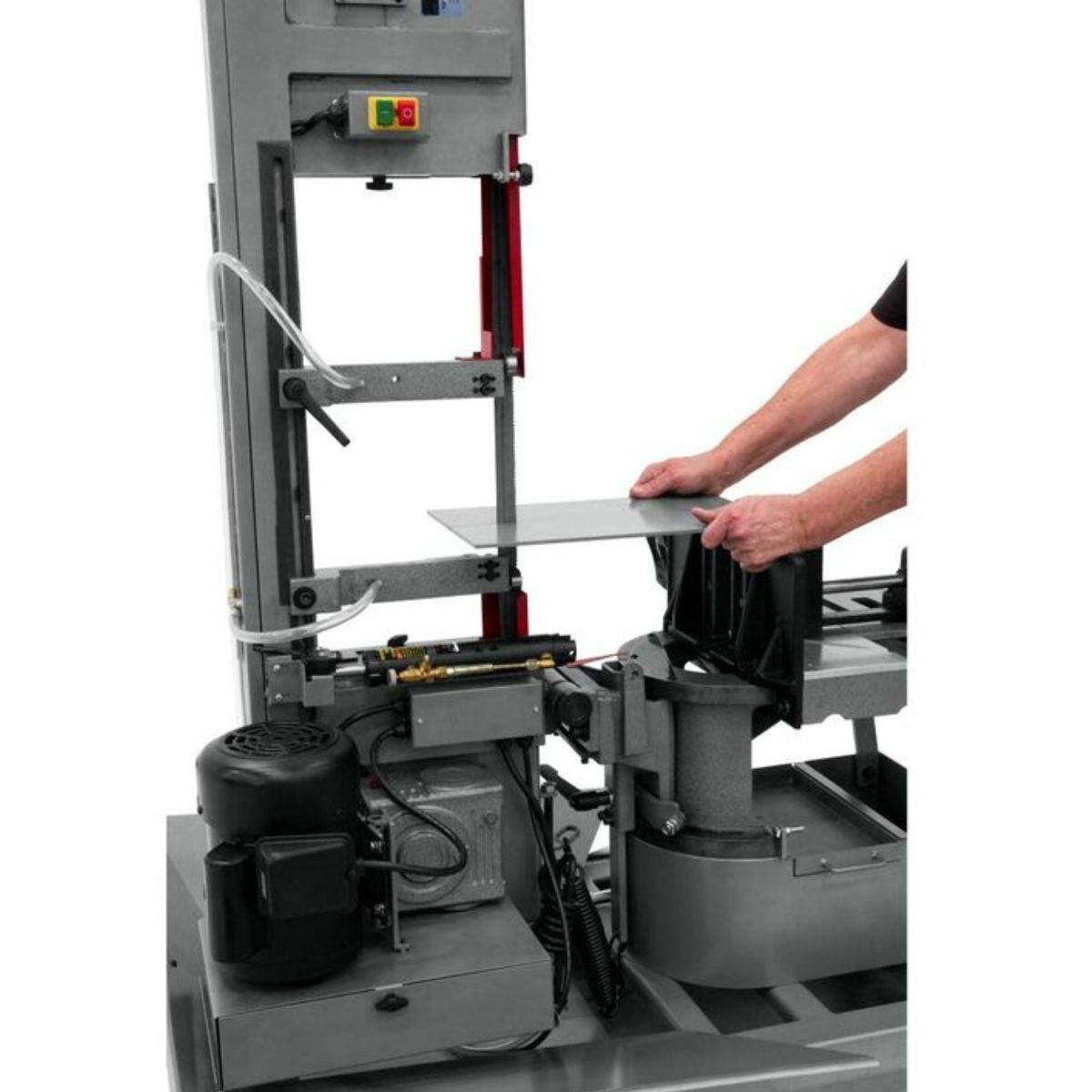

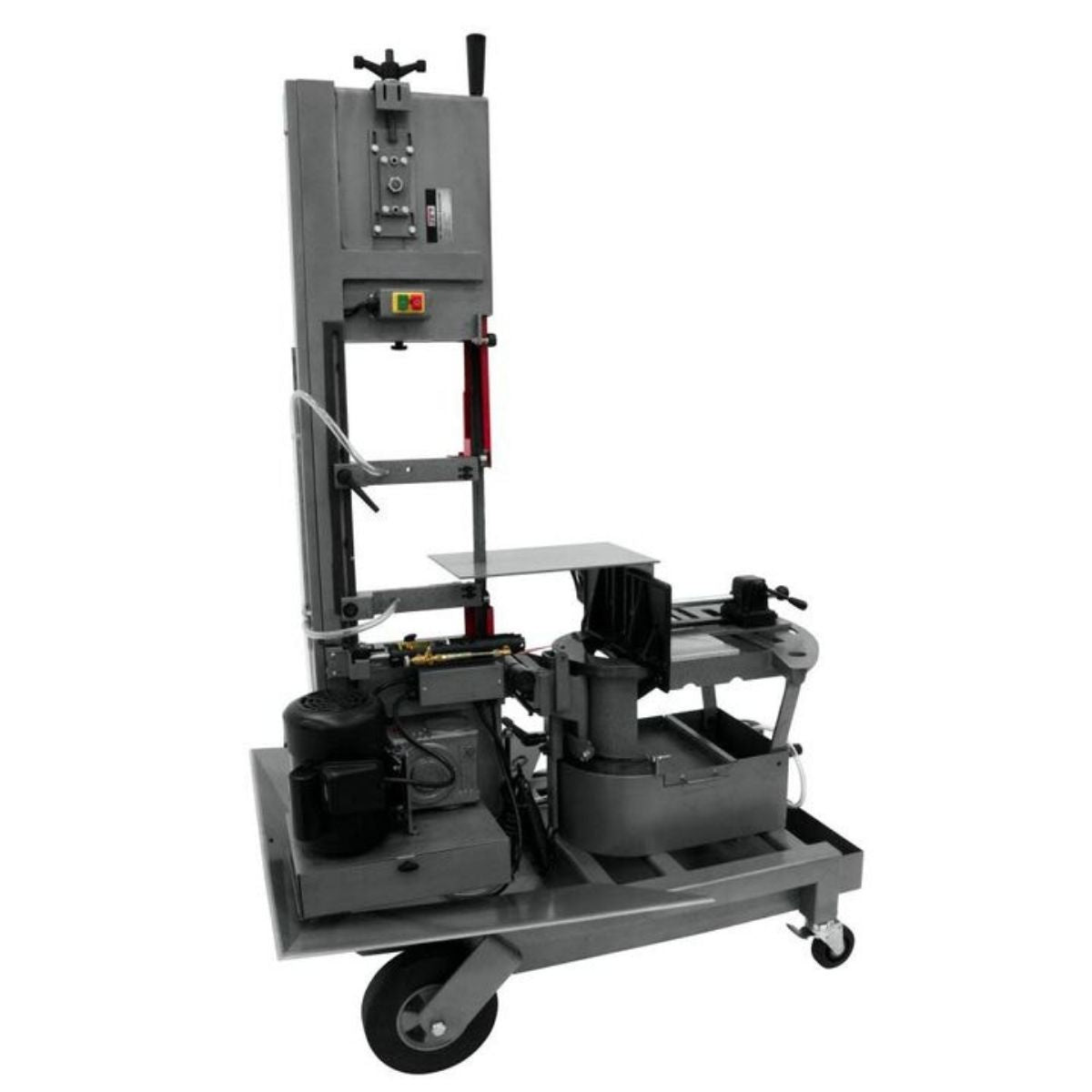

Horizontal and Vertical Operation in One Machine
The HVBS-10-DMW converts between horizontal and vertical positions, giving you access to a 16 by 10 inch vertical cutting table when the work calls for it. The machine rolls on wheels so you can move it to the stock rather than moving heavy material to a fixed saw. A safety key on the power switch prevents accidental starts.
What's Included
What's Included? JET HVBS-10-DMW Portable Metal Bandsaw
-
Adjustable vise — Holds stock securely during horizontal cutting operations.
-
Removable chip tray — Collects metal chips for quick cleanup between cuts.
Specs
JET HVBS-10-DMW Portable Metal Bandsaw Specifications
-
Model Number: HVBS-10-DMW | Stock Number: JT9-424463
-
Model Number: HVBS-10-DMWC (with Coolant System) | Stock Number: JT9-424465
-
Motor: 1HP, 115V, Single Phase
-
Head Movement: +/- 45 degrees
-
Maximum Vise Opening: 10 in.
-
Round Capacity at 90 Degrees: 10 in.
-
Round Capacity at 45 Degrees: 6-1/2 in.
-
Rectangle at 90 Degrees: 8 x 9 in.
-
Rectangle at 45 Degrees: 8 x 5-1/2 in.
-
Vertical Cutting Table: 16 x 10 in.
-
Vertical Cutting Capacity: 13 x 10 in.
-
Table Height: 30-13/32 in.
-
Overall Dimensions (L x W x H): 72 x 34.5 x 46 in.
-
Net Weight: 528 lbs.
-
Gross Weight: 558 lbs.
-
Warranty: 2 Year
