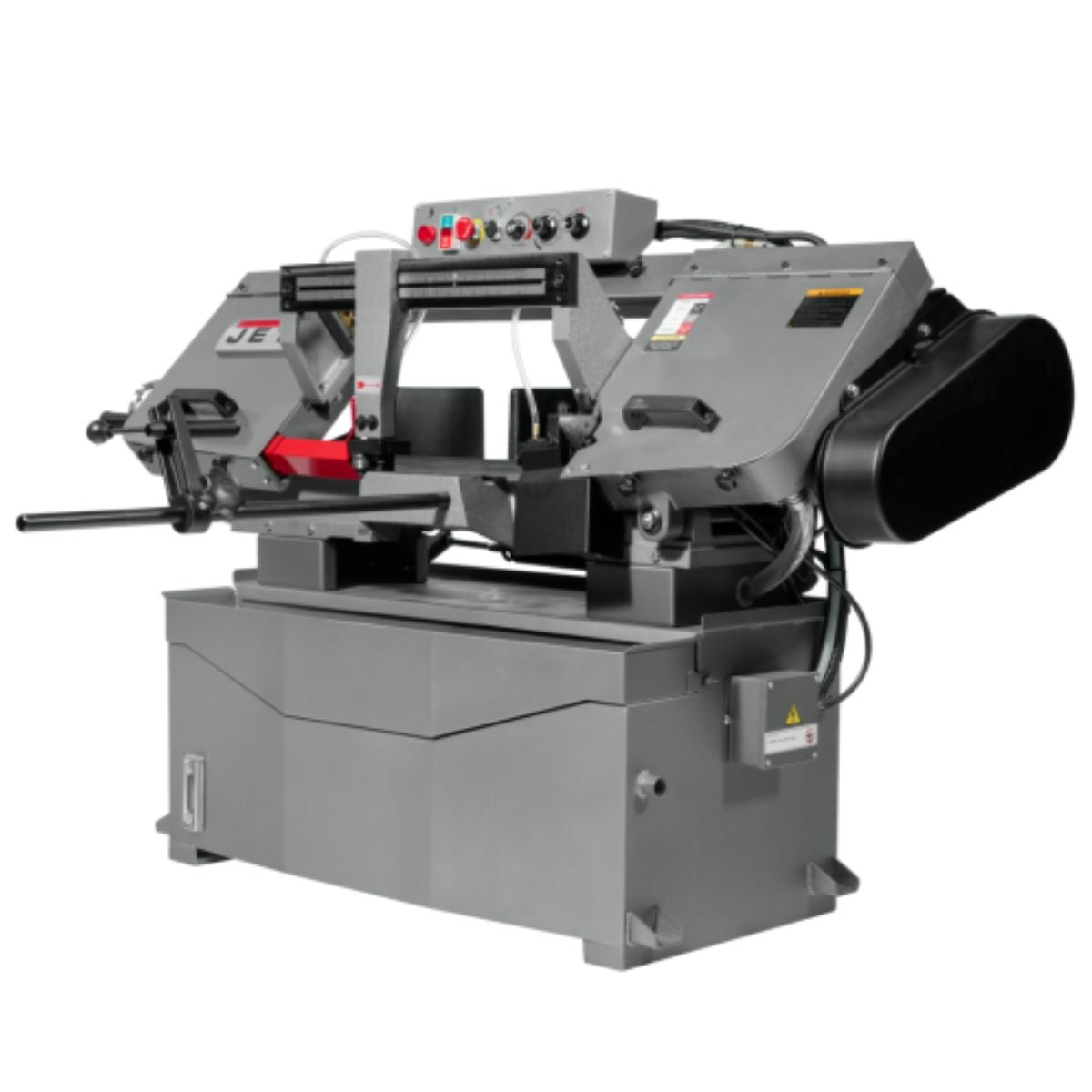

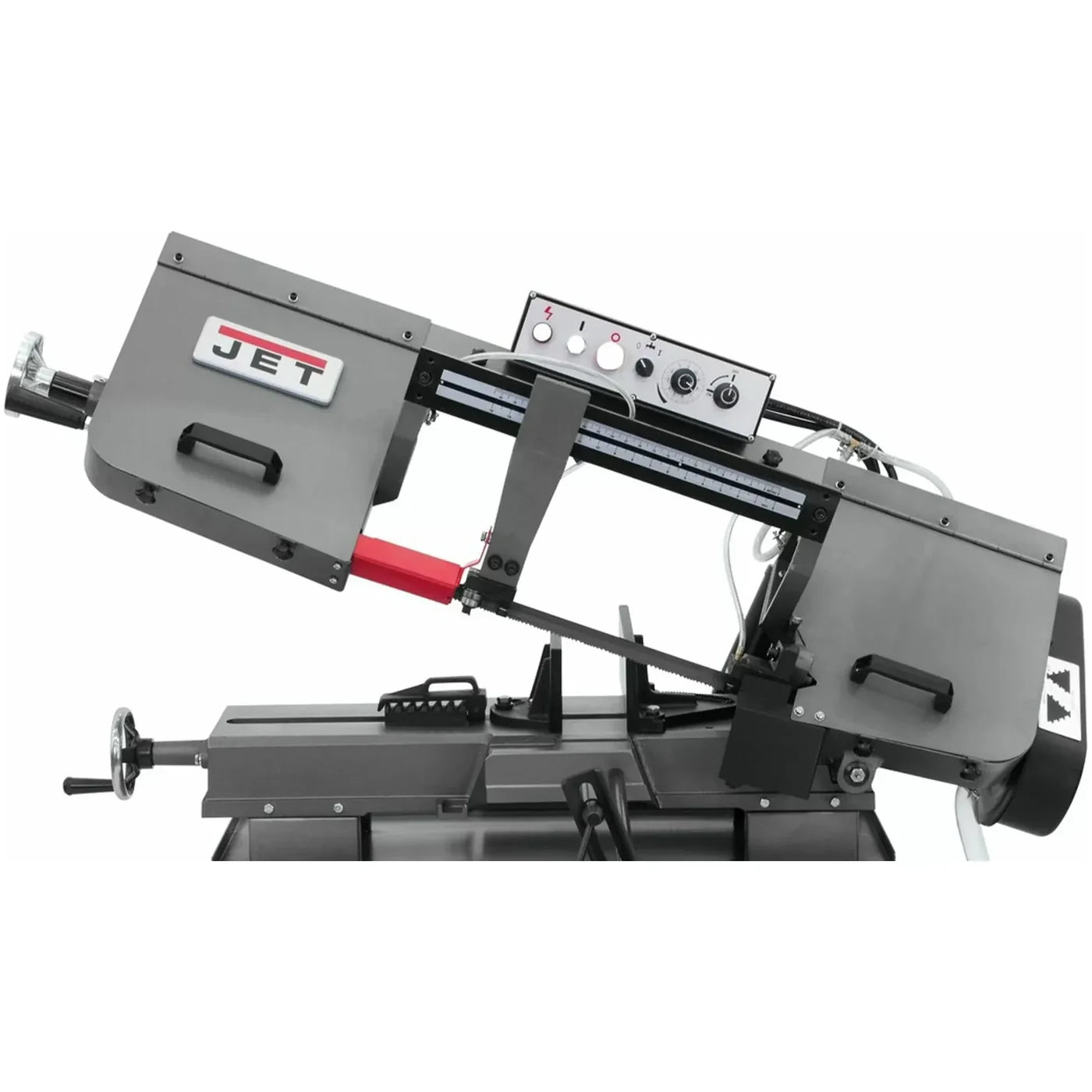

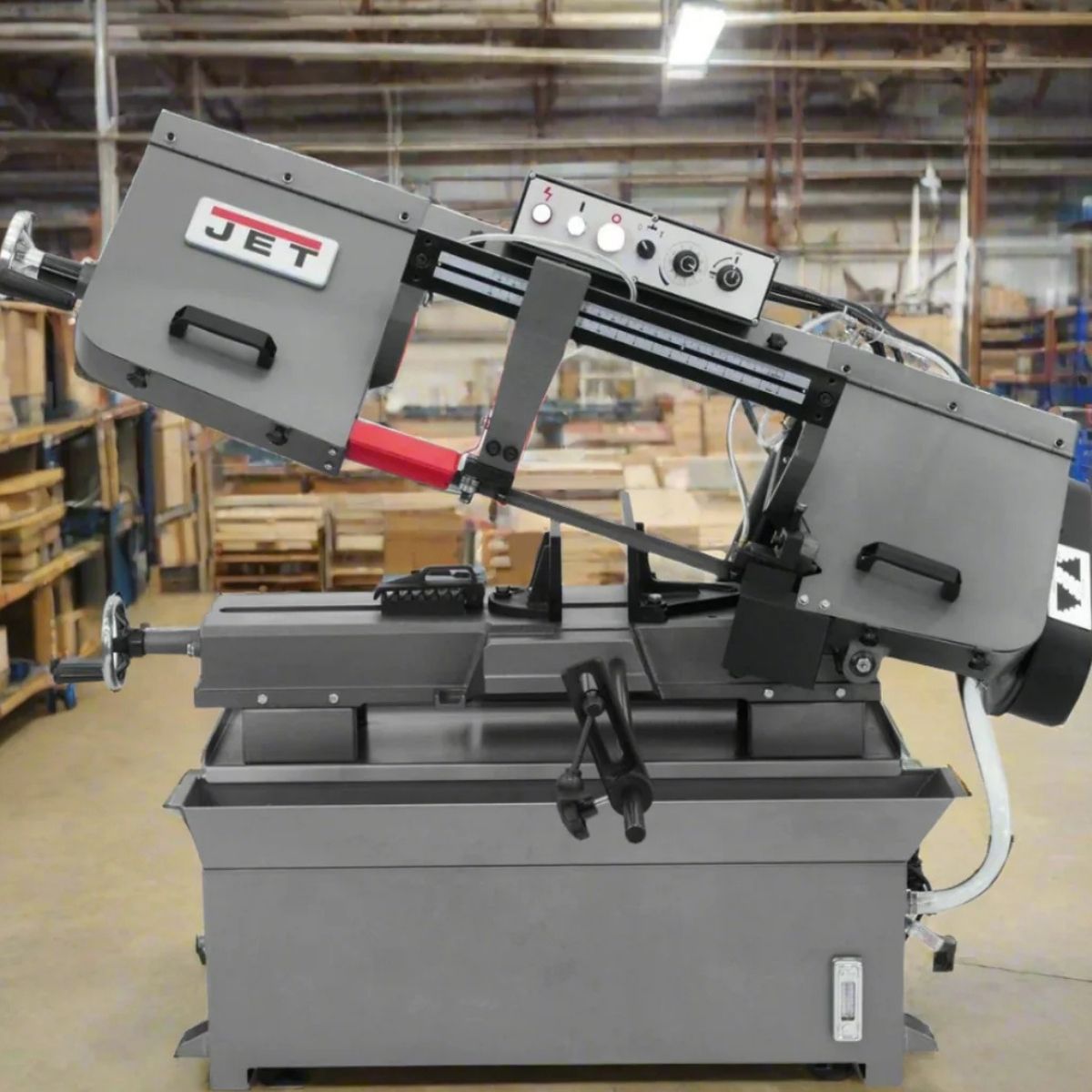

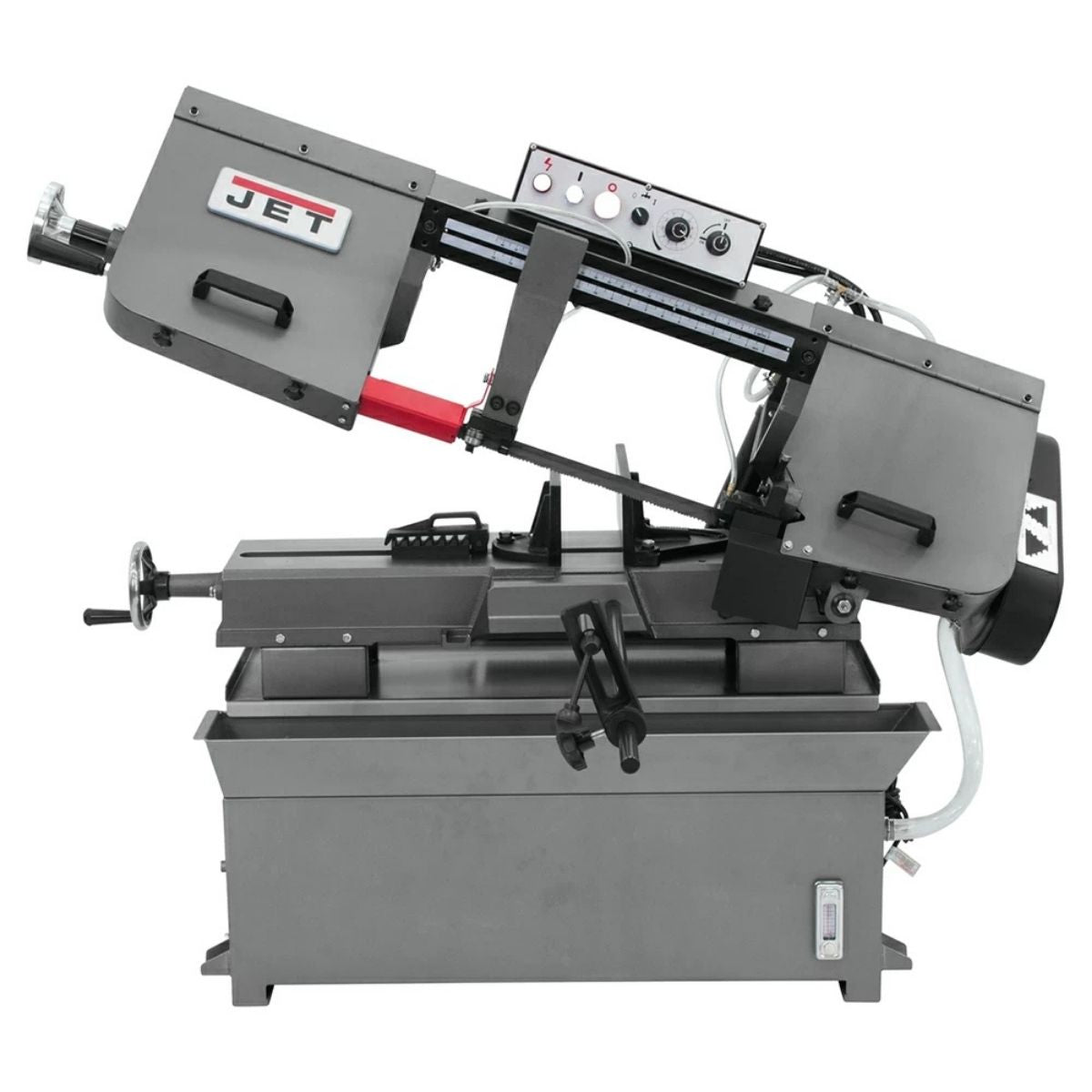

JET HBS-916 9" x 16" Horizontal Metal Bandsaw
Are you spending too much time resetting your saw between cuts, fighting inconsistent angles, and cleaning up coolant spray after every job?
What if your horizontal bandsaw held its position accurately, managed coolant cleanly, and let you move through a stack of cuts without slowing down?
Meet the JET HBS-916 9" x 16" Horizontal Metal Bandsaw, a four-speed machine built for steady, repeatable cutting in metal fabrication and production work.
With the HBS-916, you get carbide blade guides with double-row ball bearing support, a fully adjustable hydraulic downfeed, and a quick-positioning vise that swivels to 45 degrees.
When your saw holds true from cut to cut and cleanup takes minutes instead of half your morning, you can keep the work moving at the pace your shop demands.
JET HBS-916 for Accurate, Repeatable Metal Cutting

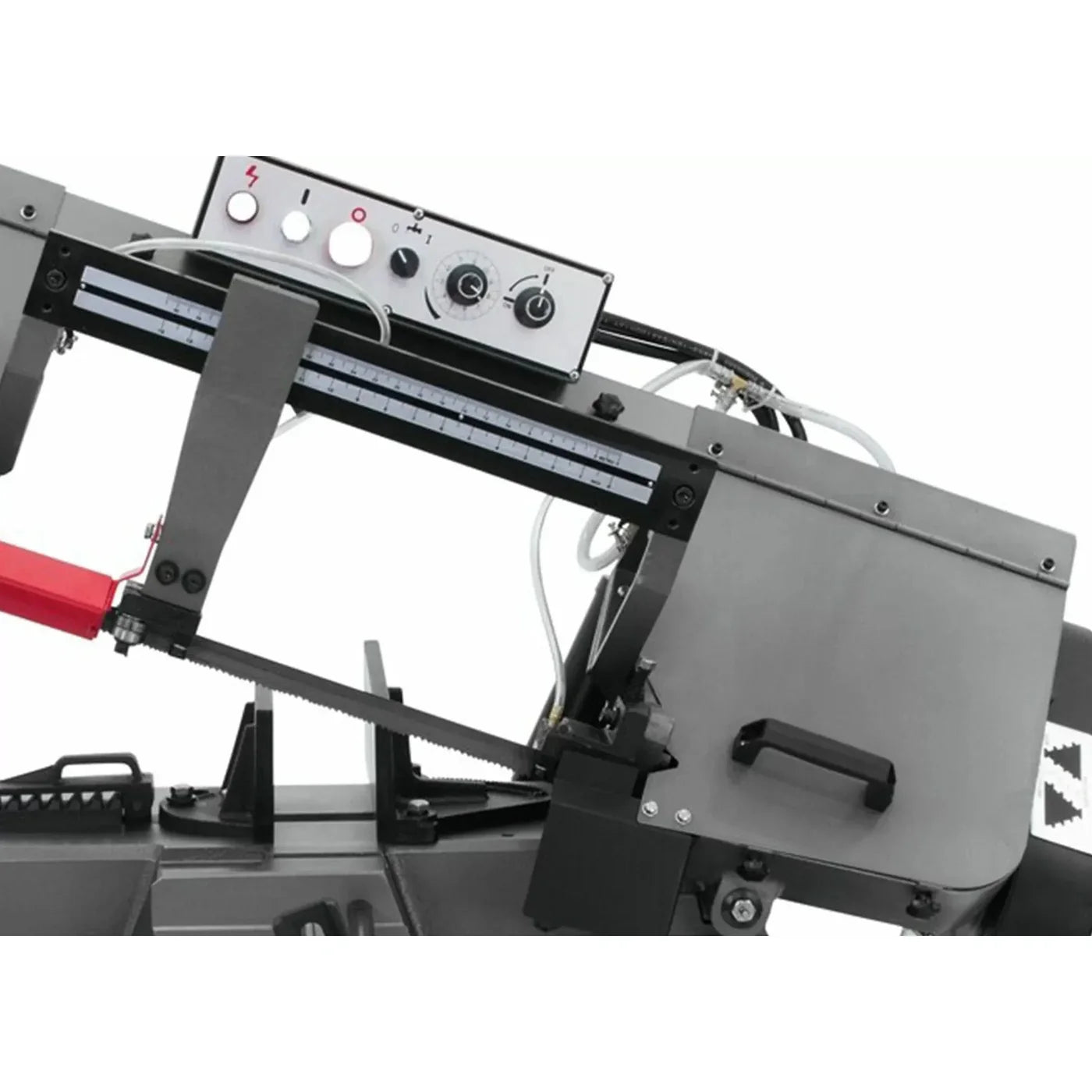

Carbide Blade Guides Keep Cuts Straight and Consistent
The HBS-916 uses carbide blade guides with parallel double-row ball bearing support to stabilize the blade through every cut. This keeps the blade tracking true whether you are cutting round stock, rectangular bar, or structural shapes. Consistent blade support means your cuts land where you set them, job after job.
Hydraulic Downfeed Gives You Control Over Feed Rate
A fully adjustable hydraulic downfeed lets you dial in the feed pressure for each material and blade speed. A separate on/off control valve keeps downfeed management simple and within reach. You set the rate once and the saw works through the material steadily without needing you to stand over it.

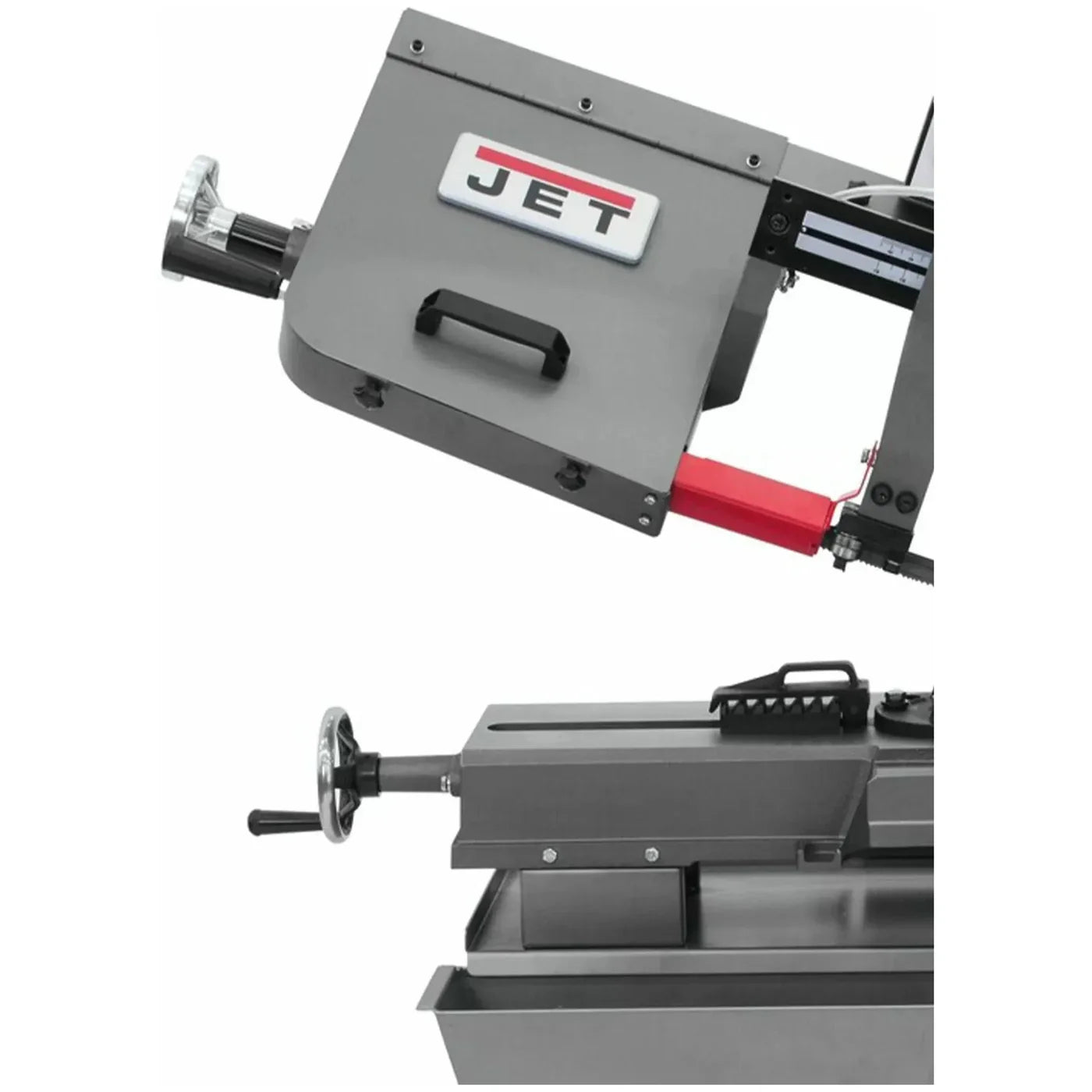

Quick-Positioning Vise Holds Stock Securely at Any Angle
The vise features fully adjustable jaws and swivels to 45 degrees for miter cuts. Quick positioning means you are not wrestling with the setup between pieces. The adjustable material stop gives you a reference point so repeat cuts stay consistent without re-measuring each time.
Built-In Blade Care Systems Extend Blade Life

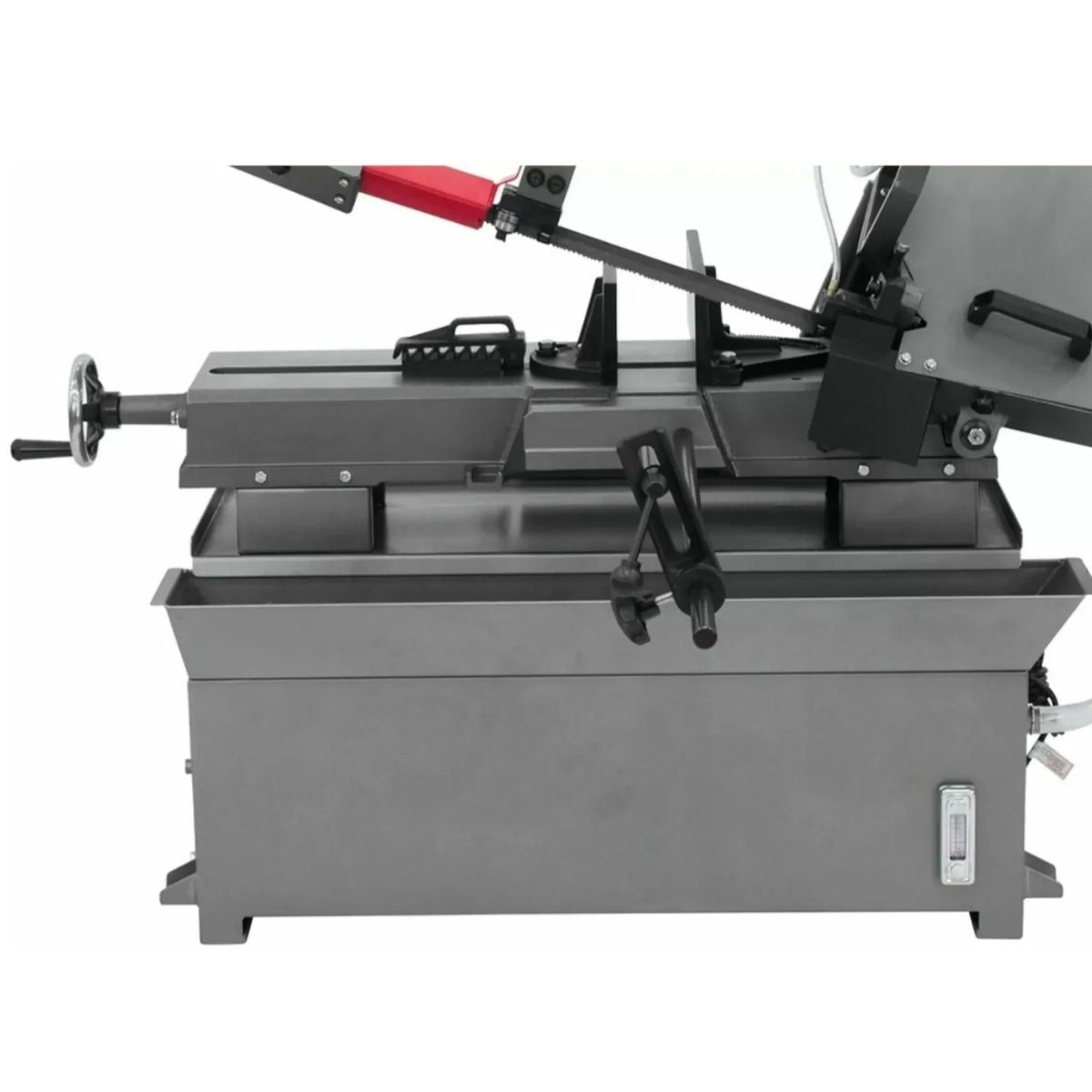

A self-propelled blade brush clears chips from the blade continuously during the cut. Coolant feeds directly through the blade guides, keeping the cutting zone lubricated and reducing heat buildup. The oversized chip tray captures coolant and debris in one place, which cuts cleanup time and keeps the floor around the machine clear.
What's Included
What's Included? JET HBS-916 9" x 16" Horizontal Metal Bandsaw
-
JET HBS-916 Horizontal Metal Bandsaw — Four-speed horizontal bandsaw with 9" x 16" cutting capacity, hydraulic downfeed, and carbide blade guides.
Specs
JET HBS-916 9" x 16" Horizontal Metal Bandsaw Specifications
-
Model Number: HBS-916
-
Stock Number (115V): JT9-414468
-
Stock Number (230V): JT9-414468-2
-
Motor: 1-1/2 HP, 115/230V, 1Ph
-
Available Voltages: 1PH 115V (JT9-414468), 1PH 230V (JT9-414468-2)
-
Prewired Voltage: 115V
-
Drive: Belt Drive
-
Blade Speeds (SFPM): 82, 132, 170, 235
-
Blade Wheel Diameter: 13"
-
Cutting Capacity (W x D): 9" x 16"
-
Round at 90 Degrees: 9"
-
Round at 45 Degrees: 6-1/8"
-
Rectangle at 90 Degrees: 8-1/2" x 14" and 2" x 16"
-
Rectangle at 45 Degrees: 9" x 6-1/8"
-
Vise Swivel: 45°
-
Overall Dimensions (L x W x H): 65" x 28" x 42"
-
Net Weight: 625 lbs.
-
Gross Weight: 704 lbs.
-
Warranty: 2 Year
