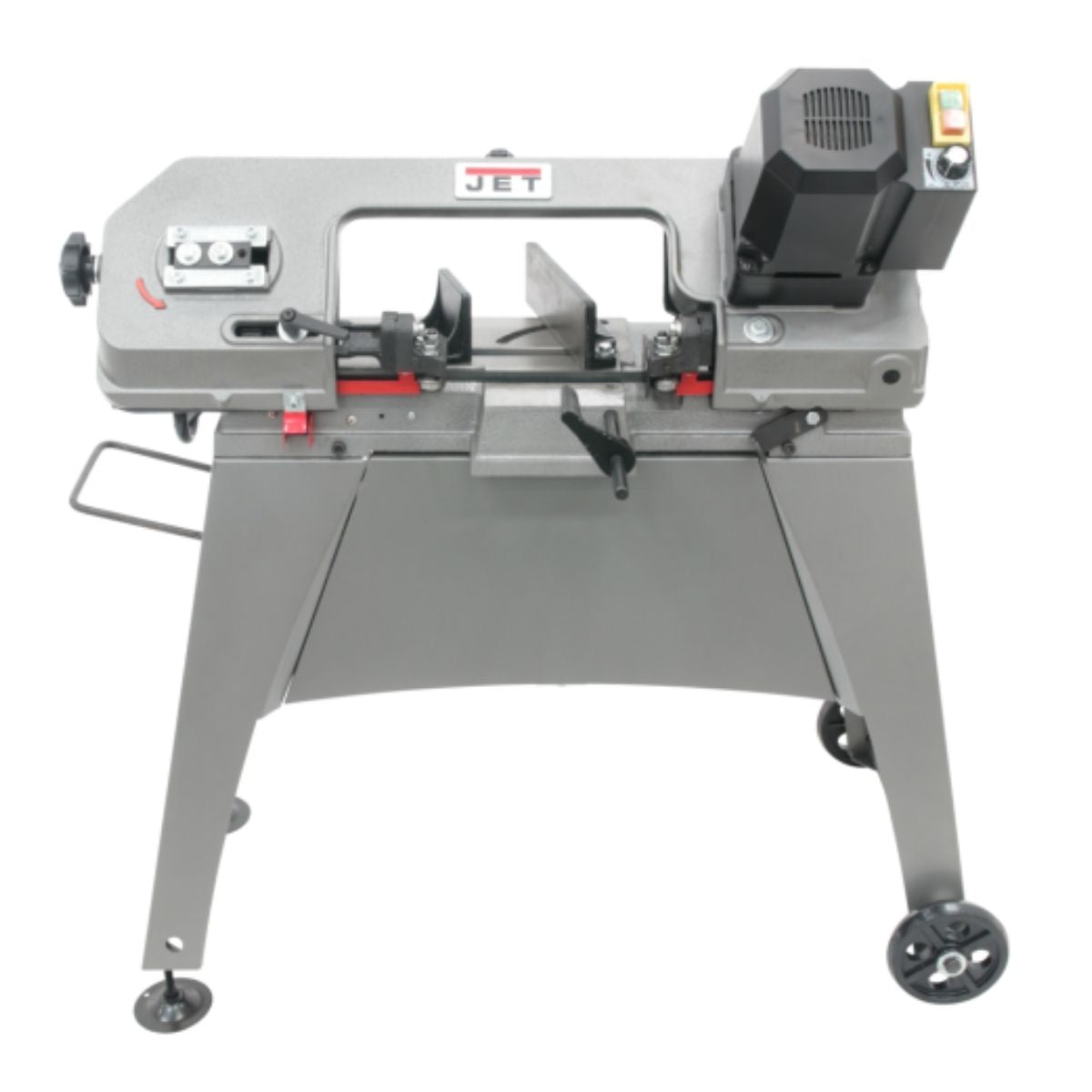

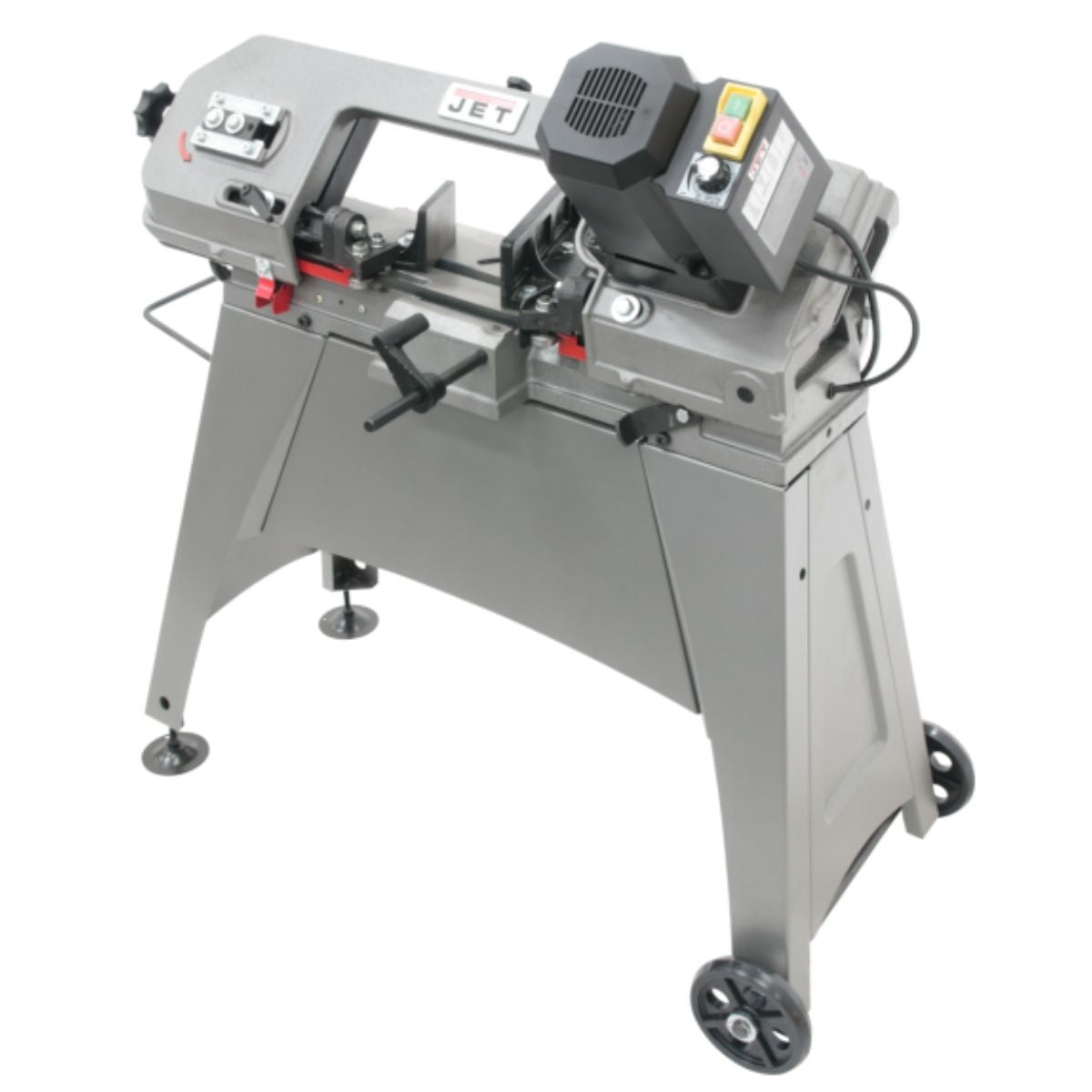

HVBS-56V 5" X 6" VS Horizontal/Vertical Variable Speed Bandsaw
Are you losing time switching between machines every time a cut requires a different setup? Are your current saws limiting the range of material you can work with in a single session?
What if one compact bandsaw could handle both horizontal stock cutting and vertical work without asking you to compromise on either?
Meet the HVBS-56V 5" X 6" VS Horizontal/Vertical Variable Speed Bandsaw, a machine built to cover both cutting positions with variable blade speed across a wide range of materials.
With the HVBS-56V, you get a DC motor paired with a three-step gear transmission that maintains steady torque whether you are cutting mild steel, aluminum, or softer stock.
When your shop needs a saw that adapts to the work instead of the other way around, this machine earns its place on the floor.

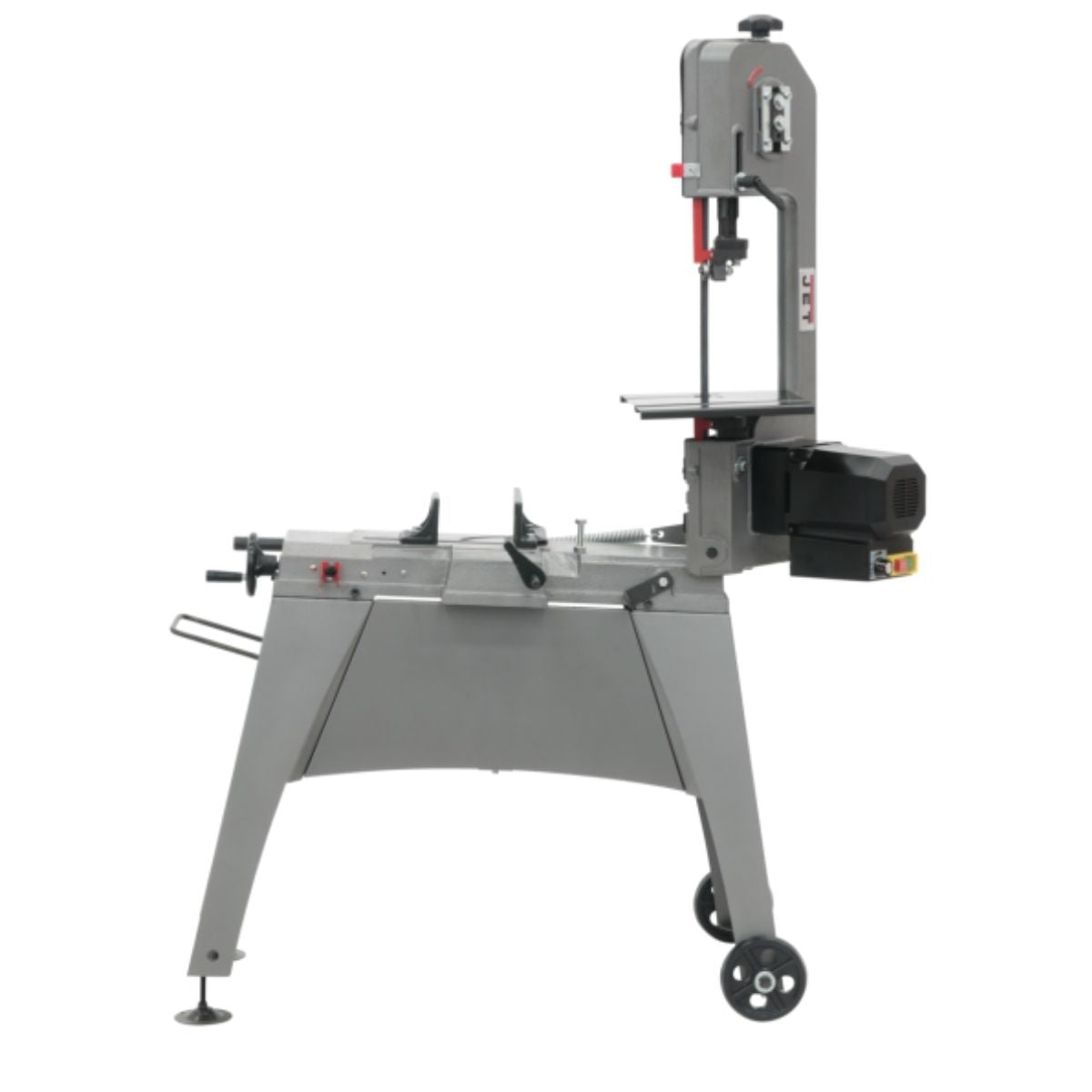

HVBS-56V 5" X 6" VS Bandsaw for Horizontal and Vertical Metal Cutting
DC Motor with Three-Step Gear Transmission Maintains Cutting Torque
The DC motor on the HVBS-56V is paired with a three-step gear transmission that increases torque output across the cutting range. This means the blade holds its pace through dense stock without bogging down mid-cut. You get consistent cutting performance whether the saw is running in horizontal or vertical mode.
Variable Blade Speed Handles a Range of Materials
Blade speed adjusts between 80 and 230 SFPM, giving you control over how the saw moves through different materials. Slower speeds suit harder metals where heat and blade wear are a concern. Higher speeds move through softer stock quickly and cleanly.

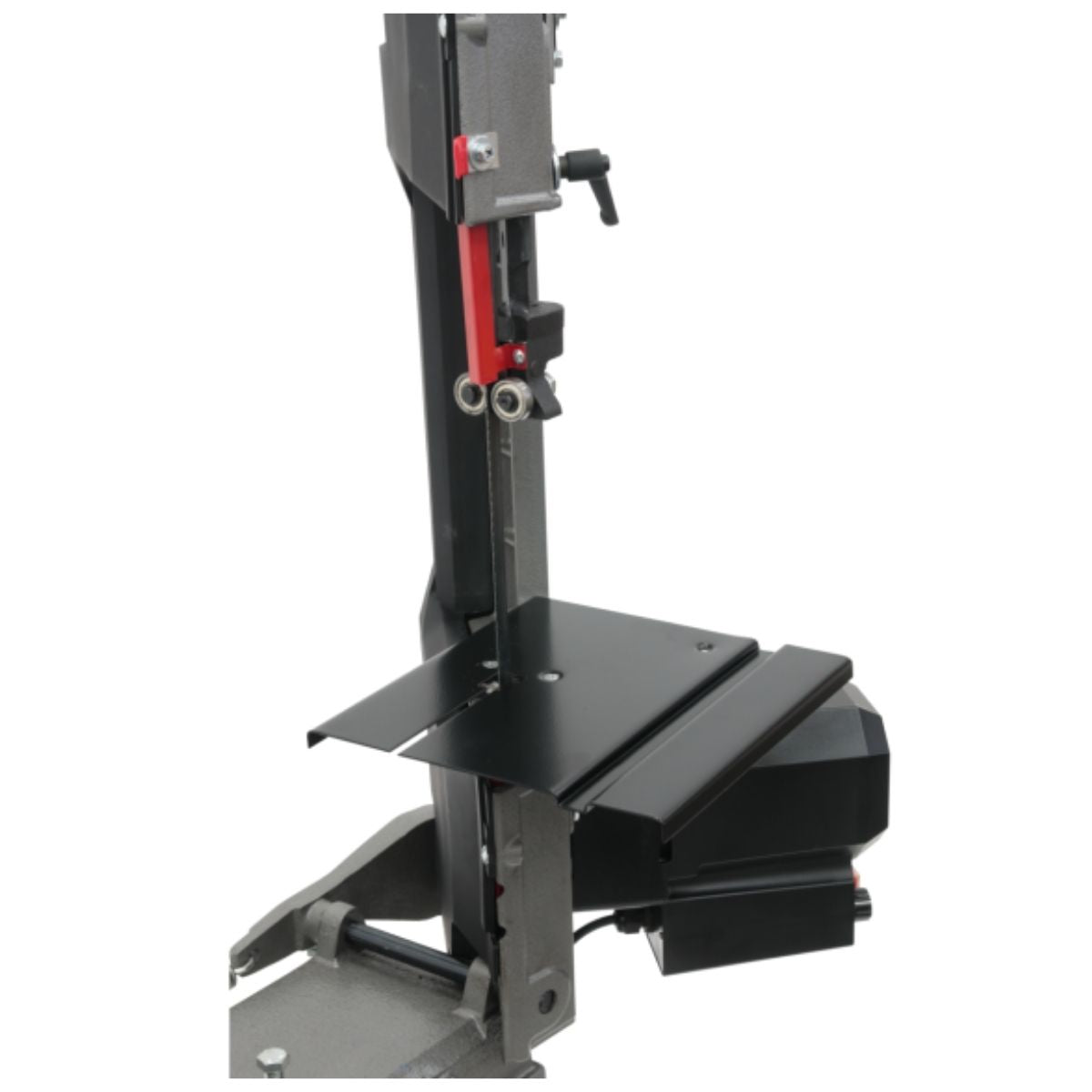

Ball Bearing Blade Guides and Supported Wheels Keep the Blade Stable
Fully adjustable ball bearing blade guides support the blade close to the cut for consistent tracking and reduced deflection. Ball bearing supported blade wheels extend the life of the blade and keep tension balanced through the full cutting stroke. Both systems work together to keep cuts straight and repeatable.

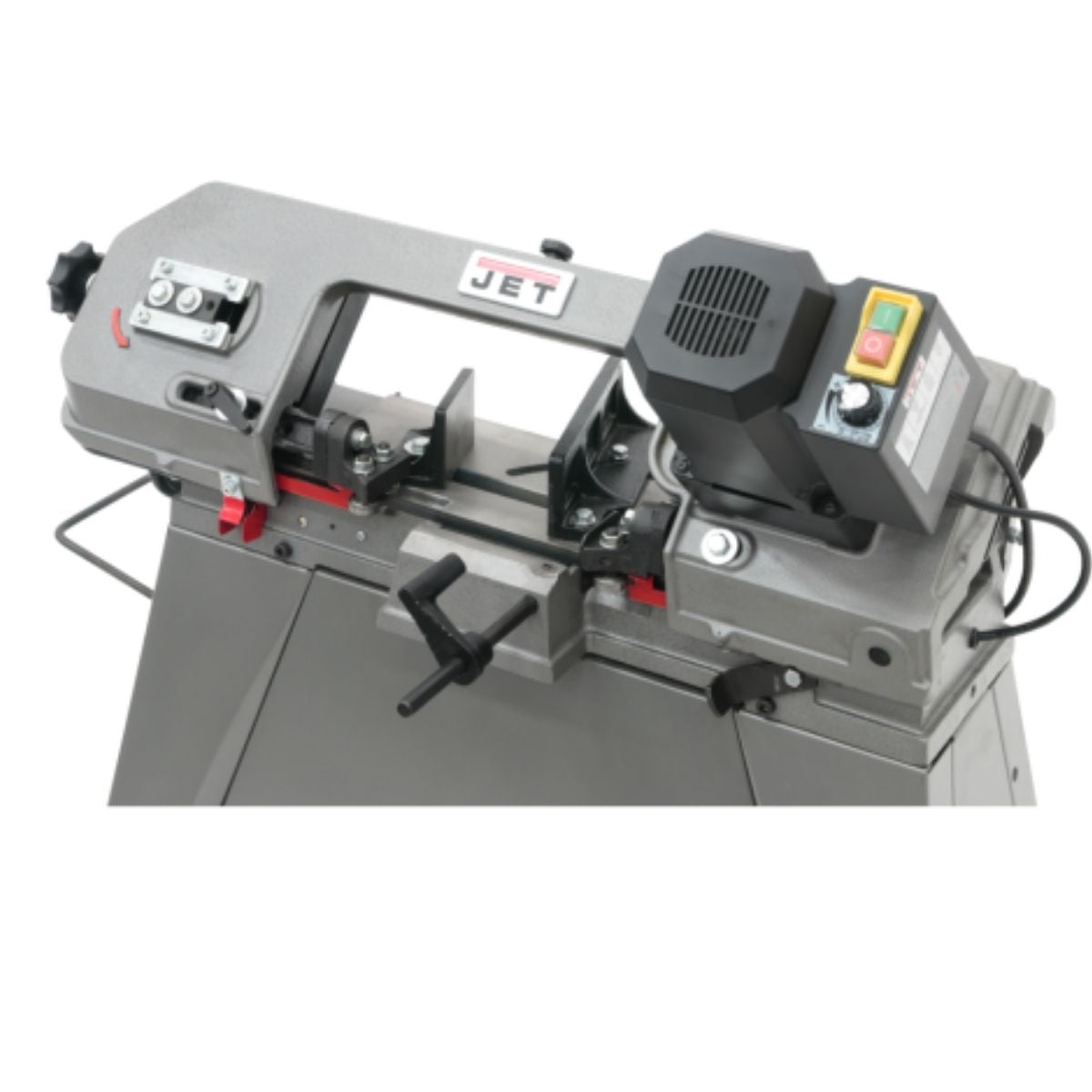

Vise with 45-Degree Swivel and Adjustable Stop Speeds Up Repetitive Cuts
The vise swivels to 45 degrees for miter cuts on round and rectangular stock. An adjustable material stop holds your repeat lengths so you can work through a stack of parts without measuring each piece. Front leveling pads keep the machine stable on uneven shop floors.
What's Included
What's Included? HVBS-56V 5" X 6" VS Horizontal/Vertical Variable Speed Bandsaw
-
HVBS-56V Bandsaw with Stand — The main machine and integrated stand with built-in shelf for storing accessories close at hand.
-
Wheels — Standard-fit shop wheels allow you to move the machine around the floor without additional equipment.
Specs
HVBS-56V 5" X 6" VS Horizontal/Vertical Variable Speed Bandsaw Specifications
- Model Number: HVBS-56V
- Stock Number: JT9-414548
- Motor: 1/2 HP, 115V, 1-Phase
- Blade Speeds: Variable 80–230 SFPM
- Round Capacity at 90°: 5"
- Round Capacity at 45°: 3"
- Rectangle Capacity at 45°: 4-1/2" (H) x 3" (W)
- Vise Swivel: 45°
- Overall Dimensions (L x W x H): 36" x 20" x 39-1/2"
- Net Weight: 115 lbs
- Gross Weight: 121 lbs
- Warranty: 2 Years
- Certifications: CSA/CUS Certified
