JET HBS-56MVS 5" × 6" Metal Bandsaw
Are your metal cuts coming out rough, inconsistent, or hard to dial in when you switch between materials?
What if you had a bandsaw that let you tune blade speed for each material with a single dial and hold your mitering angle without ever repositioning the workpiece?

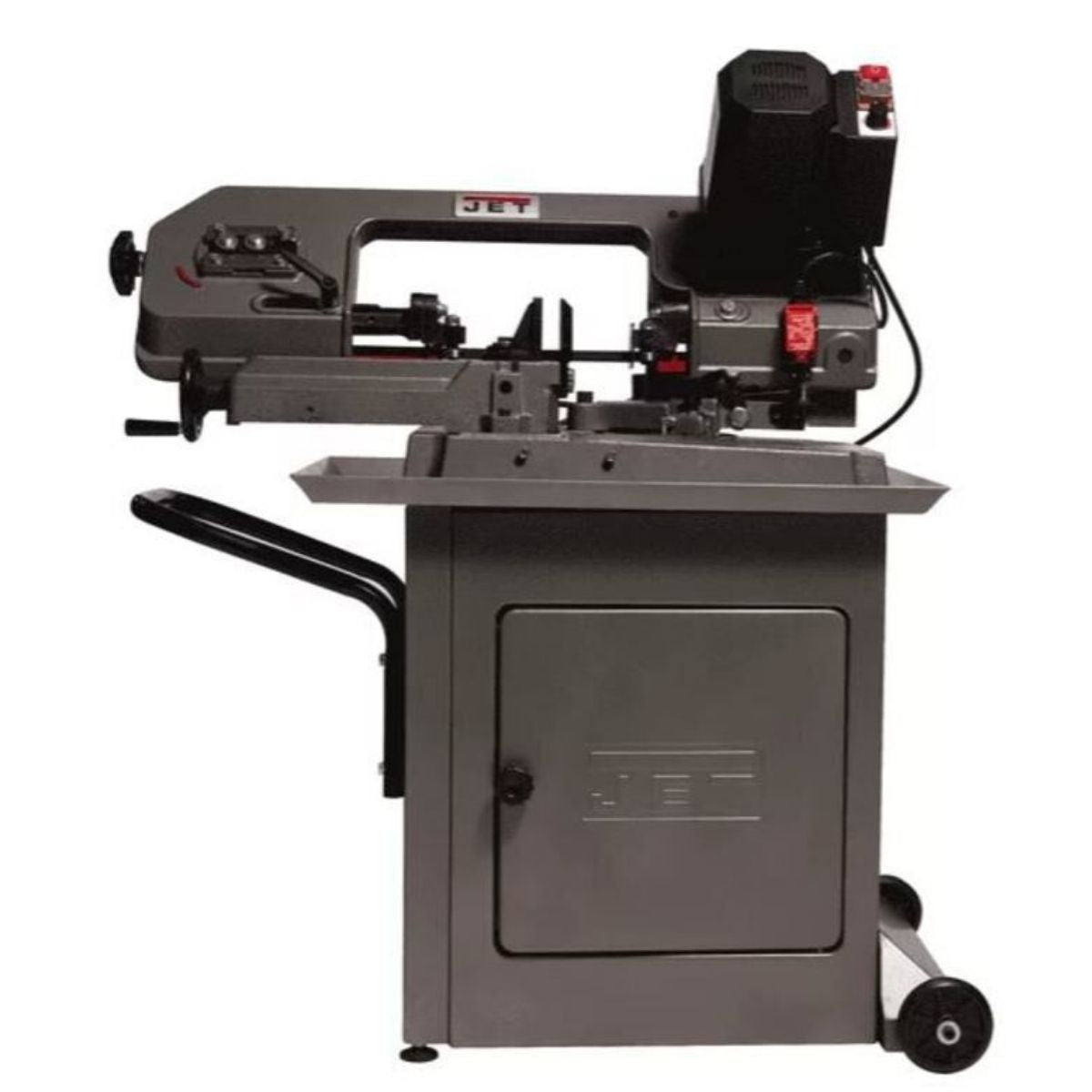

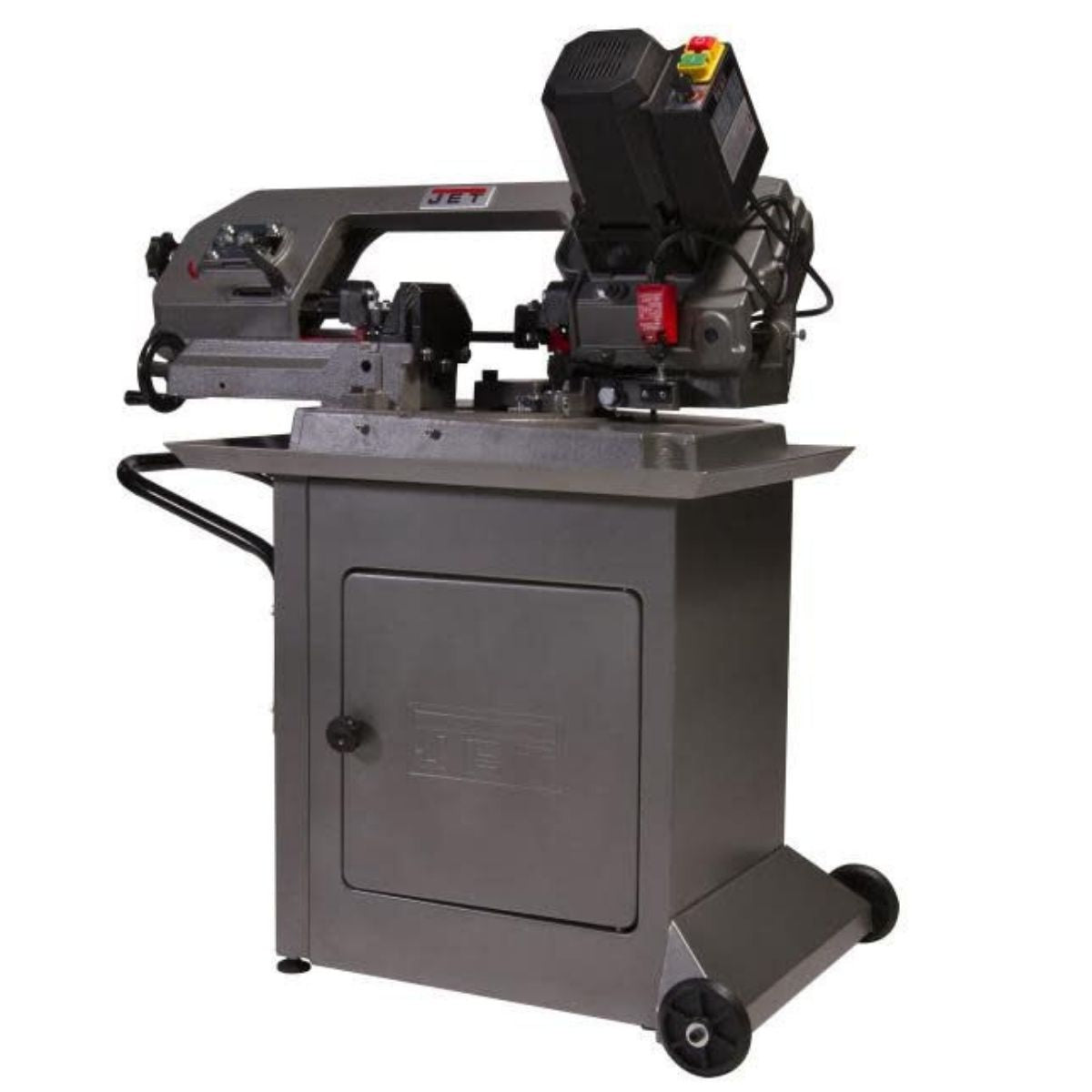

Meet the JET HBS-56MVS 5" × 6" Metal Bandsaw, a variable-speed horizontal bandsaw built for accurate, repeatable cuts across a range of ferrous and non-ferrous metals.
With the HBS-56MVS, you get a swiveling cast head that holds angles from 0° to 60°, fully adjustable ball bearing blade guides, and a variable blade speed range of 80 to 230 SFPM controlled by a single dial.
When your saw is set up right and ready to cut, you spend your time working metal instead of troubleshooting your equipment.
JET HBS-56MVS for Controlled, Accurate Metal Cutting
Variable Speed Dial Matches Blade Speed to the Material
The HBS-56MVS runs blade speeds from 80 to 230 SFPM, adjustable with a single dial. No belt changes are required. Softer metals run at higher speeds. Harder stock runs slower. You turn the dial, set the speed, and the saw holds it.

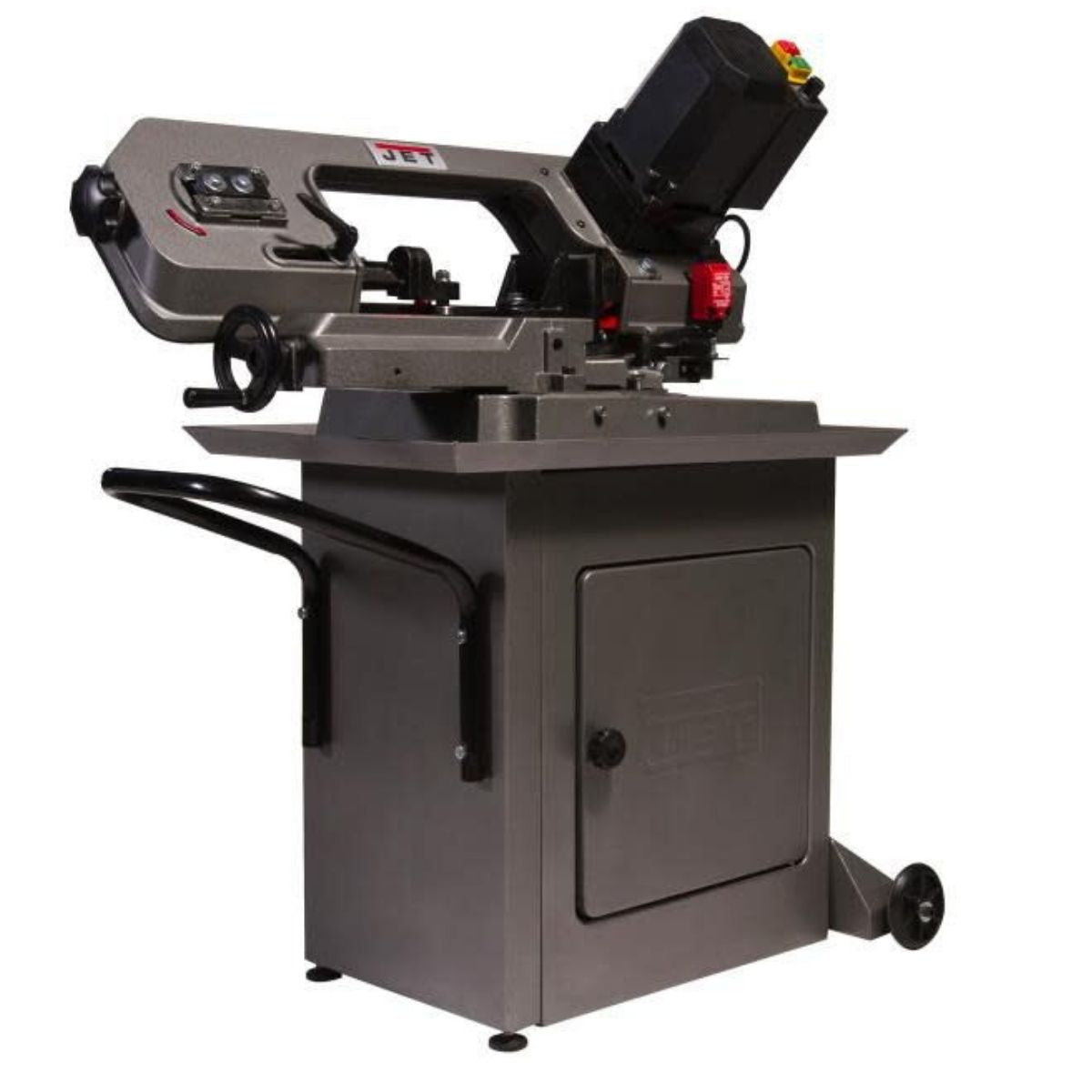

Swiveling Cast Head Cuts Miters Without Moving the Stock
The heavy-duty cast head swivels from 0° to 60°, letting you cut miters and angled sections without repositioning or reclamping the workpiece. At 45°, you can cut up to 3-3/4" round or 3-3/4" × 2-1/3" rectangle. At 90°, the capacity is 5" round or 5" × 6" rectangle.
Ball Bearing Blade Guides Keep the Blade Tracking True
Fully adjustable ball bearing blade guides support the blade throughout the cut. They are set to match the blade and the work, reducing drift and keeping the cut line consistent from start to finish. Proper guide adjustment is key to clean results and longer blade life.
Integrated Wheels and Leveling Pads Support Shop Mobility
The saw ships with built-in wheels for moving it around the shop floor. Front legs include leveling pads so the machine sits steady once it is in position. For a 1/2 HP, 115V machine, the setup is straightforward and the footprint stays manageable.
What's Included
What's Included? JET HBS-56MVS 5" × 6" Metal Bandsaw
-
JET HBS-56MVS Horizontal Metal Bandsaw — the main unit with swiveling cast head, variable speed drive, and integrated transport wheels
-
Ball Bearing Blade Guides — fully adjustable guides that support blade tracking and reduce drift during cuts
-
Blade (1/2" × .025" × 64-1/2") — the factory-installed blade sized for the machine's 7-3/8" wheels
-
Leveling Pads on Front Legs — keep the saw stable on the shop floor once positioned
-
Transport Wheels — built in for moving the saw between work areas
Specs
JET HBS-56MVS 5" × 6" Metal Bandsaw Specifications
-
Stock Number: JT9-414558
-
Model Number: HBS-56MVS
-
Motor: 1/2 HP, 115V, Single Phase, prewired 115V
-
Amperage Draw (115V, 1Ph): 3.8A
-
Blade Speed: Variable, 80–230 SFPM
-
Blade Wheel Diameter: 7-3/8"
-
Blade Size: 1/2" × .025" × 64-1/2"
-
Cut Capacity at 90°: 5" round, 5" × 6" rectangle
-
Cut Capacity at 45°: 3-3/4" round, 3-3/4" × 2-1/3" rectangle
-
Cut Capacity at 60°: 1-1/4" × 1-3/4" rectangle, 5" × 1-3/4" rectangle
-
Vise Swivel Range: 0°–60°
-
Bed Height: 28"
-
Overall Dimensions (L × W × H): 38.58" × 20.47" × 43.3"
-
Overall Assembled with Bow Lowered (L × W × H): 38.58" × 20.47" × 47.3"
-
Shipping Dimensions (L × W × H): 35.43" × 17.5" × 21.65"
-
Net Weight: 172 lbs
-
Gross Weight: 176 lbs
-
Shipping Weight: 147 lbs
-
Certification: CSA/CUS
-
Warranty: 2 years
-
Manual: Available for the HBS-56MVS — refer to JET documentation for setup and blade guide adjustment procedures
