JET HBS-1321W 13" x 21" Horizontal Metal Bandsaw
Are you losing time on metal cutting jobs because your saw demands constant attention and slow manual resets between cuts?
What if your horizontal bandsaw could raise itself after each cut and hold your material in place so you could focus on the next piece?

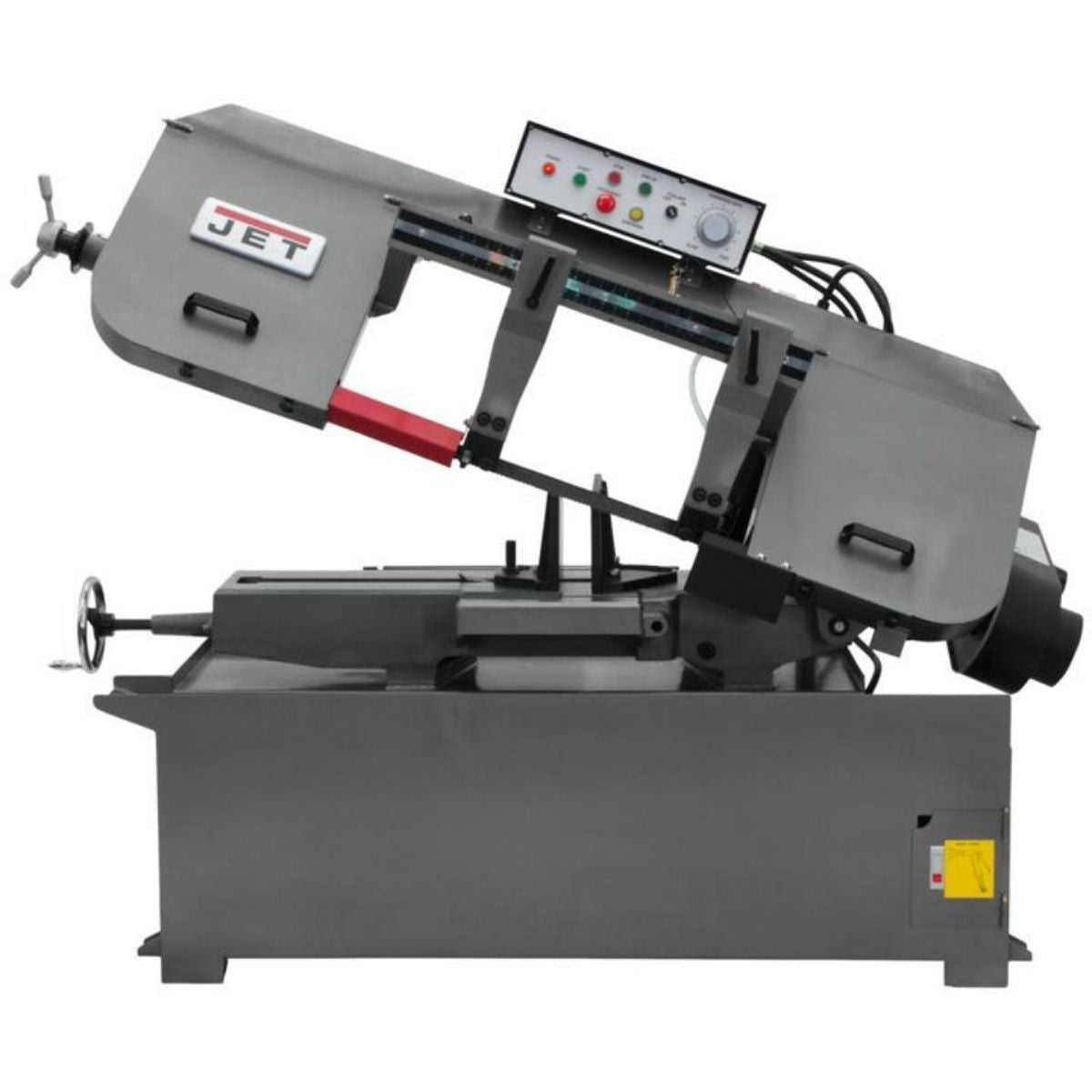

Meet the JET HBS-1321W 13" x 21" Horizontal Metal Bandsaw, a semi-automatic machine built for shops that cut metal stock on a regular basis.
With the HBS-1321W, you get hydraulic downfeed control, carbide blade guides, and a self-propelled blade brush working together to keep cuts consistent and the blade running clean.
When the saw handles the reset and you handle the setup, your production pace stays steady and your results stay accurate.
JET HBS-1321W for Consistent, Semi-Automatic Metal Stock Cutting
Hydraulic Downfeed System Controls Cut Rate Precisely
The fully adjustable hydraulic downfeed governs how fast the bow descends through the cut. You set the rate to match the material you are cutting, and the saw holds that rate from start to finish. This takes blade pressure out of your hands and puts it under mechanical control, which reduces blade wear and keeps cuts cleaner across the full face of the stock.
Semi-Automatic Bow Raise Reduces Reset Time Between Cuts
When the cut is complete, the bow raises automatically to a preset height. You do not have to lift it by hand or stand by the machine while it finishes. This keeps your workflow moving and makes it practical to run multiple pieces without losing time between cuts.
Carbide Blade Guides with Roller Bearings Keep the Blade Tracking True
Carbide guides paired with roller bearings support the blade close to the cut. This combination reduces blade flex and keeps the cut line straight through heavier cross-sections. Coolant is delivered directly through the blade guides, so heat is managed at the point where it matters most and blade life is extended through the job.
Self-Propelled Blade Brush and Quick-Positioning Vise Support Shop Efficiency
The built-in blade brush runs continuously to clear chips from the blade teeth before they re-enter the cut. This reduces chip re-cutting and helps the blade stay sharp longer. The quick-positioning vise moves material into place without extended setup, and the adjustable material stop lets you repeat the same cut length accurately across a full run of pieces.
What's Included
What's Included? JET HBS-1321W 13" x 21" Horizontal Metal Bandsaw
-
JET HBS-1321W Horizontal Metal Bandsaw — Semi-automatic horizontal bandsaw with 13" x 21" cutting capacity and 3 HP variable-speed drive.
-
Chip Tray — Collects metal chips during cutting for easier cleanup between jobs.
-
Cleaning Hose and Nozzle — Used to wash chips away from the work area after cutting.
Specs
JET HBS-1321W 13" x 21" Horizontal Metal Bandsaw Specifications
-
Model Number: HBS-1321W
-
Stock Number: JT9-414471 (230V) / JT9-414471-4 (460V)
-
Motor: 3 HP, 230/460V, 3-Phase
-
Drive: Variable Speed
-
Blade Speeds: 80–260 SFPM
-
Blade Wheel Diameter: 18 in.
-
Round Capacity at 90°: 13 in.
-
Round Capacity at 45°: 10-1/2 in.
-
Rectangle Capacity at 90°: 10 x 21 in. and 13 x 19 in.
-
Rectangle Capacity at 45°: 11-1/2 x 10-1/2 in.
-
Vise Swivel: 45°
-
Overall Dimensions (L x W x H): 84 x 32-1/2 x 55 in.
-
Net Weight: 1,276 lb.
-
Gross Weight: 1,320 lb.
-
Warranty: 2 Year
