JET HBS-1220DC 12" x 20" Horizontal Metal Bandsaw
Are you losing accuracy on large metal sections because your blade drifts or deflects as the head descends through the cut?
What if your saw kept the blade tracking straight from the top of the cut to the bottom, no matter how wide or tall the stock?

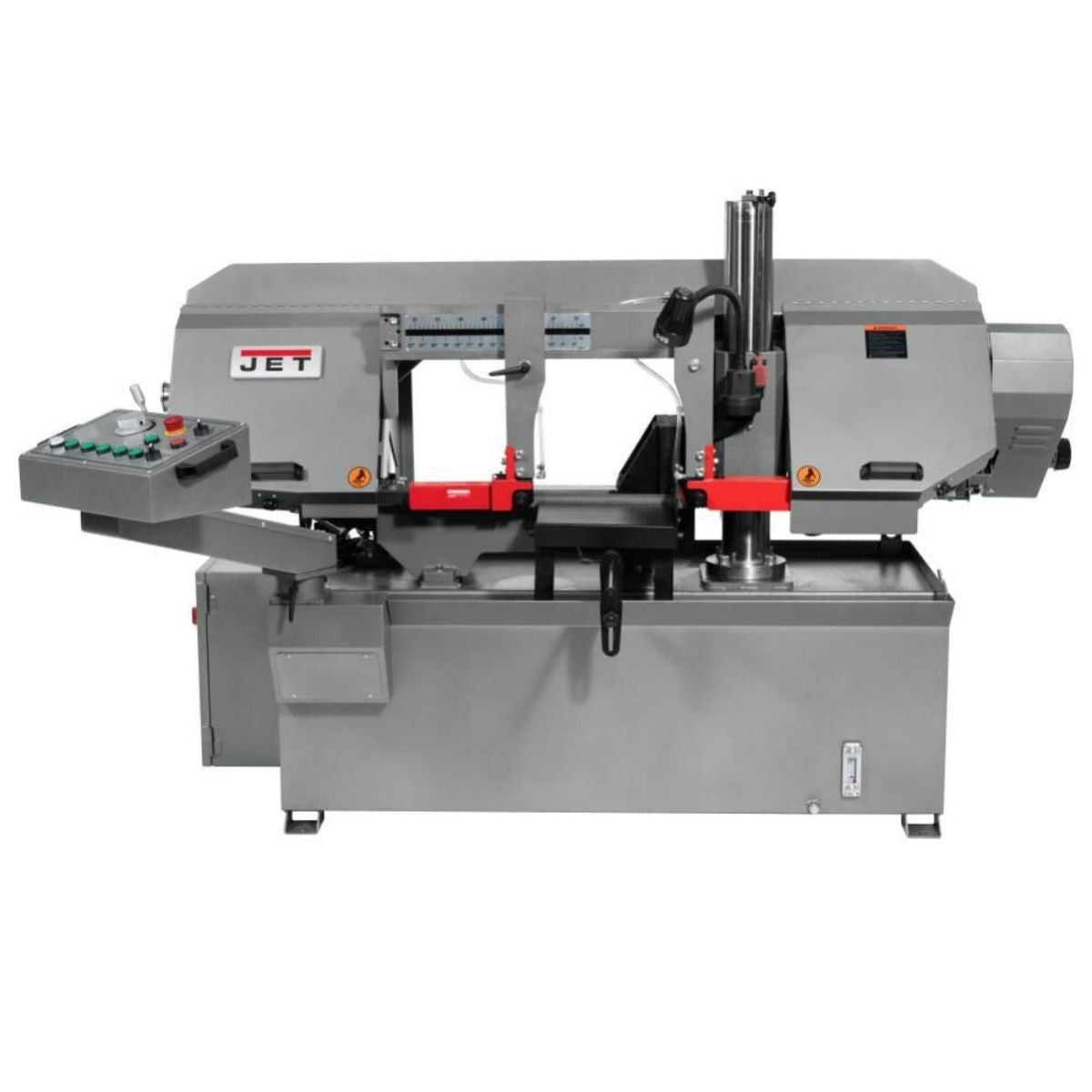

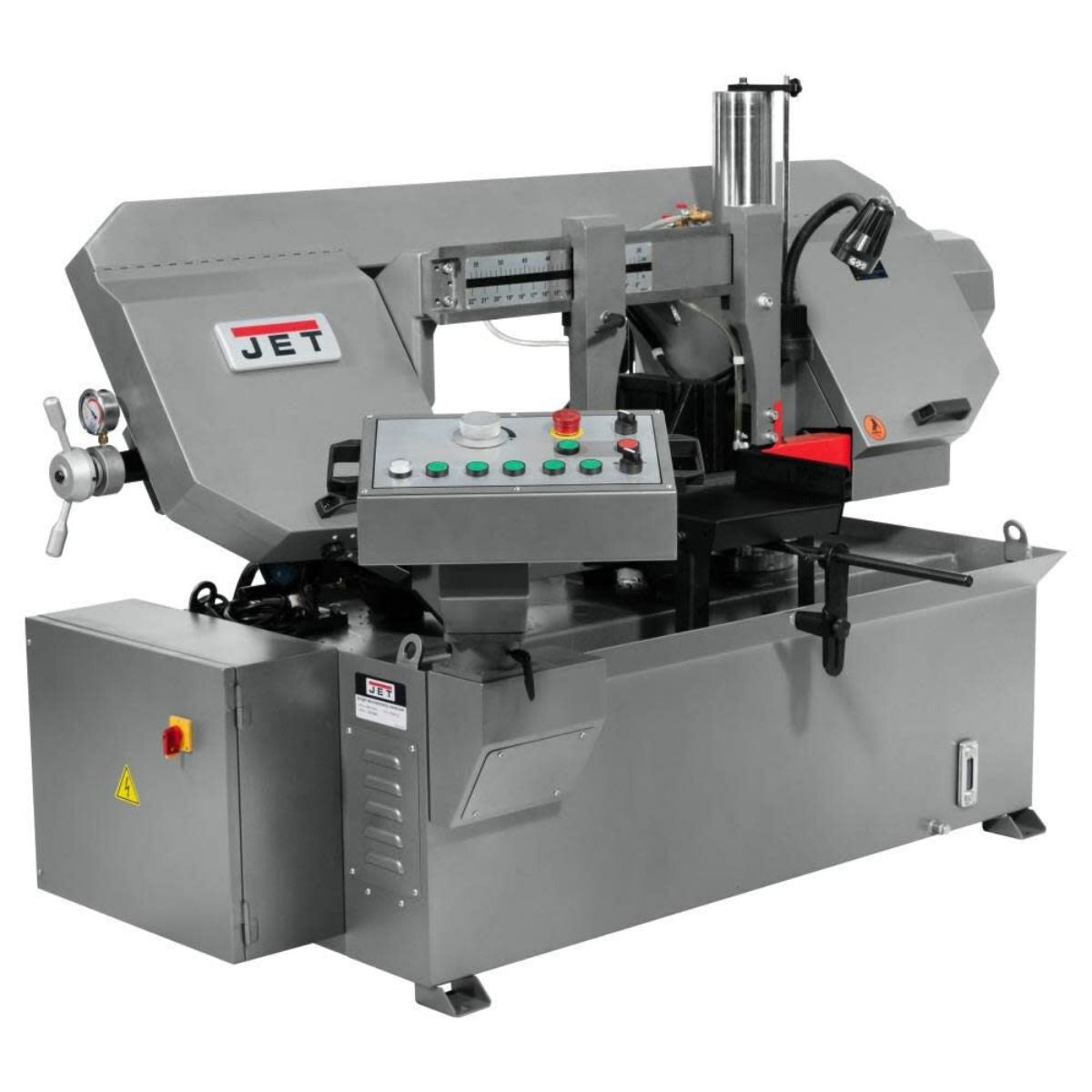

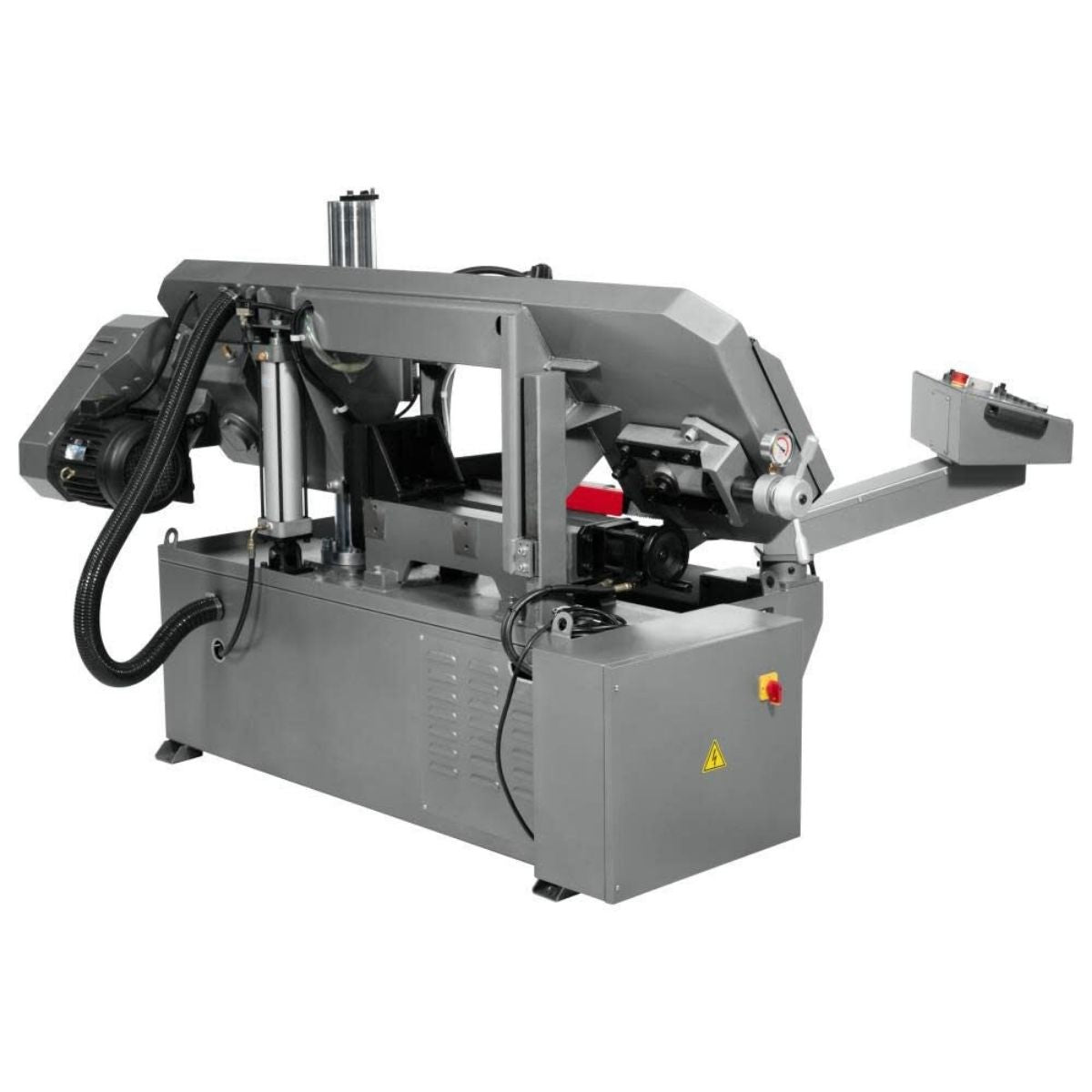

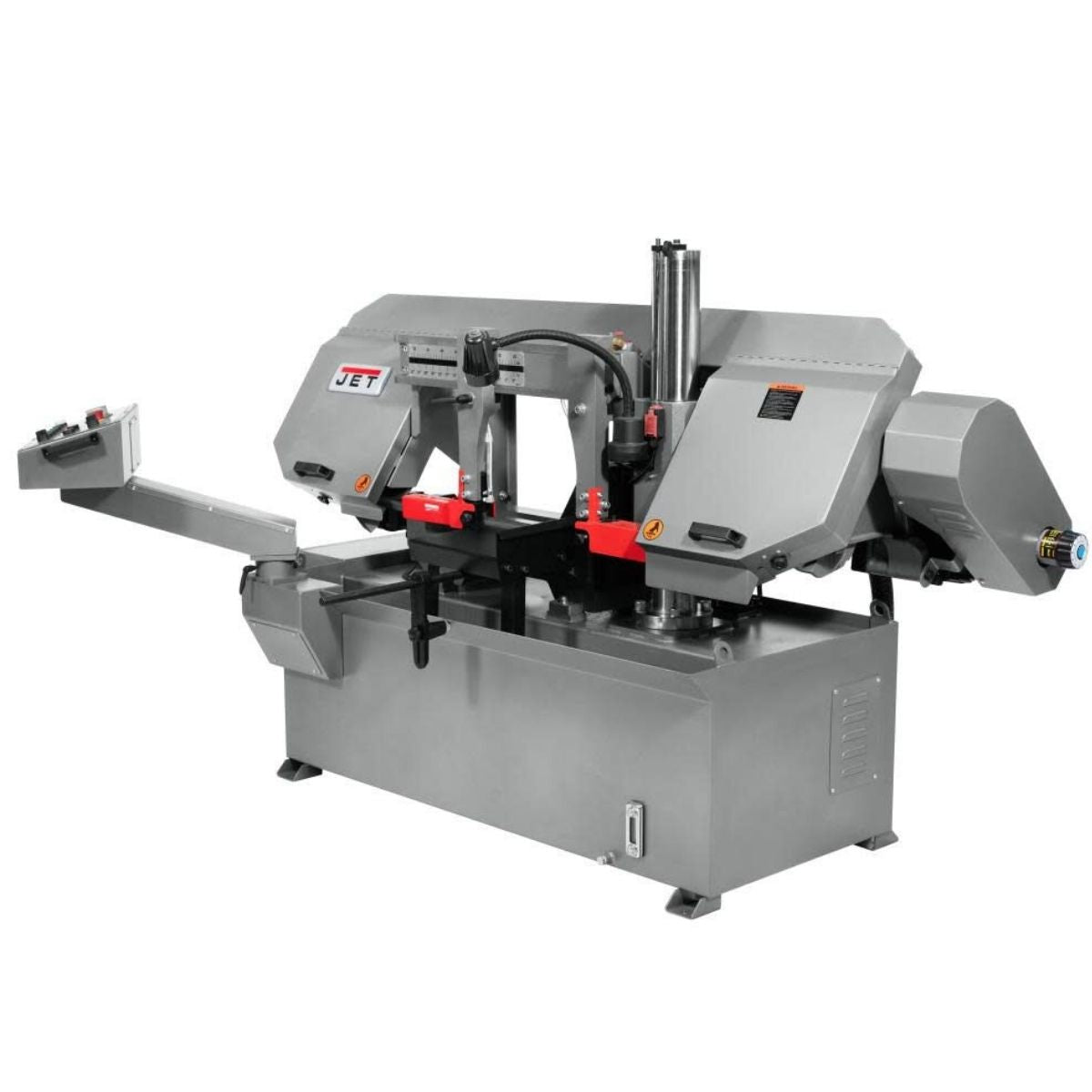

Meet the JET HBS-1220DC 12" x 20" Horizontal Metal Bandsaw, a heavy-duty dual column machine built for shops that cut large metal parts and need the blade to stay on line through the full stroke.
With the HBS-1220DC, the two-column design controls head movement and reduces the blade deflection that causes off-square cuts in single-column saws.
When your blade tracks straight and your cuts come out square, you spend less time on secondary operations and more time moving material through the shop.
JET HBS-1220DC for Large Section Metal Cutting with Controlled Blade Descent
Dual Column Design Reduces Blade Deflection Through the Cut
Two columns guide the head as it descends, keeping the blade on a controlled path through large metal sections. Single-column saws can flex under load on wide or tall stock, which pushes the blade off line. The dual column structure limits that movement so the blade stays straight and the cut stays square from start to finish.

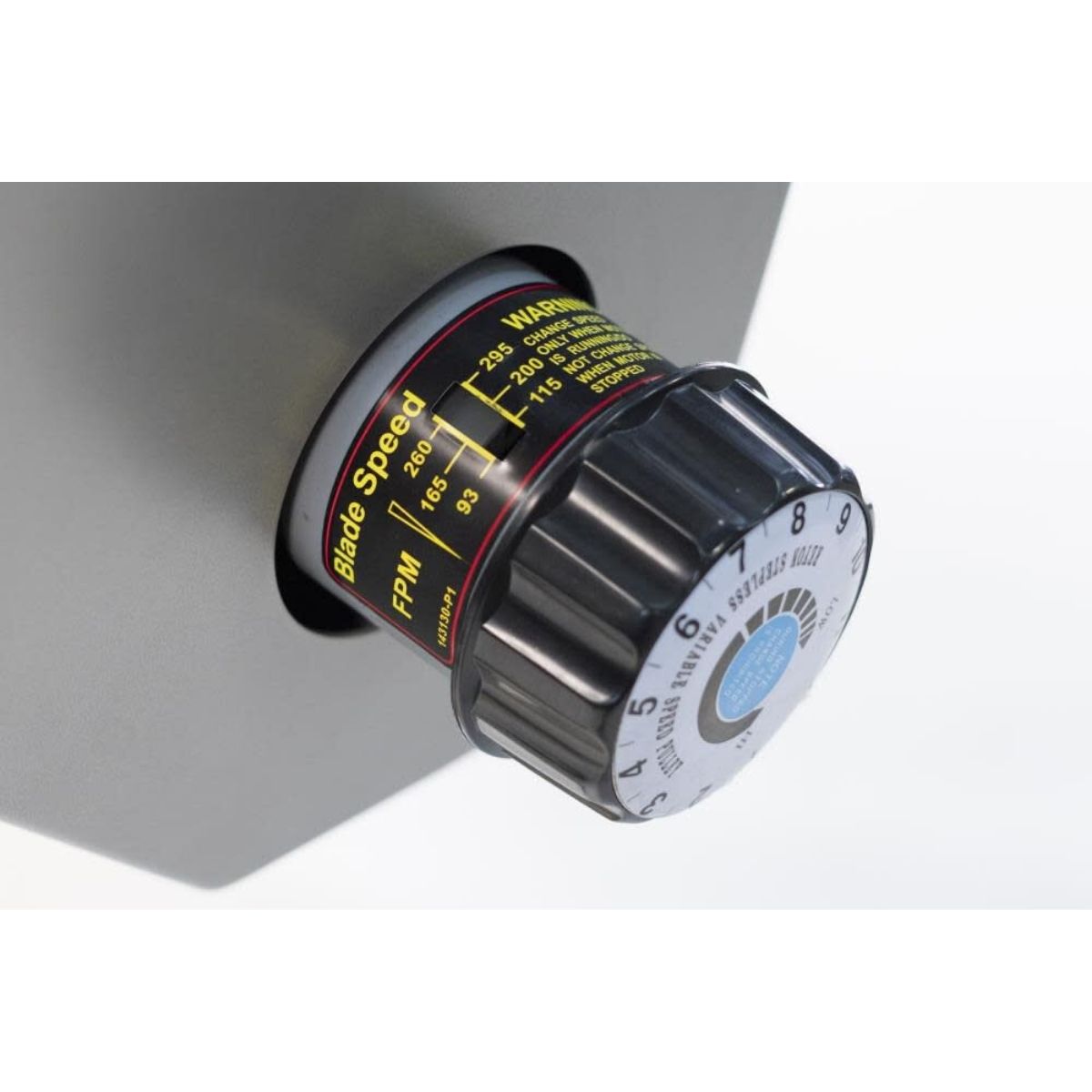

Mechanical Variable Speed Drive Matches Blade Speed to Material
The mechanical variable speed drive adjusts blade speed across a range of 95 to 295 SFPM with four fixed speed positions at 86, 157, 228, and 330 SFPM. Harder alloys and larger sections cut better at lower speeds, and the ability to match speed to material reduces blade wear and keeps cut quality consistent across different stock types.
Integrated Coolant System Delivers Fluid Directly Through the Blade Guides
Coolant is distributed through the blade guides rather than applied at a distance from the cut. This puts fluid exactly where heat builds up and where chips accumulate, extending blade life and keeping the cut zone clear. The self-propelled blade brush works alongside the coolant system to prevent chip buildup in the guides between passes.

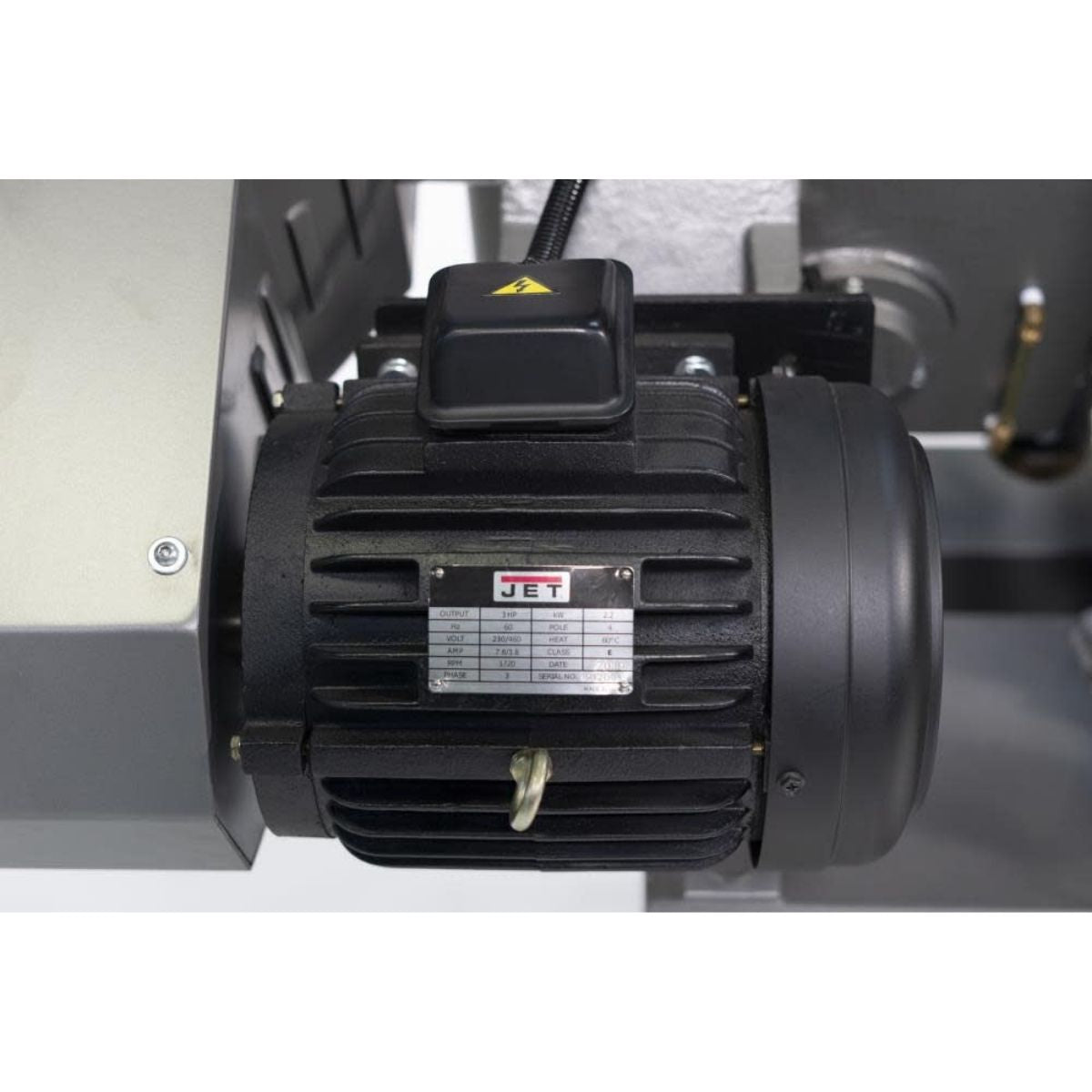

Continuous-Duty Motor and Gearbox Built for Production Use
The 3HP motor is designed for continuous operation, which means it holds up under the sustained load of cutting large metal sections without thermal shutdowns or power drop-off. The gearbox is built for long service life under production conditions, so the drivetrain stays reliable through heavy daily use.
What's Included
What's Included? JET HBS-1220DC 12" x 20" Horizontal Metal Bandsaw
-
JET HBS-1220DC Horizontal Metal Bandsaw — the main cutting unit with dual column frame, fully assembled drive system, and integrated coolant system.
-
Blade Tension Gauge — confirms the blade is tensioned correctly before the cut so it tracks straight and holds its position under load.
-
Self-Propelled Blade Brush — clears chips from the blade guides automatically during operation to prevent buildup that can affect blade tracking.
-
Integrated Coolant System — delivers coolant through the blade guides to manage heat and extend blade life during continuous cutting.
Specs
JET HBS-1220DC 12" x 20" Horizontal Metal Bandsaw Specifications
-
Model Number: HBS-1220DC
-
Stock Numbers: JT9-413400 (230V, 3Ph), JT9-413400-4 (460V, 3Ph)
-
Motor: 3HP, 230/460V, 3Ph
-
Coolant Pump Motor: 1/8HP, 230/460V, 3Ph
-
Oil Pump Motor: 1HP, 230/460V, 3Ph
-
Drive: Mechanical Variable Speed
-
Blade Speed Range (SFPM): 95 – 295
-
Blade Speeds (SFPM): 86, 157, 228, 330
-
Blade Wheel Diameter: 16 in.
-
Blade Size: 1-1/8 x 0.043 x 155-1/2 in.
-
Cutting Capacity — Rectangle at 90°: 12 x 20 in.
-
Cutting Capacity — Round at 90°: 12 in.
-
Cutting Capacity — Square at 90°: 12 in.
-
Throat Depth: 12 x 12 in.
-
Bed Height: 27 in.
-
Overall Dimensions (L x W x H): 81 x 42-1/2 x 54-1/2 in.
-
Net Weight: 1,420 lbs.
-
Warranty: 2 Year
-
Manual: HBS-1220DC Bandsaw User Manual available as PDF download
