JET HBS-1018EVS 10" x 18" Variable Speed Horizontal Metal Bandsaw
Are you losing time and material on metal cuts that come out rough, crooked, or inconsistent from one piece to the next?
What if your horizontal bandsaw gave you smooth, repeatable cuts across round stock and rectangular material without fighting the machine to get there?

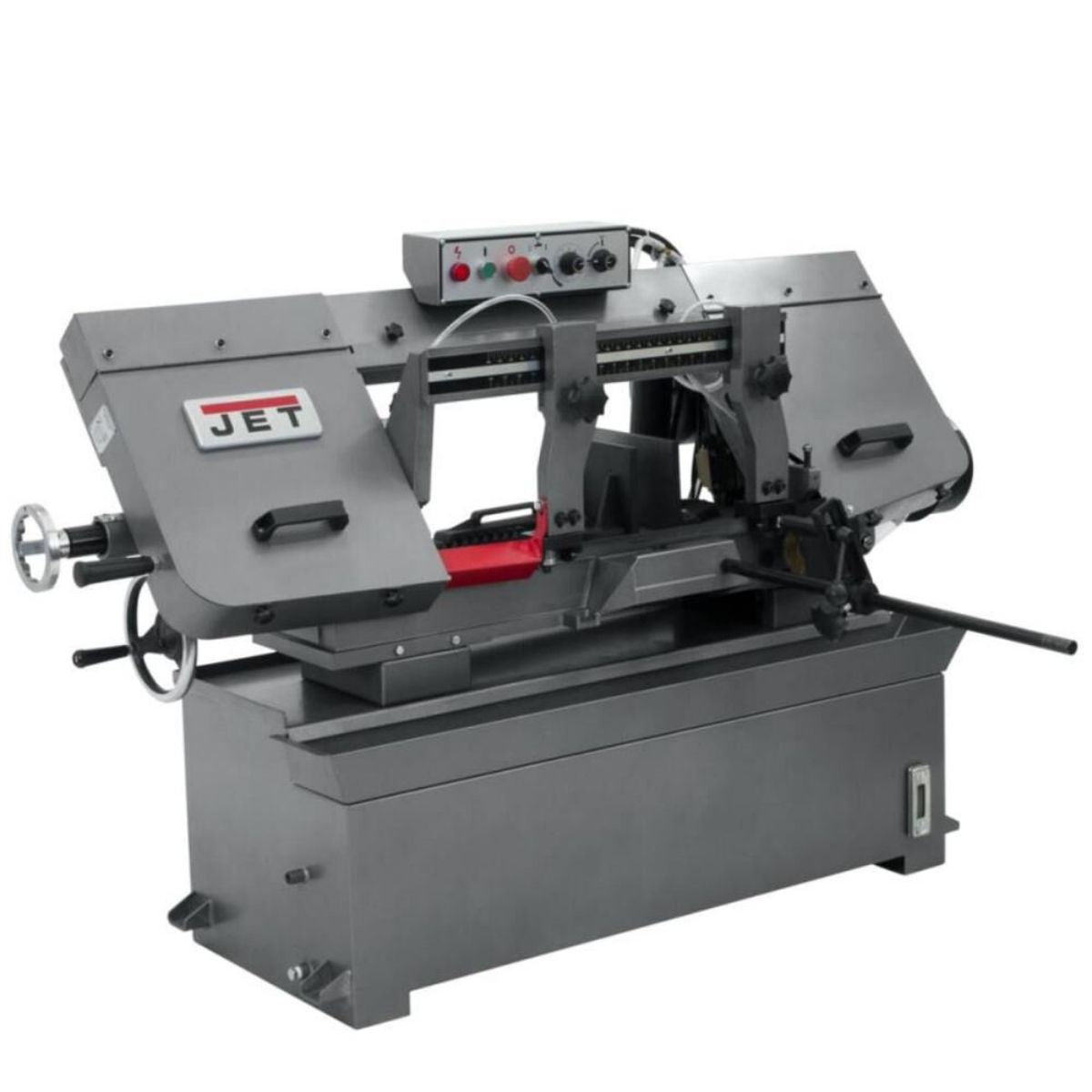

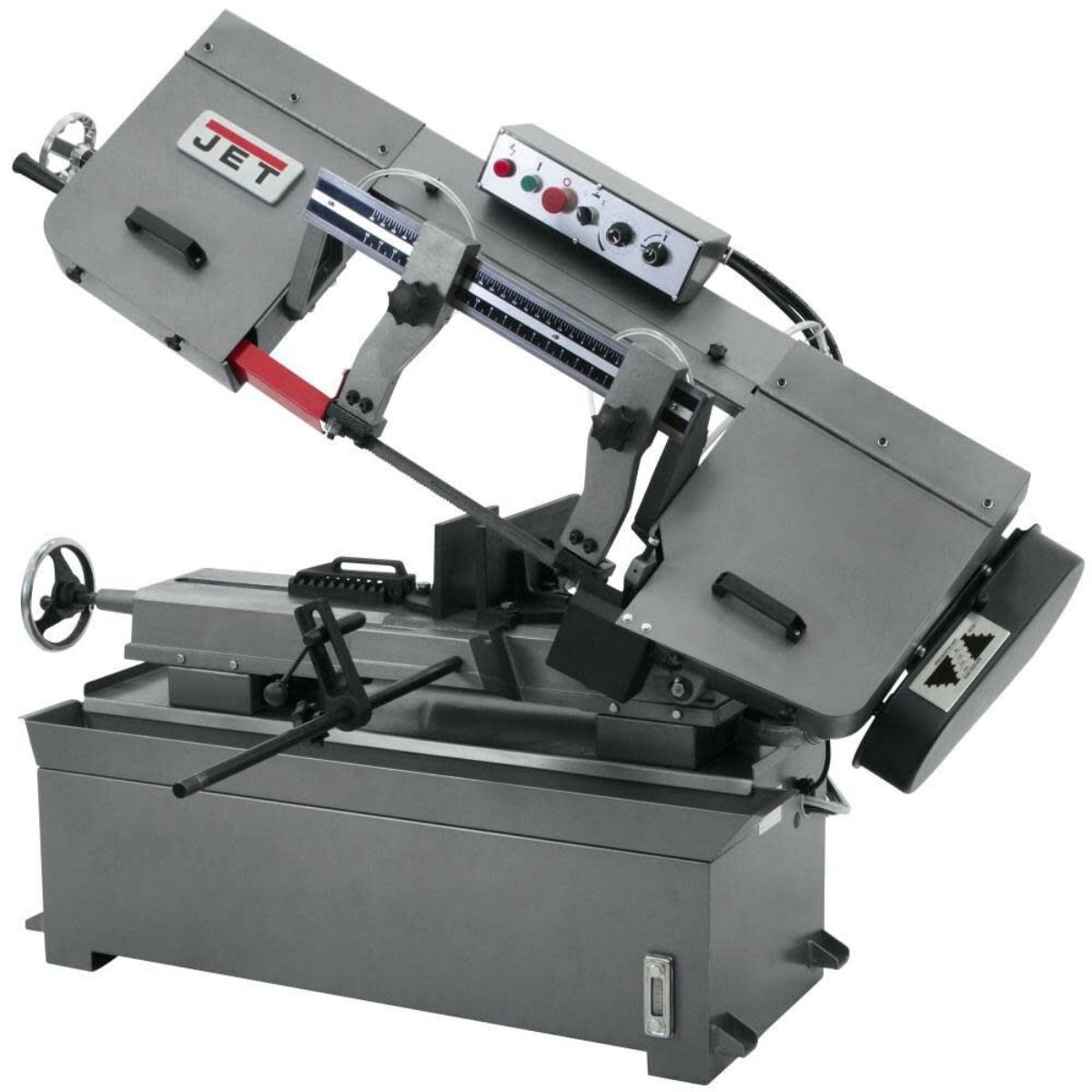

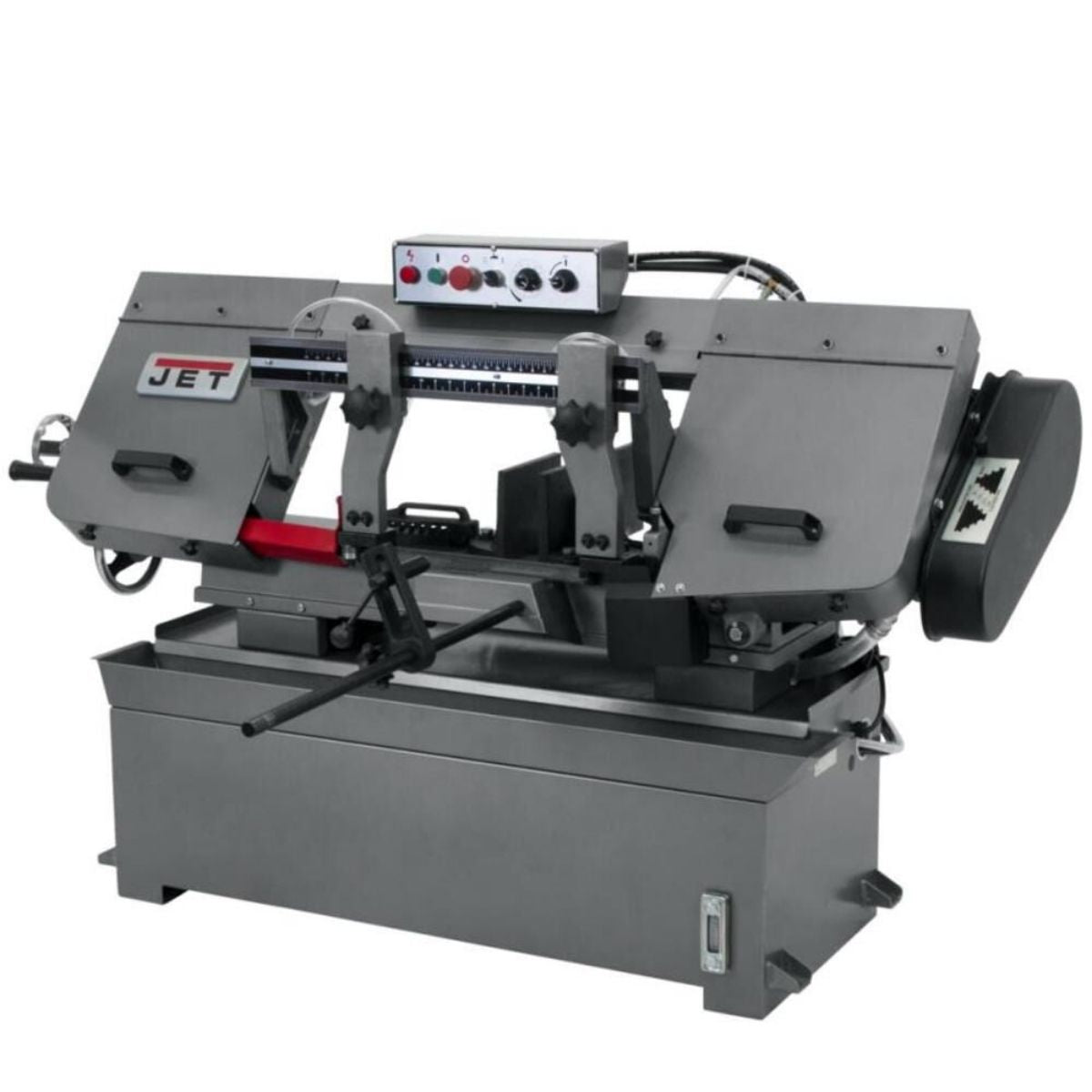

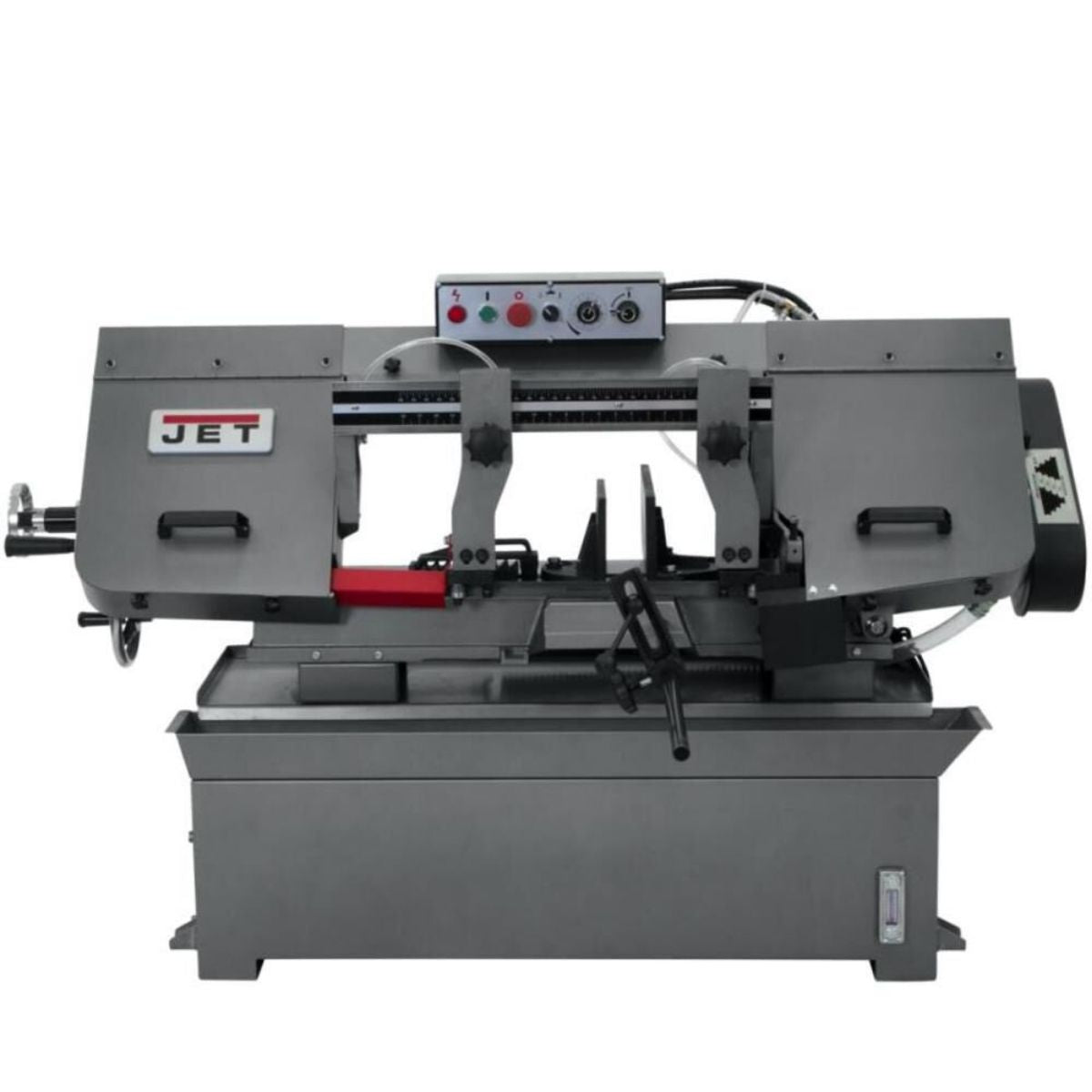

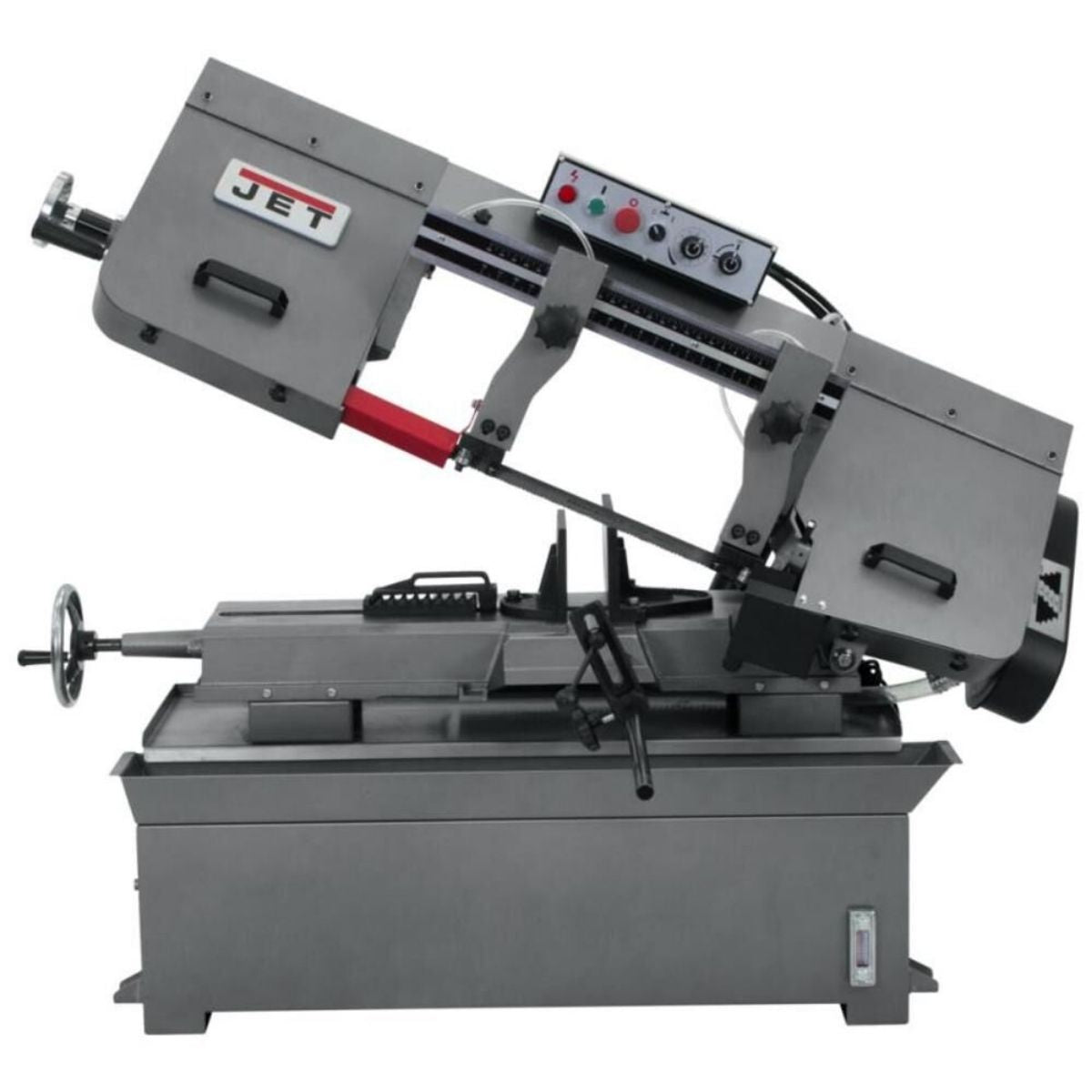

Meet the JET HBS-1018EVS 10" x 18" Variable Speed Horizontal Metal Bandsaw, a floor-standing metal cutting saw built for consistent production work in the fabrication shop.
With electronically controlled variable blade speed, carbide blade guides with double-row ball bearing support, and a fully adjustable hydraulic downfeed, this machine gives you real control over how the blade moves through material.
When your saw is dialed in and working the way it should, you spend less time correcting cuts and more time moving through your job list.
JET HBS-1018EVS for Controlled, Repeatable Metal Cutting
Electronic Variable Speed Matches Blade to Material
The EVS system adjusts blade speed continuously from 82 to 330 SFPM without mechanical step changes. You set the speed to match the material in the vise, whether that is mild steel, aluminum, or tubing. Cutting at the right speed reduces blade wear and gives you cleaner surfaces on each cut.
Carbide Blade Guides Stabilize the Cut from Start to Finish
The carbide blade guides use parallel double-row ball bearing support to hold the blade steady through the full depth of the cut. A blade that tracks true produces square, consistent results. This guide system also allows coolant to flow directly through the guides and onto the blade, keeping the cutting zone cooled and the blade running longer between changes.

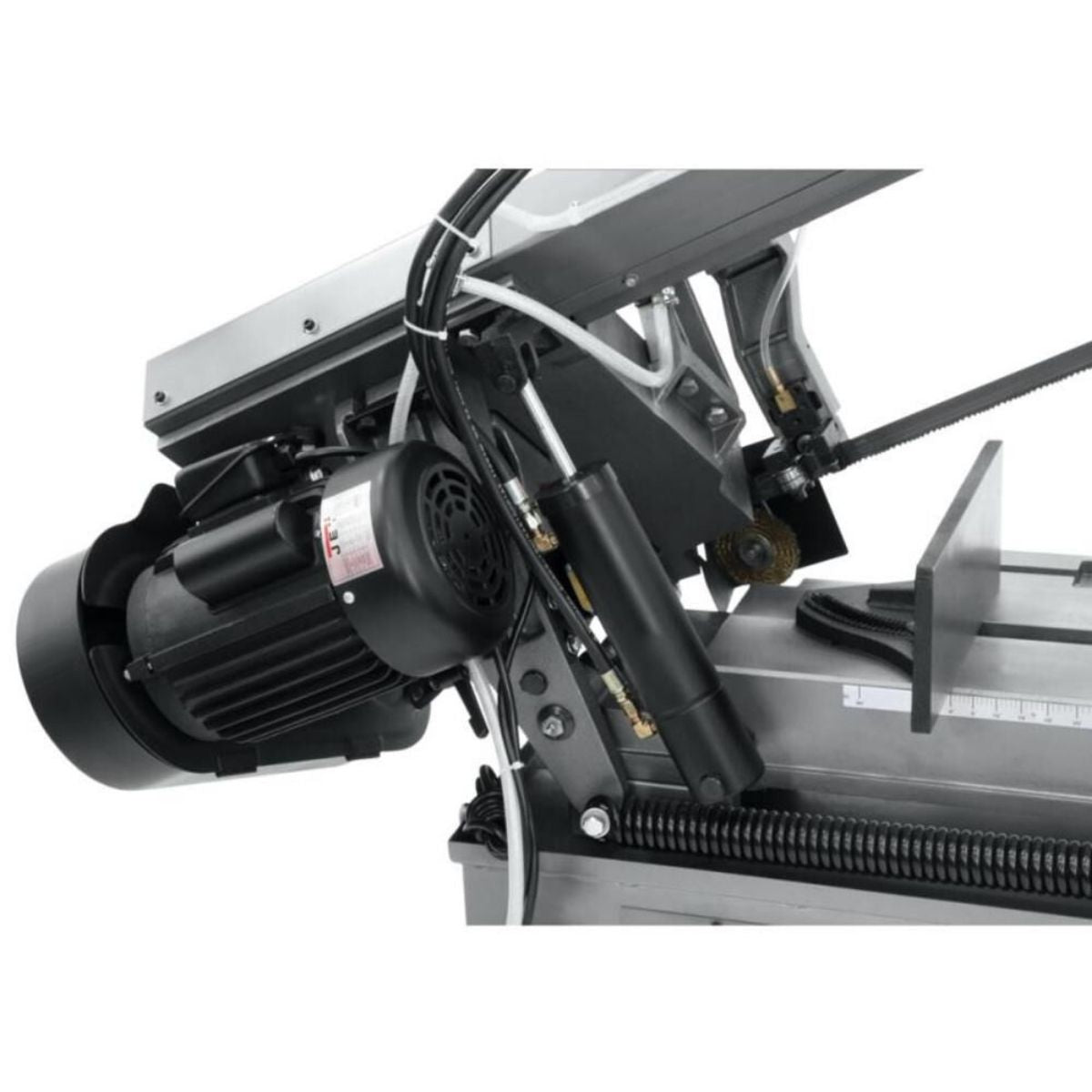

Hydraulic Downfeed Keeps Pressure Consistent Through the Cut
The fully adjustable hydraulic downfeed controls how the bow descends into the material. A separate on/off control valve lets you manage feed rate precisely for each job. Consistent downfeed pressure prevents the blade from stalling in dense material and keeps the cut moving at a steady pace without manual input.
Quick-Positioning Vise Handles Angle Cuts Without Extra Setup
The vise swivels to 45 degrees for miter cuts and locks securely in position. An adjustable material stop lets you index repeated cuts to the same length without measuring each piece individually. These two features together reduce setup time when you are working through a batch of parts that all need to match.
What's Included
What's Included? JET HBS-1018EVS 10" x 18" Variable Speed Horizontal Metal Bandsaw
-
JET HBS-1018EVS Horizontal Metal Bandsaw — the main cutting unit with EVS drive, hydraulic downfeed, carbide blade guides, and integrated coolant system, ready for shop use.
-
Blade (1" x .035" x 130") — the installed cutting blade sized for the machine's 14" blade wheels and standard capacity range.
-
Coolant System — the built-in coolant system distributes fluid through the blade guides to keep the cutting zone cool during extended cuts.
-
Chip Tray — the oversized removable chip tray collects metal chips and coolant below the cutting area for easier cleanup between jobs.
-
Self-Propelled Blade Brush — the built-in blade brush clears chips from the blade continuously during operation to extend blade life.
Specs
JET HBS-1018EVS 10" x 18" Variable Speed Horizontal Metal Bandsaw Specifications
- Stock Number: JT9-424470
- Model Number: HBS-1018EVS
- Blade Speed: EVS 82–330 SFPM
- Blade Size: 1" x .035" x 130"

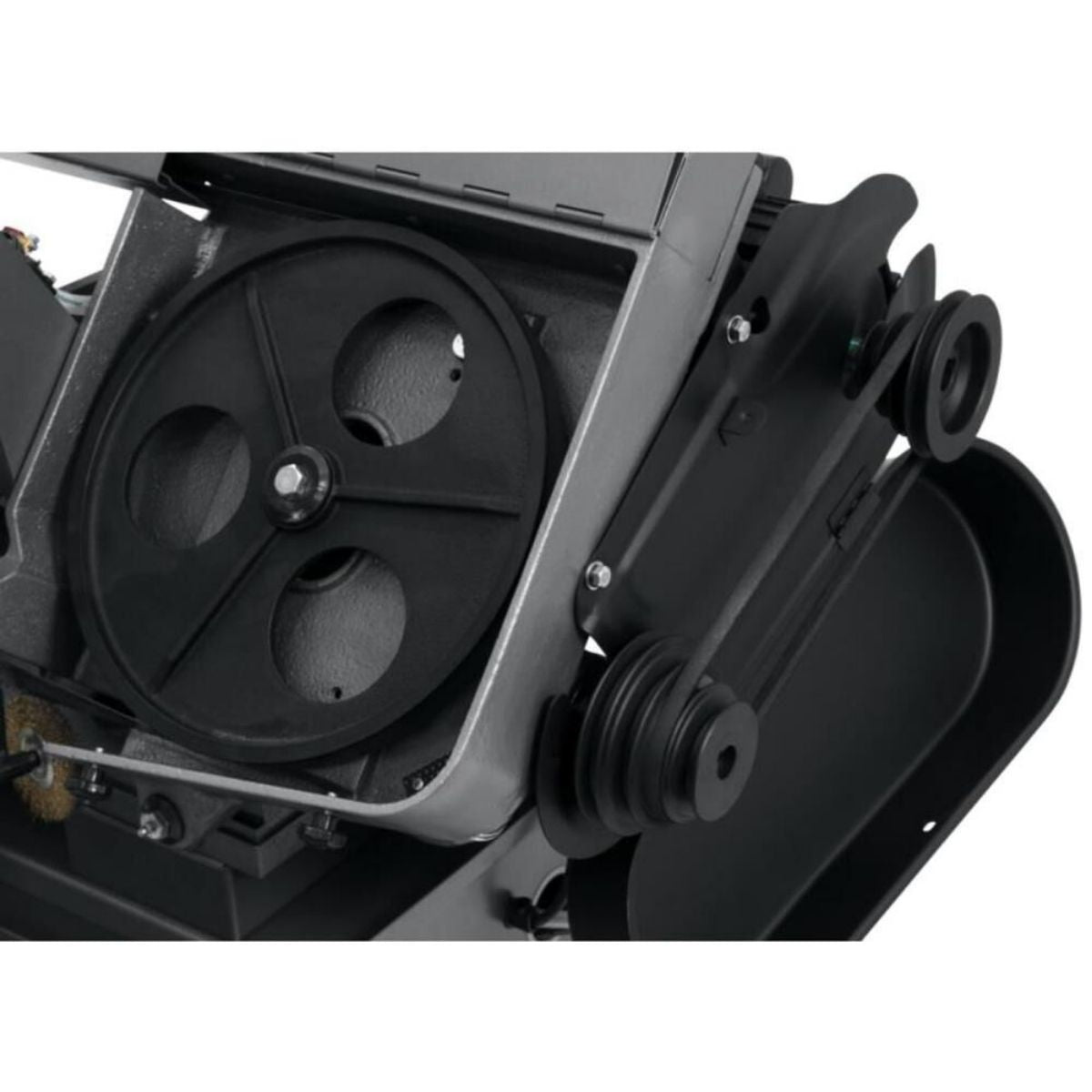

- Blade Wheel Diameter: 14"
- Cutting Capacity at 90°: 10" round / 10" x 16" and 6-1/2" x 18" rectangle
- Cutting Capacity at 45°: 7-1/2" round / 10" x 7-1/2" rectangle
- Vise Swivel: 45°
- Bed Height: 23.5"
- Prewired Voltage: 115V
- Amperage: 6.5A
- Drive: EVS (Electronic Variable Speed)
- Overall Assembled Dimensions (Bow Lowered): 68" x 28" x 70" (L x W x H)
- Net Weight: 776 lb
- Gross Weight: 874 lb
- Warranty: 2 Years
- Manual: included
