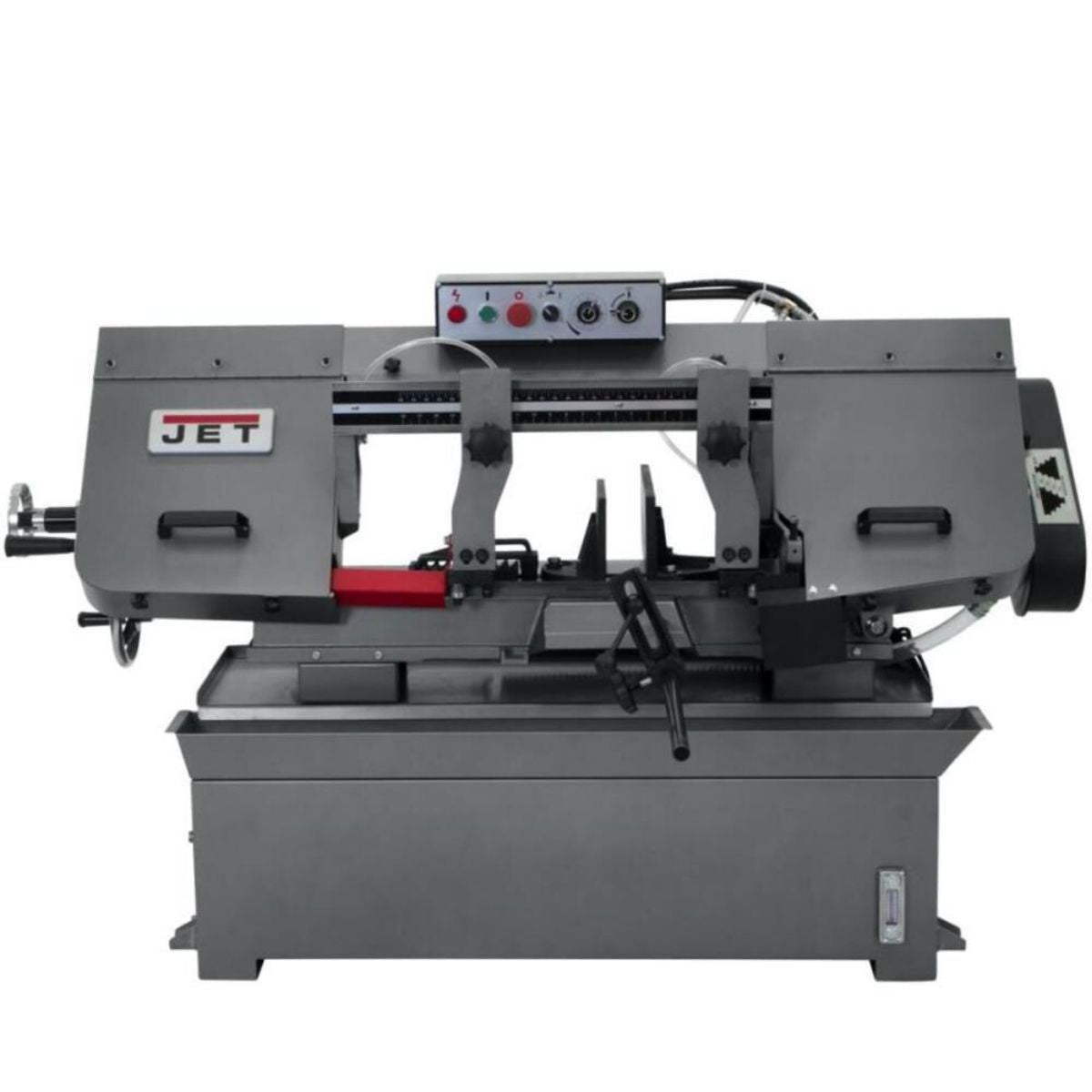

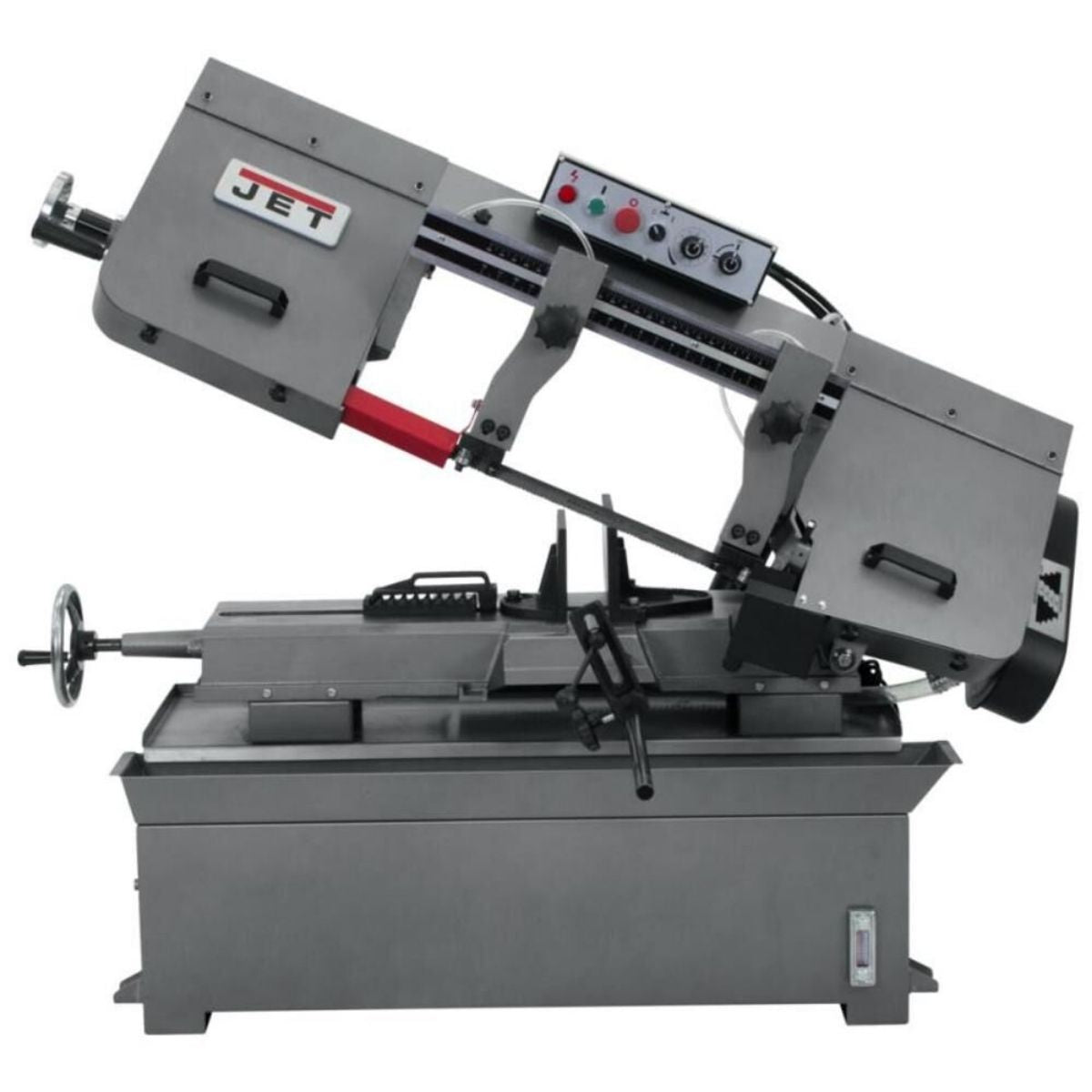

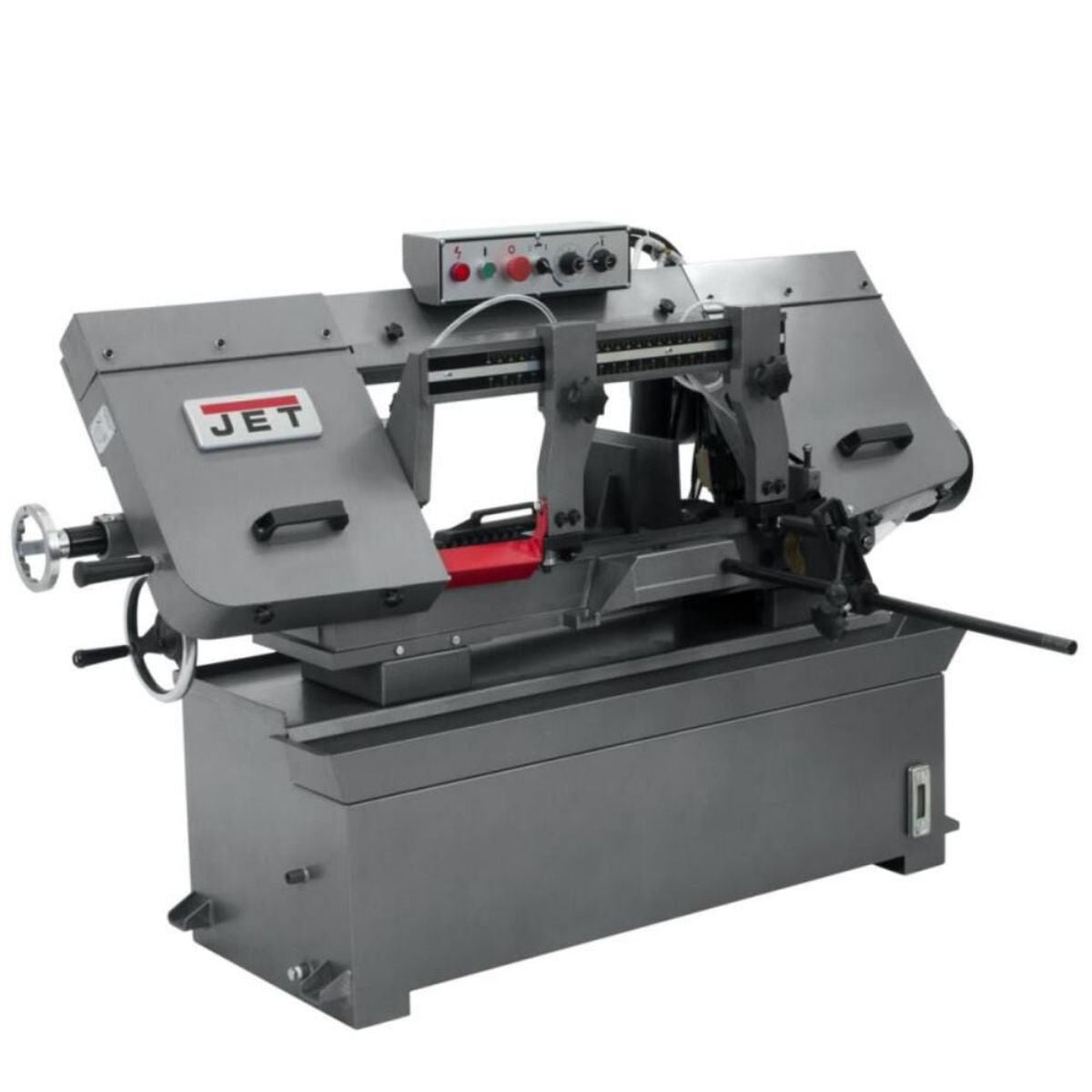

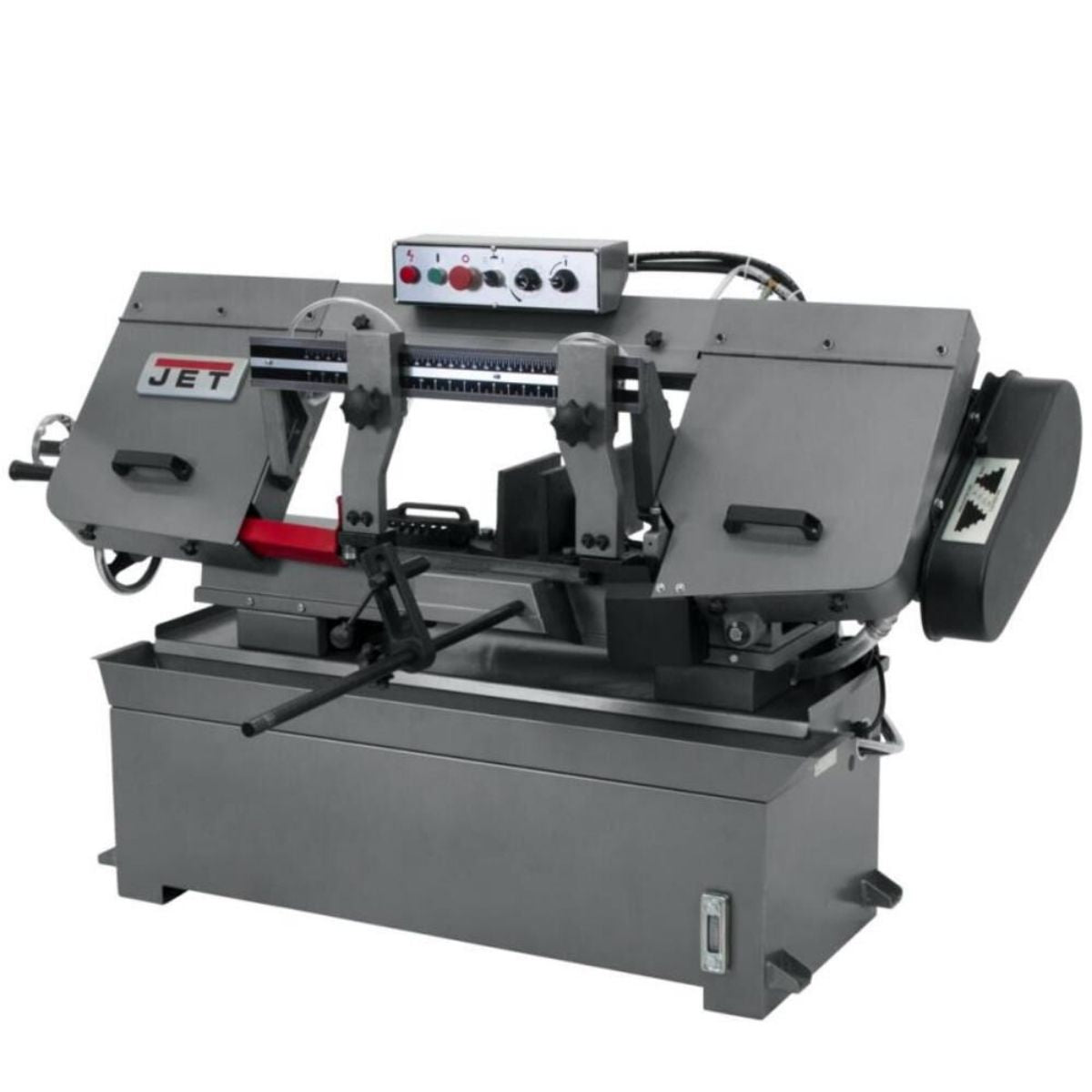

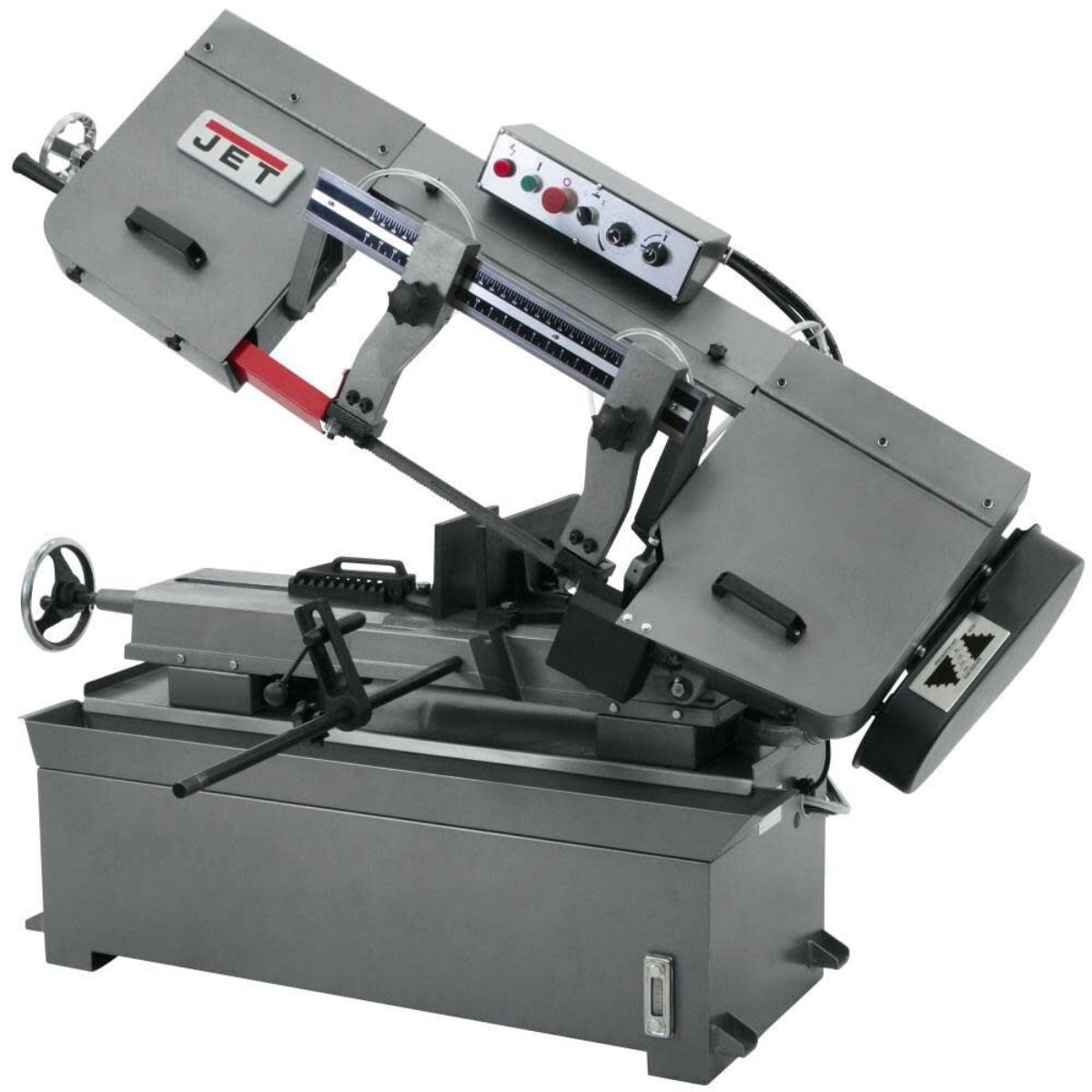

JET HBS-1018 10" x 18" Horizontal Metal Bandsaw
Are your metal cutting jobs slowing you down because your saw can't hold a straight line or keep up with the material you're running?
What if your horizontal bandsaw delivered a clean, repeatable cut on every piece of stock, regardless of size or angle?
Meet the JET HBS-1018 10" x 18" Horizontal Metal Bandsaw, built for shops that cut metal every day and can't afford lost time or wasted stock.
With the HBS-1018, you get a machined table bed, hydraulic downfeed control, four blade speeds, and carbide blade guides working together to produce consistent results across a full range of materials and cut angles.
When your saw handles the cut with this kind of control, you spend less time checking your work and more time moving through your material.
JET HBS-1018 for Controlled, Repeatable Metal Cutting
Machined Table Bed Reduces Vibration Through the Cut
The HBS-1018 is built on a heavy-duty machined table bed that keeps the machine stable under load. Less vibration means the blade tracks true and the cut stays accurate from start to finish. This matters most when you are working through larger cross-sections where an unsteady machine shows up in your results.
Carbide Blade Guides with Double-Row Ball Bearings Support the Blade
The carbide blade guides use parallel double-row ball bearing support to hold the blade in position during the cut. Coolant is routed directly through the guides to keep both the blade and the material at a working temperature. This setup extends blade life and keeps the cut from drifting as the blade heats up.

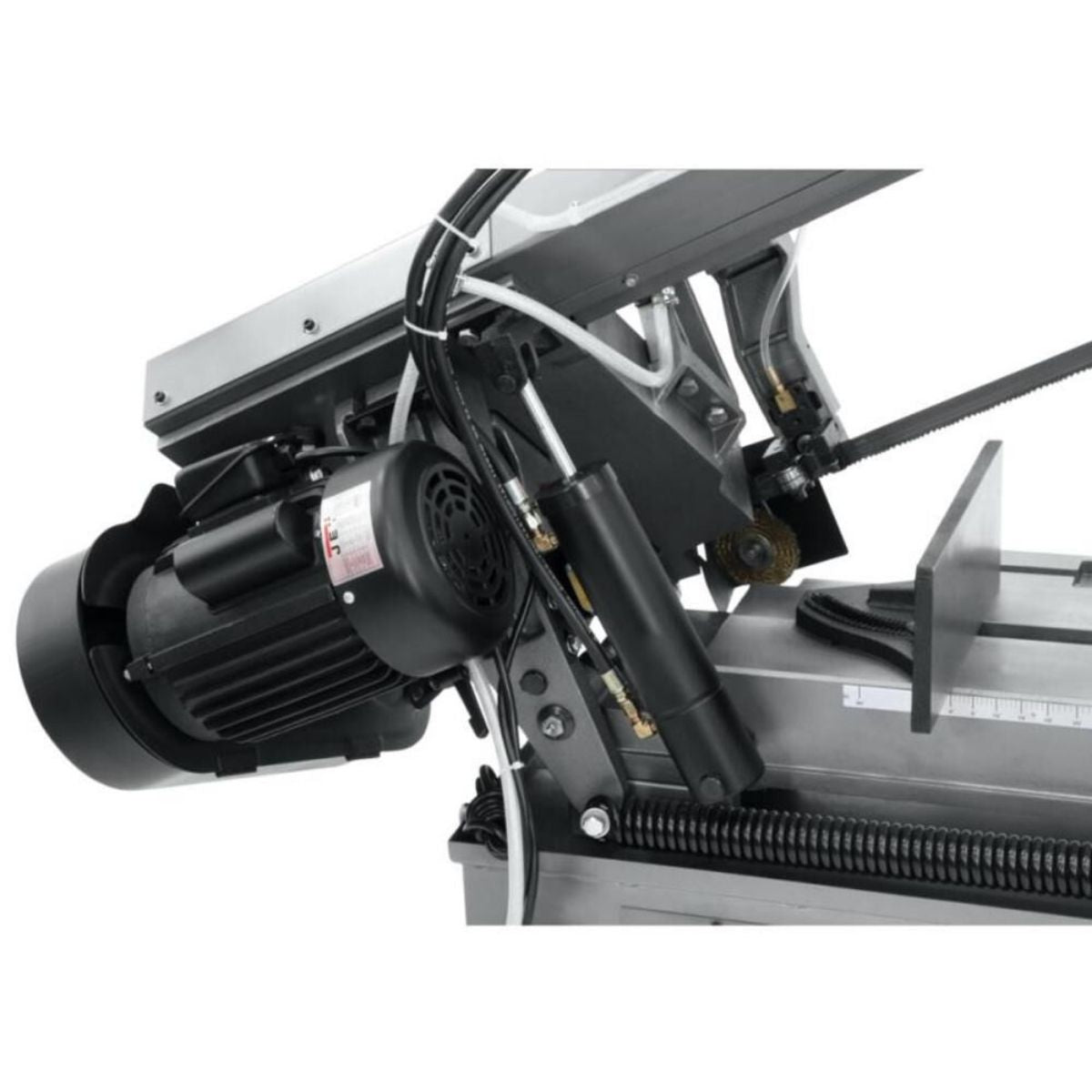

Hydraulic Downfeed Gives You Control Over Cut Rate
The fully adjustable hydraulic downfeed lets you set the rate at which the bow descends into the material. A separate on/off control valve gives you a clean stop without disturbing your feed setting. This level of control is useful when you are switching between material types or wall thicknesses and need to match the feed rate to the job.
Four Blade Speeds Match a Range of Metal Stock

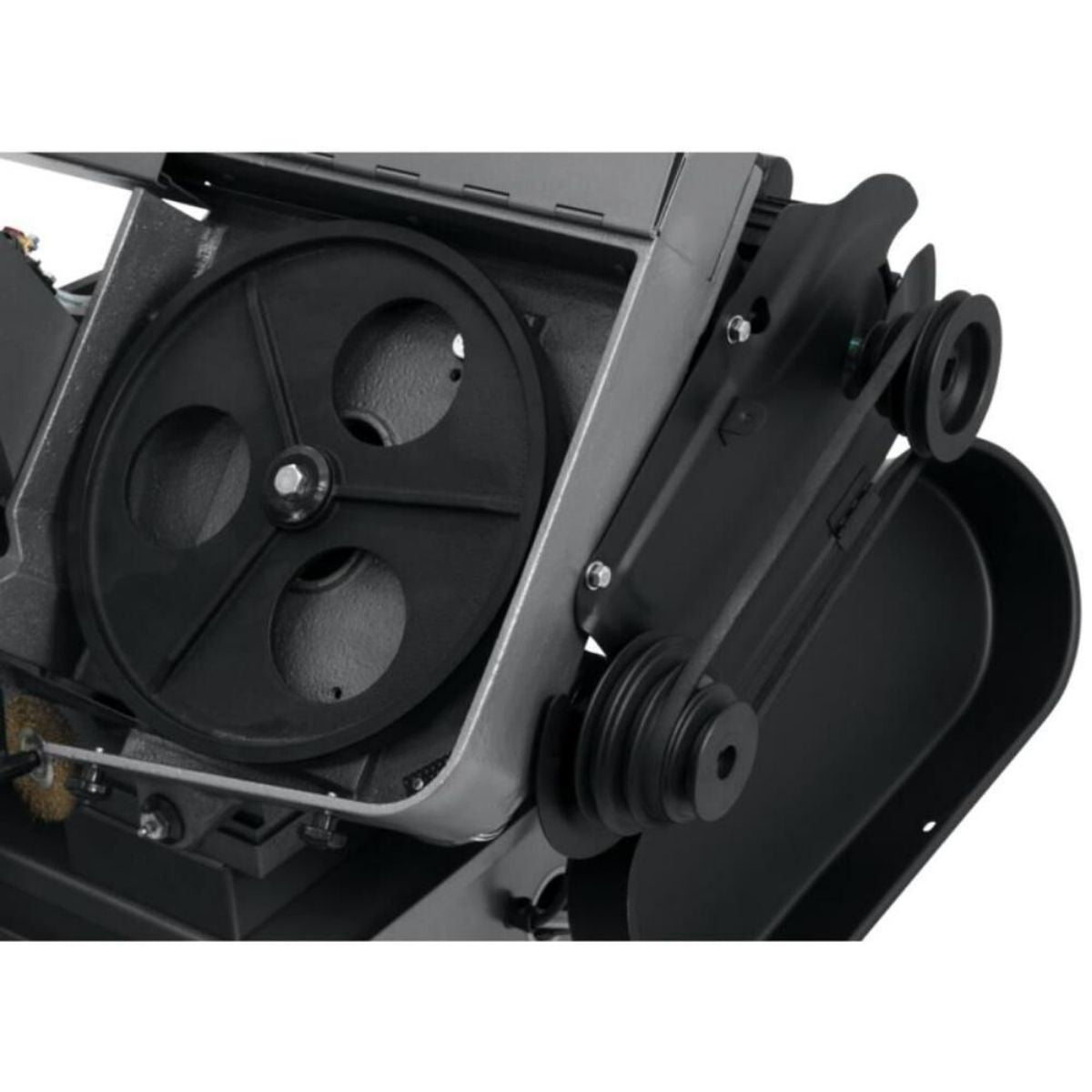

The HBS-1018 runs at four speeds — 82, 132, 210, and 330 SFPM — so you can match blade speed to your material. Slower speeds handle harder stock and larger cross-sections. Higher speeds move through softer metals more efficiently. Having four settings on hand means you are not forcing one speed to do all the work.
What's Included
What's Included? JET HBS-1018 10" x 18" Horizontal Metal Bandsaw
-
Horizontal Bandsaw — The fully assembled HBS-1018 unit ready for shop installation.
-
Blade Brush — Built-in, self-propelled brush clears chips from the blade continuously to extend blade life.
-
Coolant System — Integrated coolant delivery routed through the blade guides to manage heat during the cut.
-
Chip Tray — Oversized tray captures chips and reduces overspray to keep the work area cleaner.
-
Adjustable Material Stop — Sets repeatable cut lengths so you can run multiple pieces to the same dimension.
Specs
JET HBS-1018 10" x 18" Horizontal Metal Bandsaw Specifications
-
Model Number: HBS-1018W
-
Stock Number: JT9-414473
-
Motor: 2 HP, 230V, 1-Phase
-
Amperage: 13A
-
Prewired Voltage: 230V
-
Blade Speeds (SFPM): 82, 132, 210, 330
-
Blade Wheel Diameter: 14"
-
Drive: Belt Drive
-
Cutting Capacity (W x D): 10" x 18"
-
Rectangle at 90°: 10" x 16" and 6-1/2" x 18"
-
Rectangle at 45°: 10" x 7-1/2"
-
Round at 90°: 10"
-
Round at 45°: 7-1/2"
-
Vise Swivel: 45°
-
Bed Height: 23.5"
-
Overall Dimensions (L x W x H): 69" x 28" x 42-3/4"
-
Net Weight: 864 lbs
-
Gross Weight: 906 lbs
-
Warranty: 2 Years
-
Manual: Included
