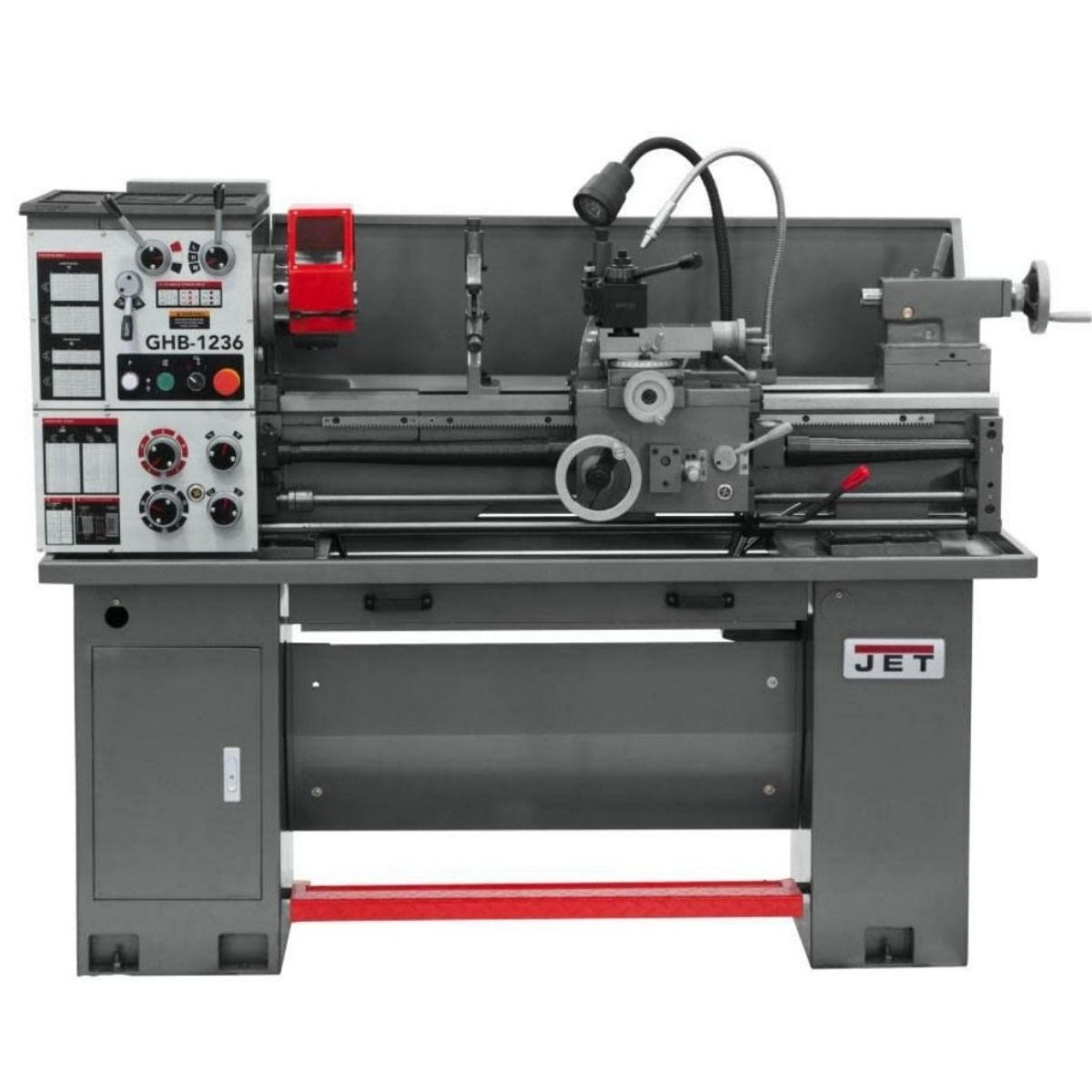

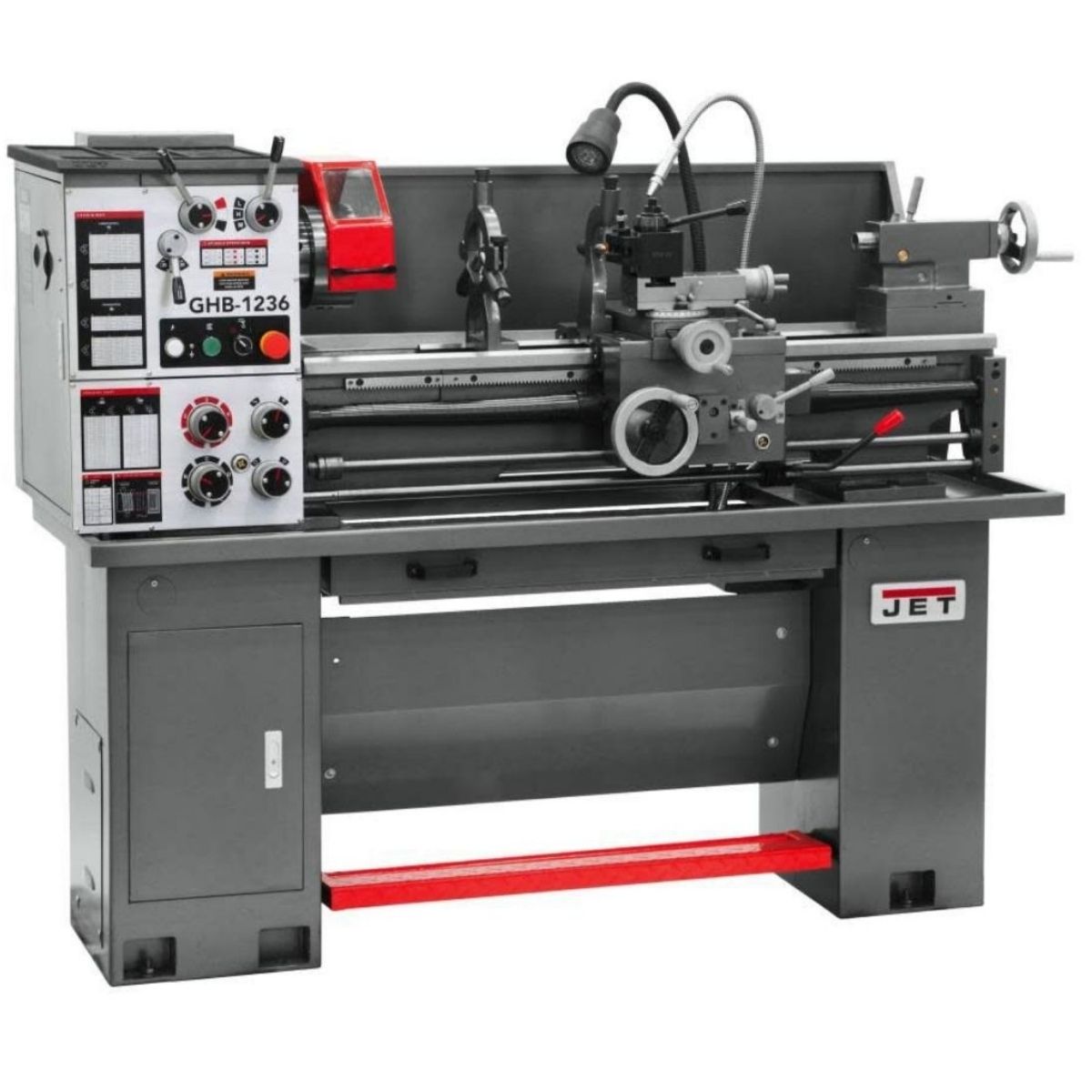

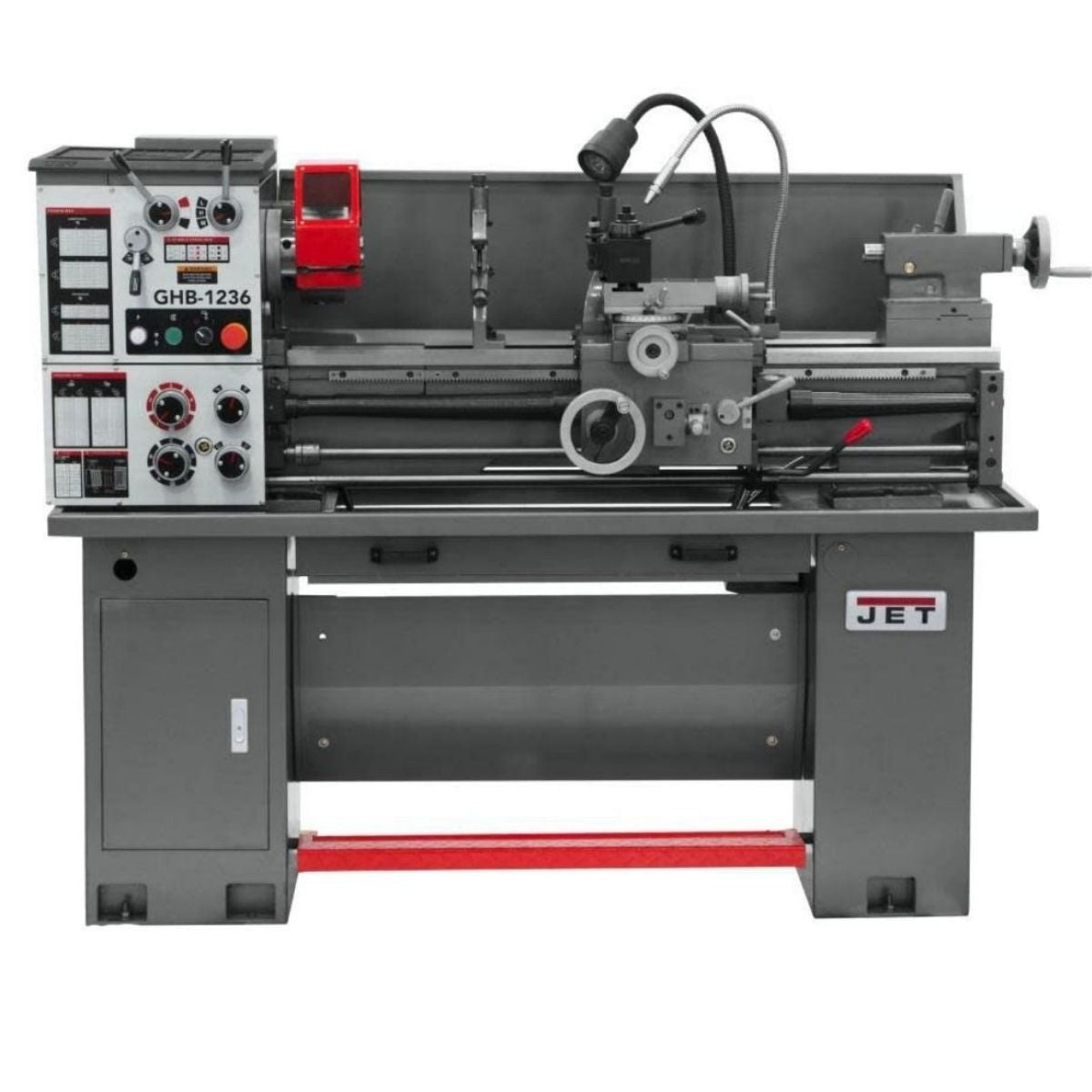

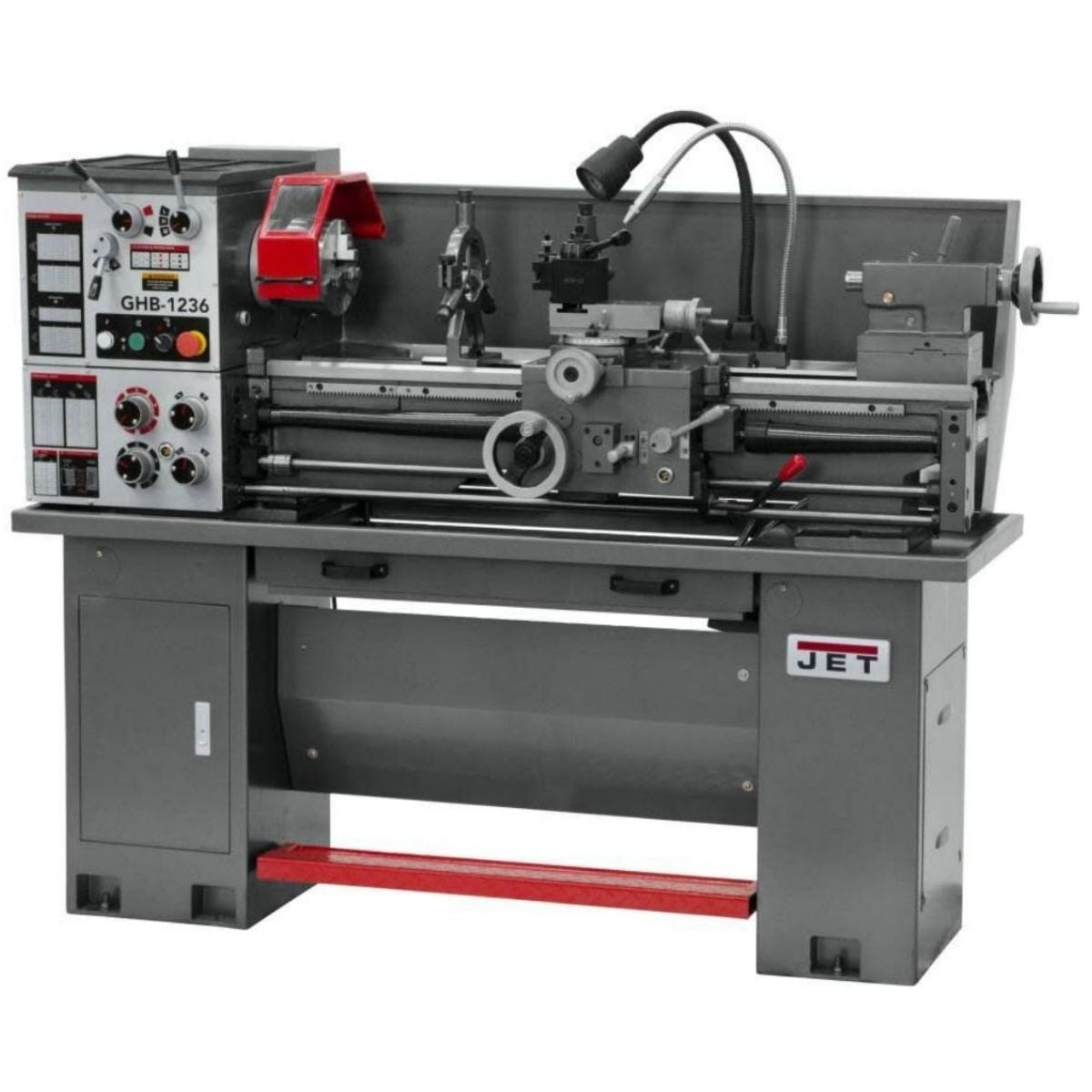

JET GHB-1236 12" × 36" Geared Head Bench Lathe with Stand & Foot Brake

JET GHB-1236 12" × 36" Geared Head Bench Lathe with Stand & Foot Brake

JET GHB-1236 for Precision Turning, Threading, and Taper Work

Induction Hardened Bedways Support Accurate, Repeatable Cuts

The bedways on the GHB-1236 are induction hardened and ground to a flat, consistent surface. This keeps the carriage tracking true across the full 27-3/8 inch travel. When your bed holds its geometry, your cuts stay where you put them from the first pass to the last.

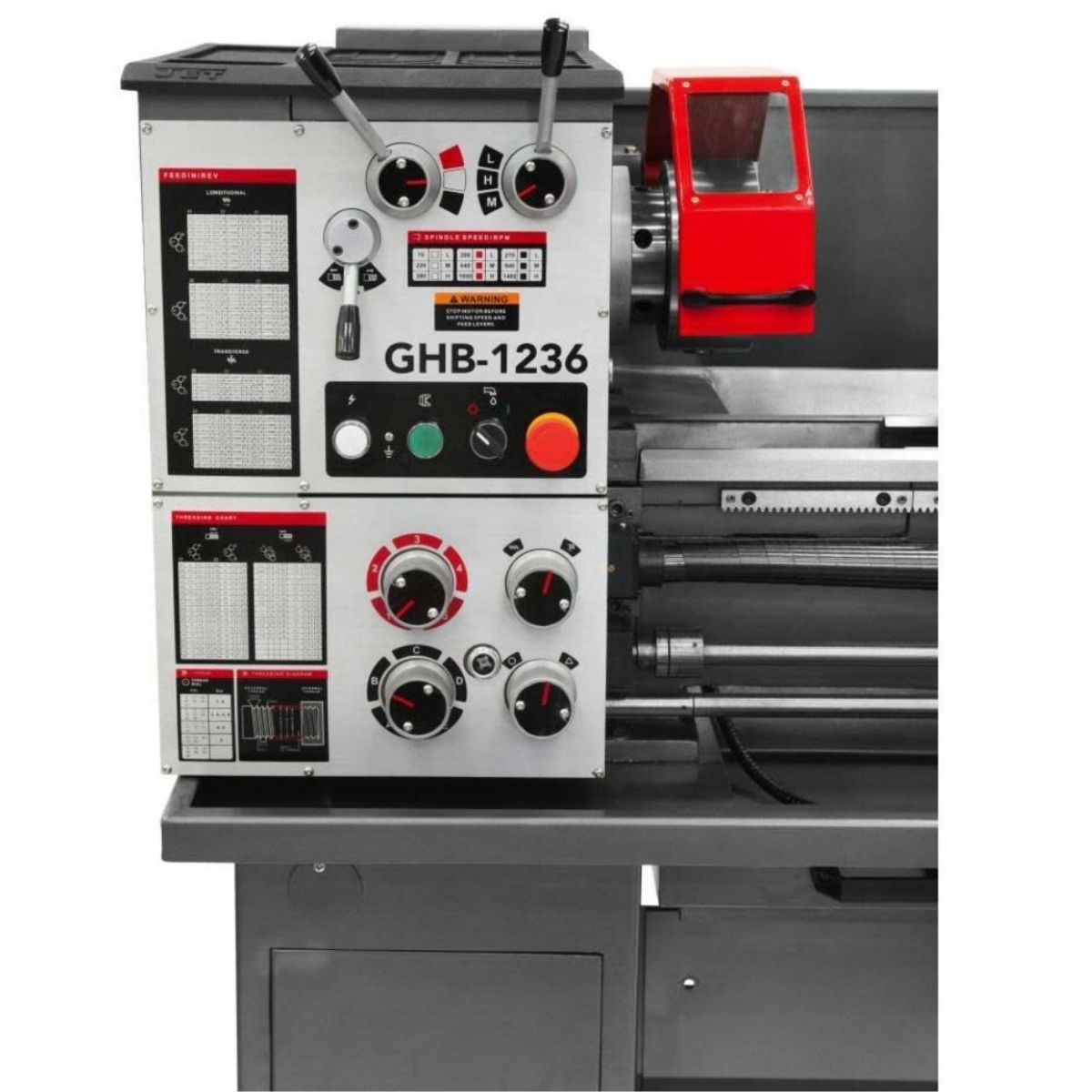

Enclosed Gearbox Delivers Threading Range Without Constant Gear Changes

The enclosed gearbox gives you 36 inch thread pitches from 4 to 60 TPI and 32 metric thread pitches from 0.4 to 7mm. Feed rates cover 48 longitudinal and 36 cross feed settings. You can work through a wide range of jobs without stopping to swap gears, and the enclosed design keeps the gearbox running quietly and free of chips.

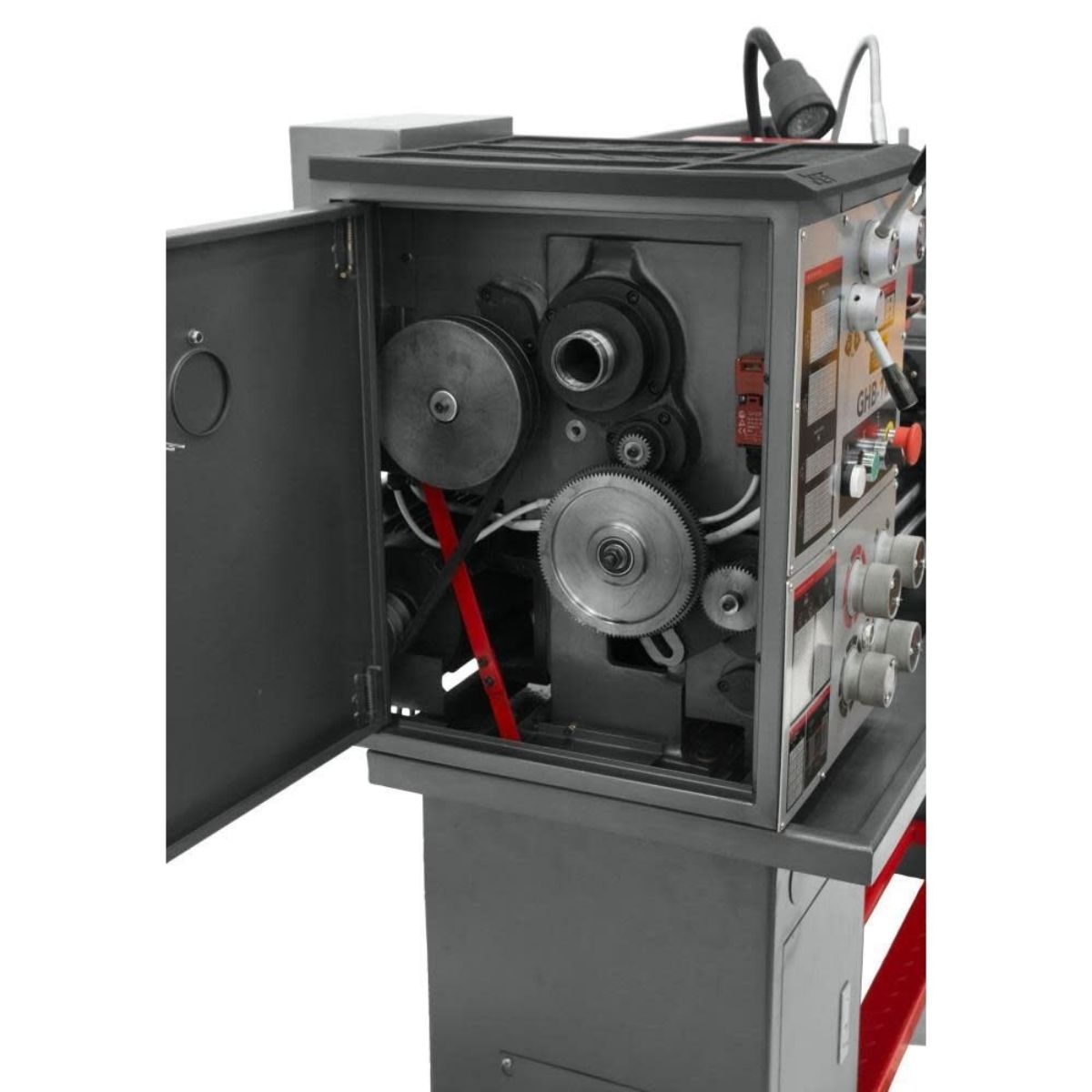

Headstock Gears and Spindle Bearings Maintain Smooth Power Transfer

The headstock uses hardened steel gears paired with roller bearings at the spindle. This combination keeps the spindle running smoothly across all 9 speed settings from 75 to 1400 RPM. The 1.575 inch spindle bore and D1-4 mount give you room to handle a practical range of bar stock and workholding setups.

Foot Brake and Emergency Stop Keep the Operator in Control

The foot brake is built into the stand and within reach any time you are at the machine. The emergency stop is positioned close to the operator. Both controls are there so you can bring the spindle down fast when the job calls for it, without reaching across the work or breaking your stance.

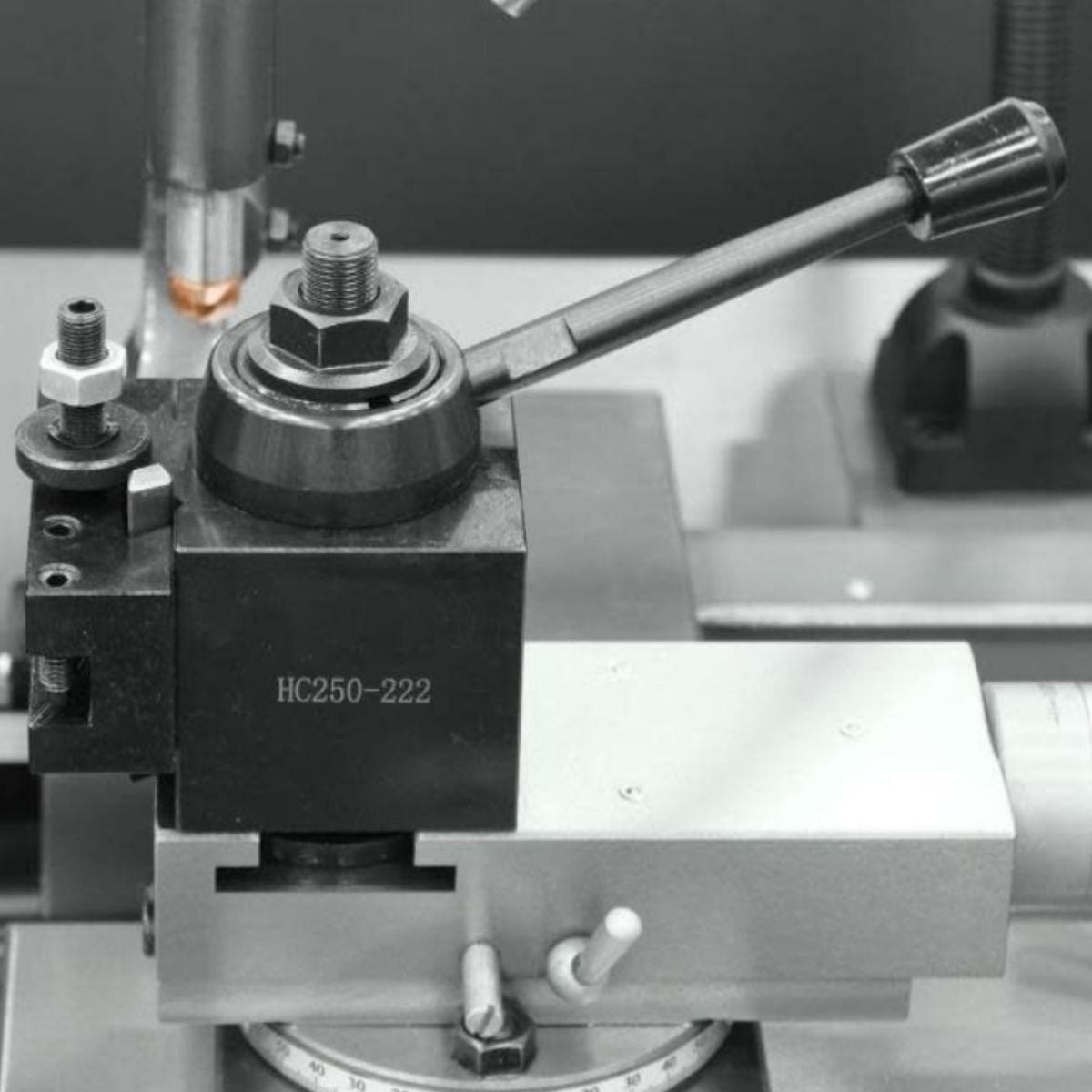

Backlash Adjustment and Offsettable Tailstock Support Accurate Setups

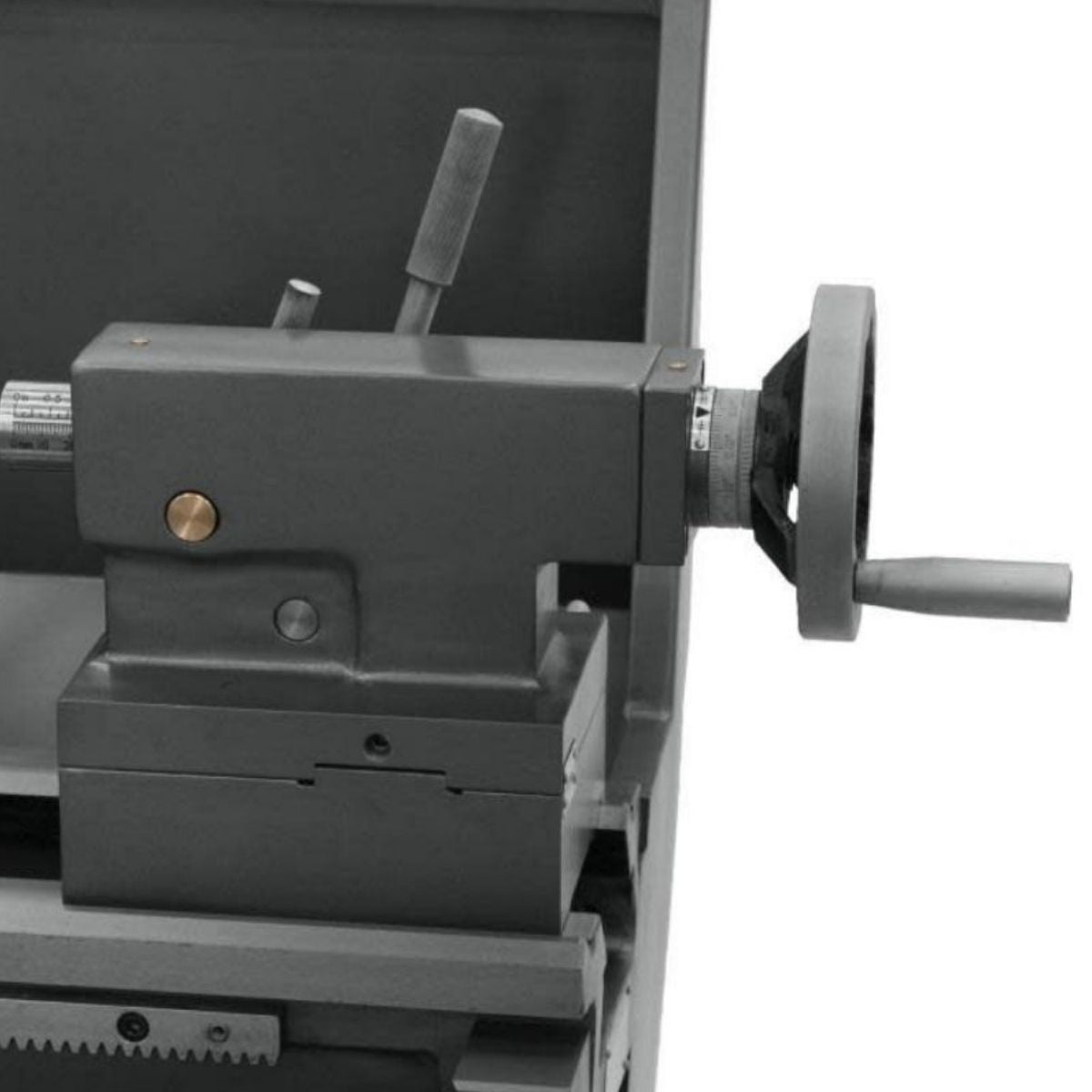

The compound and cross slides have backlash adjustment so you can take up wear and keep your dial readings honest. The tailstock offsets for taper turning, and the MT-3 taper spindle travels 3-1/2 inches. The steady rest with roller bearings supports longer workpieces and holds them stable through the cut.

What's Included

What's Included? JET GHB-1236 12" × 36" Geared Head Bench Lathe with Stand & Foot Brake

• GHB-1236 Geared Head Bench Lathe — the main machine with enclosed gearbox, hardened bedways, and D1-4 spindle mount ready for turning, threading, and taper work.

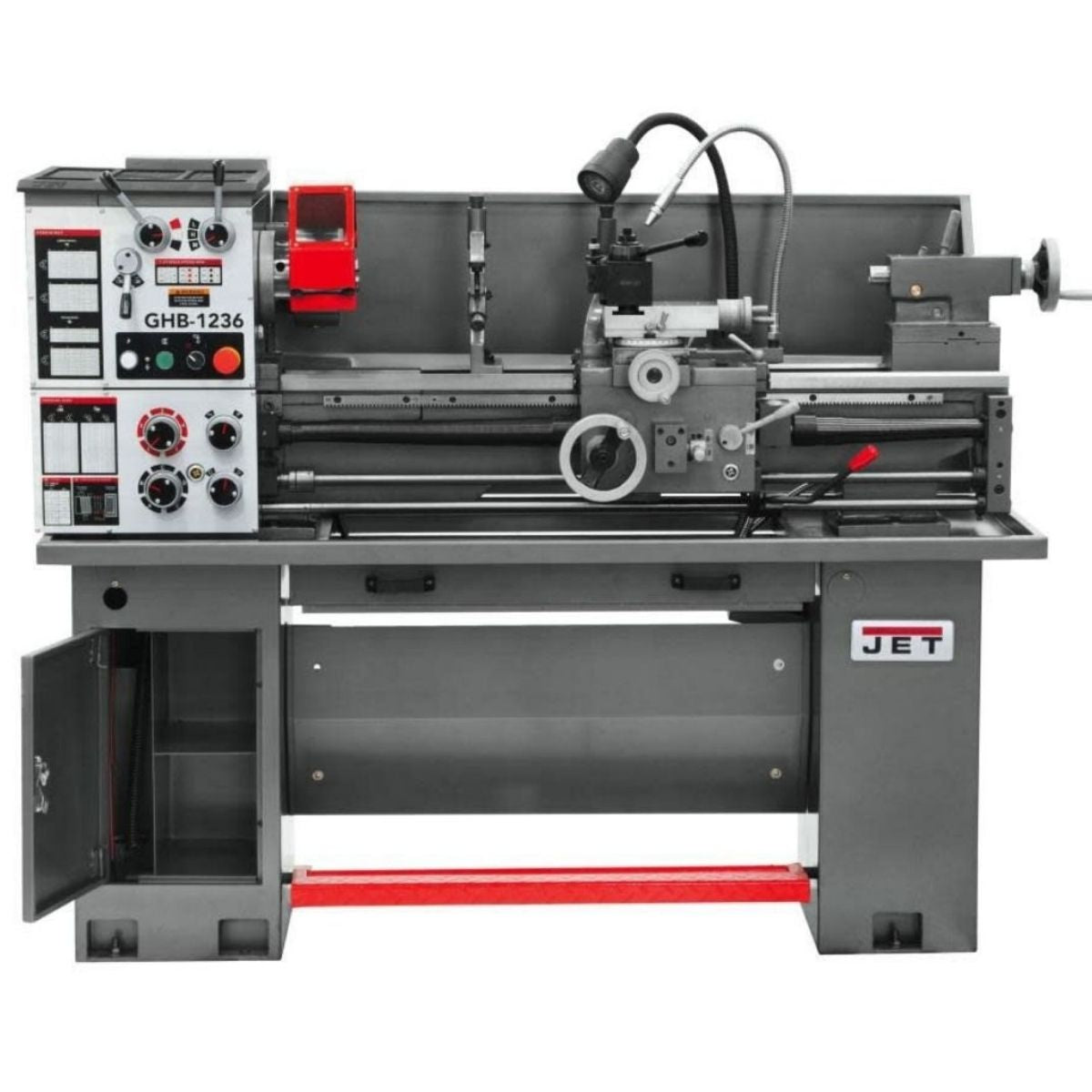

• Cast Iron Stand with Foot Brake — positions the lathe at working height and puts the foot brake within reach without adding a separate pedal assembly.
• Steady Rest with Roller Bearings — supports longer stock during turning with a capacity range of 0.31 to 2.95 inches.
• Coolant System — included and ready to use with the machine as configured on the stand.

Specs

JET GHB-1236 12" × 36" Geared Head Bench Lathe with Stand & Foot Brake Specifications

Machine ID

• Stock Number: JT9-321236
• Model Number: GHB-1236
• Motor: 2 HP, 230V, Single Phase
• Warranty: 2 Year

Bed and Swing

• Swing Over Bed: 12 in.
• Swing Over Cross Slide: 7-1/2 in.
• Swing Through Gap: 18 in.
• Length of Gap: 8-3/4 in.
• Width of Bed: 7.12 in.

Spindle

• Spindle Bore: 1.575 in.
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Number of Spindle Speeds: 9
• Range of Spindle Speeds: 75–1400 RPM

Carriage and Slides

• Carriage Travel: 27-3/8 in.
• Compound Slide Travel: 3 in.
• Max Tool Size: 3/4 × 3/4 in.

Tailstock

• Taper in Tailstock Spindle: MT-3
• Tailstock Spindle Travel: 3-1/2 in.

Threading and Feed

• Number of Inch Threads: 36
• Range of Inch Threads: 4–60 TPI
• Number of Metric Threads: 32
• Range of Metric Threads: 0.4–7mm
• Number of Longitudinal and Cross Feed Rates: 48/36
• Range of Longitudinal Feeds: 0.0019–0.0472 IPR
• Range of Cross Feeds: 0.0014–0.0116 IPR

Steady Rest

• Steady Rest Capacity: 0.31–2.95 in.

Dimensions and Weight

• Overall Dimensions (L × W × H): 66-1/64 × 29-1/2 × 59-13/16 in.
• Net Weight: 1,094 lb.
• Gross Weight: 1,252 lb.
