ET GH-1440B 14" × 40" Geared Head Bench Lathe with Stand & Foot Brake
Are you tired of a lathe that fights you every time you need to change speeds or cut a new thread pitch?
What if your lathe handled both inch and metric threading without constant gear swaps, and ran quiet enough that you could hear your work?

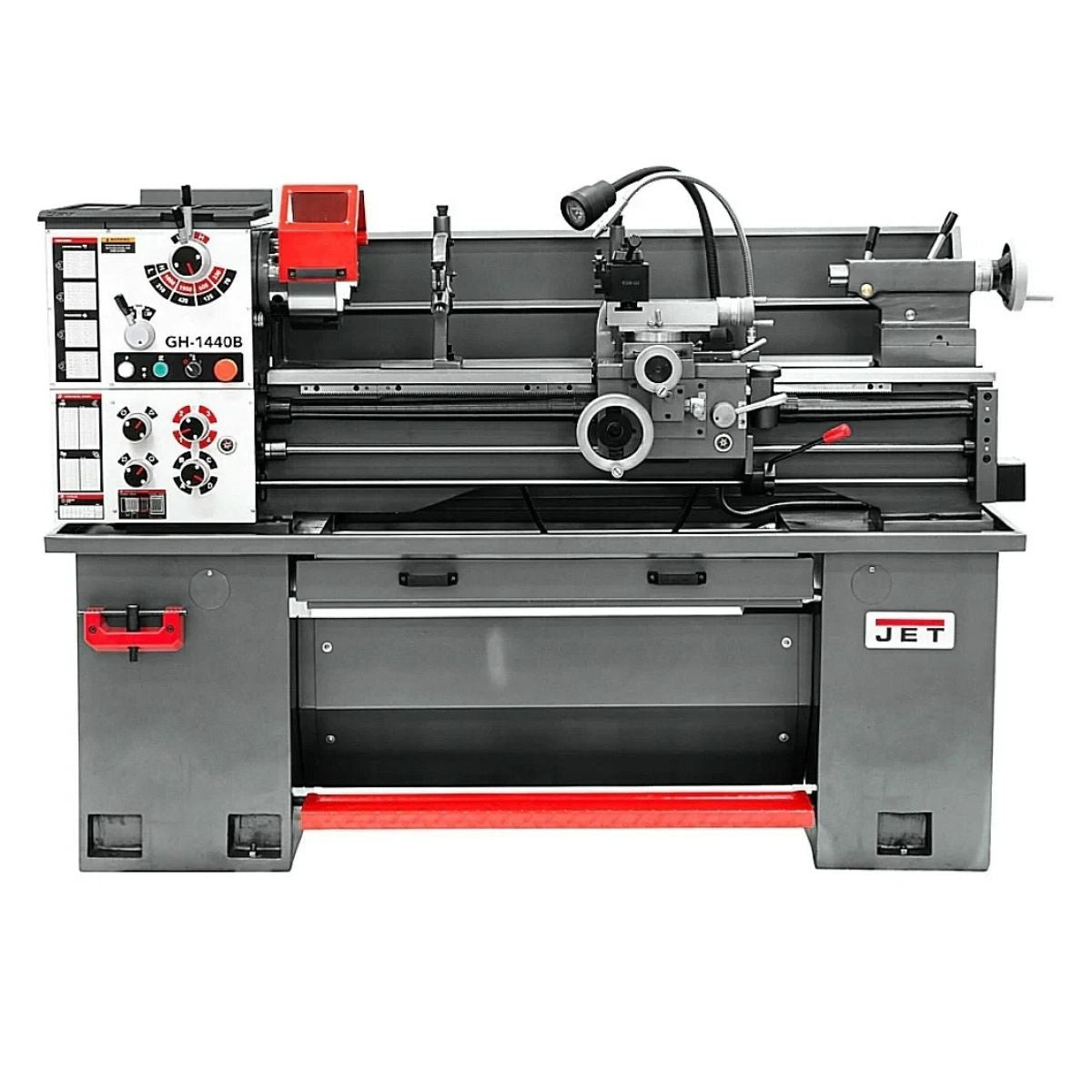

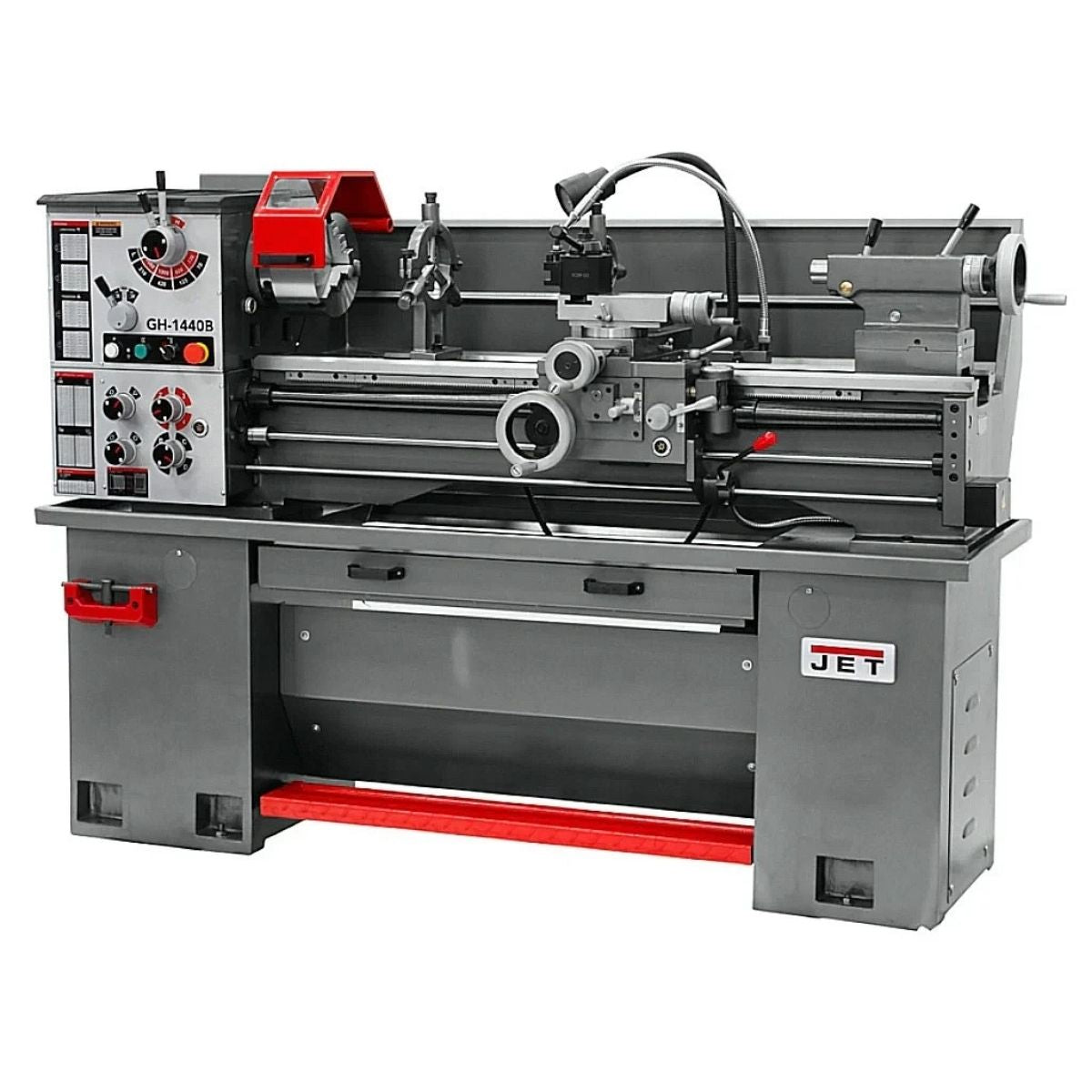

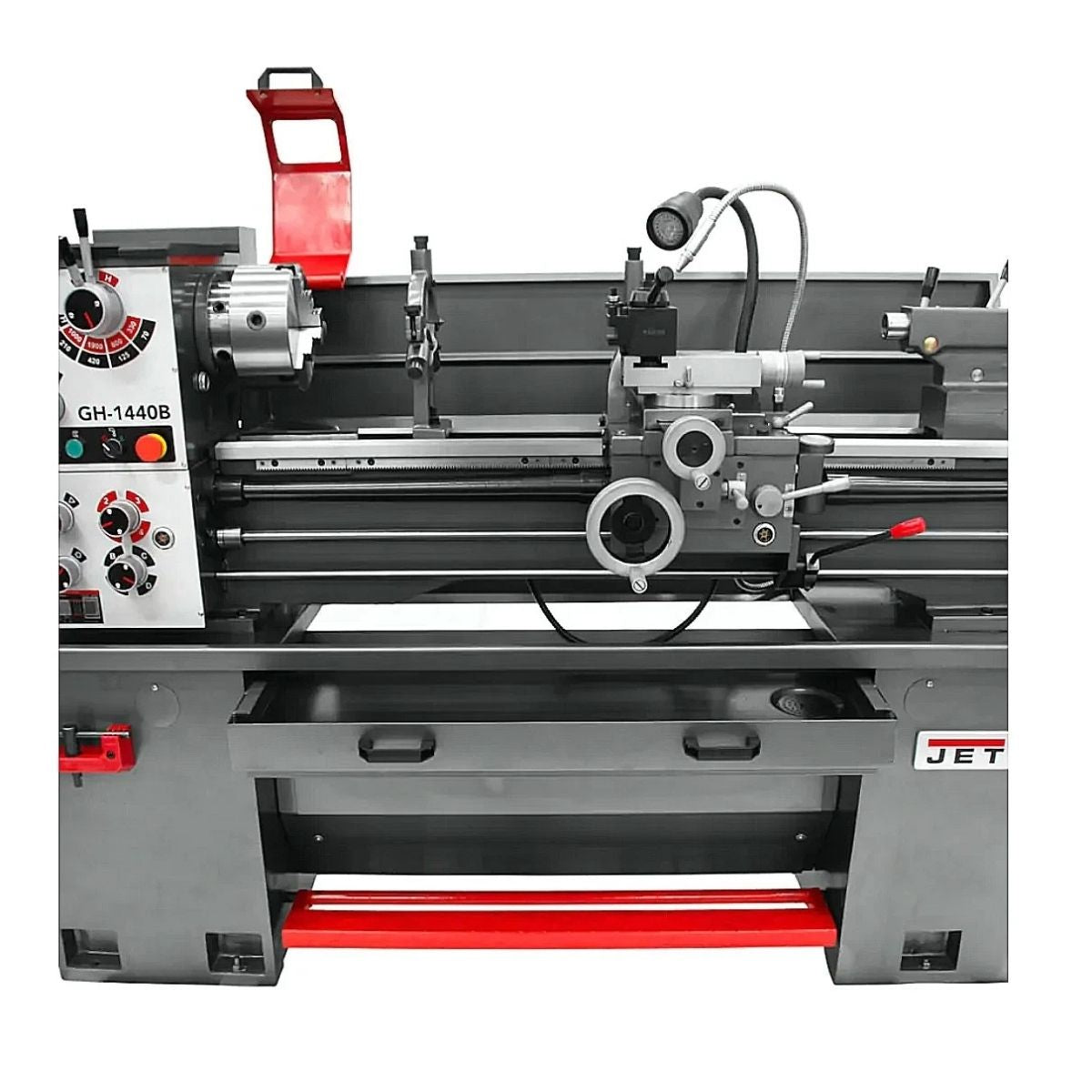

Meet the JET GH-1440B 14" × 40" Geared Head Bench Lathe with Stand & Foot Brake, a geared head metal lathe built for serious shop turning across a wide range of materials and operations.
With the GH-1440B, you get induction hardened and ground bed-ways, a fully enclosed gearbox, spindle roller bearings, and a patented electronic chuck key docking station that prevents startup when the key is not safely stored.
When your lathe is this well sorted, you can focus on the work instead of the machine.
JET GH-1440B for Precise Threading, Turning, and Facing Work

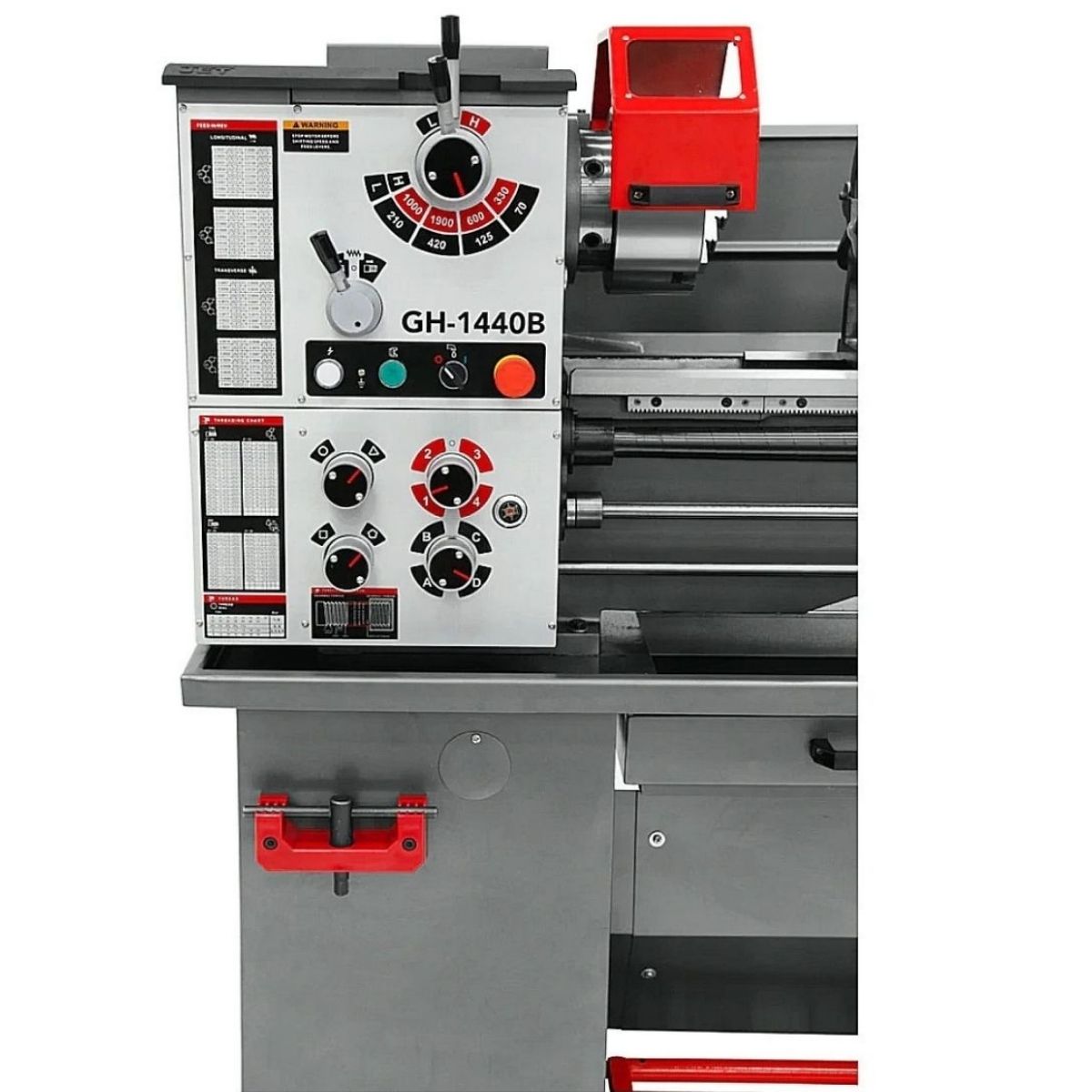

Enclosed Gearbox Covers a Wide Threading Range Without Constant Setup

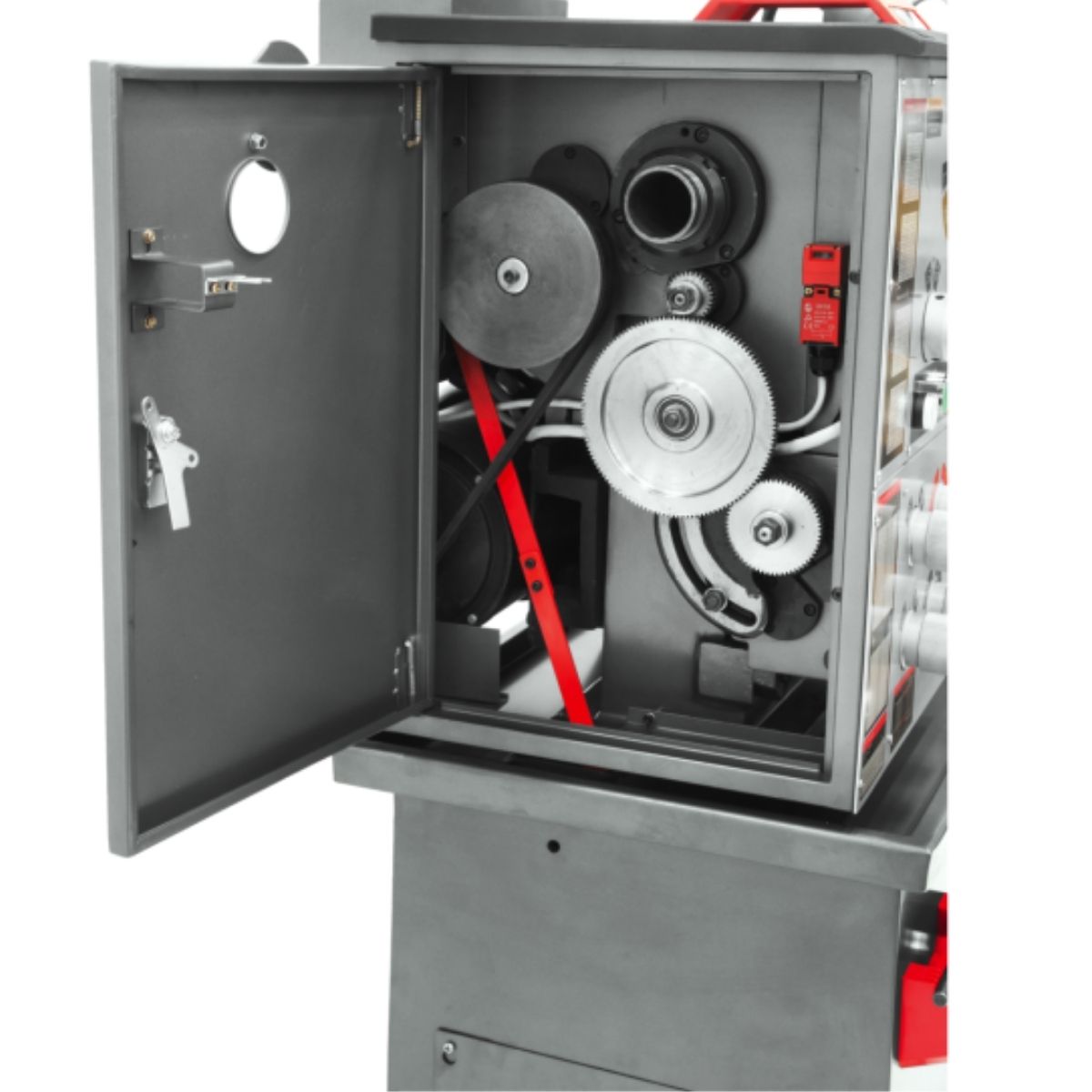

The enclosed gearbox gives you 34 inch thread pitches from 4 to 56 TPI and 26 metric thread pitches from 0.4 to 7mm. You can move between thread types with few gear changes, which keeps setup time short and your workflow moving. The enclosed design also runs quietly and protects the gear train from chips and coolant.
Induction Hardened Ground Bed-Ways Support Accurate Carriage Travel
The bed-ways are induction hardened and precision ground to maintain a consistent surface for the carriage across the full 37-2/5 inch travel. This keeps your cuts repeatable from one end of the bed to the other. Hardened ways also hold up to daily use without wearing in a way that introduces error over time.

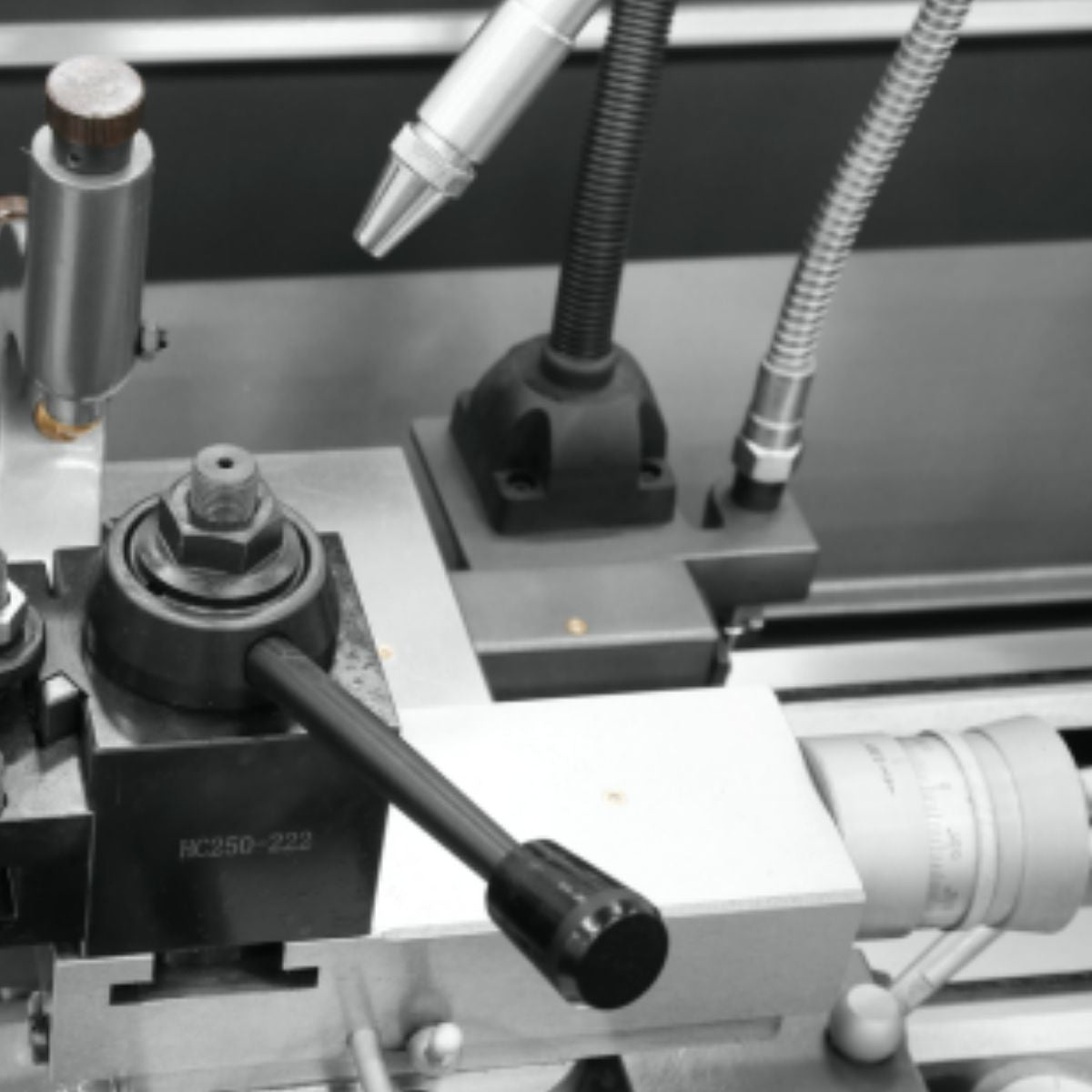

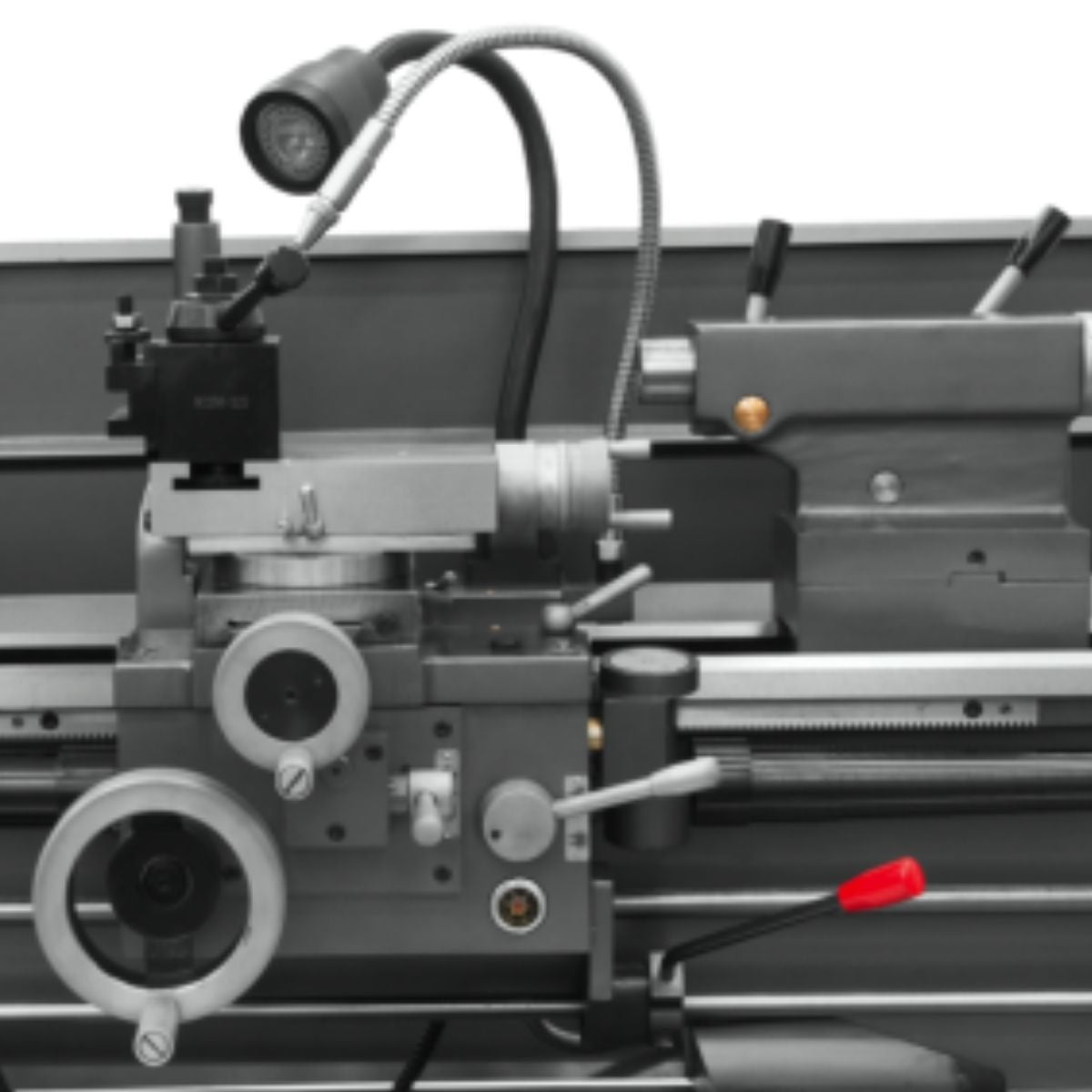

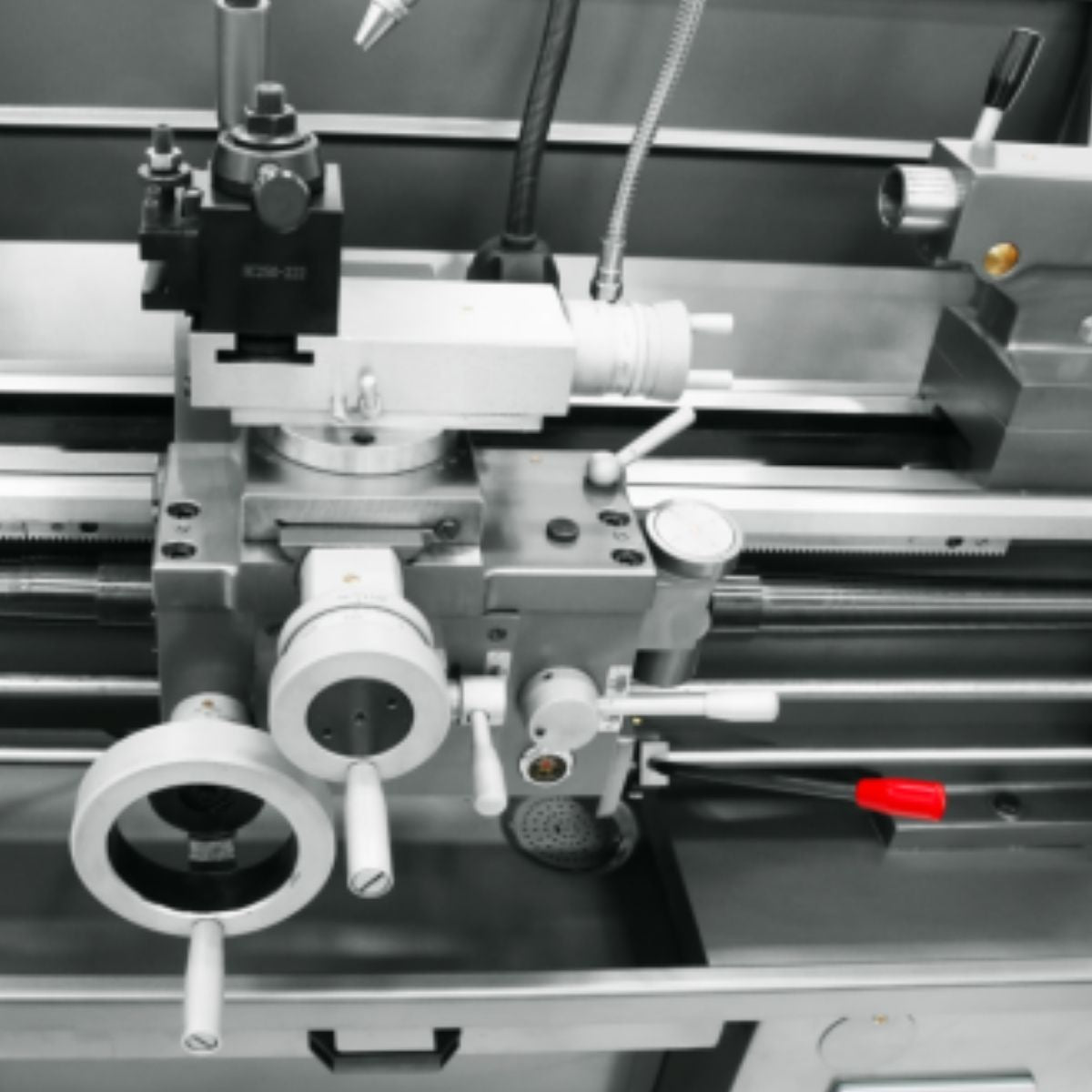

Backlash Adjustment on Compound and Cross Slide Keeps Cuts on Target
Both the compound and cross slide include backlash adjustment so you can take up play as the machine wears in. The cross slide gives you 7 inches of travel and the compound gives you 3-1/2 inches. Keeping backlash tight means your tool stays where you set it when you reverse direction or take a finishing pass.
Foot Brake and Emergency Stop Put Control Close at Hand
The built-in foot brake lets you stop the spindle without taking your hands off the work. An emergency stop is positioned within easy reach of the operator for fast shutdown when you need it. The patented electronic chuck key docking station adds a safety interlock that prevents startup unless the chuck key is properly stowed.
What's Included
What's Included? JET GH-1440B 14" × 40" Geared Head Bench Lathe with Stand & Foot Brake
-
Heavy-Duty Cast Iron Stand — Provides a stable base that reduces vibration and positions the lathe at working height.
-
Foot Brake — Allows quick spindle stops without removing your hands from the workpiece.
-

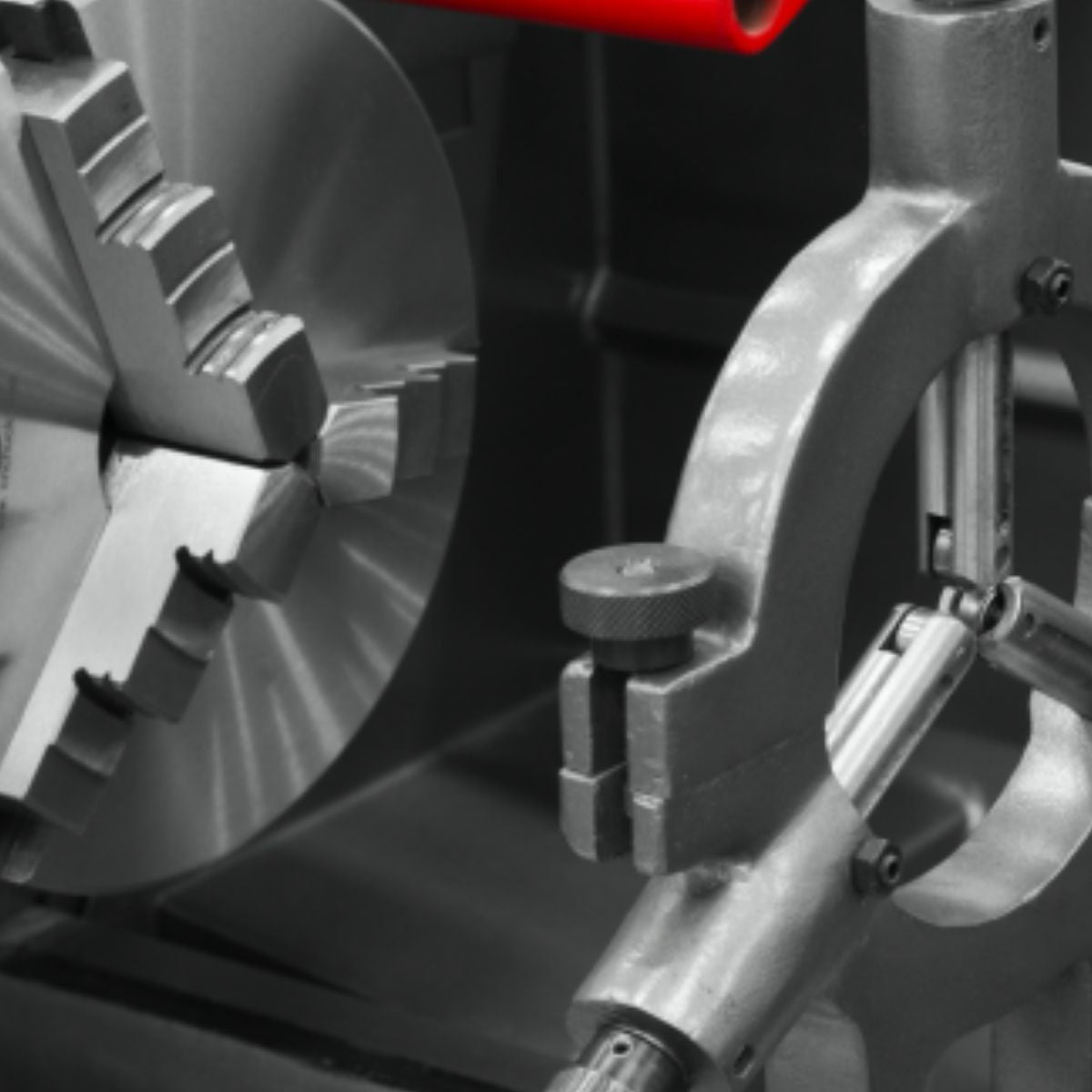

Steady Rest with Roller Bearings — Supports long or slender workpieces to reduce deflection and improve turning accuracy. Capacity: 0.31–2.95 inches.
-
Electronic Chuck Key Docking Station — Prevents machine startup when the chuck key is not properly docked, reducing the risk of an unsecured key being left in the chuck.
Specs
JET GH-1440B Geared Head Bench Lathe Specifications
Stock Numbers
- With Stand & Foot Brake: JT9-331440
- With Taper Attachment: JT9-323442
- With Acu-Rite 203 DRO: JT9-323440
- With Newall NMS300: JT9-323446
- With Acu-Rite 203 DRO & Taper Attachment: JT9-323444
Motor
- Motor: 2 HP, 230V, Single Phase
Swing & Capacity
- Swing Over Bed: 14 in.
- Swing Over Cross Slide: 8 in.
- Swing Through Gap: 20 in.
- Distance Between Centers: 40 in.
- Length of Gap: 8 in.
Slides & Carriage
- Carriage Travel: 37-2/5 in.
- Cross Slide Travel: 7 in.
- Compound Slide Travel: 3-1/2 in.
- Max Tool Size: 4/5 x 4/5 in.
Spindle
- Spindle Bore: 2 in.
- Spindle Mount: D1-5
- Spindle Taper with Sleeve: MT6
- Number of Spindle Speeds: 8
- Range of Spindle Speeds: 70–1900 RPM
Threading & Feed
- Number of Inch Threads: 34
- Range of Inch Threads: 4–56 TPI
- Number of Metric Threads: 26
- Range of Metric Threads: 0.4–7mm
- Number of Longitudinal Feed Rates: 32
- Range of Longitudinal Feeds: 0.002–0.0548 IPR
- Number of Cross Feed Rates: 32
- Range of Cross Feeds: 0.007–0.0187 IPR
Tailstock
- Tailstock Spindle Travel: 4 in.
- Taper in Tailstock Spindle: MT4
Bed
Steady Rest
- Steady Rest Capacity: 0.31–2.95 in.
Overall
- Overall Dimensions (L x W x H): 76-13/32 x 29-29/32 x 59-13/16 in.
- Net Weight: 1,572 lbs.
- Gross Weight: 1,753 lbs.
- Warranty: 2 Year
