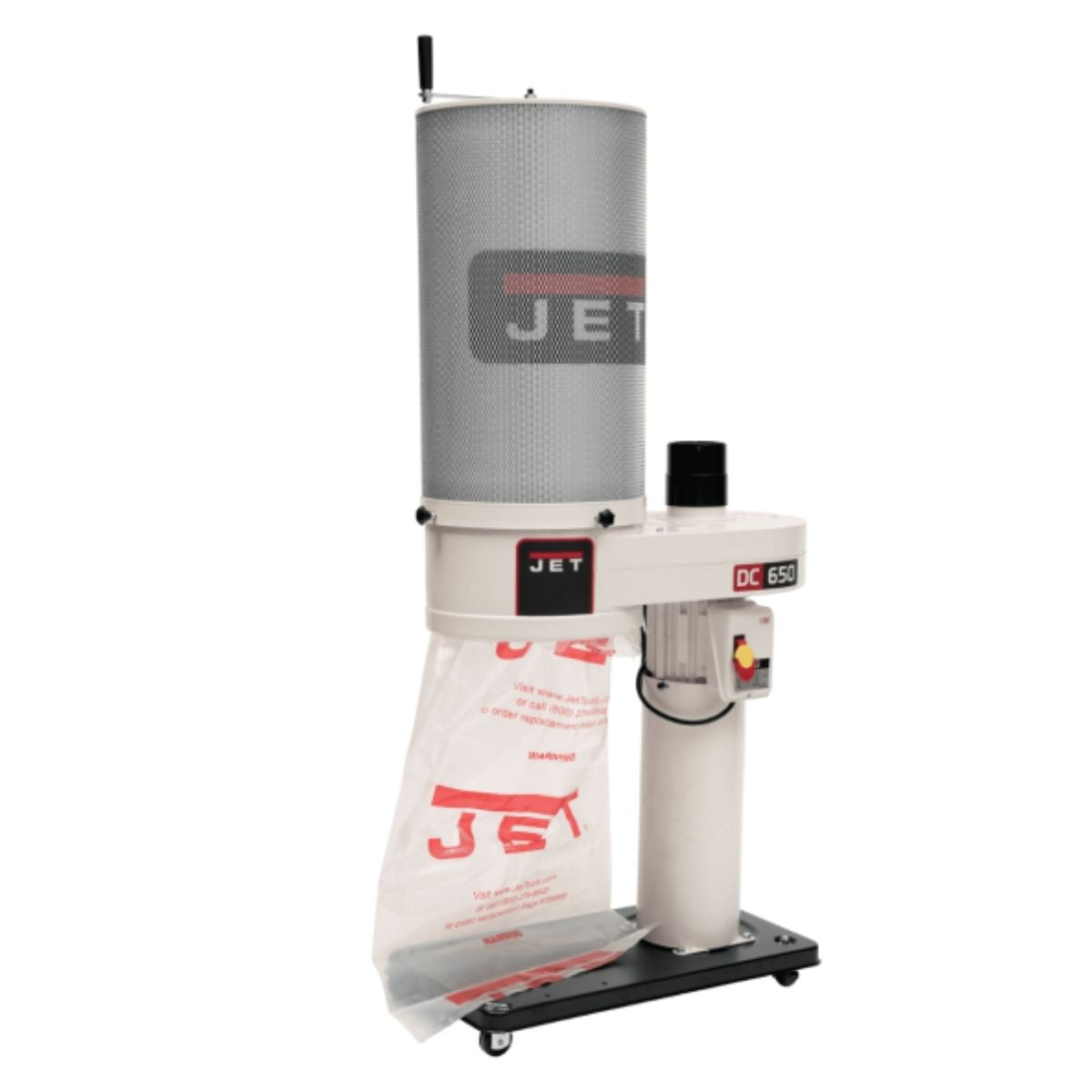

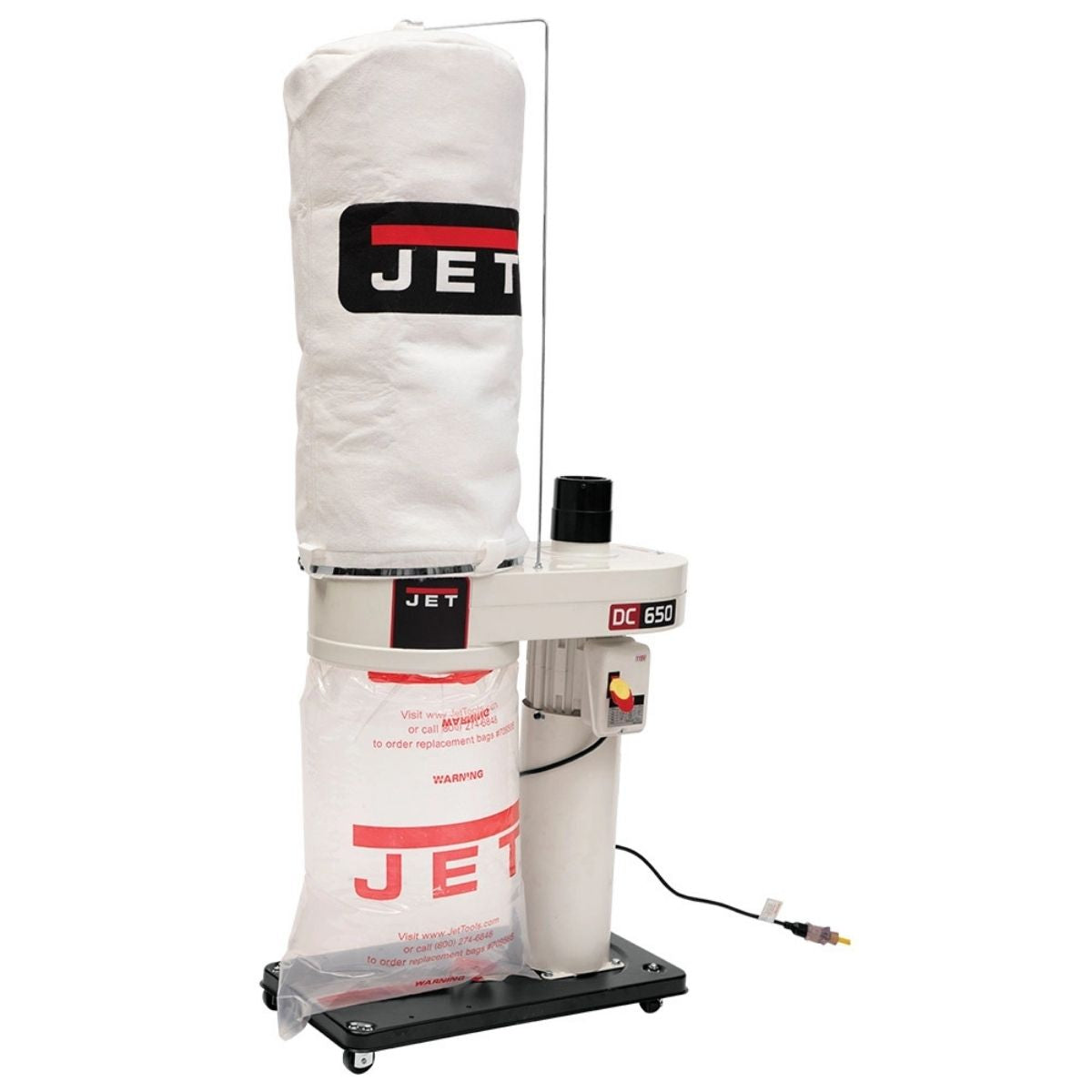

JET DC-650 Dust Collector

JET DC-650 Dust Collector

JET DC-650 Dust Collector for Efficient Shop Cleanup

Powerful 1HP Motor

Delivers consistent suction to capture dust and debris from woodworking machines. Fully enclosed and permanently lubricated for continuous-duty reliability.

30-Micron Filter Bags

Effectively trap fine dust to maintain air quality in the shop. Quick-install bags make setup and replacement simple.

Mobile and Convenient

Four casters allow easy movement around the workspace. Optional remote control lets you start and stop the collector from anywhere in the shop.

What’s Included

JET DC-650 Dust Collector Package

• DC-650 Dust Collector – 1 HP motor, 4-inch dust port, permanently lubricated enclosed motor, mobile caster base for easy shop mobility.
• Filter Kit Options – Choose from:
  • 30-Micron Bag Filter (Stock Number: JT9-708642BK)
  • 5-Micron Bag Filter (Stock Number: JT9-708642MK)
  • 2-Micron Canister Filter (Stock Number: JT9-708642CK)
• Quick-Install Collection Bag – Makes emptying and re-attaching fast and hassle-free.
• Optional Radio-Frequency Remote Control – Operates the collector from anywhere in the shop, no direct line of sight required.
• Additional Features:
  • Single-stage design for economical and quiet operation
  • High air velocity (650 CFM @ 4") for efficient dust capture
  • Four casters for maneuverability and portability

Specs

JET DC-650 Dust Collector Specifications

• Stock Number: JT9-708642BK / JT9-708642MK / JT9-708642CK
• Model Number: DC-650BK / DC650M / DC-650CK
• Motor: 1 HP
• Voltage: 115 V
• Phase: Single-phase
• Dust Port Diameter: 4 in
• Filter Bags: 30-Micron (2 bags), 5-Micron (2 bags), 2-Micron Canister (1 canister)
• Net Weight: 86 lbs (Bag Kits), 99 lbs (Canister Kit)
• Gross Weight: 91 lbs (Bag Kits), 108 lbs (Canister Kit)
• Dimensions (L x W x H): Approx. 23" x 14" x 40" (varies slightly by kit)
• Warranty: 5 Year
• Air Flow @ 4": 650 CFM
• Bag Diameter: 14 in
• Collection Bag Capacity: 2.1 cu. ft.
• Collection Bag Length: 21-1/2" to 23" depending on kit
• Efficiency: 30 Micron, 5 Micron, or 2 Micron depending on kit
• Impeller Material: Steel
• Motor Amps: 7/3.5 (30-Micron), 11/5.5 (5-Micron & 2-Micron)
• Sound Rating: 65–70 dB
• Static Pressure: 6-1/2 Wc
• Style (Type): Bag or Canister
• Velocity @ 4": 7445 FPM
