JET DC-1100VX Vortex Cone Dust Collector

JET DC-1100VX Vortex Cone Dust Collector

JET DC-1100VX for Reliable Single-Stage Dust Collection

Vortex Cone Separation System

Improves chip separation and helps prevent premature filter clogging, maintaining steady airflow during extended use.

1.5 HP TEFC Motor

Permanently lubricated, totally enclosed fan-cooled motor designed for continuous-duty operation in demanding shop environments.

High Velocity Airflow

Strong air movement efficiently captures dust and debris from woodworking machines to help maintain a cleaner workspace.

Quick-Connect Bag System

Elastic band and snap-ring design allows fast installation and removal for easier maintenance.

What’s Included

JET DC-1100VX / DC-1200VX Dust Collector Packages

• Dust Collector Unit – Choose from:
  • DC-1100VX (1.5 HP, 115/230V, Single Phase)
  • DC-1200VX (2 HP, 230V Single Phase or 230/460V Three Phase)
• Filter Kit Options – Available configurations include:
  • 30-Micron Bag Filter Kit
  • 5-Micron Bag Filter Kit (DC-1100VX only)
  • 2-Micron Canister Filter Kit
• Collection Bag – Lower bag captures chips and debris separated by the Vortex Cone system.
• Swivel Casters – Provides mobility for easy positioning around the shop.
• Quick-Connect Bag System – Elastic band or snap-ring system for fast installation and removal.
• Additional Features:
  • Vortex Cone improves chip separation and reduces filter clogging
  • Single-stage design for economical and quiet operation
  • High air velocity for efficient dust collection
  • Industrial-grade controls for long-term durability

Specs

JET DC-1100VX / DC-1200VX Specifications

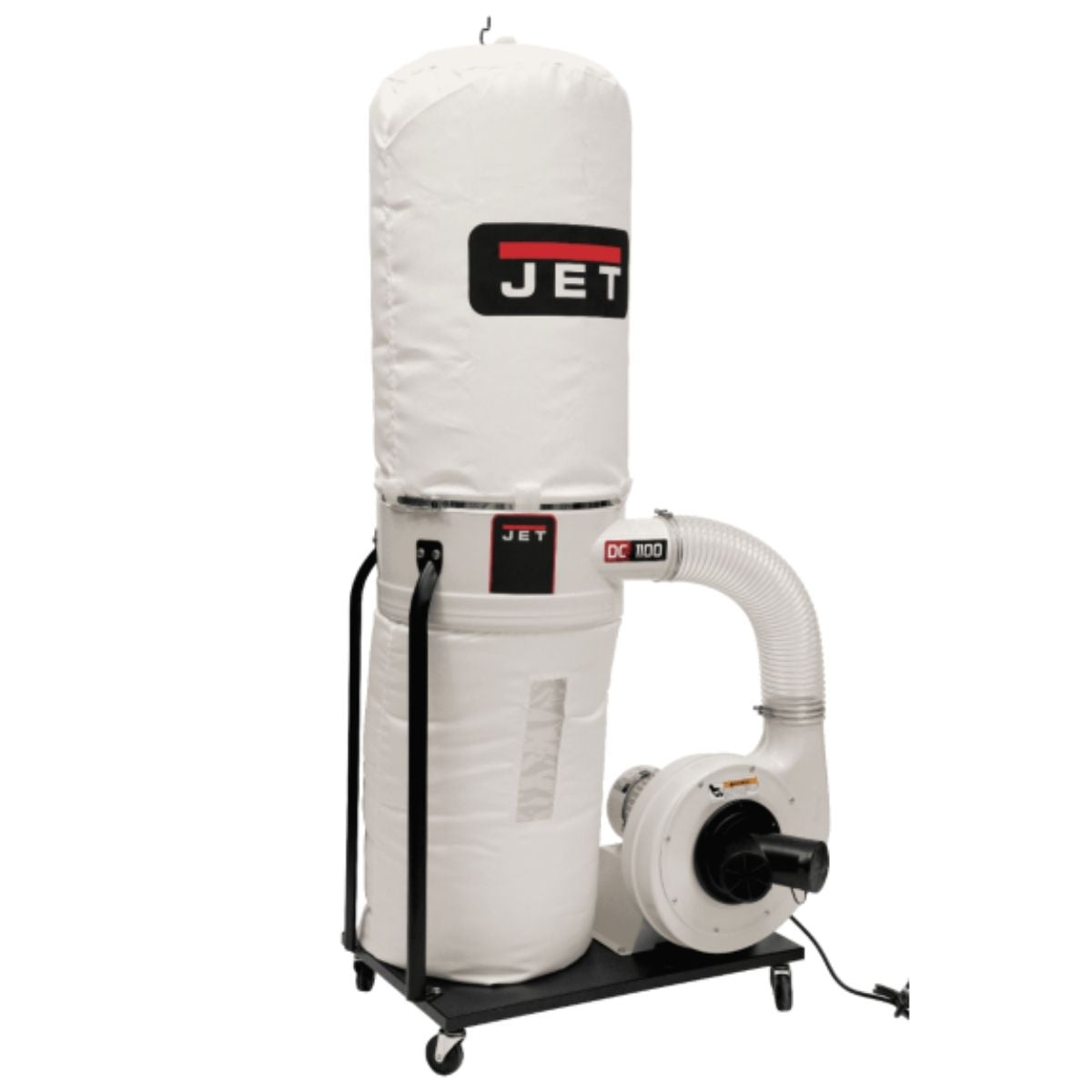

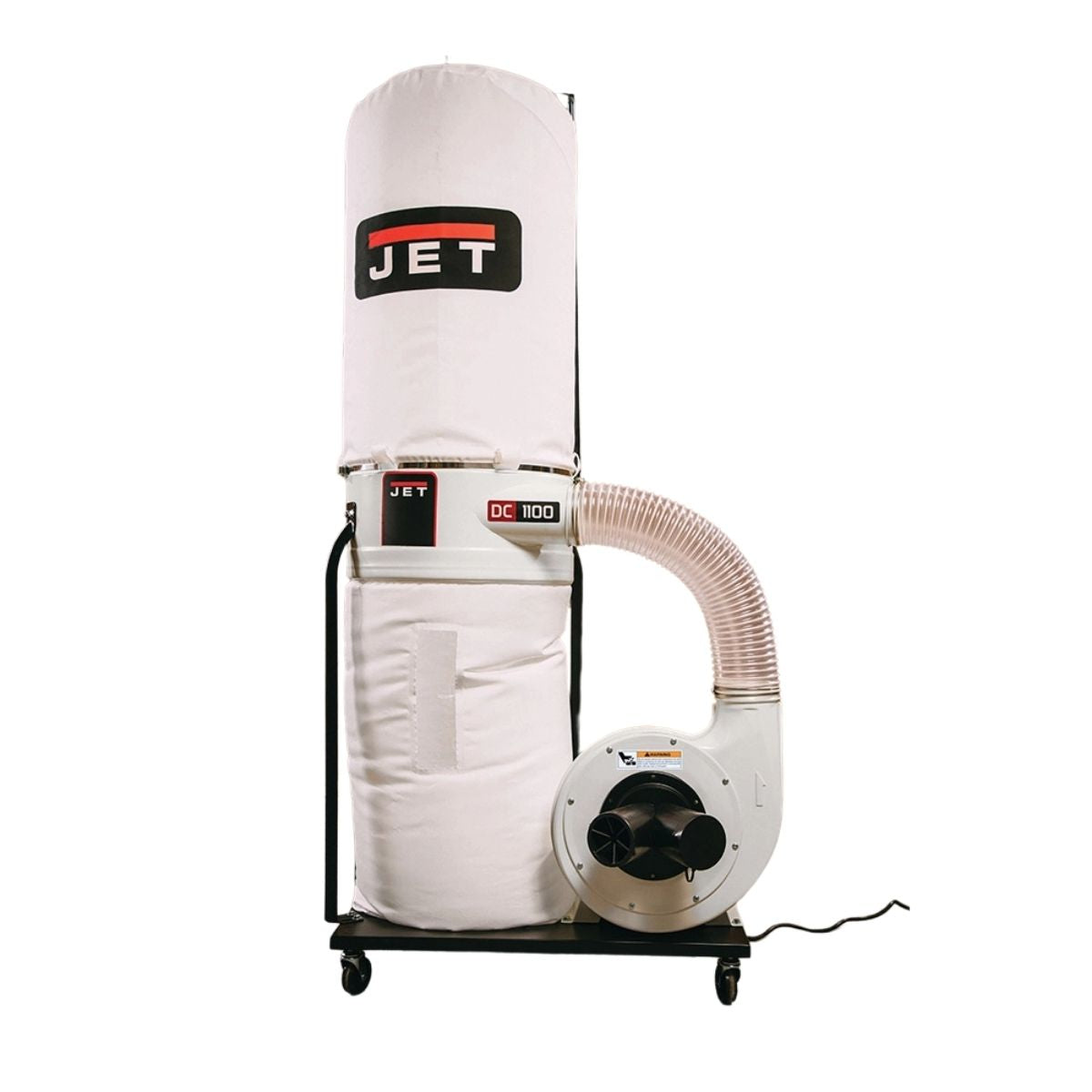

DC-1100VX-BK (1.5HP, 1PH, 115/230V, 30-Micron Bag)

• Stock Number: JT9-708657K
• Air Flow: 1100 CFM
• Static Pressure: 10.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 30 Micron Bag
• Motor Amps: 11 / 5.5
• Sound: 70–80 dB
• Weight: 127 lbs (Net) / 139 lbs (Gross)

DC-1100VX-5M (1.5HP, 1PH, 115/230V, 5-Micron Bag)

• Stock Number: JT9-708658K
• Air Flow: 1100 CFM
• Static Pressure: 10.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 5 Micron Bag (captures ~98% of fine dust)
• Motor Amps: 11 / 5.5
• Sound: 70–80 dB
• Weight: 127–130 lbs (Net) / 139–143 lbs (Gross)

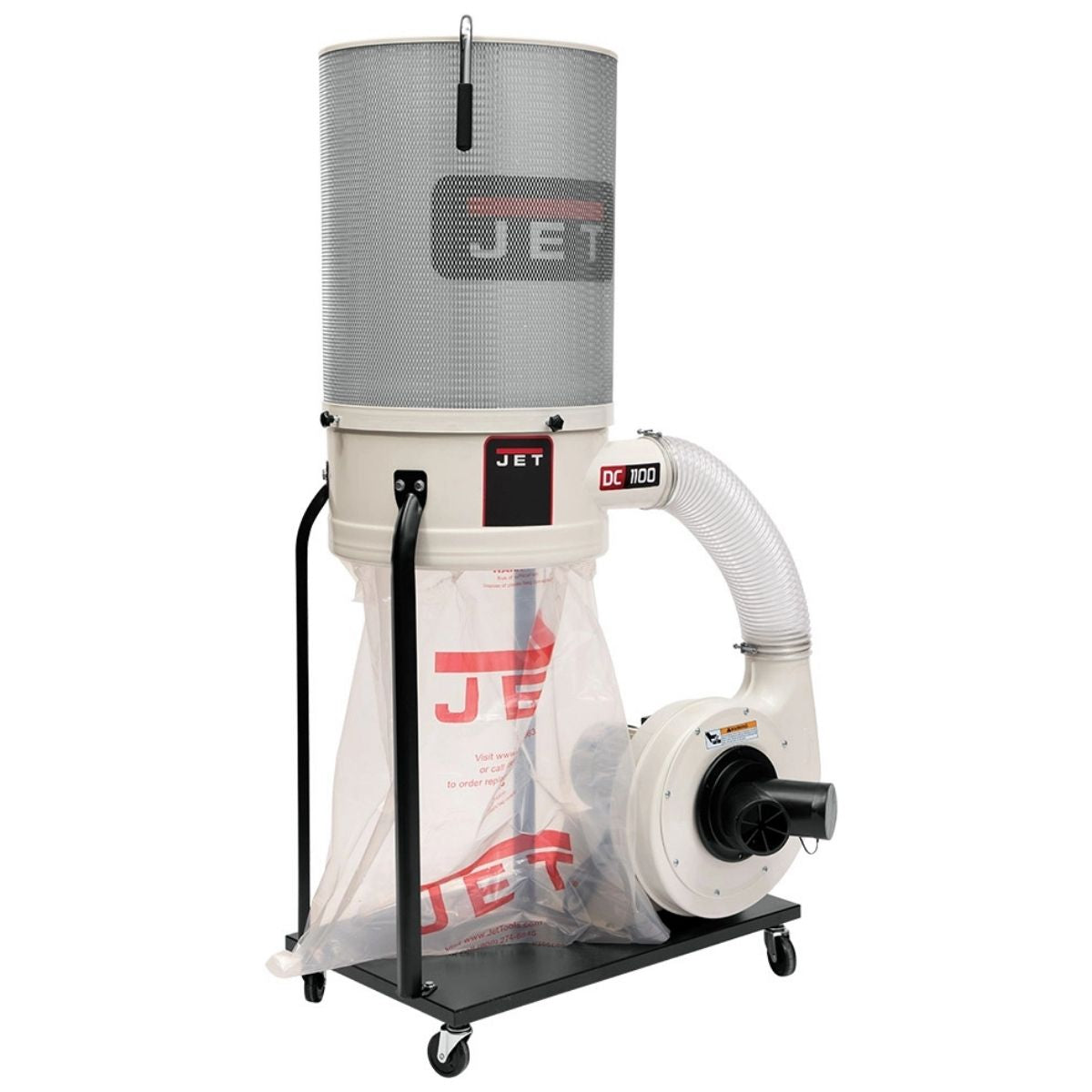

DC-1100VX-CK (1.5HP, 1PH, 115/230V, 2-Micron Canister)

• Stock Number: JT9-708659K
• Air Flow: 1100 CFM
• Static Pressure: 10.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 2 Micron Canister
• Motor Amps: 11 / 5.5
• Sound: 70–80 dB
• Weight: 130 lbs (Net) / 143 lbs (Gross)

DC-1200VX-BK1 (2HP, 1PH, 230V, 30-Micron Bag)

• Stock Number: JT9-710701K
• Air Flow: 1200 CFM
• Static Pressure: 11.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 30 Micron Bag
• Sound: 80–85 dB
• Weight: 138 lbs (Net) / 150 lbs (Gross)

DC-1200VX-CK1 (2HP, 1PH, 230V, 2-Micron Canister)

• Stock Number: JT9-710702K
• Air Flow: 1200 CFM
• Static Pressure: 11.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 2 Micron Canister
• Sound: 80–85 dB
• Weight: 150 lbs (Net) / 165 lbs (Gross)

DC-1200VX-BK3 (2HP, 3PH, 230/460V, 30-Micron Bag)

• Stock Number: JT9-710703K
• Air Flow: 1200 CFM
• Static Pressure: 11.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 30 Micron Bag
• Sound: 80–85 dB
• Weight: 165 lbs (Net) / 180 lbs (Gross)

DC-1200VX-CK3 (2HP, 3PH, 230/460V, 2-Micron Canister)

• Stock Number: JT9-710704K
• Air Flow: 1200 CFM
• Static Pressure: 11.5 Wc
• Ports: 6" main, dual 4"
• Bag Diameter: 20"
• Capacity: 5.3 cu. ft.
• Filter: 2 Micron Canister
• Sound: 80–85 dB
• Weight: 170 lbs (Net) / 183 lbs (Gross)
