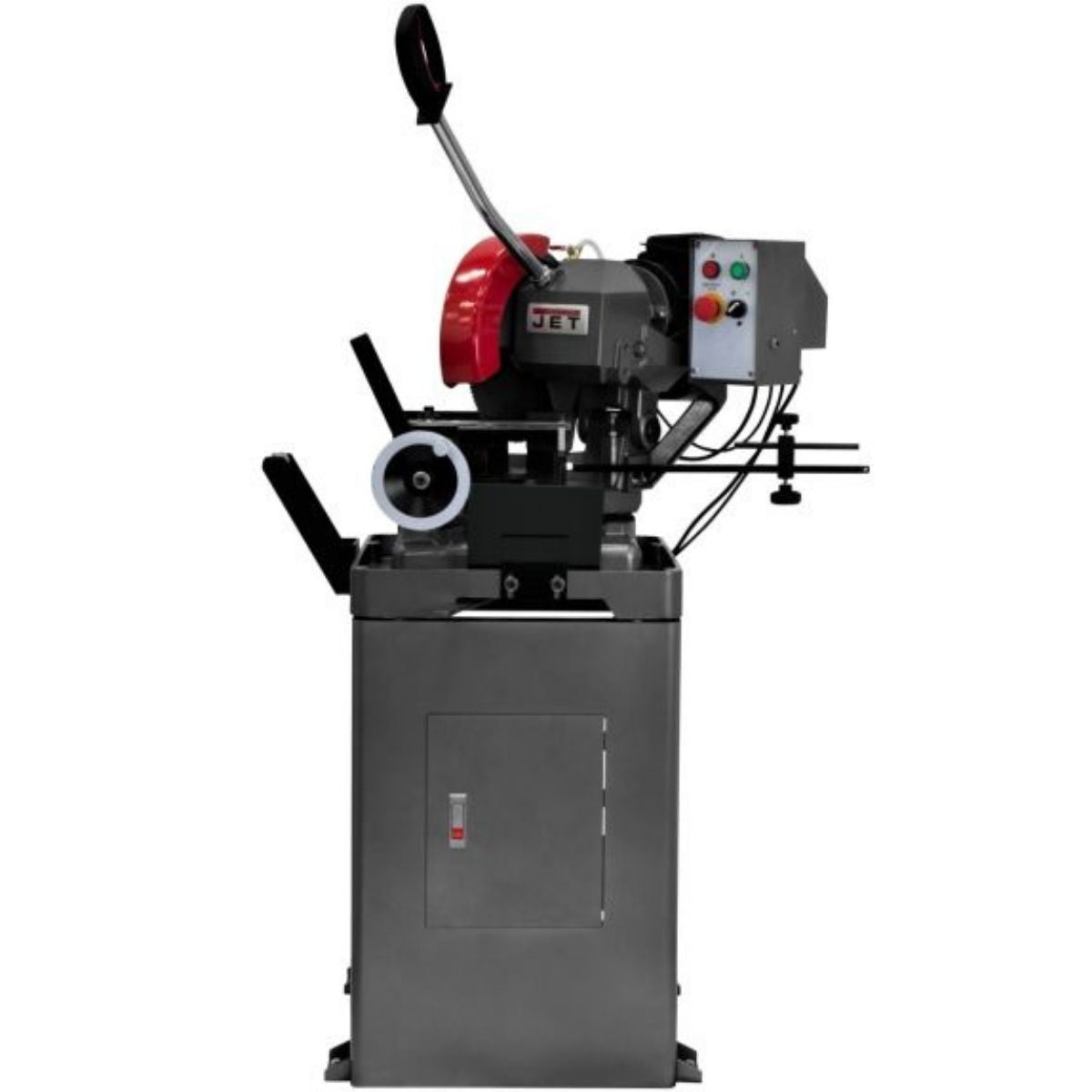

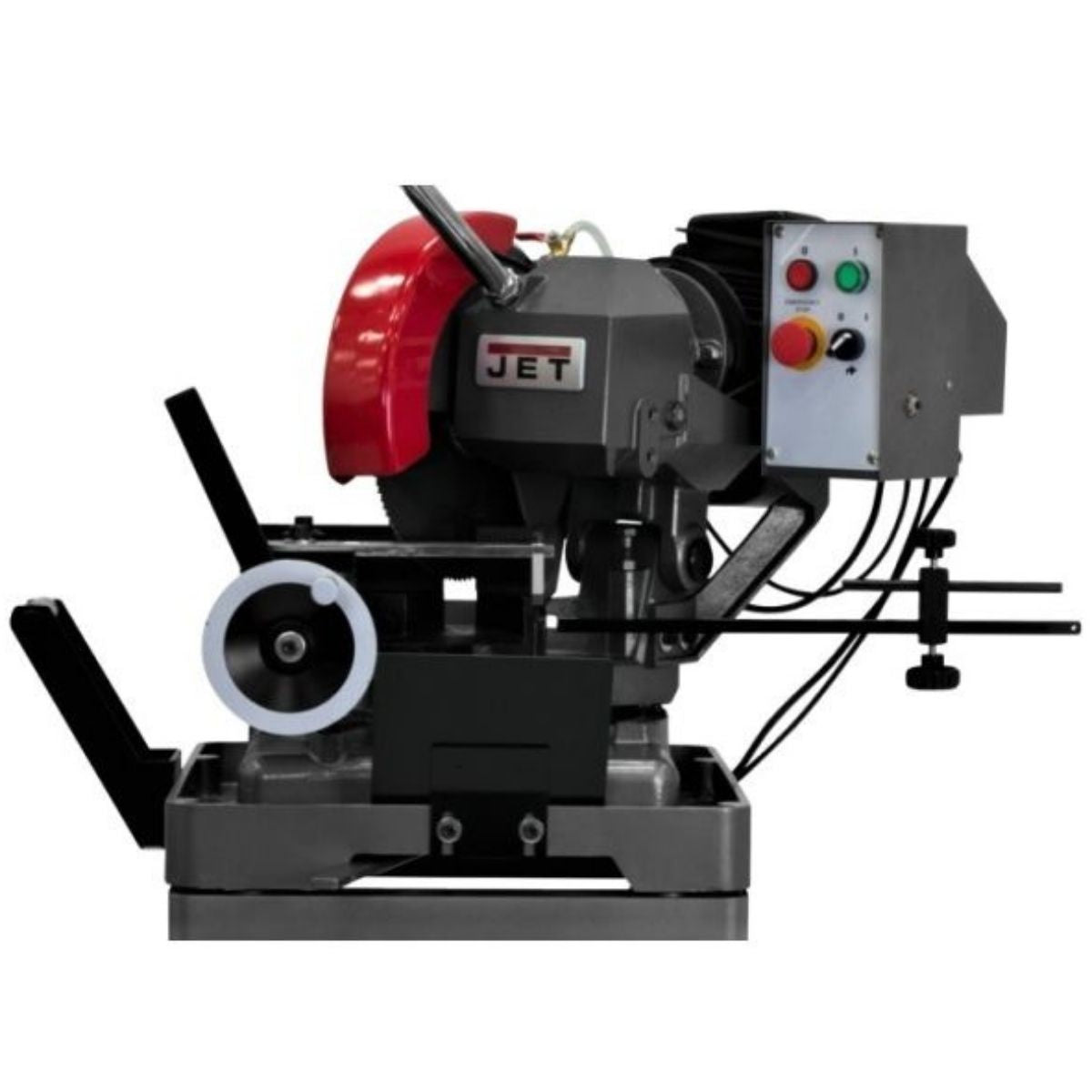

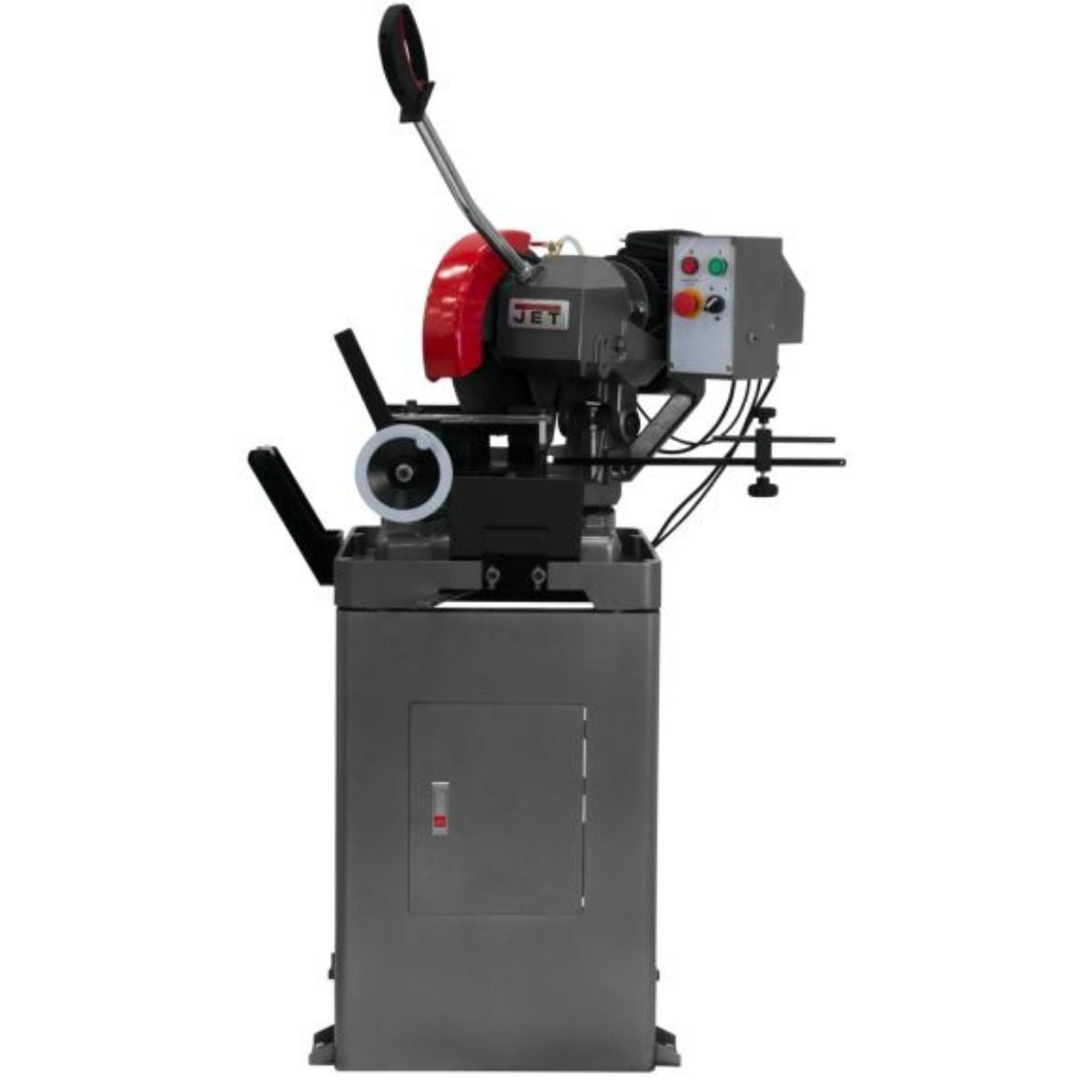

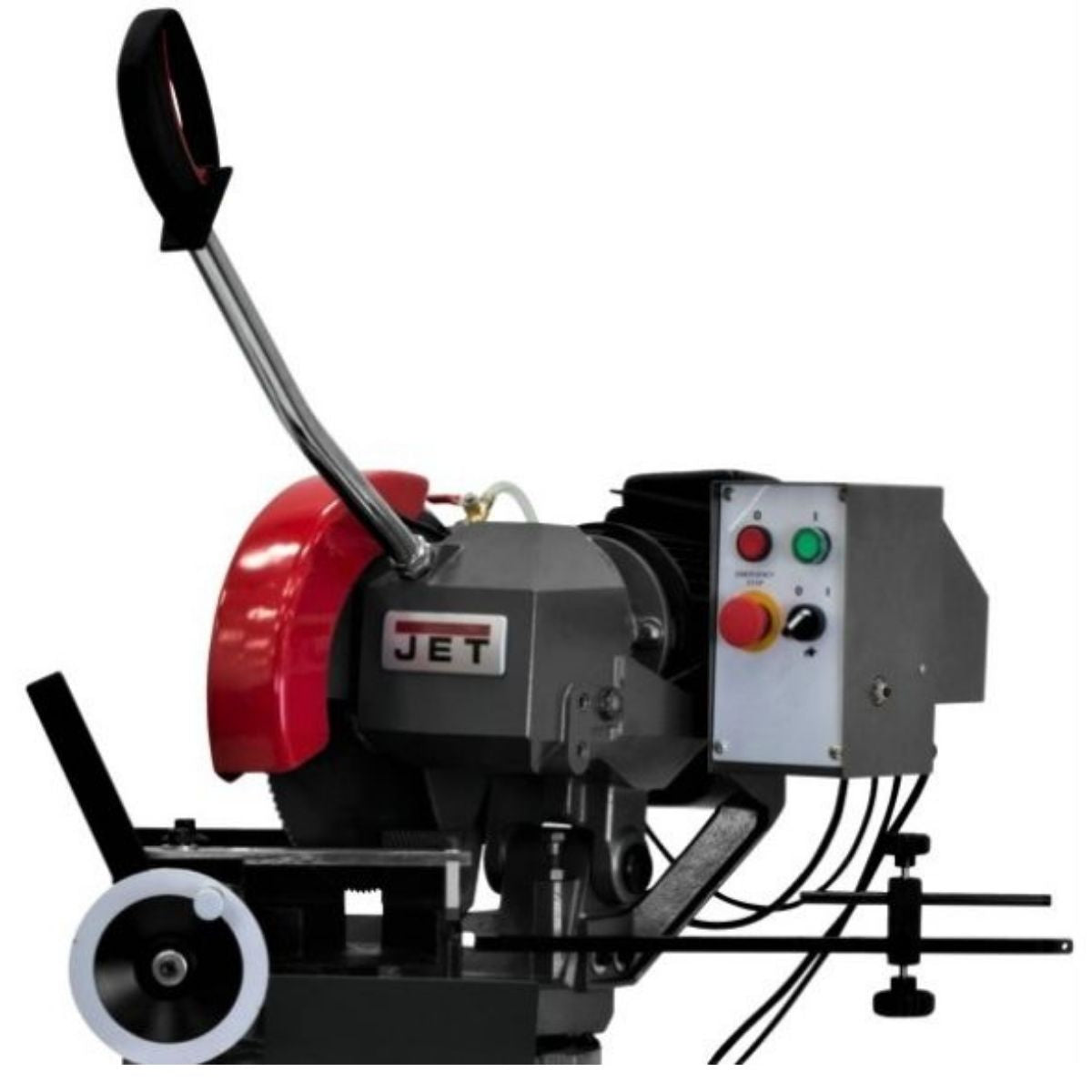

JET CS-315 12" 315mm Ferrous Manual Cold Saw

JET CS-315 12" 315mm Ferrous Manual Cold Saw

JET CS-315 for Clean, Repeatable Cuts in Ferrous Material

Oil-Bath Gearbox Protects Drive Components Under Load

The blade drive reduction gearbox runs in a sealed oil bath, keeping internal components lubricated during extended cutting cycles. The hardened and ground worm shaft paired with a bronze worm wheel transfers torque to the blade efficiently, reducing heat and wear on the drive train. This setup holds up to the demands of daily production use without requiring frequent service.

Flood Coolant System Extends Blade Life and Controls Heat

A built-in flood coolant system with a 1-1/3 gallon reservoir and pump delivers a controlled flow of coolant to the cut zone throughout each pass. The flow control system lets you dial in the right volume for the material and blade you are running. Keeping the cut temperature down protects blade teeth and maintains cut quality over a longer service interval.

Cam-Action Vise Holds Material Securely for Burr-Free Results

The quick-clamping cam-action vise with an adjustable gib locks workpieces firmly without slowing down your setup. A material support bar keeps stock stable at the point of cut, which is what allows the saw to produce the clean, burr-free face cold saws are known for. Consistent clamping pressure from piece to piece means your results stay the same across a full run.

Adjustable Depth Stop and Mitering Capability Support Production Workflows

A fully adjustable material depth stop lets you set a repeatable cut depth and run through a batch without re-measuring each piece. Quick tension and release mitering with positive stops at 45° right and 45° left makes angle work faster and keeps your setup consistent. The two-piece cast iron blade guard system allows blade changes without removing the guards, so you lose less time between setups.

What's Included

What's Included? JET CS-315 12" 315mm Ferrous Manual Cold Saw

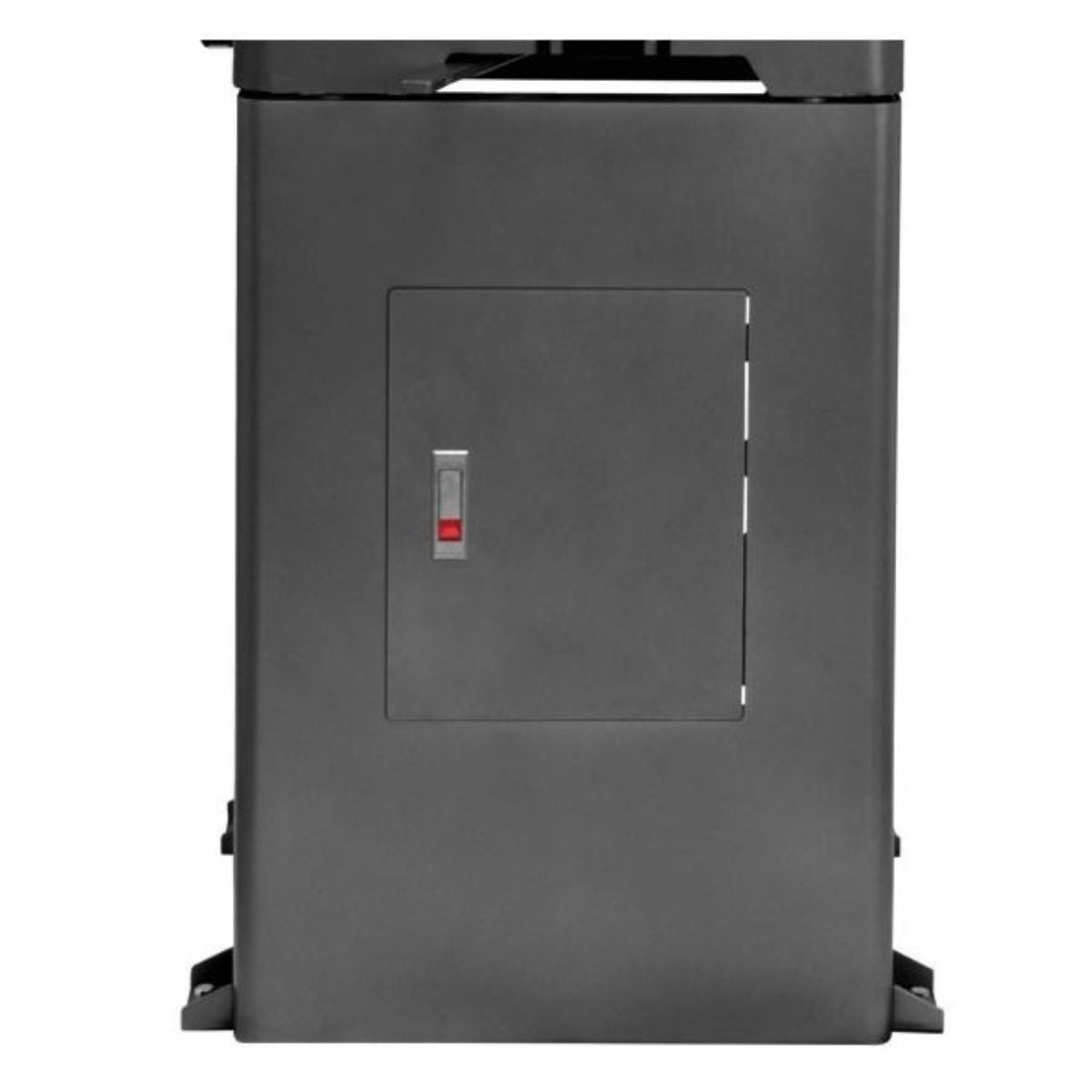

• 315mm Cold Saw Head and Cast Iron Frame Base — The main cutting unit and heavy-duty base provide a stable platform for ferrous cutting operations.
• Flood Coolant System — Includes 1-1/3 gallon reservoir and pump with flow control to extend blade life during production use.
• Cam-Action Vise with Material Support Bar — Secures workpieces for clean, burr-free cuts and supports consistent clamping across a full run.
• Two-Piece Cast Iron Blade Guard System — Allows quick blade changes without full guard removal to minimize downtime.

Specs

JET CS-315 12" 315mm Ferrous Manual Cold Saw Specifications

• Model Number: CS-315 (3Ph) / CS-315-1 (1Ph)
• Stock Number: JT9-414227 (3Ph) / JT9-414229 (1Ph)
• Blade Diameter: 315mm (12")
• Style: Ferrous
• Motor: 2HP, 230V, 3Ph (414227) / 2HP, 230V, 1Ph (414229)
• Amperage: 7/5.8A (3Ph) / 13.2A (1Ph)
• Blade Speed: 54 RPM (1Ph model; 3Ph not specified)
• Maximum Vise Opening: 4-11/16"
• Solid Round at 90°: 3-1/2"
• Solid Round at 45°: 3-1/2"
• Solid Square at 90°: 3-1/8" x 3-1/8" (3Ph) / 3-3/16" x 3-3/16" (1Ph)
• Solid Square at 45°: 2-19/32" x 2-19/32"
• Solid Rectangle at 90°: 3-3/16" x 3-3/16" (3Ph) / 4" x 3-3/16" (1Ph)
• Solid Rectangle at 45°: 3-3/16" x 2-19/32"
• Tubing Round at 90°: 3-1/2"
• Tubing Round at 45°: 3-1/2"
• Tubing Rectangle at 90°: 4" x 3-3/16"
• Miter Stops: 45° Right, 45° Left
• Coolant Reservoir: 1-1/3 Gallon
• Net Weight: 390 lbs (3Ph) / 350 lbs (1Ph)
• Warranty: 2 Years
• Manual: Available on the JET website and included with machine documentation.
