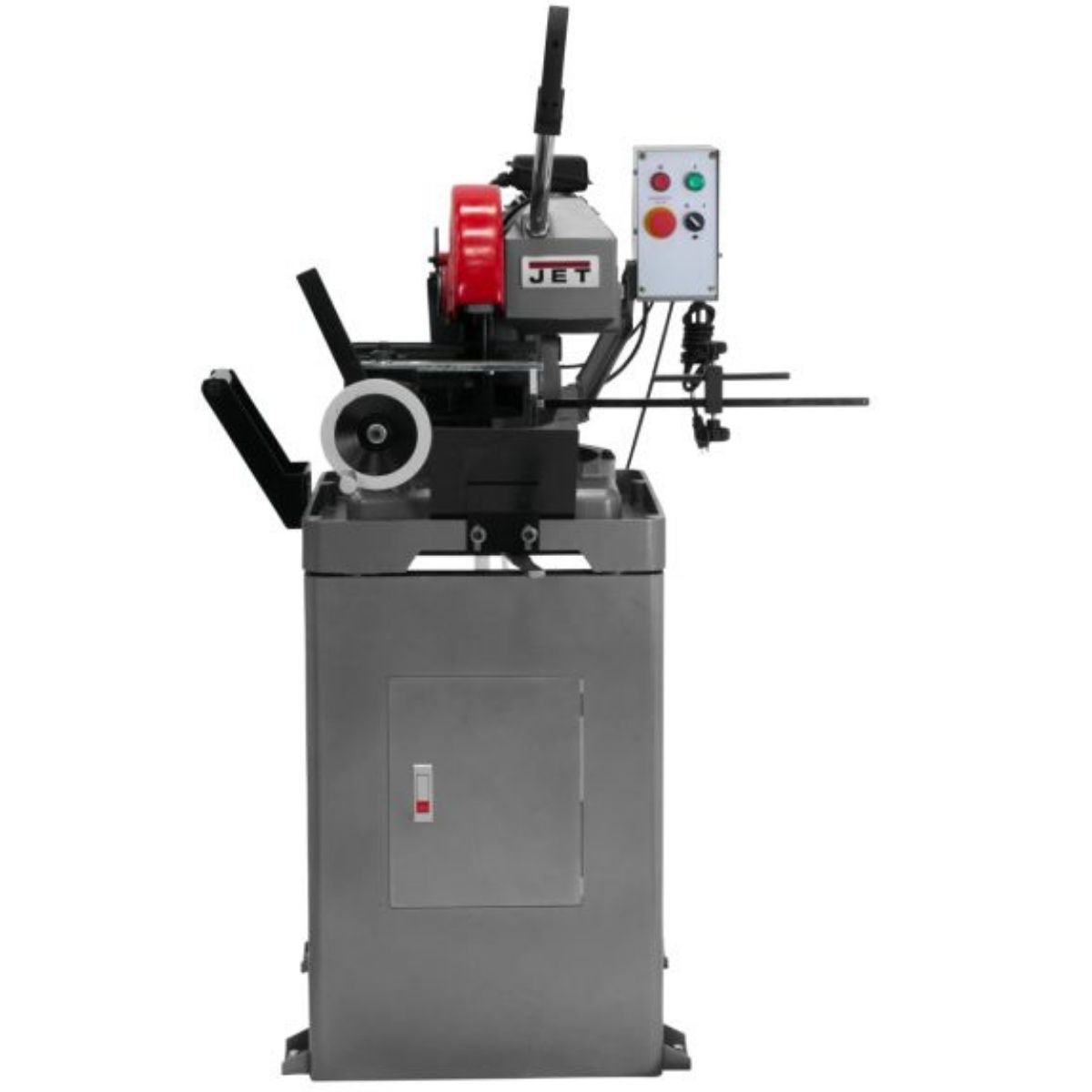

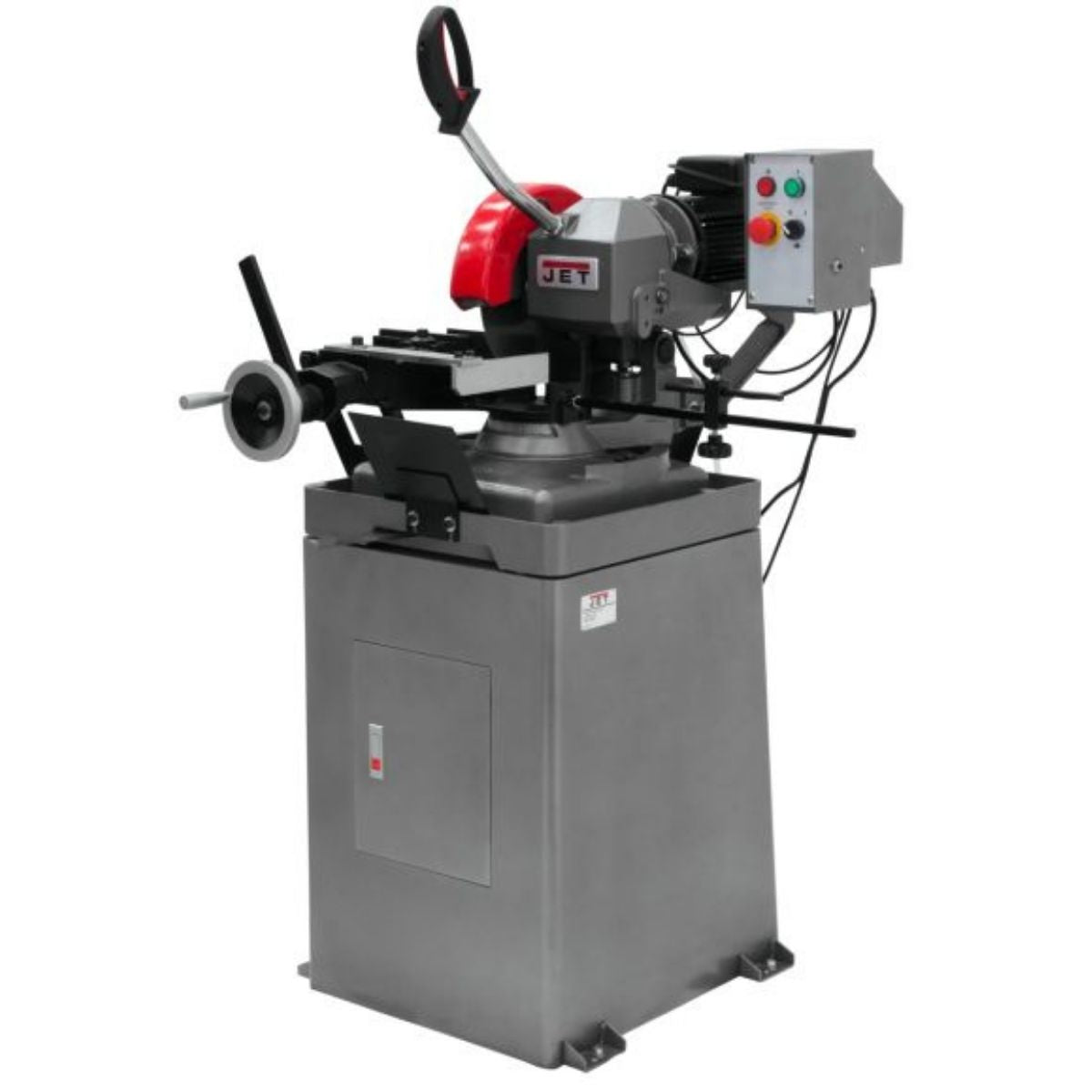

JET CS-275 10" 275mm Ferrous Manual Cold Saw
Are you tired of ragged cuts, burrs, and rework time on steel and structural stock?
What if every cut came off the blade clean, square, and ready to weld or finish without a grinder in your hand?
Meet the JET CS-275, a 275mm manual cold saw built for fabrication shops and machine shops that cut ferrous material every day.
With a cast iron frame, flood coolant system, and a hardened worm drive gearbox, the CS-275 is built to hold up under steady production work and deliver consistent results across every cut.
When your saw keeps up with your pace and your cuts come out right the first time, you spend less time cleaning up and more time moving the job forward.
JET CS-275 for Clean, Repeatable Cuts in Ferrous Stock
Hardened Worm Drive System Transfers Torque to the Blade
The CS-275 uses a hardened and ground direct drive worm shaft paired with a bronze worm wheel. This drive arrangement transmits maximum torque to the blade without slipping or losing speed under load. The gearbox runs in an oil bath, which reduces wear and keeps the drive system performing consistently over time.

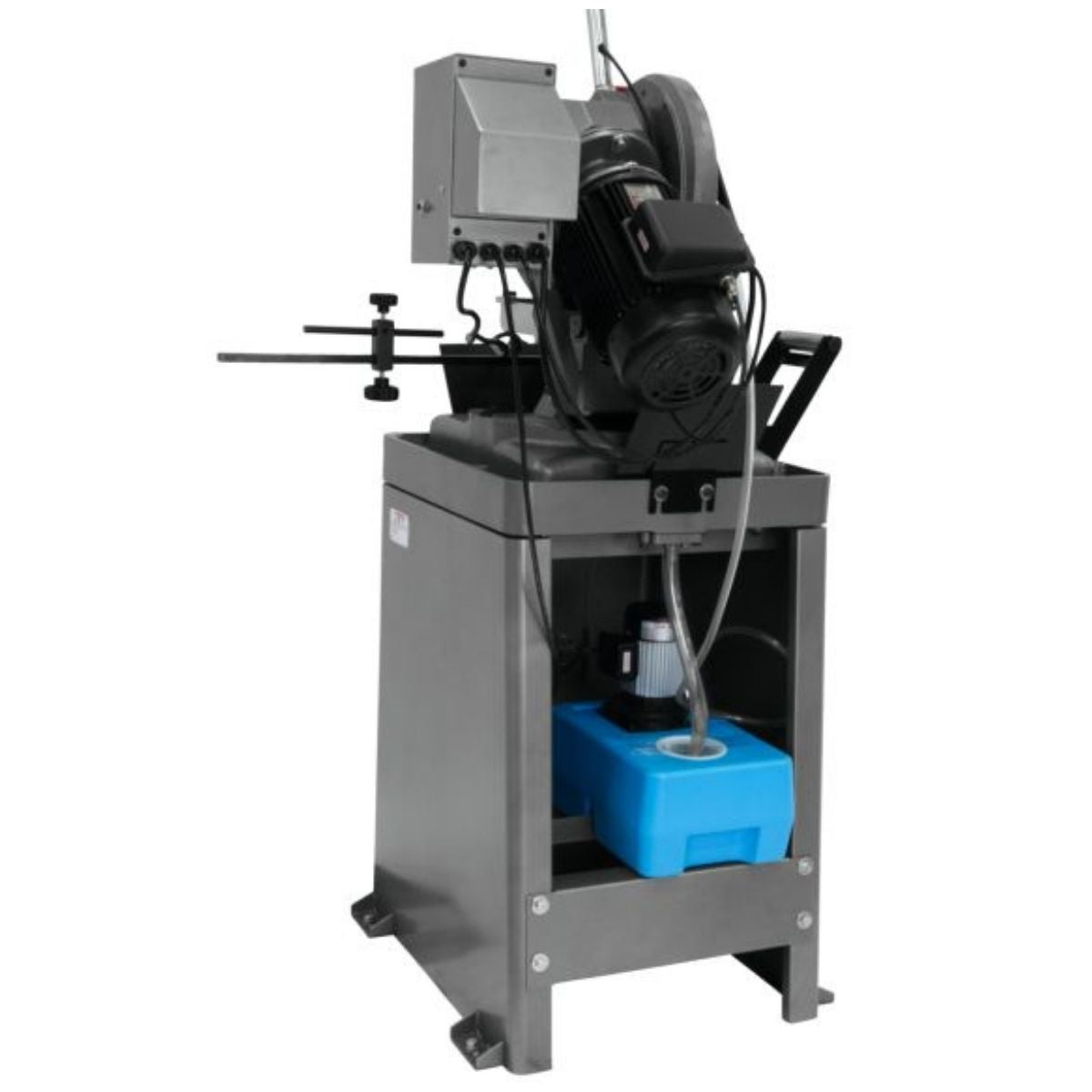

Flood Coolant System Extends Blade Life and Protects the Cut
A built-in flood coolant system with a 1-1/3 gallon reservoir, pump, and flow control keeps the blade and workpiece cool during cutting. Controlled coolant flow reduces heat buildup at the cut zone, which protects the blade edge and leaves a cleaner finish on the material. Longer blade life means fewer interruptions and lower running costs in a busy shop.

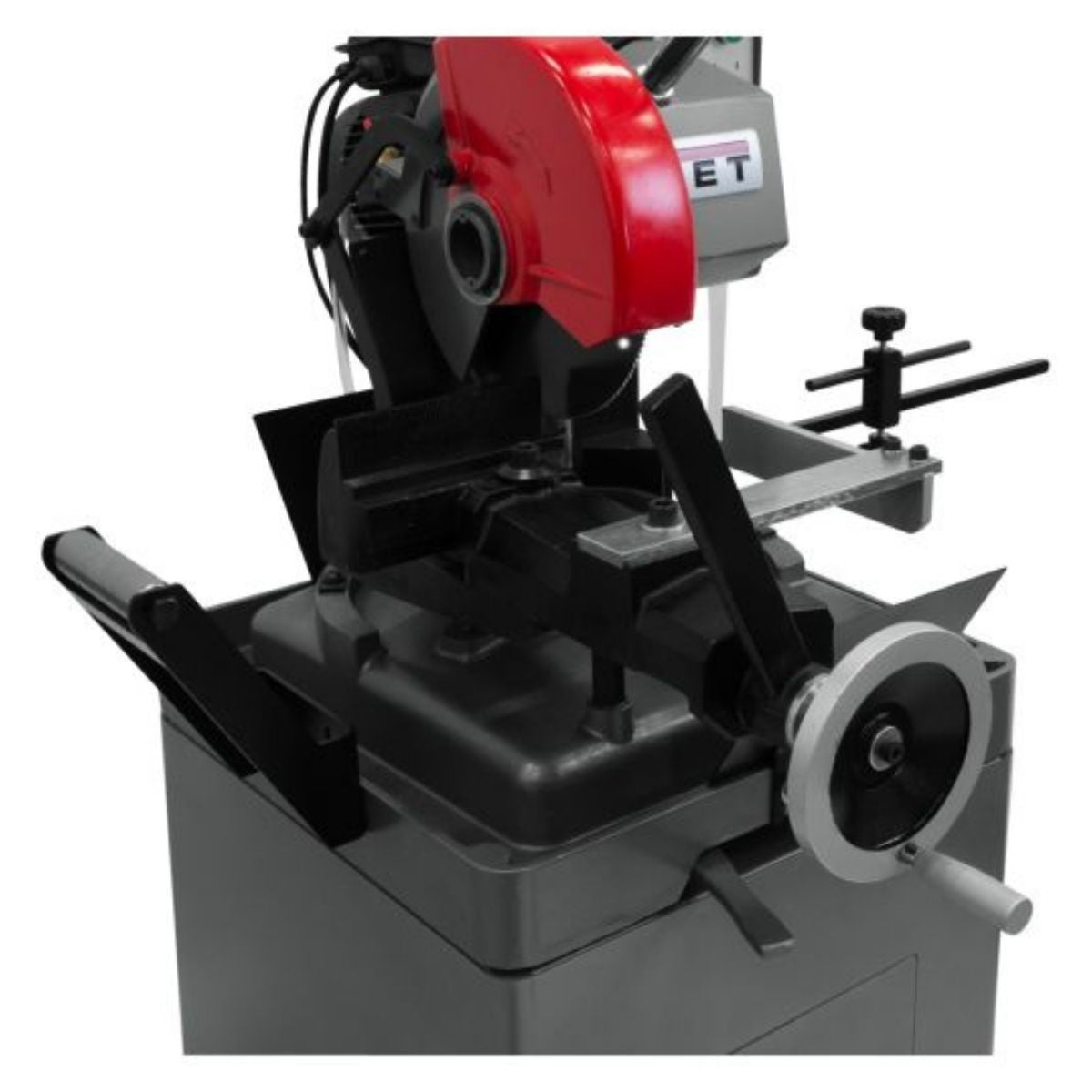

Cam-Action Vise Holds Material Securely for Burr-Free Results
The quick clamping cam-action vise with adjustable gib and material support bar locks stock firmly in place before the blade contacts the material. A secure hold at the point of cut is what keeps the blade from deflecting and what keeps the cut face clean. The fully adjustable material depth stop adds repeatability when you are running multiple pieces to the same length.
Mitering System Handles 45-Degree Cuts Without Extra Setup
The CS-275 includes quick tension and release mitering with positive stops at 45 degrees left and 45 degrees right. Moving between straight cuts and miter cuts is fast, and the positive stops remove guesswork from the angle. The two-piece cast iron blade guard system stays in place during blade changes, which keeps the process clean and keeps the saw in production.
What's Included
What's Included? JET CS-275 10" 275mm Ferrous Manual Cold Saw
-
JET CS-275 Cold Saw — 275mm manual ferrous cold saw with cast iron frame, flood coolant system, and worm drive gearbox ready for shop use.
Specs
JET CS-275 10" 275mm Ferrous Manual Cold Saw Specifications
- Blade Diameter: 275mm (10")
- Blade Speed: 54 RPM (1-phase model)
- Motor: 1-1/2 HP
- Voltage — 3-Phase Model (414226): 230V, 3-Phase, 2/4P, 6.1/7.2 Amps
- Voltage — 1-Phase Model (414228): 115/230V, Prewired 115V, 15.68/7.8 Amps
- Maximum Vise Opening: 4"
- Solid Round at 90°: 3-19/64"
- Solid Round at 45°: 3-19/64"
- Solid Square at 90°: 2-1/2" x 2-1/2"
- Solid Square at 45°: 2-3/16" x 2-3/16"
- Solid Rectangle at 90°: 3-3/32" x 2"
- Solid Rectangle at 45°: 2-3/16" x 2"
- Tubing Round at 90°: 3-19/64"
- Tubing Round at 45°: 3-19/64"
- Tubing Rectangle at 90°: 3-3/32" x 2"
- Tubing Rectangle at 45°: 2-3/16" x 2"
- Miter Stops: 45° Left, 45° Right
- Coolant Reservoir Capacity: 1-1/3 Gallon
- Frame: Cast Iron
- Net Weight — 3-Phase Model: 400 lbs
- Net Weight — 1-Phase Model: 390 lbs
- Warranty: 2 Years
- Stock Number — 3-Phase: JT9-414226
- Stock Number — 1-Phase: JT9-414228
