JET CCS-1 Mill Chuck & Collet Set

JET CCS-1 Mill Chuck & Collet Set

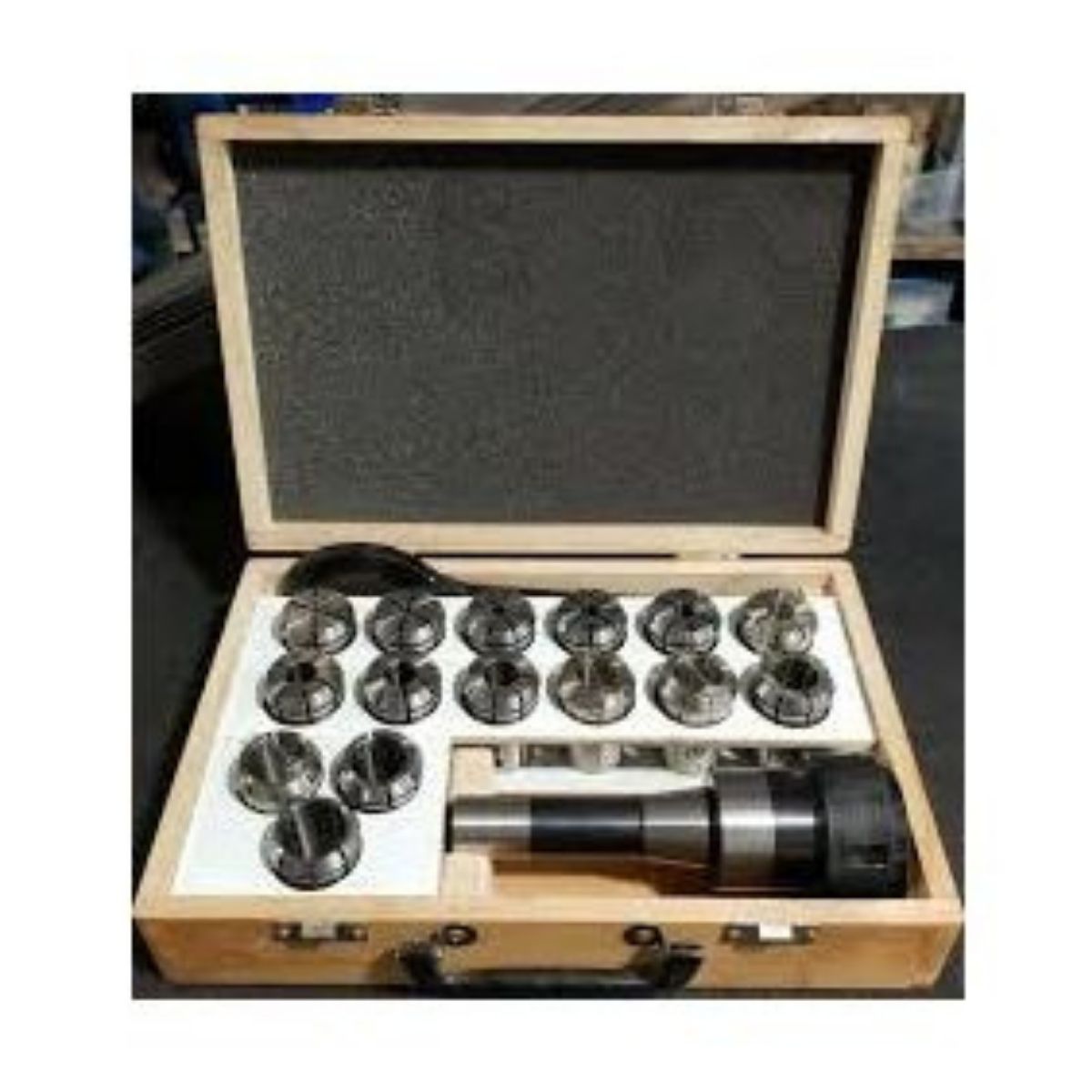

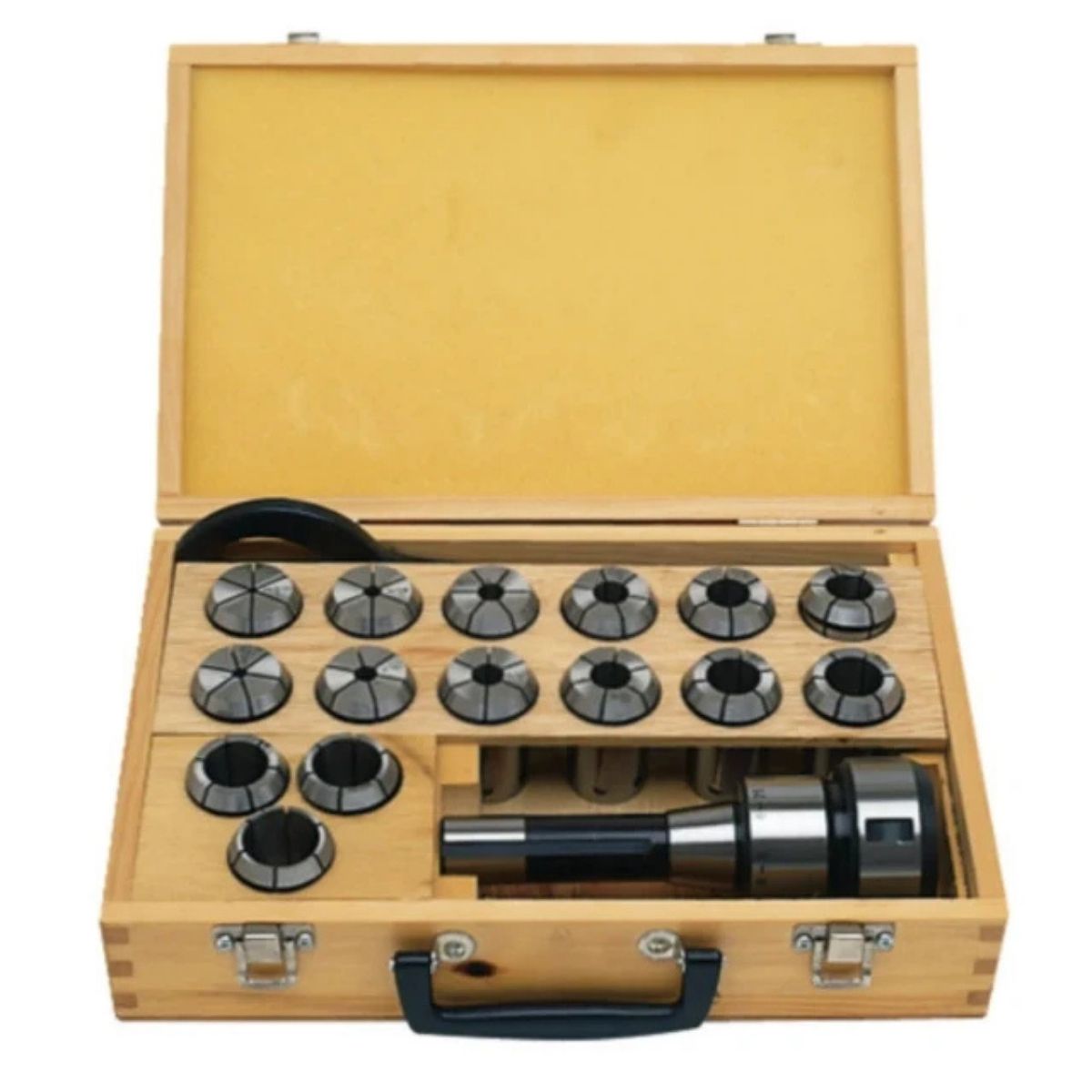

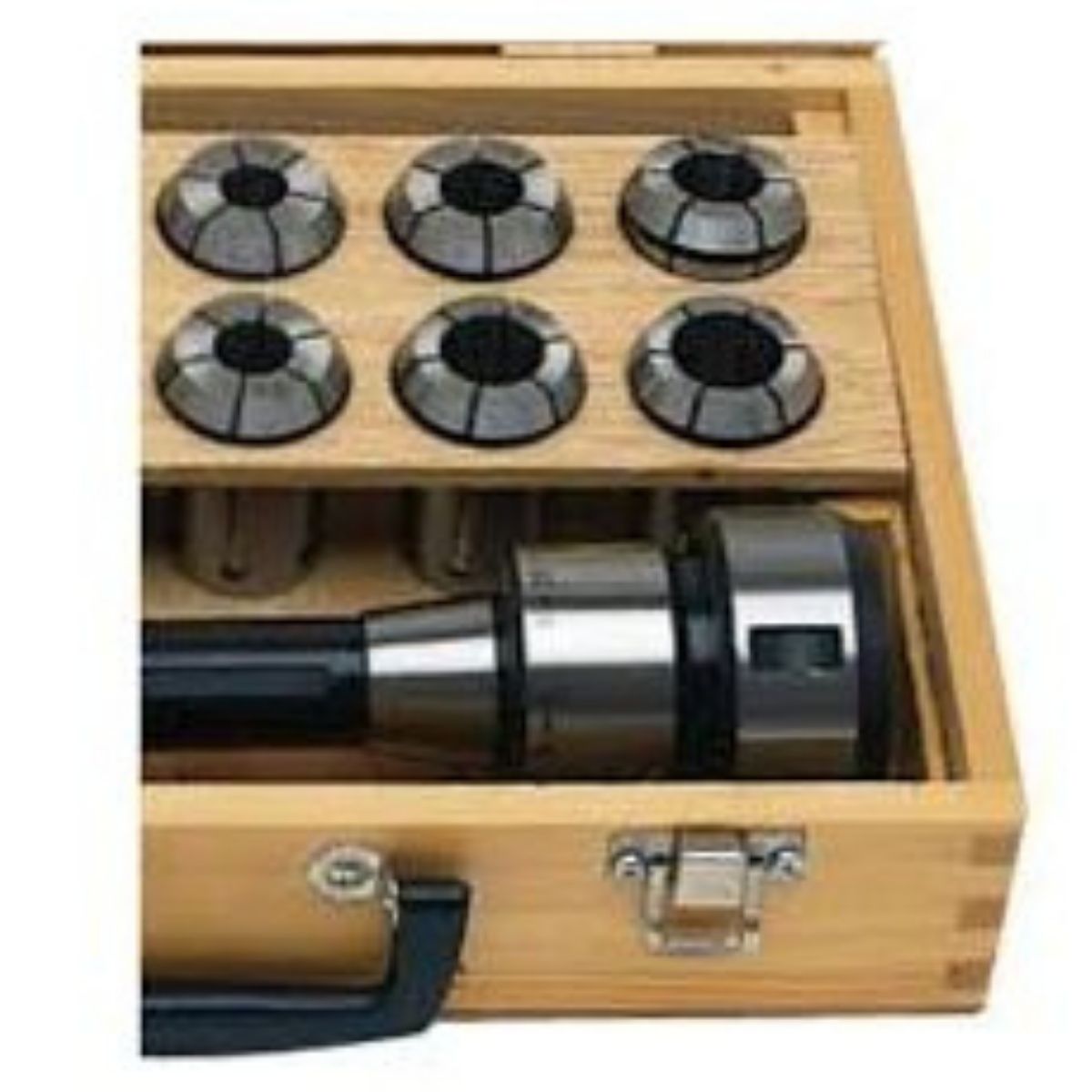

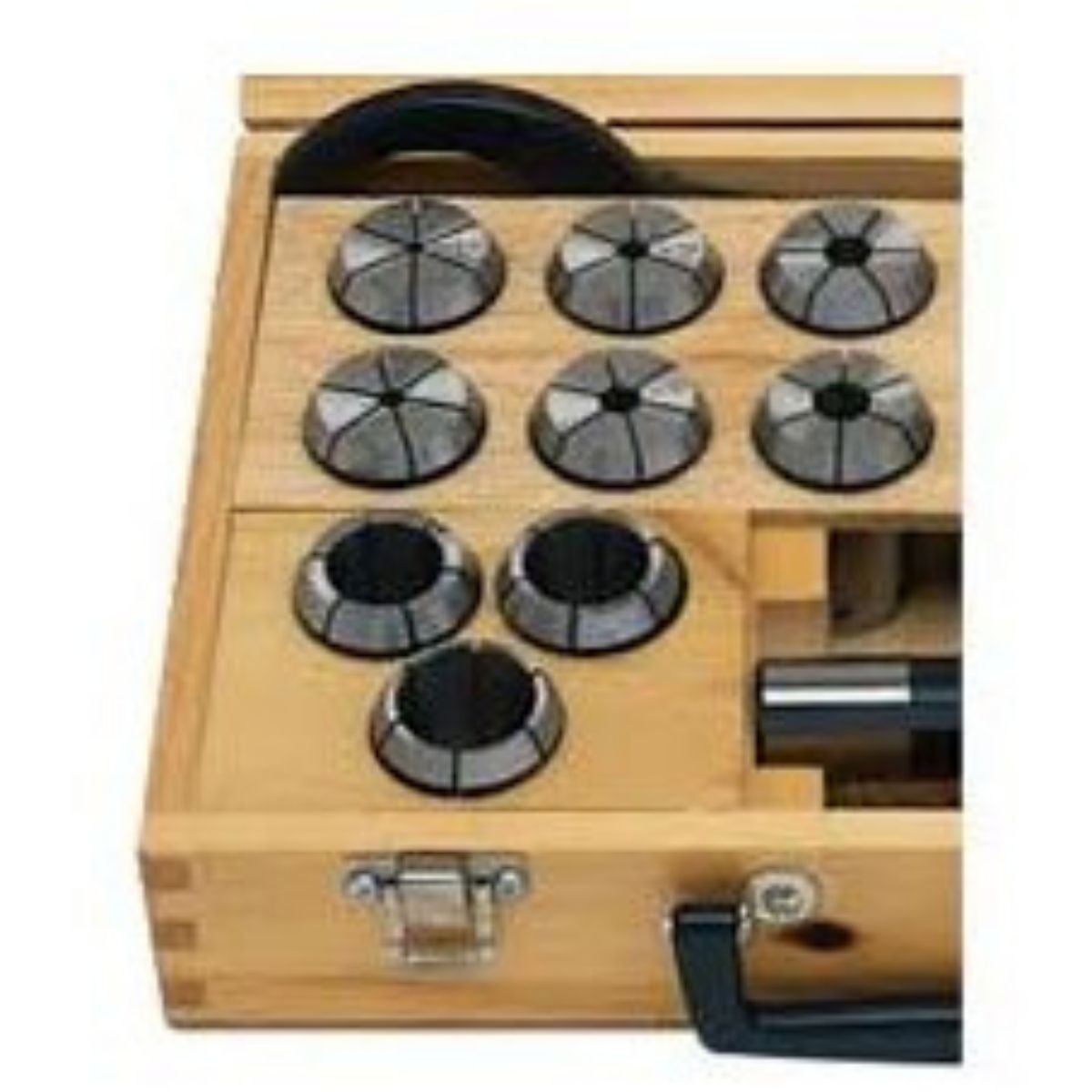

The JET CCS-1 Mill Chuck and Collet Set gives you 15 R-8 spring collets in one fitted case so your milling machine is ready for any tooling size without searching for adapters.

Collets step up in 1/16" increments from 1/8" to 1", covering the full range of common end mills and cutters. Each collet seats directly in the spindle and replaces the need for a separate adapter at every size.

Runout is held to 0.0008" T.I.R. at 2-3/8", so your cutters track true and your finished surfaces stay clean. The set stores in a fitted wooden case with spanner wrenches included.

• 15 spring collets in 1/16" increments from 1/8" to 1"
• R-8 shank taper fits standard milling machine spindles
• 0.0008" T.I.R. at 2-3/8" for accurate cutter alignment
• Each collet replaces a separate adapter for cleaner setup

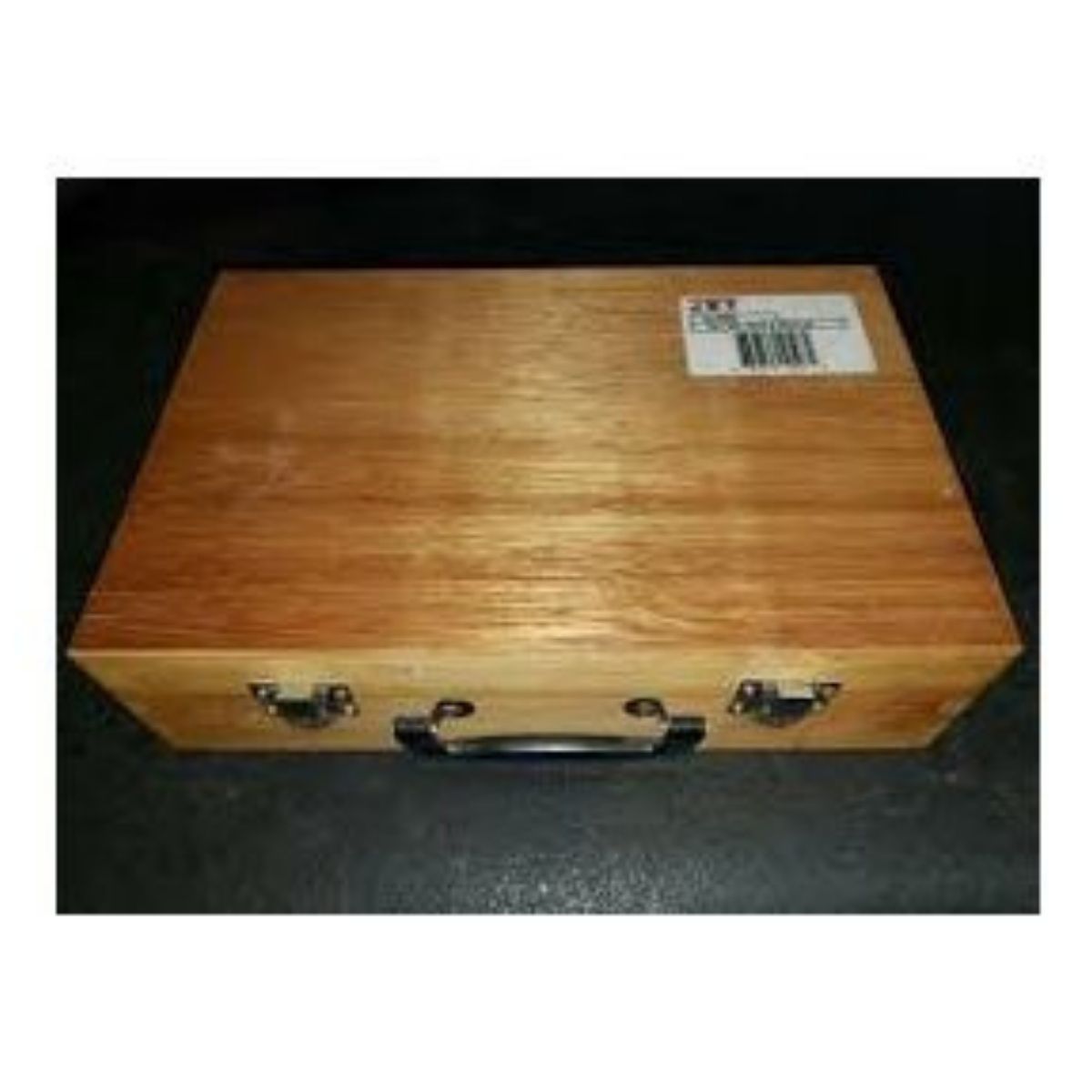

• Includes wooden storage case and spanner wrenches

Specs

JET CCS-1 Mill Chuck & Collet Set Specifications

• Stock Number: JT9-466001
• Model Number: CCS-1
• Shank Taper: R-8
• Number of Collets: 15
• Collet Range: 1/8" to 1" in 1/16" increments
• T.I.R. at 2-3/8": 0.0008"
• Overall Dimensions (L x W x H): 9" x 6" x 0.38"
• Net Weight: 12.0 lbs
• Warranty: 90 Days
• Prop 65: None
