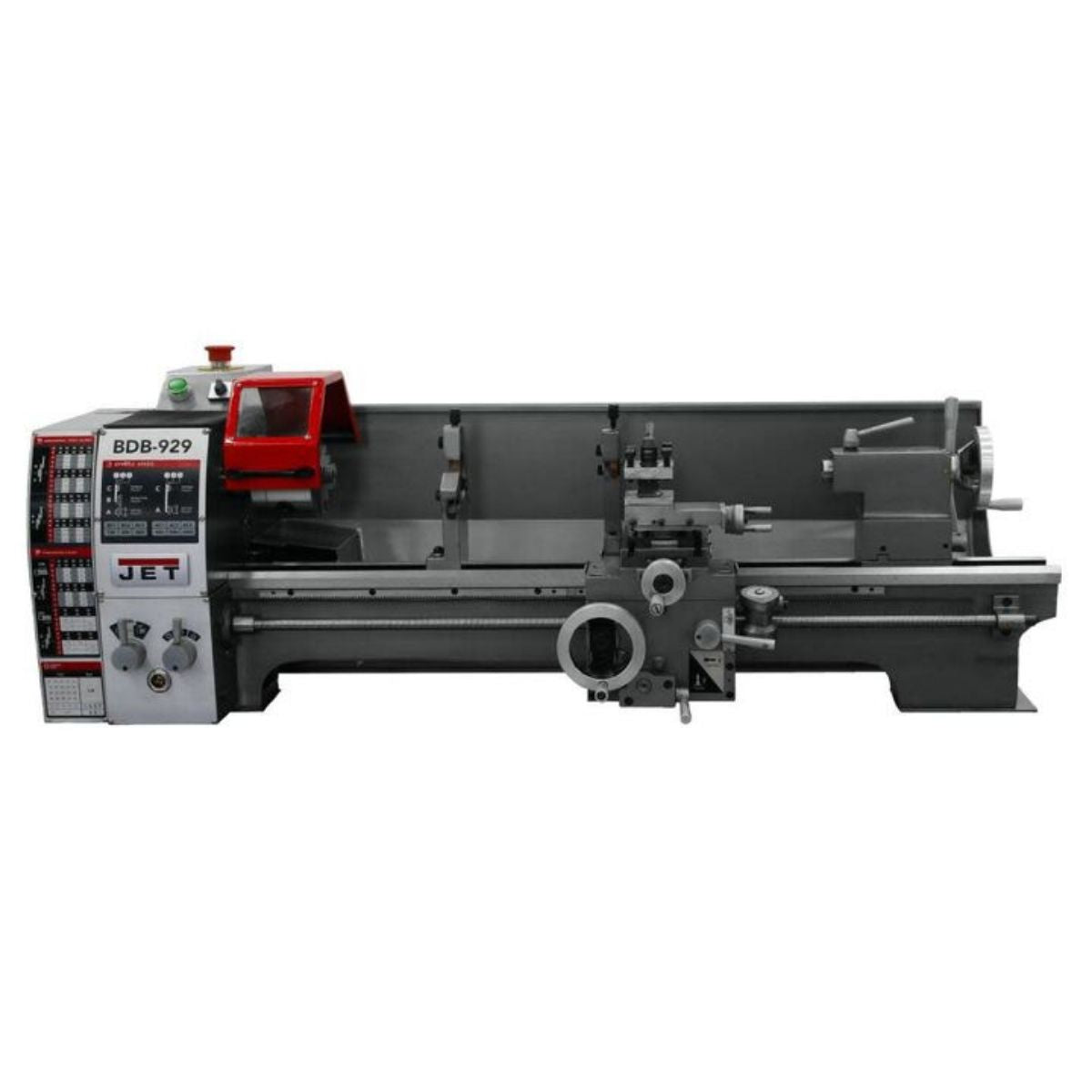

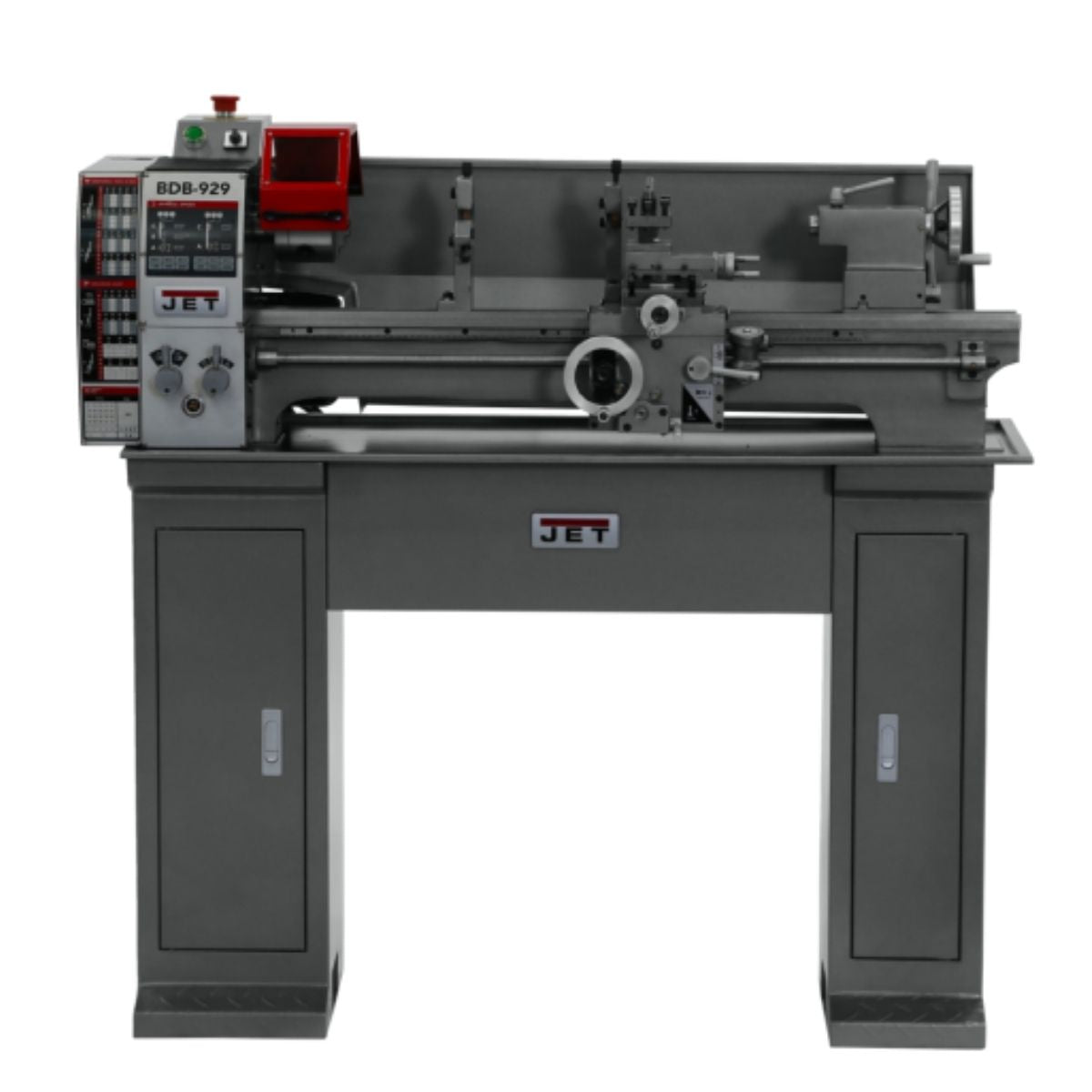

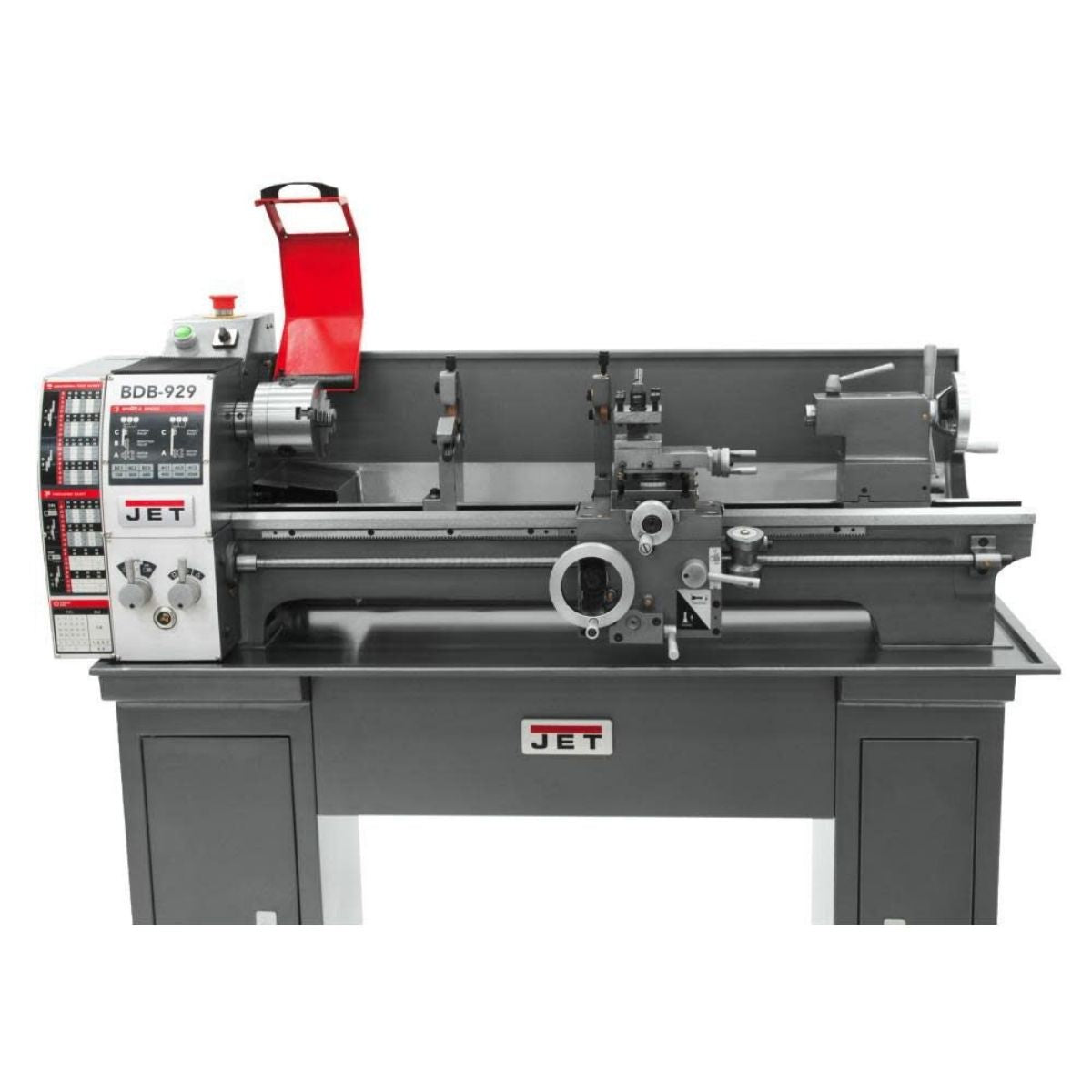

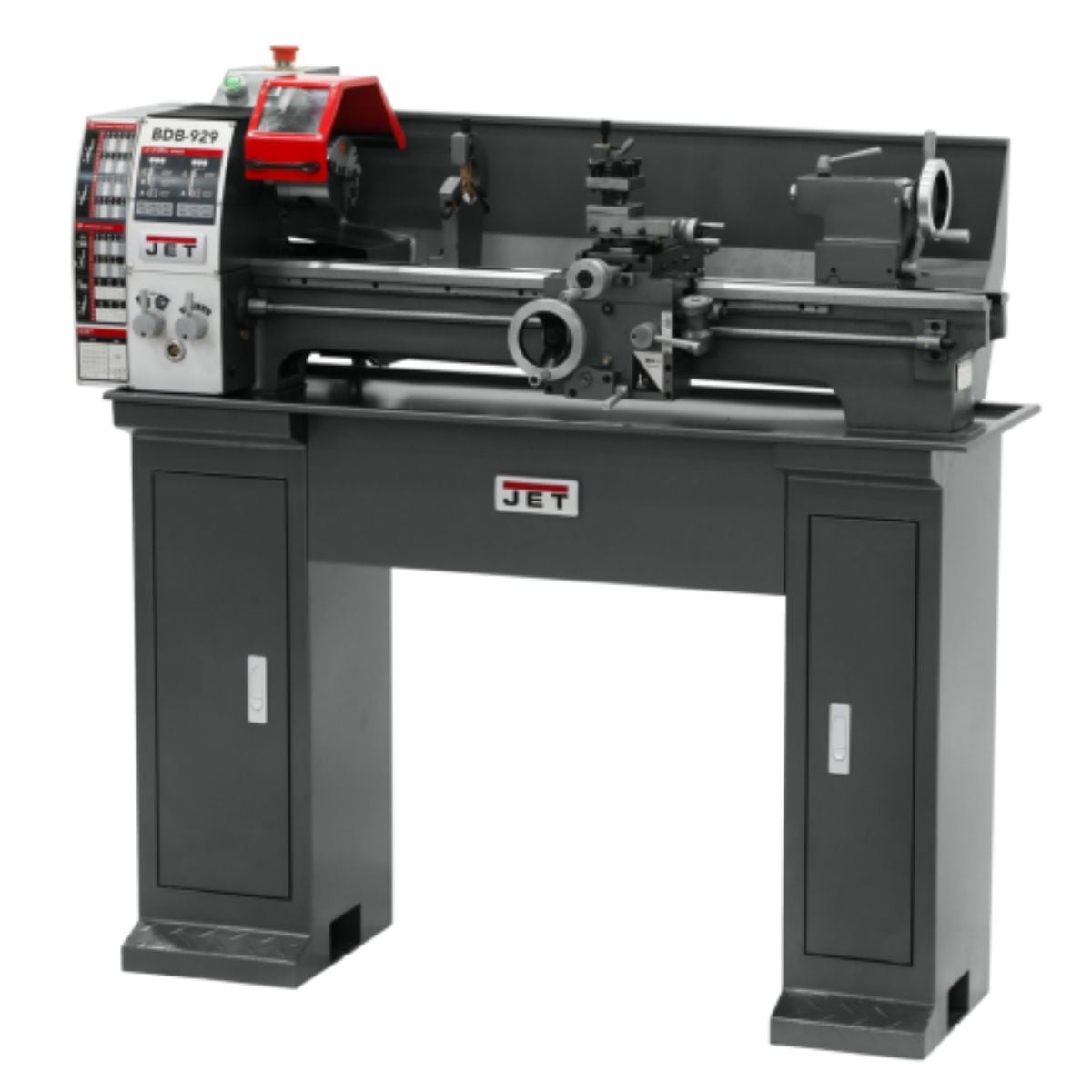

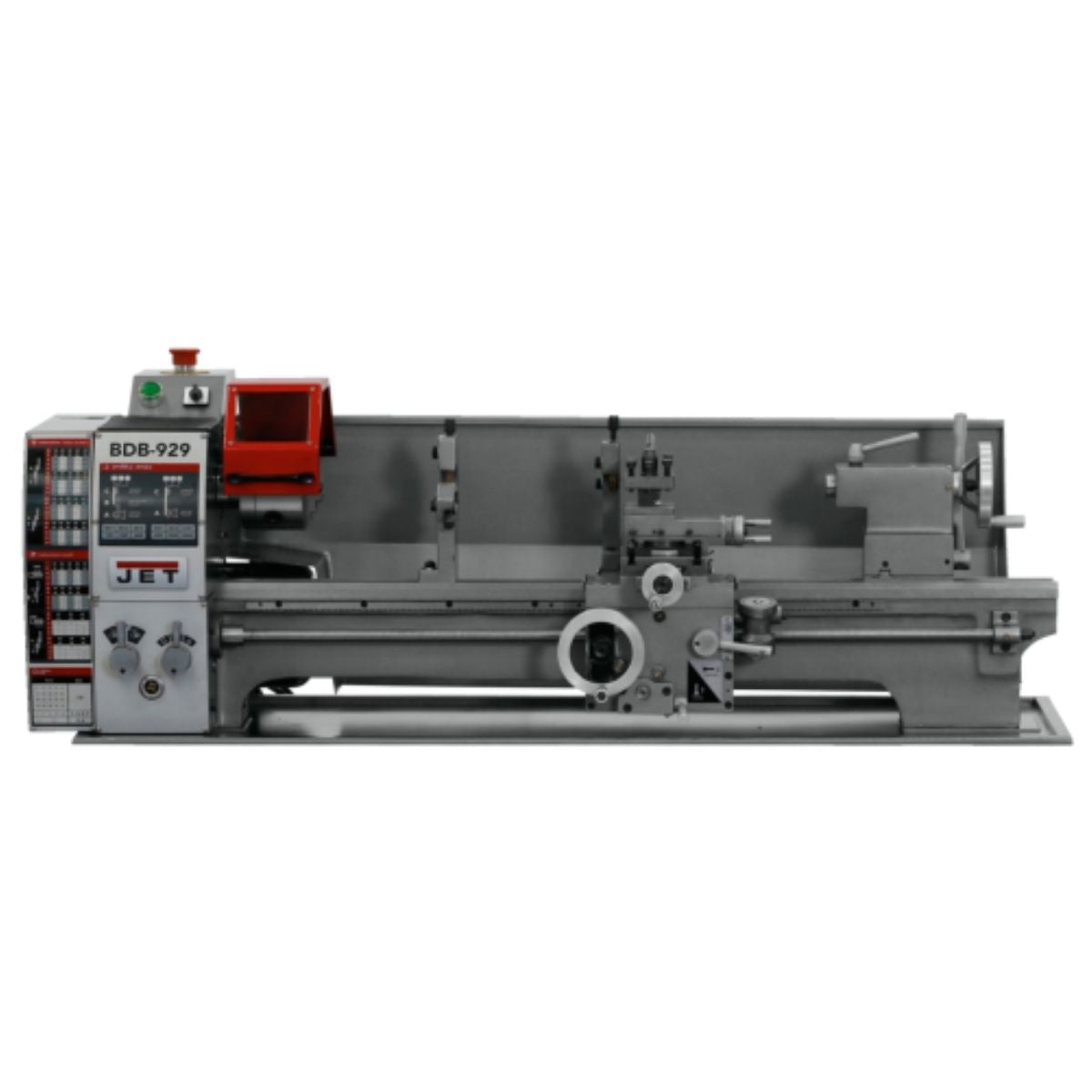

JET BDB-929 9" × 29" Belt Drive Bench Lathe
Are you working with a lathe that limits your threading options and makes consistent cuts harder than they should be?
What if your bench lathe could handle both inch and metric threading, hold tight tolerances, and run smoothly through every operation without fighting the machine?
Meet the JET BDB-929 9" × 29" Belt Drive Bench Lathe, a compact metalworking lathe built for serious shop work on the benchtop.
With an induction hardened and ground bedway, precision tapered roller bearings, and a quick change gearbox covering 27 inch and 12 metric thread options, the BDB-929 gives you a solid platform for turning, facing, and threading work.
When you need a bench lathe that handles a full range of threading jobs and holds up to daily use, the BDB-929 is built to meet that standard.
JET BDB-929 for Precision Bench Turning and Threading
Induction Hardened and Ground Bedway Keeps the Carriage on Track
The bedway on the BDB-929 is induction hardened and precision ground to hold tight tolerances as the carriage moves across 26.5 inches of travel. A hardened surface resists wear over time so the machine stays accurate through repeated use. Backlash adjustments are provided throughout the carriage to help you dial in smooth, consistent motion.
Precision Tapered Roller Bearings Support Clean, Stable Turning

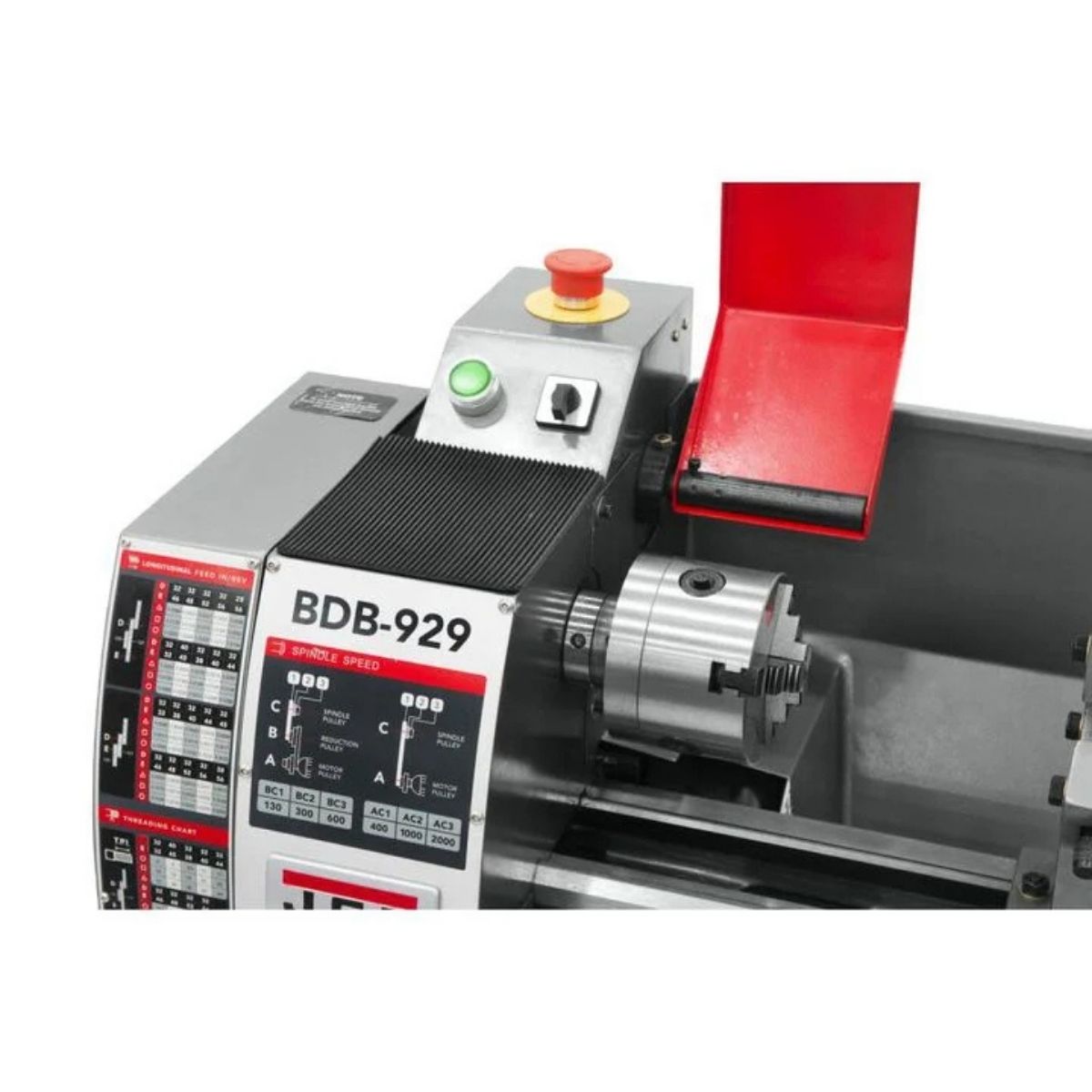

The spindle runs on precision tapered roller bearings that reduce play and support steady cuts across six speed ranges from 130 to 2000 RPM. The MT-3 spindle taper accepts standard tooling, and the 3/4-inch spindle bore handles a practical range of bar stock. Stable spindle support means the tool tracks where you put it.
Quick Change Gearbox Covers a Wide Threading Range
The quick change gearbox gives you access to 27 inch thread pitches from 8 to 56 TPI and 12 metric pitches from 0.5 to 3.5mm without swapping change gears. Power longitudinal feed supports both threading and reverse threading operations. The reversing switch adds flexibility when you need to back the carriage out cleanly.

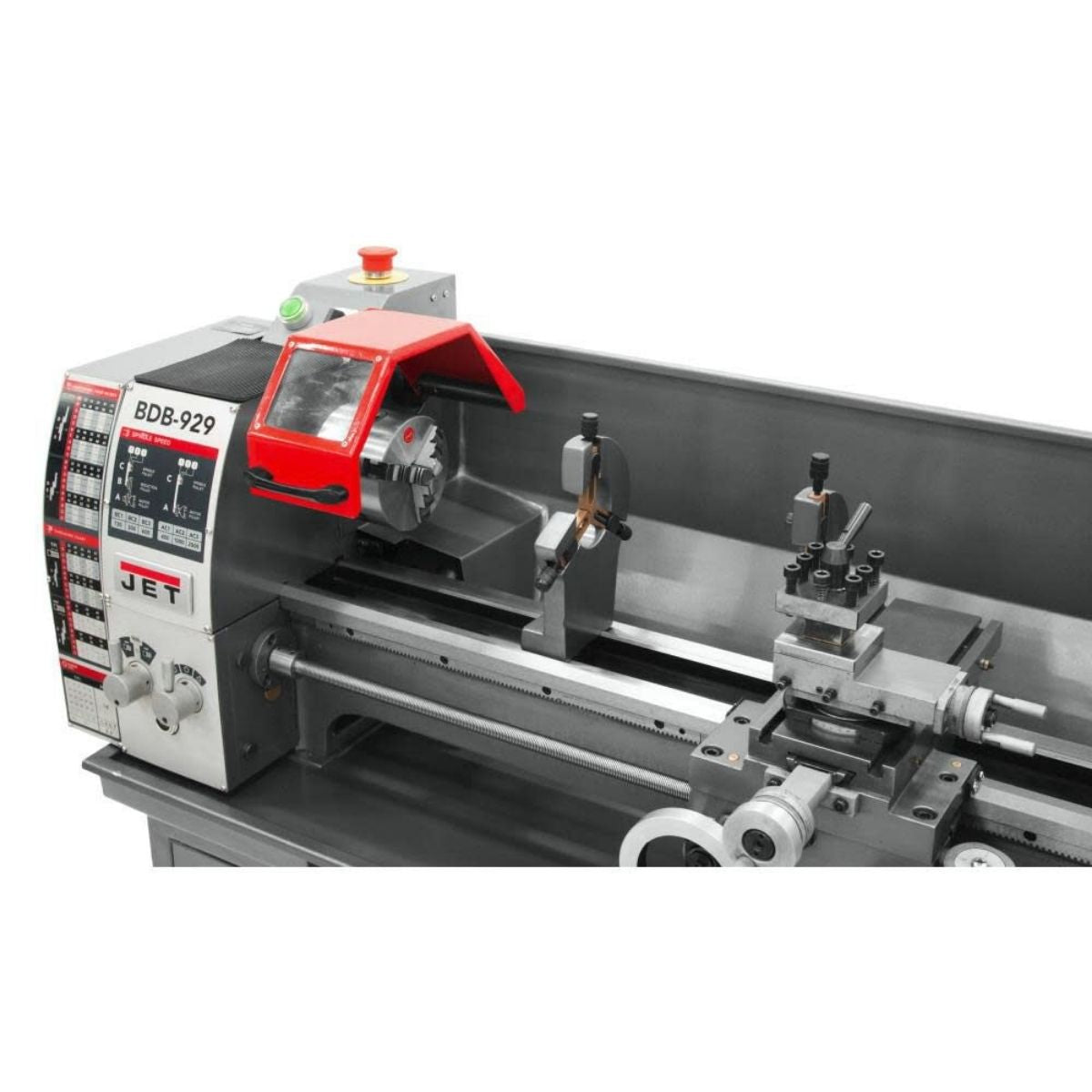

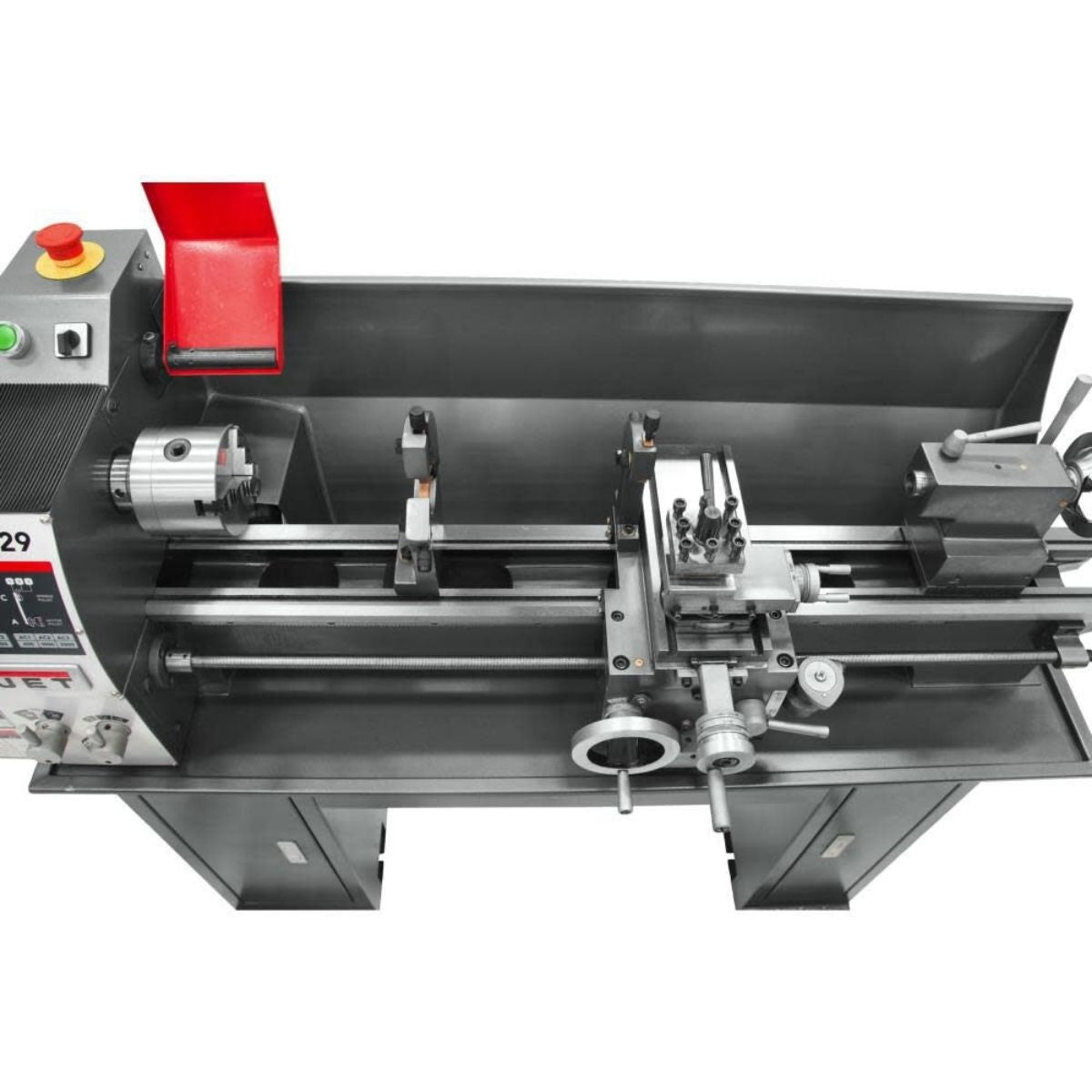

Full Length Splash Guard and Safety Controls Protect the Operator

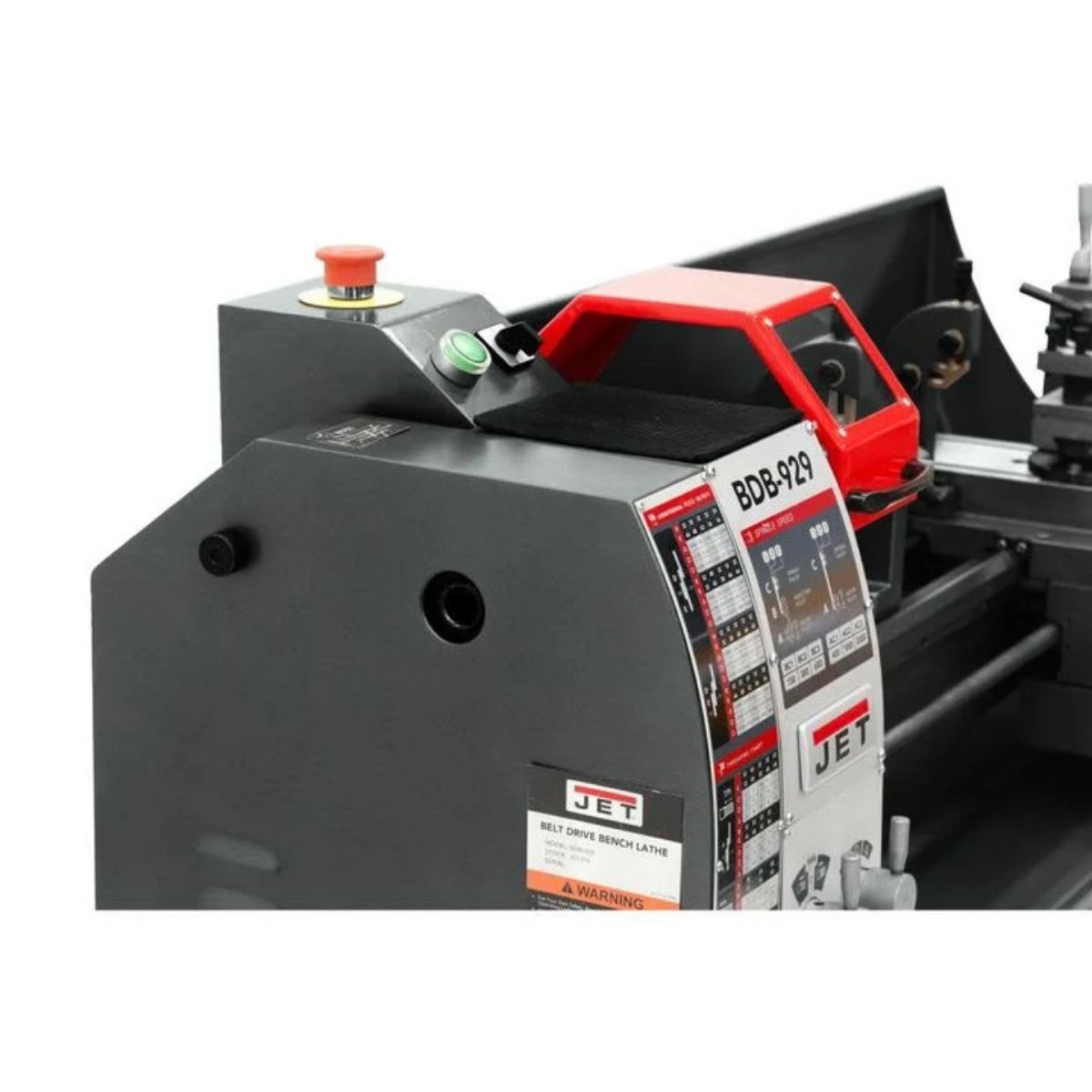

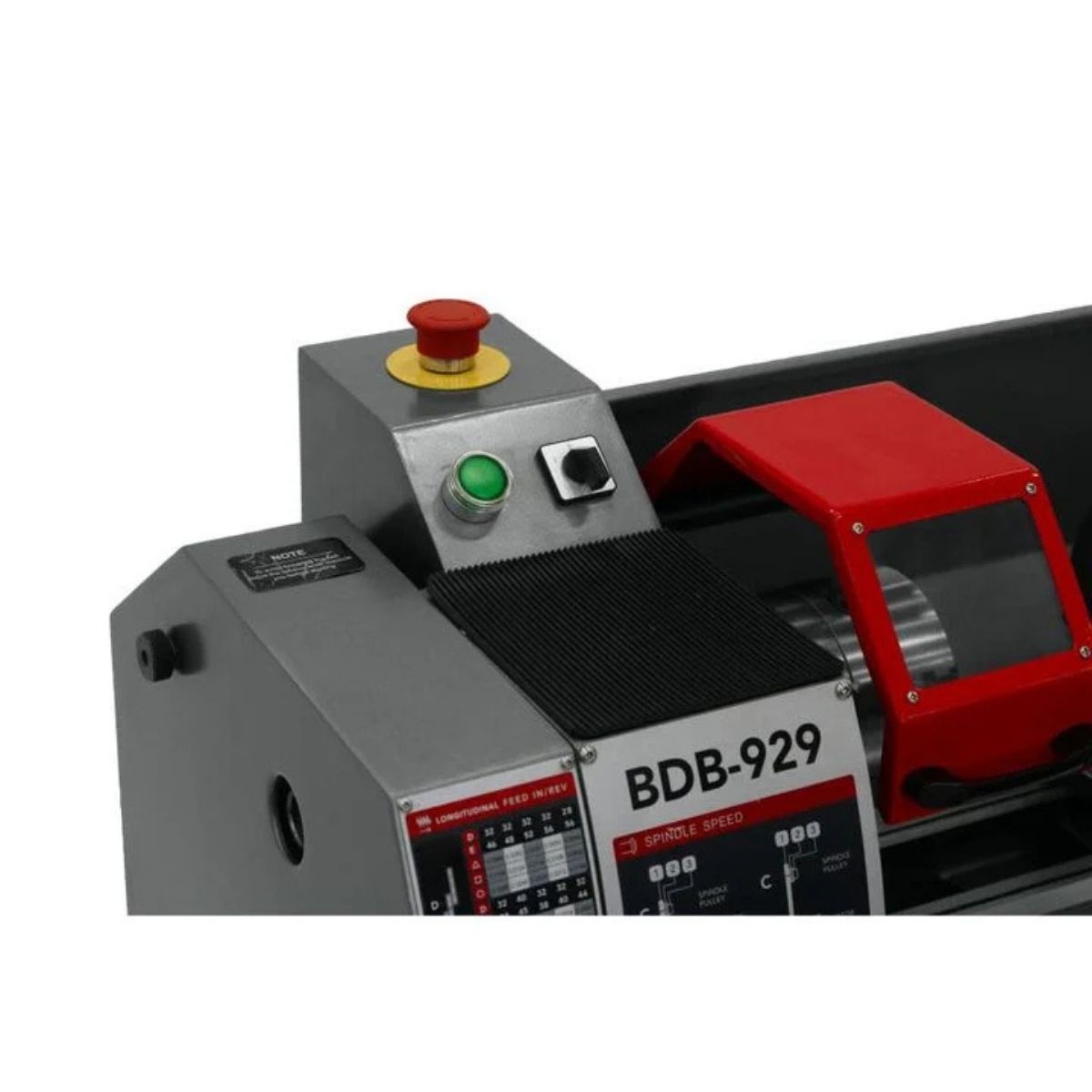

A full length splash guard keeps coolant and chips contained during turning operations. The emergency stop is positioned within easy reach so you can shut down quickly when it matters. A safety on/off switch adds a second layer of protection for everyday use.
What's Included
What's Included? JET BDB-929 9" × 29" Belt Drive Bench Lathe
-
Standard Accessories — Included accessories as supplied by JET with the BDB-929; refer to the manual for the complete accessory list.
Specs
JET BDB-929 9" × 29" Belt Drive Bench Lathe Specifications
Capacity
-
Swing Over Bed: 8-3/4"
-
Swing Over Cross Slide: 5"
-
Carriage Travel: 26.5"
-
Compound Slide Travel: 1-7/8"
-
Tailstock Spindle Travel: 1-9/16"
-
Steady Rest Capacity: 1-3/4"
-
Width of Bed: 4-1/2"
-
Max Tool Size: 1/2"
Spindle
-
Spindle Bore: 3/4"
-
Spindle Mount: 1-1/2" x 8 TPI
-
Spindle Taper with Sleeve: MT-3
-
Taper in Tailstock Spindle: MT-2
-
Spindle Speeds: 6 speeds, 130–2000 RPM
Threading and Feed
-
Inch Threads: 27 pitches, 8–56 TPI
-
Metric Threads: 12 pitches, 0.5–3.5mm
-
Longitudinal and Cross Feed Rates: 60 rates, 0.0006–0.0368 IPR
Motor and Power
Physical
-
Overall Dimensions (L x W x H): 51" x 22" x 20"
-
Net Weight: 293 lbs
General
-
Model Number: BDB-929
-
Stock Number: JT9-321379
-
Warranty: 2 Years
