JET BDB-919 9" × 19" Belt Drive Bench Lathe
Are you tired of a bench lathe that chatters through cuts and loses its setup between jobs?
What if your lathe held its accuracy from the first pass to the last, whether you were threading steel or turning a precision shaft?

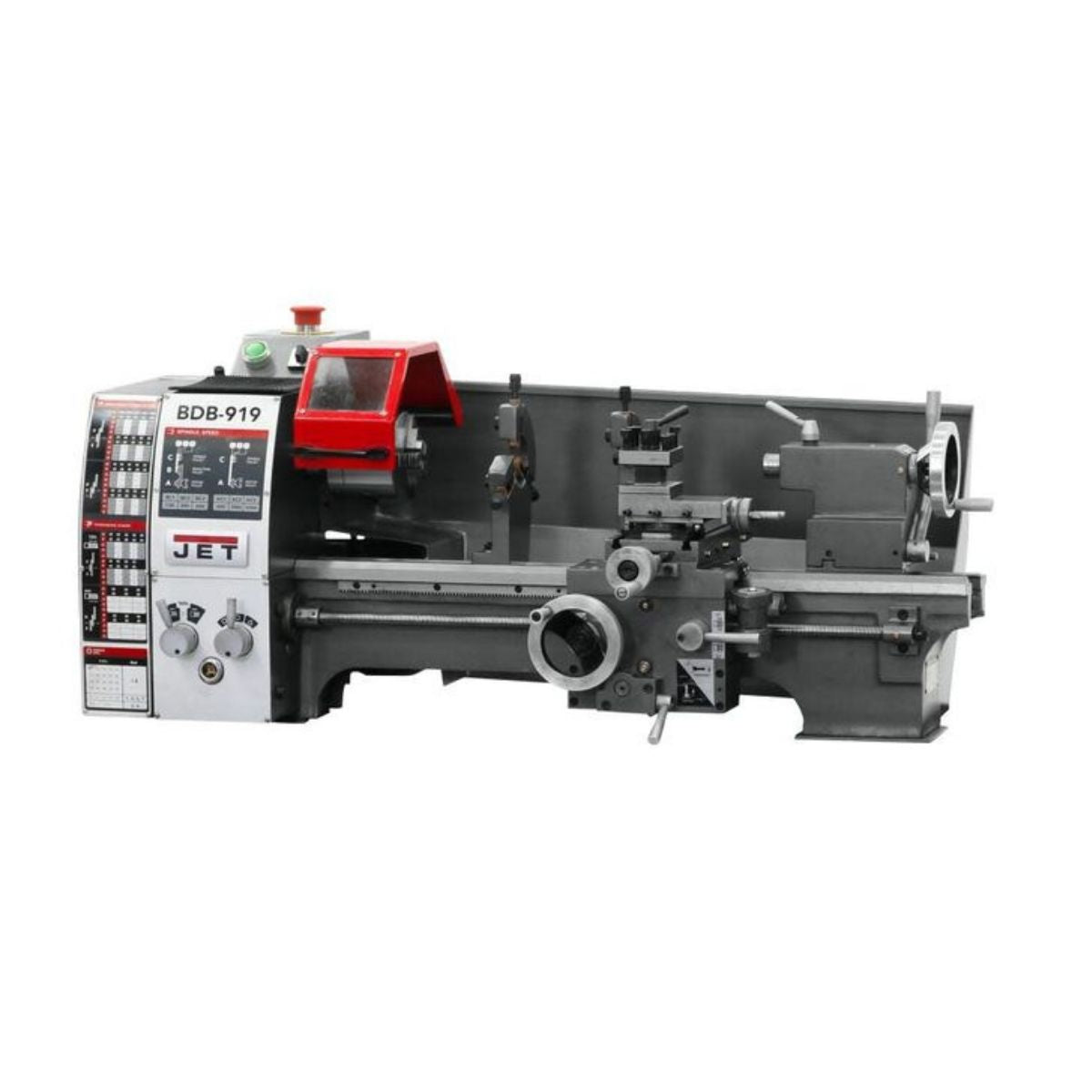

Meet the JET BDB-919 9" × 19" Belt Drive Bench Lathe, a compact metal lathe built for serious shop work on the bench.
With the BDB-919's induction hardened and ground bed-ways, precision tapered roller bearings, and quick change gearbox, you get a machine that holds its geometry and responds with consistency across a wide range of operations.
When your lathe keeps up with the care you bring to your work, you finish each job with confidence in the result.
JET BDB-919 for Turning, Threading, and Feed Work

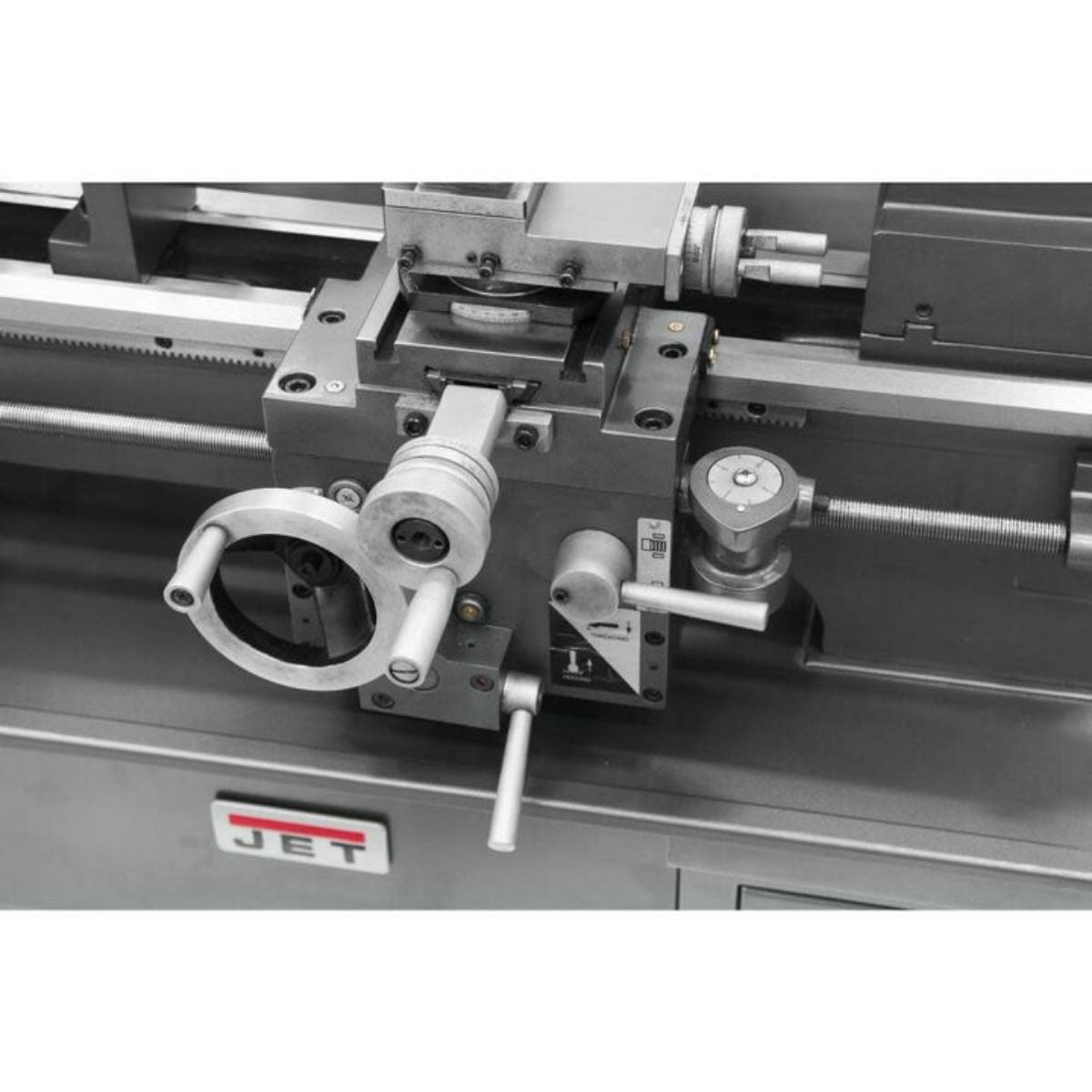

Induction Hardened Bed-Ways Support Accurate Carriage Travel
The bed-ways on the BDB-919 are induction hardened and ground to hold a true surface across the full 17.5" of carriage travel. This keeps the cutting tool aligned with the work as it moves along the bed. The result is consistent diameter and surface finish from one end of the part to the other.
Quick Change Gearbox Covers a Wide Range of Threads
The quick change gearbox gives you access to 27 inch thread pitches from 8 to 56 TPI and 12 metric thread pitches from 0.5 to 3.5mm. Switching between thread settings is straightforward without changing gears by hand. The power longitudinal feed also supports threading and reverse threading, which keeps your workflow moving on production runs and repair work.
Precision Tapered Roller Bearings Keep Spindle Running True

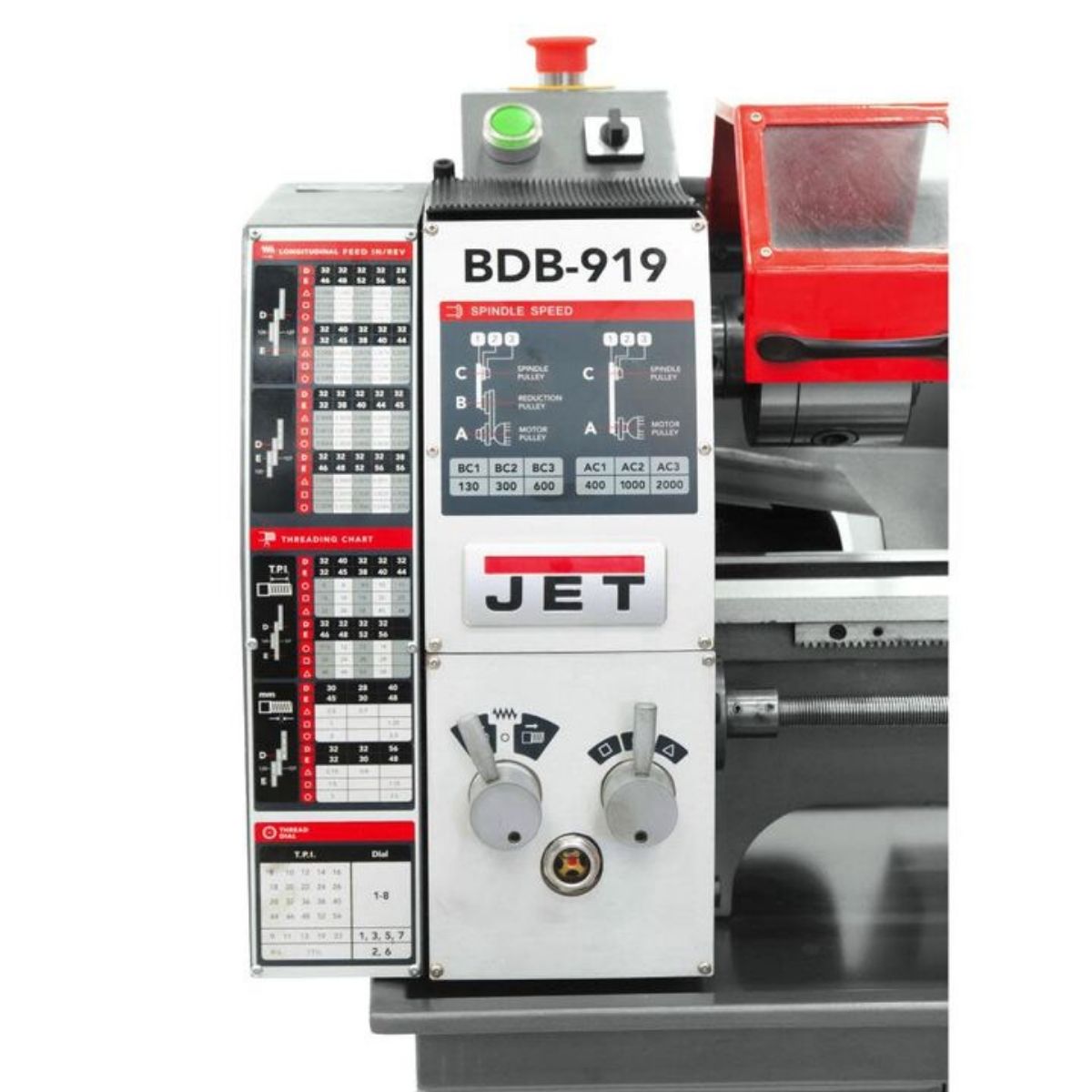

The spindle runs on precision tapered roller bearings that resist radial and axial load during cuts. The 3/4" spindle bore accepts bar stock for through-work, and the MT-3 taper with sleeve gives you a reliable interface for centers and tooling. Six spindle speeds from 130 to 2000 RPM let you match the speed to the material and operation.
Safety Controls Stay Within Reach During Operation
The emergency stop is positioned within easy reach of the operator so you can shut the machine down quickly without reaching across the work area. The safety on/off switch and reversing switch give you direct control of the spindle at all times. The full length splash guard keeps coolant and chips contained during wet operations.
What's Included
What's Included? JET BDB-919 9" × 19" Belt Drive Bench Lathe
-
JET BDB-919 Bench Lathe — The main machine unit with induction hardened bed-ways, quick change gearbox, and 3/4 HP, 115V motor.
-
Standard Accessories — Included standard accessories as listed by JET for the BDB-919.
Specs
JET BDB-919 9" × 19" Belt Drive Bench Lathe Specifications
Machine
- Stock Number: JT9-321378
- Motor: 3/4 HP, 115V, 1PH
- Overall Dimensions (L x W x H): 41" x 22" x 20"
- Net Weight: 269 lbs
- Gross Weight: 304 lbs
- Warranty: 2 Year
- Prop 65: Cancer and Reproductive Harm
Bed and Carriage
- Swing Over Bed: 8-3/4"
- Swing Over Cross Slide: 5"
- Width of Bed: 4-1/2"
- Carriage Travel: 17.5"
- Compound Slide Travel: 1-7/8"
- Max Tool Size: 1/2"
Spindle
- Spindle Bore: 3/4"
- Spindle Mount: 1-1/2 x 8 TPI
- Spindle Taper with Sleeve: MT-3
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 130–2000 RPM

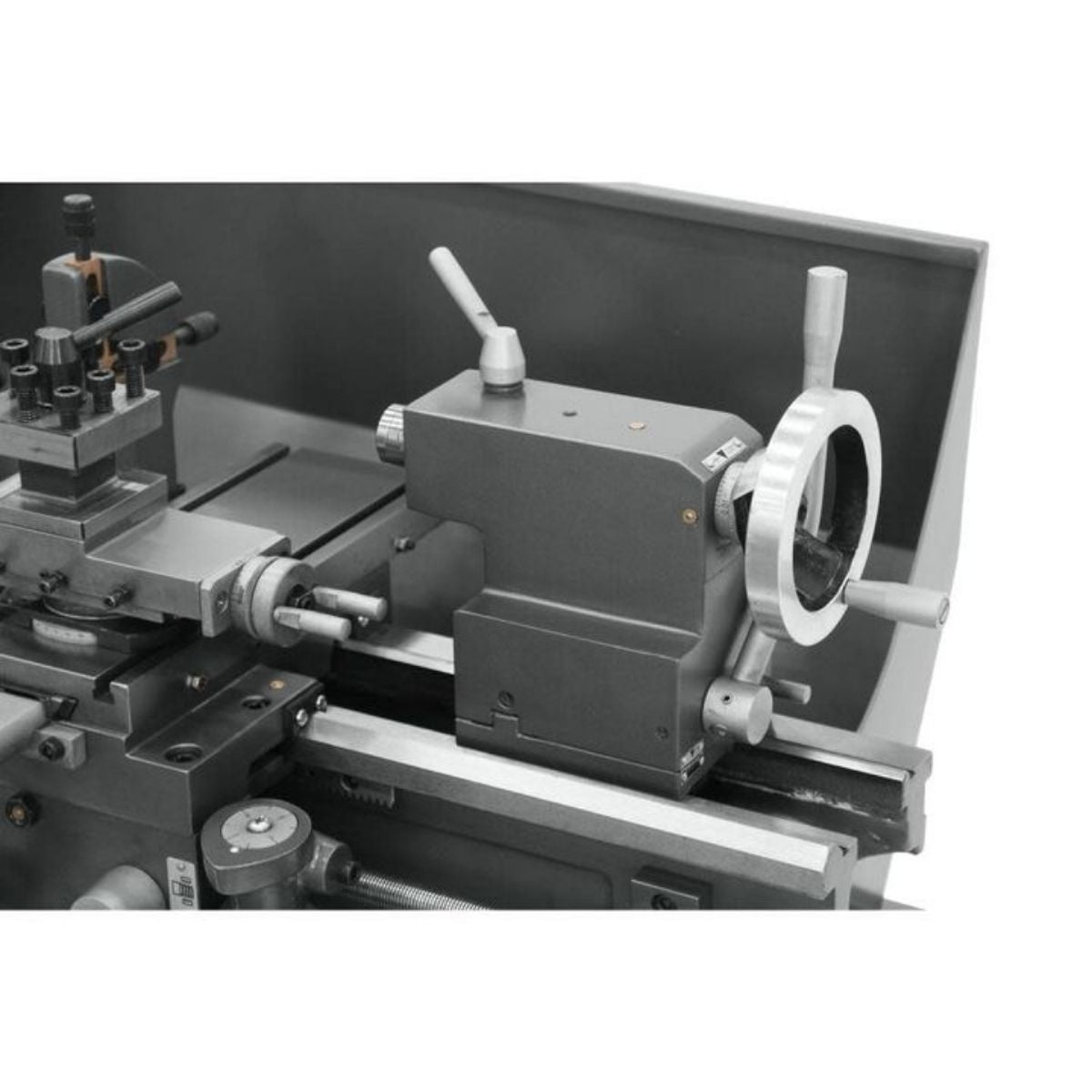

Tailstock and Steady Rest
- Tailstock Spindle Travel: 1-9/16"
- Taper in Tailstock Spindle: MT-2
- Steady Rest Capacity: 1-3/4"
Threading and Feed
- Number of Inch Threads: 27
- Range of Inch Threads: 8–56 TPI
- Number of Metric Threads: 12
- Range of Metric Threads: 0.5–3.5mm
- Number of Longitudinal and Cross Feed Rates: 60
- Range of Longitudinal Feeds: 0.0006–0.0368 IPR
