JET 45 Ton Ironworker - JIW-45T
Are your fabrication jobs piling up because you are switching between too many machines to punch, shear, and cut?
What if one compact machine could handle all of it from a single footprint on your shop floor?

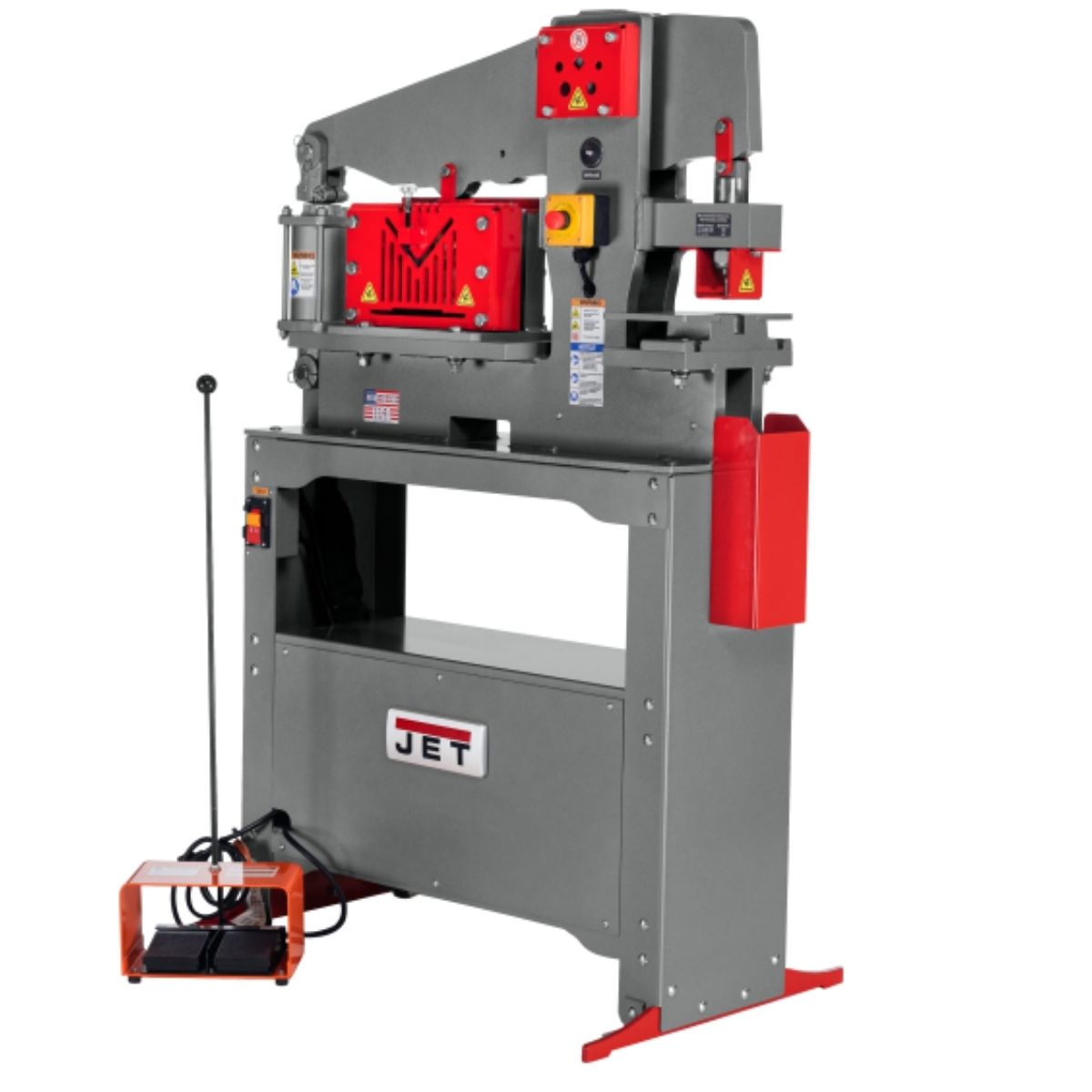

Meet the JET 45 Ton Ironworker JIW-45T, a four-workstation ironworker built to punch and shear mild steel without sending you across the shop for every operation.
With the JIW-45T, you get a dedicated punch station, a flat bar shear, an angle shear, and a seven-size rod shear in a machine that runs on standard 115V power and takes up no more space than a chest freezer.
When you need clean cuts and accurate holes through mild steel day after day, this machine keeps the work moving and the floor clear.
JET JIW-45T for Punching and Shearing Mild Steel
Four Workstations Handle the Full Range of Fabrication Tasks

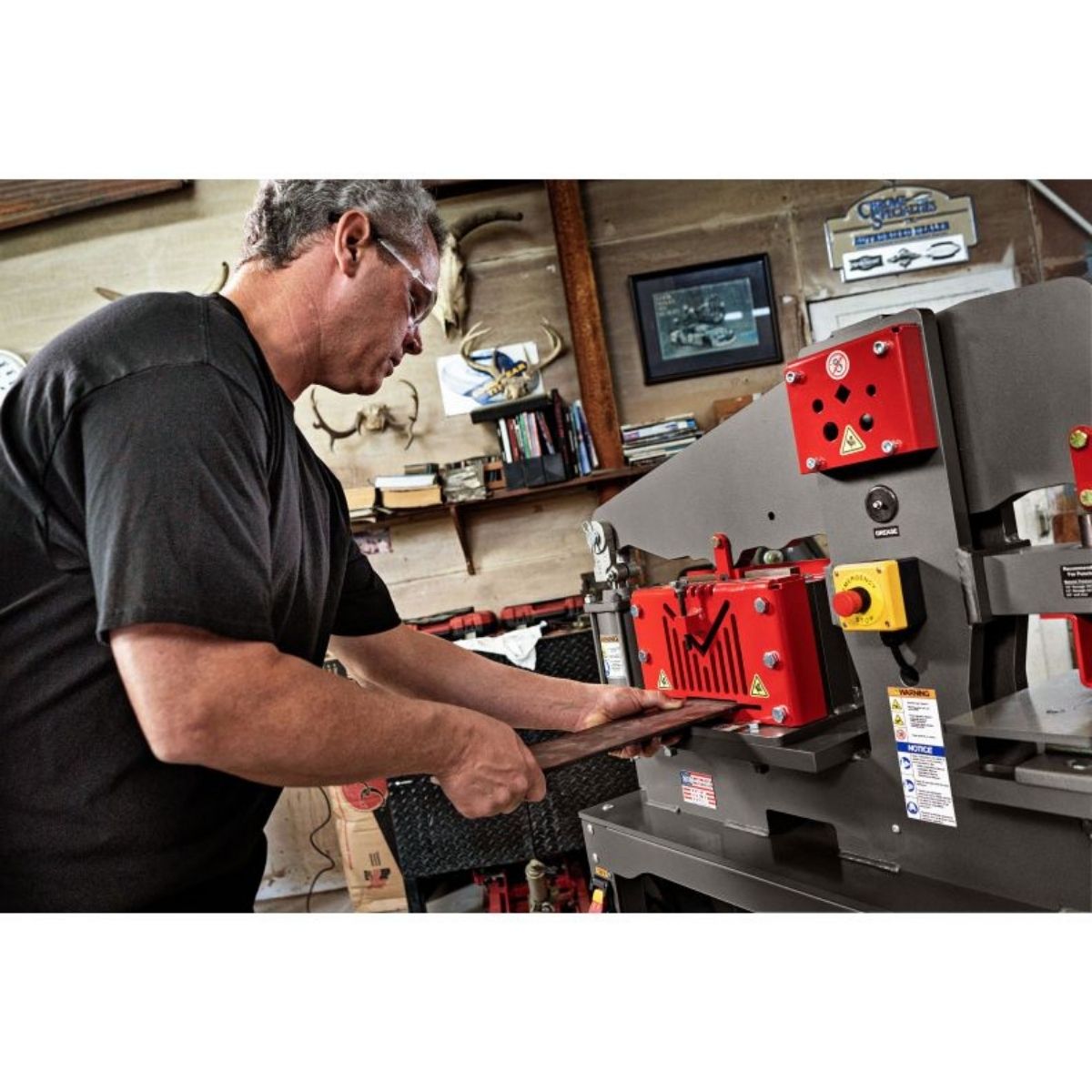

The JIW-45T puts a punch station, flat bar shear, angle shear, and integrated seven-size rod shear on one frame. You can punch a 1-inch diameter hole through 1/2-inch mild steel, shear flat bar up to 8 inches wide at 1/4 inch, cut angle iron up to 3 x 3 x 1/4 inch, and cut round rod up to 3/4 inch without moving to a second machine. A foot control with a handle moves easily between stations so you stay in position and keep the pace of work steady.
45-Ton Hydraulic Cylinder Drives Clean Cuts and Punches
A 3-1/2-inch ram delivers 45 tons of force at 2800 PSI across all four stations. That consistent hydraulic pressure means the punch drives cleanly through material without stalling and the shear blades part stock without deflection. Each blade on the flat bar, angle, and rod shear is precision-machined tool steel with two cutting edges, so you get extended service life before a blade swap is needed.
Punch and Die Storage Keeps the Station Ready
The included punch and die storage tray holds up to ten punch and die sets on the machine. Compatible with most Edwards punch and die sets in round, square, oblong, hex, and metric profiles, the JIW-45T lets you swap tooling without hunting through drawers or leaving the station. A slug receptacle below the punch station collects punch slugs as they drop, keeping the work surface clear without stopping to sweep.
ANSI-Compliant Guarding and E-Stop Controls Protect the Operator
The angle and rod shear stations carry ANSI-compliant guarding as standard. The machine includes an E-stop with UL-listed compliant controls so the operator can halt the cycle quickly from any position. Workstation heights are set to reduce fatigue during extended use. The JIW-45T is made in the USA and backed by a JET two-year warranty.
What's Included
What's Included? JET 45 Ton Ironworker - JIW-45T
-
Punch and Die Storage Tray — Mounts on the machine and holds up to ten punch and die sets so tooling stays organized and within reach at the punch station.
-
Slug Receptacle — Collects punch slugs below the punch station as the machine cycles, keeping the floor and work surface clear without extra cleanup steps.
-
Foot Control with Handle — Activates the selected workstation and moves easily between stations so the operator stays positioned and in control throughout the job.
-
Flat Bar, Angle, and Rod Shear Blades — Precision-machined tool steel blades installed on their respective shear stations, each with two cutting edges for extended working life.
Specs
JET 45 Ton Ironworker - JIW-45T Specifications
-
Stock Number: JT9-756100
-
Model Number: JIW-45T
-
Rating (Tons): 45
-
Motor: 1-1/2 HP, 115V, 1-Phase
-
Motor Amps: 14
-
Motor Speed (RPM): 3,500
-
Cylinder: 3-1/2" Ram
-
Valve Pressure (PSI): 2,800
-
Punch Rating (Tons): 45
-
Punch Max Capacity: 1" diameter in 1/2" mild steel
-
Punch Stroke (In.): 1-1/2"
-
Punch Work Height (In.): 41"
-
Flat Bar Shear Rating (Tons): 45
-
Flat Bar Shear Max Capacity at 1/4": 8"
-
Flat Bar Shear Max Capacity at 3/8": 4"
-
Flat Bar Shear Work Height (In.): 40"
-
Angle Shear Max Capacity: 3 x 3 x 1/4"
-
Rod Shear Max Round (In.): 3/4"
-
Rod Shear Max Square (In.): 5/8"
-
Rod Shear Work Height (In.): 54"
-
Throat Depth (In.): 5-3/4"
-
Overall Dimensions (L x W x H): 40 x 24 x 58"
-
Net Weight (lbs.): 698
-
Gross Weight (lbs.): 802
-
Shipping Dimensions (L x W x H): 51 x 45 x 64"
-
Warranty: 2 Year
-
Made in USA: Yes
-
Manual: PDF available
